PRECAUTIONS
SRS-3
C
D
E
F
G
I
J
K
L
M
A
B
SRS
2005 Pathfinder
PRECAUTIONS
PFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EHS0012C
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:
●
To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
●
Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
●
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions for SRS “AIR BAG” and “SEAT BELT PRE-TENSIONER” Service
EHS0012D
●
Do not use electrical test equipment to check SRS circuits unless instructed to in this Service Manual.
●
Before servicing the SRS, turn ignition switch OFF, disconnect both battery cables and wait at least 3 min-
utes.
For approximately 3 minutes after the cables are removed, it is still possible for the air bag and seat belt
pre-tensioner to deploy. Therefore, do not work on any SRS connectors or wires until at least 3 minutes
have passed.
●
The air bag diagnosis sensor unit must always be installed with the arrow mark “
⇐
” pointing toward the
front of the vehicle for proper operation. Also check the air bag diagnosis sensor unit for cracks, deformi-
ties or rust before installation and replace as required.
●
The spiral cable must be aligned with the neutral position since its rotations are limited. Do not attempt to
turn steering wheel or column after removal of steering gear.
●
Handle air bag module carefully. Always place driver and front passenger air bag modules with the pad
side facing upward and seat mounted front side air bag module standing with the stud bolt side facing
down.
●
Conduct self-diagnosis to check entire SRS for proper function after replacing any components.
●
After air bag inflates, the front instrument panel assembly should be replaced if damaged.

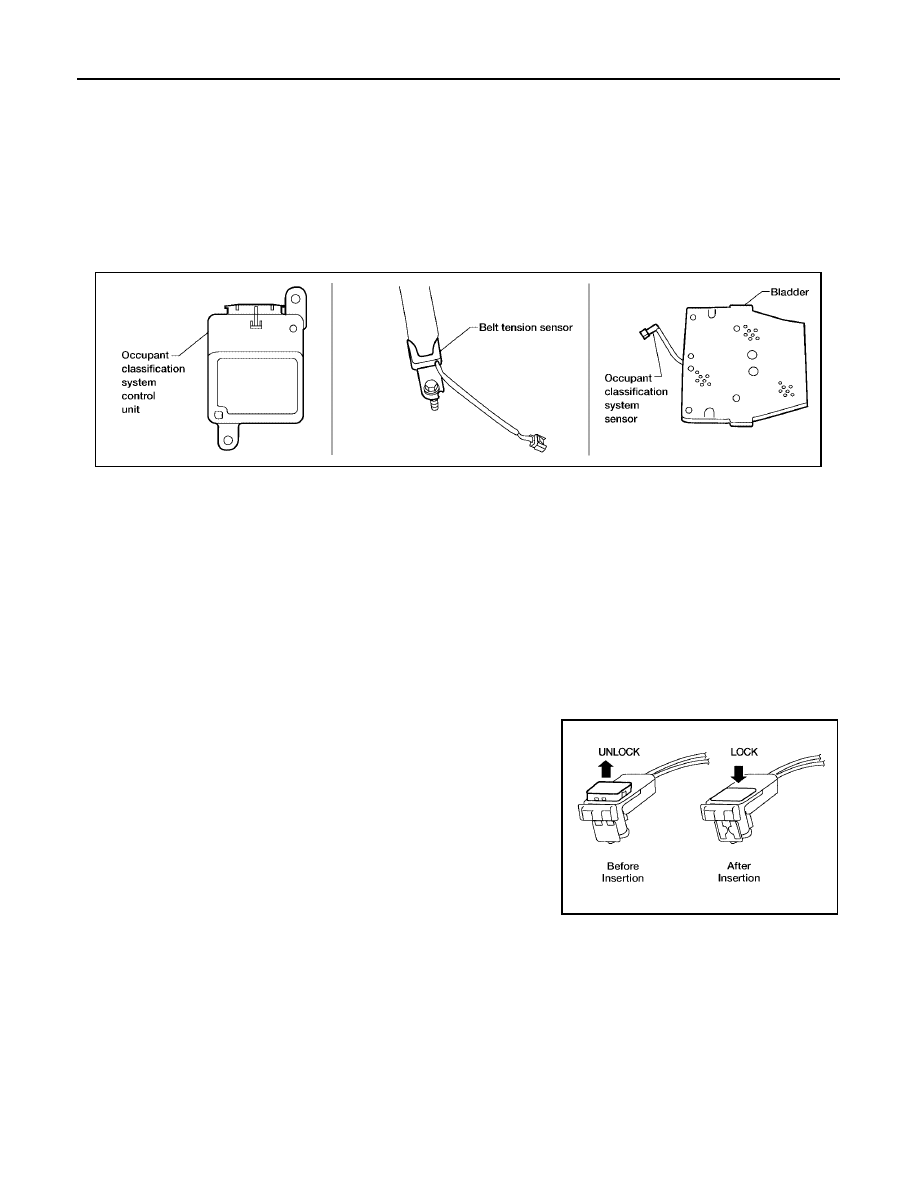

Occupant Classification System Precaution
EHS0012E
●
Replace control unit and passenger front seat cushion as an assembly.
Trouble Diagnosis Precaution
EHS0012F
When you read wiring diagrams, refer to the following:
●
GI-15, "How to Read Wiring Diagrams"
in GI section
●
PG-4, "POWER SUPPLY ROUTING CIRCUIT"
in PG section

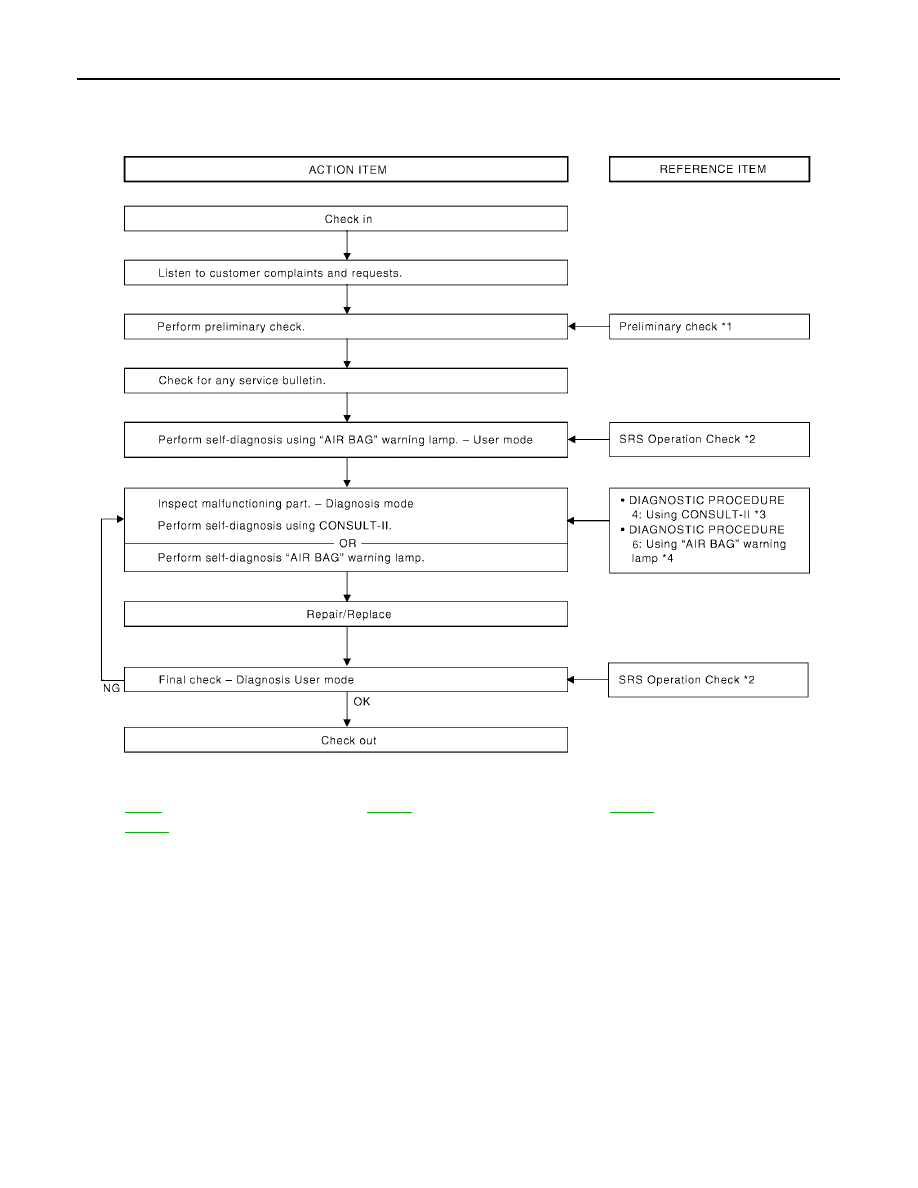

When you perform trouble diagnosis, refer to the following:
●
GI-11, "HOW TO FOLLOW TEST GROUPS IN TROUBLE DIAGNOSES"
in GI section
●
GI-27, "How to Perform Efficient Diagnosis for an Electrical Incident"
in GI section
Check for any service bulletins before servicing the vehicle.
