TROUBLE DIAGNOSIS SRS-35 C D E F G I J K L M A B SRS

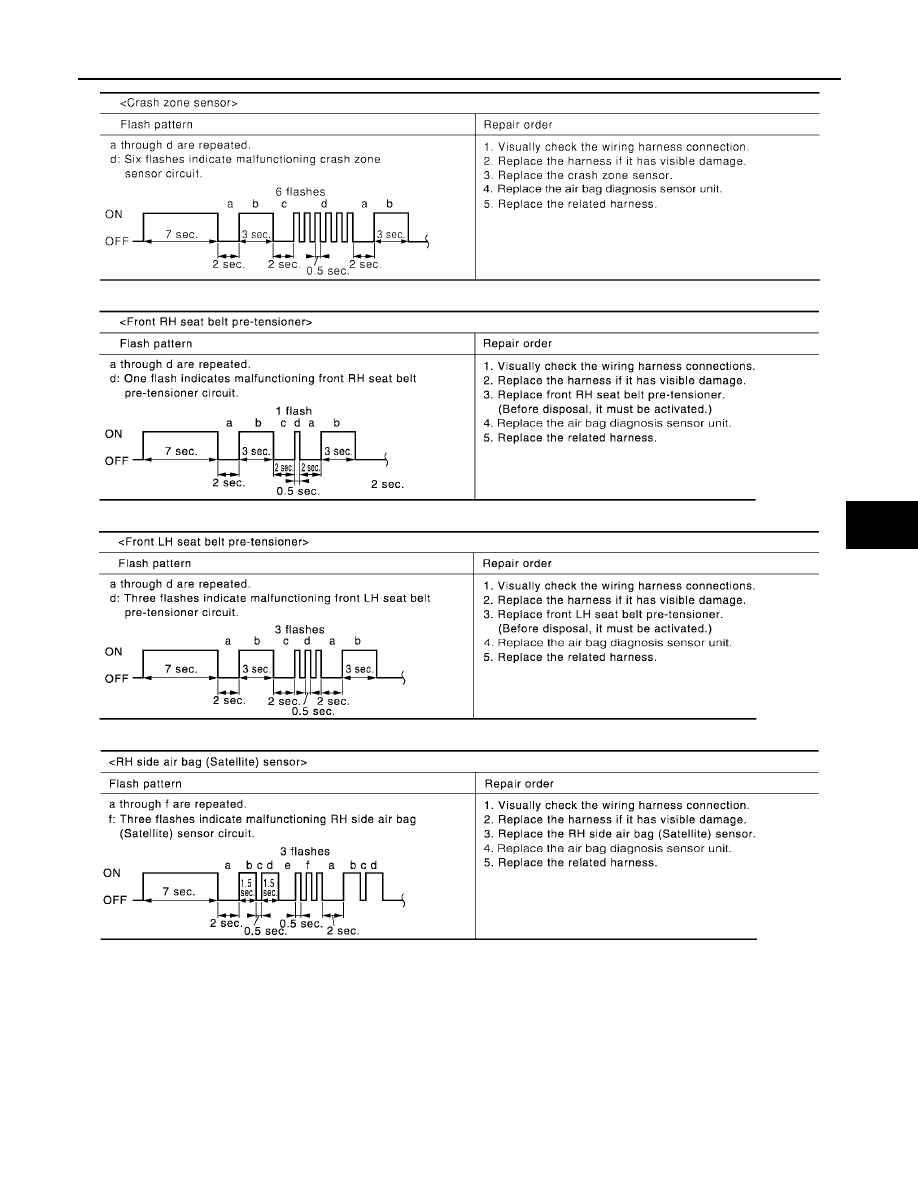

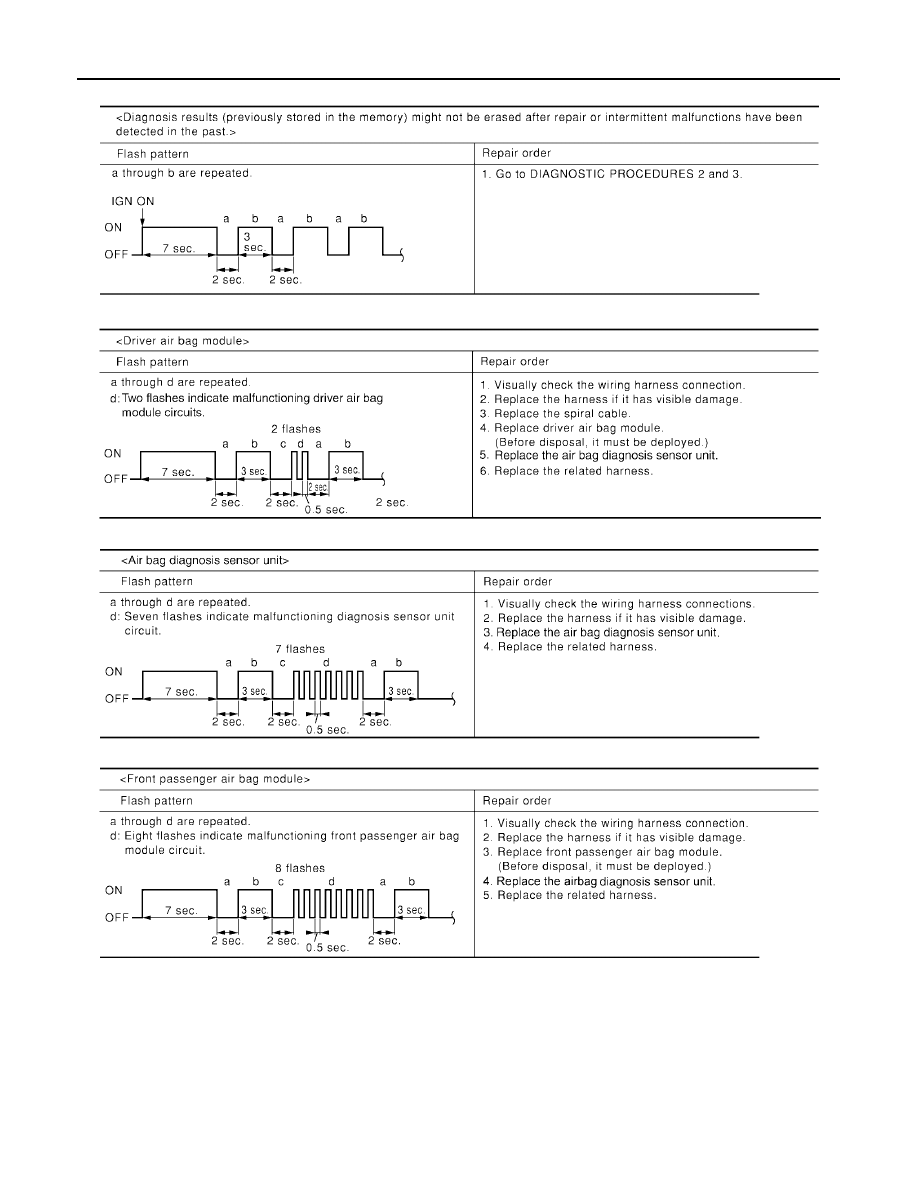

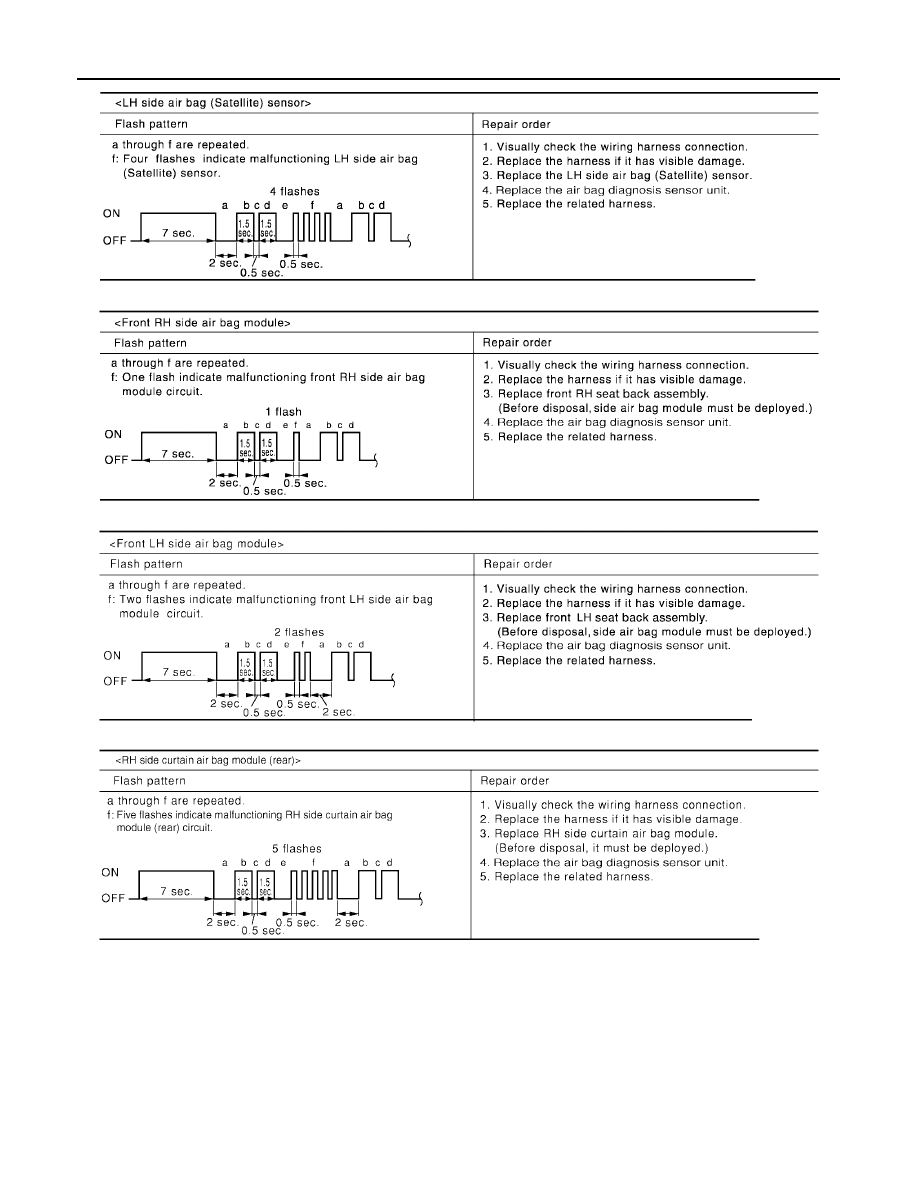

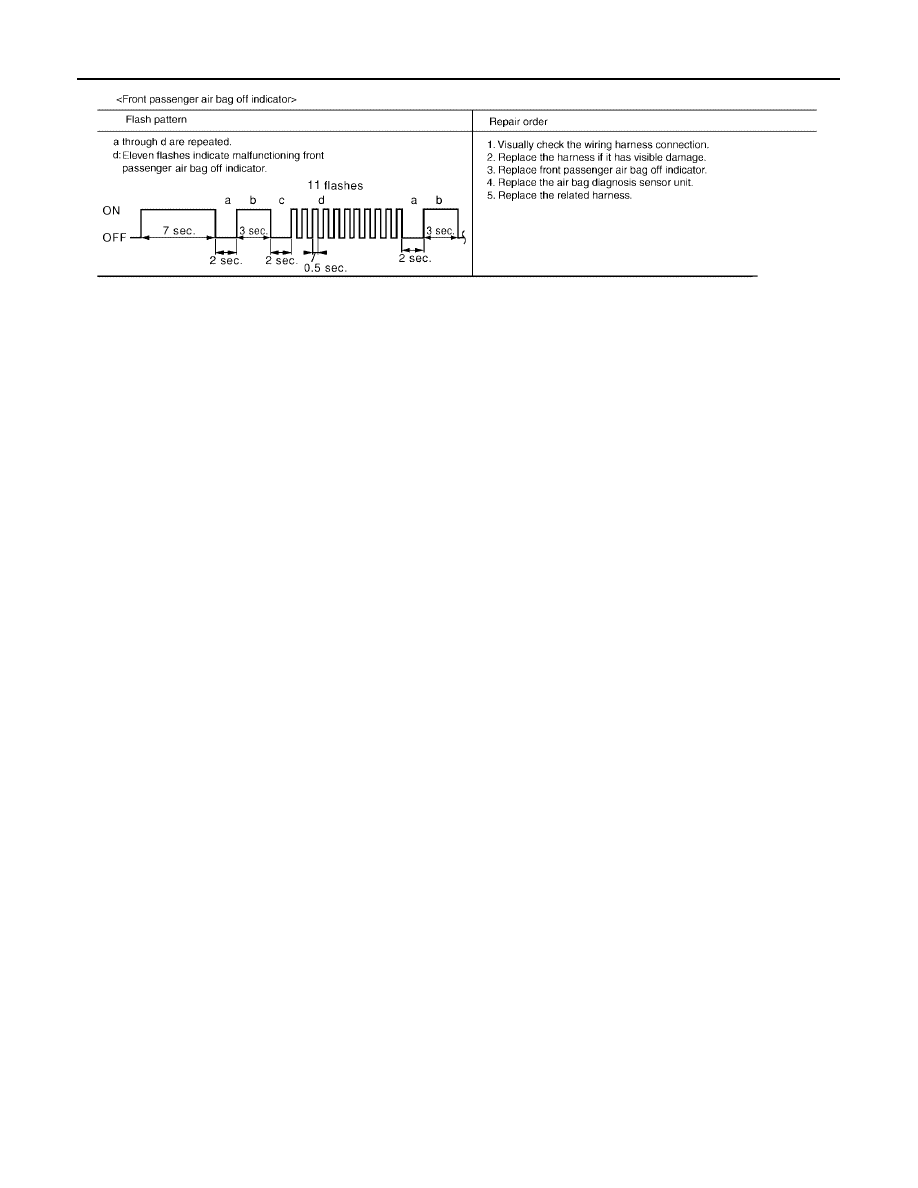

2005 Pathfinder PRE-TEN FRONT RH [OPEN] ● The circuit for front RH seat belt pre-tensioner is open. 1. Visually check the wiring harness connections. 2. Replace the harness if it has visible damage. 3. Replace front RH seat belt pre-ten- sioner. 4. Replace the air bag diagnosis sen- sor unit. 5. Replace the related harness. PRE-TEN FRONT RH [VB-SHORT] [B1082] ● The circuit for front RH seat belt pre-tensioner is shorted to PRE-TEN FRONT RH [GND-SHORT] [B1083] ● The circuit for front RH seat belt pre-tensioner is shorted to PRE-TEN FRONT RH [SHORT] [B1084] ● The circuits for the front RH seat belt pre-tensioner are FR CURTN MODULE LH [OPEN] ● The circuit for LH side front curtain air bag module is open. 1. Visually check the wiring harness connection. 2. Replace the harness if it has visible damage. 3. Replace LH side curtain air bag module. 4. Replace the air bag diagnosis sen- sor unit. 5. Replace the related harness. FR CURTN MODULE LH [VB-SHORT] [B1199] ● The circuit for LH side front curtain air bag module is FR CURTN MODULE LH [GND-SHORT] [B1200] ● The circuit for LH side front curtain air bag module is FR CURTN MODULE LH [SHORT] [B1201] ● The circuits for the LH side front curtain air bag module are FR CURTN MODULE RH [OPEN] ● The circuit for RH side front curtain air bag module is open. 1. Visually check the wiring harness connection. 2. Replace the harness if it has visible damage. 3. Replace RH side curtain air bag module. 4. Replace the air bag diagnosis sen- sor unit. 5. Replace the related harness. FR CURTN MODULE RH [VB-SHORT] [B1194] ● The circuit for RH side front curtain air bag module is FR CURTN MODULE RH [GND-SHORT] [B1195] ● The circuit for RH side front curtain air bag module is FR CURTN MODULE RH [SHORT] [B1196] ● The circuits for the RH side front curtain air bag module are CURTAIN MODULE LH [OPEN] ● The circuit for LH side rear curtain air bag module is open. 1. Visually check the wiring harness connection. 2. Replace the harness if it has visible damage. 3. Replace LH side curtain air bag module. 4. Replace the air bag diagnosis sen- sor unit. 5. Replace the related harness. CURTAIN MODULE LH [VB-SHORT] [B1151] ● The circuit for LH side rear curtain air bag module is CURTAIN MODULE LH [GND-SHORT] [B1152] ● The circuit for LH side rear curtain air bag module is CURTAIN MODULE LH [SHORT] [B1153] ● The circuits for the LH side rear curtain air bag module are Diagnostic item Explanation Repair order Recheck SRS at each replacement |
