Nissan Pathfinder (2005 year). Manual - part 359





TROUBLE DIAGNOSIS

MTC-63

C

D

E

F

G

H

I

K

L

M

A

B

MTC

2005 Pathfinder

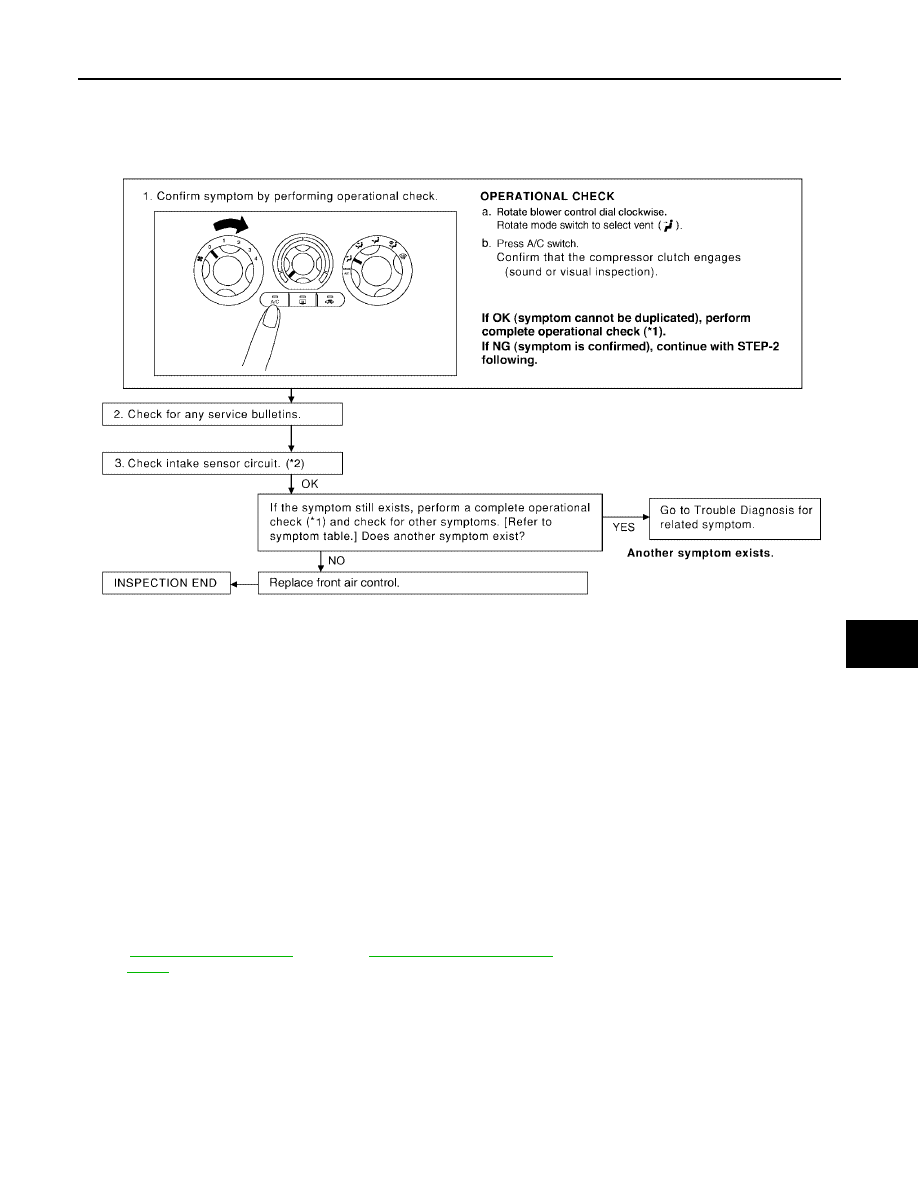

Magnet Clutch Circuit

EJS003VK

SYMPTOM: Magnet clutch does not engage.

INSPECTION FLOW

*1

.

ATC-52, "Operational Check

(Front)"

.

*2

ATC-122, "Intake Sensor Circuit"

.

.

WJIA1336E

MTC-64

TROUBLE DIAGNOSIS

2005 Pathfinder

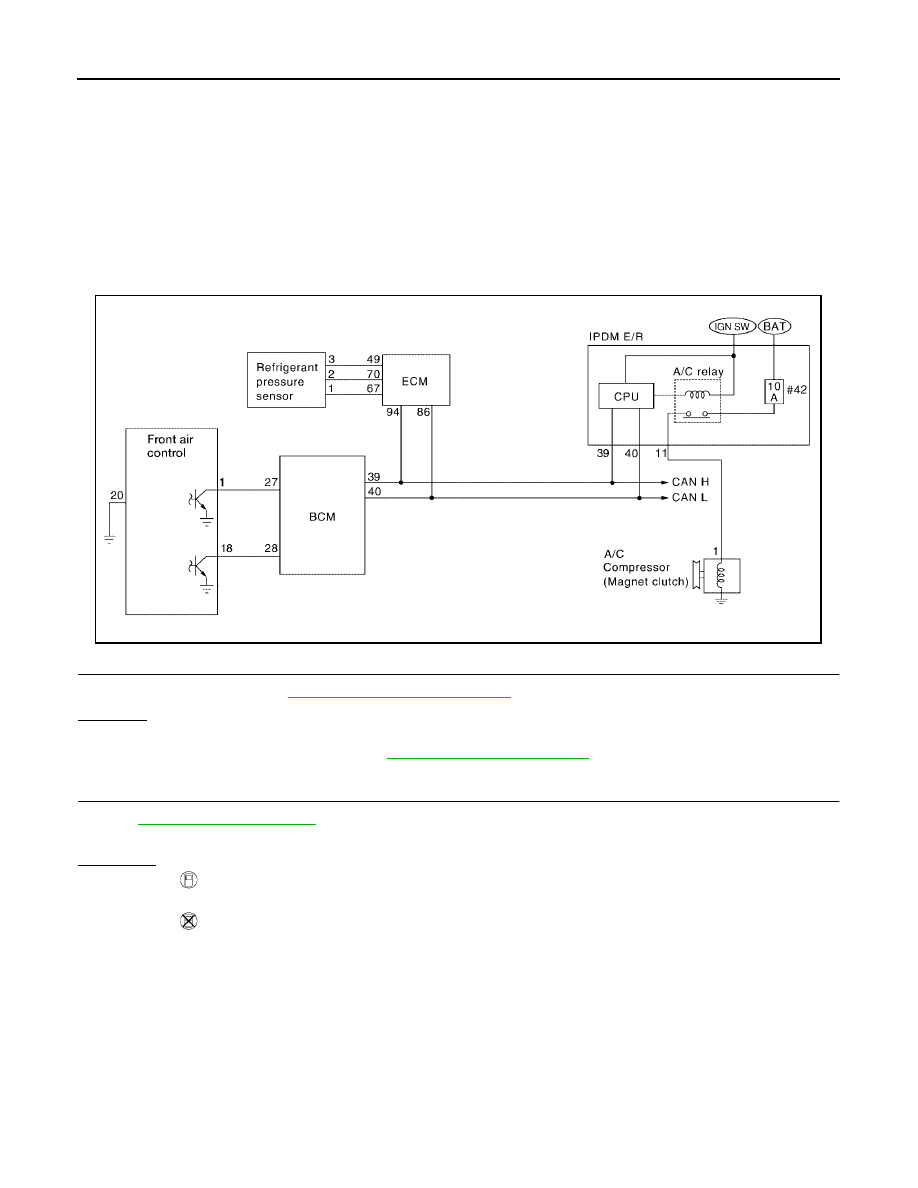

SYSTEM DESCRIPTION

The front air control controls compressor operation based on ambient and intake temperature and a signal
from ECM.

Low Temperature Protection Control

The front air control will turn the compressor ON or OFF as determined by a signal detected by the intake sen-
sor and the ambient sensor.
When intake air temperature is higher than 3.5

°

C (38.3

°

F), the compressor turns ON. The compressor turns

OFF when intake air temperature is lower than 25

°

C (36.5

°

F).

DIAGNOSTIC PROCEDURE FOR MAGNET CLUTCH

SYMPTOM: Magnet clutch does not engage when A/C switch is ON.

1.

CHECK INTAKE SENSOR CIRCUITS

Check intake sensor. Refer to

MTC-79, "Intake Sensor Circuit"

.

OK or NG

OK

>> GO TO 2.

NG

>> Replace intake sensor. Refer to

MTC-82, "INTAKE SENSOR"

.

2.

PERFORM AUTO ACTIVE TEST

Refer to

PG-22, "Auto Active Test"

.

Does magnet clutch operate?

YES or NO

YES

>>

WITH CONSULT-II

GO TO 5.

WITHOUT CONSULT-II

GO TO 6.

NO

>> Check 10A fuse (No. 42, located in IPDM E/R), and GO TO 3.

WJIA1337E

TROUBLE DIAGNOSIS

MTC-65

C

D

E

F

G

H

I

K

L

M

A

B

MTC

2005 Pathfinder

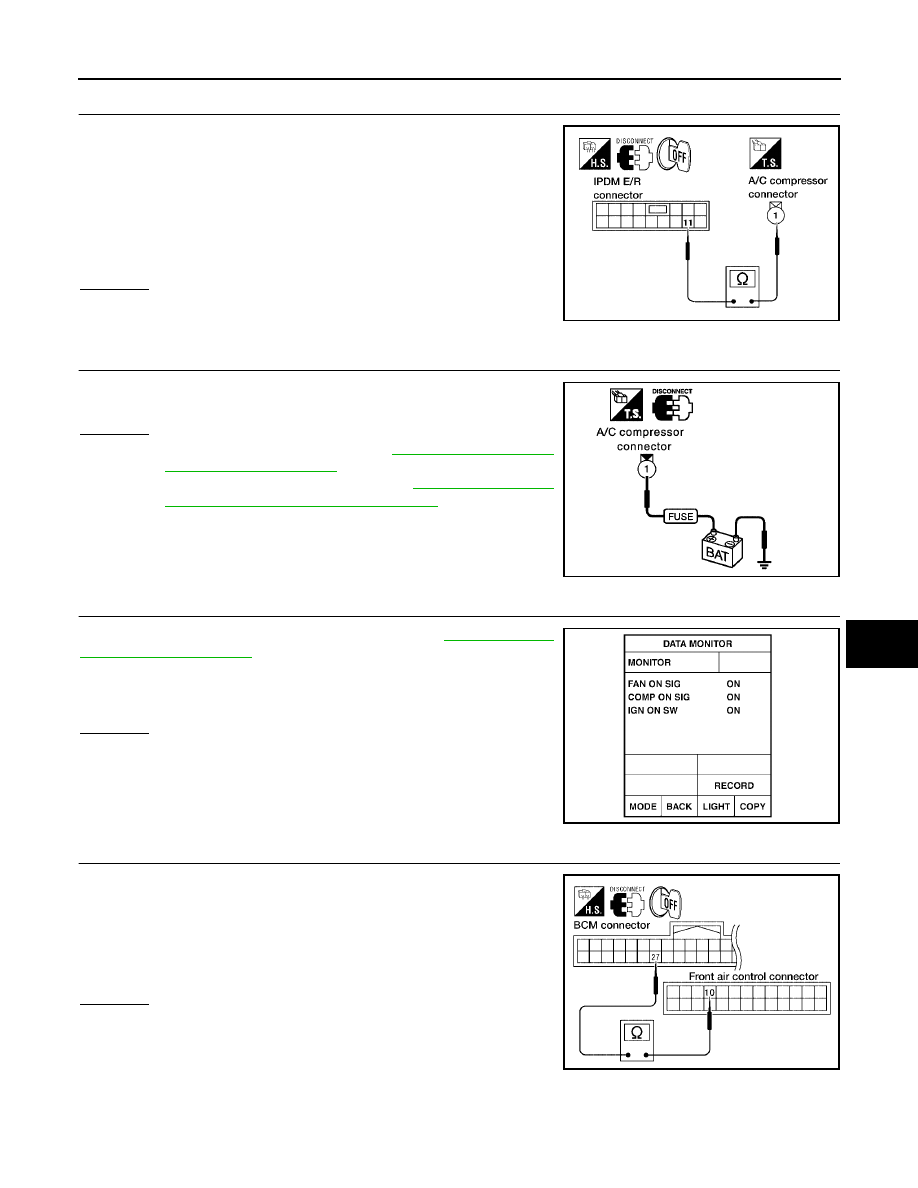

3.

CHECK CIRCUIT CONTINUITY BETWEEN IPDM E/R AND COMPRESSOR

1.

Turn ignition switch OFF.

2.

Disconnect IPDM E/R connector and A/C compressor (magnet
clutch) connector.

3.

Check continuity between IPDM E/R harness connector E119
terminal 11 and A/C compressor harness connector F3 terminal
1.

OK or NG

OK

>> GO TO 4.

NG

>> Repair harness or connector.

4.

CHECK MAGNET CLUTCH CIRCUIT

Check for operation sound when applying battery voltage direct cur-
rent to terminal.

OK or NG

OK

>> Replace IPDM E/R. Refer to

PG-28, "Removal and

Installation of IPDM E/R"

.

NG

>> Replace magnet clutch. Refer to

ATC-156, "Removal

and Installation for Compressor Clutch"

.

5.

CHECK BCM INPUT (COMPRESSOR ON) SIGNAL

Check A/C compressor ON/OFF signal. Refer to

ATC-33, "CON-

SULT-II Function (BCM)"

.

OK or NG

OK

>> GO TO 8.

NG

>> GO TO 6.

6.

CHECK CIRCUIT CONTINUITY BETWEEN BCM AND FRONT AIR CONTROL

1.

Turn ignition switch OFF.

2.

Disconnect BCM connector and front air control connector.

3.

Check continuity between BCM harness connector M18 terminal
27 and front air control harness connector M49 terminal 10.

OK or NG

OK

>> GO TO 7.

NG

>> Repair harness or connector.

11 – 1

: Continuity should exist.

WJIA1470E

WJIA1472E

A/C SW ON

: COMP ON SIG ON

A/C SW OFF

: COMP ON SIG OFF

WJIA0469E

27 - 10

Continuity should exist.

WJIA1136E

MTC-66

TROUBLE DIAGNOSIS

2005 Pathfinder

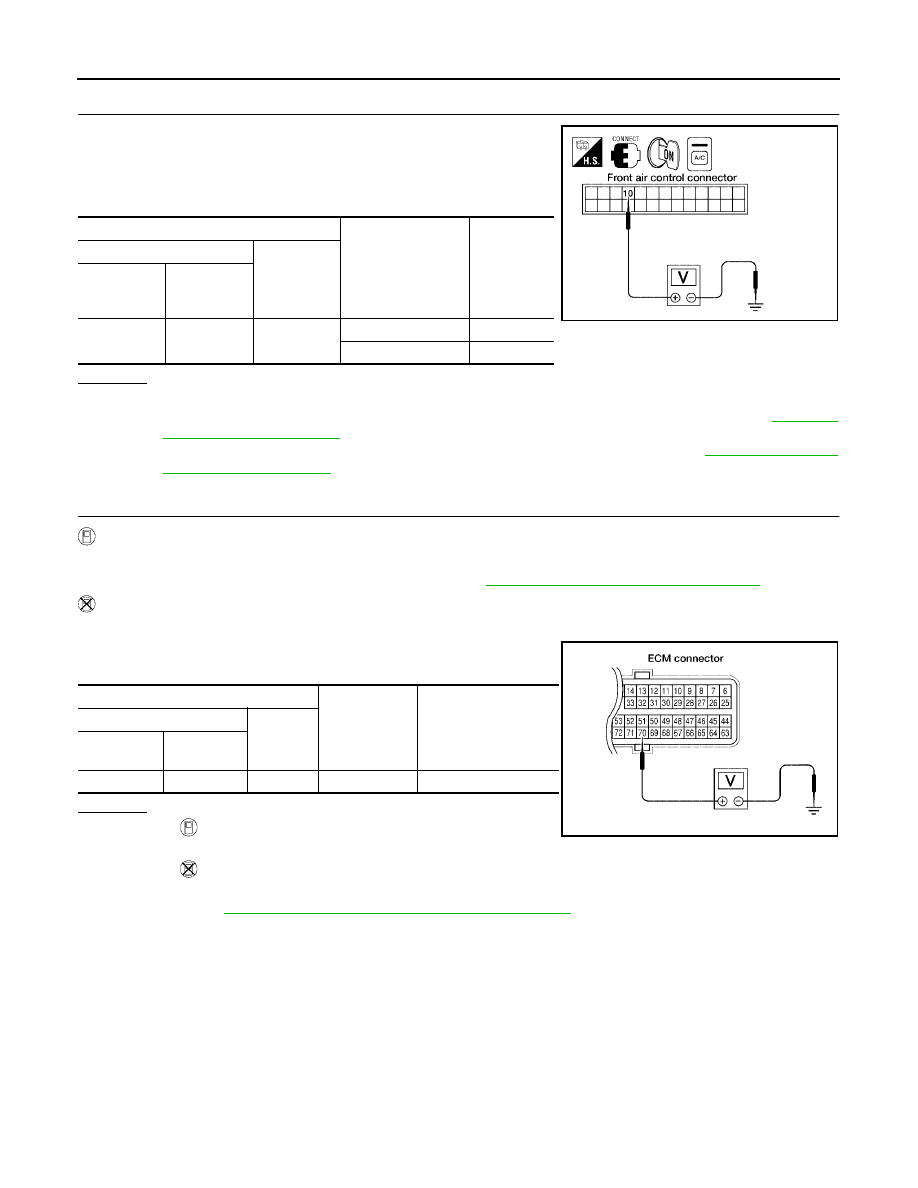

7.

CHECK VOLTAGE FOR FRONT AIR CONTROL (COMPRESSOR ON SIGNAL)

1.

Reconnect BCM connector and front air control connector.

2.

Turn ignition switch ON.

3.

Check voltage between front air control harness connector M49
terminal 10 and ground.

OK or NG

OK

>> GO TO 8.

NG-1

>> If the voltage is approx. 5V when A/C switch is ON, replace front air control. Refer to

ATC-124,

"FRONT AIR CONTROL"

.

NG-2

>> If the voltage is approx. 0V when A/C switch is OFF, replace BCM. Refer to

BCS-19, "Removal

and Installation of BCM"

.

8.

CHECK REFRIGERANT PRESSURE SENSOR

WITH CONSULT-II

1.

Start engine.

2.

Check voltage of refrigerant pressure sensor. Refer to

ATC-33, "CONSULT-II Function (BCM)"

.

WITHOUT CONSULT-II

1.

Start engine.

2.

Check voltage between ECM harness connector F54 terminal
70 and ground.

OK or NG

OK

>>

WITH CONSULT-II

GO TO 9.

WITHOUT CONSULT-II

GO TO 10.

NG

>> Refer to

EC-691, "REFRIGERANT PRESSURE SENSOR"

.

Terminals

Condition

Voltage

(Approx.)

(+)

(-)

Front air

control con-

nector

Terminal No.

M49

10

Ground

A/C switch: ON

0V

A/C switch: OFF

5V

WJIA1137E

Terminals

Condition

Voltage

(Approx.)

(+)

(-)

ECM con-

nector

Terminal No.

F54

70

Ground

A/C switch: ON

0.36 - 3.88V

LJIA0124E

TROUBLE DIAGNOSIS

MTC-67

C

D

E

F

G

H

I

K

L

M

A

B

MTC

2005 Pathfinder

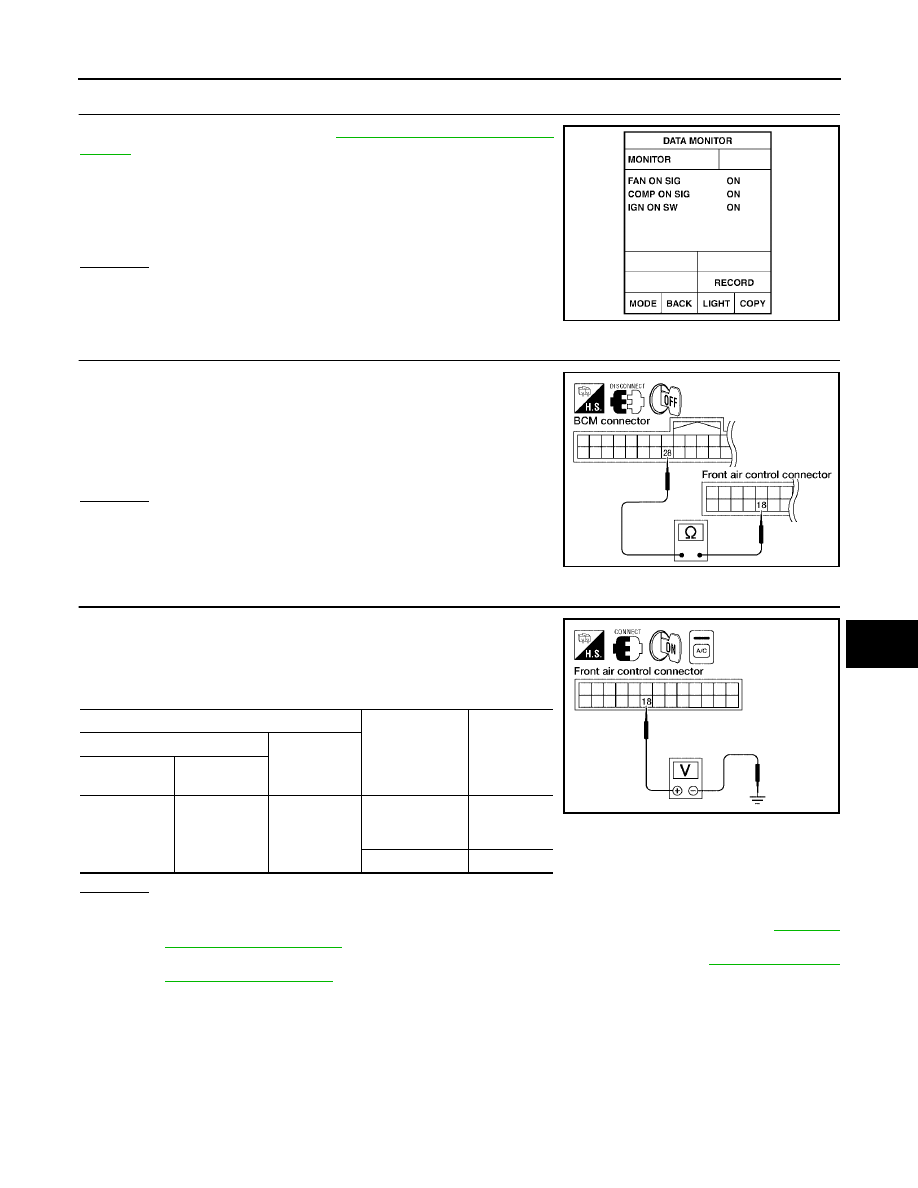

9.

CHECK BCM INPUT (FAN ON) SIGNAL

Check FAN ON/OFF signal. Refer to

ATC-33, "CONSULT-II Function

(BCM)"

.

OK or NG

OK

>> GO TO 12.

NG

>> GO TO 10.

10.

CHECK CIRCUIT CONTINUITY BETWEEN BCM AND FRONT AIR CONTROL

1.

Turn ignition switch OFF.

2.

Disconnect BCM connector and front air control connector.

3.

Check continuity between BCM harness connector M18 terminal
28 and front air control harness connector M49 terminal 18.

OK or NG

OK

>> GO TO 11.

NG

>> Repair harness or connector.

11.

CHECK VOLTAGE FOR FRONT AIR CONTROL (FAN ON SIGNAL)

1.

Reconnect BCM connector and front air control connector.

2.

Turn ignition switch ON.

3.

Check voltage between front air control harness connector M49
terminal 18 and ground.

OK or NG

OK

>> GO TO 12.

NG-1

>> If the voltage is approx. 5V when blower motor is ON, replace front air control. Refer to

ATC-124,

"FRONT AIR CONTROL"

.

NG-2

>> If the voltage is approx. 0V when blower motor is OFF, replace BCM. Refer to

BCS-19, "Removal

and Installation of BCM"

.

FRONT BLOWER CONTROL
DIAL ON

: FAN ON SIG ON

FRONT BLOWER CONTROL
DIAL OFF

: FAN ON SIG OFF

WJIA0469E

28 - 18

Continuity should exist.

WJIA1338E

Terminals

Condition

Voltage

(Approx.)

(+)

(-)

Front air con-

trol connector

Terminal No.

M49

18

Ground

A/C switch: ON
Blower motor
operates

0V

A/C switch: OFF

5V

WJIA1339E

MTC-68

TROUBLE DIAGNOSIS

2005 Pathfinder

12.

CHECK CAN COMMUNICATION

Check CAN communication. Refer to

ATC-32, "CAN Communication System Description"

.

BCM – ECM

ECM – IPDM E/R

OK or NG

OK

>> Inspection End.

NG

>> Repair or replace malfunctioning part(s).

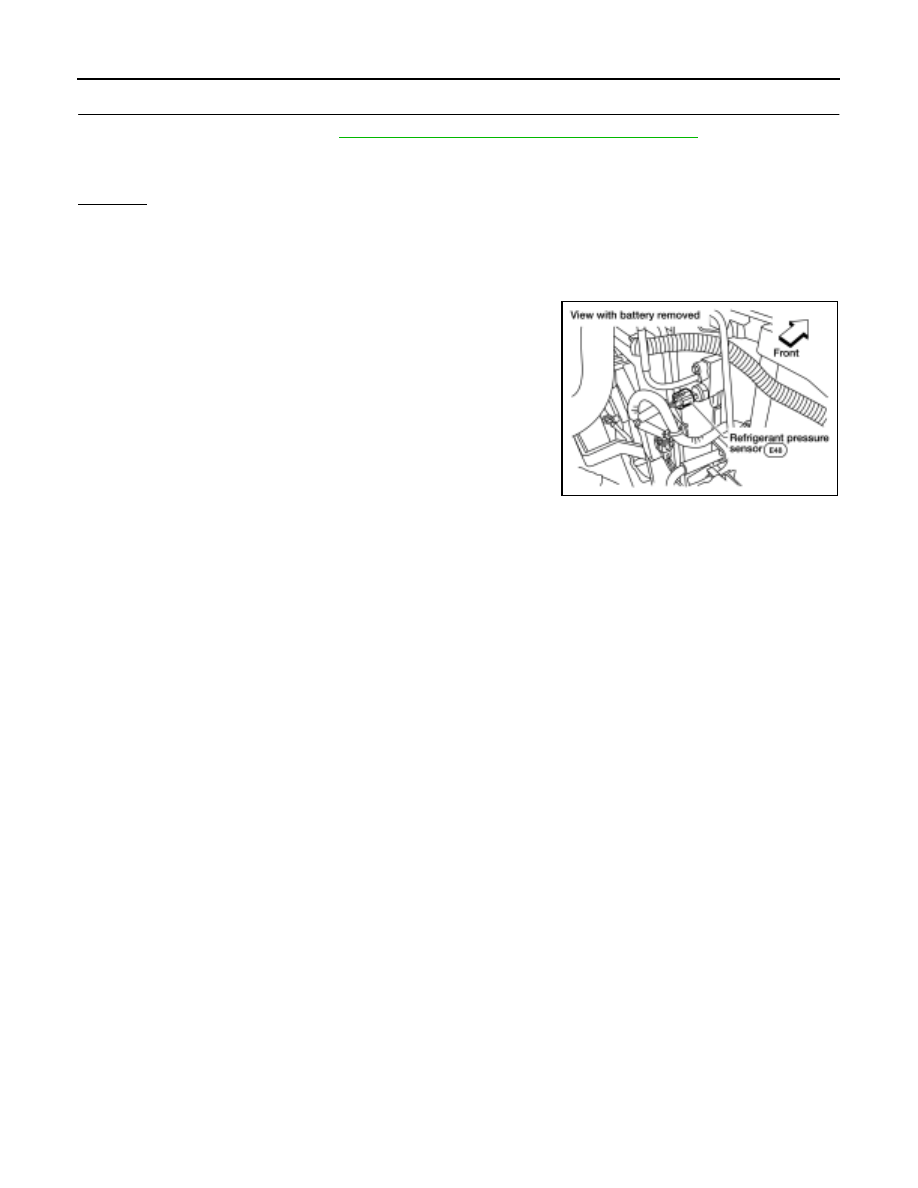

COMPONENT INSPECTION
Refrigerant Pressure Sensor

The refrigerant pressure sensor is attached to the condenser.

WJIA1140E

TROUBLE DIAGNOSIS

MTC-69

C

D

E

F

G

H

I

K

L

M

A

B

MTC

2005 Pathfinder

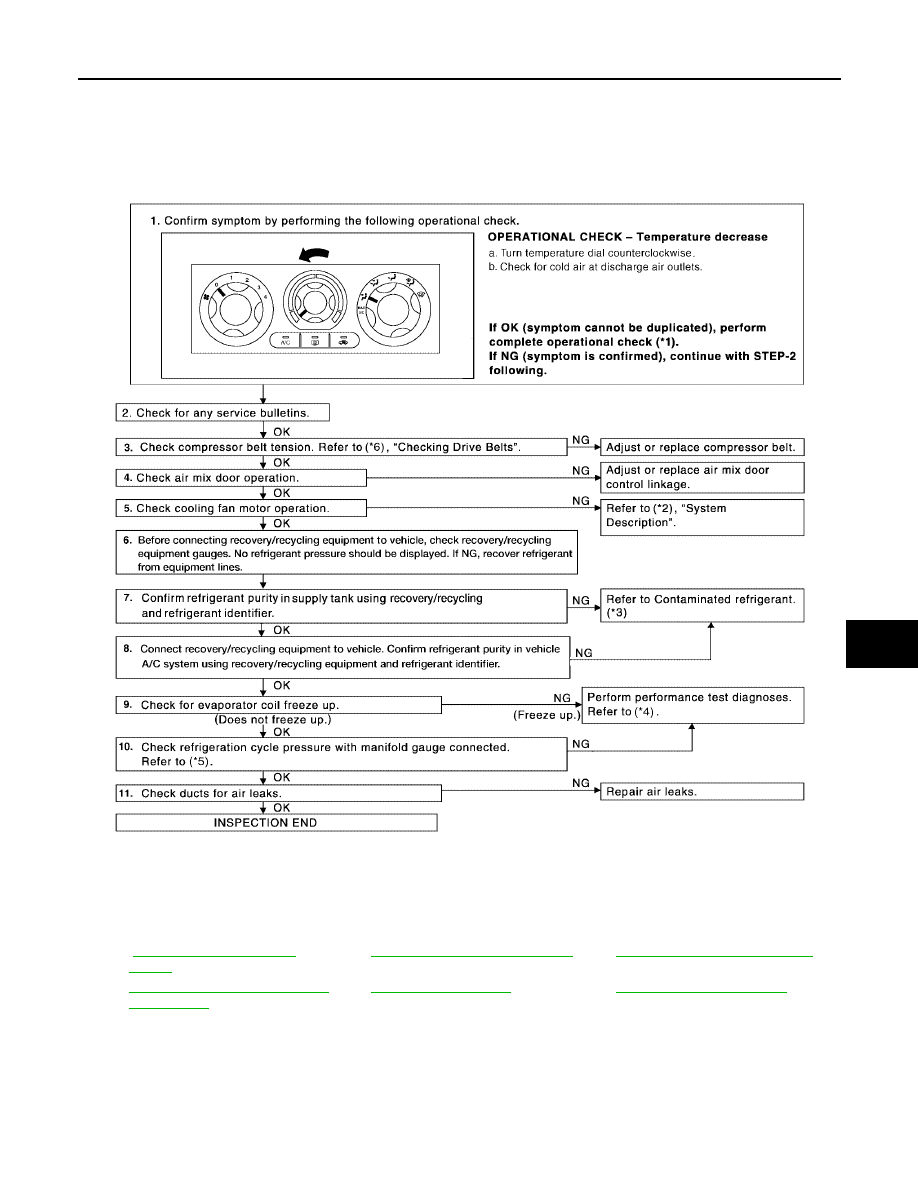

Insufficient Cooling

EJS003VL

SYMPTOM: Insufficient cooling

INSPECTION FLOW

*1

.

ATC-52, "Operational Check

(Front)"

.

*2

EC-463, "SYSTEM DESCRIPTION"

*3

ATC-5, "Contaminated Refrigerant"

.

*4

ATC-103, "PERFORMANCE TEST
DIAGNOSES"

.

*5

ATC-105, "Test Reading"

.

*6

MA-13, "Checking Drive Belts"

WJIA1340E

MTC-70

TROUBLE DIAGNOSIS

2005 Pathfinder

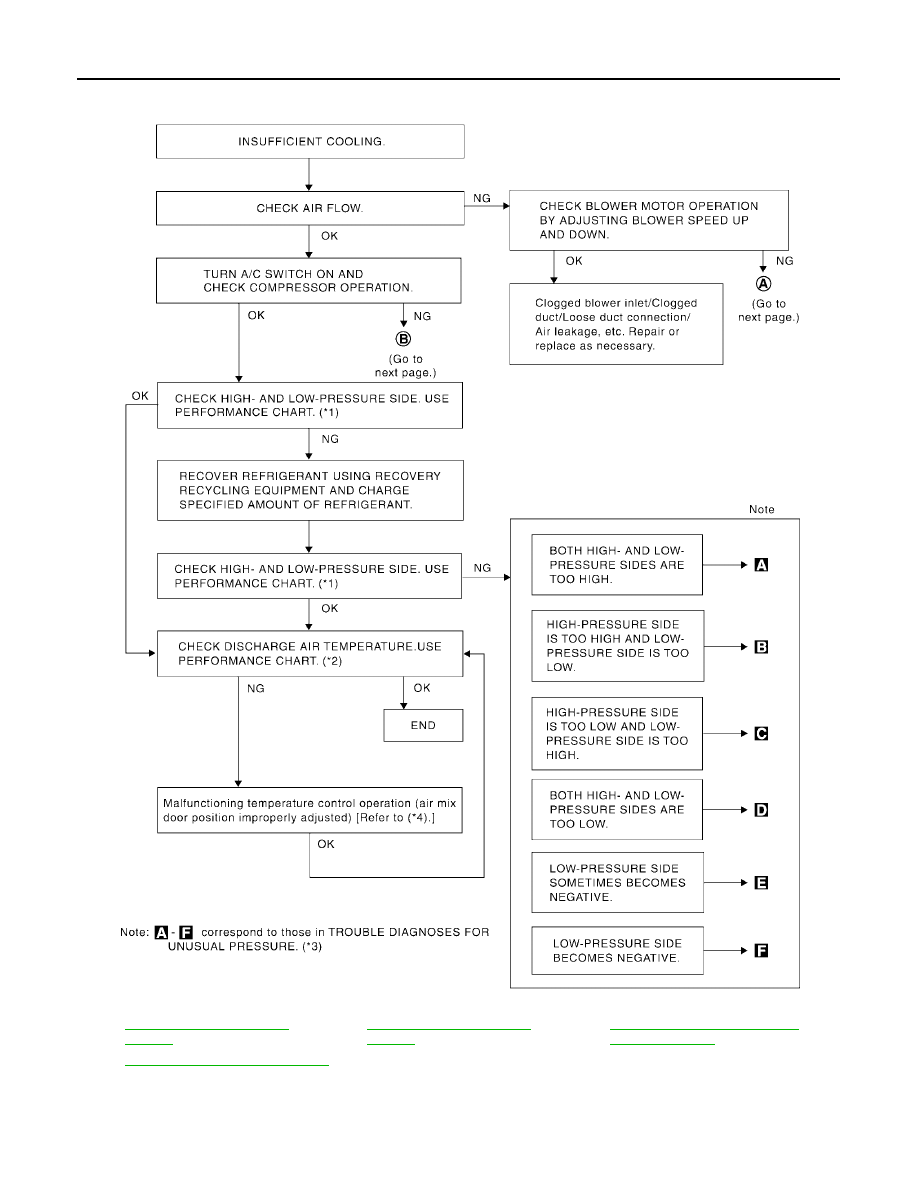

PERFORMANCE TEST DIAGNOSES

*1

ATC-105, "PERFORMANCE
CHART"

.

*2

ATC-105, "PERFORMANCE
CHART"

.

*3

ATC-106, "Trouble Diagnoses for
Unusual Pressure"

.

*4

ATC-63, "Air Mix Door Motor Circuit"

.

RJIA1601E
