Nissan Pathfinder (2005 year). Manual - part 343

ILLUMINATION

LT-149

2005 Pathfinder

●

to combination meter terminal 3.

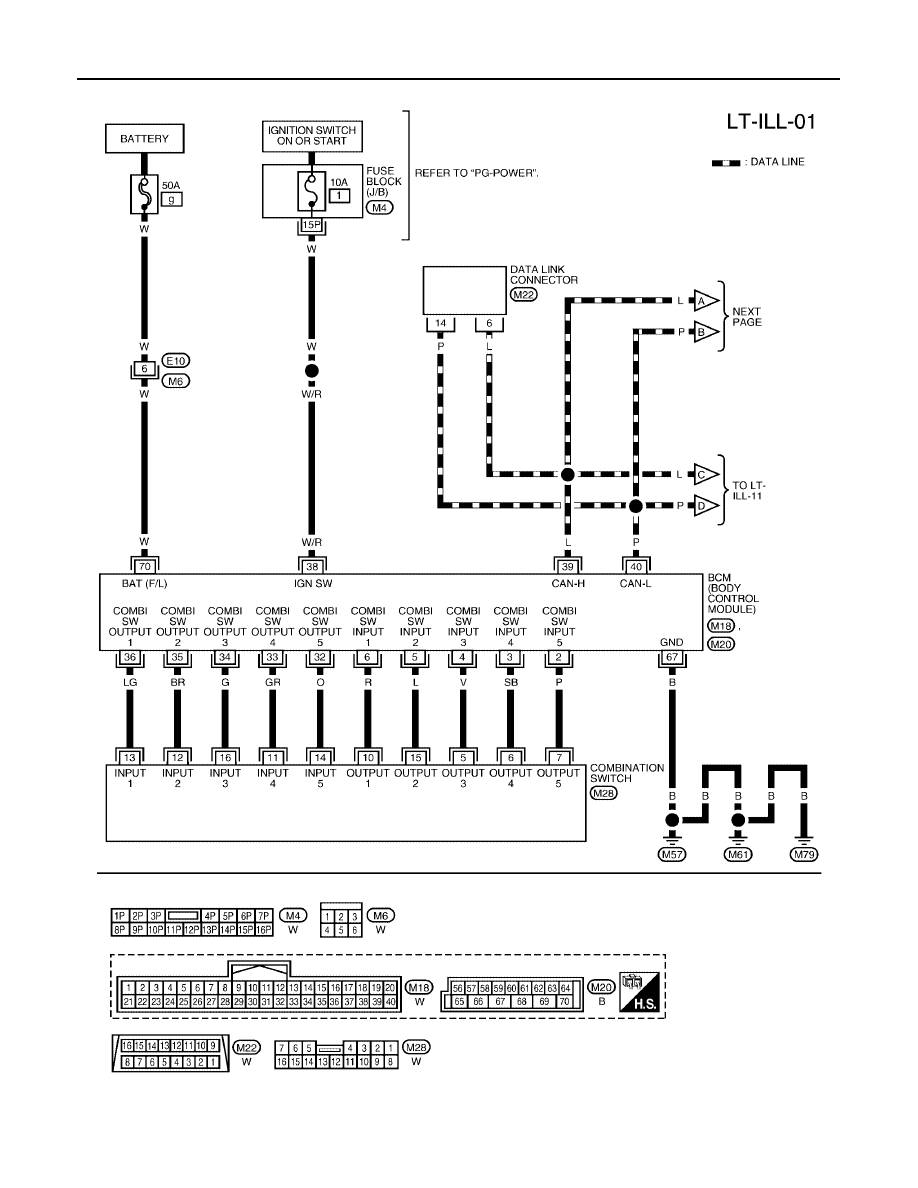

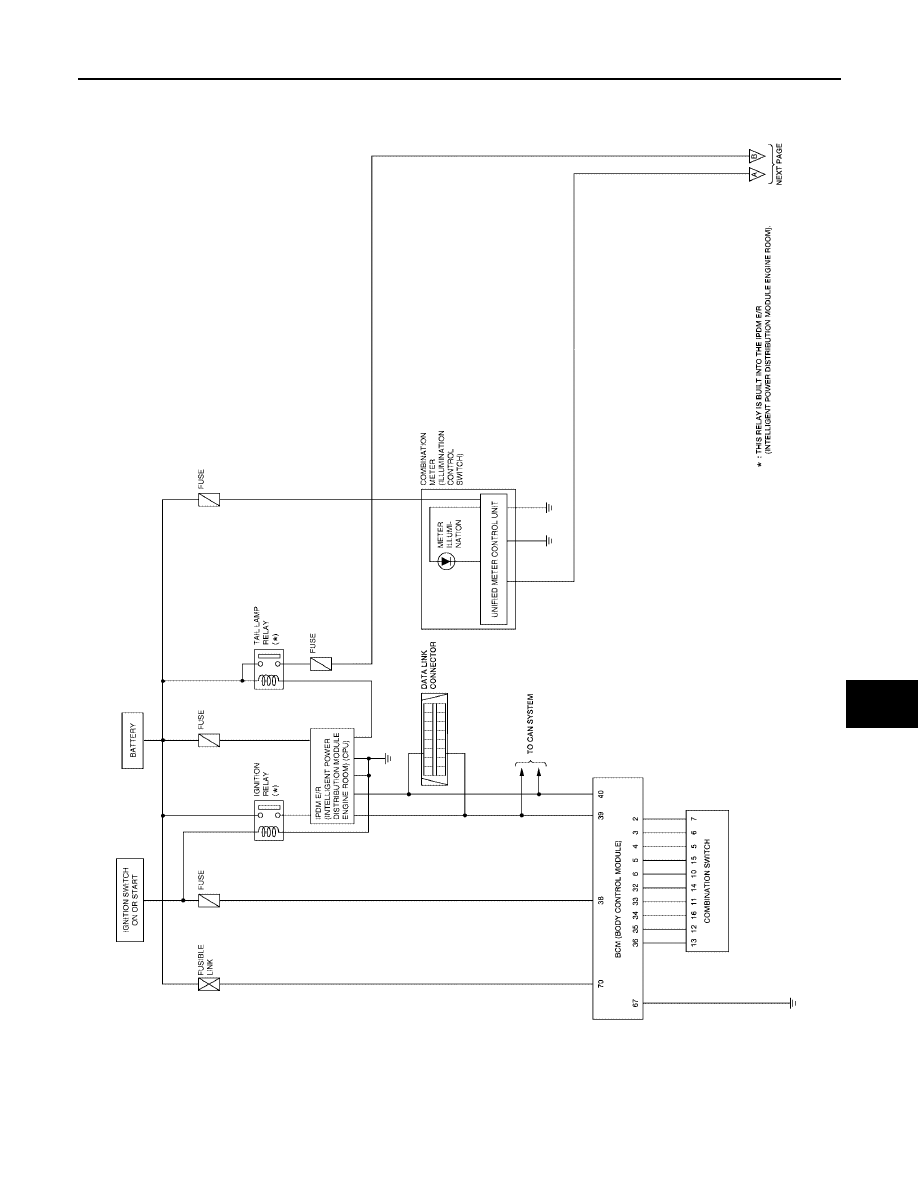

With the ignition switch in the ON or START position, power is supplied

●

to ignition relay, located in the IPDM E/R, and

●

through 10A fuse [No. 1, located in the fuse block (J/B)]

●

to BCM terminal 38.

Ground is supplied

●

to BCM terminal 67 and

●

to combination meter terminals 13 and 23

●

through grounds M57, M61 and M79, and

●

to IPDM E/R terminals 38 and 59

●

through grounds E9, E15 and E24.

ILLUMINATION OPERATION BY LIGHTING SWITCH

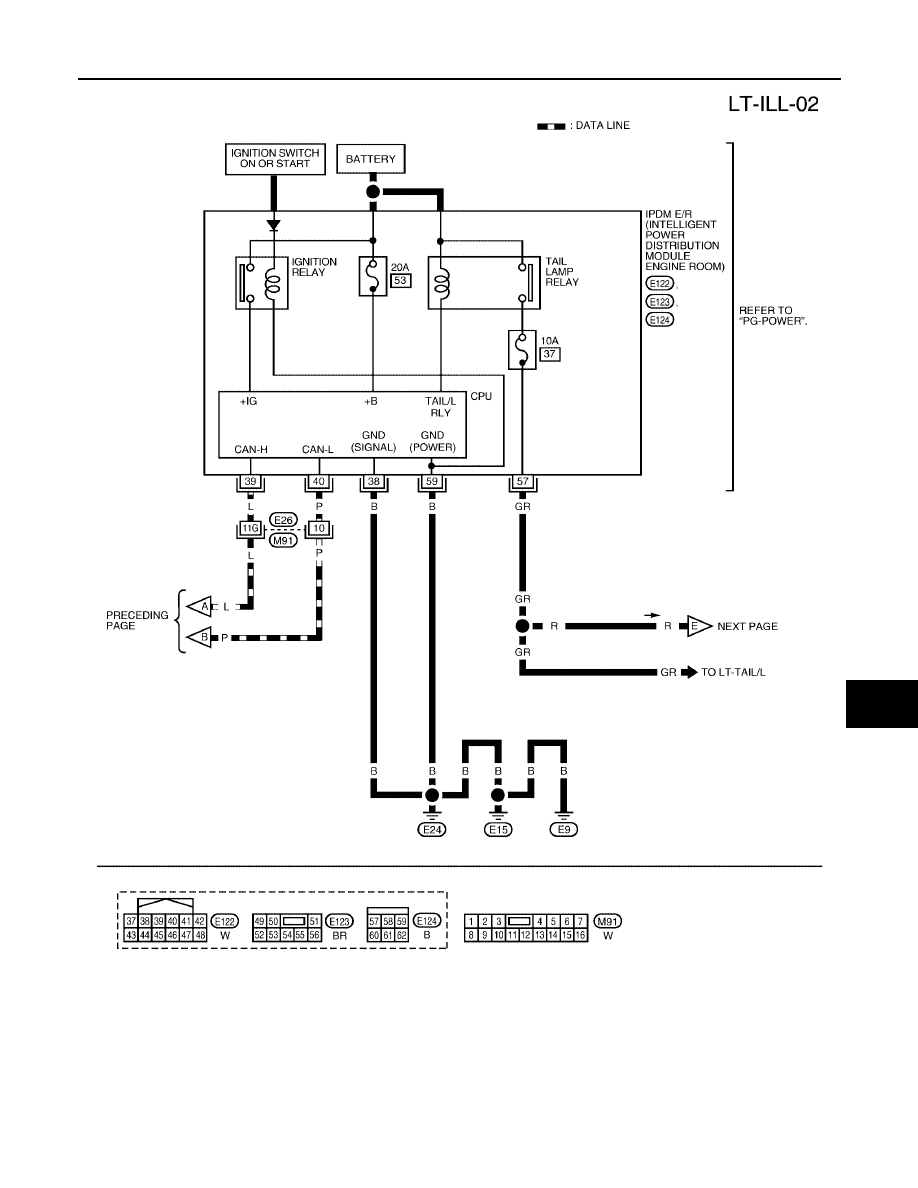

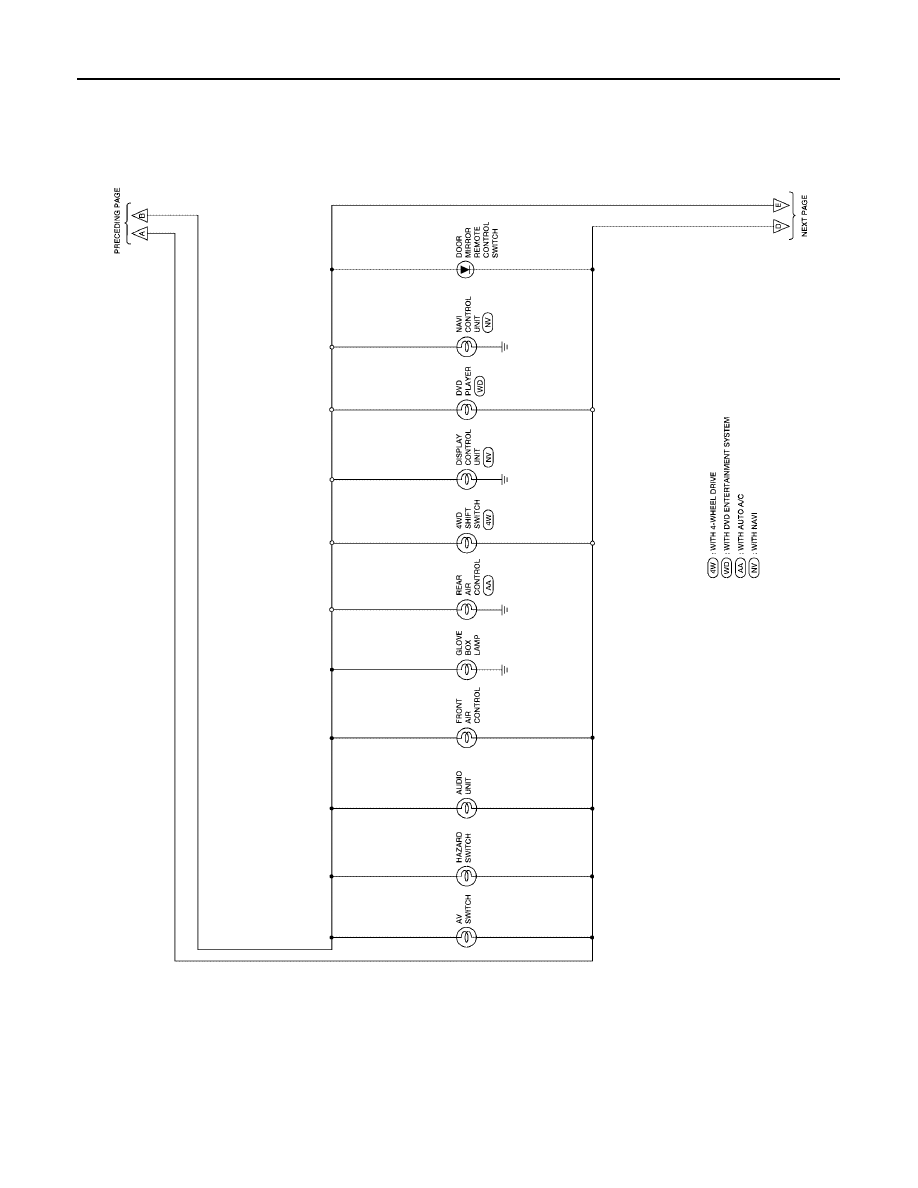

With the lighting switch in the 1ST or 2ND position (or if the auto light system is activated), the BCM receives
input signal requesting the illumination lamps to illuminate. This input signal is communicated to the IPDM E/R
across the CAN communication lines. The CPU of the IPDM E/R controls the tail lamp relay coil, which, when
energized, directs power

●

through 10A fuse (No. 37, located in the IPDM E/R)

●

to IPDM E/R terminal 57

●

to AV switch terminal 3 (with NAVI)

●

to hazard switch terminal 3

●

to audio unit terminal 8

●

to glove box lamp terminal 1

●

to display control unit terminal 14 (with NAVI)

●

to 4WD shift switch terminal 7 (with 4-wheel drive)

●

to front air control terminal 8

●

to DVD player terminal 12 (with DVD entertainment system)

●

to NAVI control unit terminal 25 (with NAVI)

●

to rear air control terminal 1 (with auto A/C)

●

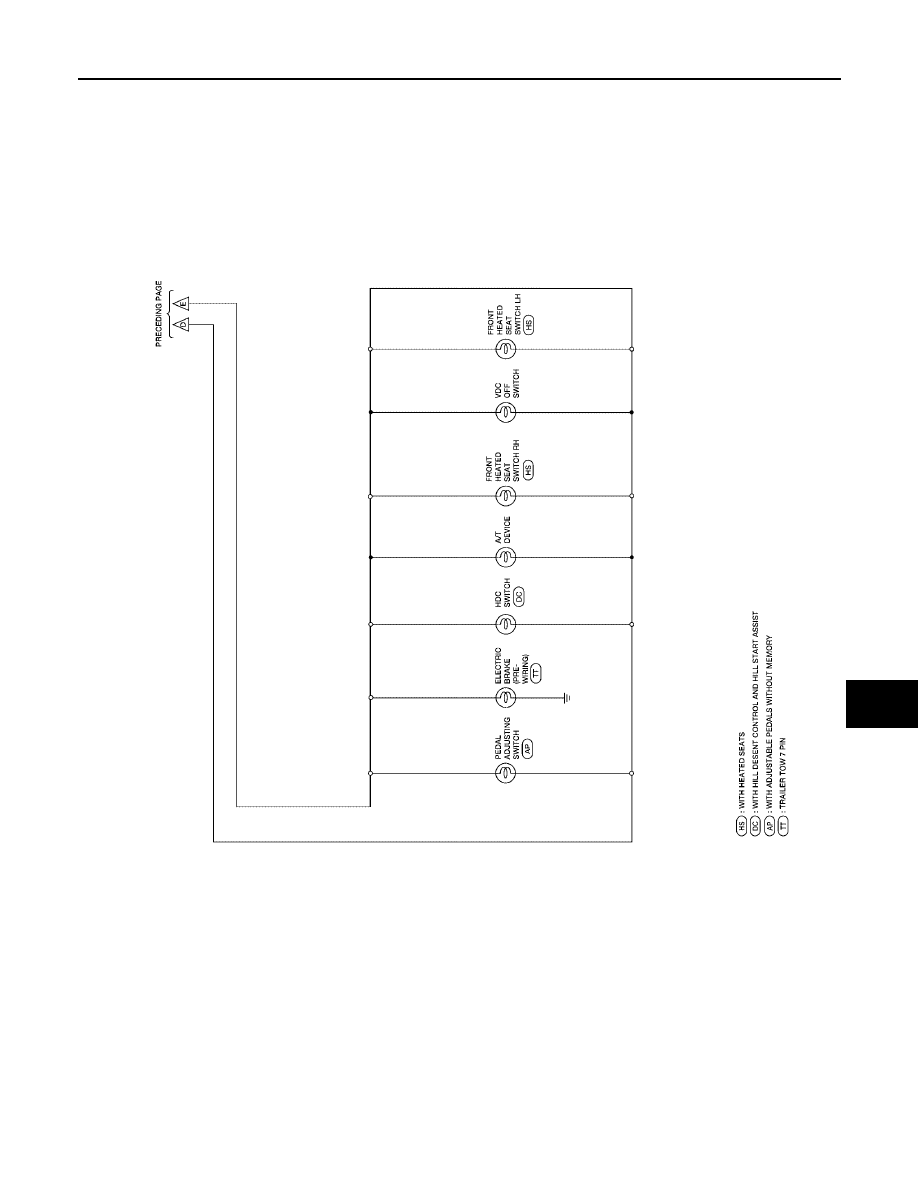

to pedal adjusting switch terminal 5 (with adjustable pedals without memory)

●

to door mirror remote control switch terminal 16

●

to electric brake (pre-wiring) terminal 4 (with trailer tow 7 pin)

●

to A/T device terminal 3

●

to front heated seat switch LH and RH terminal 5 (with heated seats)

●

to VDC OFF switch terminal 3 and

●

to HDC switch terminal 5 (with hill descent control and hill start assist).

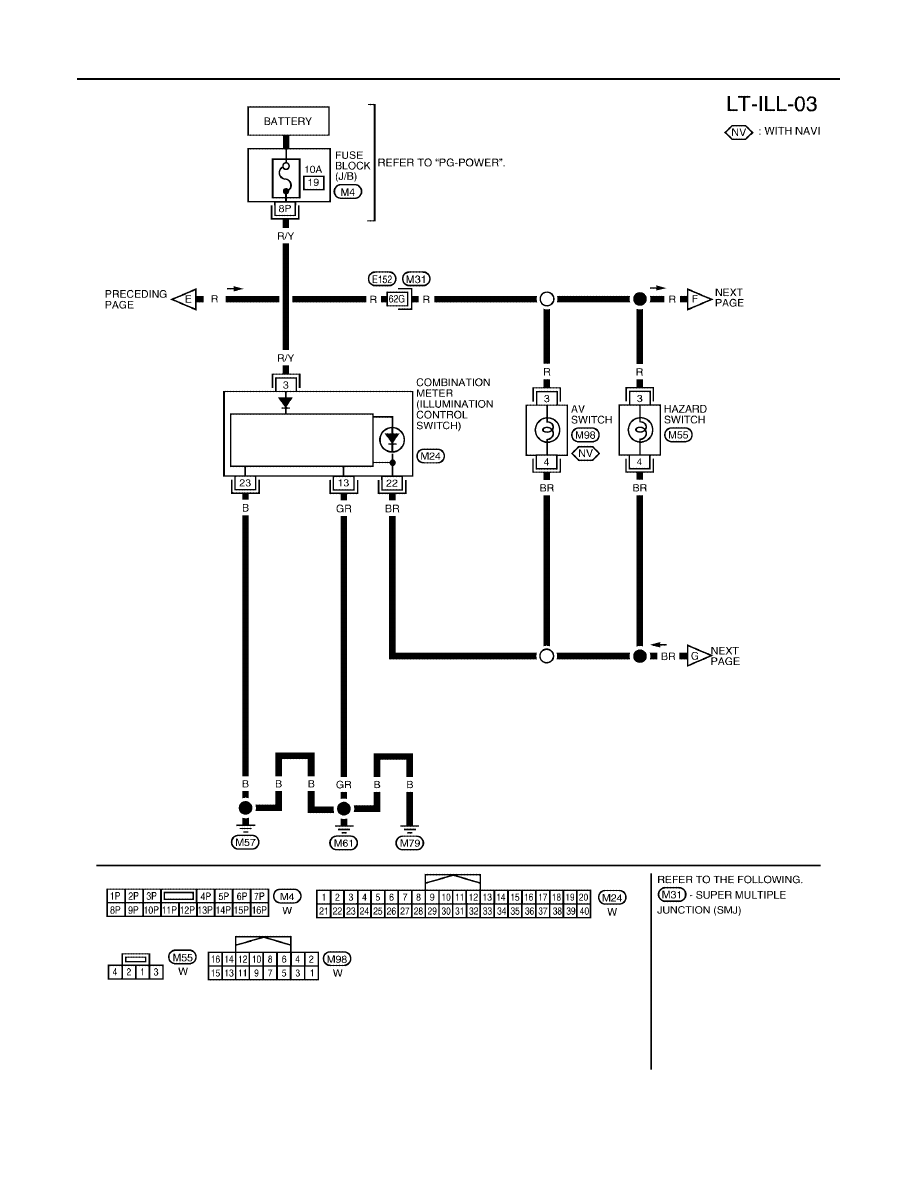

Illumination is controlled

●

through combination meter terminal 22

●

to AV switch terminal 4 (with NAVI)

●

to hazard switch terminal 4

●

to audio unit terminal 7

●

to 4WD switch terminal 8 (with 4-wheel drive)

●

to front air control terminal 9

●

to DVD player terminal 10 (with DVD entertainment system)

●

to pedal adjusting switch terminal 6 (with adjustable pedals without memory)

●

to door mirror remote control switch terminal 15

●

to A/T device terminal 5

●

to front heated seat switch LH and RH terminal 6 (with heated seats)

●

to VDC OFF switch terminal 4 and

●

to HDC switch terminal 6 (with hill descent control and hill start assist).

LT-150

ILLUMINATION

2005 Pathfinder

Ground is supplied

●

to glove box lamp terminal 2

●

to display control unit terminal 3 (with NAVI)

●

to electric brake (pre-wiring) terminal 1 (with trailer tow 7 pin) and

●

to rear air control terminal 3 (with auto A/C)

●

through grounds M57, M61 and M79, and

●

to NAVI control unit terminal 30 (with NAVI)

●

through grounds B117 and B132.

With power and ground supplied, illumination lamps illuminate.

EXTERIOR LAMP BATTERY SAVER CONTROL

When the combination switch (lighting switch) is in the 1ST or 2ND position (or if auto light system is acti-
vated), and the ignition switch is turned from ON or ACC to OFF, the battery saver control function is activated.
Under this condition, the illumination lamps remain illuminated for 5 minutes, then the illumination lamps are
turned off.
When the lighting switch is turned from OFF to 1ST or 2ND position (or if auto light system is activated) after
illumination lamps are turned off by the battery saver control, the illumination lamps illuminate again.
Exterior lamp battery saver control mode can be changed by the function setting of CONSULT-II.

CAN Communication System Description

EKS009MZ

Refer to

LAN-24, "CAN COMMUNICATION"
