Nissan Pathfinder (2005 year). Manual - part 287





INSTRUMENT PANEL ASSEMBLY

IP-13

C

D

E

F

G

H

J

K

L

M

A

B

IP

2005 Pathfinder

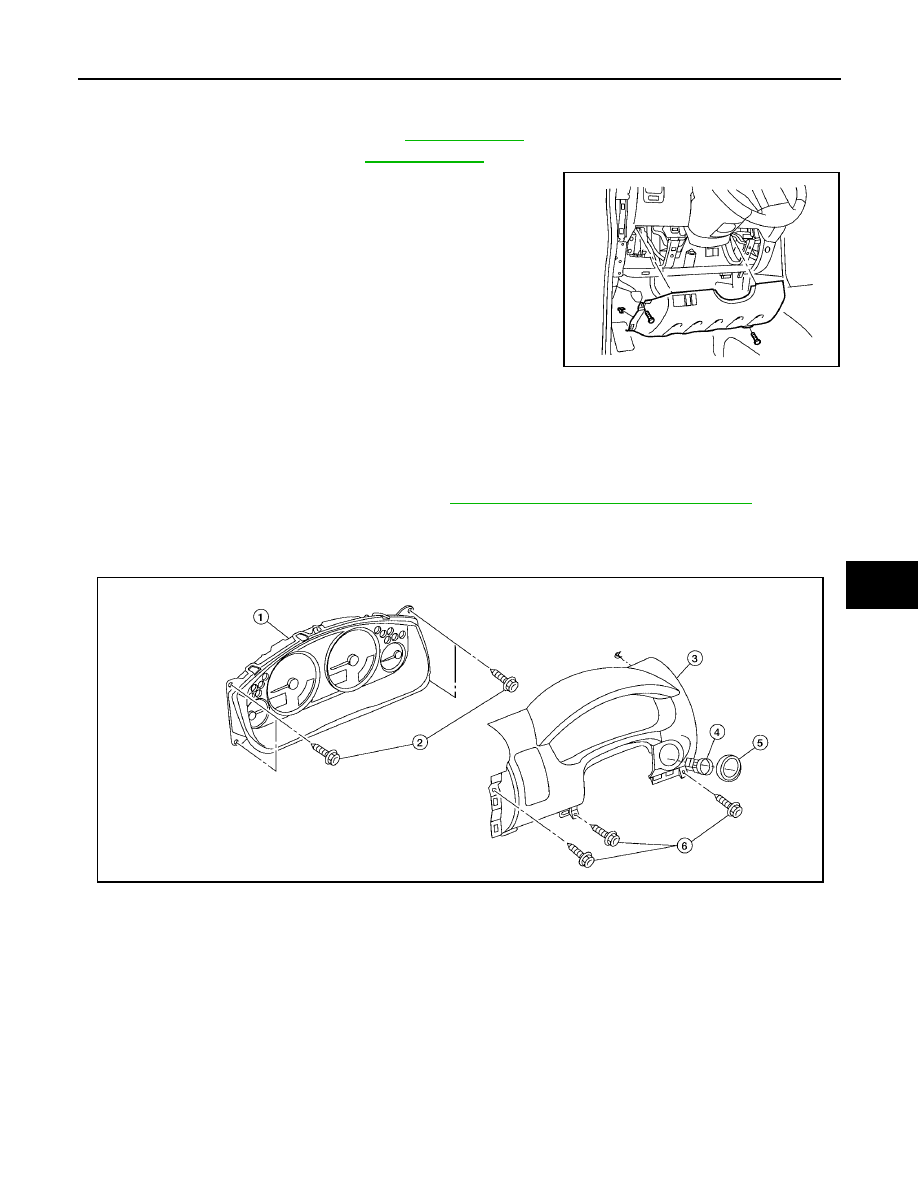

LOWER INSTRUMENT PANEL LH
Removal

1.

Remove lower dash side finisher. Refer to

EI-28, "Removal"

.

2.

Remove front pillar finisher. Refer to

EI-28, "Removal"

.

3.

Remove screws using power tool, and remove lower instrument
panel LH.

4.

Pull rearward to release clips, disconnect connectors, and
remove lower instrument panel LH.

Installation

Installation is in the reverse order of removal.

COMBINATION METER
Removal

1.

Disconnect the negative battery cable.

2.

Remove the lower instrument panel LH. Refer to

IP-13, "LOWER INSTRUMENT PANEL LH"

.

3.

Remove cluster lid A.

4.

Remove screws using power tool and remove the combination meter assembly.

Disconnect electrical connectors.

Installation

Installation is in the reverse order of removal.

A/T FINISHER

1.

Remove cup holder finisher.

2.

Remove A/T finisher bezel.

3.

Pull up to release clips and remove the A/T finisher.

LIIA1744E

1.

Combination meter

2.

Screws

3.

Cluster lid A

4.

Ignition key lamp assembly

5.

Steering lock escutcheon

6.

Screw

LIIA1745E

IP-14

INSTRUMENT PANEL ASSEMBLY

2005 Pathfinder

Disconnect harnesses.

Installation

Installation is in the reverse order of removal.

LOWER INSTRUMENT PANEL RH AND GLOVE BOX
Removal - lower glove box

1.

Remove lower glove box lower screws.

2.

Remove lower dash side finisher. Refer to

EI-28, "Removal"

.

1.

Cluster lid D

2.

A/T finisher

3.

Center console finisher

4.

Center console base front

LIIA1746E

1.

Glove box upper

2.

Glove box upper door

3.

Lower instrument panel RH

4.

Fuse block cover

5.

Glove box lower latch cover

6.

Glove box lower

7.

Glove box lower latch assembly

8.

Damper hook

9.

Glove box lower damper

LIIA1747E

INSTRUMENT PANEL ASSEMBLY

IP-15

C

D

E

F

G

H

J

K

L

M

A

B

IP

2005 Pathfinder

3.

Remove lower front pillar finisher. Refer to

EI-28, "Removal"

.

4.

Remove lower glove box side screw.

5.

Remove lower glove box upper screws, then remove lower instrument panel RH and glove box (lower) as
an assembly.

6.

Using power tool, remove screws and lower glove box latch cover.

7.

Remove latch screws and latch.

8.

Remove screws and glove box damper.

Installation - lower glove box

Installation is in the reverse order of removal.

NOTE:
Upper glove box assembly must be installed prior to lower glove box assembly.

Removal - upper glove box

1.

Remove lower glove box assembly. Refer to

IP-14, "LOWER INSTRUMENT PANEL RH AND GLOVE

BOX"

.

2.

Remove screws and upper glove box assembly.

Installation - upper glove box

Installation is in the reverse order of removal.

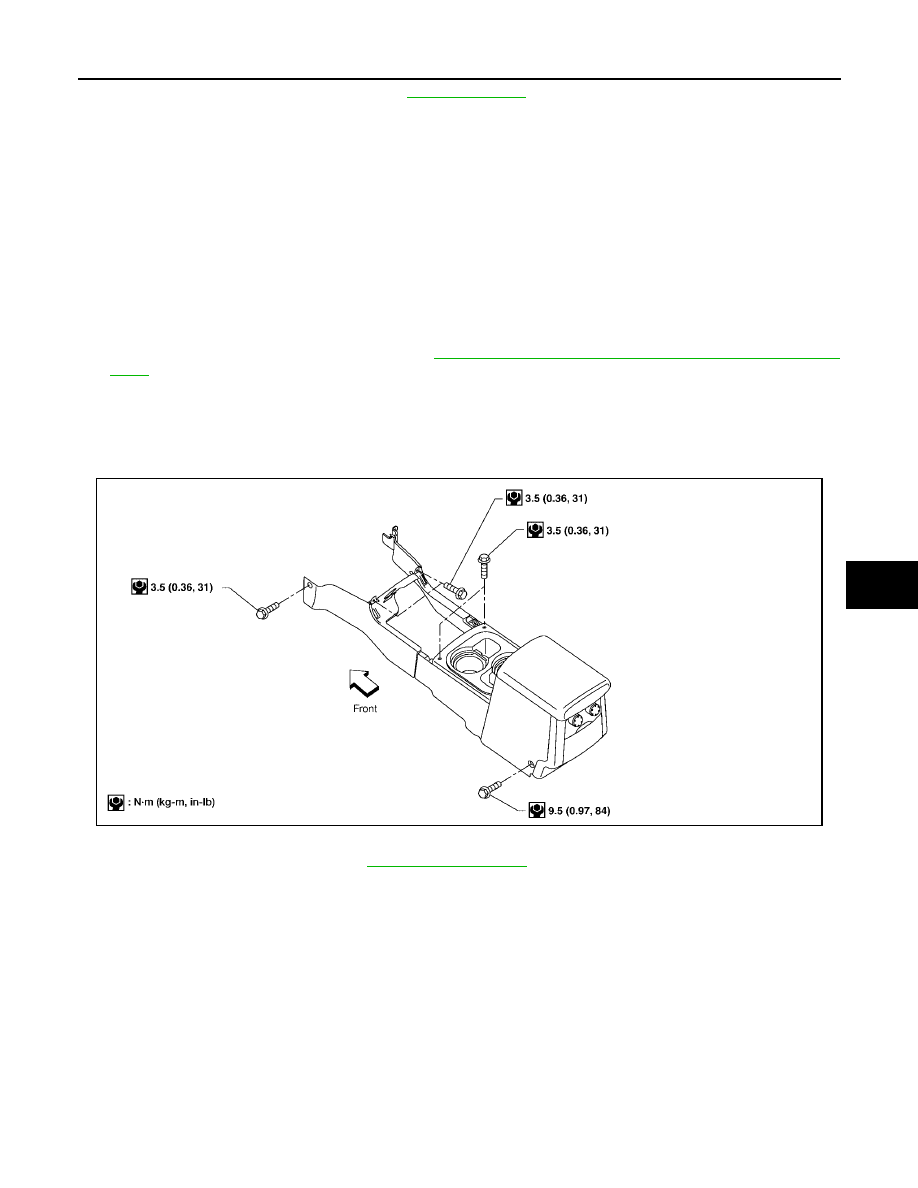

CENTER CONSOLE

1.

Remove cup holder finisher.

2.

Remove A/T shifter finisher. Refer to

IP-13, "A/T FINISHER"

.

3.

Remove center console screws.

4.

Disconnect electrical connectors and remove center console.

Installation

Installation is in the reverse order of removal.

LIIA1748E

IP-16

INSTRUMENT PANEL ASSEMBLY

2005 Pathfinder

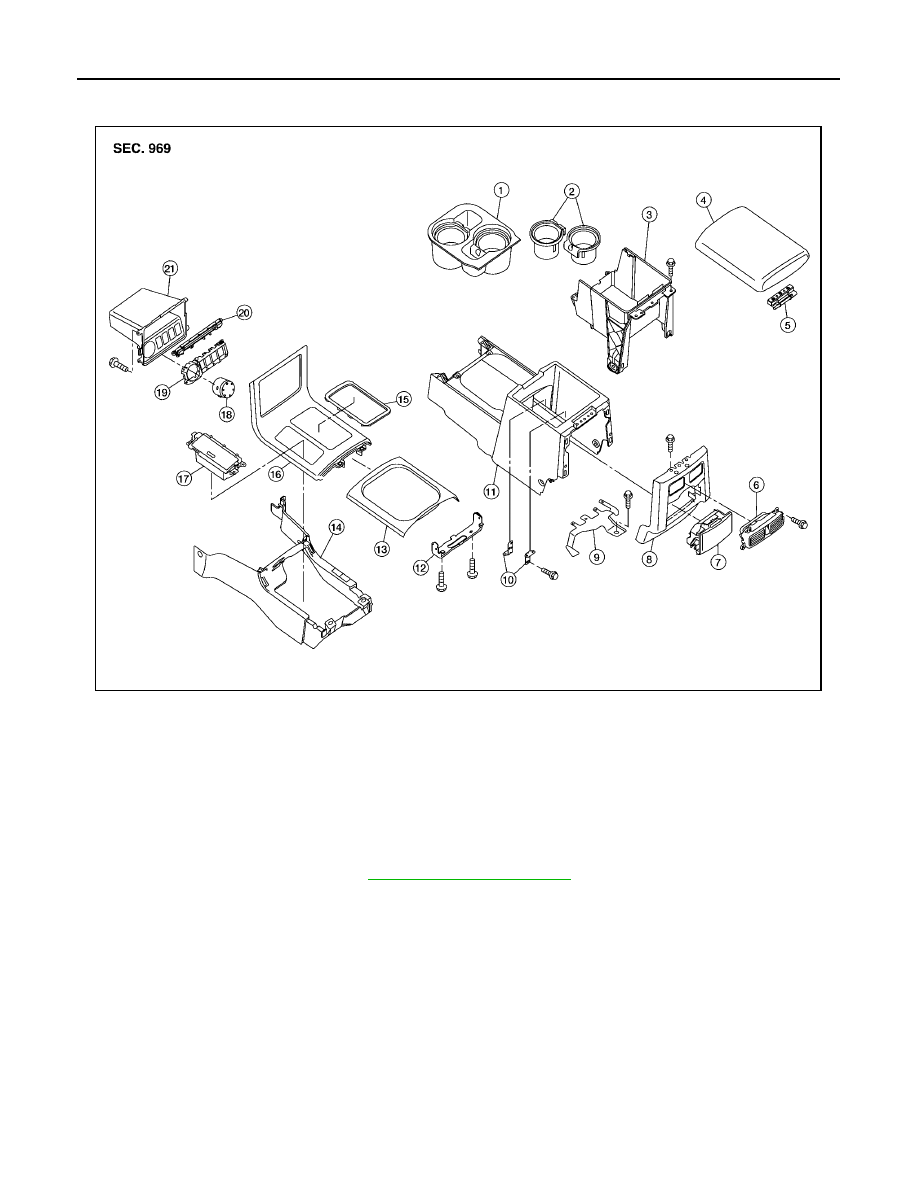

Disassembly and Assembly

EIS0044R

CENTER CONSOLE

Disassembly

1.

Remove the center console. Refer to

IP-15, "CENTER CONSOLE"

.

2.

Remove front cup holder insert and assembly.

3.

Remove latch from console lid.

4.

Remove hinge from console lid. Remove console lid.

5.

Remove console bin and reinforcement assembly.

Disconnect electrical harness from DVD player, if equipped.

6.

Remove rear finisher assembly.

7.

Remove rear cup holder assembly.

8.

Remove ash tray.

9.

Remove console bracket.

10. Remove wire harness bracket.

LIIA1749E

1.

Cup holder assembly

2.

Cup holder insert

3.

Center console bin and reinforcement

4.

Center console lid

5.

Hinge

6.

Ventilator assembly

7.

Rear cup holder assembly

8.

Rear finisher assembly

9.

Bracket wire harness

10.

Bracket DVD

11.

Console assembly rear base

12.

Bracket

13.

Cup holder finisher

14.

Console assembly front base

15.

A/T finisher bezel

16.

A/T finisher

17.

Ash tray

18.

Switch assembly

19.

Switch finisher

20.

CD changer door

21.

Console bin

INSTRUMENT PANEL ASSEMBLY

IP-17

C

D

E

F

G

H

J

K

L

M

A

B

IP

2005 Pathfinder

Assembly

Assembly is in the reverse order of disassembly.

IP-18

INSTRUMENT PANEL ASSEMBLY

2005 Pathfinder

LAN-1

LAN SYSTEM

K ELECTRICAL

CONTENTS

C

D

E

F

G

H

I

J

L

M

SECTION

A

B

LAN

2005 Pathfinder

CAN

PRECAUTIONS .......................................................... 4

Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 4
Precautions When Using CONSULT-II ..................... 4

CHECK POINTS FOR USING CONSULT-II ......... 4

Precautions For Trouble Diagnosis .......................... 4

CAN SYSTEM ....................................................... 4

Precautions For Harness Repair .............................. 5

CAN SYSTEM ....................................................... 5

TROUBLE DIAGNOSES WORK FLOW .................... 6

When Displaying CAN Communication System
Errors ....................................................................... 6

WHEN A MALFUNCTION IS DETECTED BY
CAN COMMUNICATION SYSTEM ....................... 6
WHEN A MALFUNCTION IS DETECTED
EXCEPT CAN COMMUNICATION SYSTEM ........ 6
TROUBLE DIAGNOSIS FLOW CHART ............... 7

Diagnosis Procedure ................................................ 8

SELECTING CAN SYSTEM TYPE (HOW TO
USE SPECIFICATION TABLE) ............................. 8
ACQUISITION OF DATA BY CONSULT-II ............ 9
HOW TO USE CHECK SHEET TABLE .............. 10

CAN Diagnostic Support Monitor ........................... 17

DESCRIPTION OF “CAN DIAG SUPPORT
MNTR” SCREEN FOR ECM ............................... 17
DESCRIPTION OF “CAN DIAG SUPPORT
MNTR” SCREEN FOR TCM ............................... 18
DESCRIPTION OF “CAN DIAG SUPPORT
MNTR” SCREEN FOR BCM ............................... 18
DESCRIPTION OF “CAN DIAG SUPPORT
MNTR” SCREEN FOR TRANSFER CONTROL
UNIT .................................................................... 19
DESCRIPTION OF “CAN DIAG SUPPORT
MNTR” SCREEN FOR DRIVER SEAT CON-
TROL UNIT ......................................................... 20
DESCRIPTION OF “CAN DIAG SUPPORT
MNTR” SCREEN FOR ABS ACTUATOR AND

ELECTRIC UNIT (CONTROL UNIT) ................... 21
DESCRIPTION OF “CAN DIAG SUPPORT
MNTR” SCREEN FOR IPDM E/R ....................... 22
DESCRIPTION OF “CAN DIAG SUPPORT
MNTR” SCREEN FOR DISPLAY CONTROL
UNIT .................................................................... 23

CAN COMMUNICATION ........................................... 24

System Description ................................................. 24
CAN Communication Unit ....................................... 24

TYPE 1/ TYPE 2/ TYPE 3/ TYPE 4 ..................... 25
TYPE 5/ TYPE 6 .................................................. 28
TYPE 7/TYPE 8 ................................................... 31

CAN SYSTEM (TYPE 1) ........................................... 34

System Description ................................................. 34
Component Parts and Harness Connector Location... 34
Schematic ............................................................... 35
Wiring Diagram - CAN - .......................................... 36
CHECK SHEET ...................................................... 39

CHECK SHEET RESULTS (EXAMPLE) ............. 41

Inspection Between TCM and Data Link Connector
Circuit ..................................................................... 51
Inspection Between Data Link Connector and ABS
Actuator and Electric Unit (Control Unit) Circuit ..... 52
ECM Circuit Inspection ........................................... 53
TCM Circuit Inspection ........................................... 54
Steering Angle Sensor Circuit Inspection ............... 54
Data Link Connector Circuit Inspection .................. 55
BCM Circuit Inspection ........................................... 55
Combination Meter Circuit Inspection ..................... 56
ABS Actuator and Electric Unit (Control Unit) Circuit
Inspection ............................................................... 56
IPDM E/R Circuit Inspection ................................... 57
CAN Communication Circuit Inspection ................. 58
IPDM E/R Ignition Relay Circuit Inspection ............ 62

CAN SYSTEM (TYPE 2) ........................................... 63

System Description ................................................. 63
Component Parts and Harness Connector Location... 63
Schematic ............................................................... 64
Wiring Diagram - CAN - .......................................... 65
CHECK SHEET ...................................................... 68

LAN-2

2005 Pathfinder

CHECK SHEET RESULTS (EXAMPLE) ............. 70

Inspection Between TCM and Data Link Connector
Circuit ..................................................................... 80
Inspection Between Data Link Connector and ABS
Actuator and Electric Unit (Control Unit) Circuit ...... 81
ECM Circuit Inspection ........................................... 82
TCM Circuit Inspection ........................................... 83
Steering Angle Sensor Circuit Inspection ............... 83
Data Link Connector Circuit Inspection .................. 84
BCM Circuit Inspection ........................................... 84
Combination Meter Circuit Inspection ..................... 85
ABS Actuator and Electric Unit (Control Unit) Circuit
Inspection ............................................................... 85
IPDM E/R Circuit Inspection ................................... 86
CAN Communication Circuit Inspection .................. 87
IPDM E/R Ignition Relay Circuit Inspection ............ 91

CAN SYSTEM (TYPE 3) ........................................... 92

System Description ................................................. 92
Component Parts and Harness Connector Location... 92
Schematic ............................................................... 93
Wiring Diagram - CAN - .......................................... 94
CHECK SHEET ...................................................... 97

CHECK SHEET RESULTS (EXAMPLE) ............. 99

Inspection Between TCM and Data Link Connector
Circuit ................................................................... 110
Inspection Between Data Link Connector and ABS
Actuator and Electric Unit (Control Unit) Circuit .....111
ECM Circuit Inspection ......................................... 112
TCM Circuit Inspection ......................................... 113
Steering Angle Sensor Circuit Inspection ............. 113
Data Link Connector Circuit Inspection ................ 114
BCM Circuit Inspection ......................................... 114
Combination Meter Circuit Inspection ................... 115
Driver Seat Control Unit Circuit Inspection ........... 115
ABS Actuator and Electric Unit (Control Unit) Circuit
Inspection ............................................................. 116
IPDM E/R Circuit Inspection ................................. 116
CAN Communication Circuit Inspection ................ 117
IPDM E/R Ignition Relay Circuit Inspection .......... 123

CAN SYSTEM (TYPE 4) ......................................... 124

System Description ............................................... 124
Component Parts and Harness Connector Location. 124
Schematic ............................................................. 125
Wiring Diagram - CAN - ........................................ 126
CHECK SHEET .................................................... 129

CHECK SHEET RESULTS (EXAMPLE) ........... 131

Inspection Between TCM and Display Control Unit
Circuit ................................................................... 145
Inspection Between Display Control Unit and Data
Link Connector Circuit .......................................... 147
Inspection Between Data Link Connector and ABS
Actuator and Electric Unit (Control Unit) Circuit .... 147
ECM Circuit Inspection ......................................... 148
TCM Circuit Inspection ......................................... 148
Display Control Unit Circuit Inspection ................. 149
Front Air Control Circuit Inspection ....................... 149
Steering Angle Sensor Circuit Inspection ............. 150
Data Link Connector Circuit Inspection ................ 150
BCM Circuit Inspection ......................................... 151

Combination Meter Circuit Inspection ...................151
Driver Seat Control Unit Circuit Inspection ...........152
ABS Actuator and Electric Unit (Control Unit) Circuit
Inspection ..............................................................152
IPDM E/R Circuit Inspection .................................153
CAN Communication Circuit Inspection ................154
IPDM E/R Ignition Relay Circuit Inspection ...........160

CAN SYSTEM (TYPE 5) ..........................................161

System Description ...............................................161
Component Parts and Harness Connector Location.161
Schematic .............................................................162
Wiring Diagram - CAN - ........................................163
CHECK SHEET ....................................................166

CHECK SHEET RESULTS (EXAMPLE) ............168

Inspection Between TCM and Data Link Connector
Circuit ....................................................................179
Inspection Between Data Link Connector and ABS
Actuator and Electric Unit (Control Unit) Circuit ....180
ECM Circuit Inspection .........................................181
TCM Circuit Inspection ..........................................182
Steering Angle Sensor Circuit Inspection ..............182
Data Link Connector Circuit Inspection .................183
BCM Circuit Inspection .........................................183
Combination Meter Circuit Inspection ...................184
Transfer Control Unit Circuit Inspection ................184
ABS Actuator and Electric Unit (Control Unit) Circuit
Inspection ..............................................................185
IPDM E/R Circuit Inspection .................................185
CAN Communication Circuit Inspection ................186
IPDM E/R Ignition Relay Circuit Inspection ...........190

CAN SYSTEM (TYPE 6) ..........................................191

System Description ...............................................191
Component Parts and Harness Connector Location.191
Schematic .............................................................192
Wiring Diagram - CAN - ........................................193
CHECK SHEET ....................................................196

CHECK SHEET RESULTS (EXAMPLE) ............198

Inspection Between TCM and Data Link Connector
Circuit ....................................................................209
Inspection Between Data Link Connector and ABS
Actuator and Electric Unit (Control Unit) Circuit ....210
ECM Circuit Inspection ......................................... 211
TCM Circuit Inspection ..........................................212
Steering Angle Sensor Circuit Inspection ..............212
Data Link Connector Circuit Inspection .................213
BCM Circuit Inspection .........................................213
Combination Meter Circuit Inspection ...................214
Transfer Control Unit Circuit Inspection ................214
ABS Actuator and Electric Unit (Control Unit) Circuit
Inspection ..............................................................215
IPDM E/R Circuit Inspection .................................215
CAN Communication Circuit Inspection ................216
IPDM E/R Ignition Relay Circuit Inspection ...........221

CAN SYSTEM (TYPE 7) ..........................................222

System Description ...............................................222
Component Parts and Harness Connector Location.222
Schematic .............................................................223
Wiring Diagram - CAN - ........................................224
CHECK SHEET ....................................................227















Content      ..     285      286      287      288     ..
