When loosening nuts and bolts, as a basic rule, start with the one furthest outside, then the one diagonally
opposite, and so on. If the order of loosening is specified, do exactly as specified. Power tools may be
used in the step.

Precautions for Inspection, Repair and Replacement

EBS00NJ9

Before repairing or replacing, thoroughly inspect parts. Inspect new replacement parts in the same way, and
replace if necessary.

Precautions for Assembly and Installation

EBS00NJA

●

Use torque wrench to tighten bolts or nuts to specification.

●

When tightening nuts and bolts, as a basic rule, equally tighten in several different steps starting with the
ones in center, then ones on inside and outside diagonally in this order. If the order of tightening is speci-
fied, do exactly as specified.

●

Replace with new gasket, packing, oil seal or O-ring.

●

Thoroughly wash, clean, and air-blow each part. Carefully check engine oil or engine coolant passages for
any restriction and blockage.

●

Avoid damaging sliding or mating surfaces. Completely remove foreign materials such as cloth lint or dust.
Before assembly, oil sliding surfaces well.

●

Release air within route when refilling after draining engine coolant.

●

After repairing, start engine and increase engine speed to check engine coolant, fuel, engine oil, and
exhaust gasses for leakage.

Parts Requiring Angle Tightening

EBS00NJB

●

For the final tightening of the following engine parts use Tool:

–

Cylinder head bolts

–

Lower cylinder block bolts

–

Connecting rod cap bolts

–

Crankshaft pulley bolt (No angle wrench is required as bolt flange is provided with notches for angle tight-
ening)

●

Do not use a torque value for final tightening.

●

The torque value for these parts are for a preliminary step.

●

Ensure thread and seat surfaces are clean and coated with engine oil.

Tool number

: KV10112100 (BT-8653-A)

PRECAUTIONS

EM-5

2005 Pathfinder

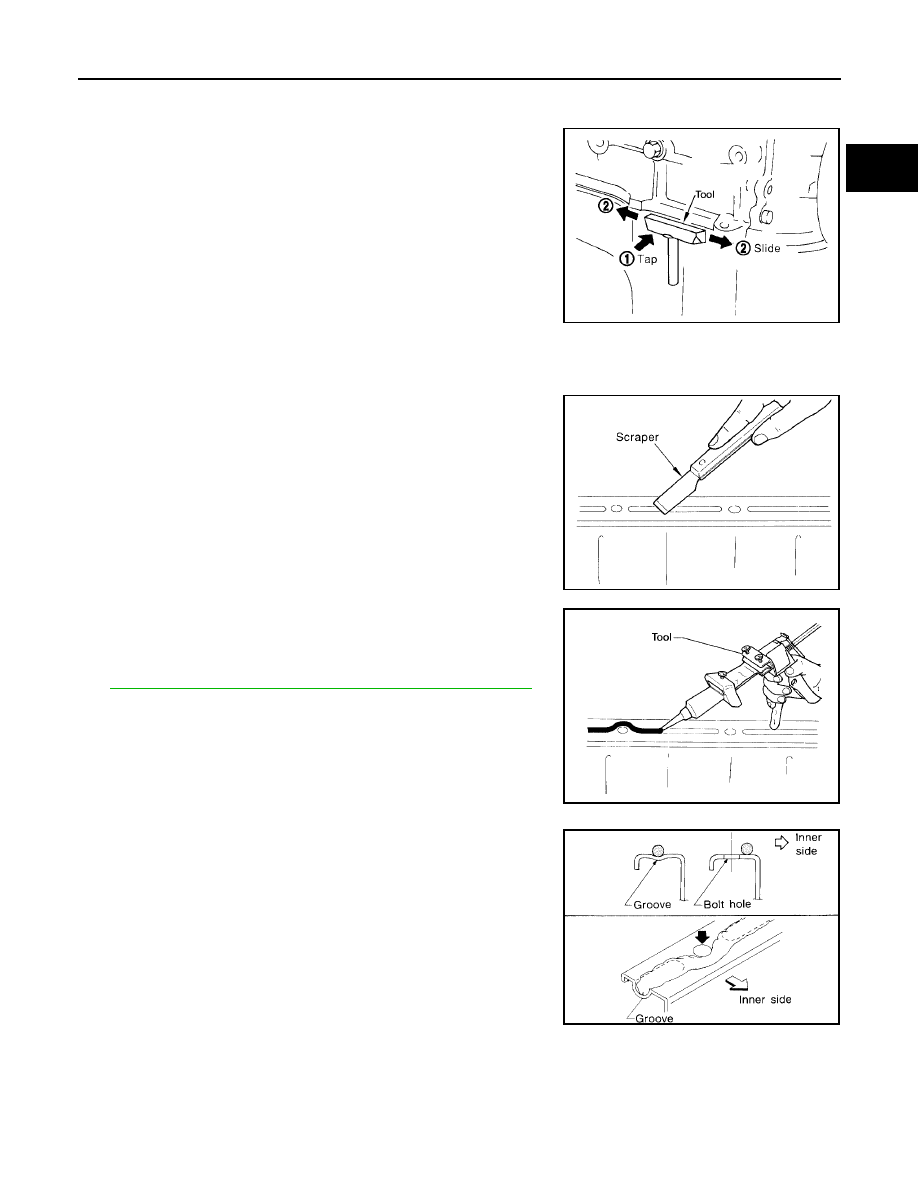

Precautions for Liquid Gasket

EBS00NJC

REMOVAL OF LIQUID GASKET SEALING

●

After removing nuts and bolts, separate the mating surface and
remove old liquid gasket sealing using Tool.

CAUTION:

Be careful not to damage the mating surfaces.

●

Tap seal cutter to insert it, and then slide it by tapping on the
side as shown.

●

In areas where Tool is difficult to use, use plastic hammer to
lightly tap the parts, to remove it.

CAUTION:

If for some unavoidable reason tool such as screwdriver is
used, be careful not to damage the mating surfaces.

LIQUID GASKET APPLICATION PROCEDURE

Using scraper, remove old liquid gasket adhering to the gasket
application surface and the mating surface.

●

Remove liquid gasket completely from the groove of the gas-
ket application surface, bolts, and bolt holes.

Thoroughly clean the mating surfaces and remove adhering
moisture, grease and foreign materials.

Attach liquid gasket tube to Tool.

Use Genuine RTV Silicone Sealant or equivalent. Refer to

Apply liquid gasket without breaks to the specified location with
the specified dimensions.

●

If there is a groove for liquid gasket application, apply liquid
gasket to the groove.

●

As for bolt holes, normally apply liquid gasket inside the
holes. Occasionally, it should be applied outside the holes.
Make sure to read the text of this manual.

●

Within five minutes of liquid gasket application, install the mat-
ing component.

●

If liquid gasket protrudes, wipe it off immediately.

●

Do not retighten nuts or bolts after the installation.

●

After 30 minutes or more have passed from the installation, fill
engine oil and engine coolant.

CAUTION:

If there are specific instructions in this manual, observe
them.

Tool number

: KV10111100 (J-37228)

WBIA0566E

PBIC0003E

Tool number

: WS39930000 (

—

)

WBIA0567E

SEM159F

EM-6

PREPARATION

2005 Pathfinder

PREPARATION

PFP:00002

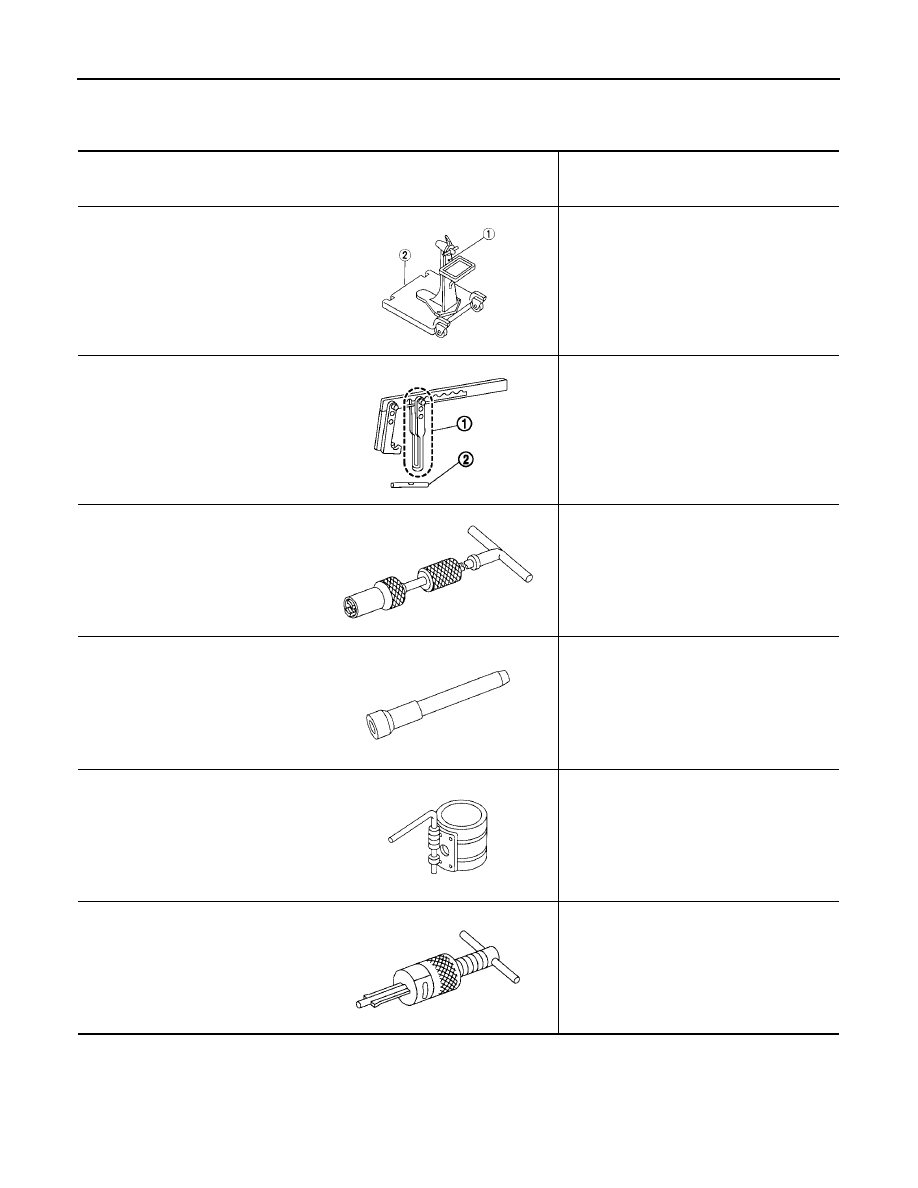

Special Service Tools

EBS00NJD

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

ST0501S000
(

—

)

Engine stand assembly
1. ST05011000
(

—

)

Engine stand
2. ST05012000
(

—

)

Base

Disassembling and assembling engine

KV10116200
(J-26336-A)
Valve spring compressor
1. KV10115900
(J-26336-20)
Attachment
2.KV10109220
(

—

)

Adapter

Disassembling valve mechanism
Part (1) is a component of KV10116200 (J-
26336-A), but Part (2) is not so.

KV10107902
(J-38959)
Valve oil seal puller

Replacing valve oil seal

—

(J-39386)
Valve oil seal drift

Installing valve oil seal

EM03470000
(J-8037)
Piston ring compressor

Installing piston assembly into cylinder bore

ST16610001
(J-23907)
Pilot bushing puller

Removing pilot converter (A/T models)

NT042

PBIC1650E

NT011

NT024

NT044

NT045

PREPARATION

EM-7

2005 Pathfinder

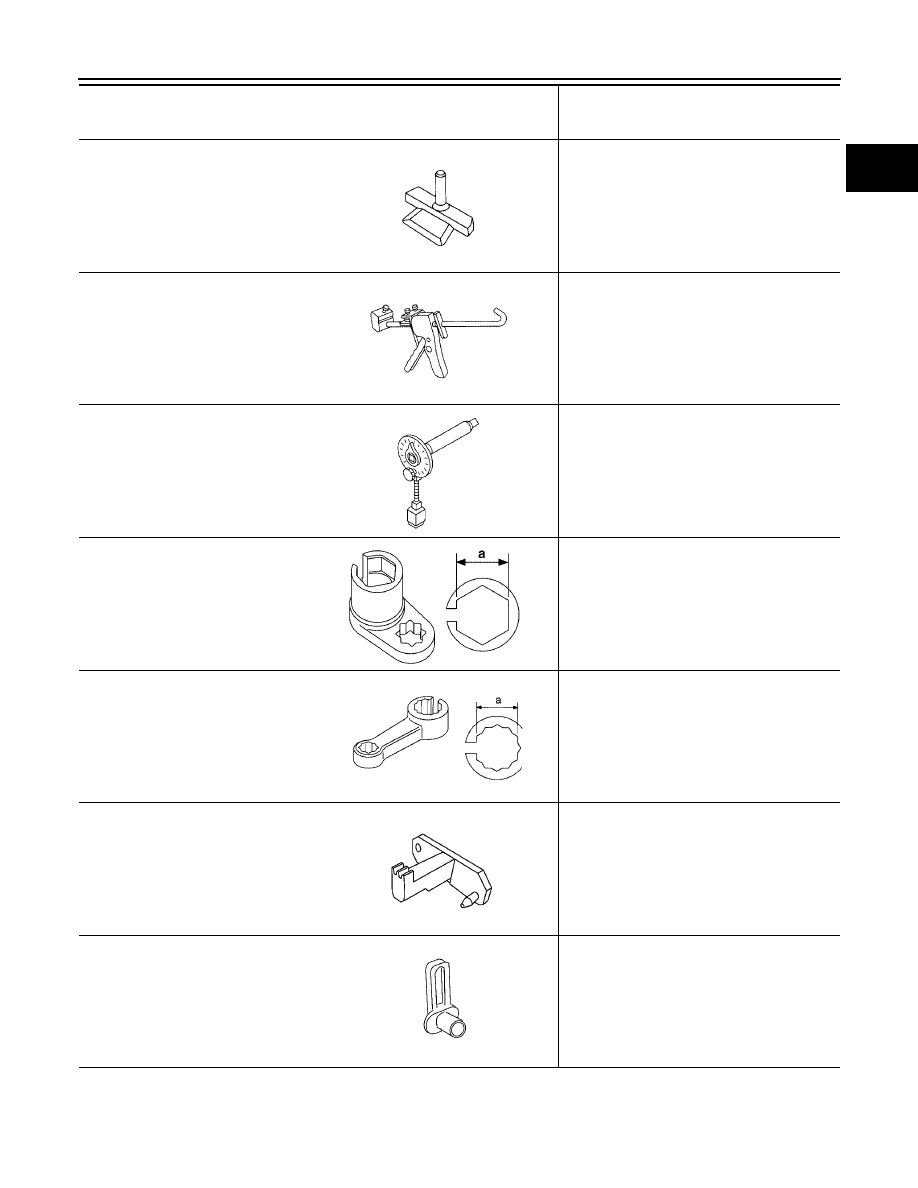

KV10111100
(J-37228)
Seal cutter

Removing oil pan (lower and upper), front and
rear timing chain case, etc.

WS39930000
(

—

)

Tube presser

Pressing the tube of liquid gasket

KV10112100
(BT-8653-A)
Angle wrench

Tightening bolts for bearing cap, cylinder
head, etc. in angle

—

(J-44626)
Air fuel sensor Socket

Loosening or tightening air fuel ratio A/F sen-
sor
a: 22 mm (0.87 in)

KV10114400
(J-38365)
Heated oxygen sensor wrench

Loosening or tightening heated oxygen sen-
sor 1
a: 22 mm (0.87 in)

KV10117700
(J-44716)
Ring gear stopper

Removing and installing crankshaft pulley

—

(J-45488)
Quick connector release

Removing fuel tube quick connectors in en-
gine room
(Available in SEC. 164 of PARTS CATALOG:
Part No. 16441 6N210)

Tool number
(Kent-Moore No.)
Tool name

Description

NT046

NT052

NT014

LBIA0444E

NT636

NT822

PBIC0198E

EM-8

PREPARATION

2005 Pathfinder

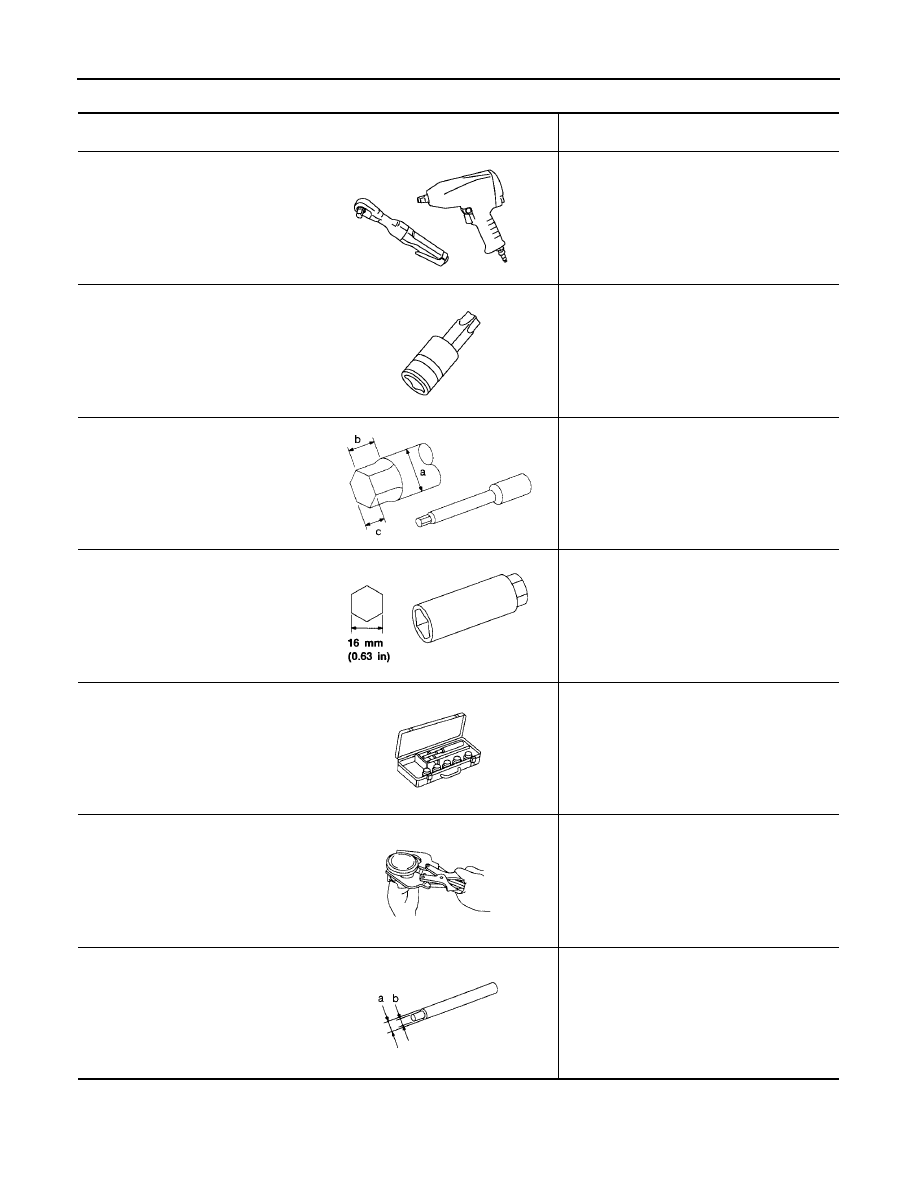

Commercial Service Tools

EBS00NJE

(Kent-Moore No.)
Tool name

Description

(

—

)

Power tool

Loosening nuts and bolts

(

—

)

TORX socket

Removing and installing flywheel
Size: T55

(J-24239-01)
Cylinder head bolt wrench

Loosening and tightening cylinder head bolt,
and used with angle wrench [SST:
KV10112100 (BT-8653-A)]
a: 13 (0.51) dia.
b: 12 (0.47)
c: 10 (0.39)
Unit: mm (in)

(

—

)

Spark plug wrench

Removing and installing spark plug

(

—

)

Valve seat cutter set

Finishing valve seat dimensions

(

—

)

Piston ring expander

Removing and installing piston ring

(

—

)

Valve guide drift

Removing and installing valve guide
Intake and Exhaust:
a: 9.5 mm (0.374 in) dia.
b: 5.5 mm (0.217 in) dia.

PBIC0190E

PBIC1113E

NT583

NT047

NT048

NT030

NT015
