WARNING CHIME

DI-61

C

D

E

F

G

H

I

J

L

M

A

B

DI

2005 Pathfinder

Seat Belt Warning Chime Does Not Operate

EKS009OG

1.

CHECK WARNING CHIME OPERATION

1.

With key removed from the ignition and the front door LH open, turn the lighting switch to 1st or 2nd posi-
tion.

2.

Return lighting switch to OFF position, and insert key into ignition.

Does warning chime sound for both steps?

YES

>> GO TO 2.

NO

>> Go to

DI-56, "All Warning Chimes Do Not Operate"

.

2.

CHECK SEAT BELT WARNING LAMP OPERATION

1.

Turn ignition switch ON.

2.

Buckle and unbuckle the driver seat belt while watching seat belt warning lamp.

OK or NG

OK

>> Replace the BCM. Refer to

BCS-19, "Removal and Installation of BCM"

.

NG

>> GO TO 3.

3.

CHECK COMBINATION METER INPUT SIGNAL

1.

Turn ignition switch ON.

2.

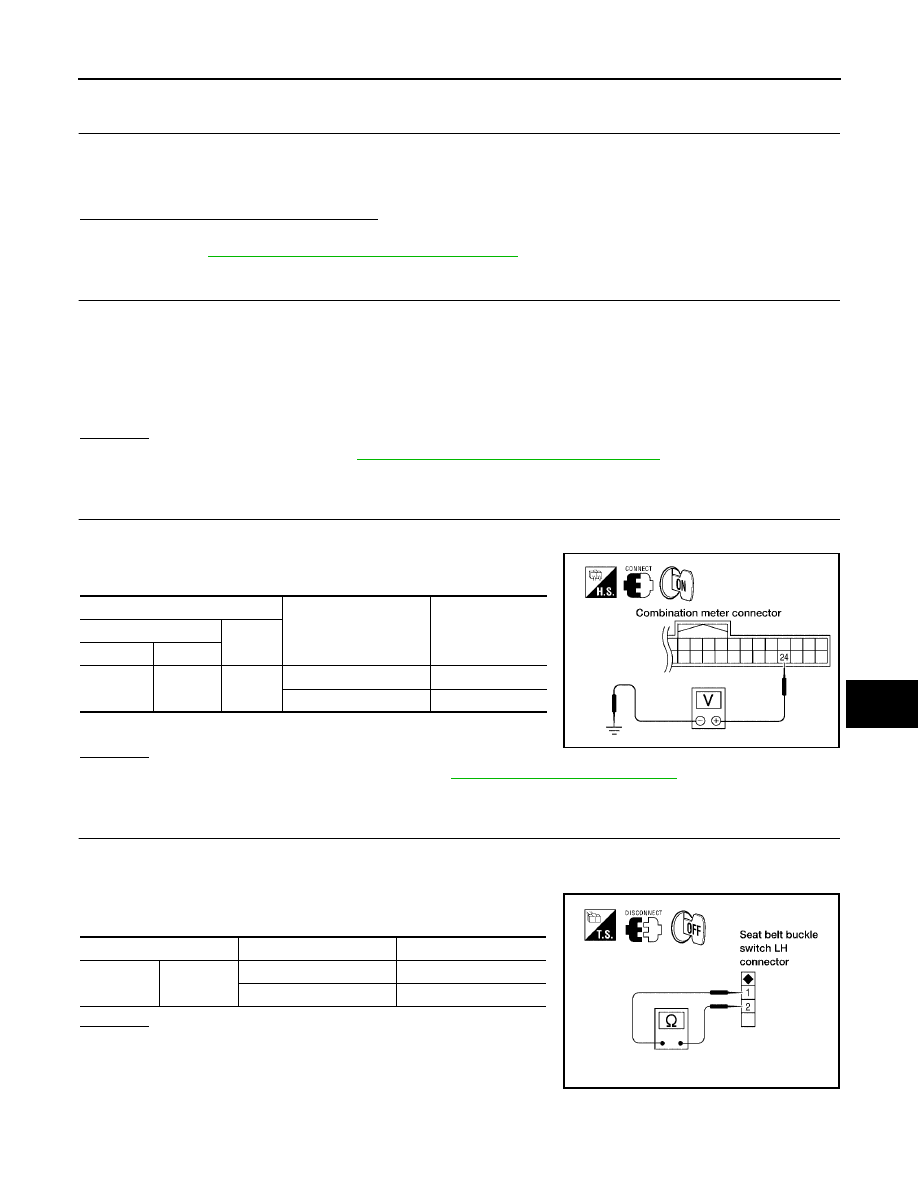

Check voltage between combination meter harness connector
M24 terminal 24 and ground.

OK or NG

OK

>> Replace the combination meter. Refer to

IP-13, "COMBINATION METER"

.

NG

>> GO TO 4.

4.

CHECK SEAT BELT BUCKLE SWITCH

1.

Turn ignition switch OFF.

2.

Disconnect seat belt buckle switch LH connector B12.

3.

Check continuity between seat belt buckle switch LH terminals 1
and 2.

OK or NG

OK

>> GO TO 5.

NG

>> Replace the seat belt buckle switch LH.

When seat belt is fastened

: Warning lamp OFF

When seat belt is unfastened

: Warning lamp ON

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(–)

Connector

Terminal

M24

24

Ground

Seat belt is fastened

Battery voltage

Seat belt is unfastened

0V

WKIA3294E

Terminals

Condition

Continuity

1

2

Seat belt is fastened

No

Seat belt is unfastened

Yes

WKIA1522E

DI-62

WARNING CHIME

2005 Pathfinder

5.

CHECK SEAT BELT BUCKLE SWITCH CIRCUIT

1.

Disconnect combination meter connector.

2.

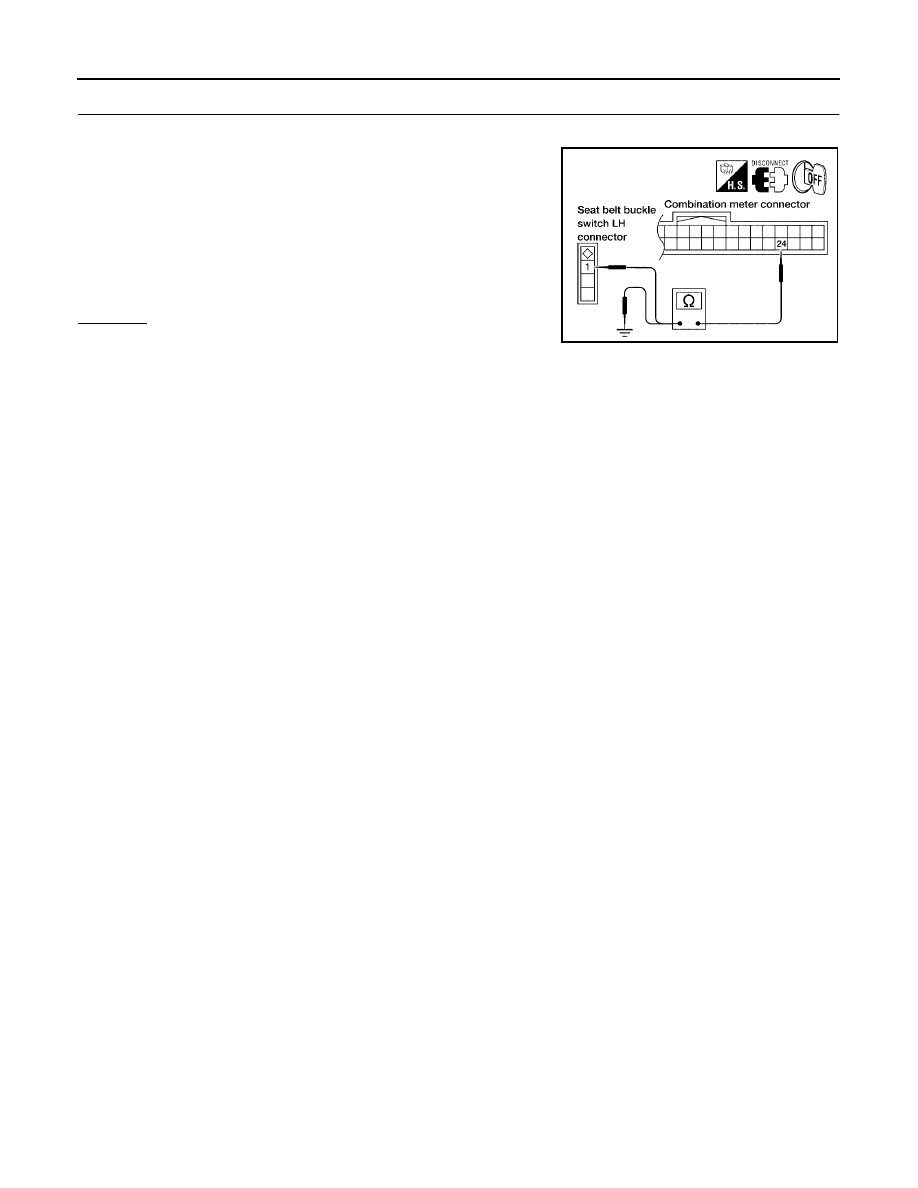

Check continuity between combination meter harness connector
M24 terminal 24 and seat belt buckle switch LH harness con-
nector B12 terminal 1.

3.

Check continuity between combination meter harness connector
M24 terminal 24 and ground.

OK or NG

OK

>> Check seat belt buckle switch ground circuit.

NG

>> Repair harness or connector.

Continuity should exist.

Continuity should not exist.

WKIA3295E

BOARD COMPUTER

DI-63

C

D

E

F

G

H

I

J

L

M

A

B

DI

2005 Pathfinder

BOARD COMPUTER

PFP:24810

System Description

EKS00BNR

FUNCTION

The board computer can indicate the following items.

DTE (distance to empty)

Trip distance

Trip time

Average fuel consumption

Average vehicle speed

DTE (DISTANCE TO EMPTY) INDICATION

The range indication provides the driver with an estimation of the distance that can be driven before refueling.
The range is calculated by signals from the fuel level sensor unit (fuel remaining), ECM (fuel consumption)
and the ABS actuator and electric unit (vehicle speed). The indication will be refreshed every 30 seconds.
When fuel remaining is less than approximately 11.6

(3 1/8 US gal, 2 1/2 Imp gal), the indication will blink as

a warning. If the fuel remaining is less than approximately 9.6

(2 1/2 US gal, 2 1/8 Imp gal), the indication will

show "---". In this case, the display will change to the DTE mode even though the display is showing a different
mode. When the battery is disconnected and reconnected, DTE mode will display "---" until the vehicle is
driven 0.3 miles (0.5 km).

TRIP DISTANCE

Trip distance is calculated by signal from the ABS actuator and electric unit (vehicle speed). If trip distance is
reset, trip time will be reset at the same time.

TRIP TIME

Trip time displays cumulative ignition switch ON time. If trip time is reset, trip distance will be reset at the same
time.

AVERAGE FUEL CONSUMPTION

Average fuel consumption indication is calculated by signals from the ABS actuator and electric unit (vehicle
speed) and the ECM (fuel consumption). The indication will be refreshed every 30 seconds.

AVERAGE VEHICLE SPEED

Average vehicle speed indication is calculated by running distance and running time. The indication will be
refreshed every 30 seconds. If average vehicle speed is reset, average fuel consumption will be reset at the
same time. After resetting, the display will show "---" for 30 seconds.

HOW TO CHANGE/RESET INDICATION

Indication can be changed in the following order by momentarily depressing the board computer switch.
Trip distance

dte

Average vehicle speed

Average fuel consumption

Trip time

.

Holding the switch for more than 1 second will reset the indication of the currently displayed mode (trip dis-
tance, trip time, average vehicle speed or average fuel consumption).

NOTE:
After the display changes automatically, the indication can be changed to the next mode by pushing the board
computer switch.

CAN Communication System Description

EKS00BNS

Refer to

LAN-24, "CAN COMMUNICATION"

.

DI-64

BOARD COMPUTER

2005 Pathfinder

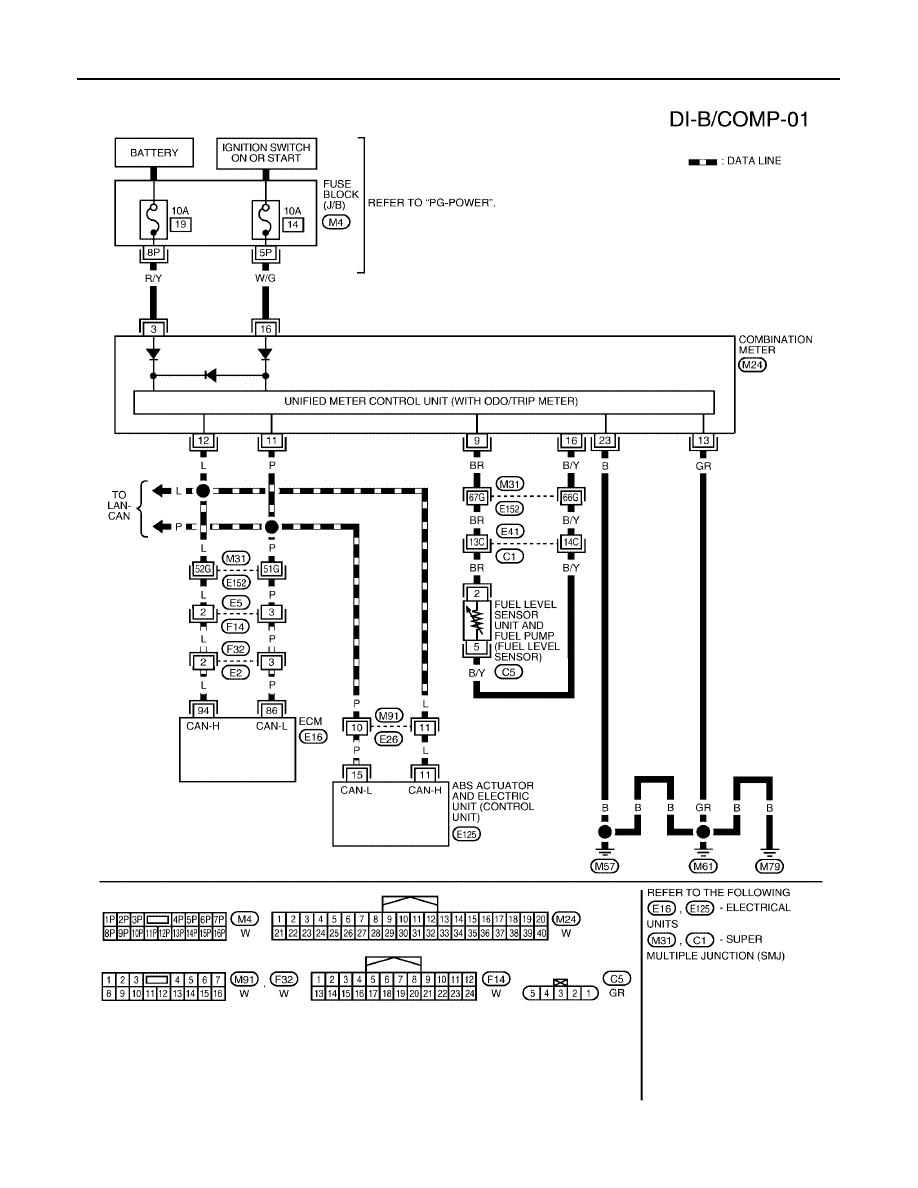

Wiring Diagram — B/COMP —

EKS00BNU

WKWA2655E

BOARD COMPUTER

DI-65

C

D

E

F

G

H

I

J

L

M

A

B

DI

2005 Pathfinder

Trouble Diagnoses

EKS00BNV

SEGMENT CHECK

The board computer segment display can be checked by entering combination meter self-diagnostic mode.
Refer to

DI-11, "SELF-DIAGNOSIS FUNCTION"

.

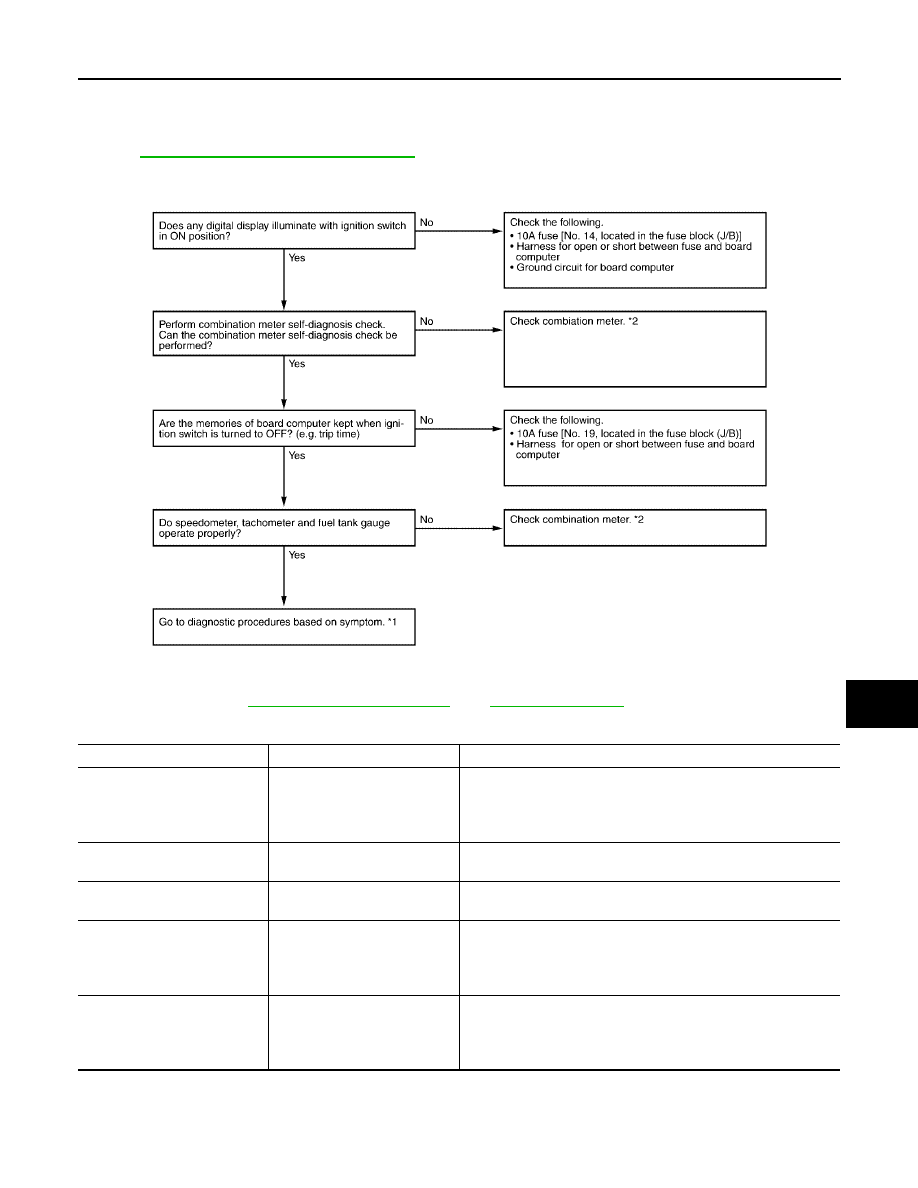

PRELIMINARY CHECK

DIAGNOSIS PROCEDURE

WKIA3296E

*1

DI-65, "DIAGNOSIS PROCEDURE"

*2

DI-19, "Diagnosis Flow"

Symptom

Possible cause

Repair order

DTE (distance to empty) is not
displayed properly.

1. Average fuel consumption

display

2. Fuel tank gauge signal circuit

1. Make sure fuel consumption is displayed properly. If NG, check

fuel consumption display.

2. Make sure fuel gauge operates properly. If NG, check fuel

gauge.

Trip distance is not indicated
properly.

1. ABS actuator and electric

unit (control unit)

1. Perform ABS actuator and electric unit (control unit) self diag-

nosis.

Trip time is not indicated prop-
erly.

1. Fuse

1. 10A fuse [No. 19 located in fuse block (J/B)]. Verify battery volt-

age is present at combination meter terminal 3.

Average fuel consumption is
not displayed properly.

1. Trip distance display

2. Fuel consumption signal

1. Perform ABS actuator and electric unit (control unit) self-diag-

nosis.

2. Check CAN lines for open or short between ECM and combina-

tion meter.

Average vehicle speed is not
indicated properly.

1. Trip distance display

2. Trip time display

1. Perform ABS actuator and electric unit (control unit) self-diag-

nosis.

2. Make sure trip time is displayed properly. If NG, check trip time

display.
