Nissan Pathfinder (2005 year). Manual - part 138





COMBINATION METERS

DI-21

C

D

E

F

G

H

I

J

L

M

A

B

DI

2005 Pathfinder

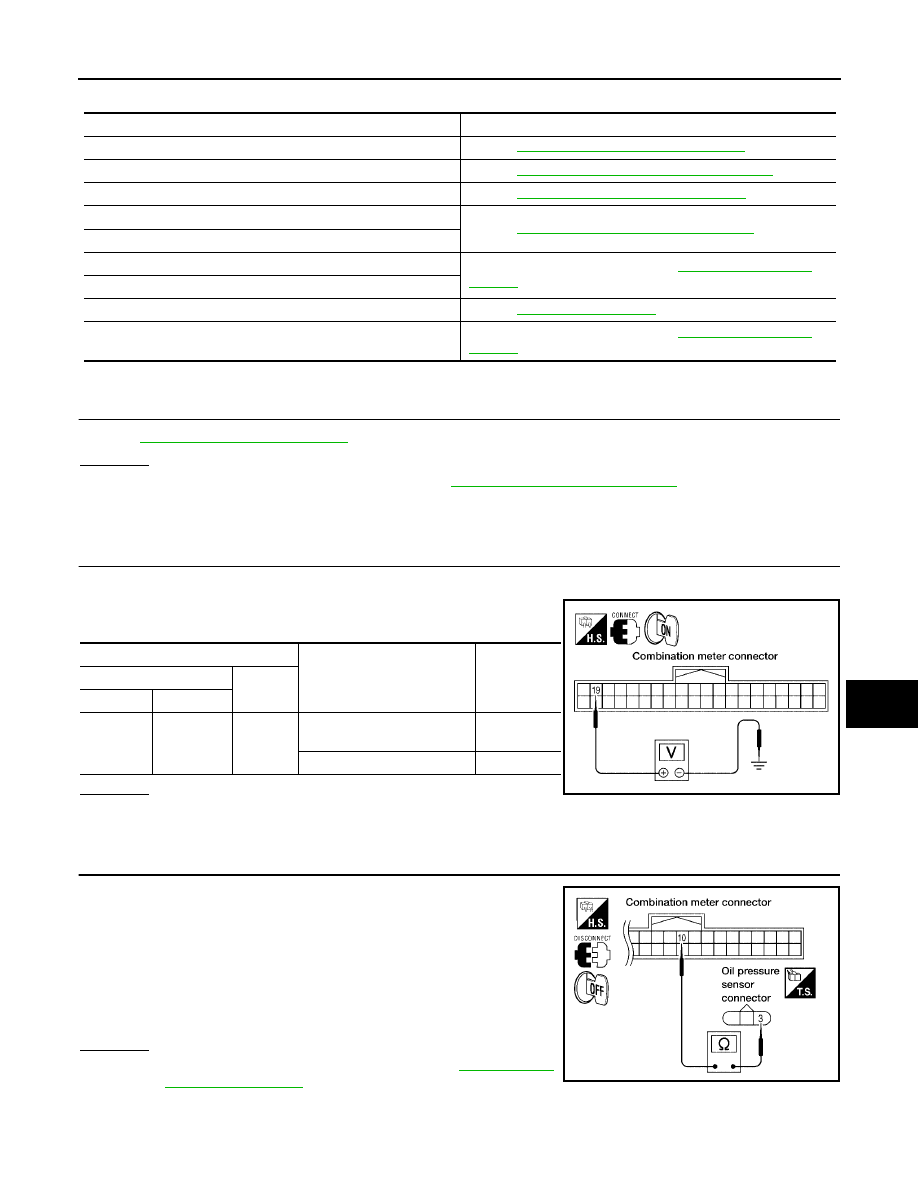

Symptom Chart

EKS009NJ

Vehicle Speed Signal Inspection

EKS009NK

1.

CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) SELF-DIAGNOSIS

Refer to

BRC-30, "SELF-DIAGNOSIS"

.

OK or NG

OK

>> Replace the combination meter. Refer to

IP-13, "COMBINATION METER"

.

NG

>> Perform the "Diagnostic Procedure" for displayed DTC.

Engine Oil Pressure Signal Inspection

EKS009NL

1.

CHECK OIL PRESSURE SENSOR SIGNAL

1.

Turn ignition switch ON.

2.

Check voltage between combination meter harness connector
M24 terminal 19 and ground.

OK or NG

OK

>> GO TO 2.

NG

>> GO TO 3.

2.

CHECK OIL PRESSURE SENSOR GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect combination meter connector M24 and oil pressure
sensor connector F4.

3.

Check continuity between combination meter harness connector
M24 terminal 10 and oil pressure sensor harness connector F4
terminal 3.

OK or NG

OK

>> Replace the combination meter. Refer to

IP-13, "COM-

BINATION METER"

.

NG

>> Repair harness or connector.

Trouble phenomenon

Possible cause

Improper tachometer indication.

Refer to

DI-23, "Engine Speed Signal Inspection"

.

Improper water temperature gauge indication.

Refer to

DI-23, "Water Temperature Signal Inspection"

.

Improper speedometer or odometer.

Refer to

DI-21, "Vehicle Speed Signal Inspection"

.

Improper fuel gauge indication.

Refer to

DI-23, "Fuel Level Sensor Unit Inspection"

.

Fuel warning lamp indication is irregular.

Improper voltage gauge indication.

Replace combination meter. Refer to

IP-13, "COMBINATION

METER"

.

More than one gauge does not give proper indication.

Improper A/T position indication.

Refer to

DI-44, "A/T INDICATOR"

.

Illumination control does not operate properly.

Replace combination meter. Refer to

IP-13, "COMBINATION

METER"

.

Terminals

Condition

Voltage (V)

(+)

(–)

Connector

Terminal

M24

19

Ground

When ignition switch is in ON
position. (Engine stopped)

Yes

Engine running. (Idle speed)

No

WKIA3281E

Continuity should exist.

WKIA3282E

DI-22

COMBINATION METERS

2005 Pathfinder

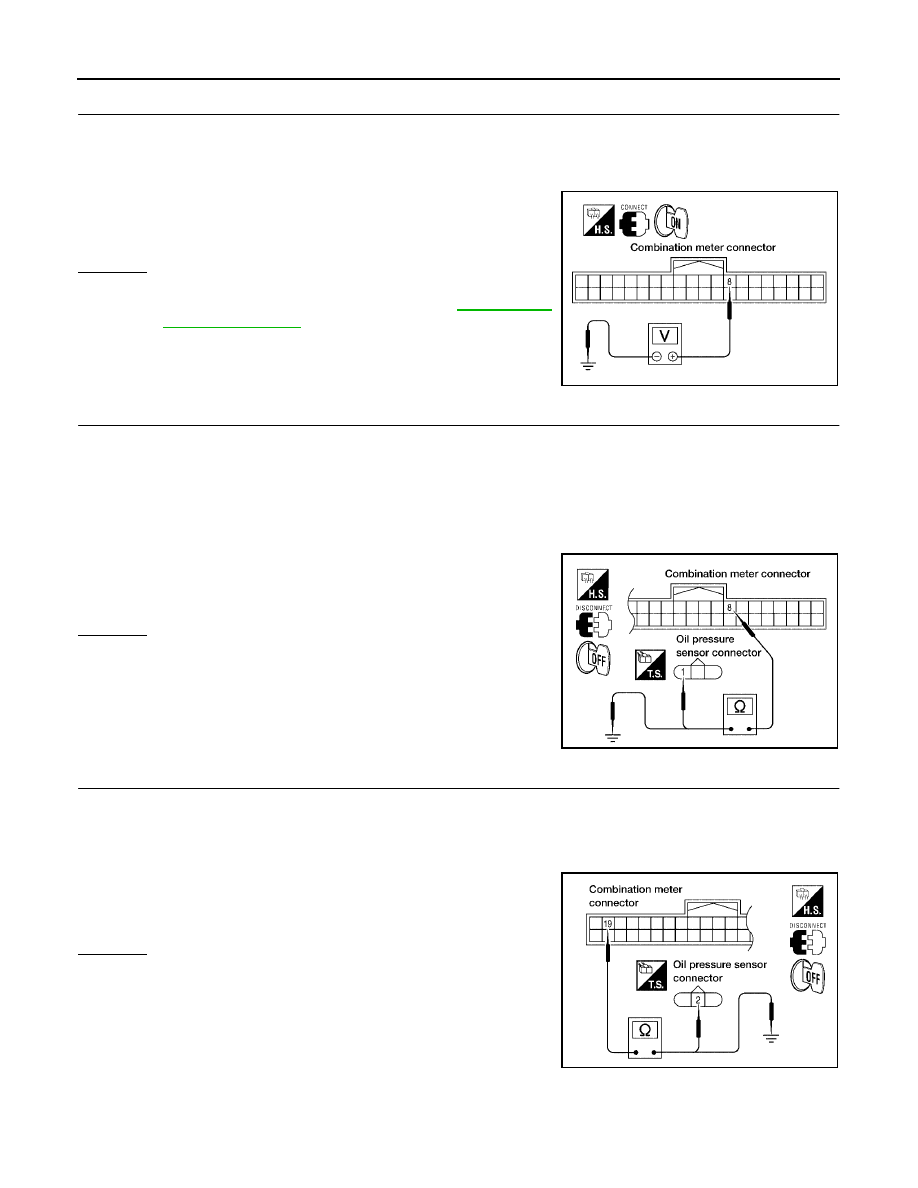

3.

CHECK OIL PRESSURE SENSOR REFERENCE VOLTAGE

1.

Turn ignition switch OFF.

2.

Disconnect oil pressure sensor connector F4.

3.

Turn ignition switch ON.

4.

Check voltage between combination meter harness connector
M24 terminal 8 and ground.

OK or NG

OK

>> GO TO 4.

NG

>> Replace the combination meter. Refer to

IP-13, "COM-

BINATION METER"

.

4.

CHECK OIL PRESSURE SENSOR POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect combination meter connector M24.

3.

Check continuity between combination meter harness connector M24 terminal 8 and oil pressure sensor
harness connector F4 terminal 1.

4.

Check continuity between combination meter harness connector
M24 terminal 8 and ground.

OK or NG

OK

>> GO TO 5.

NG

>> Repair harness or connector.

5.

CHECK OIL PRESSURE SENSOR SIGNAL CIRCUIT

1.

Check continuity between combination meter harness connector M24 terminal 19 and oil pressure sensor
harness connector F4 terminal 2.

2.

Check continuity between combination meter harness connector
M24 terminal 19 and ground.

OK or NG

OK

>> GO TO 6.

NG

>> Repair harness or connector.

Voltage

: Approx. 5V

WKIA3283E

Continuity should exist.

Continuity should not exist.

WKIA3284E

Continuity should exist.

Continuity should not exist.

WKIA3285E

COMBINATION METERS

DI-23

C

D

E

F

G

H

I

J

L

M

A

B

DI

2005 Pathfinder

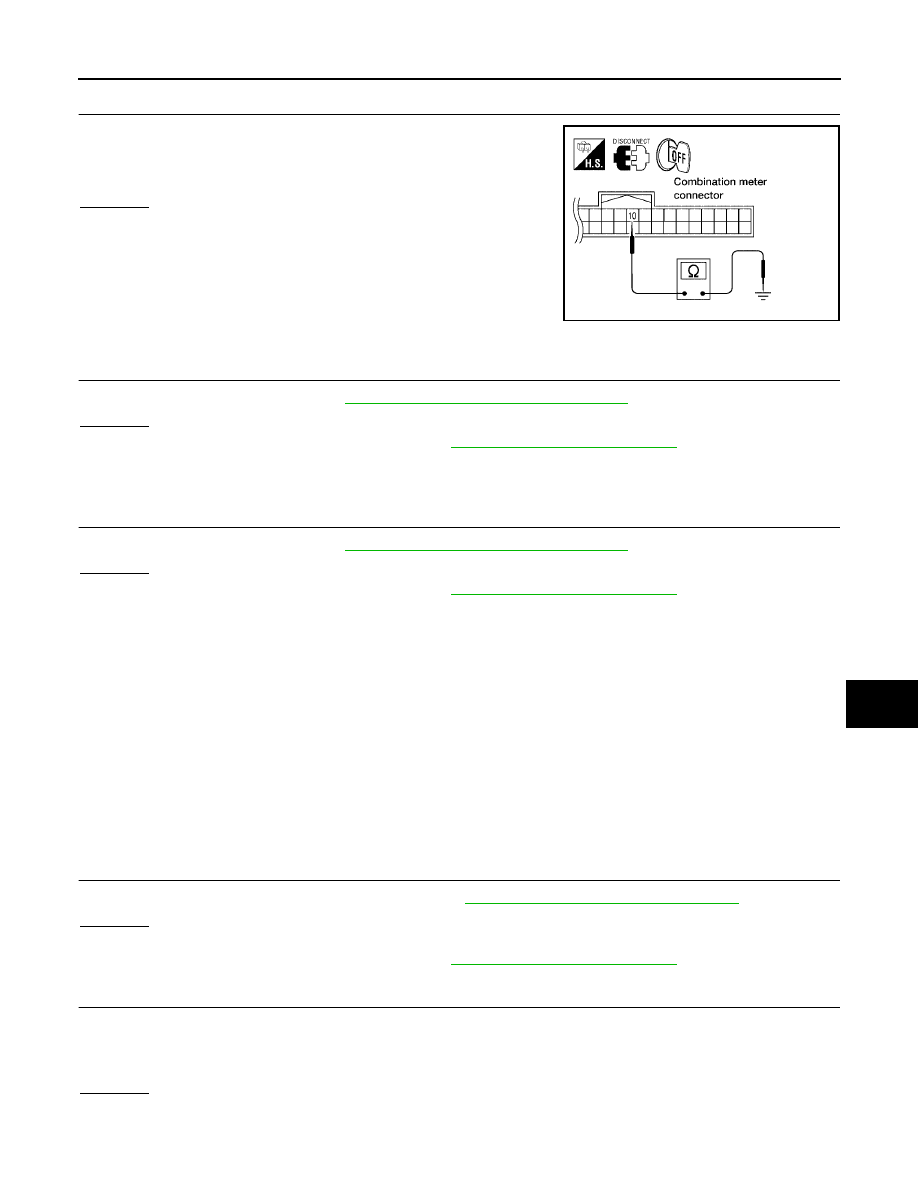

6.

CHECK OIL PRESSURE SENSOR GROUND CIRCUIT

Check continuity between combination meter harness connector
M24 terminal 10 and ground.

OK or NG

OK

>> Replace oil pressure sensor.

NG

>> Repair harness or connector.

Water Temperature Signal Inspection

EKS009NM

1.

CHECK ECM SELF-DIAGNOSIS

Perform ECM self-diagnosis. Refer to

EC-129, "SELF-DIAG RESULTS MODE"

.

OK or NG

OK

>> Replace the combination meter. Refer to

IP-13, "COMBINATION METER"

.

NG

>> Perform "Diagnostic procedure" for displayed DTC.

Engine Speed Signal Inspection

EKS009NN

1.

CHECK ECM SELF-DIAGNOSIS

Perform ECM self-diagnosis. Refer to

EC-129, "SELF-DIAG RESULTS MODE"

.

OK or NG

OK

>> Replace the combination meter. Refer to

IP-13, "COMBINATION METER"

.

NG

>> Perform "Diagnostic procedure" for displayed DTC.

Fuel Level Sensor Unit Inspection

EKS009NO

FUEL LEVEL SENSOR UNIT

The following symptoms do not indicate a malfunction.

Depending on vehicle position or driving circumstance, the fuel in the tank shifts and the indication may
fluctuate.

If the vehicle is fueled with the ignition switch ON, the indication will update slowly.

If the vehicle is tilted when the ignition switch is turned ON, fuel in the tank may flow to one direction
resulting in a change of reading.

LOW-FUEL WARNING LAMP

Depending on vehicle posture or driving circumstances, the fuel level in the tank varies, and the warning lamp
ON timing may be changed.

1.

CHECK SELF-DIAGNOSIS

Perform the combination meter self-diagnosis. Refer to

DI-11, "SELF-DIAGNOSIS FUNCTION"

.

OK or NG

OK

>> GO TO 2.

NG

>> Replace the combination meter. Refer to

IP-13, "COMBINATION METER"

.

2.

CHECK HARNESS CONNECTOR

1.

Turn the ignition switch OFF.

2.

Check combination meter and fuel level sensor unit and fuel pump terminals (meter-side and harness-
side) for poor connection.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace terminals or connectors.

Continuity should not exist.

WKIA3286E

DI-24

COMBINATION METERS

2005 Pathfinder

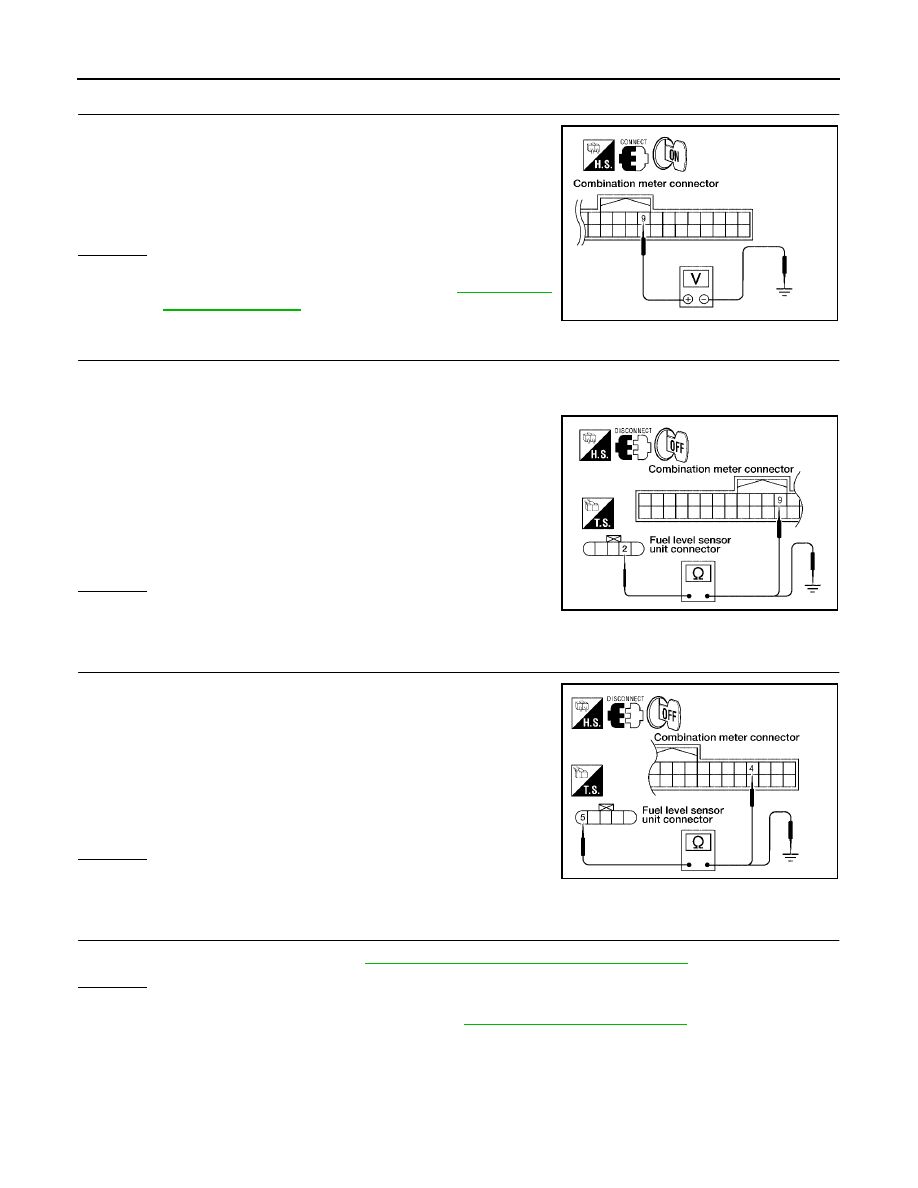

3.

CHECK HARNESS CONNECTOR OUTPUT SIGNAL

1.

Disconnect fuel level sensor unit and fuel pump connector.

2.

Turn ignition switch ON.

3.

Check voltage between combination meter harness connector
M24 terminal 9 and ground.

OK or NG

OK

>> GO TO 4.

NG

>> Replace the combination meter. Refer to

IP-13, "COM-

BINATION METER"

.

4.

CHECK HARNESS FOR OPEN OR SHORT CIRCUIT

1.

Turn the ignition switch OFF.

2.

Disconnect combination meter connector M24.

3.

Check continuity between combination meter harness connector
M24 terminal 9 and fuel level sensor unit and fuel pump harness
connector C5 terminal 2.

4.

Check continuity between fuel level sensor unit and fuel pump
harness connector C5 terminal 2 and ground.

OK or NG

OK

>> GO TO 5.

NG

>> Repair harness or connector.

5.

CHECK FUEL LEVEL SENSOR CIRCUIT

1.

Check continuity between combination meter harness connector
M24 terminal 4 and fuel level sensor unit and fuel pump harness
connector C5 terminal 5.

2.

Check continuity between fuel level sensor unit and fuel pump
harness connector C5 terminal 5 and ground.

OK or NG

OK

>> GO TO 6.

NG

>> Repair harness or connector.

6.

CHECK FUEL LEVEL SENSOR UNIT

Check the fuel level sensor unit. Refer to

DI-26, "FUEL LEVEL SENSOR UNIT CHECK"

.

OK or NG

OK

>> GO TO 7.

NG

>> Replace the fuel level sensor unit. Refer to

FL-5, "Removal and Installation"

.

Battery voltage should exist.

WKIA3287E

Continuity should exist.

Continuity should not exist.

WKIA3288E

Continuity should exist.

Continuity should not exist.

WKIA3289E

COMBINATION METERS

DI-25

C

D

E

F

G

H

I

J

L

M

A

B

DI

2005 Pathfinder

7.

CHECK INSTALLATION CONDITION

Check fuel level sensor unit installation, and determine whether the float arm interferes or binds with any of the
internal components in the fuel tank.

OK or NG

OK

>> Replace the combination meter. Refer to

IP-13, "COMBINATION METER"

.

NG

>> Install the fuel level sensor unit properly.

Fuel Gauge Fluctuates, Indicates Wrong Value, or Varies

EKS009NP

1.

CHECK FUEL GAUGE FLUCTUATION

Test drive vehicle to see if gauge fluctuates only during driving or just before or just after stopping.

Does the indication value vary only during driving or just before or just after stopping?

YES

>> The fluctuation may be caused by fuel level change in the fuel tank. Condition is normal.

NO

>> Ask the customer in detail about the situation when the symptom occurs. Refer to

DI-23, "Fuel

Level Sensor Unit Inspection"

.

Fuel Gauge Does Not Move to Full-position

EKS009NQ

1.

CHECK POINTER MOVEMENT TO FULL-POSITION

Does it take a long time for the pointer to move to full-position?

YES or NO

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

CHECK IGNITION SWITCH POSITION

Was the vehicle fueled with the ignition switch ON?

YES or NO

YES

>> Be sure to fuel the vehicle with the ignition switch OFF. Otherwise, it will take a long time for the

pointer to move to full-position because of the characteristic of the fuel gauge.

NO

>> GO TO 3.

3.

OBSERVE VEHICLE POSITION

Is the vehicle parked on an incline?

YES or NO

YES

>> Check the fuel level indication with vehicle on a level surface.

NO

>> GO TO 4.

4.

CHECK POINTER MOVEMENT TO EMPTY-POSITION

During driving, does the fuel gauge move gradually toward empty-position?

YES or NO

YES

>> Check the fuel level sensor unit. Refer to

DI-26, "FUEL LEVEL SENSOR UNIT CHECK"

.

NO

>> Check fuel level sensor unit installation, and determine whether the float arm interferes or binds

with any of the internal components in the fuel tank.

DTC [U1000] CAN Communication Circuit

EKS00D6I

Symptom: Display CAN COMM CIRC [U1000] at the result of self-diagnosis for combination meter.

1.

CHECK CAN COMMUNICATION

1.

Select "SELF-DIAG RESULTS" mode for "METER" with CONSULT-II.

2.

Print out CONSULT-II screen.

>> Go to "CAN SYSTEM". Refer to

LAN-24, "CAN COMMUNICATION"

.

DI-26

COMBINATION METERS

2005 Pathfinder

DTC [B2205] Vehicle Speed Circuit

EKS00D6J

Symptom: Display VEHICLE SPEED CIRC [B2205] at the result of self-diagnosis for combination meter.

1.

CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

Perform ABS actuator and electric unit (control unit) self-diagnosis. Refer to

BRC-30, "SELF-DIAGNOSIS"

.

Are self-diagnosis result items displayed?

YES

>> After checking and repairing the applicable item, perform the ABS actuator and electric unit (con-

trol unit) self-diagnosis again.

NO

>> Replace combination meter. Refer to

IP-13, "COMBINATION METER"

.

Electrical Components Inspection

EKS009NR

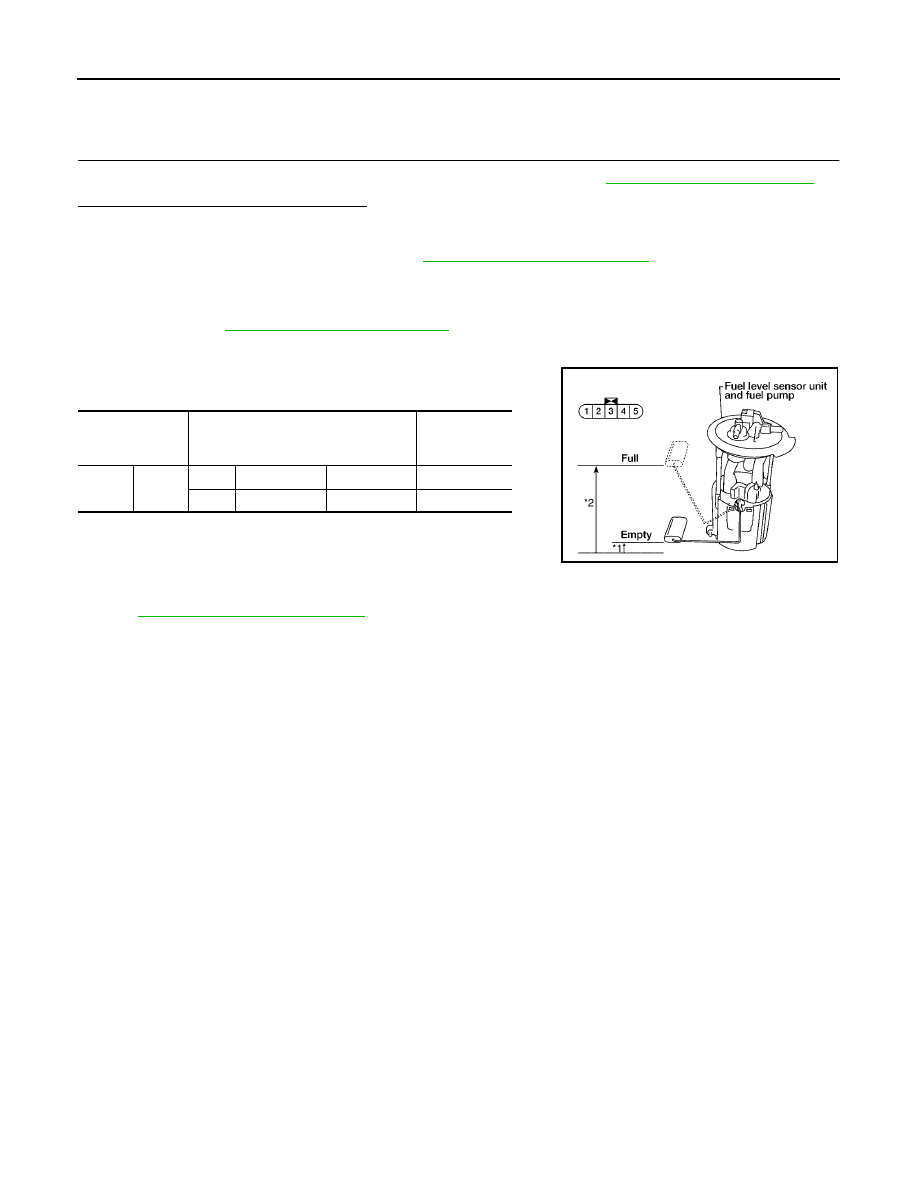

FUEL LEVEL SENSOR UNIT CHECK

For removal, refer to

FL-5, "Removal and Installation"

.

Check Fuel Level Sensor Unit and Fuel Pump

Check resistance between fuel level sensor unit and fuel pump con-
nector terminals 2 and 5.

*1 and *2: When float rod is in contact with stopper.

Removal and Installation of Combination Meter

EKS009NS

Refer to

IP-13, "COMBINATION METER"

.

Terminals

Float position

mm (in)

Resistance

value

(Approx.)

2

5

*1

Empty

25.86 (1.02)

81.66

*2

Full

254.6 (10.02)

6.98

LKIA0402E

COMPASS AND THERMOMETER

DI-27

C

D

E

F

G

H

I

J

L

M

A

B

DI

2005 Pathfinder

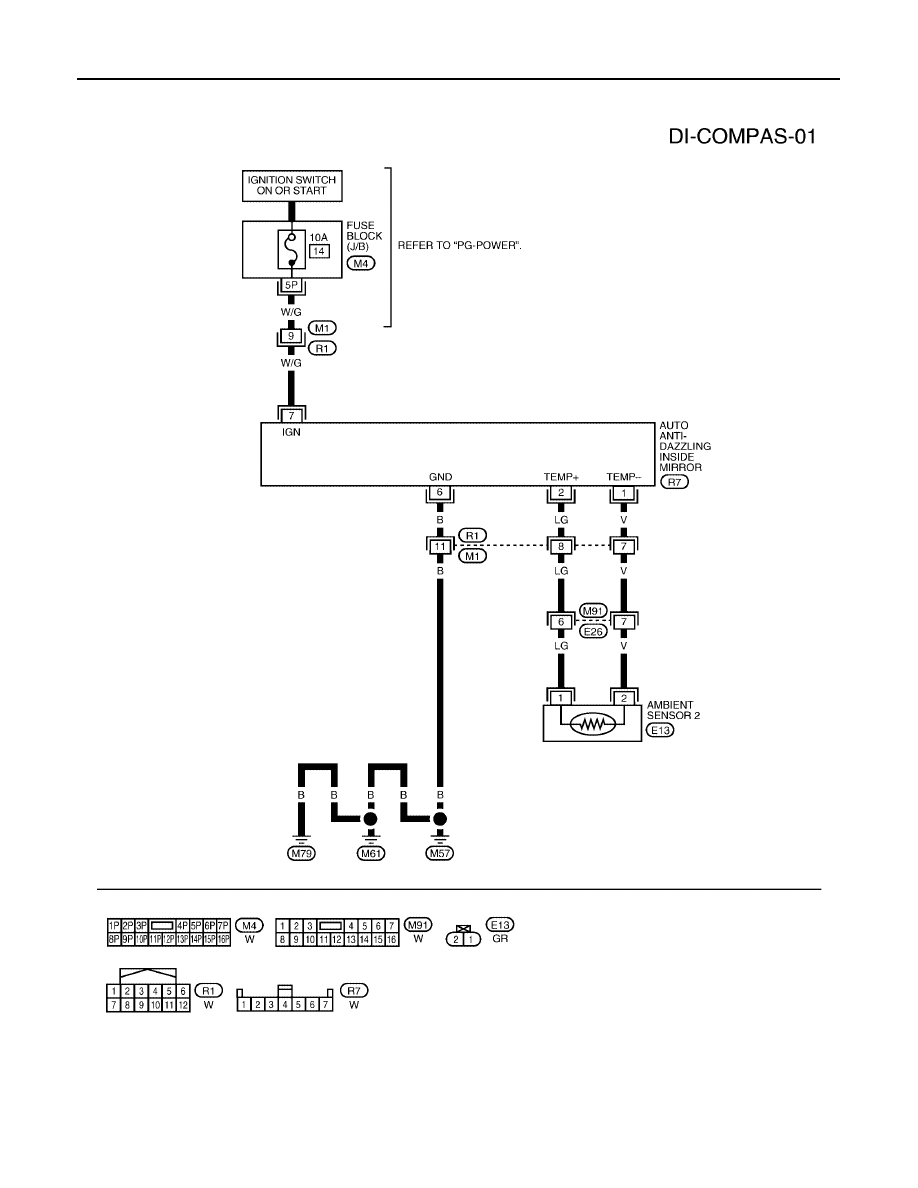

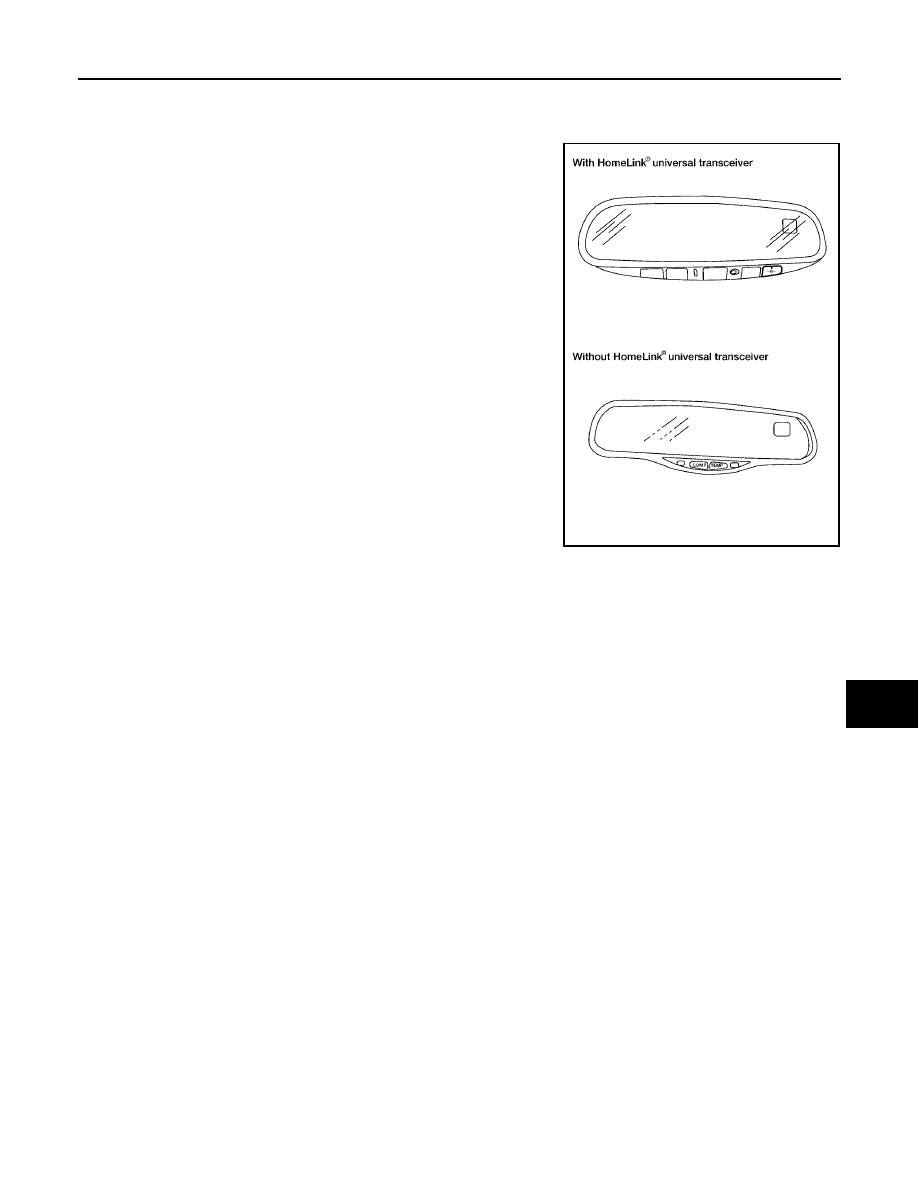

COMPASS AND THERMOMETER

PFP:24835

System Description

EKS009NT

This unit displays the following items:

Earth magnetism and heading direction of vehicle.

Outside air temperature.

Caution for frozen road surfaces.

OUTSIDE TEMPERATURE DISPLAY

Push the mode (N) or TEMP switch when the ignition switch is in the ACC or ON position. The outside temper-
ature will be displayed in “

°

F”. To change the indication from “

°

F” to “

°

C”, push and hold the mode (N) or TEMP

switch for about 3 seconds until the display begins to flash. Press the mode (N) or TEMP switch again to tog-
gle between “

°

F” and “

°

C”.

DIRECTION DISPLAY

Push the mode (N) or COMP switch when the ignition switch is in the ACC or ON position. The direction will be
displayed.

WKIA3365E

DI-28

COMPASS AND THERMOMETER

2005 Pathfinder

Wiring Diagram — COMPAS —

EKS009NU

WITHOUT HOMELINK® UNIVERSAL TRANSCEIVER

WKWA2048E















Content      ..     136      137      138      139     ..
