REAR DISC BRAKE

BR-33

2005 Pathfinder

Sliding Pin Bolts and Sliding Pin Boots

Make sure there is no wear, damage, or cracks in sliding sleeve and sliding sleeve boots, and if there are,
replace them.

ASSEMBLY

CAUTION:

Do not use NISSAN Rubber Grease (KRE00 00010, KRE00 00010 01) when assembling.

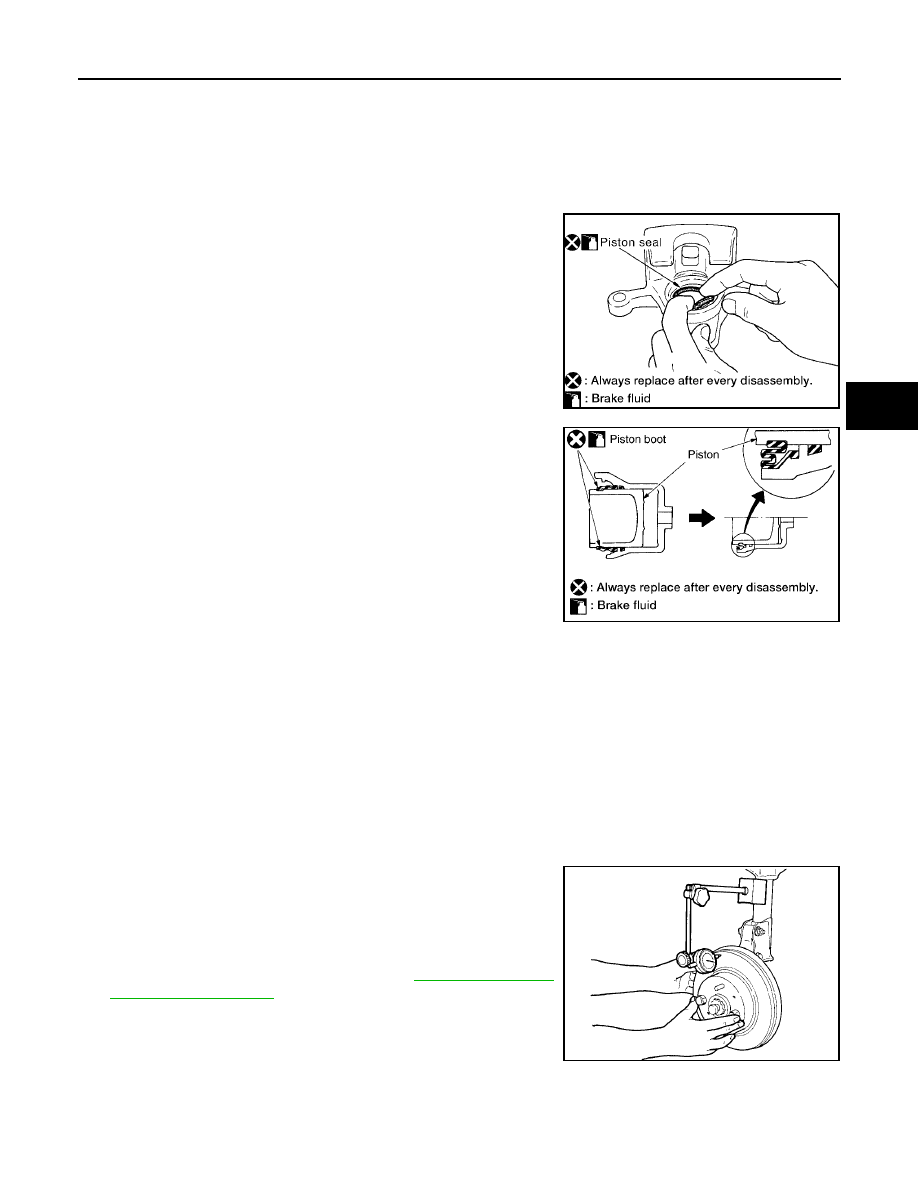

Apply clean brake fluid to new piston seal and insert into groove
on cylinder body.

CAUTION:

Do not reuse piston seal.

Apply brake fluid to piston and to piston boot, then install piston
boot into piston groove.

CAUTION:

Do not reuse piston boot.

Insert into cylinder body by hand and insert piston boot piston-side lip into piston groove.

CAUTION:

Press piston evenly and vary the pressing point to prevent cylinder inner wall from being rubbed.

Install sliding boots and sleeves to cylinder body.

DISC ROTOR INSPECTION
Visual Inspection

Check surface of disc rotor for uneven wear, cracks, and serious damage. If any non-standard condition is
detected, replace applicable part.

Runout Inspection

Using wheel nuts, install disc rotor to wheel hub. (2 or more positions.)

Inspect runout using a dial gauge. [Measured at 10 mm (0.39 in)
inside disk edge.]

NOTE:
Make sure that wheel bearing axial end play is within the specifi-
cation before measuring runout. Refer to

RAX-5, "On-Vehicle

Inspection and Service"

If runout is outside the limit, find the minimum runout point by
shifting mounting positions of disc rotor and wheel hub by one
hole.

If runout still out of specification, turn rotor with on-car brake
lathe.

WFIA0210E

WFIA0211E

Runout limit (on vehicle)

: 0.05 mm (0.0020 in)

BRA0013D

BR-34

REAR DISC BRAKE

2005 Pathfinder

Thickness Inspection

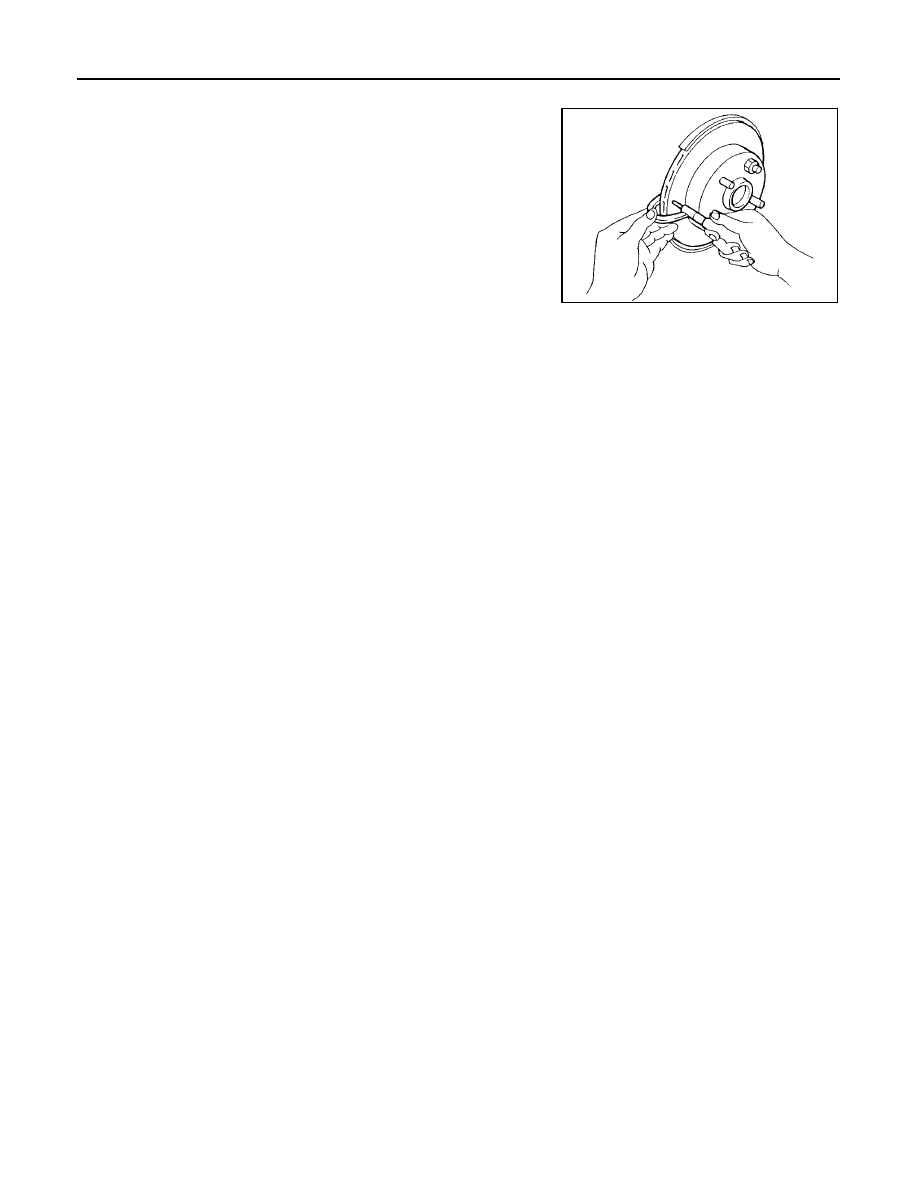

Using a micrometer, check thickness of disc rotor. If thickness is
either at or below the wear limit, or exceeds maximum uneven wear,
replace disc rotor.

BRAKE BURNISHING PROCEDURE

Burnish brake contact surface according to the following procedure after refinishing or replacing rotors, after
replacing pads, or if a soft pedal occurs at very low mileage.

CAUTION:

Only perform this procedure under safe road and traffic conditions. Use extreme caution.

Drive the vehicle on a straight smooth road at 50 km/h (31 MPH).

Use medium brake pedal/foot effort to bring the vehicle to a complete stop from 50 km/h (31 MPH). Adjust
brake pedal/foot pressure such that vehicle stopping time equals 3 to 5 seconds.

To cool brake system, drive the vehicle at 50 km/h (31 MPH) for 1 minute without stopping.

Repeat steps 1 to 3, 10 times or more to complete the burnishing procedure.

Standard thickness

: 14.0 mm (0.551 in)

Wear limit

: 12.0 mm (0.472 in)

Maximum uneven wear
(measured at 8 positions)

: 0.015 mm (0.0006 in)

SBR020B

SERVICE DATA AND SPECIFICATIONS (SDS)

BR-35

2005 Pathfinder

SERVICE DATA AND SPECIFICATIONS (SDS)

PFP:00030

General Specifications

EFS004IQ

Unit: mm (in)

Brake Pedal

EFS004IR

Unit: mm (in)

Brake Booster

EFS004IS

Unit: mm (in)

Front brake

Brake model

CLZ33VB

Rotor outer diameter

thickness

296

28 (11.654

1.102)

Pad Length

width

thickness

111.0

73.5

11.88 (4.73

2.894

0.468)

Cylinder bore diameter

51 (2.01)

Rear brake

Brake model

CLZ14VB

Rotor outer diameter

thickness

308

18 (12.126

0.709)

Pad Length

width

thickness

83.0

33.0

12.13 (3.268

1.299

0.478)

Cylinder bore diameter

48 (1.89)

Control valve

Valve model

Electric brake force distribution

Brake booster

Booster model

C215T

Diaphragm diameter

215 (8.46)

Recommended brake fluid

Refer to

MA-11, "RECOMMENDED FLUIDS AND LUBRI-

CANTS"

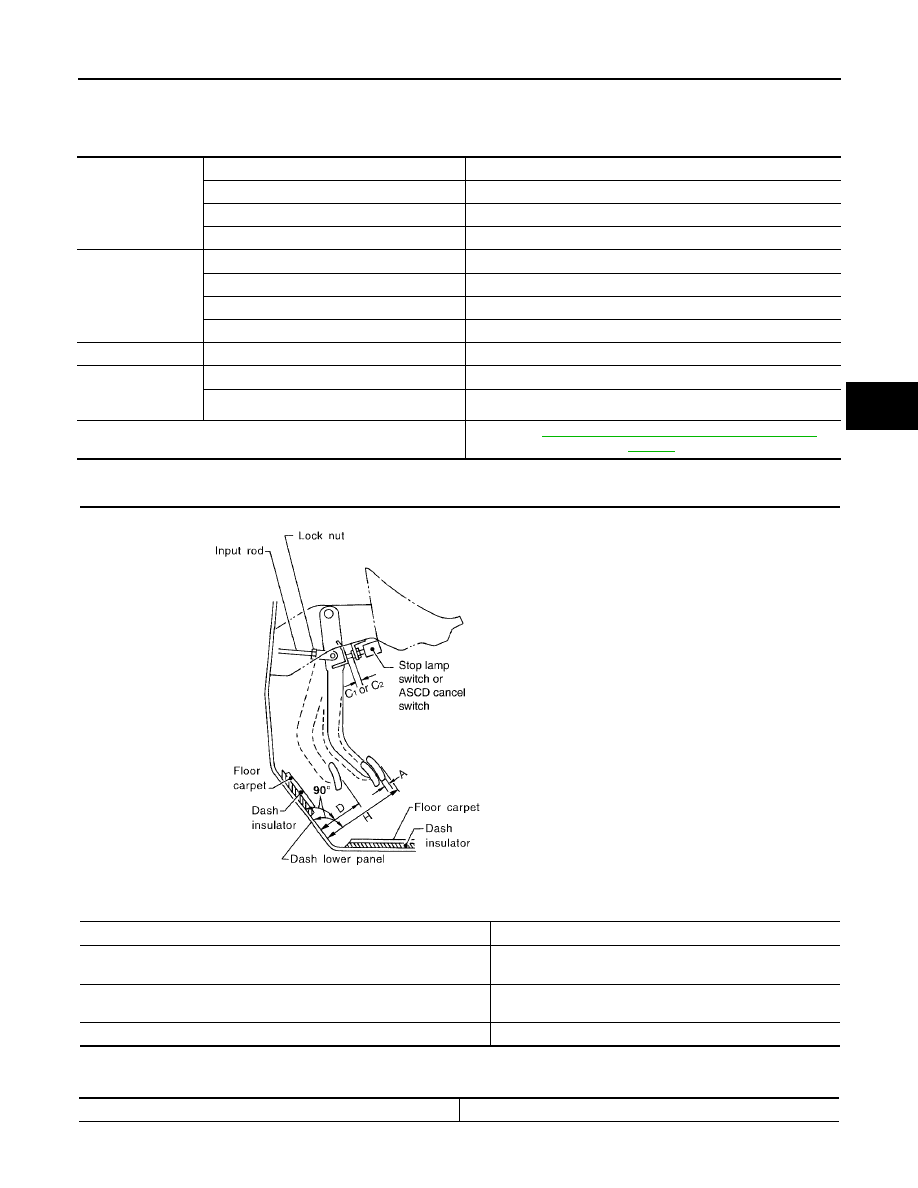

Free height "H"

182.1 - 192.1 (7.17 - 7.56)

Depressed pedal height ("D" [under a force of 490 N (50 kg, 110 lb)
with engine running]

105 - 115 (4.13 - 4.53)

Clearance between pedal stopper and threaded end of stop lamp
switch and ASCD switch "C

" or “C

”

0.74 - 1.96 (0.029 - 0.077)

Pedal play "A"

3 - 11 (0.12 - 0.43)

WFIA0160E

Input rod installation standard dimension

15.6

−

15.9 (0.614

−

0.626)

BR-36

SERVICE DATA AND SPECIFICATIONS (SDS)

2005 Pathfinder

Check Valve

EFS004IT

Front Disc Brake

EFS004IU

Unit: mm (in)

Rear Disc Brake

EFS004IV

Vacuum leakage
[at vacuum of – 66.7 kPa(– 500 mmHg, – 19.69 inHg)]

Within 1.3 kPa (10 mmHg, 0.39 inHg) of vacuum for 15 seconds

Brake model

CLZ33VB

Brake pad

Standard thickness (new)

11.88 (0.468)

Repair limit thickness

1.0 (0.039)

Disc rotor

Standard thickness (new)

28.0 (1.102)

Repair limit thickness

24.5 (0.965)

Maximum uneven wear (measured at 8 positions)

0.015 (0.0006)

Runout limit (with it attached to the vehicle)

0.04 (0.0016)

Brake model

CLZ14VB

Brake pad

Standard thickness (new)

12.13 mm (0.478 in)

Repair limit thickness

1.0 mm (0.039 in)

Disc rotor

Standard thickness (new)

14.0 mm (0.551 in)

Repair limit thickness

12.0 mm (0.472 in)

Maximum uneven wear (measured at 8 positions)

0.015 mm (0.0006 in)

Runout limit (with it attached to the vehicle)

0.05 mm (0.0020 in)

BRC-4

[VDC/TCS/ABS]

PRECAUTIONS

2005 Pathfinder

PRECAUTIONS

PFP:00001

Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”

EFS004MF

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SRS and SB section of
this Service Manual.

WARNING:

●

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

●

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

●

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.

Precautions for Brake System

EFS004MG

CAUTION:

●

Refer to

for recommended brake fluid.

●

Never reuse drained brake fluid.

●

Be careful not to splash brake fluid on painted areas; it may cause paint damage. If brake fluid is
splashed on painted areas, wash it away with water immediately.

●

To clean or wash all parts of master cylinder and disc brake caliper, use clean brake fluid.

●

Never use mineral oils such as gasoline or kerosene. They will ruin rubber parts of the hydraulic
system.

●

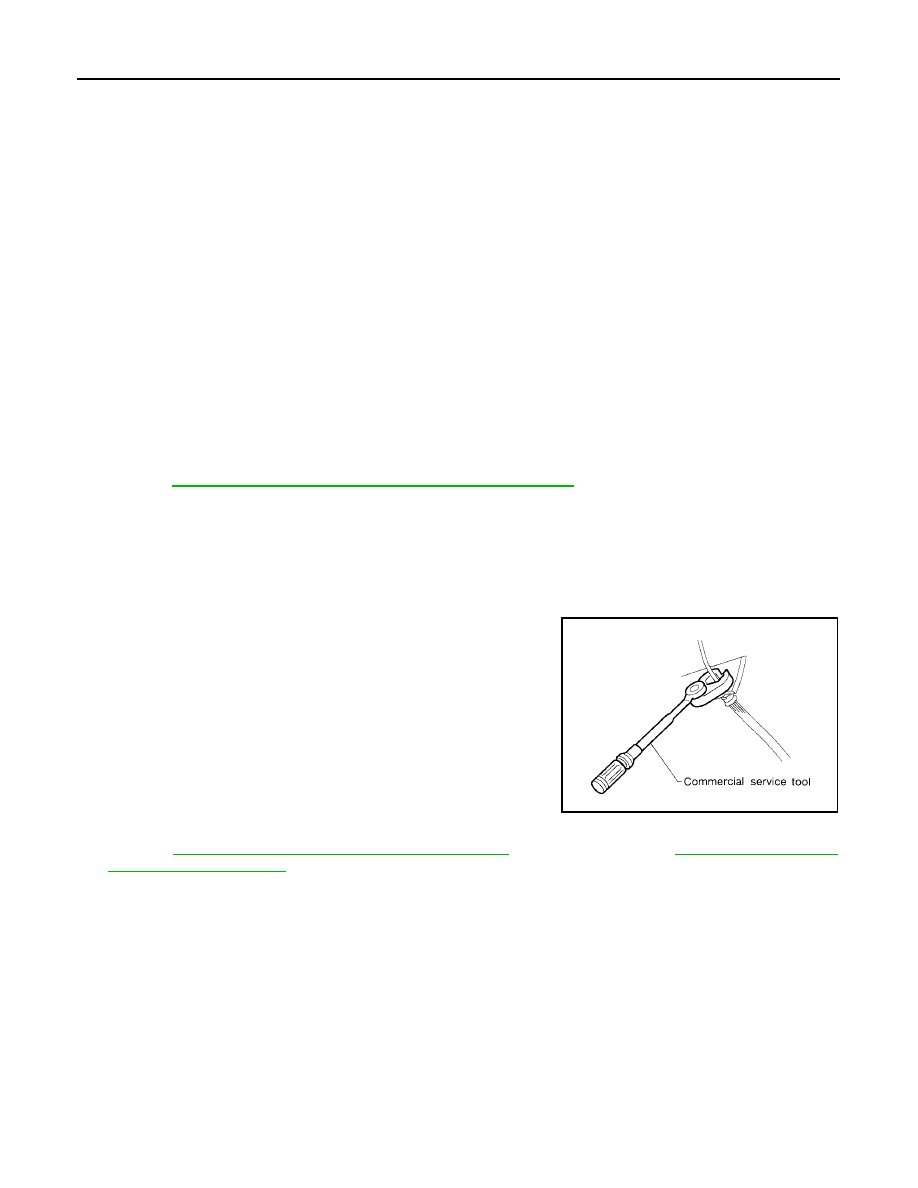

Use flare nut wrench when removing and installing brake
tube.

●

If a brake fluid leak is found, the part must be disassembled
without fail. Then it has to be replaced with a new one if a
defect exists.

●

Turn the ignition switch OFF and remove the connector of
the ABS actuator and electric unit (control unit) or the bat-
tery terminal before performing the work.

●

Always torque brake lines when installing.

●

Burnish the brake contact surfaces after refinishing or
replacing rotors, after replacing pads, or if a soft pedal
occurs at very low mileage.
Refer to

BR-28, "BRAKE BURNISHING PROCEDURE"

(front disc brake) or

BR-34, "BRAKE BUR-

NISHING PROCEDURE"

(rear disc brake).

WARNING:

●

Clean brake pads and shoes with a waste cloth, then wipe with a dust collector.

Precautions When Using CONSULT-II

EFS004MH

When connecting CONSULT-II to data link connector, connect them through CONSULT-II CONVERTER.

CAUTION:

If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.

CHECK POINTS FOR USING CONSULT-II

Has CONSULT-II been used without connecting CONSULT-II CONVERTER on this vehicle?

●

If YES, GO TO 2.

●

If NO, GO TO 5.

SBR686C
