Nissan Pathfinder (2005 year). Manual - part 113





BRAKE MASTER CYLINDER

BR-17

C

D

E

G

H

I

J

K

L

M

A

B

BR

2005 Pathfinder

3.

Using a flare nut wrench, disconnect brake tube from master cylinder assembly.

4.

Remove master cylinder assembly mounting nuts and master cylinder assembly.

INSTALLATION

Installation is in the reverse order of removal.

Refill brake fluid and bleed air. Refer to

BR-12, "Bleeding Brake System"

.

CAUTION:

Refill using recommended brake fluid. Refer to

MA-11, "RECOMMENDED FLUIDS AND LUBRI-

CANTS"

.

Do not reuse drained brake fluid.

Adjust brake pedal. Refer to

BR-6, "Inspection and Adjustment"

.

Disassembly and Assembly

EFS004IB

DISASSEMBLY

CAUTION:

Master cylinder cannot be disassembled.

Remove reservoir tank only when absolutely necessary.

Pull reservoir tank off master cylinder sub-assembly, then remove grommets from master cylinder sub-assem-
bly body.

ASSEMBLY

CAUTION:

Never use mineral oils such as kerosene, gasoline during the cleaning and assembly process.

Do not drop parts. If a part is dropped, do not use it.

1.

Apply brake fluid or rubber grease to new grommets, then insert into master cylinder sub-assembly. Refer
to

GI-45, "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS"

.

CAUTION:

Do not reuse grommet.

2.

Install reservoir tank onto master cylinder assembly.

BR-18

BRAKE BOOSTER

2005 Pathfinder

BRAKE BOOSTER

PFP:47200

On-Vehicle Service

EFS004IC

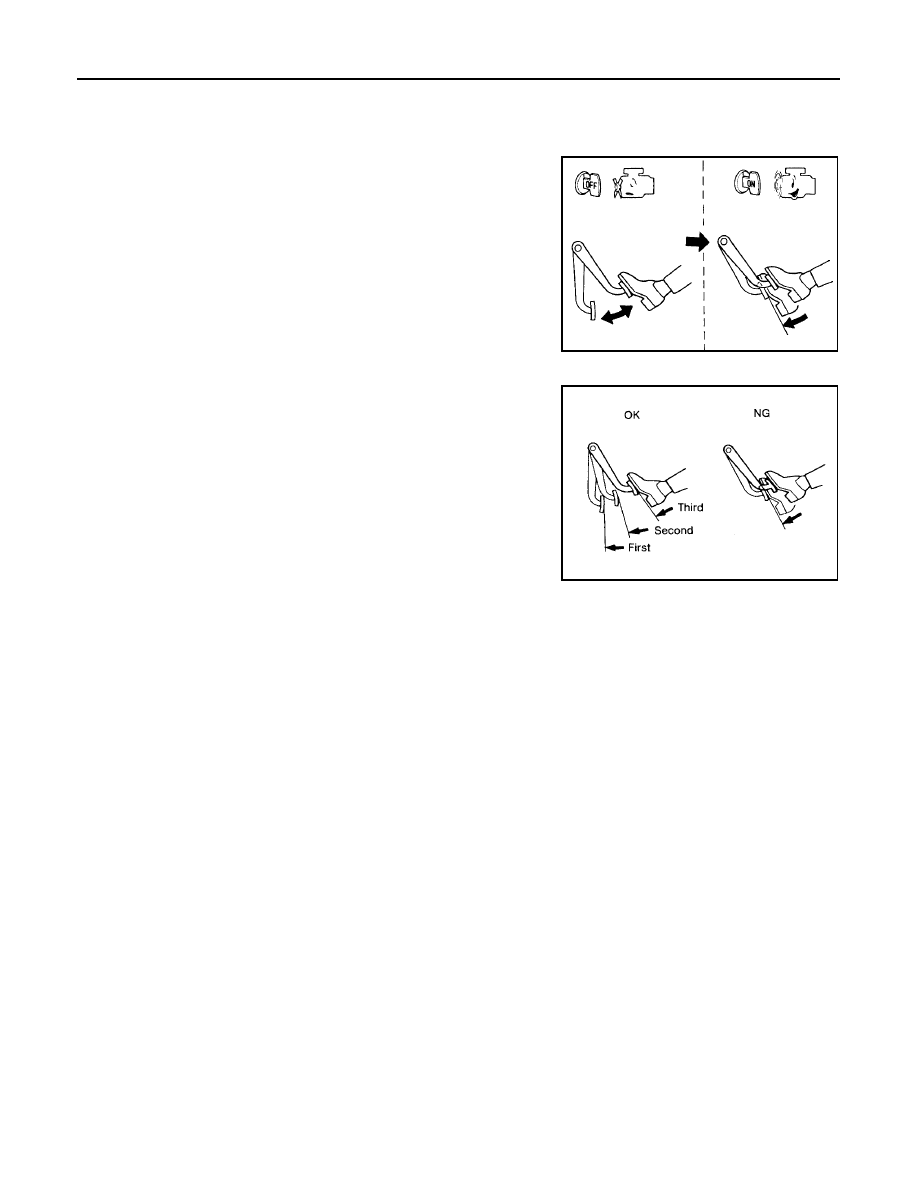

OPERATING CHECK

With engine stopped, change the vacuum to the atmospheric pres-
sure by depressing brake pedal several times. Then with brake
pedal fully depressed, start engine and when the vacuum pressure
reaches the standard, make sure the clearance between brake pedal
and floor panel decreases.

CAUTION:

Depressing pedal interval is approximately 5 seconds.

AIRTIGHT CHECK

Run engine at idle for approximately 1 minute, and stop it after
applying vacuum to booster. Depress brake pedal normally to
change the vacuum to the atmospheric pressure. Make sure dis-
tance between brake pedal and floor panel gradually increases.

Depress brake pedal while engine is running and stop engine
with pedal depressed. The pedal stroke should not change after
holding pedal down for 30 seconds.

CAUTION:

Depressing pedal interval is approximately 5 seconds.

BRA0037D

SBR365AA

BRAKE BOOSTER

BR-19

C

D

E

G

H

I

J

K

L

M

A

B

BR

2005 Pathfinder

Removal and Installation

EFS004ID

Brake Booster

REMOVAL

CAUTION:

Be careful not to deform or bend brake piping while removing and installing brake booster.

Replace clevis pin if it is damaged.

Be careful not to damage brake booster stud bolt threads. If brake booster is tilted or inclined dur-
ing installation, dash panel may damage the threads.

Attach the check valve in the correct direction.

1.

Remove actuator and electric unit. Refer to

BRC-61, "Removal and Installation"

.

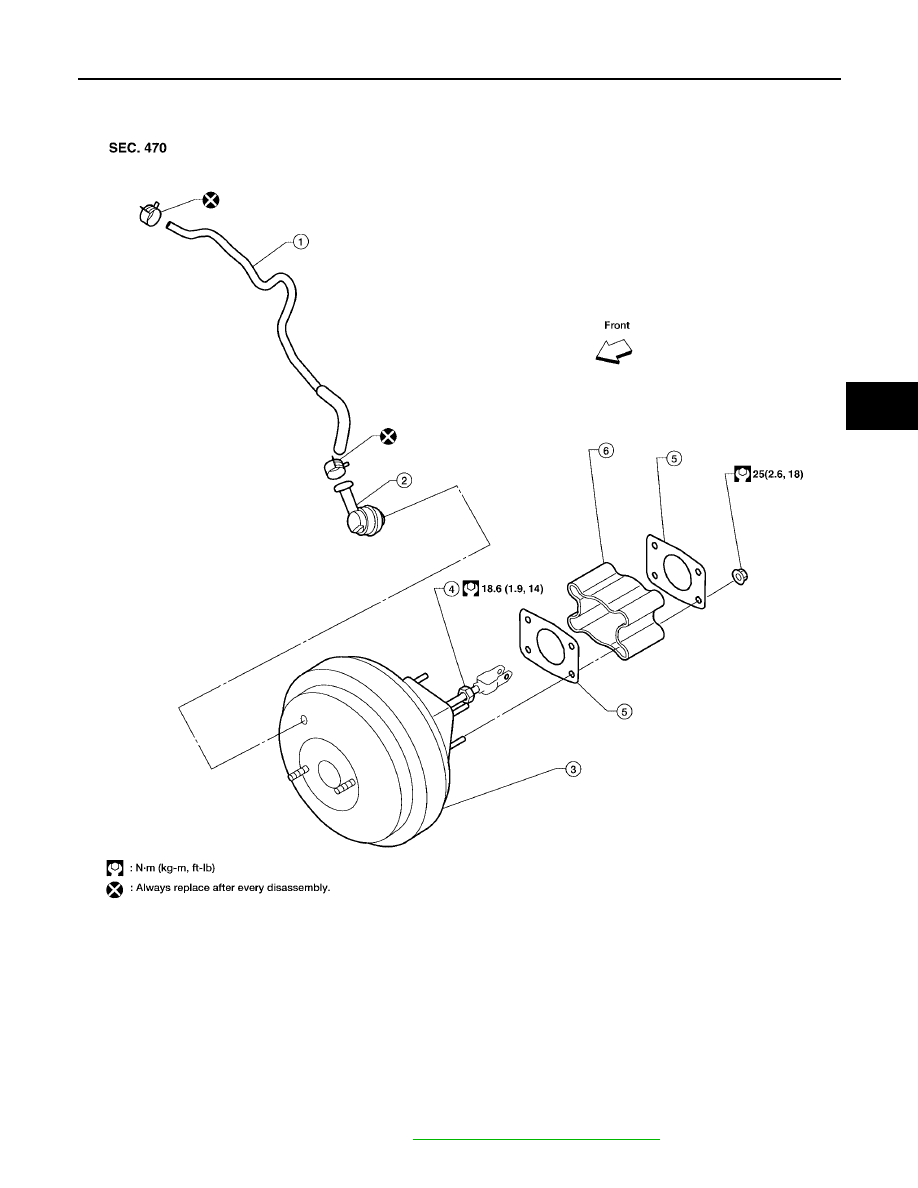

LFIA0241E

1.

Brake booster hose

2.

Brake booster hose clip

3.

Brake booster vacuum check valve

4.

Brake booster

5.

Lock nut

6.

Gasket

7.

Spacer block

BR-20

BRAKE BOOSTER

2005 Pathfinder

2.

Remove brake piping from brake master cylinder.

3.

Remove brake master cylinder. Refer to

BR-16, "Removal and Installation"

.

4.

Remove vacuum hose from brake booster. Refer to

BR-21, "VACUUM LINES"

.

5.

Remove brake pedal attachment snap pin and clevis pin from inside the vehicle.

6.

Remove nuts on brake booster and brake pedal assembly.

7.

Remove brake booster assembly from dash panel.

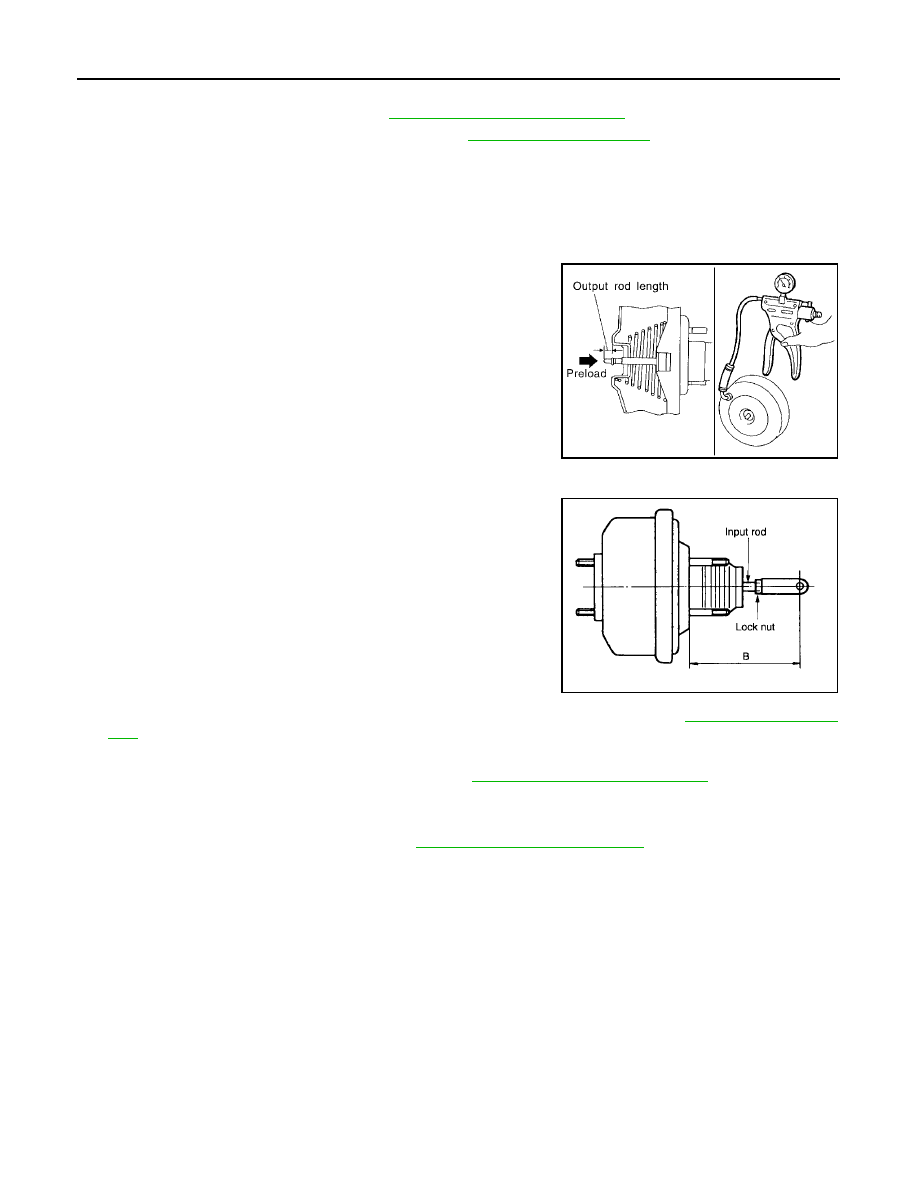

INSPECTION AFTER REMOVAL
Output Rod Length Inspection

1.

Using a handy vacuum pump, apply a vacuum of – 66.7 kPa (–
500 mmHg, –19.69 inHg) to brake booster.

2.

Check output rod length.

INSTALLATION

1.

Loosen lock nut to adjust input rod length so that the length "B"
(in the figure) satisfies the specified value.

2.

After adjusting "B", temporarily tighten lock nut and install
booster assembly to the vehicle.

Install a gaskets and spacer block between booster assembly
and the dash panel.

3.

Connect brake pedal with clevis of input rod.

4.

Install brake booster mounting nuts and tighten them to the
specified torque.

5.

Install brake piping from brake master cylinder to actuator and electric unit. Refer to

BR-13, "Hydraulic Cir-

cuit"

.

6.

Connect vacuum hose to brake booster.

7.

Install master cylinder to booster assembly. Refer to

BR-19, "Removal and Installation"

.

8.

Adjust the height and play of brake pedal.

9.

Tighten lock nut of input rod to the specified torque.

10. Refill new brake fluid and bleed air. Refer to

BR-12, "Bleeding Brake System"

.

Standard dimension when
vacuum – 66.7 kPa (– 500
mmHg, – 19.69 inHg)

: 15.6

15.9 mm

(0.614

0.626 in)

SBR208E

Length "B"

: 125 mm (4.92 in)

SGIA0060E

VACUUM LINES

BR-21

C

D

E

G

H

I

J

K

L

M

A

B

BR

2005 Pathfinder

VACUUM LINES

PFP:41920

Removal and Installation

EFS004IE

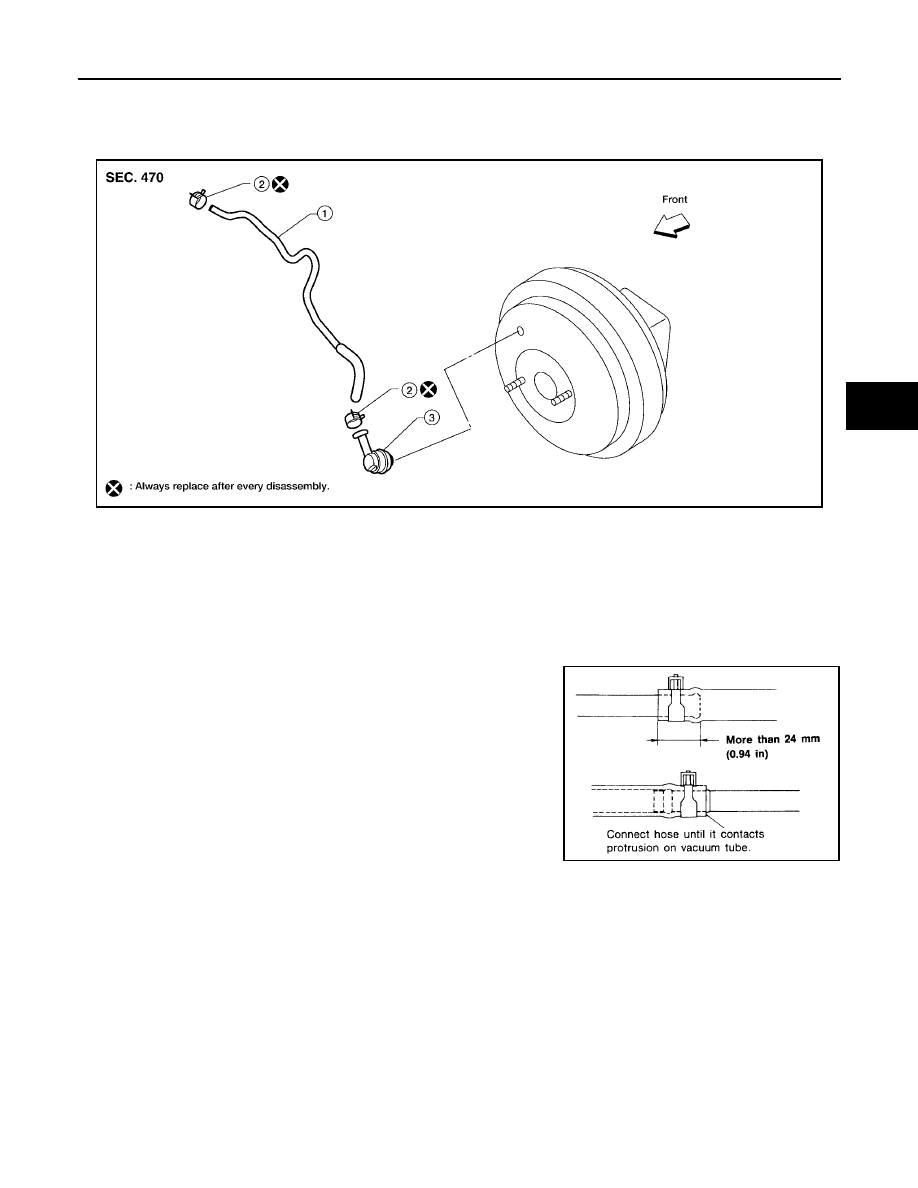

Brake Booster Vacuum Hose

1.

Disconnect vacuum hose from hose clip.

2.

Release clamps and disconnect vacuum hose.

3.

Remove check valve from brake booster.

4.

Installation is in the reverse order of removal.

CAUTION:

Insert vacuum hose for at least 24 mm (0.94 in).

Do not use lubricating oil during assembly.

Inspection

EFS004IF

VISUAL INSPECTION

Check for improper assembly, damage and deterioration.

WFIA0332E

1.

Brake booster hose

2.

Brake booster hose clip

3.

Brake booster vacuum check valve

4.

Brake booster

SBR225B

BR-22

VACUUM LINES

2005 Pathfinder

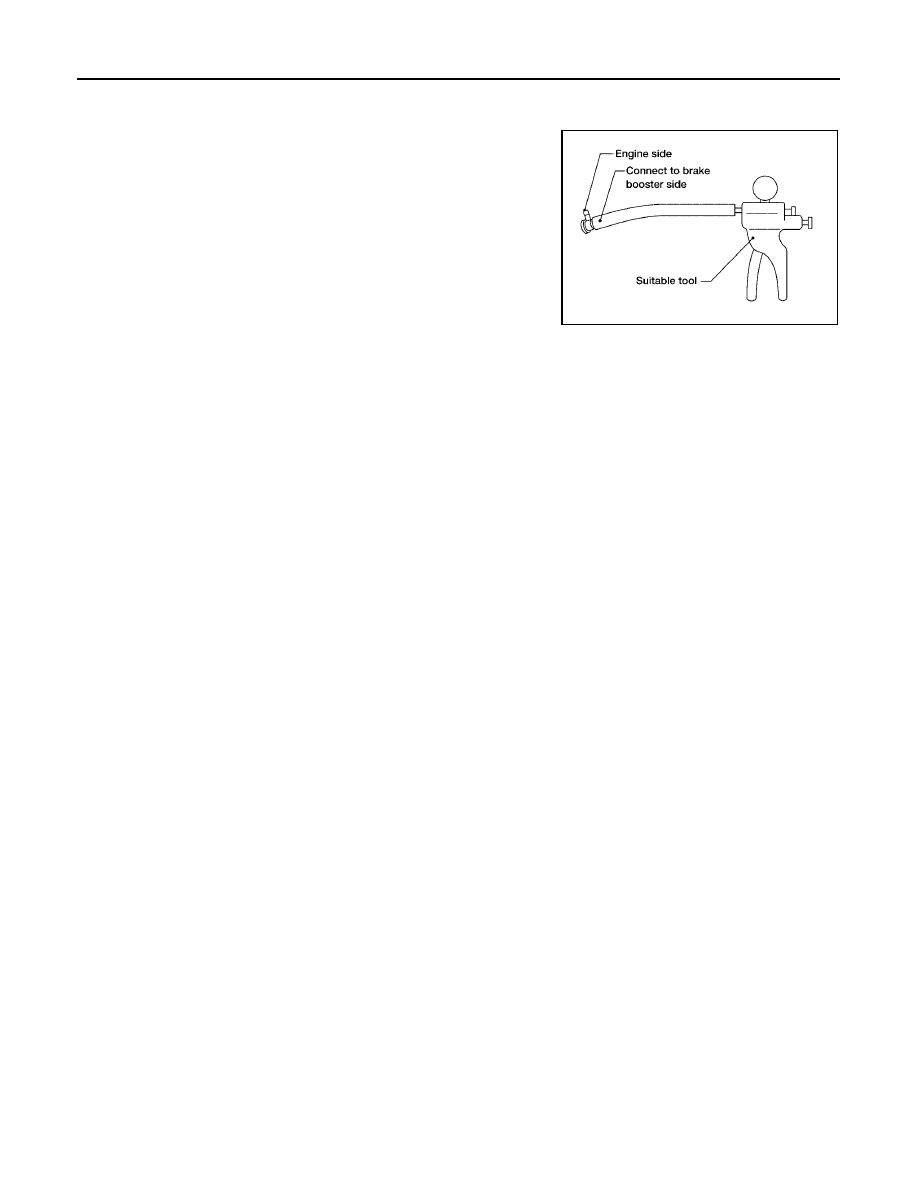

CHECK VALVE INSPECTION
Airtightness Inspection

Use a suitable vacuum pump to check. Connect to brake booster
side of check valve.

Check
valve
specifi-
cation

: Vacuum decrease should be within 1.3
kPa (10 mmHg, 0.39 inHg) for 15 seconds
under a vacuum of – 66.7 kPa (– 500 mmHg,
– 19.69 inHg)

LFIA0217E

FRONT DISC BRAKE

BR-23

C

D

E

G

H

I

J

K

L

M

A

B

BR

2005 Pathfinder

FRONT DISC BRAKE

PFP:41000

On-vehicle Inspection

EFS004IG

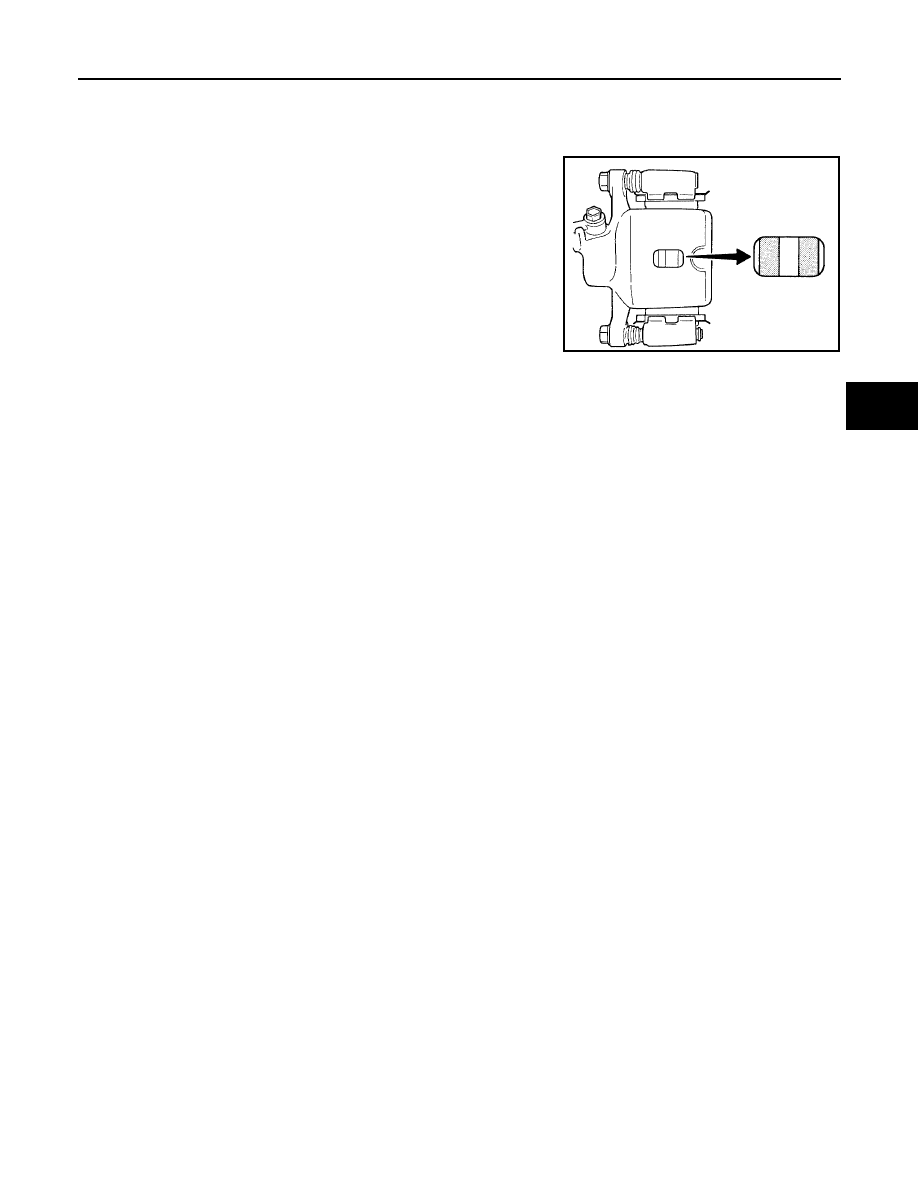

PAD WEAR INSPECTION

Inspect the thickness of pad through cylinder body inspection
hole. Use a scale for inspection if necessary.

Standard thickness

: 11.88 mm (0.468 in)

Repair limit thickness

: 1.0 mm (0.039 in)

BRA0010D

BR-24

FRONT DISC BRAKE

2005 Pathfinder

Components

EFS004IH

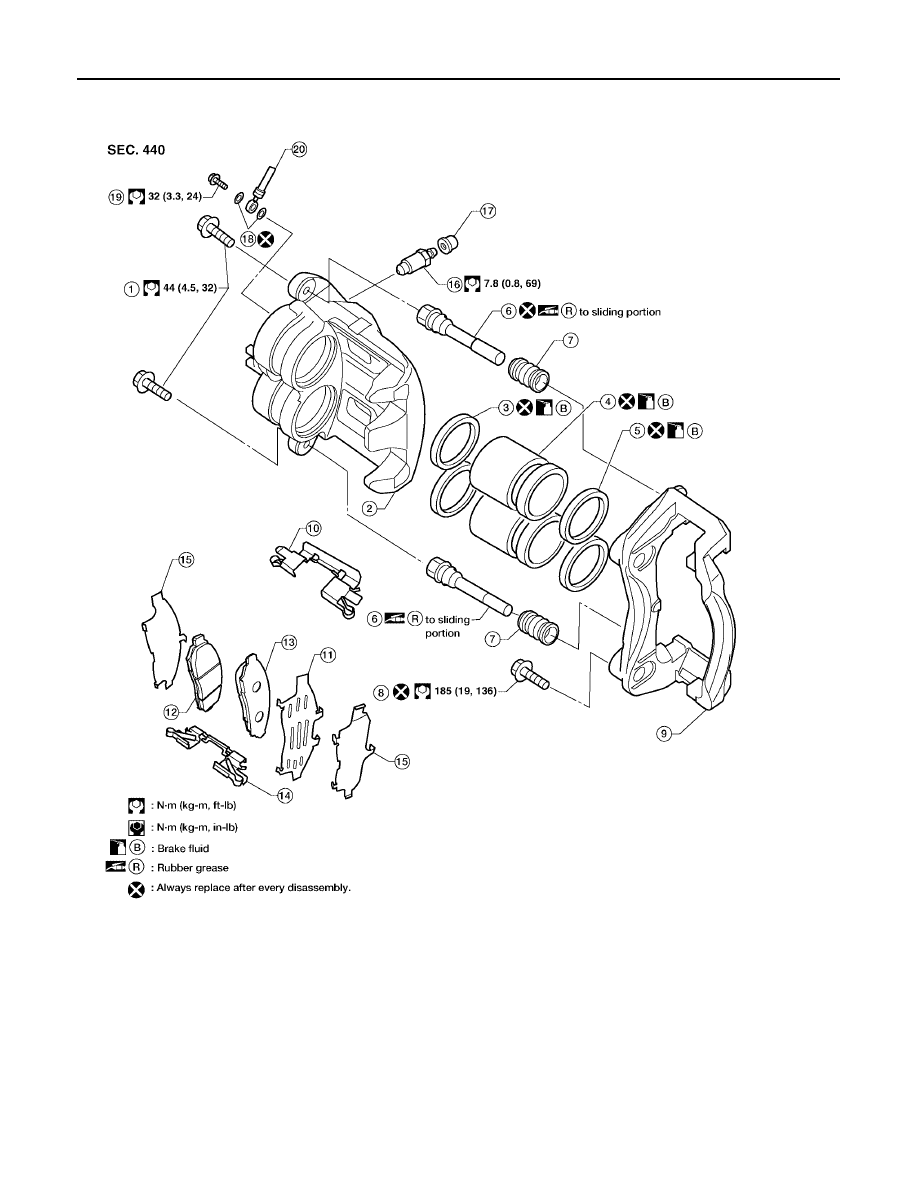

Front Disc Brake Caliper and Pads

WARNING:

Clean dust on caliper and brake pad with a vacuum dust collector to minimize the hazard of airborne
particles or other materials.

LFIA0242E

1.

Sliding pin bolt

2.

Cylinder body

3.

Piston seal

4.

Piston

5.

Piston boot

6.

Sliding pin

7.

Sliding pin boot

8.

Torque member bolt

9.

Torque member

10.

Pad retainer

11.

Inner shim

12. Inner brake pad

13.

Outer brake pad

14. Pad retainer

15. Outer shim

16.

Bleed valve

17. Cap

18. Copper washers

19.

Union bolt

20. Brake hose
