BRAKE PEDAL

BR-9

C

D

E

G

H

I

J

K

L

M

A

B

BR

2005 Pathfinder

3.

Disconnect the adjustable brake pedal cable from the adjustable
pedal.

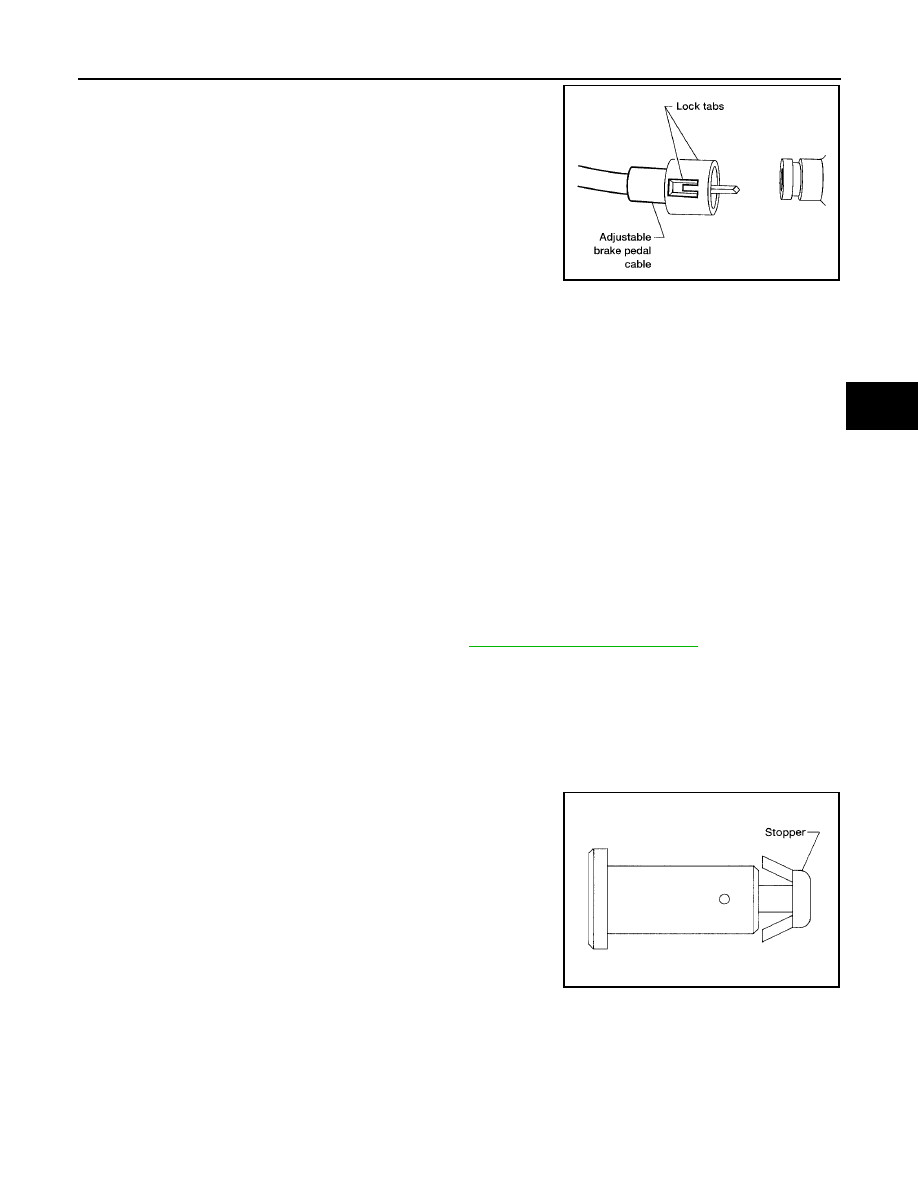

Release the two lock tabs, then pull the adjustable brake
pedal cable to disconnect it from the adjustable brake pedal.

4.

Remove snap pin and clevis pin from the clevis of the brake booster.

5.

Remove mounting nuts and the pedal assembly.

Temporarily install the nuts by hand to support the booster.

CAUTION:

Before removal and installation the accelerator and brake pedals must be in the frontmost posi-
tion (closest to the floor). This is to align the base position of the accelerator and brake pedals.

Do not disassemble the brake pedal adjusting mechanism.

Avoid damage from dropping the brake pedal assembly during handling.

Keep the brake pedal assembly away from water.

REMOVAL FOR NON-ADJUSTABLE BRAKE PEDAL

WARNING:

Do not deform the brake tube.

CAUTION:

Do not disassemble the brake pedal assembly.

Avoid damage from dropping the brake pedal assembly during handling.

Keep the brake pedal assembly away from water.

1.

Remove the lower driver instrument panel. Refer to

IP-10, "Removal and Installation"

.

2.

Remove the stop lamp switch and ASCD switch from the pedal assembly.

3.

Remove snap pin and clevis pin from the clevis of the brake booster.

4.

Remove mounting nuts and the pedal assembly.

Temporarily install the nuts by hand to support the booster.

INSPECTION AFTER REMOVAL

Check brake pedal for following items.

Crack or deformation of clevis pin stopper

Clevis pin deformation

Crack of any welded portion

Brake pedal bend

INSTALLATION

1.

Installation is in the reverse order of removal.

Check the brake pedal for smooth operation. There should be no binding or sticking when applying or
releasing the brake pedal.

On models equipped with adjustable brake pedal, check the adjustable feature for smooth operation.
There should be no binding or sticking when adjusting the brake pedal forward and backward.

LFIA0233E

SBR997

BR-10

BRAKE PEDAL

2005 Pathfinder

After installing the brake pedal assembly in the vehicle, be sure to adjust it. Refer to

BR-6, "Inspection

and Adjustment"

.

BRAKE FLUID

BR-11

C

D

E

G

H

I

J

K

L

M

A

B

BR

2005 Pathfinder

BRAKE FLUID

PFP:KN100

On-board Inspection

EFS004I2

LEVEL CHECK

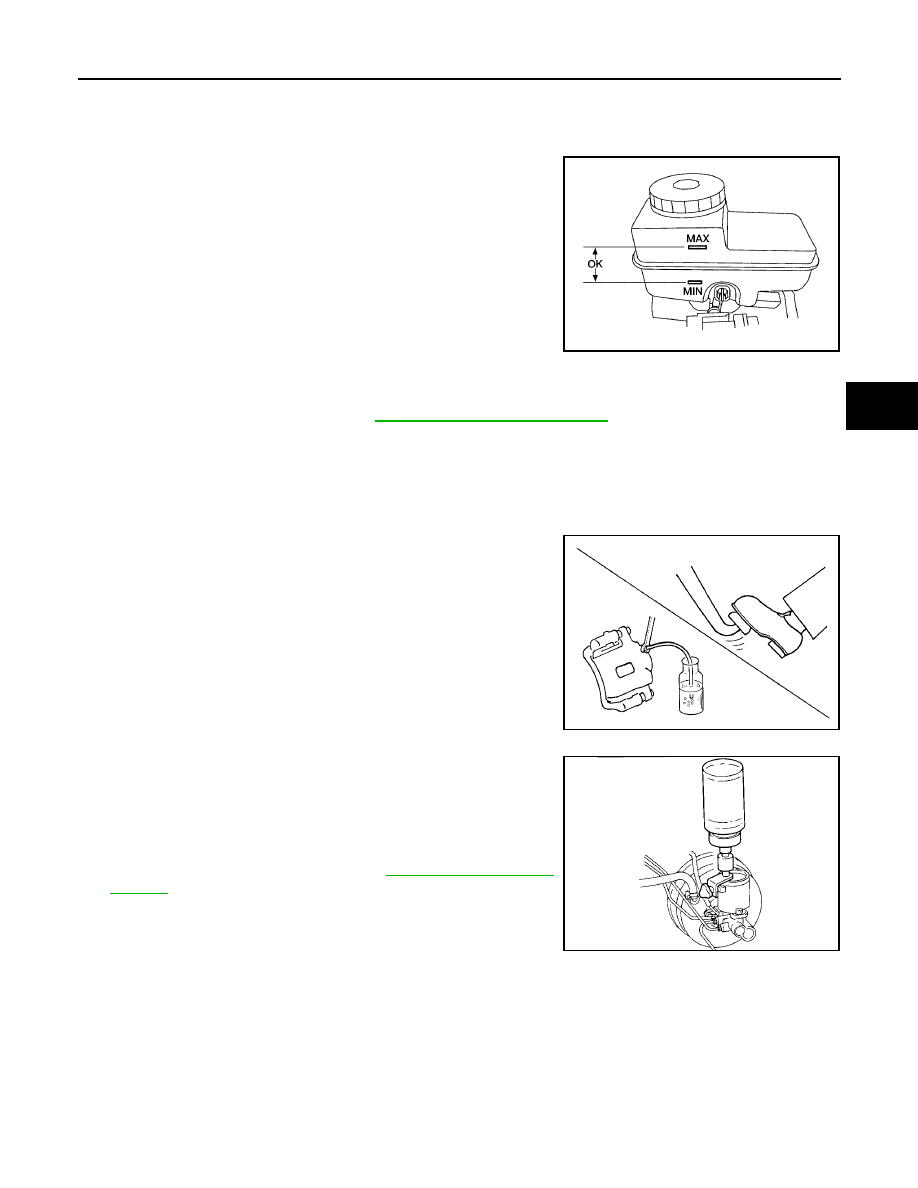

Check that the brake fluid level in the reservoir tank is within
specification, between the MAX and MIN lines as shown.

Visually check around reservoir tank for fluid leaks.

If fluid level is excessively low, check brake system for leaks.

If brake warning lamp remains illuminated after the parking
brake pedal is released, check the brake system for any brake
fluid leaks.

Drain and Refill

EFS004I3

CAUTION:

Refill with new brake fluid. Refer to

MA-11, "Fluids and Lubricants"

.

Do not reuse drained brake fluid.

Do not let brake fluid splash on the painted surfaces of the body. This might damage the paint, so
when splashing it, immediately wipe off the area and wash away with water.

Before servicing, disconnect actuator connector or battery negative cable.

1.

Connect a vinyl tube to each bleed valve.

2.

Depress brake pedal, loosen each bleed valve, and gradually
remove brake fluid.

3.

Make sure there is no foreign material in reservoir tank, and refill
with new brake fluid.

4.

Rest foot on brake pedal. Loosen bleed valve. Slowly depress
pedal until it stops. Tighten bleed valve. Release brake pedal.
Repeat this process a few times, then pause to add new brake
fluid to master cylinder. Continue until new brake fluid flows out.
Bleed air from brake system. Refer to

BR-12, "Bleeding Brake

System"

.

LFIA0234E

SBR419C

SBR995

BR-12

BRAKE FLUID

2005 Pathfinder

Bleeding Brake System

EFS004I4

CAUTION:

While bleeding, monitor the master cylinder brake fluid level.

1.

Turn ignition switch OFF and disconnect ABS actuator and electric unit (control unit) connector or battery
negative cable.

2.

Connect a vinyl tube to the rear right bleed valve.

3.

Fully depress brake pedal 4 to 5 times.

4.

With brake pedal depressed, loosen bleed valve to let the air out, and then tighten it immediately.

5.

Repeat steps 3 and 4 until no more air comes out.

6.

Tighten bleed valve to the specified torque. Refer to

BR-24, "Components"

(front disc brake),

BR-30,

"Components"

(rear disc brake).

7.

Perform steps 2 to 6 at each wheel, with master cylinder reservoir tank filled at least half way, bleed air
from the front left, rear left, and front right bleed valve, in that order.

BRAKE PIPING AND HOSE

BR-13

C

D

E

G

H

I

J

K

L

M

A

B

BR

2005 Pathfinder

BRAKE PIPING AND HOSE

PFP:46210

Hydraulic Circuit

EFS004I5

CAUTION:

All hoses and piping (tubes) must be free from excessive bending, twisting and pulling.

Make sure there is no interference with other parts when turning steering both clockwise and
counterclockwise.

The brake piping is an important safety part. If a brake fluid leak is detected, always disassemble
the parts. Replace applicable part with a new one, if necessary.

Be careful not to splash brake fluid on painted areas; it way cause paint damage. If brake fluid is
splashed on painted areas, wash it away with water immediately.

Do not bend or twist brake hose sharply, or strongly pull it.

When removing components, cover connections so that no dirt, dust, or other foreign matter gets
in.

Refill with new brake fluid. Refer to

MA-11, "Fluids and Lubricants"

.

Do not reuse drained brake fluid.

Removal and Installation of Front Brake Piping and Brake Hose

EFS004I6

REMOVAL

1.

Drain brake fluid. Refer to

BR-11, "Drain and Refill"

.

2.

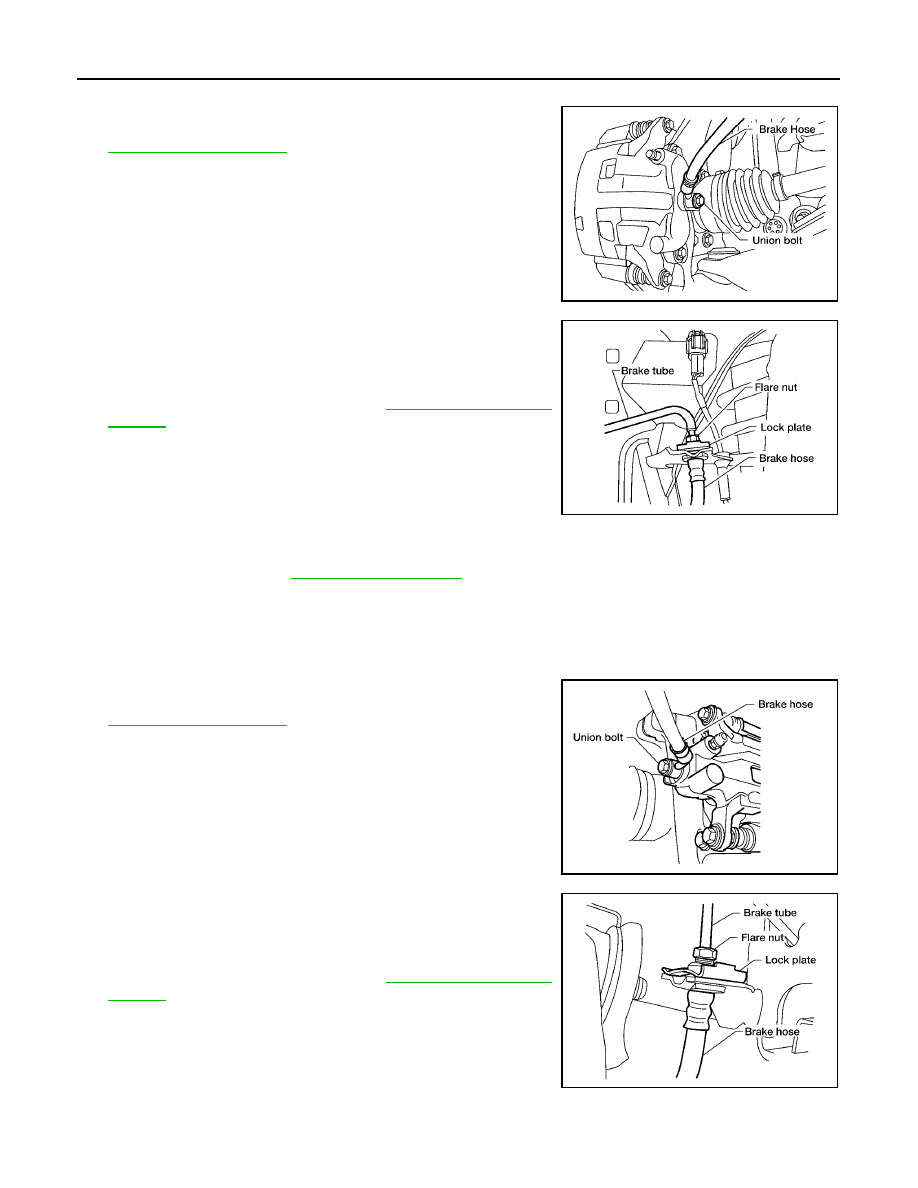

Using a flare nut wrench, remove brake tube from brake hose.

3.

Remove lock plate and brake hose from bracket.

4.

Remove union bolt and then remove brake hose from caliper assembly.

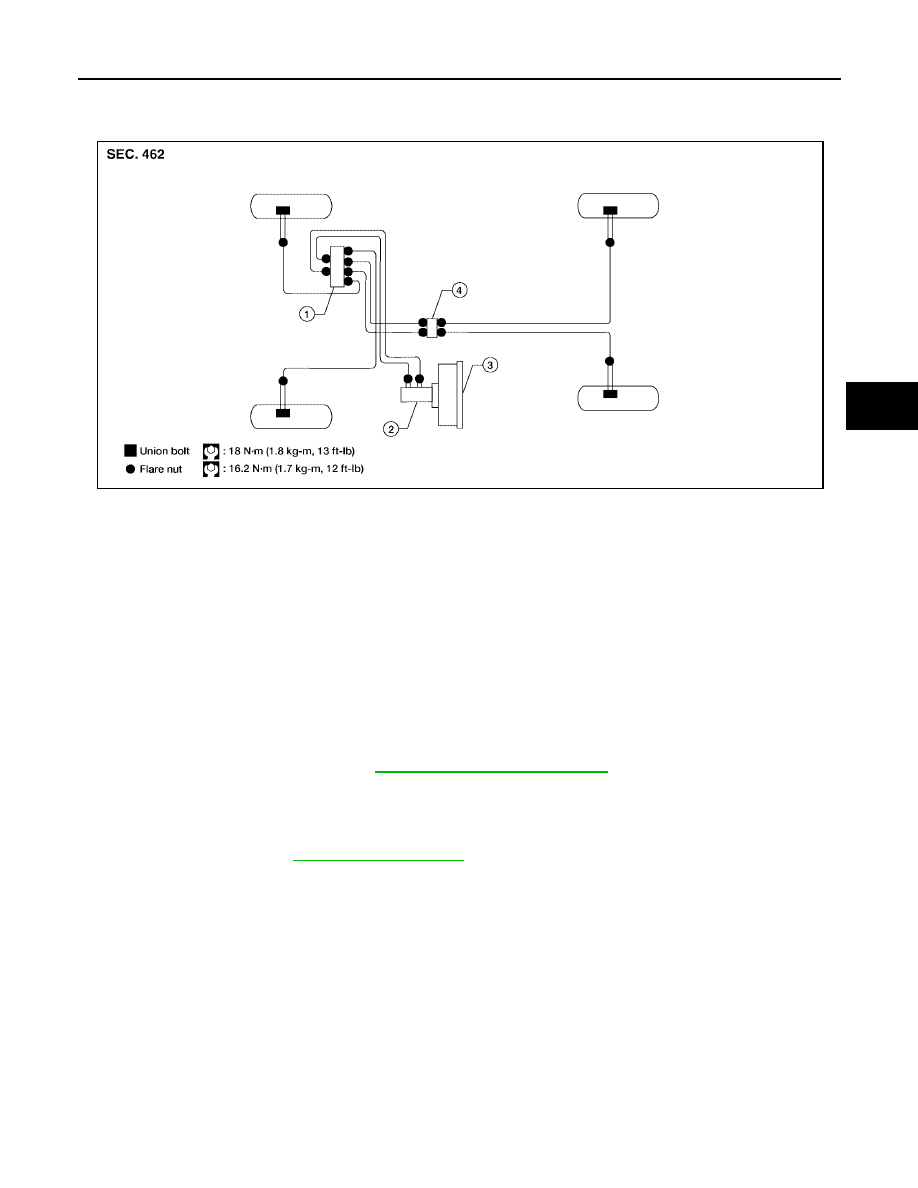

1.

Actuator

2.

Master cylinder

3.

Brake booster

4.

Connector

WFIA0278E

BR-14

BRAKE PIPING AND HOSE

2005 Pathfinder

INSTALLATION

1.

Install brake hose by aligning with the protrusion on caliper
assembly, and tighten union bolt to the specified torque. Refer to

BR-13, "Hydraulic Circuit"

.

NOTE:
Do not reuse copper washer.

2.

Insert brake hose end through bracket, then secure it to bracket
with lock plate.

3.

Install brake tube to brake hose, then tighten flare nut to the
specified torque using a flare nut wrench.

4.

Refill brake fluid and bleed air. Refer to

BR-12, "Bleeding Brake

System"

.

Removal and Installation of Rear Brake Piping and Brake Hose

EFS004I7

REMOVAL

1.

Drain brake fluid. Refer to

BR-11, "Drain and Refill"

.

2.

Using a flare nut wrench, remove brake tube from brake hose.

3.

Remove lock plate and brake hose from bracket.

4.

Remove union bolt, and then remove brake hose from caliper assembly.

INSTALLATION

1.

Install brake hose by aligning with the protrusion on caliper
assembly, and tighten union bolt to the specified torque. Refer to

BR-13, "Hydraulic Circuit"

.

NOTE:
Do not reuse copper washer.

2.

Insert brake hose end through bracket, then secure it to bracket
with lock plate.

3.

Install brake tube to brake hose, then tighten flare nut to the
specified torque using a flare nut wrench.

4.

Refill brake fluid and bleed air. Refer to

BR-12, "Bleeding Brake

System"

.

LFIA0235E

LFIA0236E

LFIA0237E

LFIA0238E

BRAKE PIPING AND HOSE

BR-15

C

D

E

G

H

I

J

K

L

M

A

B

BR

2005 Pathfinder

Inspection After Installation

EFS004I8

CAUTION:

If a leak is detected at the connections, retighten it or, if necessary, replace the damaged part.

1.

Check brake lines (tubes and hoses), and connections for fluid leaks, damage, twist, deformation, contact
with other parts, and loose connections. Replace any damaged parts.

2.

While depressing brake pedal under a force of 785 N (80 kg, 177 lb) with engine running for approximately
5 seconds, check for fluid leaks from each part.

BR-16

BRAKE MASTER CYLINDER

2005 Pathfinder

BRAKE MASTER CYLINDER

PFP:46010

On-board Inspection

EFS004I9

LEAK INSPECTION

Check for leaks at master cylinder to brake booster attachment point, reservoir tank, and brake tube con-
nections.

Removal and Installation

EFS004IA

Brake Master Cylinder

CAUTION:

Be careful not to splash brake fluid on painted areas; it may cause paint damage. If brake fluid is
splashed on painted areas, wash it away with water immediately.

REMOVAL

1.

Drain brake fluid. Refer to

BR-11, "Drain and Refill"

.

2.

Disconnect harness connectors for fluid level sensor and pressure sensor.

LFIA0240E

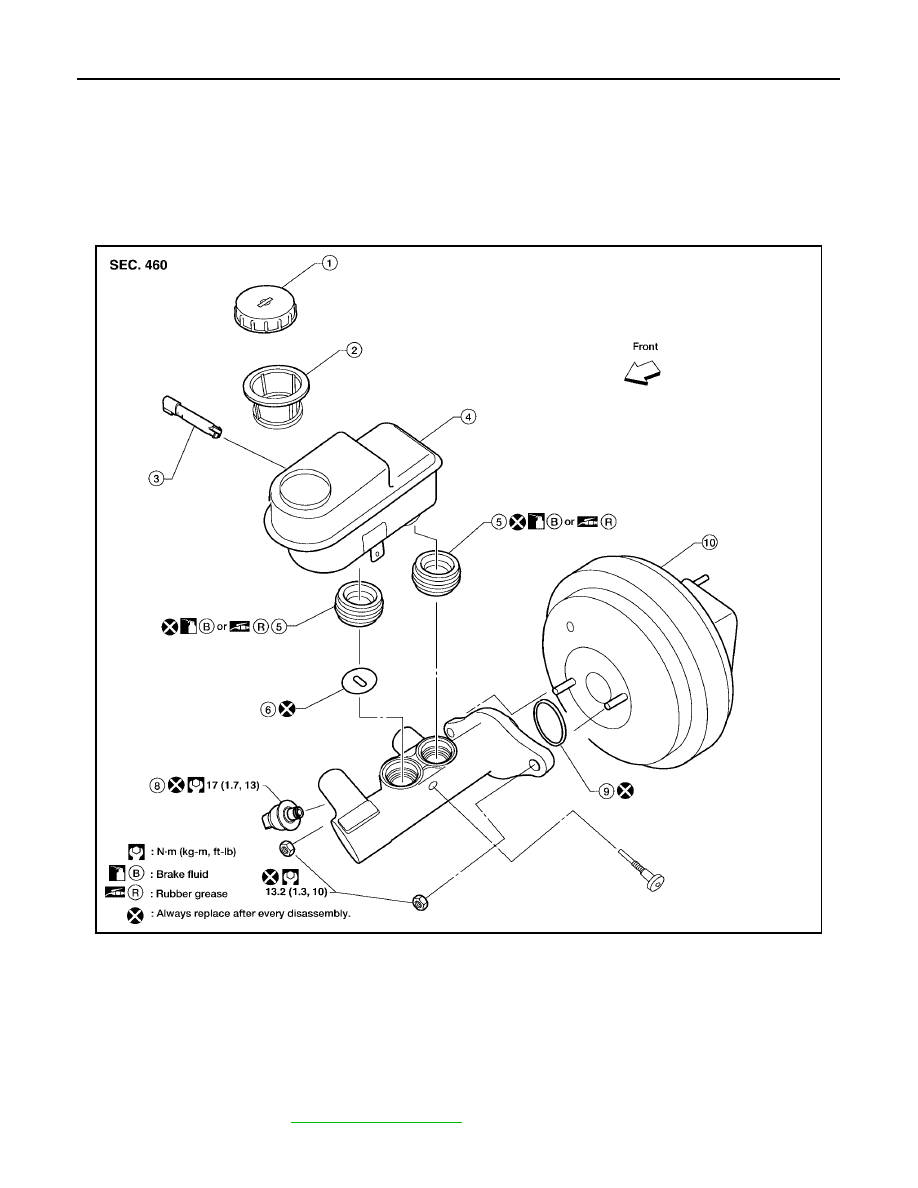

1.

Reservoir cap

2.

Strainer

3.

Fluid level sensor

4.

Reservoir tank

5.

Grommet

6.

Restriction washer

7.

Master cylinder sub-assembly

8.

Fluid pressure sensor

9.

O-ring

10. Brake booster
