NAVIGATION SYSTEM

AV-139

C

D

E

F

G

H

I

J

L

M

A

B

AV

2005 Pathfinder

CAN Communication Line Check

EKS009W5

1.

CHECK MONITOR DESCRIPTION

1.

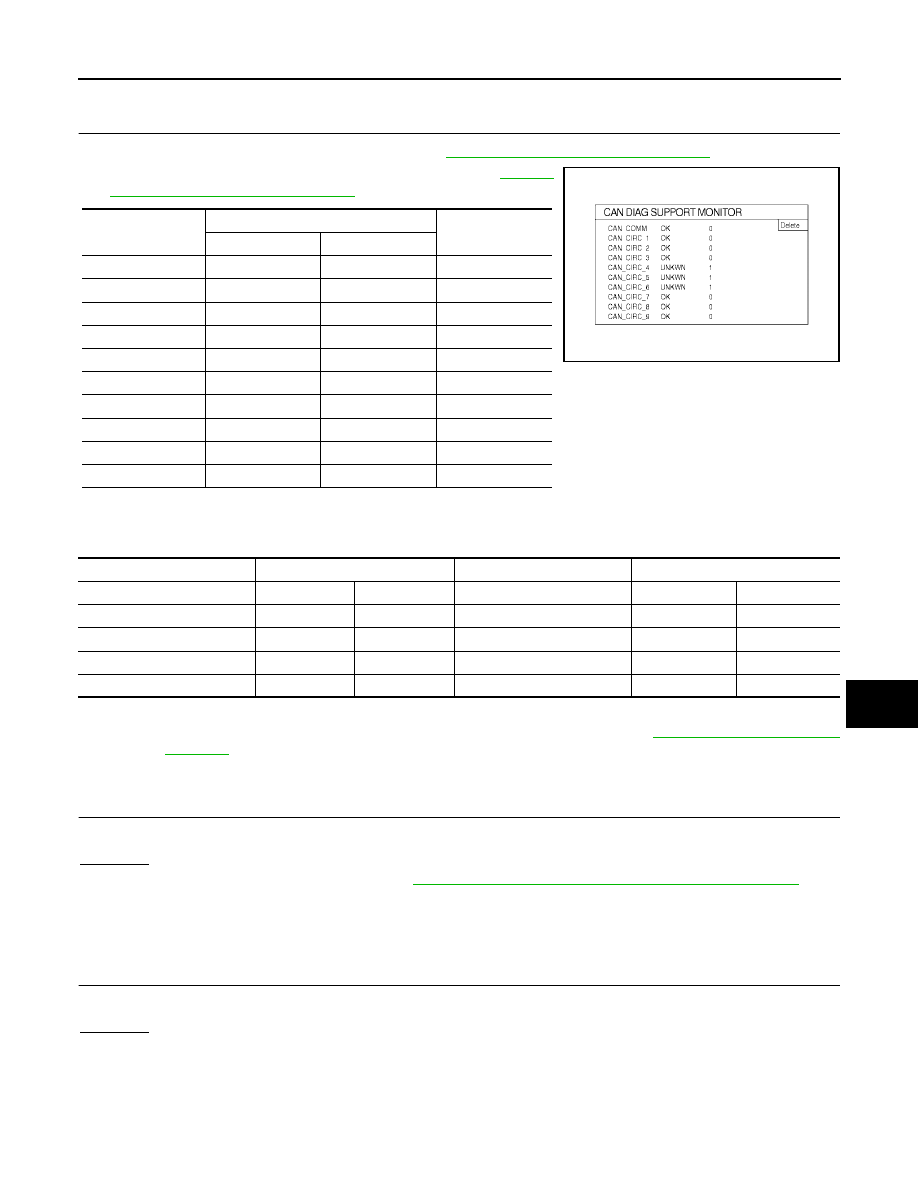

Start display control unit self-diagnosis. Refer to

AV-109, "Self-Diagnosis Mode (DCU)"

.

2.

Select “CAN DIAG SUPPORT MONITOR”. Refer to

AV-122,

"CAN DIAG SUPPORT MONITOR"

.

3.

Record each item display description (OK/NG/UKNWN) displayed on the following CAN DIAG SUPPORT
MONITOR Check Sheet.

CAN DIAG SUPPORT MONITOR Check Sheet

>> After filling in CAN DIAG SUPPORT MONITOR Check Sheet, GO TO

LAN-24, "CAN COMMUNI-

CATION"

.

If NAVI Control Unit Detects That DVD-ROM Map is Not Inserted

EKS009W6

1.

CHECK DVD-ROM

Make sure identified DVD-ROM map is inserted.

OK or NG

OK

>> Replace NAVI control unit. Refer to

AV-165, "Removal and Installation of NAVI Control Unit"

.

NG

>> Insert identified DVD-ROM map.

If NAVI Control Unit Detects That Inserted DVD-ROM Map is Malfunctioning or If
It is Impossible to Load Data from DVD-ROM Map

EKS009W7

1.

CHECK 1: DVD-ROM

Remove inserted DVD-ROM map to check that it is identified.

OK or NG

OK

>> GO TO 2.

NG

>> Replace identified DVD-ROM map.

Item

content

Error counter

Normal condition

Error (Example)

CAN_COMM

OK

NG

0-50

CAN_CIRC_1

OK

UNKWN

0-50

CAN_CIRC_2

OK

UNKWN

0-50

CAN_CIRC_3

OK

UNKWN

0-50

CAN_CIRC_4

OK

UNKWN

0-50

CAN_CIRC_5

OK

UNKWN

0-50

CAN_CIRC_6

OK

UNKWN

0-50

CAN_CIRC_7

OK

UNKWN

0-50

CAN_CIRC_8

OK

UNKWN

0-50

CAN_CIRC_9

OK

UNKWN

0-50

SKIA4288E

Diagnosis item

Screen display

Diagnosis item

Screen display

CAN_COMM

OK

NG

CAN_CIRC_5

OK

UNKWN

CAN_CIRC_1

OK

UNKWN

CAN_CIRC_6

OK

UNKWN

CAN_CIRC_2

OK

UNKWN

CAN_CIRC_7

OK

UNKWN

CAN_CIRC_3

OK

UNKWN

CAN_CIRC_8

OK

UNKWN

CAN_CIRC_4

OK

UNKWN

CAN_CIRC_9

OK

UNKWN

AV-140

NAVIGATION SYSTEM

2005 Pathfinder

2.

CHECK 2: DVD-ROM

Check DVD-ROM for dirt, scratches and warpage.

OK or NG

OK

>> GO TO 3.

NG

>> Replace DVD-ROM map.

3.

CHECK 3: DVD-ROM

Insert same DVD-ROM to make sure same diagnosis result is found as last self-diagnosis.

OK or NG

OK

>> Replace NAVI control unit. Refer to

AV-165, "Removal and Installation of NAVI Control Unit"

.

NG

>> Replace DVD-ROM map.

If Connection Between NAVI Control Unit and GPS Antenna is Malfunctioning

EKS009W8

1.

CHECK GPS ANTENNA

Check cable for GPS antenna for damage.

OK or NG

OK

>> GO TO 2.

NG

>> Replace GPS antenna. Refer to

AV-166, "Removal and Installation of GPS Antenna"

.

2.

CHECK BY REPLACEMENT OF GPS ANTENNA

Replace with other functional GPS antenna to try self-diagnosis again.

Result of self-diagnosis; Found same result?

YES

>> Replace NAVI control unit. Refer to

AV-165, "Removal and Installation of NAVI Control Unit"

.

NO

>> Replace GPS antenna. Refer to

AV-166, "Removal and Installation of GPS Antenna"

.

Operating Screen for Audio and A/C is Not Displayed When Showing NAVI
Screen

EKS009W9

1.

CHECK HARNESS

1.

Turn ignition switch OFF.

2.

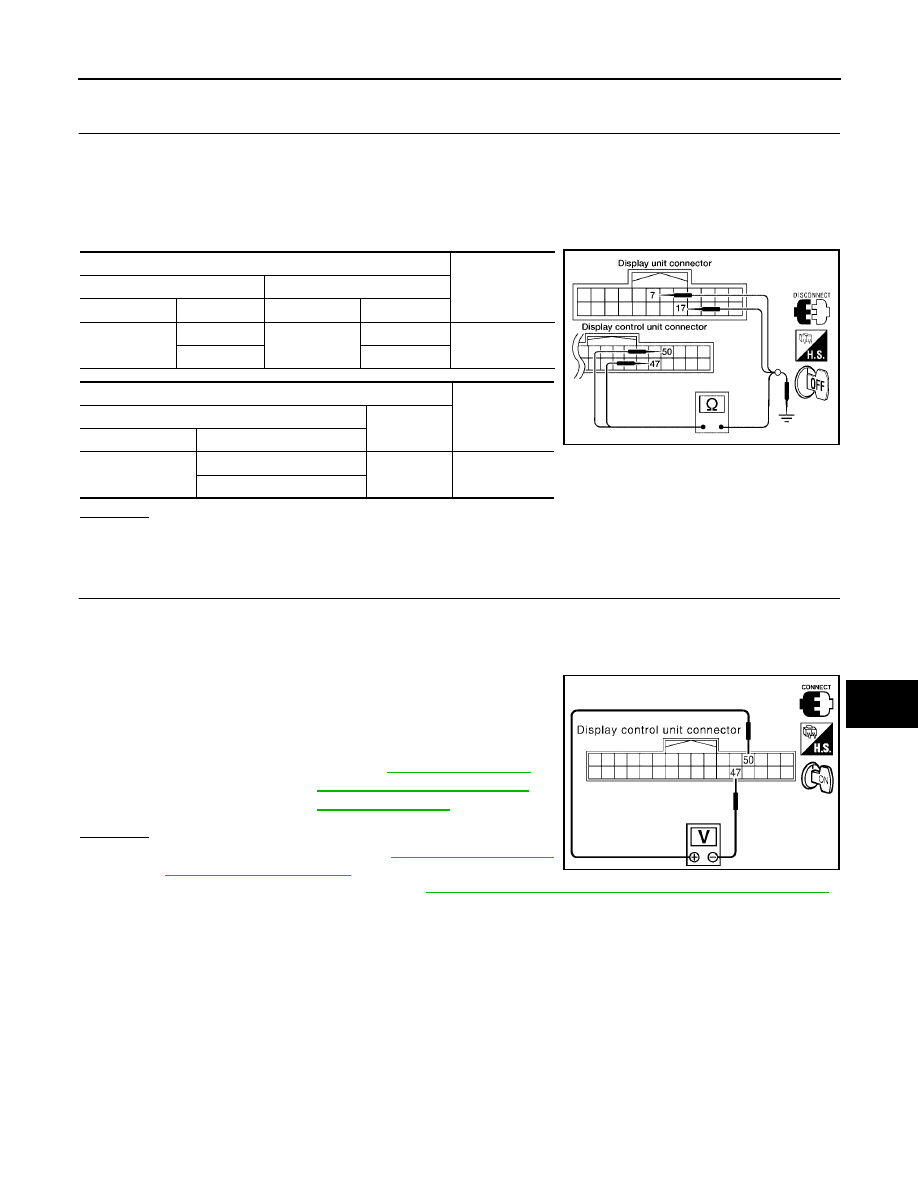

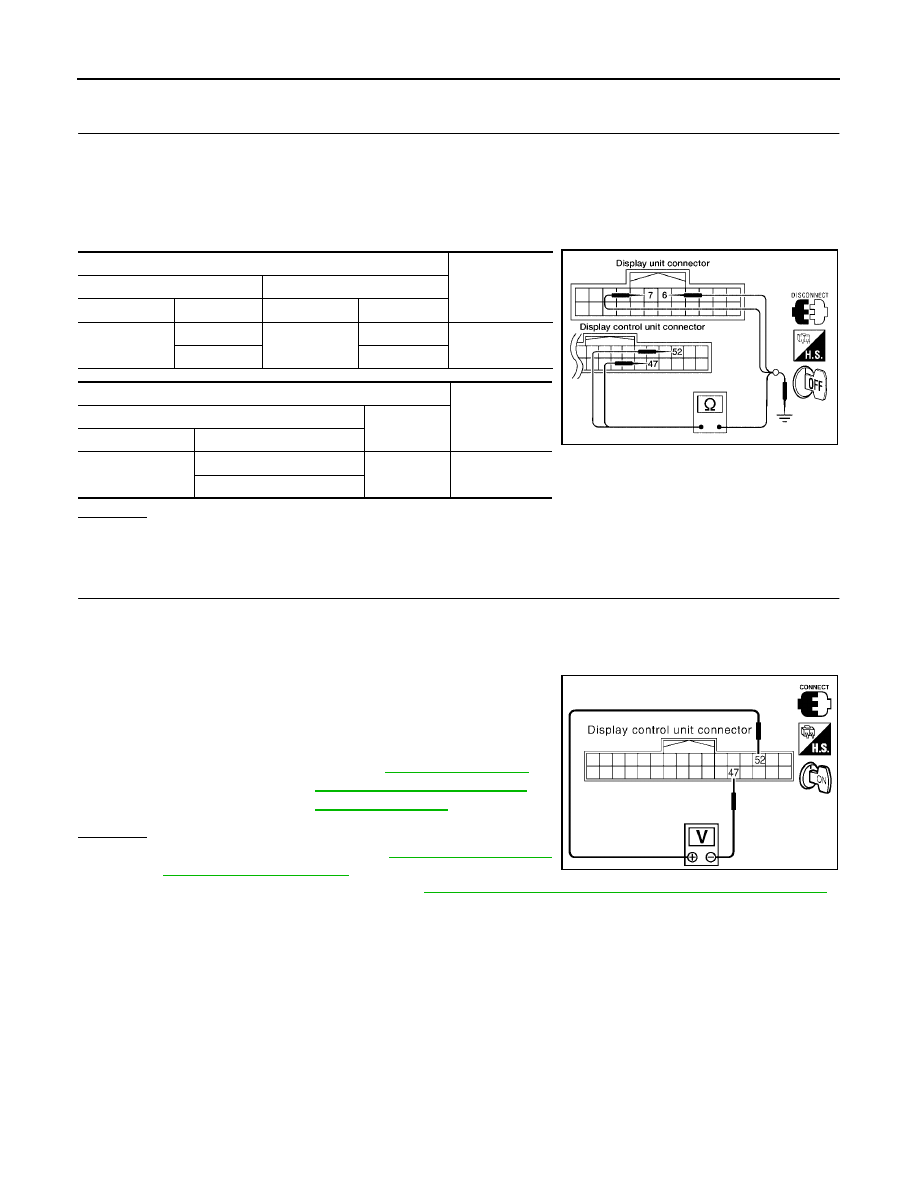

Disconnect display control unit connector M95 and display unit connector M93.

3.

Check continuity between display control unit harness connector M95 terminal 49, 51, 53, 55 and display
unit harness connector M93 terminal 21, 9, 20, 8.

4.

Check continuity between display control unit harness connector
M95 terminal 49, 51, 53 55 and ground.

OK or NG

OK

>> GO TO 2.

NG

>> Repair harness.

Continuity should exist.

Continuity should not exist.

WKIA1965E

NAVIGATION SYSTEM

AV-141

C

D

E

F

G

H

I

J

L

M

A

B

AV

2005 Pathfinder

2.

CHECK HORIZONTAL SYNCHRONIZATION SIGNAL

1.

Connect display control unit connector and display unit connector.

2.

Turn ignition switch ON.

3.

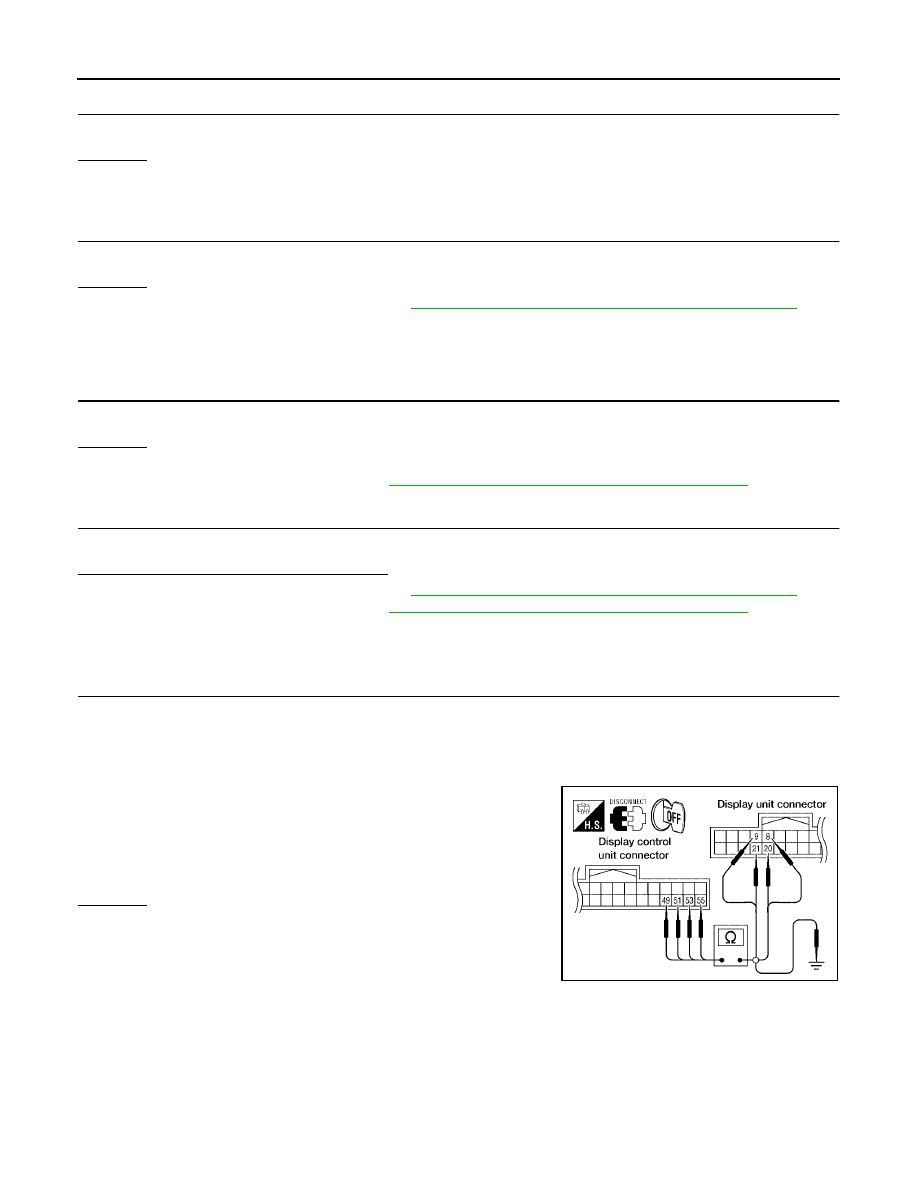

Check signal between display control unit connector M95 termi-
nals 55 and 49 with CONSULT-ll or oscilloscope.

OK or NG

OK

>> GO TO 3.

NG

>> Replace display unit. Refer to

AV-166, "Removal and

Installation of Display Unit"

.

3.

CHECK VERTICAL SYNCHRONIZATION SIGNAL

1.

Turn ignition switch ON.

2.

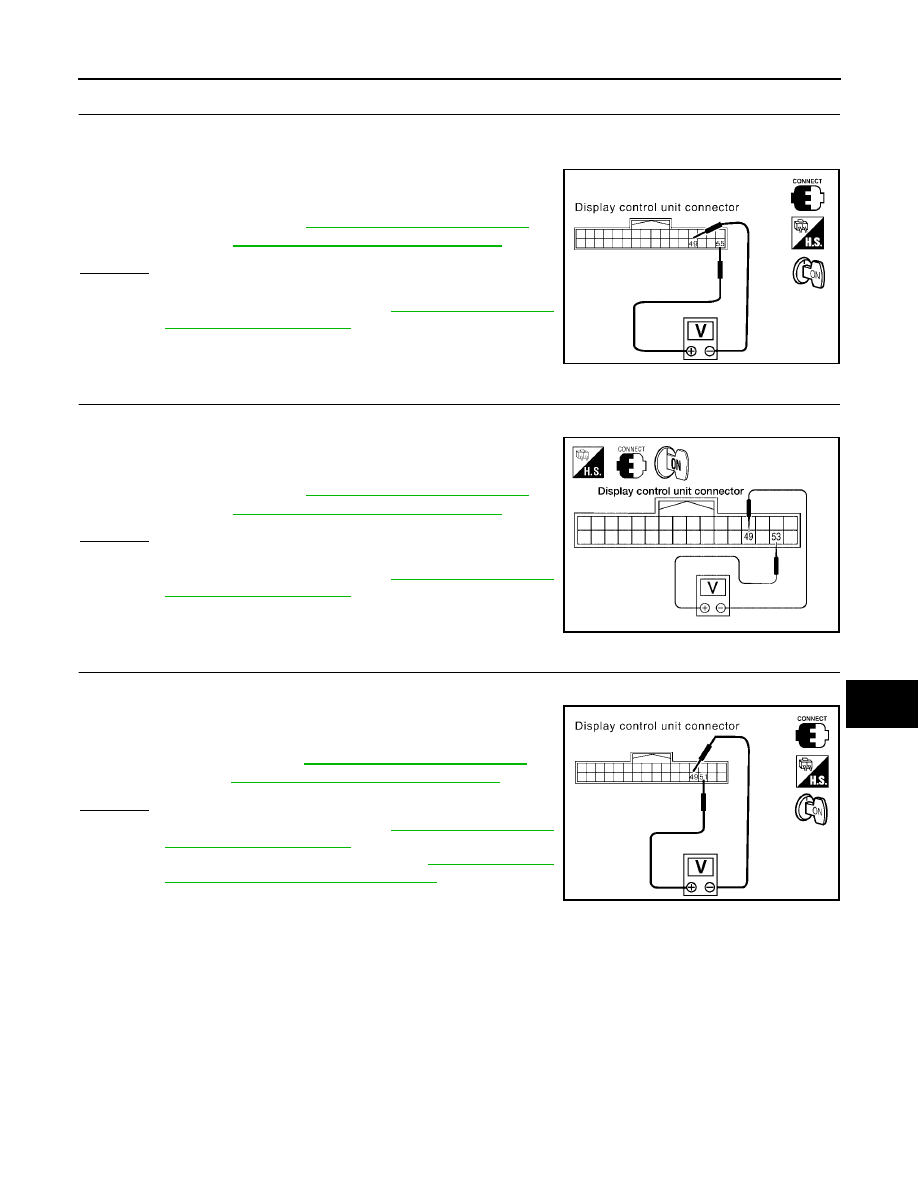

Check signal between display control unit connector M95 termi-
nals 53 and 49 with CONSULT-ll or oscilloscope.

OK or NG

OK

>> GO TO 4.

NG

>> Replace display unit. Refer to

AV-166, "Removal and

Installation of Display Unit"

.

4.

CHECK RGB AREA SIGNAL

1.

Press the “TRIP” button.

2.

Check signal between display control unit connector M95 termi-
nals 51 and 49 with CONSULT-ll or oscilloscope.

OK or NG

OK

>> Replace display unit. Refer to

AV-166, "Removal and

Installation of Display Unit"

.

NG

>> Replace display control unit. Refer to

AV-166, "Removal

and Installation of Display Control Unit"

.

55 - 49

: Refer to

AV-100, "Terminals and Refer-

ence Value for Display Control Unit"

.

SKIA4305E

53 - 49

: Refer to

AV-100, "Terminals and Refer-

ence Value for Display Control Unit"

.

WKIA1773E

51 - 49

: Refer to

AV-100, "Terminals and Refer-

ence Value for Display Control Unit"

.

SKIA4306E

AV-142

NAVIGATION SYSTEM

2005 Pathfinder

Color of RGB Image is Not Proper (Only NAVI Screen Looks Bluish)

EKS009WA

1.

CHECK RGB HARNESS

1.

Turn ignition switch OFF.

2.

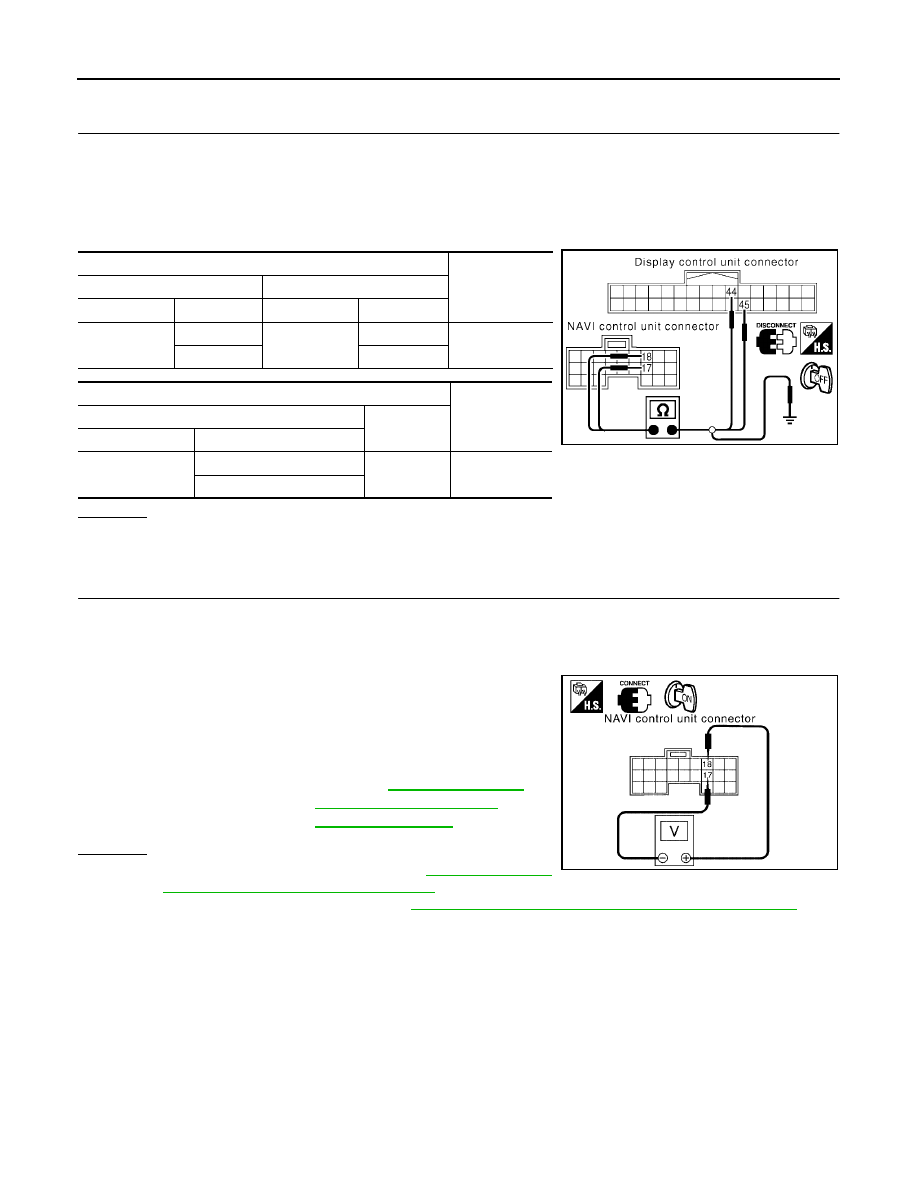

Disconnect NAVI control unit connector B151and display control unit connector M95.

3.

Check continuity between NAVI control unit and display control unit.

4.

Check continuity between NAVI control unit and ground.

When the screen looks bluish.

OK or NG

OK

>> GO TO 2.

NG

>> Repair harness or connector.

2.

CHECK RGB SIGNAL

1.

Connect NAVI control unit connector and display control unit connector.

2.

Turn ignition switch ON.

3.

Display “Color bar” by “CONFIRMATION/ADJUSTMENT” mode.

4.

Check signal between NAVI control unit connector B151 termi-
nal 18 and 17 with CONSULT-ll or oscilloscope.

When the screen looks bluish.
Voltage signal between NAVI control unit connector B151 termi-
nal 18 and 17.

OK or NG

OK

>> Replace display control unit. Refer to

AV-166, "Removal

and Installation of Display Control Unit"

.

NG

>> Replace NAVI control unit. Refer to

AV-165, "Removal and Installation of NAVI Control Unit"

.

Terminals

Continuity

NAVI control unit

Display control unit

Connector

Terminal

Connector

Terminal

B151

18

M95

44

Yes

17

45

Terminals

Continuity

NAVI control unit

Connector

Terminal

B151

18

Ground

No

17

SKIA4349E

18 - 17

: Refer to

AV-98, "Terminals

and Reference Value for
NAVI Control Unit"

.

SKIA4629E

NAVIGATION SYSTEM

AV-143

C

D

E

F

G

H

I

J

L

M

A

B

AV

2005 Pathfinder

Color of RGB Image is Not Proper (Only NAVI Screen Looks Reddish)

EKS009WB

1.

CHECK RGB HARNESS

1.

Turn ignition switch OFF.

2.

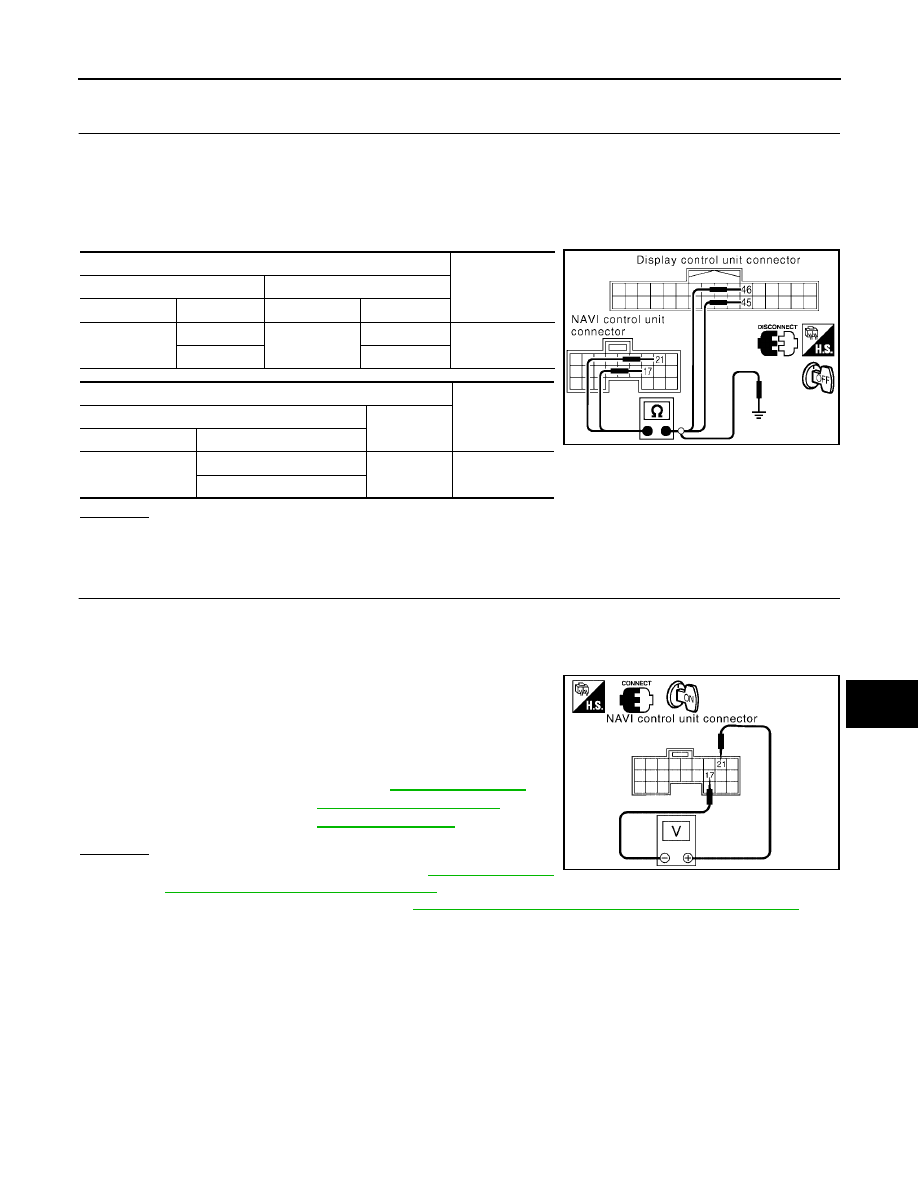

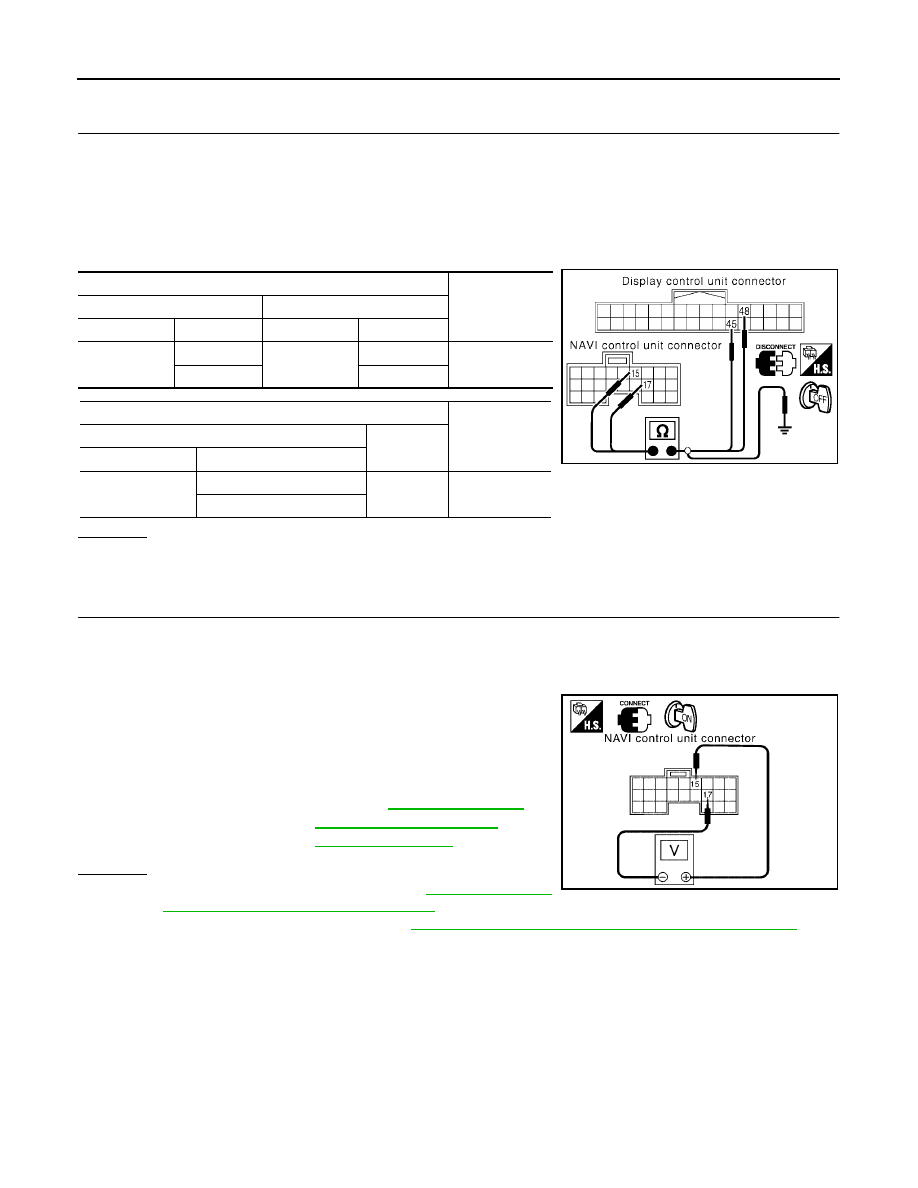

Disconnect NAVI control unit connector B151 and display control unit connector M95.

3.

Check continuity between NAVI control unit and display control unit.

4.

Check continuity between NAVI control unit and ground.

When the screen looks reddish.

OK or NG

OK

>> GO TO 2.

NG

>> Repair harness or connector.

2.

CHECK RGB SIGNAL

1.

Connect NAVI control unit connector and display control unit connector.

2.

Turn ignition switch ON.

3.

Display

Color bar

by

CONFIRMATION/ADJUSTMENT

mode.

4.

Check signal between NAVI control unit connector B151 termi-
nal 21 and 17 with CONSULT-ll or oscilloscope.

When the screen looks reddish.
Voltage signal between NAVI control unit connector B151 termi-
nal 21 and 17.

OK or NG

OK

>> Replace display control unit. Refer to

AV-166, "Removal

and Installation of Display Control Unit"

.

NG

>> Replace NAVI control unit. Refer to

AV-165, "Removal and Installation of NAVI Control Unit"

.

Terminals

Continuity

NAVI control unit

Display control unit

Connector

Terminal

Connector

Terminal

B151

21

M95

46

Yes

17

45

Terminals

Continuity

NAVI control unit

Connector

Terminal

B151

21

Ground

No

17

SKIA4350E

21 - 17

: Refer to

AV-98, "Terminals

and Reference Value for
NAVI Control Unit"

.

SKIA4630E

AV-144

NAVIGATION SYSTEM

2005 Pathfinder

Color of RGB Image is Not Proper (Only NAVI Screen Looks Yellowish)

EKS009WC

1.

CHECK RGB HARNESS

1.

Turn ignition switch OFF.

2.

Disconnect NAVI control unit connector B151 and display control unit connector M95.

3.

Check continuity between NAVI control unit and display control unit.

4.

Check continuity between NAVI control unit and ground.

When the screen looks yellowish.

OK or NG

OK

>> GO TO 2.

NG

>> Repair harness or connector.

2.

CHECK RGB SIGNAL

1.

Connect NAVI control unit connector and display control unit connector.

2.

Turn ignition switch ON.

3.

Display

Color bar

by

CONFIRMATION/ADJUSTMENT

mode.

4.

Check signal between NAVI control unit connector B151 termi-
nal 15 and 17 with CONSULT-ll or oscilloscope.

When the screen looks yellowish.
Voltage signal between NAVI control unit connector B151 termi-
nal 15 and 17.

OK or NG

OK

>> Replace display control unit. Refer to

AV-166, "Removal

and Installation of Display Control Unit"

.

NG

>> Replace NAVI control unit. Refer to

AV-165, "Removal and Installation of NAVI Control Unit"

.

Terminals

Continuity

NAVI control unit

Display control unit

Connector

Terminal

Connector

Terminal

B151

15

M95

48

Yes

17

45

Terminals

Continuity

NAVI control unit

Connector

Terminal

B151

15

Ground

No

17

SKIA4351E

15 - 17

: Refer to

AV-98, "Terminals

and Reference Value for
NAVI Control Unit"

.

SKIA4631E

NAVIGATION SYSTEM

AV-145

C

D

E

F

G

H

I

J

L

M

A

B

AV

2005 Pathfinder

Color of RGB Image is Not Proper (All Screens Look Bluish)

EKS009WD

1.

CHECK RGB HARNESS

1.

Turn ignition switch OFF.

2.

Disconnect display control unit connector M95 and display unit connector M93.

3.

Check continuity between display control unit and display unit.

4.

Check continuity between display control unit and ground.

When the screen looks bluish.

OK or NG

OK

>> GO TO 2.

NG

>> Repair harness or connector.

2.

CHECK RGB SIGNAL

1.

Connect display control unit connector and display unit connector.

2.

Turn ignition switch ON.

3.

Display “Color bar” by “CONFIRMATION/ADJUSTMENT” mode.

4.

Check the following with CONSULT-ll or oscilloscope.

When the screen looks bluish.
Voltage signal between display control unit connector M95 ter-
minal 50 and 47.

OK or NG

OK

>> Replace display unit. Refer to

AV-166, "Removal and

Installation of Display Unit"

.

NG

>> Replace display control unit. Refer to

AV-166, "Removal and Installation of Display Control Unit"

.

Terminals

Continuity

Display control unit

Display unit

Connector

Terminal

Connector

Terminal

M95

50

M93

17

Yes

47

7

Terminals

Continuity

Display control unit

Connector

Terminal

M95

50

Ground

No

47

WKIA3258E

50 - 47

: Refer to

AV-100, "Terminals

and Reference Value for Dis-
play Control Unit"

.

SKIA4697E

AV-146

NAVIGATION SYSTEM

2005 Pathfinder

Color of RGB Image is Not Proper (All Screens Look Reddish)

EKS009WE

1.

CHECK RGB HARNESS

1.

Turn ignition switch OFF.

2.

Disconnect display control unit connector M95 and display unit connector M93.

3.

Check continuity between display control unit and display unit.

4.

Check continuity between display control unit and ground.

When the screen looks reddish.

OK or NG

OK

>> GO TO 2.

NG

>> Repair harness or connector.

2.

CHECK RGB SIGNAL

1.

Connect display control unit connector and display unit connector.

2.

Turn ignition switch ON.

3.

Display “Color bar” by “CONFIRMATION/ADJUSTMENT” mode.

4.

Check the following with CONSULT-ll or oscilloscope.

When the screen looks reddish.
Voltage signal between display control unit connector M95 ter-
minal 52 and 47.

OK or NG

OK

>> Replace display unit. Refer to

AV-166, "Removal and

Installation of Display Unit"

.

NG

>> Replace display control unit. Refer to

AV-166, "Removal and Installation of Display Control Unit"

.

Terminals

Continuity

Display control unit

Display unit

Connector

Terminal

Connector

Terminal

M95

52

M93

6

Yes

47

7

Terminals

Continuity

Display control unit

Connector

Terminal

M95

52

Ground

No

47

WKIA3259E

52 - 47

: Refer to

AV-100, "Terminals

and Reference Value for Dis-
play Control Unit"

.

SKIA4698E















Content      ..     81      82      83      84     ..
