Air Mix Door Motor Circuit

EJS002X4

SYMPTOM:

Discharge air temperature does not change.

Air mix door motor does not operate.

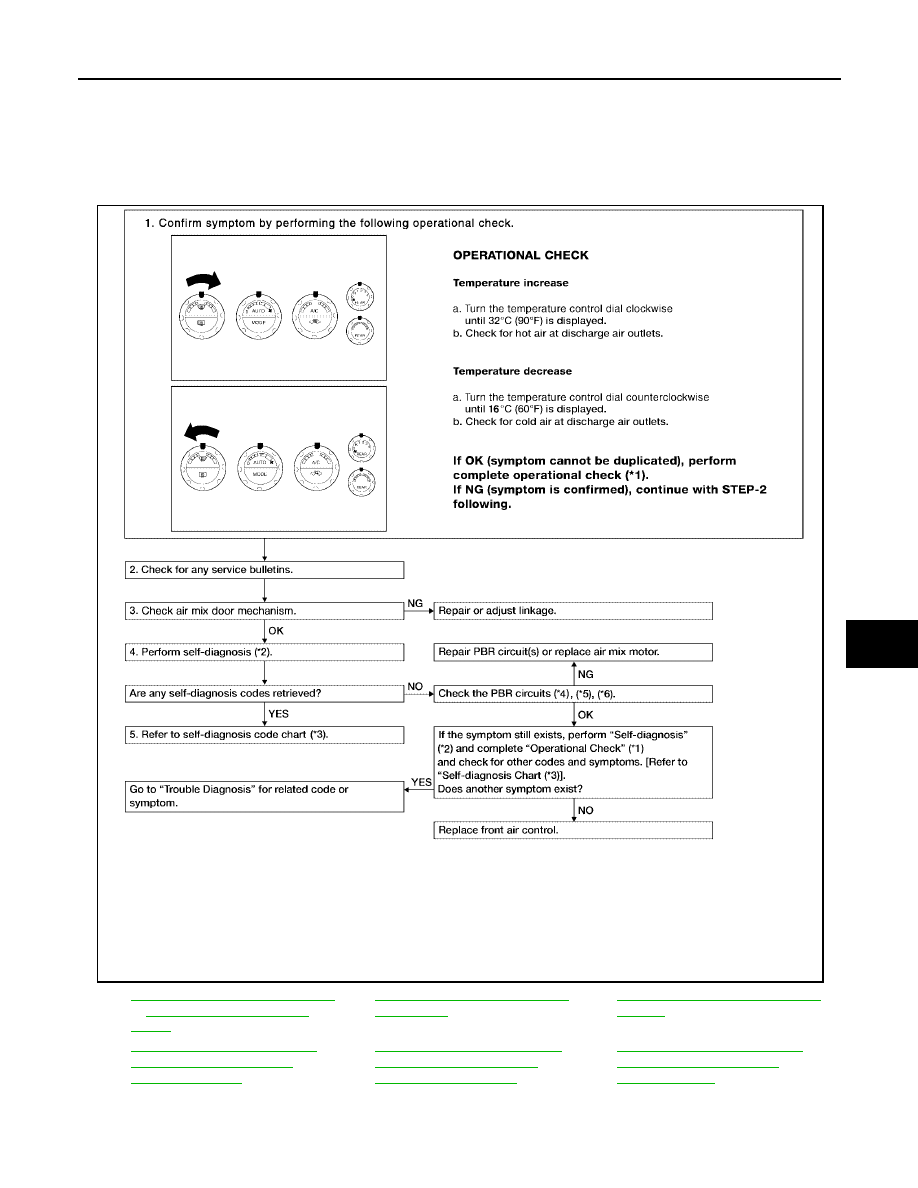

INSPECTION FLOW

*1

ATC-52, "Operational Check (Front)"

or

ATC-55, "Operational Check

(Rear)"

.

*2

ATC-50, "A/C System Self-diagno-
sis Function"

.

*3

ATC-51, "SELF-DIAGNOSIS CODE
CHART"

.

*4

ATC-65, "DIAGNOSTIC PROCE-
DURE FOR AIR MIX DOOR
MOTOR (DRIVER)"

.

*5

ATC-67, "DIAGNOSTIC PROCE-
DURE FOR AIR MIX DOOR
MOTOR (PASSENGER)"

*6

ATC-69, "DIAGNOSTIC PROCE-
DURE FOR AIR MIX DOOR
MOTOR (REAR)"

WJIA1462E

ATC-64

TROUBLE DIAGNOSIS

2005 Pathfinder

SYSTEM DESCRIPTION
Component Parts

Air mix door control system components are:

Front air control.

Air mix door motors (driver, passenger, and rear)

PBR (built into air mix door motors)

In-vehicle sensor

Ambient sensor

Optical sensor

Intake sensor

System Operation

The front air control receives data from the temperature selected by the driver side, passenger side, and rear.
The front air control then applies a voltage to one circuit of the appropriate air mix door motor, while ground is
applied to the other circuit, causing the appropriate air mix door motor to rotate. The direction of rotation is
determined by which circuit has voltage applied to it, and which one has ground applied to it. The front air con-
trol monitors the air mix door positions by measuring the voltage signal on the PBR circuits of each door.
In AUTO mode the air mix, intake, mode door, and defrost door positions are set by the front air control which
determines the proper position based on inputs from the in-vehicle sensor, ambient sensor, optical sensor,
intake sensor, and the temperature selected by the driver and front and rear passengers.
Subsequently, HOT/COLD or DEFROST/VENT or FRESH/RECIRCULATION operation is selected. The new
door position data is returned to the front air control.

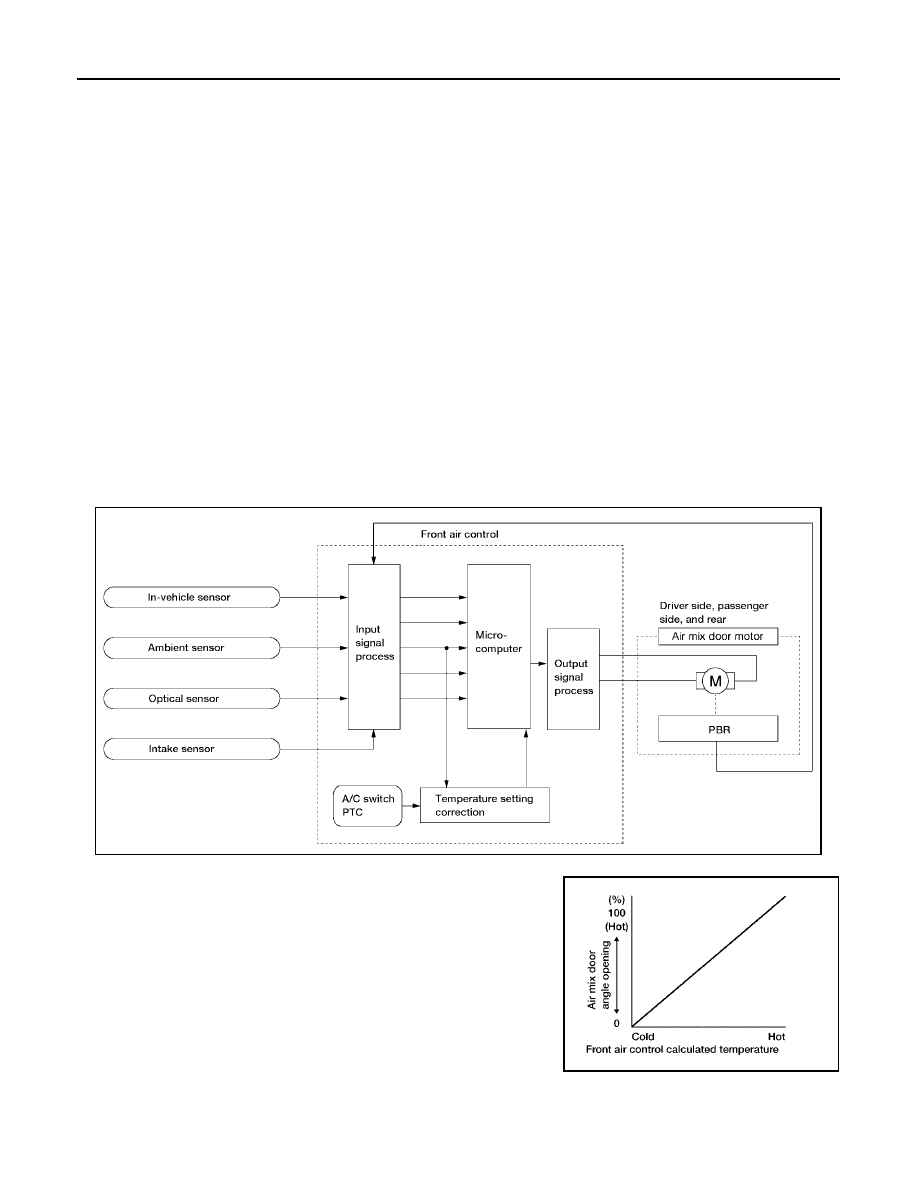

Air Mix Door Control Specification

WJIA1244E

WJIA0435E

TROUBLE DIAGNOSIS

ATC-65

C

D

E

F

G

H

I

K

L

M

A

B

ATC

2005 Pathfinder

COMPONENT DESCRIPTION

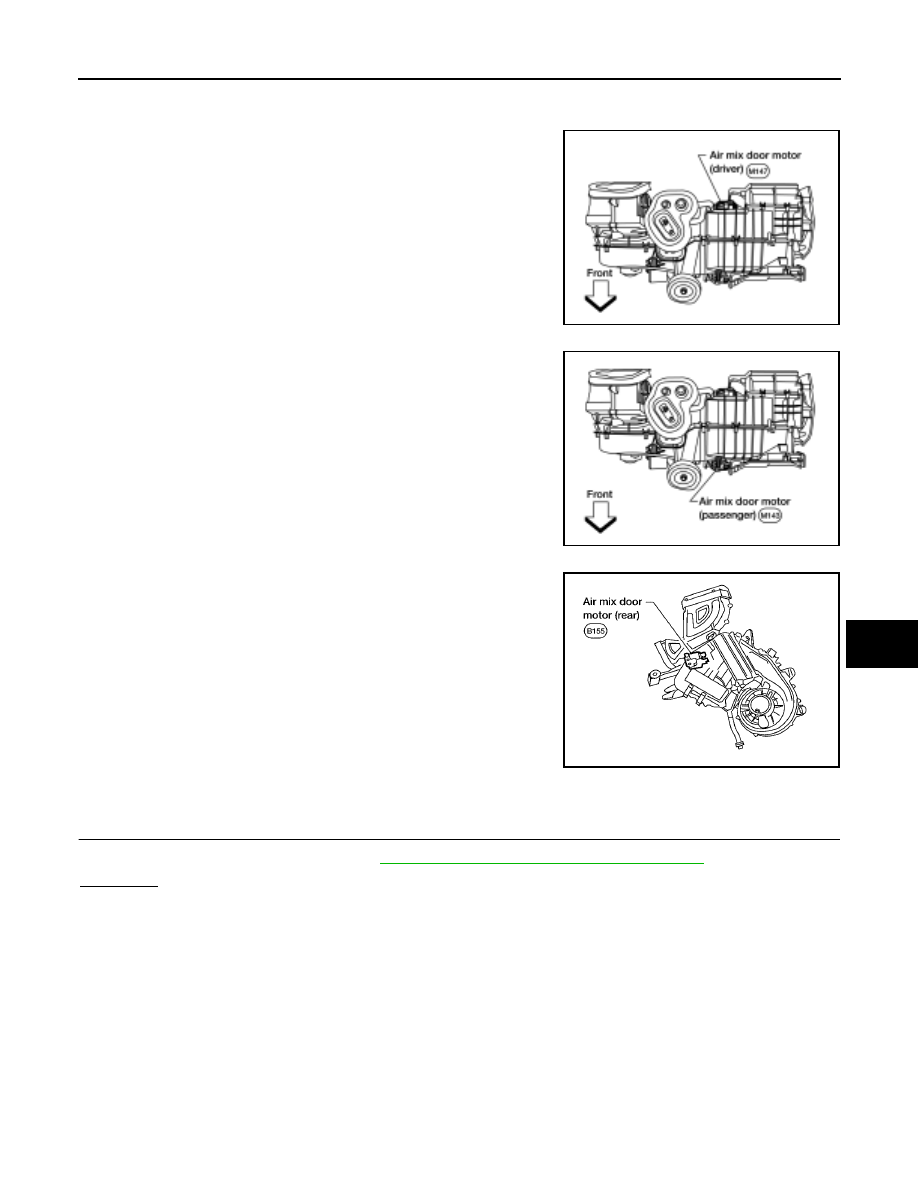

Air Mix Door Motors

The driver and front passenger air mix door motors are attached to
the front heater & cooling unit. The rear air mix door motor is
attached to the rear heater & cooling unit. These motors rotate so
that the air mix door is opened or closed to a position set by the front
(or rear) air control. Motor rotation is then conveyed through a shaft
and the air mix door position is then fed back to the front air control
by the PBR built into the air mix door motors.

DIAGNOSTIC PROCEDURE FOR AIR MIX DOOR MOTOR (DRIVER)

1.

CHECK RESULT FROM FRONT AIR CONTROL SELF-DIAGNOSIS

Self-diagnosis code 22 is present. Refer to

ATC-50, "A/C System Self-diagnosis Function"

.

YES or NO

YES

>> GO TO 2.

NO

>> GO TO 3.

WJIA1090E

WJIA1091E

WJIA1245E

ATC-66

TROUBLE DIAGNOSIS

2005 Pathfinder

2.

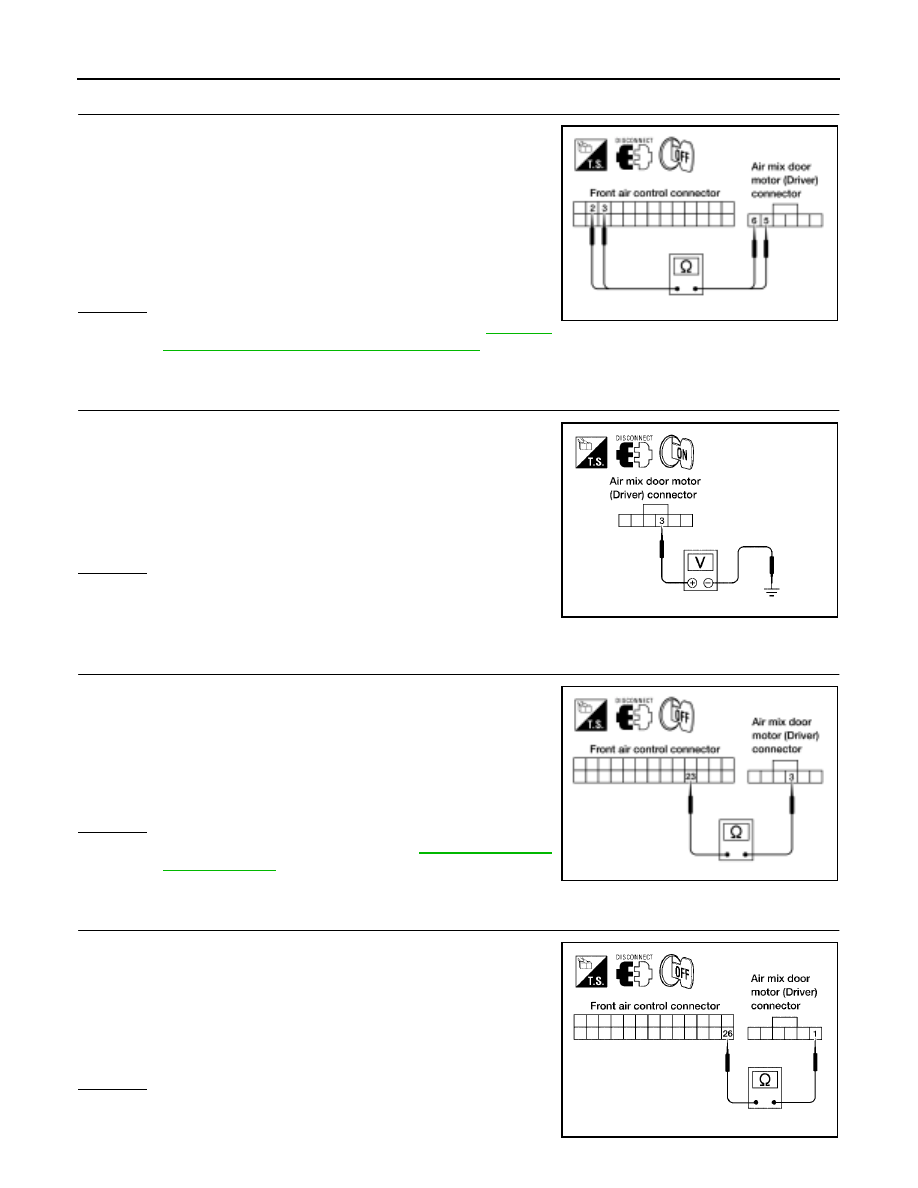

CHECK POWER SUPPLY CIRCUITS FOR AIR MIX DOOR MOTOR (DRIVER)

1.

Turn ignition switch OFF.

2.

Disconnect front air control connector and air mix door motor
(driver) connector.

3.

Check continuity between front air control harness connector
M49 terminal 2 and 3 and air mix door motor (driver) harness
connector M147 terminal 5 and 6.

OK or NG

OK

>> Replace air mix door motor (driver). Refer to

ATC-142,

"FRONT AIR MIX DOOR MOTOR (DRIVER)"

.

NG

>> Repair or replace harness as necessary.

3.

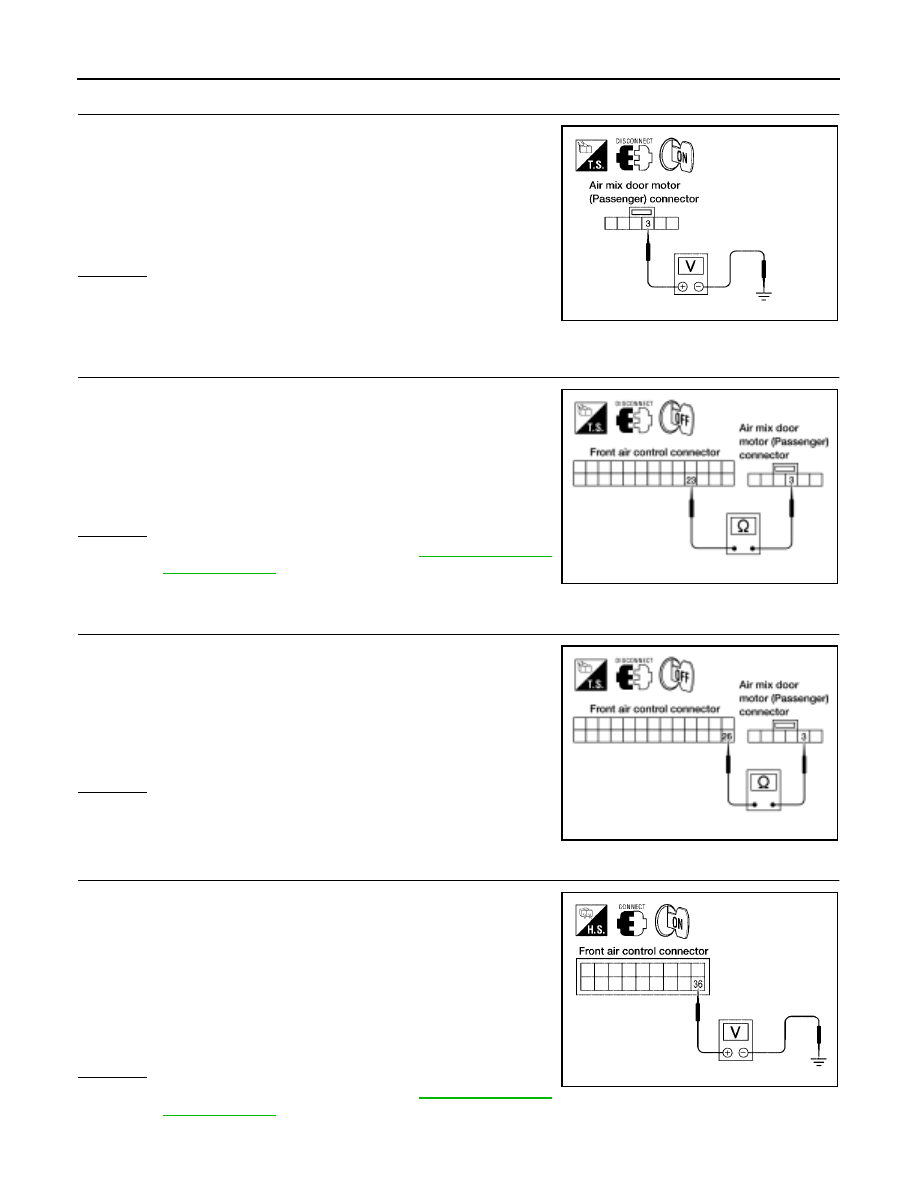

CHECK PBR REFERENCE SIGNAL VOLTAGE

1.

Turn ignition switch OFF.

2.

Disconnect the air mix door motor (driver) connector.

3.

Turn ignition switch ON.

4.

Check voltage between air mix door motor (driver) harness con-
nector M147 terminal 3 and ground.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 4.

4.

CHECK PBR REFERENCE VOLTAGE CIRCUIT BETWEEN AIR MIX DOOR MOTOR (DRIVER) AND

FRONT AIR CONTROL

1.

Turn ignition switch OFF.

2.

Disconnect the front air control connector.

3.

Check continuity between air mix door motor (driver) harness
connector M147 terminal 3 and front air control harness connec-
tor M49 terminal 23.

OK or NG

OK

>> Replace front air control. Refer to

ATC-124, "FRONT

AIR CONTROL"

.

NG

>> Repair or replace harness as necessary.

5.

CHECK PBR GROUND REFERENCE CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect the front air control connector.

3.

Check continuity between air mix door motor (driver) harness
connector M147 terminal 1 and front air control harness connec-
tor M49 terminal 26.

OK or NG

OK

>> GO TO 6.

NG

>> Repair or replace harness as necessary.

2 - 5

: Continuity should exist.

3 - 6

: Continuity should exist.

WJIA1092E

3 - Ground

: Approx. 5V

WJIA1246E

3 - 23

: Continuity should exist.

WJIA1093E

1 - 26

: Continuity should exist.

WJIA1247E

TROUBLE DIAGNOSIS

ATC-67

C

D

E

F

G

H

I

K

L

M

A

B

ATC

2005 Pathfinder

6.

CHECK PBR FEEDBACK SIGNAL

1.

Reconnect the front air control connector and air mix door motor
(driver) connector.

2.

Turn ignition switch ON.

3.

Check voltage between front air control harness connector M49
terminal 22 and ground.

4.

Rotate driver temperature control dial through complete range.

OK or NG

OK

>> Replace front air control. Refer to

ATC-124, "FRONT

AIR CONTROL"

.

NG

>> GO TO 7.

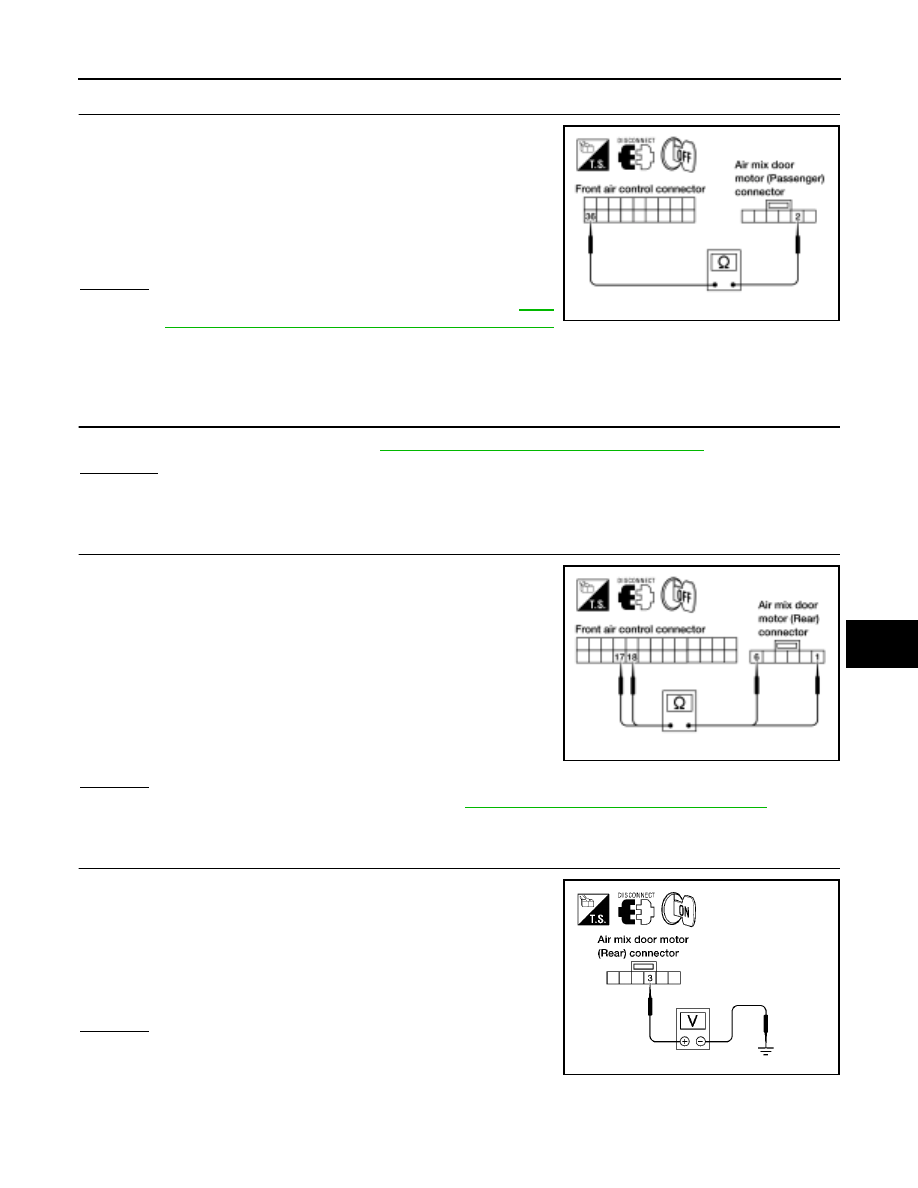

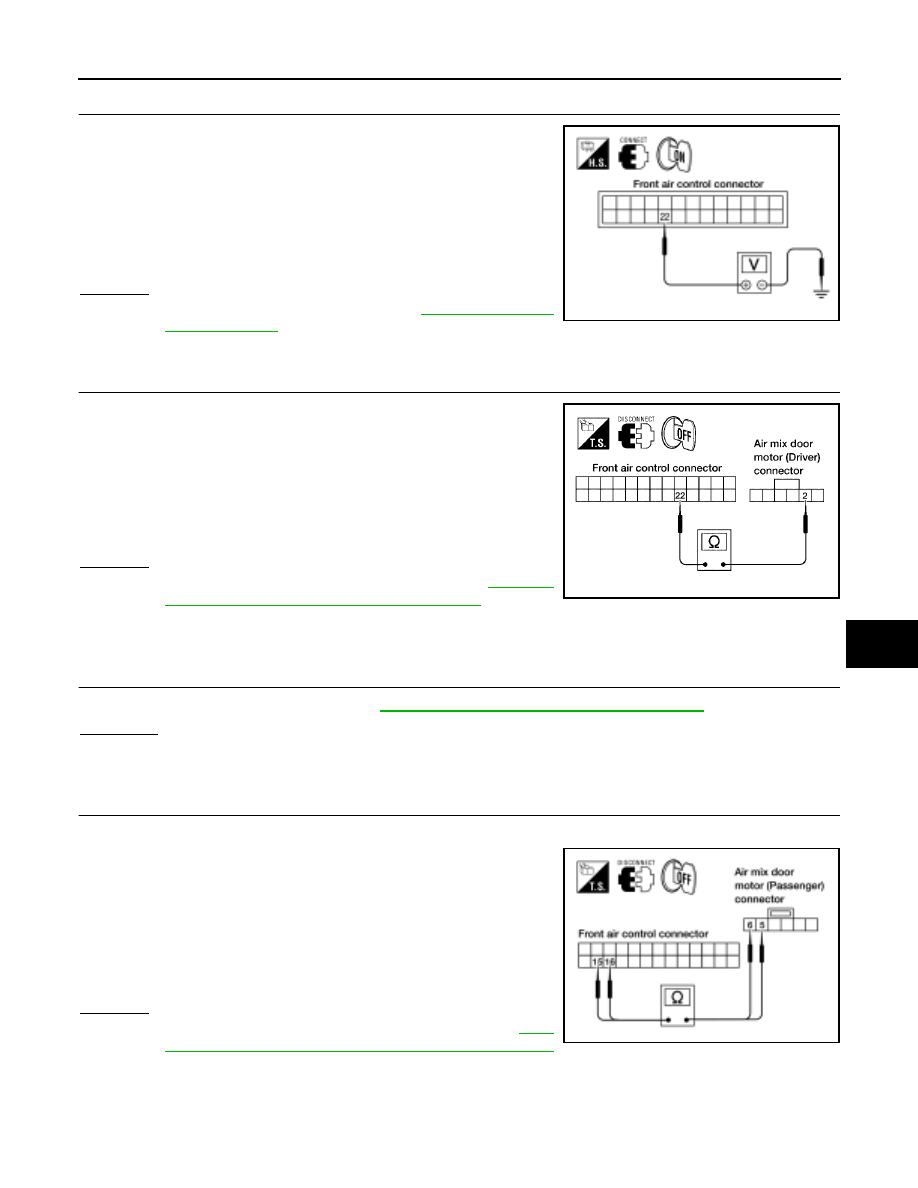

7.

CHECK PBR FEEDBACK CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect the air mix door motor (driver) connector and front
air control connector.

3.

Check continuity between air mix door motor (driver) harness
connector M147 terminal 2 and front air control harness connec-
tor M49 terminal 22.

OK or NG

OK

>> Replace air mix door motor (driver). Refer to

ATC-142,

"FRONT AIR MIX DOOR MOTOR (DRIVER)"

.

NG

>> Repair or replace harness as necessary.

DIAGNOSTIC PROCEDURE FOR AIR MIX DOOR MOTOR (PASSENGER)

1.

CHECK RESULT FROM FRONT AIR CONTROL SELF-DIAGNOSIS

Self-diagnosis code 12 is present. Refer to

ATC-50, "A/C System Self-diagnosis Function"

.

YES or NO

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

CHECK POWER SUPPLY CIRCUIT FOR AIR MIX DOOR MOTOR (PASSENGER)

1.

Turn ignition switch OFF.

2.

Disconnect front air control connector and air mix door motor
(passenger) connector.

3.

Check continuity between front air control harness connector
M49 terminal 15 and 16 and air mix door motor (passenger) har-
ness connector M143 terminal 6 and 5.

OK or NG

OK

>> Replace air mix door motor (passenger). Refer to

ATC-

142, "FRONT AIR MIX DOOR MOTOR (PASSENGER)"

.

NG

>> Repair or replace harness as necessary.

22 - Ground

: Approx. 0V - 5V

WJIA1096E

2 - 22

Continuity should exist.

WJIA1248E

15 - 6

Continuity should exist.

16 - 5

Continuity should exist.

WJIA1097E

ATC-68

TROUBLE DIAGNOSIS

2005 Pathfinder

3.

CHECK PBR REFERENCE SIGNAL VOLTAGE

1.

Turn ignition switch OFF.

2.

Disconnect the air mix door motor (passenger) connector.

3.

Turn ignition switch ON.

4.

Check voltage between air mix door motor (passenger) harness
connector M143 terminal 3 and ground.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 4.

4.

CHECK PBR REFERENCE VOLTAGE CIRCUIT BETWEEN AIR MIX DOOR (PASSENGER) AND

FRONT AIR CONTROL

1.

Turn ignition switch OFF.

2.

Disconnect the front air control connector.

3.

Check continuity between air mix door motor (passenger) har-
ness connector M143 terminal 3 and front air control harness
connector M49 terminal 23.

OK or NG

OK

>> Replace front air control. Refer to

ATC-124, "FRONT

AIR CONTROL"

.

NG

>> Repair or replace harness as necessary.

5.

CHECK PBR GROUND REFERENCE CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect the front air control connector.

3.

Check continuity between air mix door motor (passenger) har-
ness connector M143 terminal 3 and front air control harness
connector M49 terminal 26.

OK or NG

OK

>> GO TO 6.

NG

>> Repair or replace harness as necessary.

6.

CHECK PBR FEEDBACK SIGNAL

1.

Reconnect the front air control connector and air mix door motor
(passenger) connector.

2.

Turn ignition switch ON.

3.

Check voltage between front air control harness connector M50
terminal 36 and ground.

4.

Rotate passenger temperature control dial through complete
range.

OK or NG

OK

>> Replace front air control. Refer to

ATC-124, "FRONT

AIR CONTROL"

.

NG

>> GO TO 7.

3 - Ground

: Approx. 5V

LJIA0044E

3 - 23

Continuity should exist.

WJIA1098E

3 - 26

Continuity should exist.

WJIA1099E

36 - Ground

: Approx. 0 - 5V

WJIA1249E

TROUBLE DIAGNOSIS

ATC-69

C

D

E

F

G

H

I

K

L

M

A

B

ATC

2005 Pathfinder

7.

CHECK PBR FEEDBACK CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect the air mix door motor (passenger) connector and
front air control connector.

3.

Check continuity between air mix door motor (passenger) har-
ness connector M143 terminal 2 and front air control harness
connector M50 terminal 36.

OK or NG

OK

>> Replace air mix door motor (passenger). Refer to

ATC-

142, "FRONT AIR MIX DOOR MOTOR (PASSENGER)"

.

NG

>> Repair or replace harness as necessary.

DIAGNOSTIC PROCEDURE FOR AIR MIX DOOR MOTOR (REAR)

1.

CHECK RESULT FROM FRONT AIR CONTROL SELF-DIAGNOSIS

Self-diagnosis code 38 is present. Refer to

ATC-50, "A/C System Self-diagnosis Function"

.

YES or NO

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

CHECK POWER SUPPLY CIRCUIT FOR AIR MIX DOOR MOTOR (REAR)

1.

Turn ignition switch OFF.

2.

Disconnect front air control connector and air mix door motor
(rear) connector.

3.

Check continuity between front air control harness connector
M49 terminal 17 and air mix door motor (rear) harness connec-
tor B155 terminal 6 and between front air control harness con-
nector M49 terminal 18 and air mix door motor (rear) harness
connector B155 terminal 1.

OK or NG

OK

>> Replace air mix door motor (rear). Refer to

ATC-143, "REAR AIR MIX DOOR MOTOR"

.

NG

>> Repair or replace harness as necessary.

3.

CHECK PBR REFERENCE SIGNAL VOLTAGE

1.

Turn ignition switch OFF.

2.

Disconnect the air mix door motor (rear) connector.

3.

Turn ignition switch ON.

4.

Check voltage between air mix door motor (rear) harness con-
nector B155 terminal 3 and ground.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 4.

2 - 36

: Continuity should exist.

WJIA1101E

17 - 6

Continuity should exist.

18 - 1

Continuity should exist.

WJIA1102E

3 - Ground

: Approx. 5V

LJIA0050E

ATC-70

TROUBLE DIAGNOSIS

2005 Pathfinder

4.

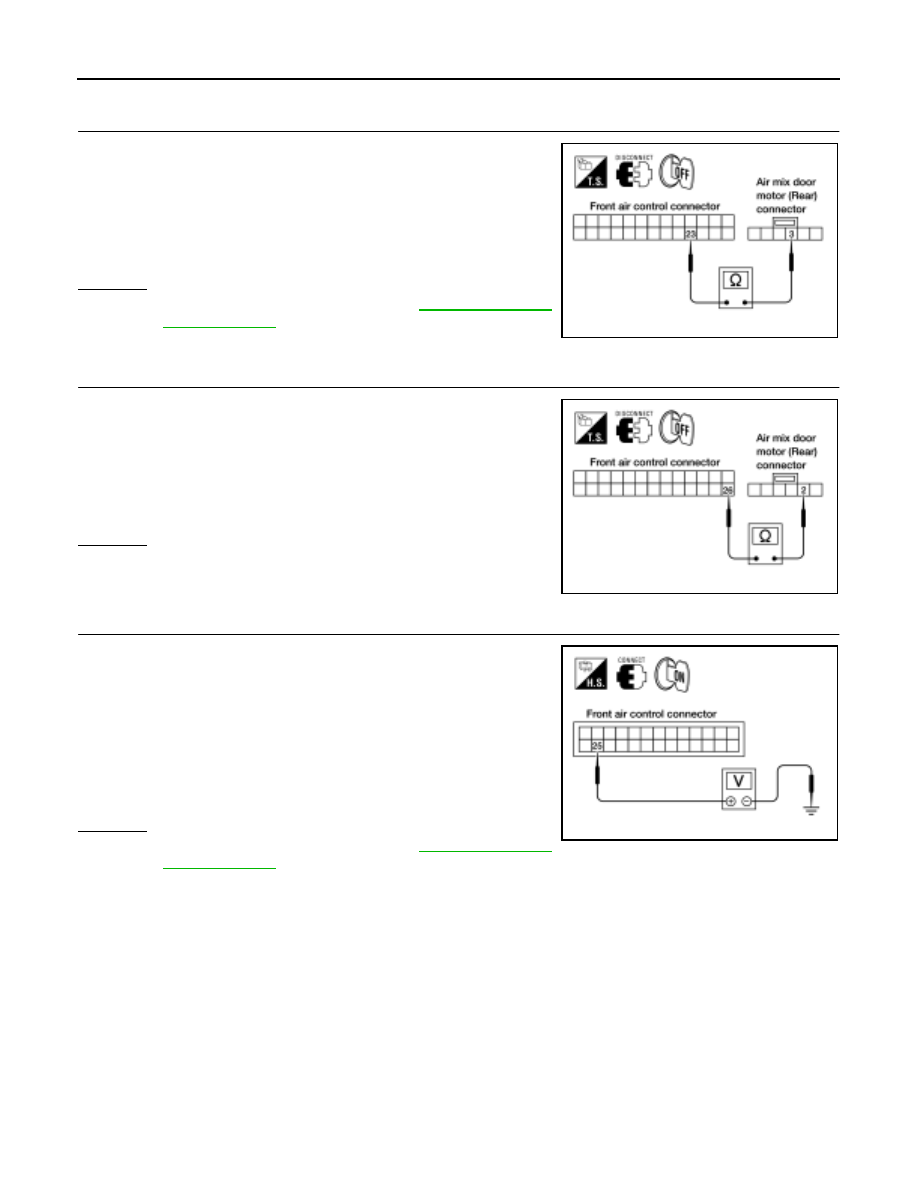

CHECK PBR REFERENCE VOLTAGE CIRCUIT BETWEEN AIR MIX DOOR MOTOR (REAR) AND

FRONT AIR CONTROL

1.

Turn ignition switch OFF.

2.

Disconnect the front air control connector.

3.

Check continuity between air mix door motor (rear) harness con-
nector B155 terminal 3 and front air control harness connector
M49 terminal 23.

OK or NG

OK

>> Replace front air control. Refer to

ATC-124, "FRONT

AIR CONTROL"

.

NG

>> Repair or replace harness as necessary.

5.

CHECK PBR GROUND REFERENCE CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect the front air control connector.

3.

Check continuity between air mix door motor (rear) harness con-
nector B155 terminal 2 and front air control harness connector
M49 terminal 26.

OK or NG

OK

>> GO TO 6.

NG

>> Repair or replace harness as necessary.

6.

CHECK PBR FEEDBACK SIGNAL

1.

Reconnect the front air control connector and air mix door motor
(rear) connector.

2.

Turn ignition switch ON.

3.

Check voltage between front air control harness connector M49
terminal 25 and ground.

4.

Rotate rear temperature and mode control dial through complete
range.

OK or NG

OK

>> Replace front air control. Refer to

ATC-124, "FRONT

AIR CONTROL"

.

NG

>> GO TO 7.

3 - 23

Continuity should exist.

WJIA1103E

2 - 26

Continuity should exist.

WJIA1104E

25 - Ground

: Approx. 0 - 5V

WJIA1105E















Content      ..     50      51      52      53     ..
