Nissan Pathfinder (2005 year). Manual - part 50





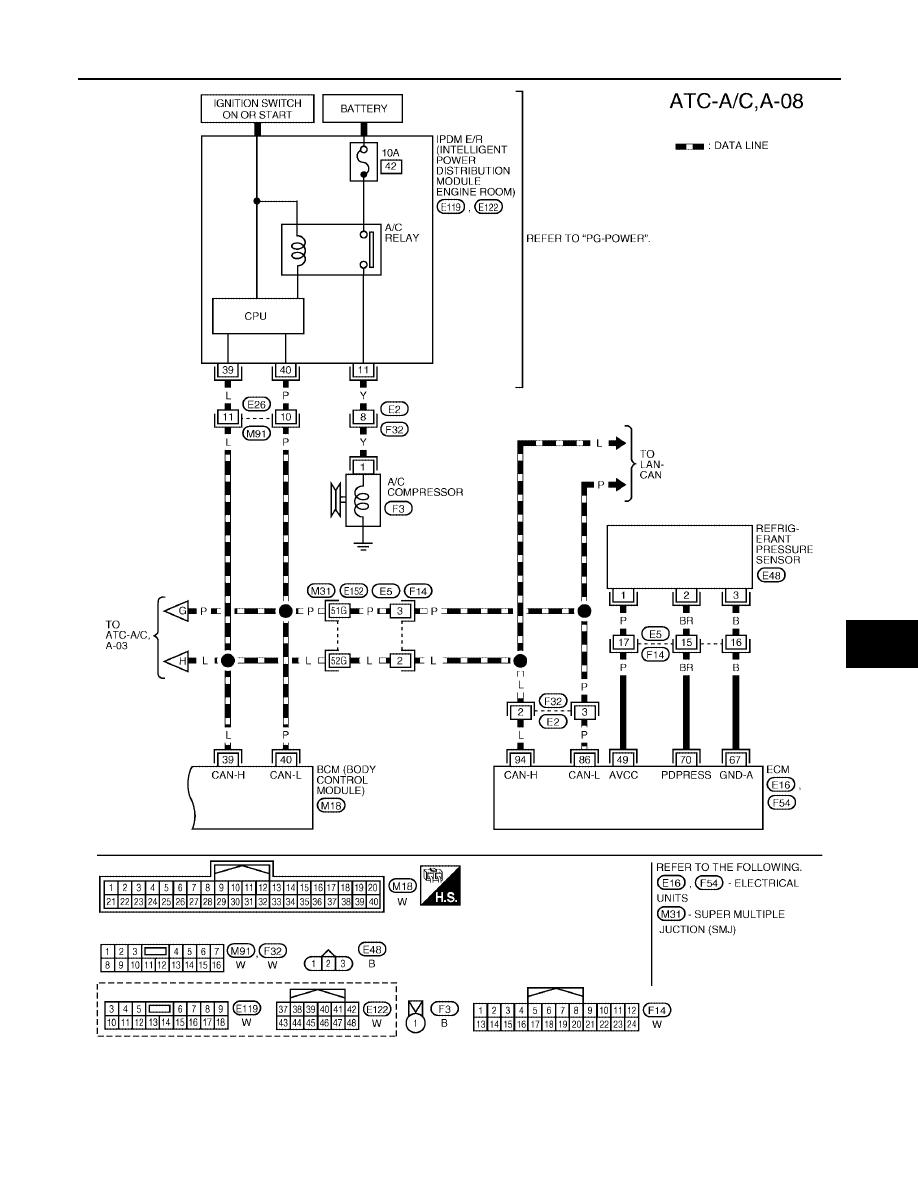

TROUBLE DIAGNOSIS

ATC-47

C

D

E

F

G

H

I

K

L

M

A

B

ATC

2005 Pathfinder

WJWA0195E

ATC-48

TROUBLE DIAGNOSIS

2005 Pathfinder

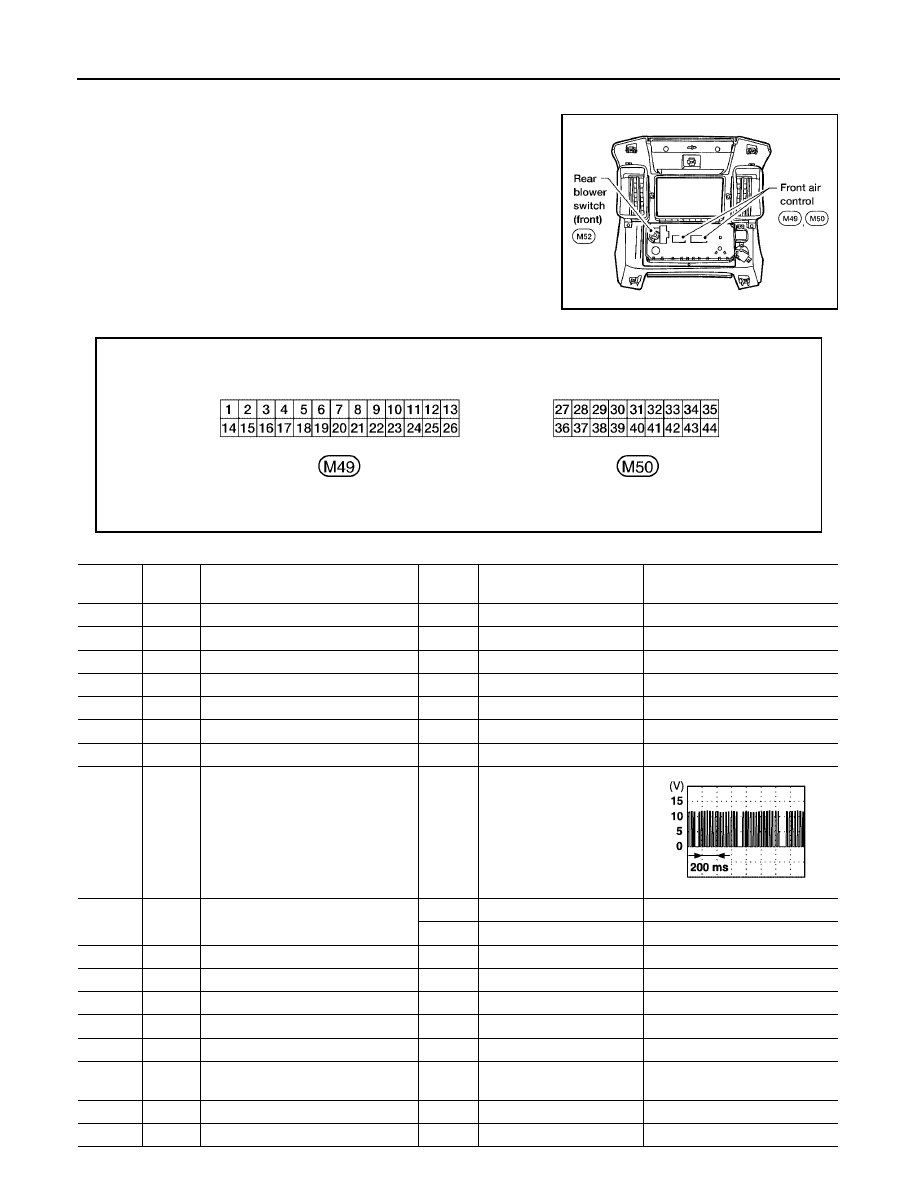

Front Air Control Terminals and Reference Value

EJS002WY

Measure voltage between each terminal and ground by following
Terminals and Reference Value for front air control.

PIN CONNECTOR TERMINAL LAYOUT

TERMINALS AND REFERENCE VALUE FOR FRONT AIR CONTROL

WJIA1075E

WJIA0402E

Termi-

nal No.

Wire

color

Item

Ignition

switch

Condition

Voltage (V)

(Approx.)

1

BR

Mode door motor CW

ON

Clockwise rotation

Battery voltage

2

W

Air mix door motor (Driver) CW

ON

Clockwise rotation

Battery voltage

3

G/R

Air mix door motor (Driver) CCW

ON

Counterclockwise rotation

Battery voltage

4

Y

Intake door motor CW

ON

Counterclockwise rotation

Battery voltage

5

O

Intake door motor CCW

ON

Clockwise rotation

Battery voltage

6

W/G

Power supply for IGN

ON

-

Battery voltage

8

G

Illumination +

ON

Park lamps ON

Battery voltage

9

BR

Illumination -

-

Park lamps ON

10

W

Compressor ON signal

ON

A/C switch OFF

5V

ON

A/C switch ON

0V

11

Y

Rear defrost request

ON

-

Battery voltage

12

L

Intake sensor

ON

-

0 - 5V

13

V

Sensor ground

ON

-

0 - 5V

14

R

Mode door motor CCW

ON

Counterclockwise rotation

Battery voltage

15

P

Air mix door motor (Passenger) CW

ON

Clockwise rotation

Battery voltage

16

L

Air mix door motor (Passenger)
CCW

ON

Counter clockwise rotation

Battery voltage

17

GR

Air mix door motor (Rear) CW

ON

Clockwise rotation

Battery voltage

18

O

Air mix door motor (Rear) CCW

ON

Counterclockwise rotation

Battery voltage

PIIA2344E

TROUBLE DIAGNOSIS

ATC-49

C

D

E

F

G

H

I

K

L

M

A

B

ATC

2005 Pathfinder

19

R/Y

Power supply for BAT

-

-

Battery voltage

20

B

Ground

-

-

0V

21

V

Mode door motor feedback

ON

-

0 - 5V

22

SB

Air mix door motor (Driver) feedback

ON

-

0 - 5V

23

G

Power supply for mode door motor
PBR

ON

-

5V

24

L/G

Air mix door motor (Rear) PTC

ON

-

0 - 5V

25

R

Air mix door motor (Rear) feedback

ON

-

0 - 5V

26

P

Ground for mode door motor PBR

ON

-

0V

27

LG

In-vehicle sensor signal

ON

-

0 - 5V

28

W

Ambient sensor 1

ON

-

0 - 5V

29

G

Optical sensor (Driver)

ON

-

0 - 5V

30

Y

Rear select signal

ON

-

0V - Battery voltage

32

V

Variable blower control

ON

-

0 - 5V

33

BR

In-vehicle sensor motor (+)

ON

-

Battery voltage

34

O

In-vehicle sensor motor (-)

ON

-

0V

35

R

Fan ON signal

ON

Blower switch OFF

5V

ON

Blower switch ON

0V

36

SB

Air mix door motor (Passenger)
feedback

ON

-

0 - 5V

37

GR

Optical sensor (Passenger)

ON

-

0 - 5V

38

BR

Front blower request

ON

Front blower motor OFF

Battery voltage

Front blower motor ON

0V

39

O

Rear blower request

ON

Front blower motor OFF

Battery voltage

Front blower motor ON

0V

41

L

CAN-H

ON

-

0 - 5V

42

P

CAN-L

ON

-

0 - 5V

44

GR

Heater pump request

ON

Heater pump on

0V

Heater pump off

Battery voltage

Termi-

nal No.

Wire

color

Item

Ignition

switch

Condition

Voltage (V)

(Approx.)

ATC-50

TROUBLE DIAGNOSIS

2005 Pathfinder

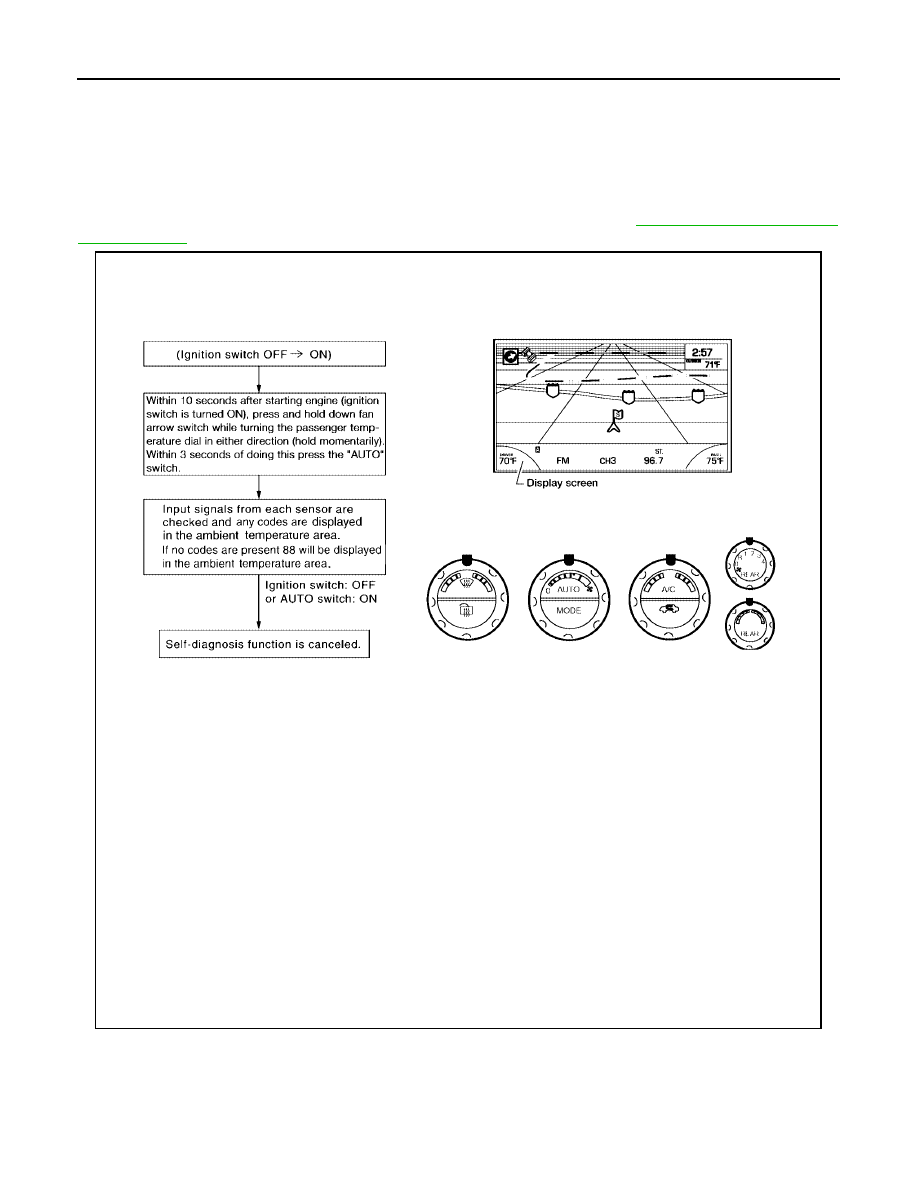

A/C System Self-diagnosis Function

EJS002WZ

DESCRIPTION

The self-diagnostic system diagnoses sensors, door motors, blower motor, etc. Refer to applicable sections
(items) for details. Shifting from usual control to the self-diagnostic system is accomplished by turning the igni-
tion switch ON and pressing the down blower arrow switch while turning the passenger temperature dial in
either direction (hold momentarily). Within 3 seconds of doing this, press the AUTO switch. The blower bars
will flash and the ambient temperature display will indicate 0

°

during the self-diagnosis. Fault codes (if any are

present) will be displayed in the ambient temperature display area. Refer to

ATC-51, "SELF-DIAGNOSIS

CODE CHART"

.

WJIA1080E

TROUBLE DIAGNOSIS

ATC-51

C

D

E

F

G

H

I

K

L

M

A

B

ATC

2005 Pathfinder

SELF-DIAGNOSIS CODE CHART

Code No.

Reference page

02

EE changed by calibration

ATC-124, "FRONT AIR CONTROL"

03

Battery voltage out of range

SC-4, "BATTERY"

12

Air mix door motor (Passenger) circuit malfunction

ATC-67, "DIAGNOSTIC PROCEDURE FOR AIR MIX DOOR
MOTOR (PASSENGER)"

20

BCM not responding to A/C request

ATC-97, "DIAGNOSTIC PROCEDURE FOR MAGNET
CLUTCH"

21

BCM not responding to rear defroster request

GW-58, "REAR WINDOW DEFOGGER"

22

Air mix door motor (Driver) circuit failure

ATC-65, "DIAGNOSTIC PROCEDURE FOR AIR MIX DOOR
MOTOR (DRIVER)"

30

In-vehicle sensor circuit out of range (low)

ATC-116, "In-vehicle Sensor Circuit"

31

In-vehicle sensor circuit out of range (high)

38

Air mix door motor (rear) circuit malfunction

ATC-69, "DIAGNOSTIC PROCEDURE FOR AIR MIX DOOR
MOTOR (REAR)"

40

Ambient sensor 1 circuit short

ATC-113, "Ambient Sensor 1 Circuit"

41

Ambient sensor 1 circuit open

44

In-vehicle sensor motor circuit open

ATC-116, "In-vehicle Sensor Circuit"

46

In-vehicle sensor motor circuit short

50

Optical sensor (Driver) circuit open or short

ATC-120, "Optical Sensor Circuit"

52

Optical sensor (Passenger) circuit open or short

56

Intake sensor circuit short

ATC-122, "Intake Sensor Circuit"

57

Intake sensor circuit open

80

CAN bus fault

LAN-24, "CAN COMMUNICATION"

82

Intake door motor (driver) circuit malfunction

ATC-74, "DIAGNOSTIC PROCEDURE FOR INTAKE DOOR
MOTOR"

90

Stuck button

ATC-124, "FRONT AIR CONTROL"

92

Mode door motor circuit malfunction

ATC-59, "Mode Door Motor Circuit"

ATC-52

TROUBLE DIAGNOSIS

2005 Pathfinder

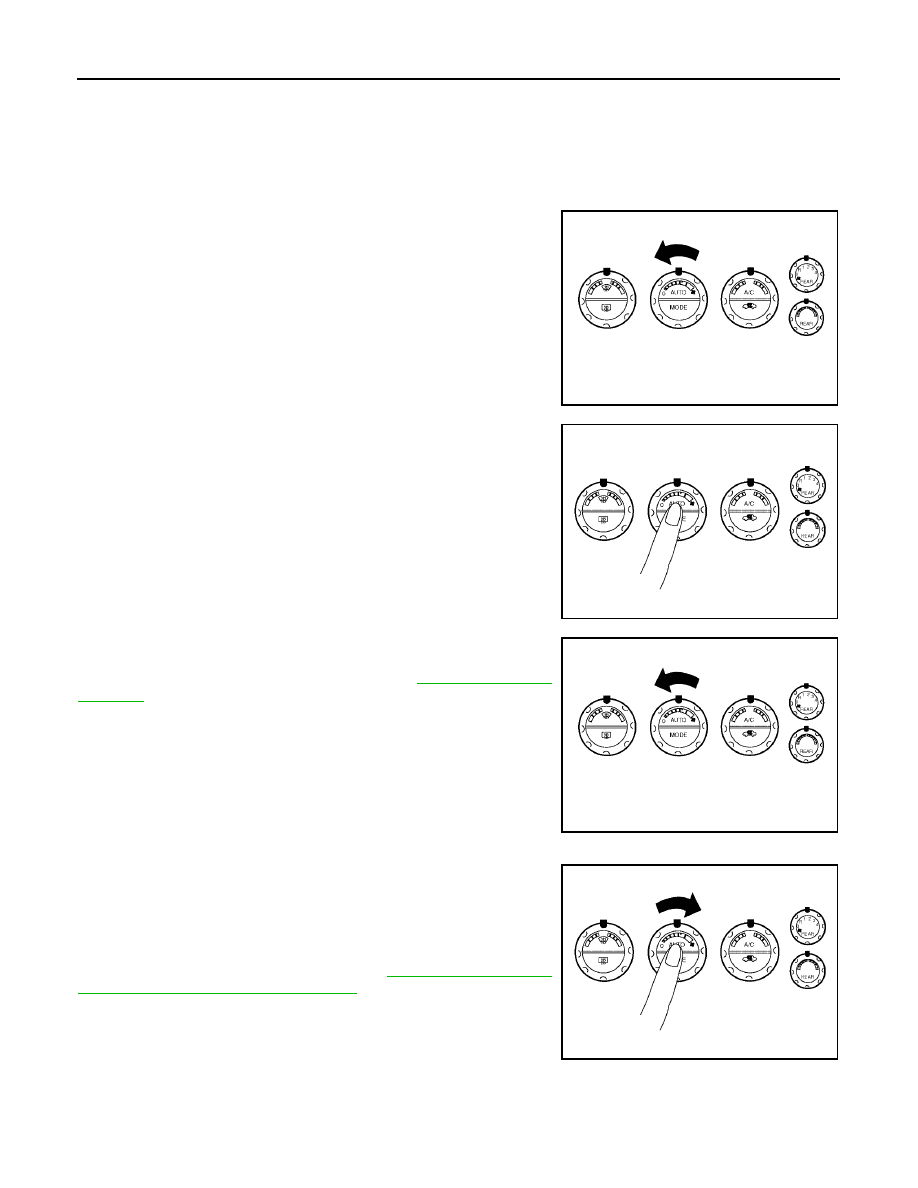

Operational Check (Front)

EJS002X0

The purpose of the operational check is to confirm that the system operates properly.

CHECKING MEMORY FUNCTION

1.

Set the temperature to 32

°

C (90

°

F).

2.

Turn front blower control dial counterclockwise until system
shuts OFF.

3.

Turn ignition switch OFF.

4.

Turn ignition switch ON.

5.

Press the AUTO switch.

6.

Confirm that the set temperature remains at previous tempera-
ture.

7.

Turn front blower control dial counterclockwise until system
shuts OFF.

If NG, go to trouble diagnosis procedure for

ATC-112, "Memory

Function"

.

If OK, continue with next check.

CHECKING BLOWER

1.

Press the AUTO switch. Blower should operate on low speed.
The blower symbol should have one blade lit (on display).

2.

Turn the front blower control dial again, and continue checking
blower speed and blower symbol until all speeds are checked.

3.

Leave blower on MAX speed.

If NG, go to trouble diagnosis procedure for

ATC-77, "DIAGNOSTIC

PROCEDURE FOR BLOWER MOTOR"

.

If OK, continue with next check.

Conditions

: Engine running and at normal operating temperature

WJIA1040E

WJIA1043E

WJIA1040E

WJIA1044E

TROUBLE DIAGNOSIS

ATC-53

C

D

E

F

G

H

I

K

L

M

A

B

ATC

2005 Pathfinder

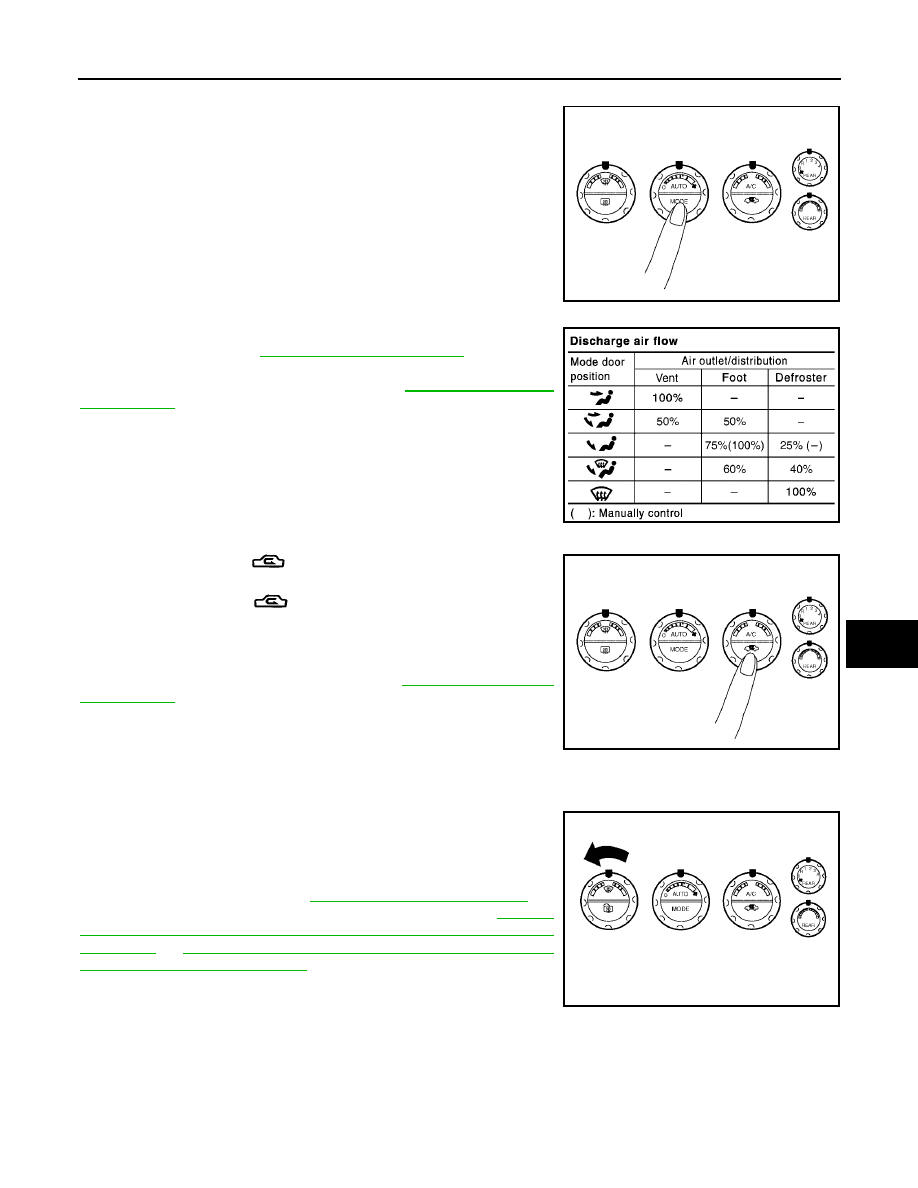

CHECKING DISCHARGE AIR

1.

Press MODE switch four times and the DEF switch.

2.

Each position indicator should change shape (on display).

3.

Confirm that discharge air comes out according to the air distri-
bution table. Refer to

ATC-29, "Discharge Air Flow"

.

Mode door position is checked in the next step.
If NG, go to trouble diagnosis procedure for

ATC-59, "Mode Door

Motor Circuit"

.

If OK, continue the check.

NOTE:
Confirm that the compressor clutch is engaged (sound or visual
inspection) and intake door position is at fresh when the DEF or D/F
is selected.

CHECKING RECIRCULATION

1.

Press recirculation (

) switch one time. Recirculation indica-

tor should illuminate.

2.

Press recirculation (

) switch one more time. Recirculation

indicator should go off.

3.

Listen for intake door position change (blower sound should
change slightly).

If NG, go to trouble diagnosis procedure for

ATC-72, "Intake Door

Motor Circuit"

.

If OK, continue next check.

NOTE:
Confirm that the compressor clutch is engaged (sound or visual
inspection) and intake door position is at fresh when the DEF or D/F is selected.

CHECKING TEMPERATURE DECREASE

1.

Rotate temperature control dial (driver side) counterclockwise
until 16

°

C (60

°

F) is displayed.

2.

Check for cold air at appropriate discharge air outlets.

If NG, listen for sound of air mix door motor operation. If OK, go to
trouble diagnosis procedure for

ATC-102, "Insufficient Cooling"

. If

air mix door motor appears to be malfunctioning, go to

ATC-65,

"DIAGNOSTIC PROCEDURE FOR AIR MIX DOOR MOTOR
(DRIVER)"

or

ATC-67, "DIAGNOSTIC PROCEDURE FOR AIR MIX

DOOR MOTOR (PASSENGER)"

.

If OK, continue the check.

WJIA1045E

WJIA0528E

WJIA1046E

WJIA1047E

ATC-54

TROUBLE DIAGNOSIS

2005 Pathfinder

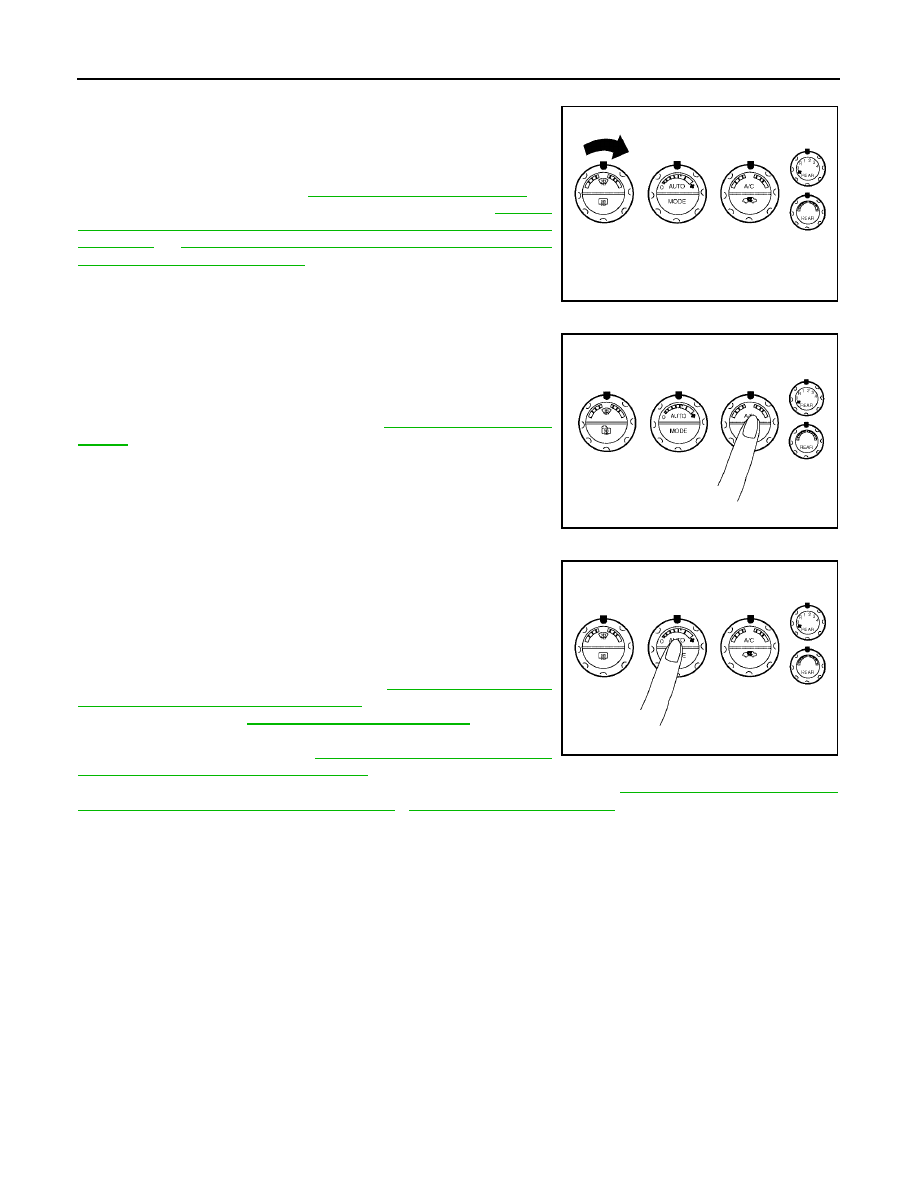

CHECKING TEMPERATURE INCREASE

1.

Rotate temperature control dial clockwise (driver side) until 32

°

C

(90

°

F) is displayed.

2.

Check for hot air at appropriate discharge air outlets.

If NG, listen for sound of air mix door motor operation. If OK, go to
trouble diagnosis procedure for

ATC-109, "Insufficient Heating"

. If

air mix door motor appears to be malfunctioning, go to

ATC-65,

"DIAGNOSTIC PROCEDURE FOR AIR MIX DOOR MOTOR
(DRIVER)"

or

ATC-67, "DIAGNOSTIC PROCEDURE FOR AIR MIX

DOOR MOTOR (PASSENGER)"

.

If OK, continue with next check.

CHECK A/C SWITCH

1.

Press A/C switch when AUTO switch is ON, or in manual mode.

2.

A/C switch indicator will turn ON.

Confirm that the compressor clutch engages (sound or visual
inspection).

If NG, go to trouble diagnosis procedure for

ATC-96, "Magnet Clutch

Circuit"

.

If OK, continue with next check.

CHECKING AUTO MODE

1.

Press AUTO switch.

2.

Display should indicate AUTO.

If ambient temperature is warm, and selected temperature is
cool, confirm that the compressor clutch engages (sound or
visual inspection). (Discharge air and blower speed will
depend on ambient, in-vehicle, and set temperatures.)

If NG, go to trouble diagnosis procedure for

ATC-56, "Power Supply

and Ground Circuit for Front Air Control"

, then if necessary, trouble

diagnosis procedure for

ATC-96, "Magnet Clutch Circuit"

.

If all operational checks are OK (symptom cannot be duplicated), go
to malfunction simulation tests in

ATC-35, "How to Perform Trouble

Diagnosis for Quick and Accurate Repair"

and perform tests as out-

lined to simulate driving conditions environment. If symptom appears, refer to

ATC-35, "How to Perform Trou-

ble Diagnosis for Quick and Accurate Repair"

,

ATC-35, "SYMPTOM TABLE"

and perform applicable trouble

diagnosis procedures.

WJIA1048E

WJIA1049E

WJIA1043E















Content      ..     48      49      50      51     ..
