TROUBLE DIAGNOSIS

ATC-39

C

D

E

F

G

H

I

K

L

M

A

B

ATC

2005 Pathfinder

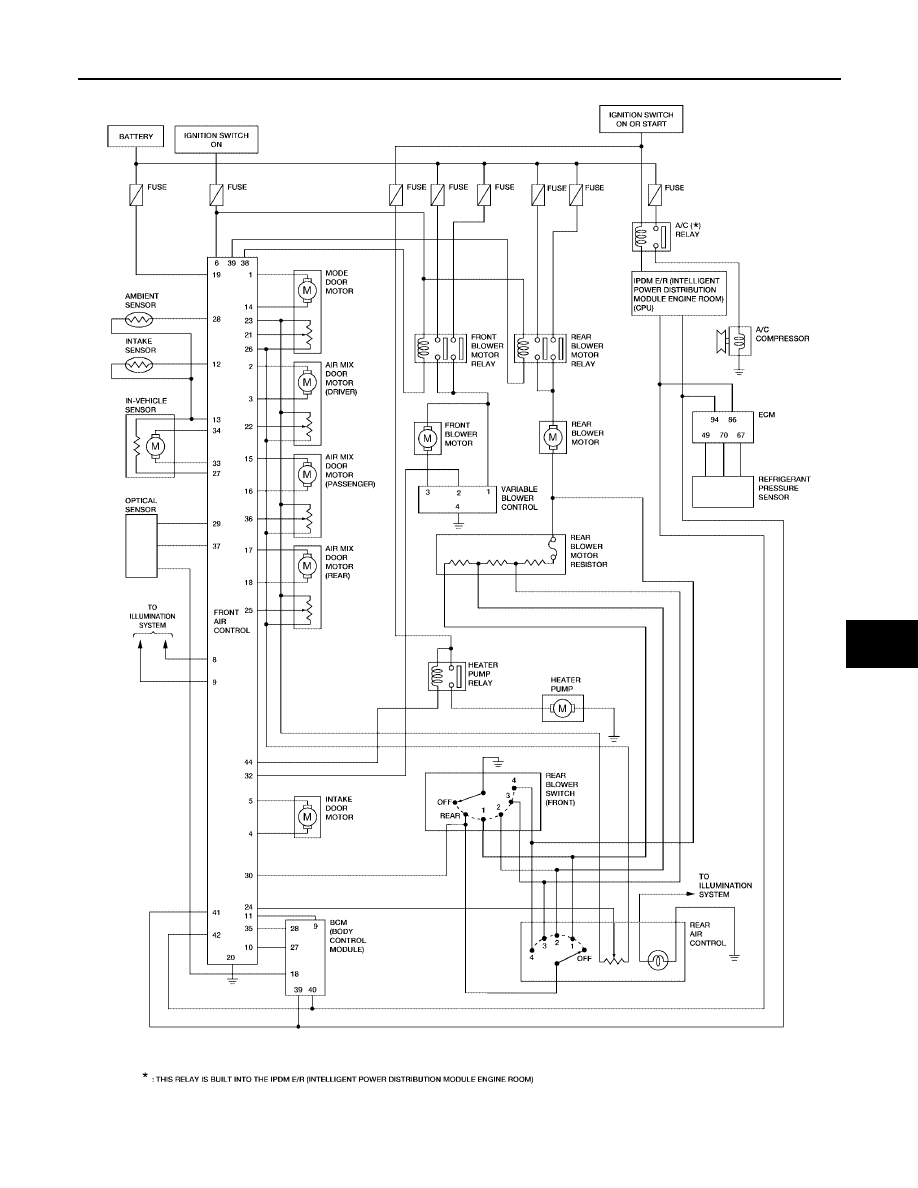

Schematic

EJS002WW

WJWA0196E

ATC-40

TROUBLE DIAGNOSIS

2005 Pathfinder

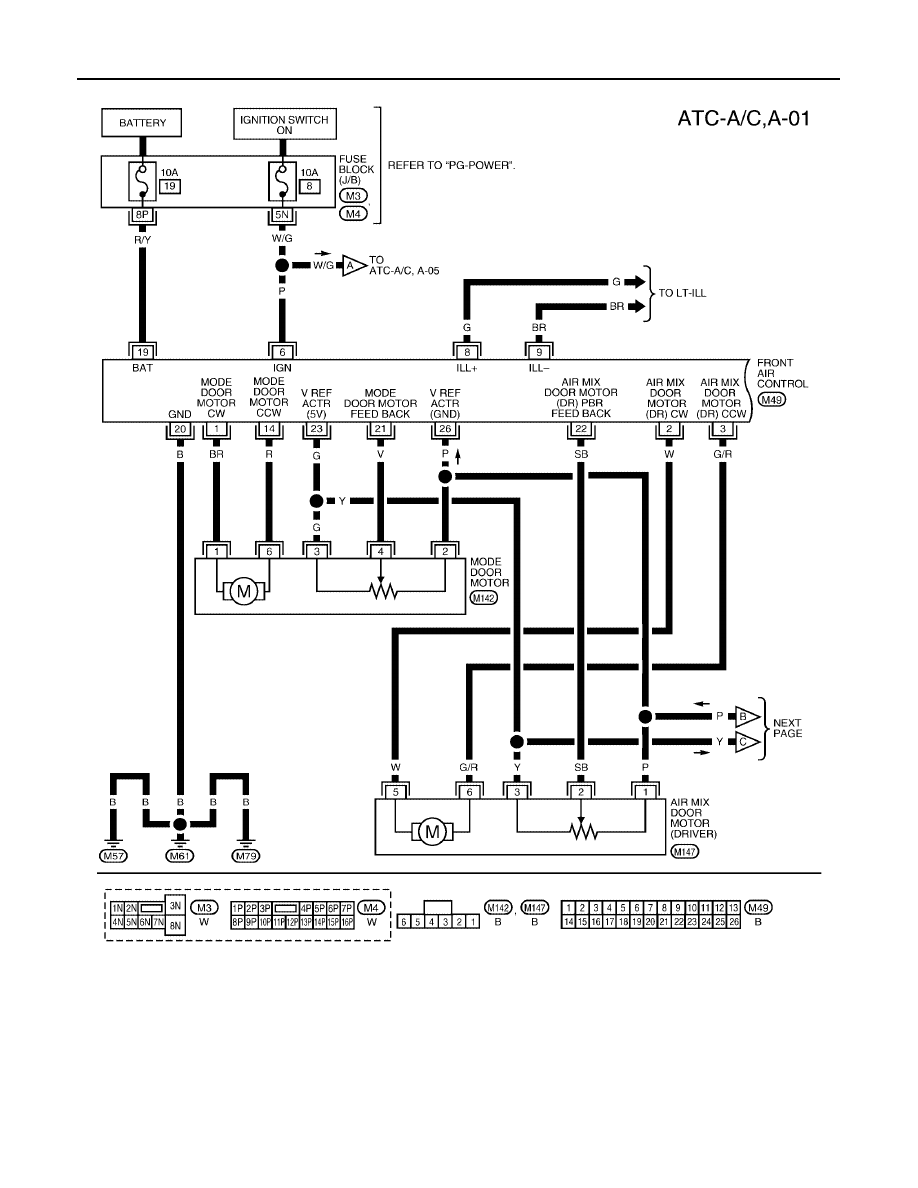

Wiring Diagram —A/C—

EJS002WX

WJWA0188E

TROUBLE DIAGNOSIS

ATC-41

C

D

E

F

G

H

I

K

L

M

A

B

ATC

2005 Pathfinder

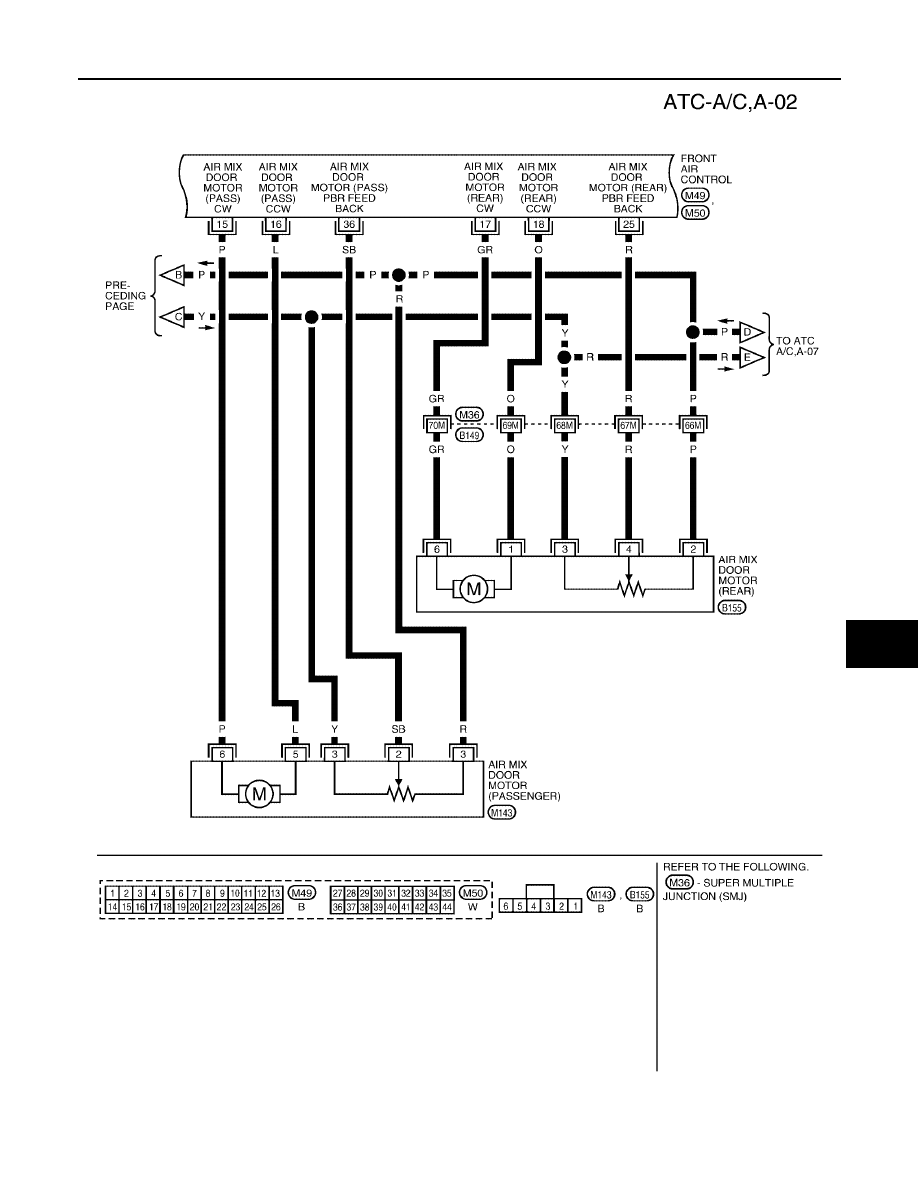

WJWA0189E

ATC-42

TROUBLE DIAGNOSIS

2005 Pathfinder

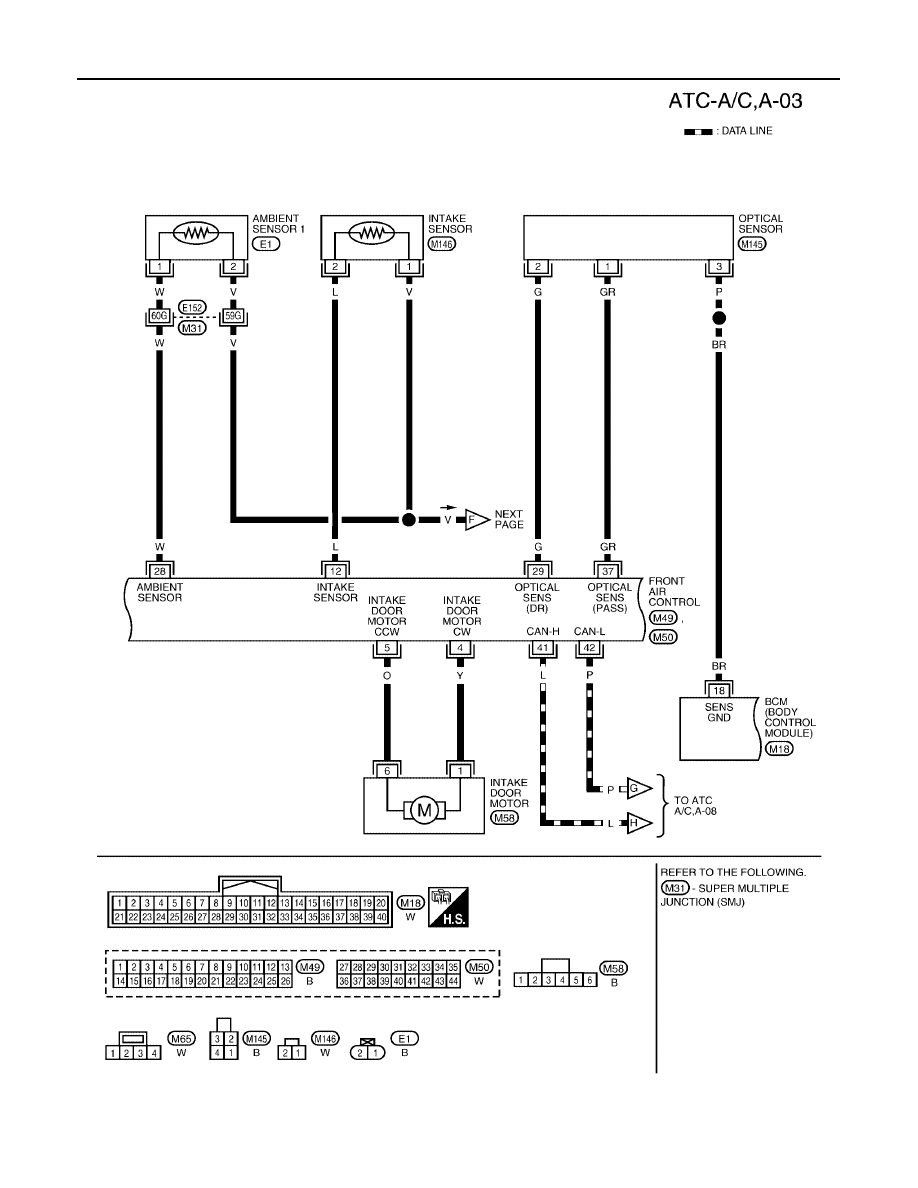

WJWA0190E

TROUBLE DIAGNOSIS

ATC-43

C

D

E

F

G

H

I

K

L

M

A

B

ATC

2005 Pathfinder

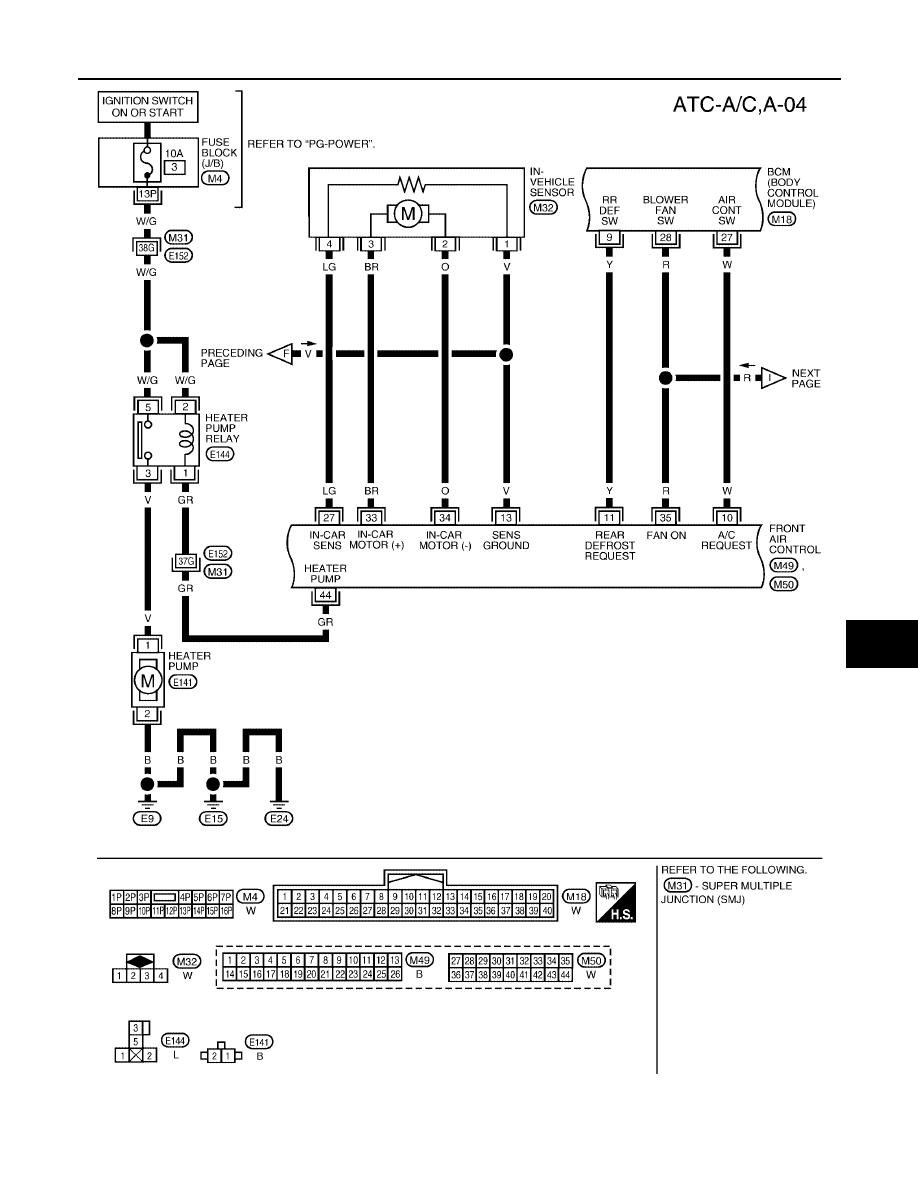

WJWA0191E

ATC-44

TROUBLE DIAGNOSIS

2005 Pathfinder

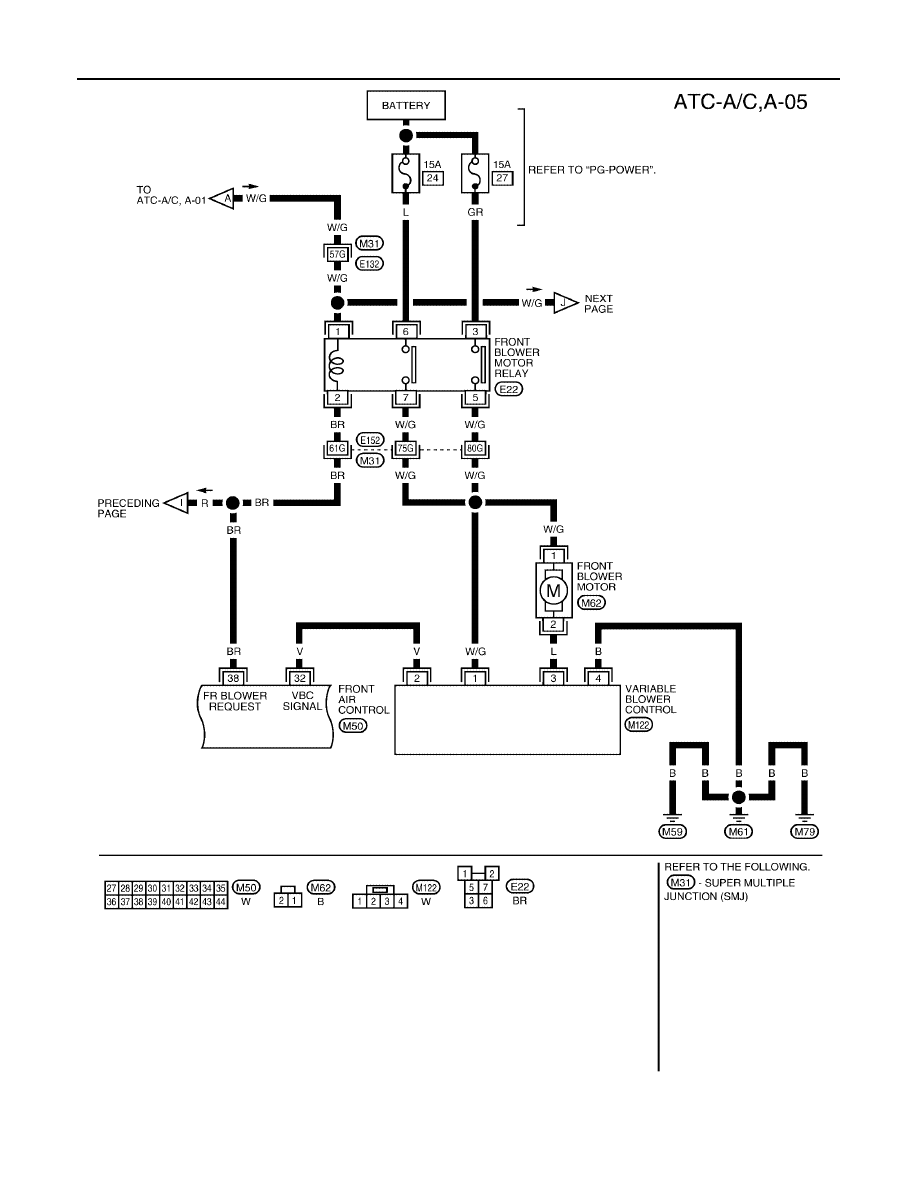

WJWA0192E

TROUBLE DIAGNOSIS

ATC-45

C

D

E

F

G

H

I

K

L

M

A

B

ATC

2005 Pathfinder

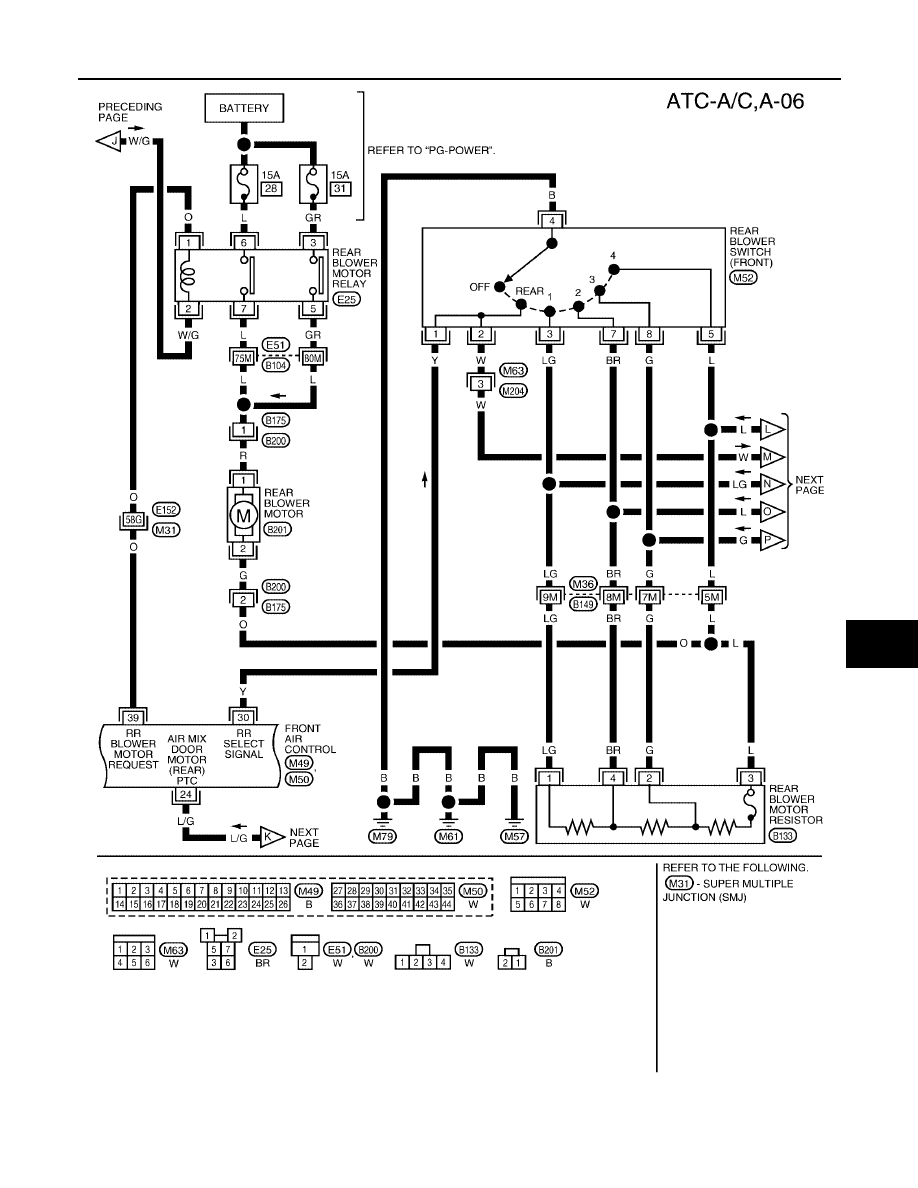

WJWA0193E

ATC-46

TROUBLE DIAGNOSIS

2005 Pathfinder

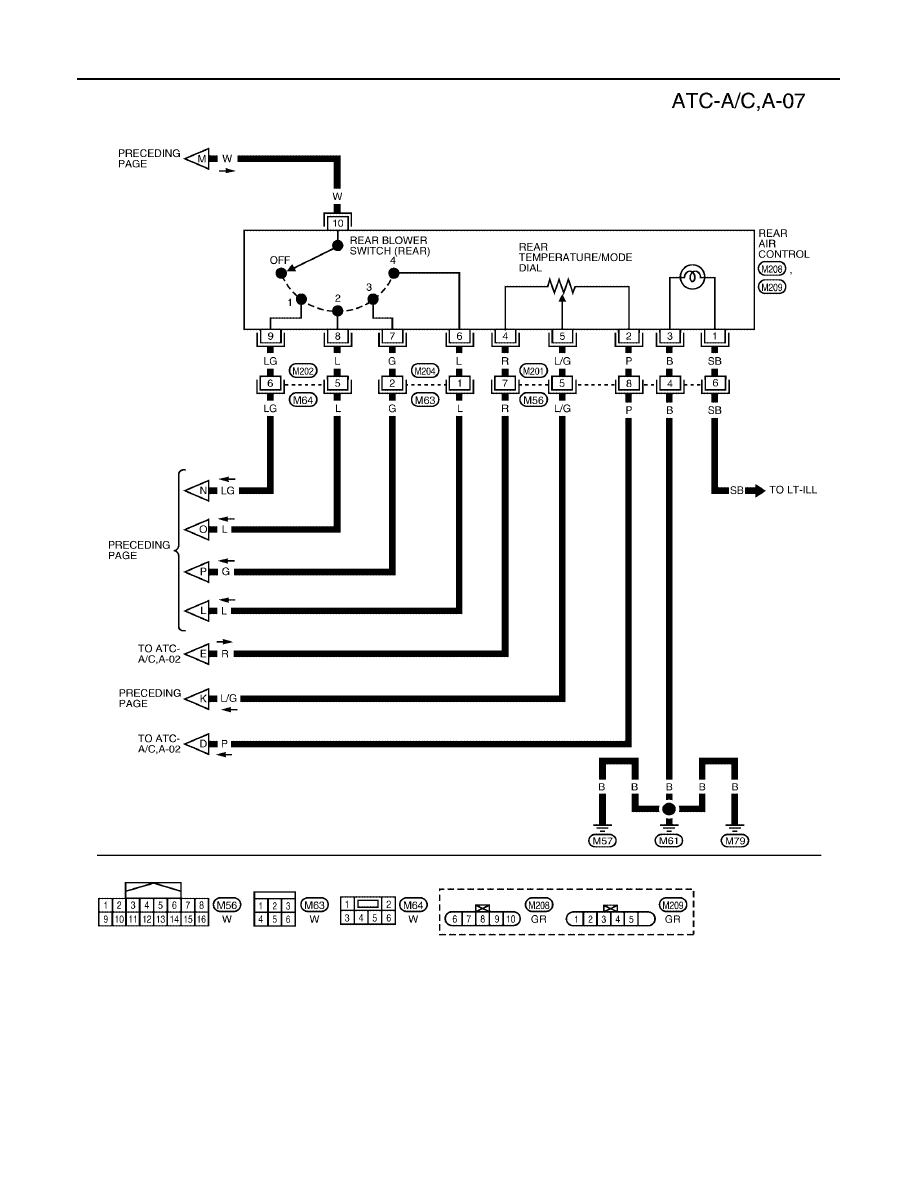

WJWA0194E
