Nissan Pathfinder (2005 year). Manual - part 42





ASSEMBLY

AT-307

D

E

F

G

H

I

J

K

L

M

A

B

AT

2005 Pathfinder

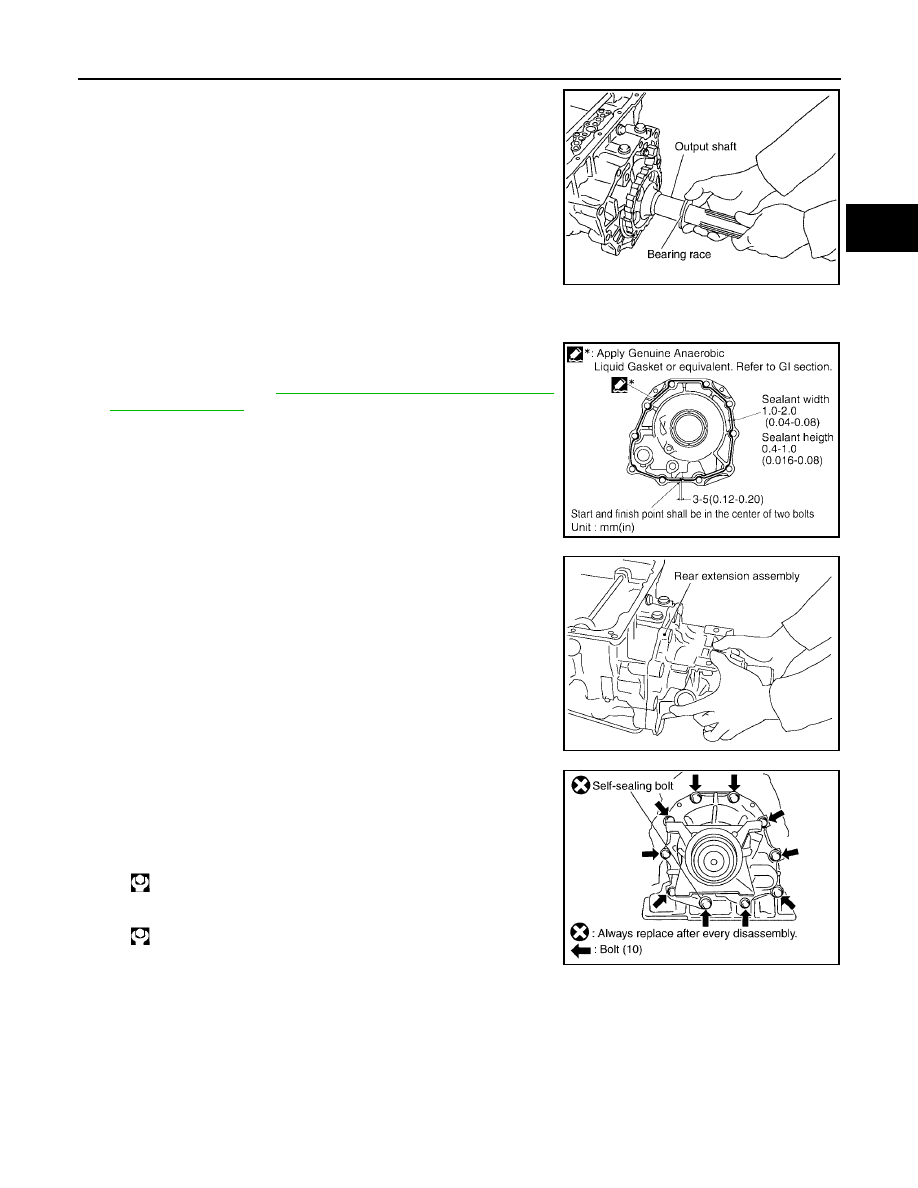

32. Install bearing race to output shaft.

33. Install rear extension assembly (2WD models) or adapter case assembly (4WD models) according to the

following procedures.

a.

2WD models

i.

Apply recommended sealant (Genuine Anaerobic Liquid Gasket
or equivalent. Refer to

GI-45, "Recommended Chemical Prod-

ucts and Sealants"

.) to rear extension assembly as shown in

illustration.

CAUTION:

Completely remove all moisture, oil and old sealant, etc.
from the transmission case and rear extension assembly
mounting surfaces.

ii.

Install rear extension assembly to transmission case.

CAUTION:

Insert the tip of parking rod between the parking pawl and
the parking actuator support when assembling the rear
extension assembly.

iii.

Tighten rear extension assembly mounting bolts to specified
torque.

CAUTION:

Do not reuse self-sealing bolt.

SCIA5245E

SCIA5212E

SCIA5029E

Rear extension assembly mounting bolt:

: 52 N·m (5.3 kg-m, 38 ft-lb)

Self-sealing bolt:

: 61 N·m (6.2 kg-m, 45 ft-lb)

SCIA3426E

AT-308

ASSEMBLY

2005 Pathfinder

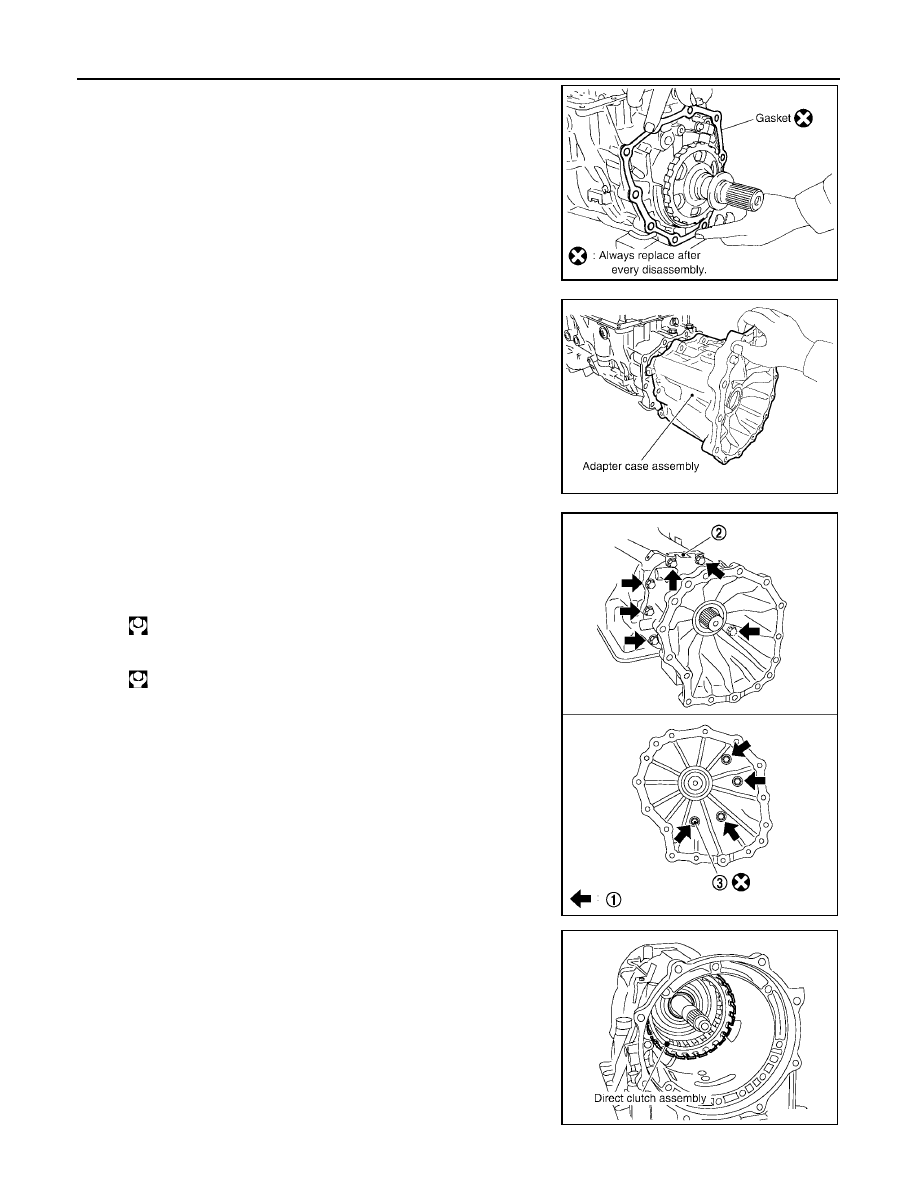

b.

4WD models

i.

Install gasket onto transmission case.

CAUTION:

Completely remove all moisture, oil and old gasket, etc.
from the transmission case and adapter case assembly
mounting surfaces.

Do not reuse gasket.

ii.

Install adapter case assembly to transmission case.

CAUTION:

Insert the tip of parking rod between the parking pawl and
the parking actuator support when assembling the rear
extension assembly.

iii.

Tighten adapter case assembly mounting bolts (1) to specified
torque. (With terminal bracket (2).)

CAUTION:

Do not reuse self-sealing bolt (3).

34. Install direct clutch assembly in reverse brake.

CAUTION:

Make sure that drum support edge surface and direct clutch
inner boss edge surface come to almost same place.

SCIA5231E

SCIA5186E

Adapter case assembly mounting bolt (1):

: 52 N·m (5.3 kg-m, 38 ft-lb)

Self-sealing bolt (3):

: 61 N·m (6.2 kg-m, 45 ft-lb)

SCIA6183J

SCIA5019E

ASSEMBLY

AT-309

D

E

F

G

H

I

J

K

L

M

A

B

AT

2005 Pathfinder

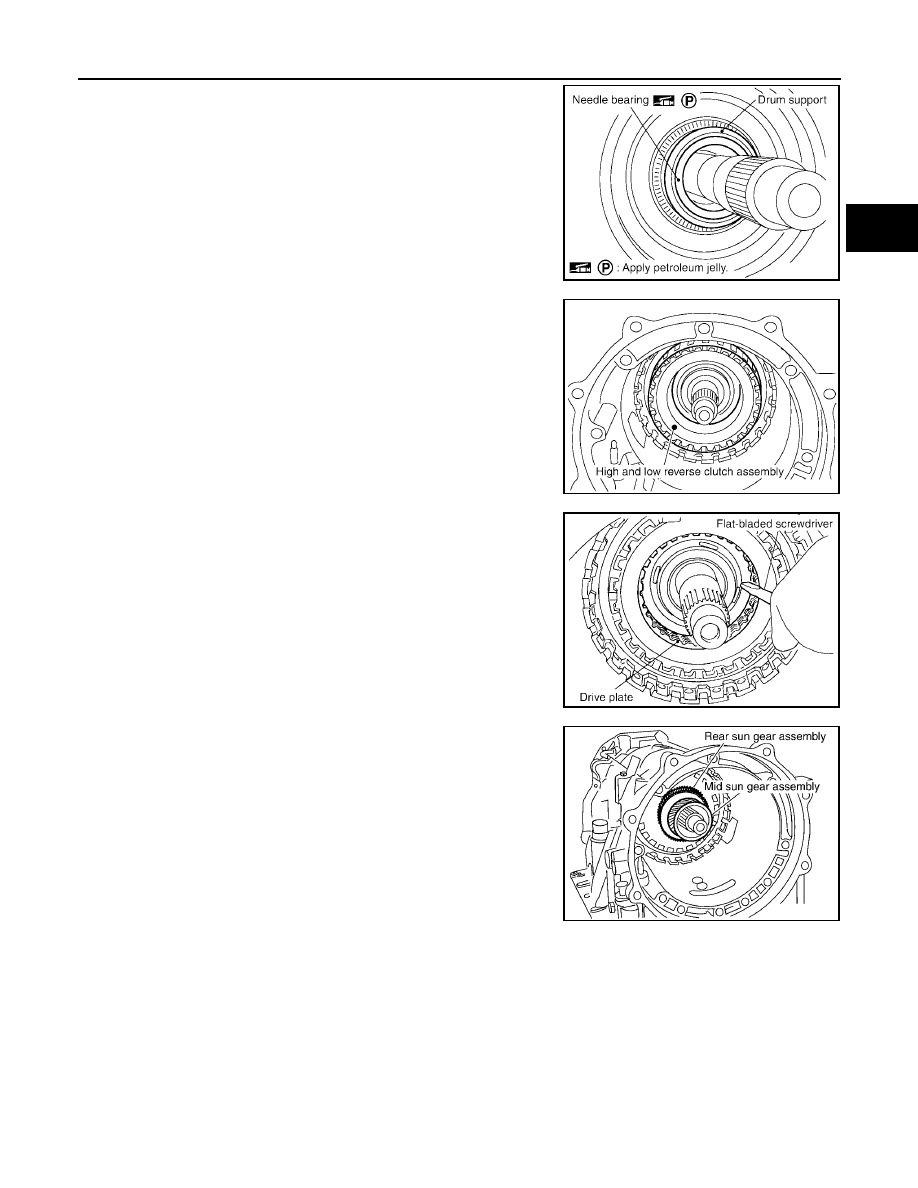

35. Install needle bearing in drum support.

CAUTION:

Apply petroleum jelly to needle bearing.

36. Install high and low reverse clutch assembly in direct clutch.

37. Using a flat-bladed screwdriver, align the drive plate.

38. Install high and low reverse clutch hub, mid sun gear assembly

and rear sun gear assembly as a unit.

SCIA5198E

SCIA2306E

SCIA3169E

SCIA5018E

AT-310

ASSEMBLY

2005 Pathfinder

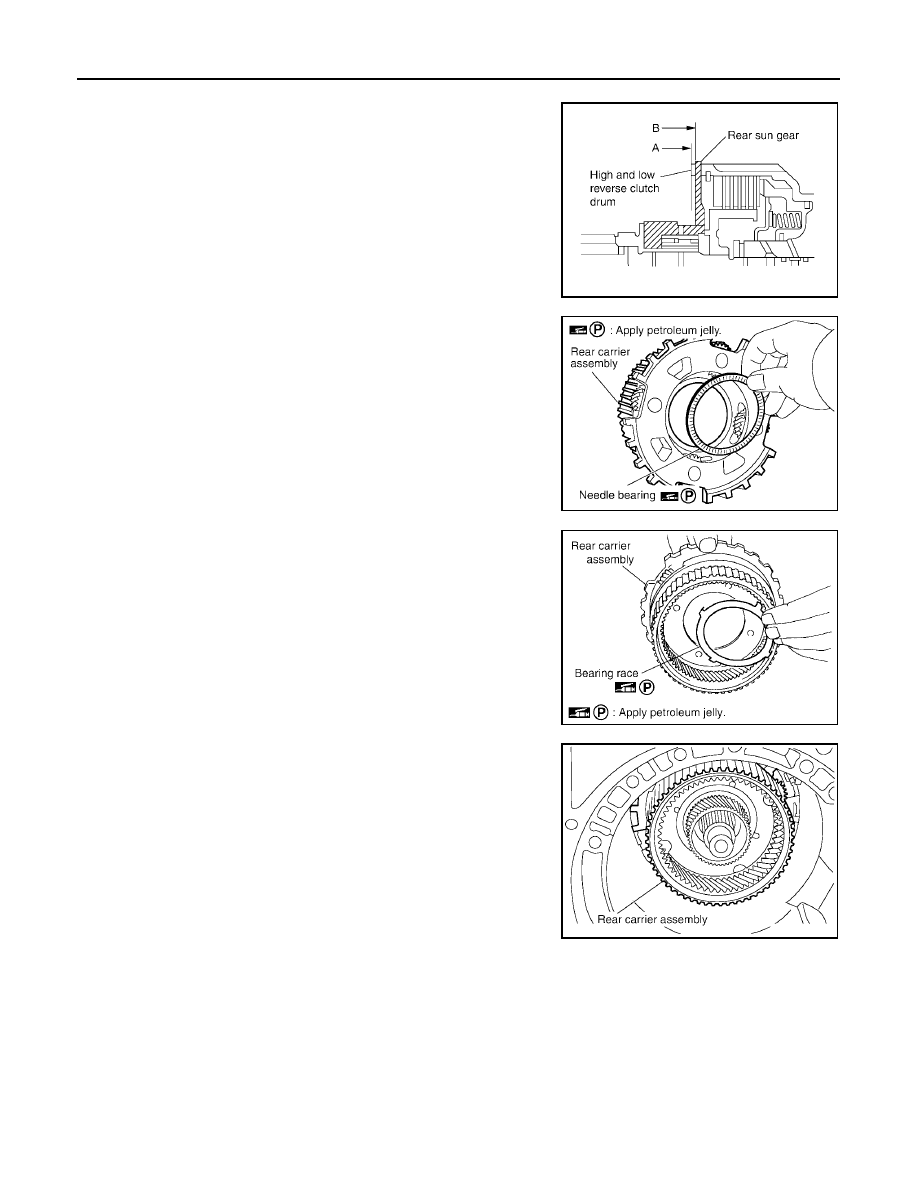

CAUTION:

Make sure that portion “A” of high and low reverse clutch
drum protrudes approximately 2 mm (0.08 in) beyond por-
tion “B” of rear sun gear.

39. Install needle bearing in rear carrier assembly.

CAUTION:

Apply petroleum jelly to needle bearing.

40. Install bearing race in rear carrier assembly.

CAUTION:

Apply petroleum jelly to bearing race.

41. Install rear carrier assembly in direct clutch drum.

SCIA3130E

SCIA2803E

SCIA5175E

SCIA2462E

ASSEMBLY

AT-311

D

E

F

G

H

I

J

K

L

M

A

B

AT

2005 Pathfinder

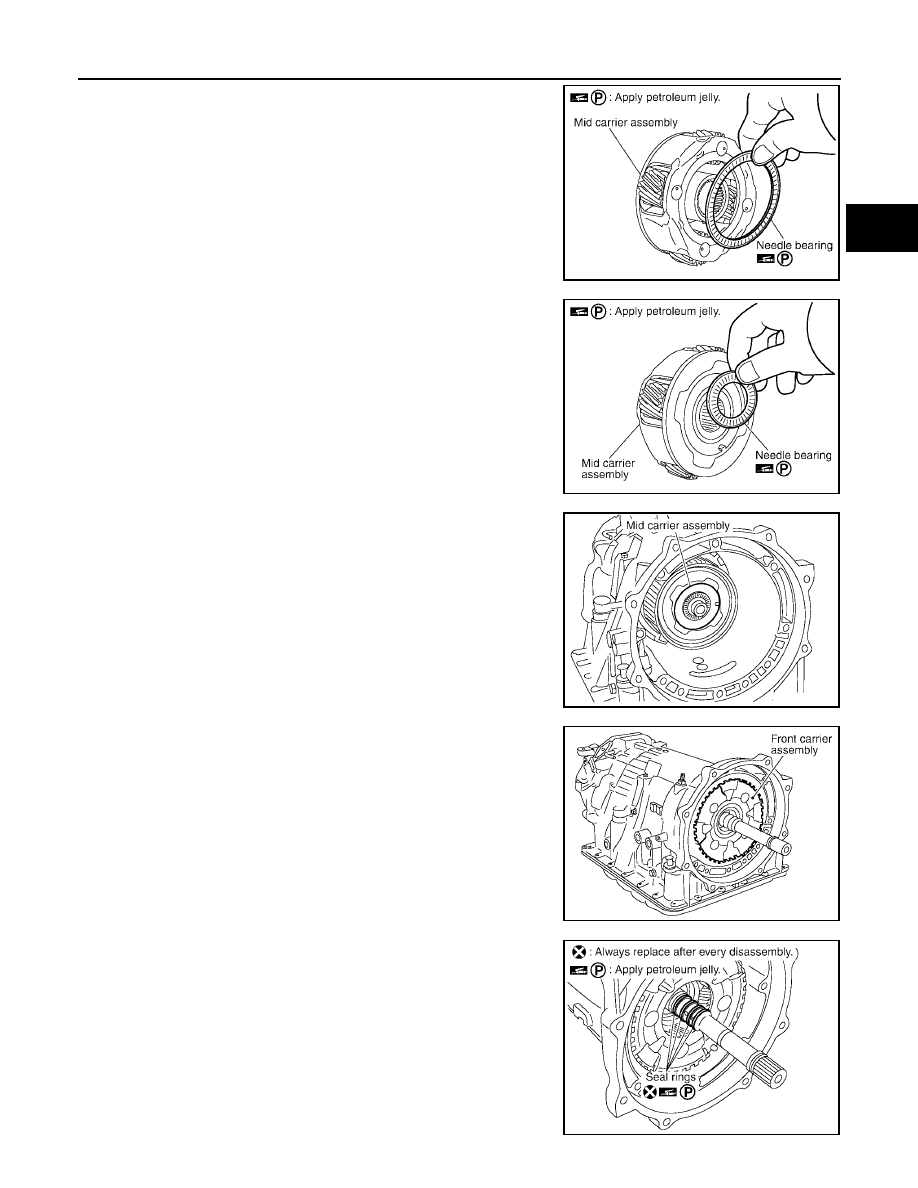

42. Install needle bearing (rear side) to mid carrier assembly.

CAUTION:

Apply petroleum jelly to needle bearing.

43. Install needle bearing (front side) to mid carrier assembly.

CAUTION:

Apply petroleum jelly to needle bearing.

44. Install mid carrier assembly in rear carrier assembly.

45. Install front carrier assembly, input clutch assembly and rear

internal gear as a unit.

46. Install seal rings in input clutch assembly.

CAUTION:

Do not reuse seal rings.

Apply petroleum jelly to seal rings.

SCIA2804E

SCIA2805E

SCIA5017E

SCIA5015E

SCIA2470E

AT-312

ASSEMBLY

2005 Pathfinder

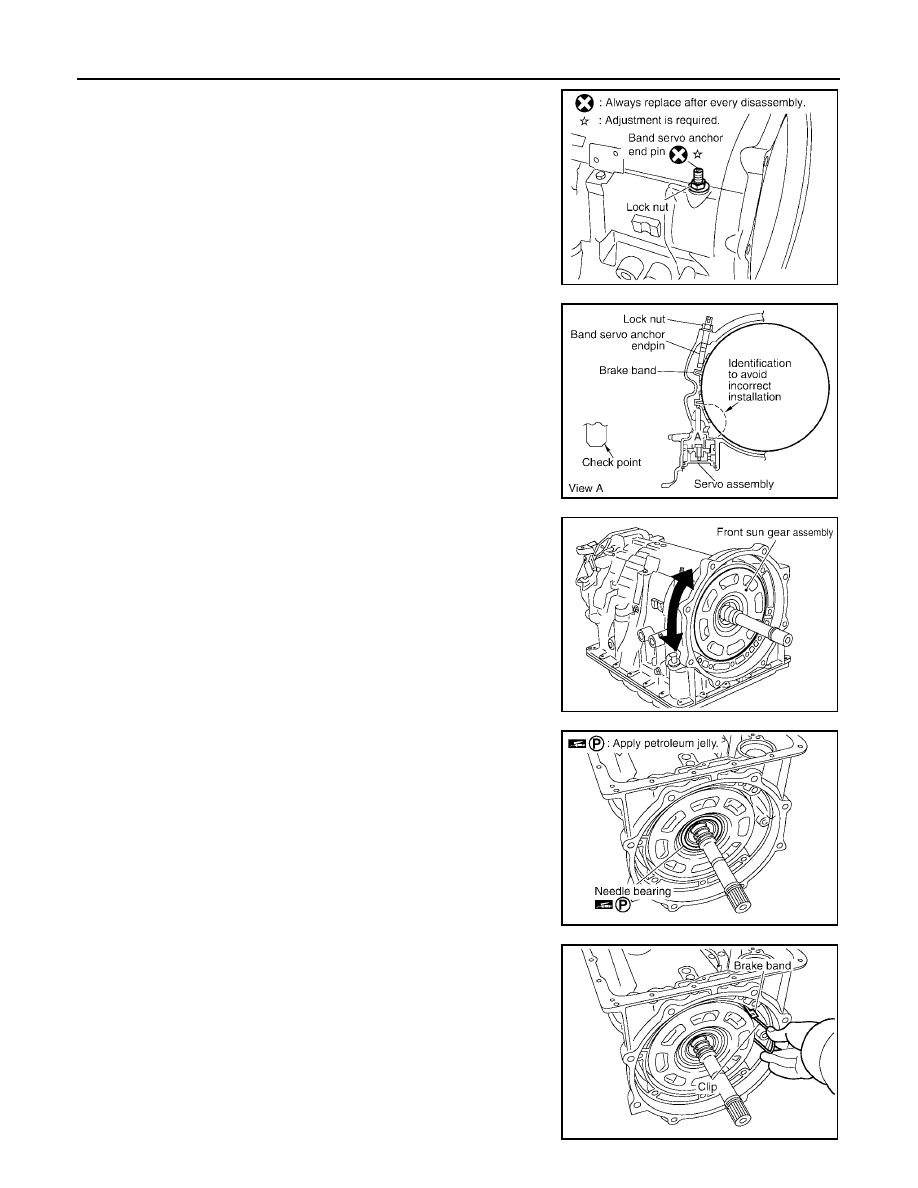

47. Install band servo anchor end pin and lock nut in transmission

case.

CAUTION:

Do not reuse band servo anchor end pin.

48. Install brake band in transmission case.

CAUTION:

Assemble it so that identification to avoid incorrect installa-
tion faces servo side.

49. Install front sun gear to front carrier assembly.

CAUTION:

Apply ATF to front sun gear bearing and 3rd one-way clutch
end bearing.

50. Install needle bearing to front sun gear.

CAUTION:

Apply petroleum jelly to needle bearing.

51. Adjust brake band tilting using a clips so that brake band con-

tacts front sun gear drum evenly.

SCIA6512E

SCIA5498E

SCIA5014E

SCIA2808E

SCIA5033E

ASSEMBLY

AT-313

D

E

F

G

H

I

J

K

L

M

A

B

AT

2005 Pathfinder

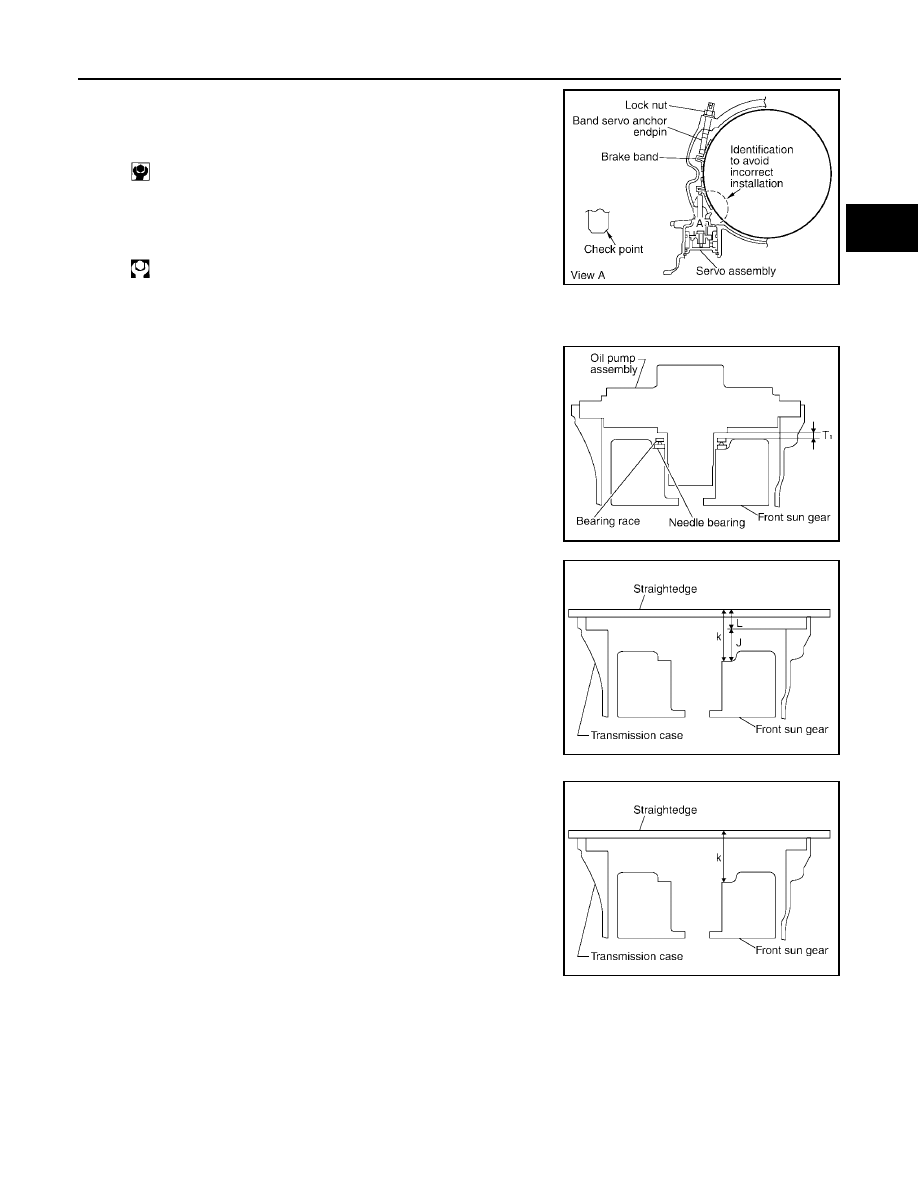

52. Adjust brake band.
a.

Loosen lock nut.

b.

Tighten band servo anchor end pin to specified torque.

c.

Back of band servo anchor end pin three turns.

d.

Holding band servo anchor end pin, tighten lock nut to specified
torque.

Adjustment

UCS003ZC

TOTAL END PLAY

Measure clearance between front sun gear and bearing race for
oil pump cover.

Select proper thickness of bearing race so that end play is within
specifications.

1.

Measure dimensions “K” and “L” and then calculate dimension
“J”.

a.

Measure dimension “K”.

: 5.0 N·m (0.51 kg-m, 44 in-lb)

: 46 N·m (4.7 kg-m, 34 ft-lb)

SCIA5498E

SCIA2810E

SCIA5350E

SCIA5351E

AT-314

ASSEMBLY

2005 Pathfinder

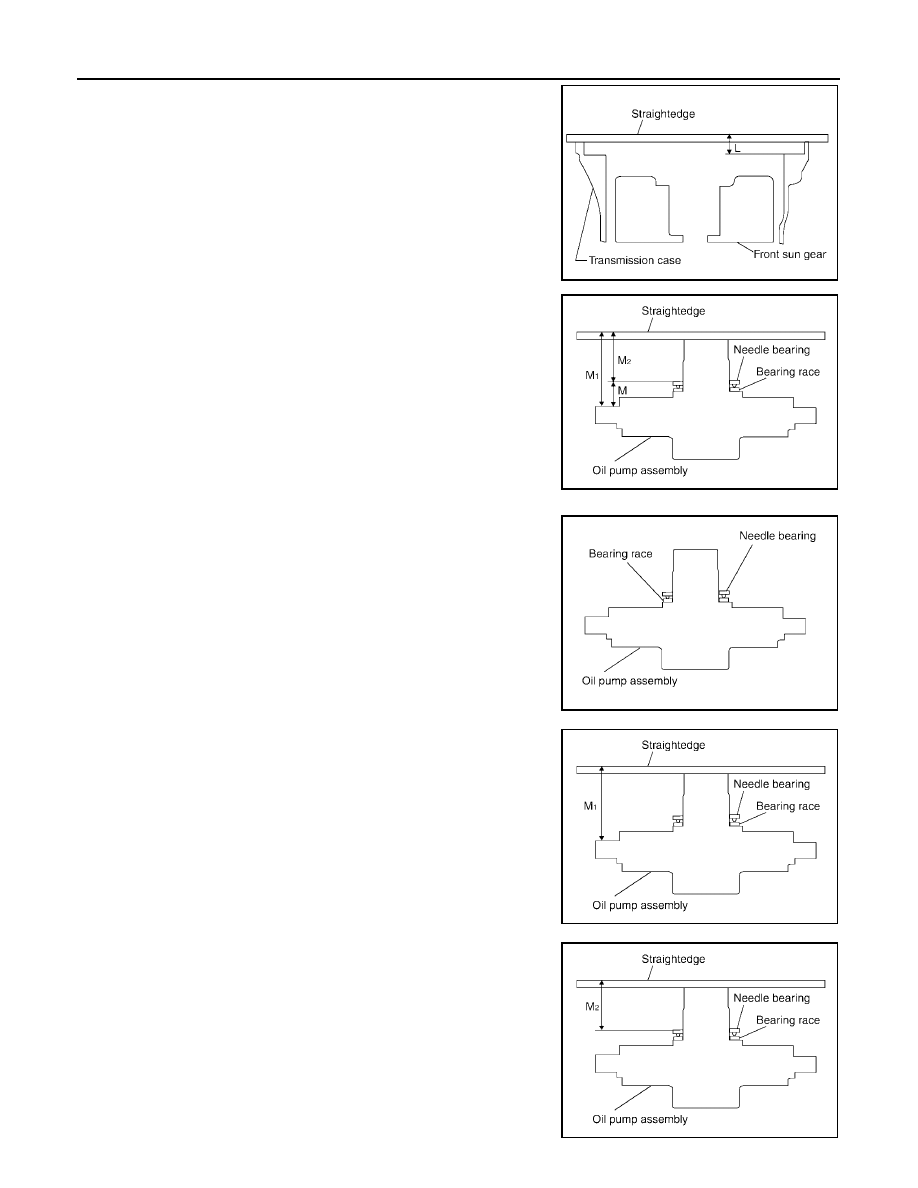

b.

Measure dimension “L”.

c.

Calculate dimension “J”.

2.

Measure dimensions “M

1

” and “M

2

” and then calculate dimen-

sion “M”.

a.

Place bearing race and needle bearing on oil pump assembly.

b.

Measure dimension “M

1

”.

c.

Measure dimension “M

2

”.

“J”: Distance between oil pump fitting surface of
transmission case and needle bearing mating surface
of front sun gear.

J = K – L

SCIA5352E

SCIA3125E

SCIA3124E

SCIA3126E

SCIA3127E
