DISASSEMBLY

AT-267

D

E

F

G

H

I

J

K

L

M

A

B

AT

2005 Pathfinder

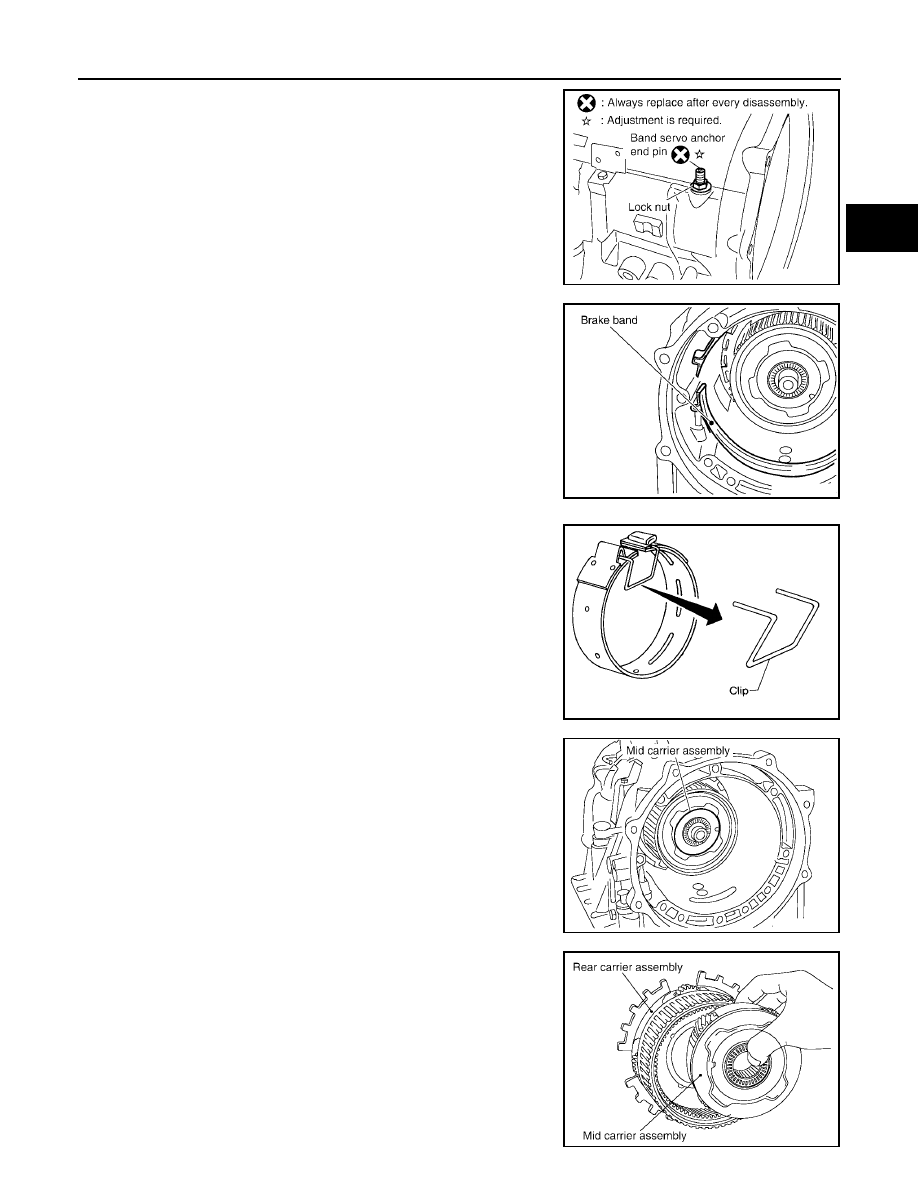

14. Loosen lock nut and remove band servo anchor end pin from

transmission case.

15. Remove brake band from transmission case.

To prevent brake linings from cracking or peeling, do not
stretch the flexible band unnecessarily. When removing
the brake band, always secure it with a clip as shown in
the figure at right.
Leave the clip in position after removing the brake band.

Check brake band facing for damage, cracks, wear or
burns.

16. Remove mid carrier assembly and rear carrier assembly as a

unit.

17. Remove mid carrier assembly from rear carrier assembly.

SCIA6512E

SCIA2580E

SAT655

SCIA5017E

SCIA5697E

AT-268

DISASSEMBLY

2005 Pathfinder

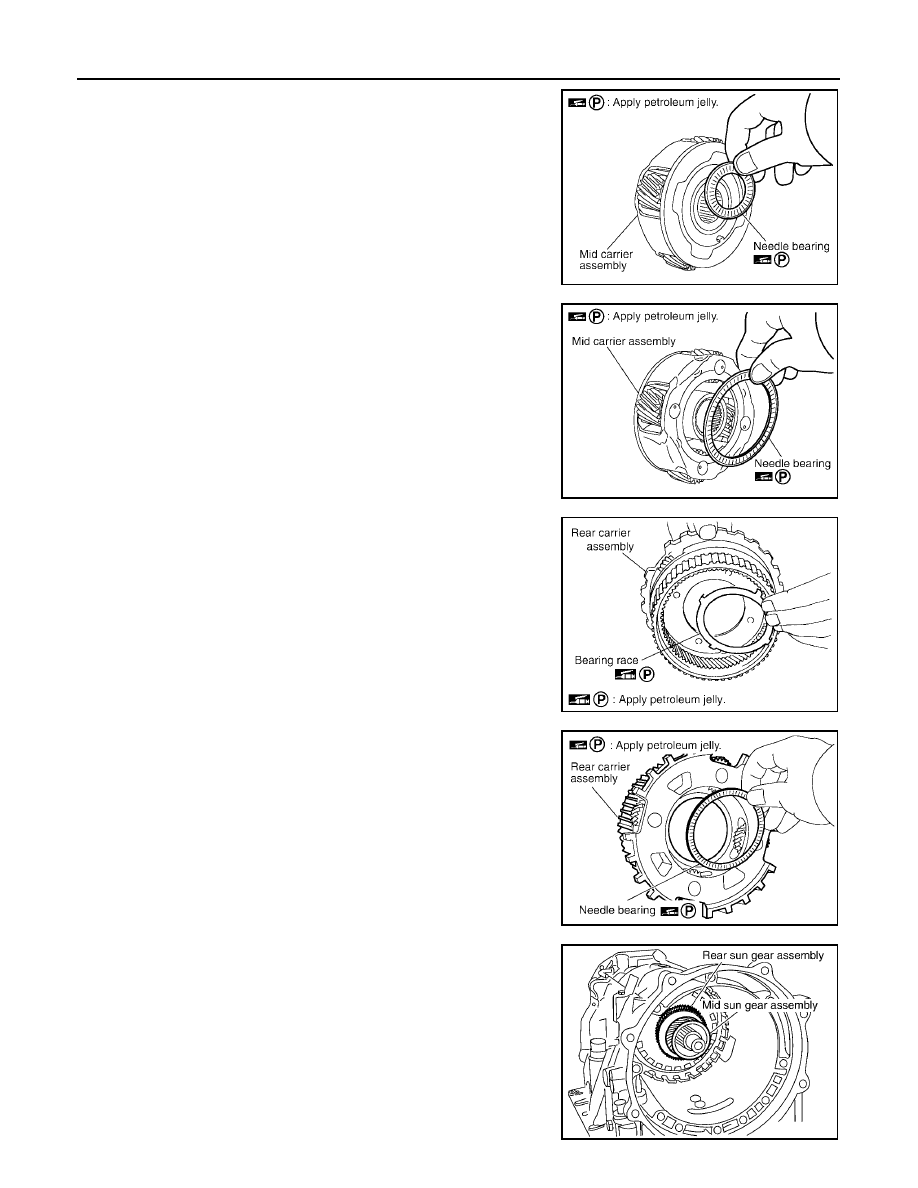

18. Remove needle bearing (front side) from mid carrier assembly.

19. Remove needle bearing (rear side) from mid carrier assembly.

20. Remove bearing race from rear carrier assembly.

21. Remove needle bearing from rear carrier assembly.

22. Remove mid sun gear assembly, rear sun gear assembly and

high and low reverse clutch hub as a unit.

CAUTION:

Be careful to remove then with bearing race and needle
bearing.

SCIA2805E

SCIA2804E

SCIA5175E

SCIA2803E

SCIA5018E

DISASSEMBLY

AT-269

D

E

F

G

H

I

J

K

L

M

A

B

AT

2005 Pathfinder

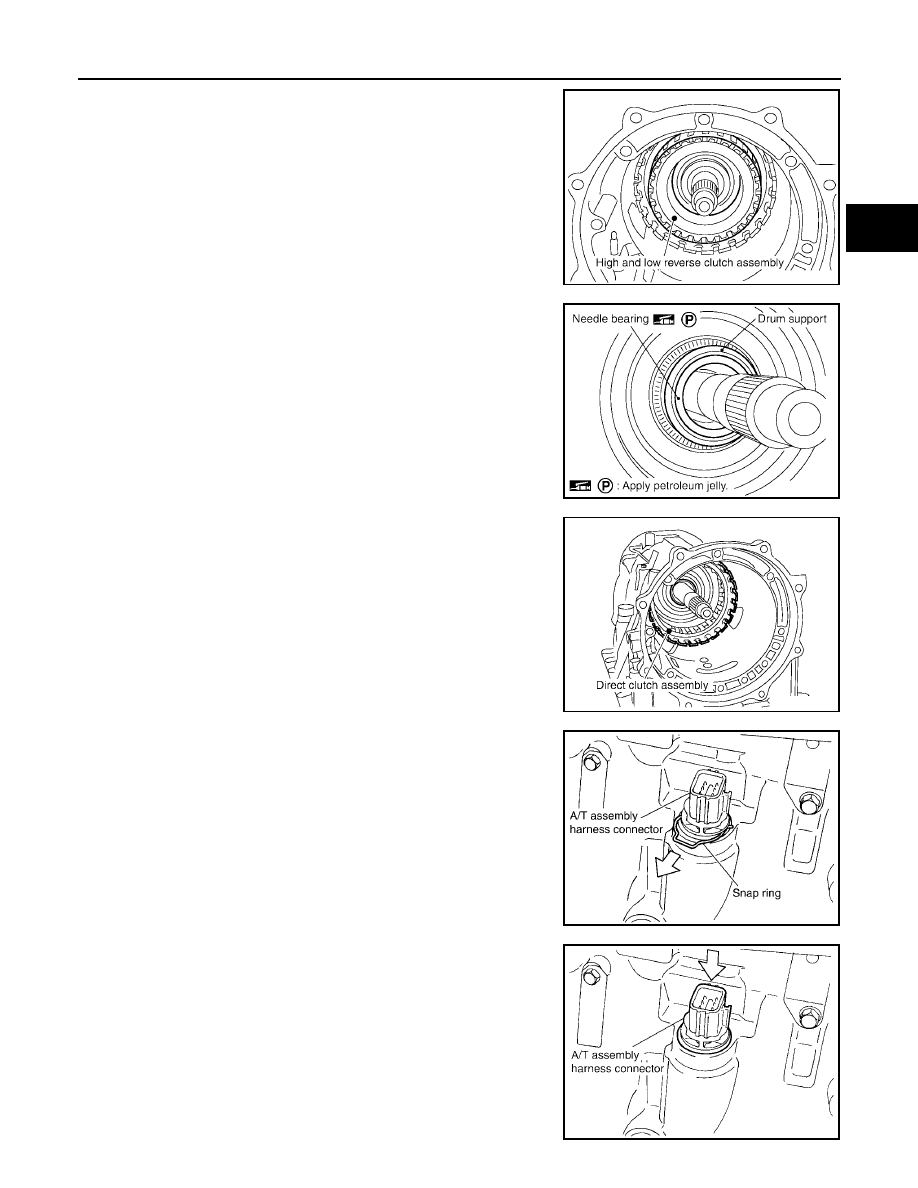

23. Remove high and low reverse clutch assembly from direct clutch

assembly.

CAUTION:

Make sure that needle bearing is installed to the high and
low reverse clutch assembly edge surface.

24. Remove needle bearing from drum support.

25. Remove direct clutch assembly from reverse brake.

26. Remove snap ring from A/T assembly harness connector.

27. Push A/T assembly harness connector.

CAUTION:

Be careful not to damage connector.

SCIA2306E

SCIA5198E

SCIA5019E

SCIA5021E

SCIA5022E

AT-270

DISASSEMBLY

2005 Pathfinder

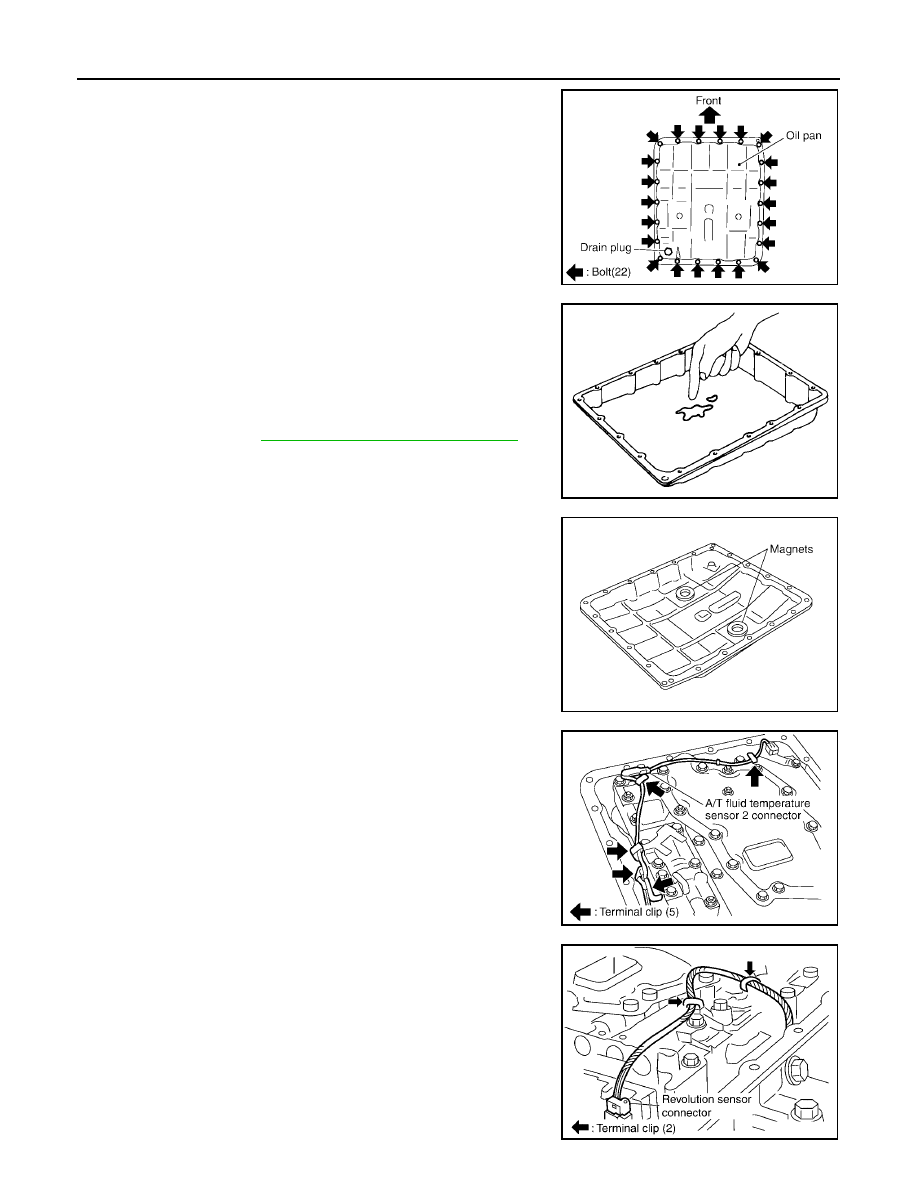

28. Remove oil pan and oil pan gasket.

29. Check foreign materials in oil pan to help determine causes of

malfunction. If the A/T fluid is very dark, smells burned, or con-
tains foreign particles, the frictional material (clutches, band)
may need replacement. A tacky film that will not wipe clean indi-
cates varnish build up. Varnish can cause valves, servo, and
clutches to stick and can inhibit pump pressure.

If frictional material is detected, perform A/T fluid cooler
cleaning. Refer to

AT-13, "A/T Fluid Cooler Cleaning"

.

30. Remove magnets from oil pan.

31. Straighten terminal clips to free terminal cord assembly and A/T

fluid temperature sensor 2 harness.

32. Disconnect A/T fluid temperature sensor 2 connector.

CAUTION:

Be careful not to damage connector.

33. Straighten terminal clips to free revolution sensor harness.

34. Disconnect revolution sensor connector.

CAUTION:

Be careful not to damage connector.

SCIA2308E

SCIA5199E

SCIA5200E

SCIA5446E

SCIA5293E

DISASSEMBLY

AT-271

D

E

F

G

H

I

J

K

L

M

A

B

AT

2005 Pathfinder

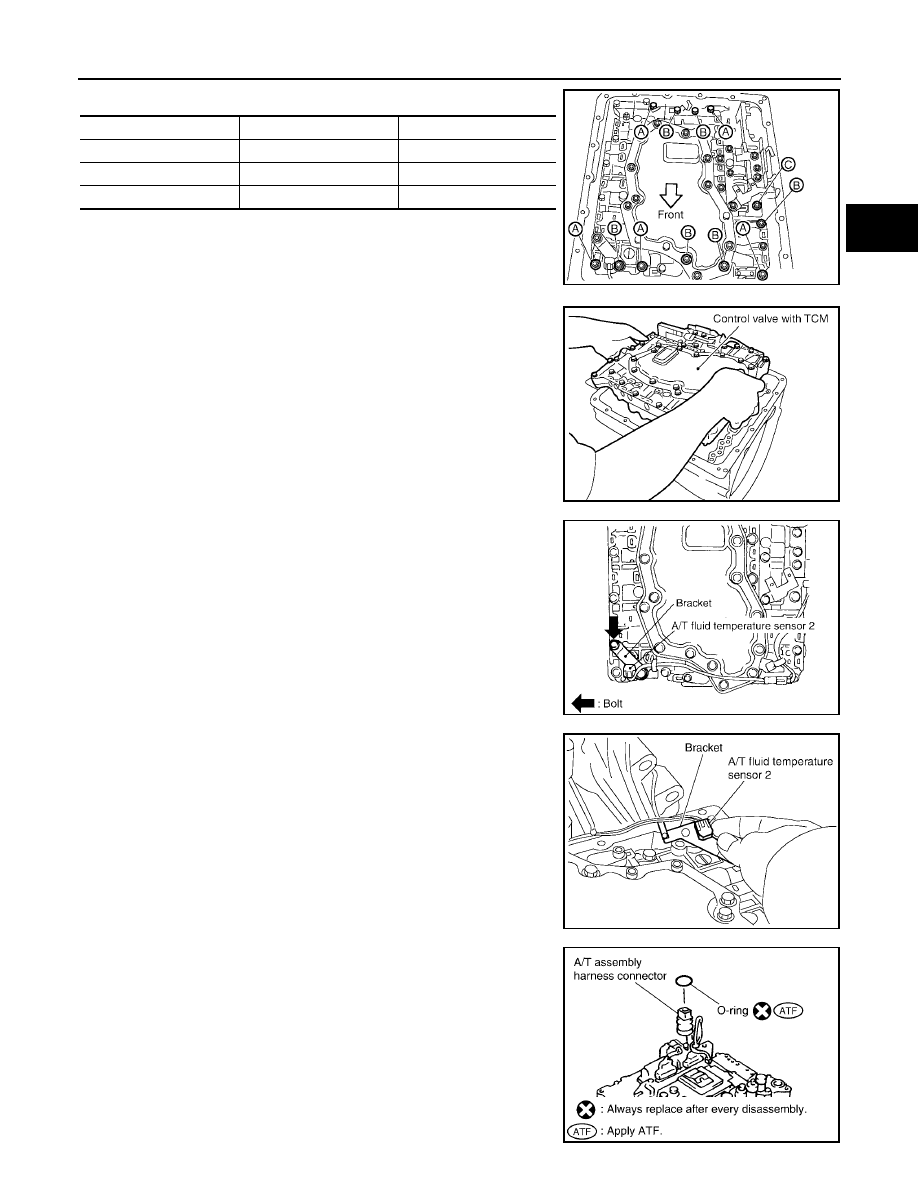

35. Remove bolts A, B and C from control valve with TCM.

36. Remove control valve with TCM from transmission case.

CAUTION:

When removing, be careful with the manual valve notch and
manual plate height. Remove it vertically.

37. Remove A/T fluid temperature sensor 2 with bracket from con-

trol valve with TCM.

38. Remove bracket from A/T fluid temperature sensor 2.

39. Remove O-ring from A/T assembly harness connector.

Bolt symbol

Length mm (in)

Number of bolts

A

42 (1.65)

5

B

55 (2.17)

6

C

40 (1.57)

1

SCIA5025E

SCIA5260E

SCIA5301E

SCIA5264E

SCIA5155E

AT-272

DISASSEMBLY

2005 Pathfinder

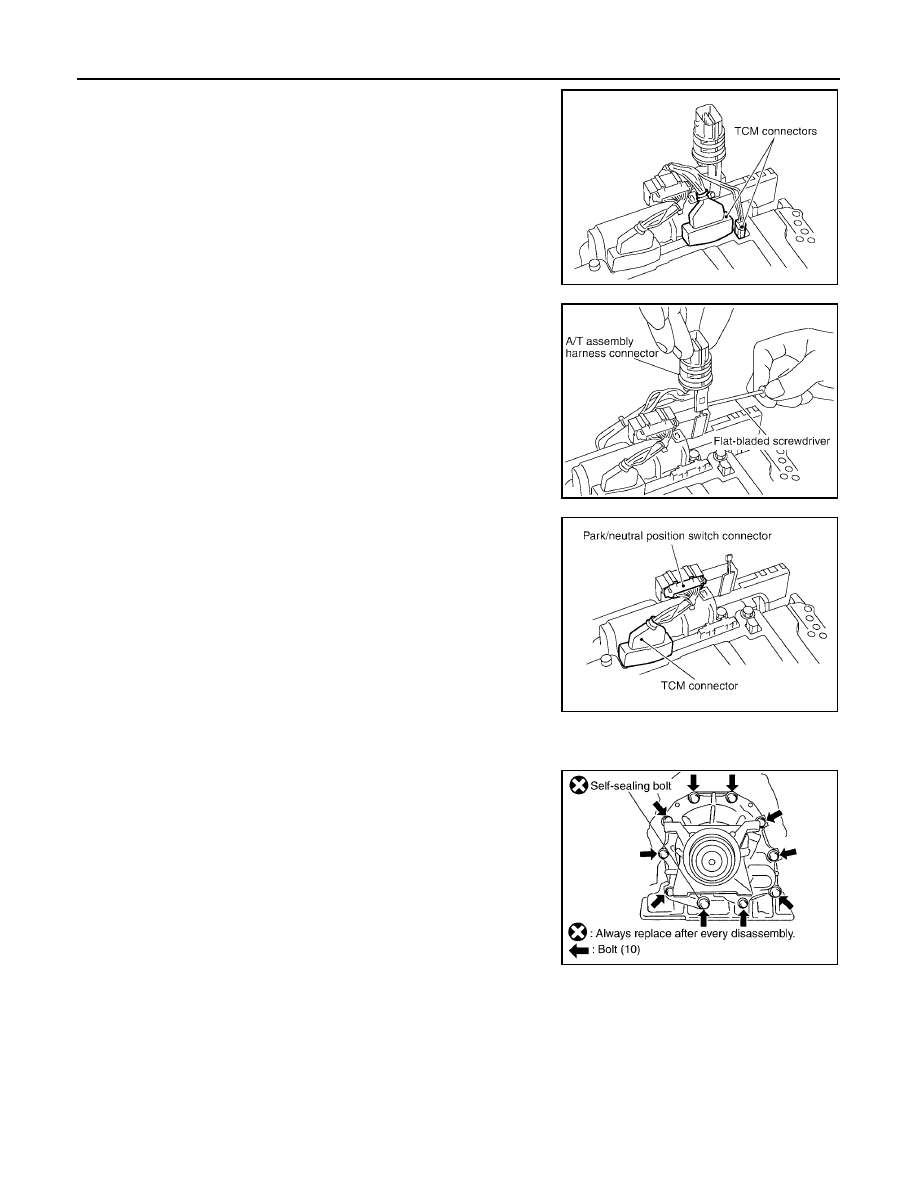

40. Disconnect TCM connectors.

CAUTION:

Be careful not to damage connectors.

41. Remove A/T assembly harness connector from control valve

with TCM using a flat-bladed screwdriver.

42. Disconnect TCM connector and park/neutral position switch

connector.

CAUTION:

Be careful not to damage connectors.

43. Remove rear extension assembly (2WD models) or adapter case assembly (4WD models) according to

the following procedures.

a.

2WD models

i.

Remove tightening bolts for rear extension assembly and trans-
mission case.

SCIA5447E

SCIA5448E

SCIA5449E

SCIA3426E

DISASSEMBLY

AT-273

D

E

F

G

H

I

J

K

L

M

A

B

AT

2005 Pathfinder

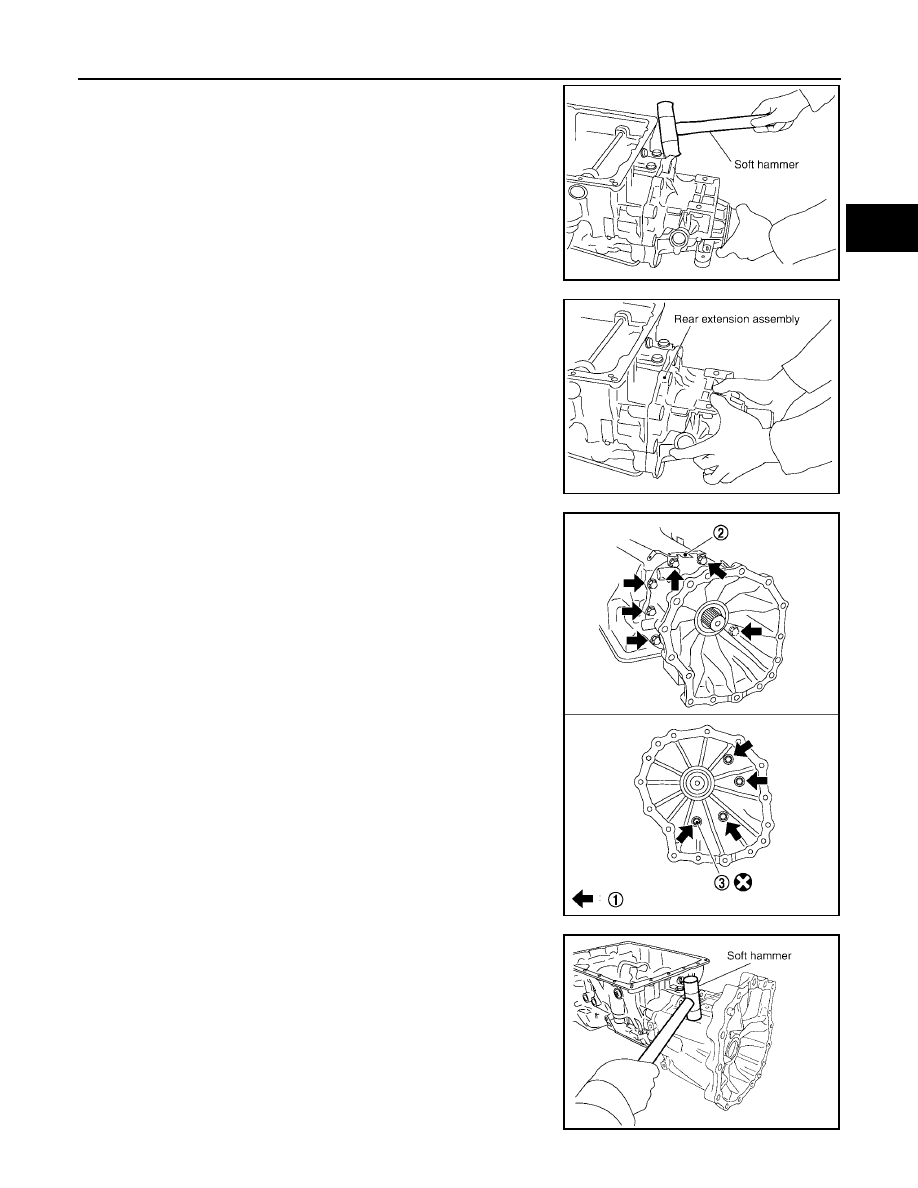

ii.

Tap rear extension assembly with soft hammer.

iii.

Remove rear extension assembly from transmission case. (With
needle bearing.)

b.

4WD models

i.

Remove tightening bolts (1) for adapter case assembly and
transmission case. (With terminal bracket (2).)

Self-sealing bolt (3)

ii.

Tap adapter case assembly with soft hammer.

SCIA5028E

SCIA5029E

SCIA6183J

SCIA5201E

AT-274

DISASSEMBLY

2005 Pathfinder

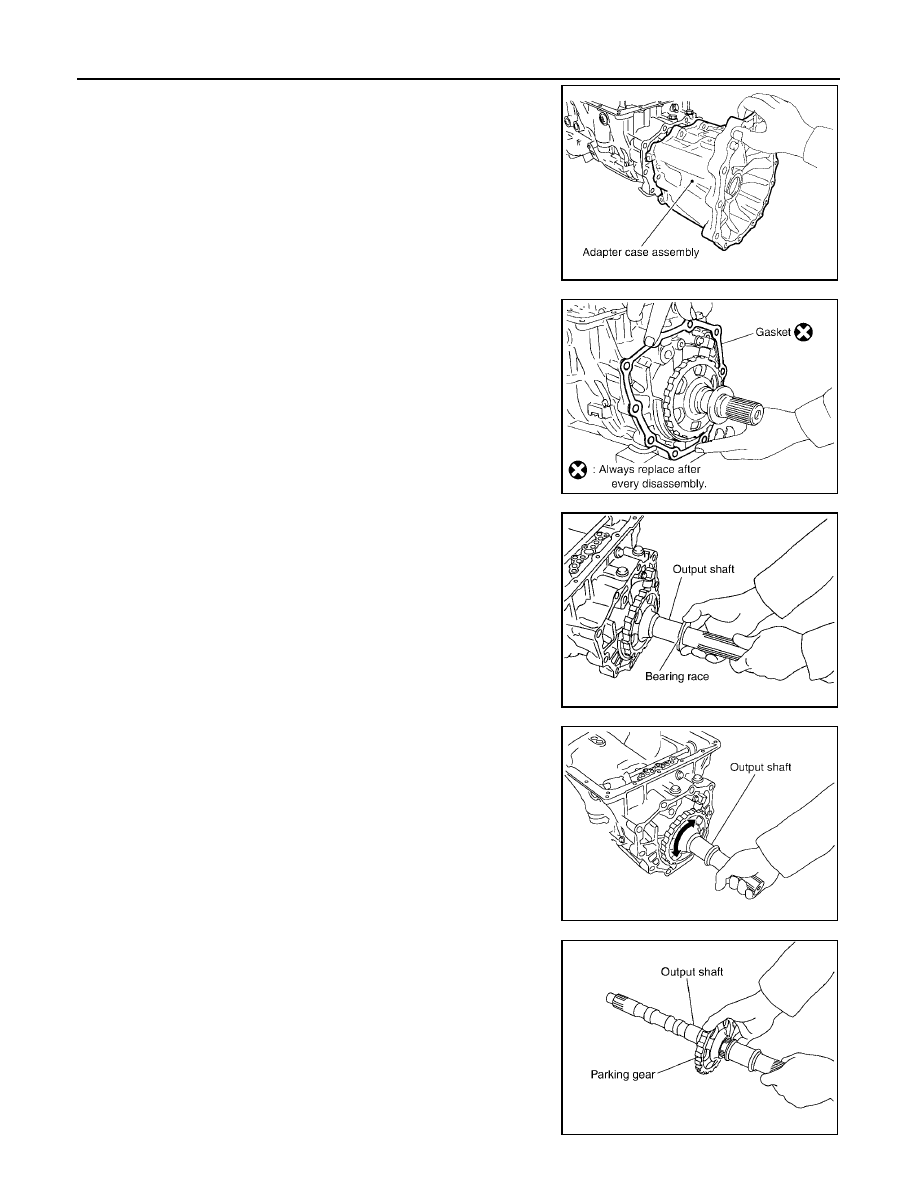

iii.

Remove adapter case assembly from transmission case. (With
needle bearing)

iv.

Remove gasket from transmission case.

44. Remove bearing race from output shaft.

45. Remove output shaft from transmission case by rotating left/

right.

46. Remove parking gear from output shaft.

SCIA5186E

SCIA5231E

SCIA5245E

SCIA5030E

SCIA5247E
