Nissan Pathfinder (2005 year). Manual - part 20





DTC P1710 A/T FLUID TEMPERATURE SENSOR CIRCUIT

AT-131

D

E

F

G

H

I

J

K

L

M

A

B

AT

2005 Pathfinder

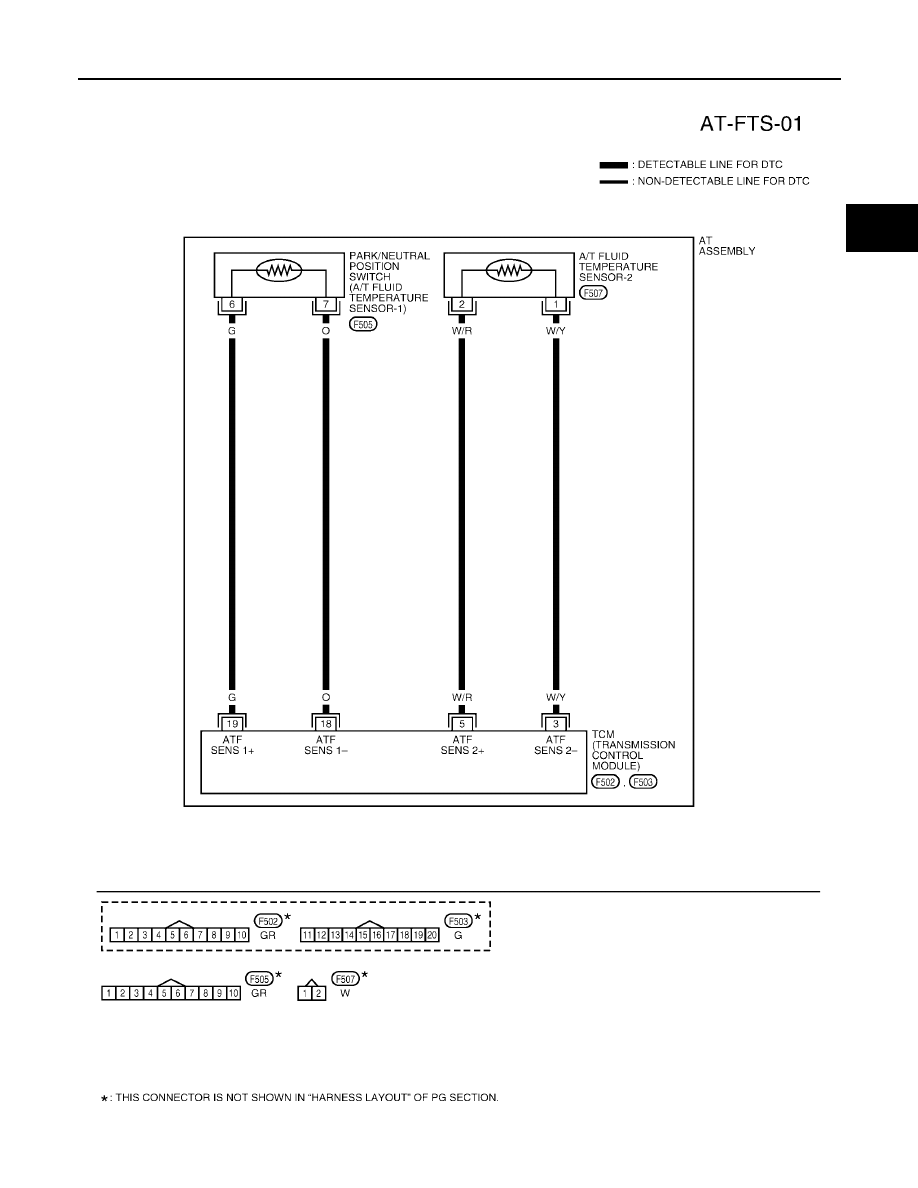

Wiring Diagram — AT — FTS

UCS003Q2

BCWA0323E

AT-132

DTC P1710 A/T FLUID TEMPERATURE SENSOR CIRCUIT

2005 Pathfinder

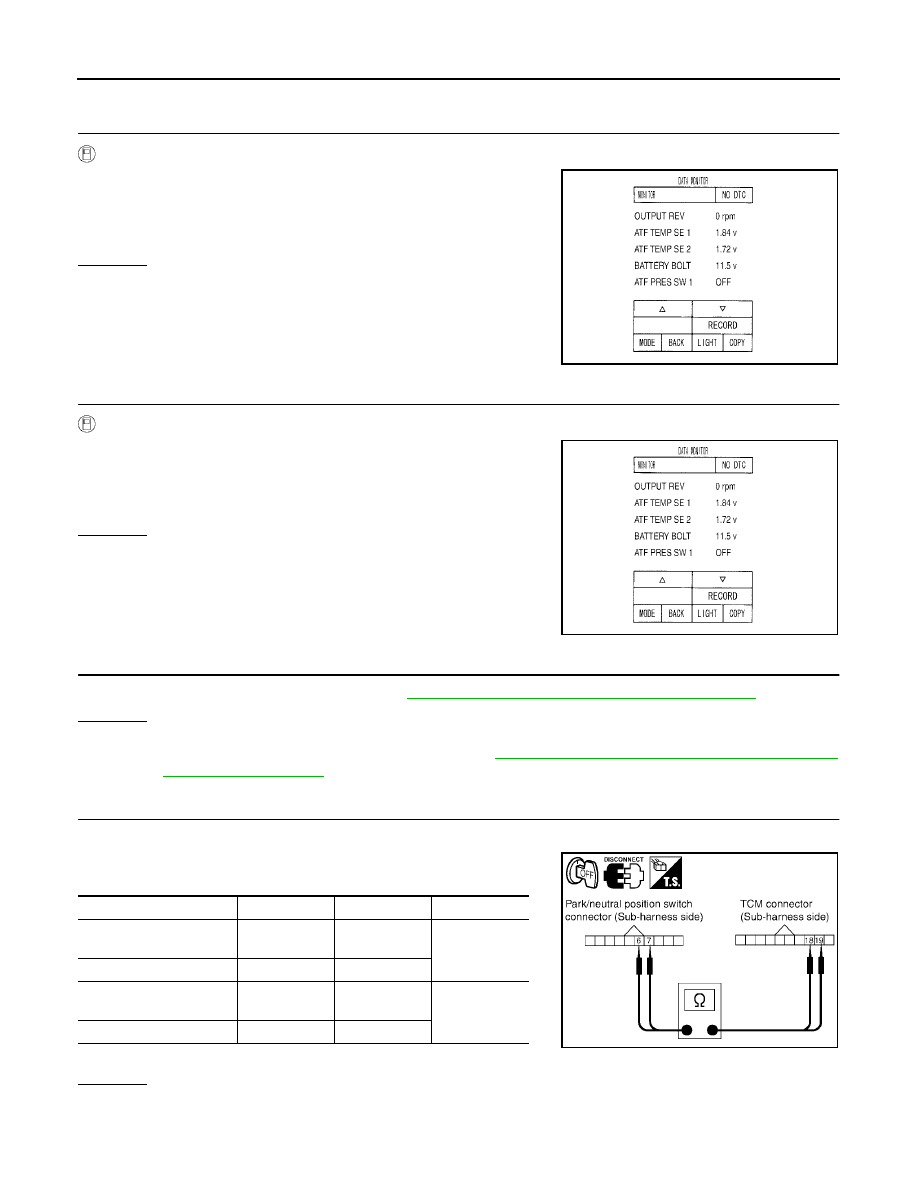

Diagnostic Procedure

UCS003Q3

1.

CHECK A/T FLUID TEMPERATURE SENSOR 1 SIGNAL

With CONSULT-II

1.

Start engine.

2.

Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.

3.

Read out the value of “ATF TEMP SE 1”.

OK or NG

OK

>> GO TO 2.

NG

>> GO TO 3.

2.

CHECK A/T FLUID TEMPERATURE SENSOR 2 SIGNAL

With CONSULT-II

1.

Start engine.

2.

Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.

3.

Read out the value of “ATF TEMP SE 2”.

OK or NG

OK

>> GO TO 8.

NG

>> GO TO 5.

3.

CHECK A/T FLUID TEMPERATURE SENSOR 1

Check A/T fluid temperature sensor 1. Refer to

AT-134, "A/T FLUID TEMPERATURE SENSOR 1"

.

OK or NG

OK

>> GO TO 4.

NG

>> Replace the control valve with TCM. Refer to

AT-233, "Control Valve With TCM and A/T Fluid

Temperature Sensor 2"

.

4.

CHECK SUB-HARNESS

1.

Disconnect park/neutral position switch connector and TCM connector.

2.

Check continuity between park/neutral position switch connector
terminals and TCM connector terminals.

3.

If OK, check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 7.

NG

>> Replace open circuit or short to ground and short to power in harness or connectors.

PCIA0039E

PCIA0039E

Item

Connector

Terminal

Continuity

Park/neutral position
switch connector

F505

6

Yes

TCM connector

F503

19

Park/neutral position
switch connector

F505

7

Yes

TCM connector

F503

18

SCIA5461E

DTC P1710 A/T FLUID TEMPERATURE SENSOR CIRCUIT

AT-133

D

E

F

G

H

I

J

K

L

M

A

B

AT

2005 Pathfinder

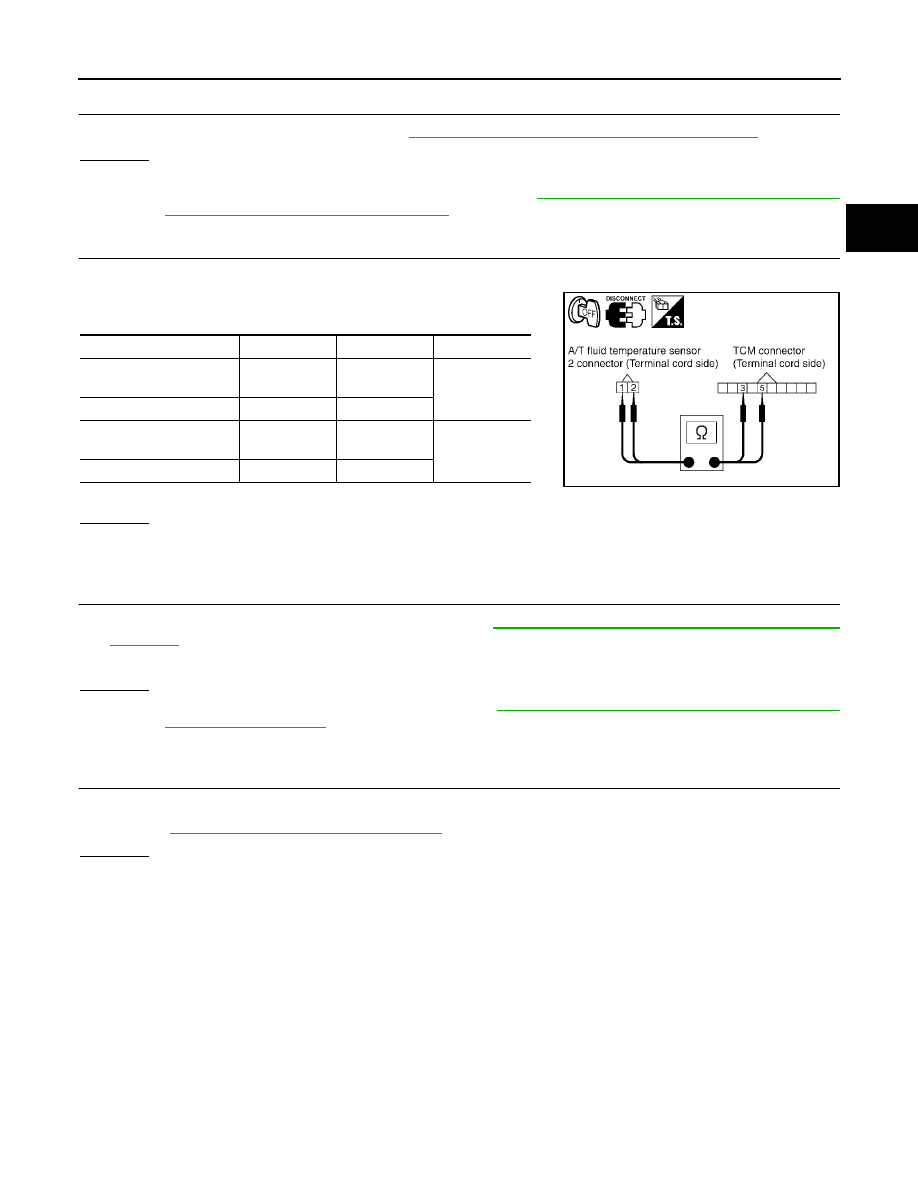

5.

CHECK A/T FLUID TEMPERATURE SENSOR 2

Check A/T fluid temperature sensor 2. Refer to

AT-134, "A/T FLUID TEMPERATURE SENSOR 2"

.

OK or NG

OK

>> GO TO 6.

NG

>> Replace the A/T fluid temperature sensor 2. Refer to

AT-240, "A/T FLUID TEMPERATURE SEN-

SOR 2 REMOVAL AND INSTALLATION"

.

6.

CHECK TERMINAL CORD ASSEMBLY

1.

Disconnect A/T fluid temperature sensor 2 connector and TCM connector.

2.

Check continuity between A/T fluid temperature sensor 2 con-
nector terminals and TCM connector terminals.

3.

If OK, check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 7.

NG

>> Replace open circuit or short to ground and short to power in harness or connectors.

7.

CHECK TCM POWER SUPPLY AND GROUND CIRCUIT

1.

Check TCM power supply and ground circuit. Refer to

AT-172, "MAIN POWER SUPPLY AND GROUND

CIRCUIT"

.

2.

Reinstall any part removed.

OK or NG

OK

>> Replace the control valve with TCM. Refer to

AT-233, "Control Valve With TCM and A/T Fluid

Temperature Sensor 2"

.

NG

>> Repair or replace damaged parts.

8.

CHECK DTC

Perform “DTC Confirmation Procedure”.

Refer to

AT-130, "DTC Confirmation Procedure"

.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 1.

Item

Connector

Terminal

Continuity

A/T fluid temperature sen-
sor 2 connector

F507

1

Yes

TCM connector

F502

3

A/T fluid temperature sen-
sor 2 connector

F507

2

Yes

TCM connector

F502

5

SCIA5462E

AT-134

DTC P1710 A/T FLUID TEMPERATURE SENSOR CIRCUIT

2005 Pathfinder

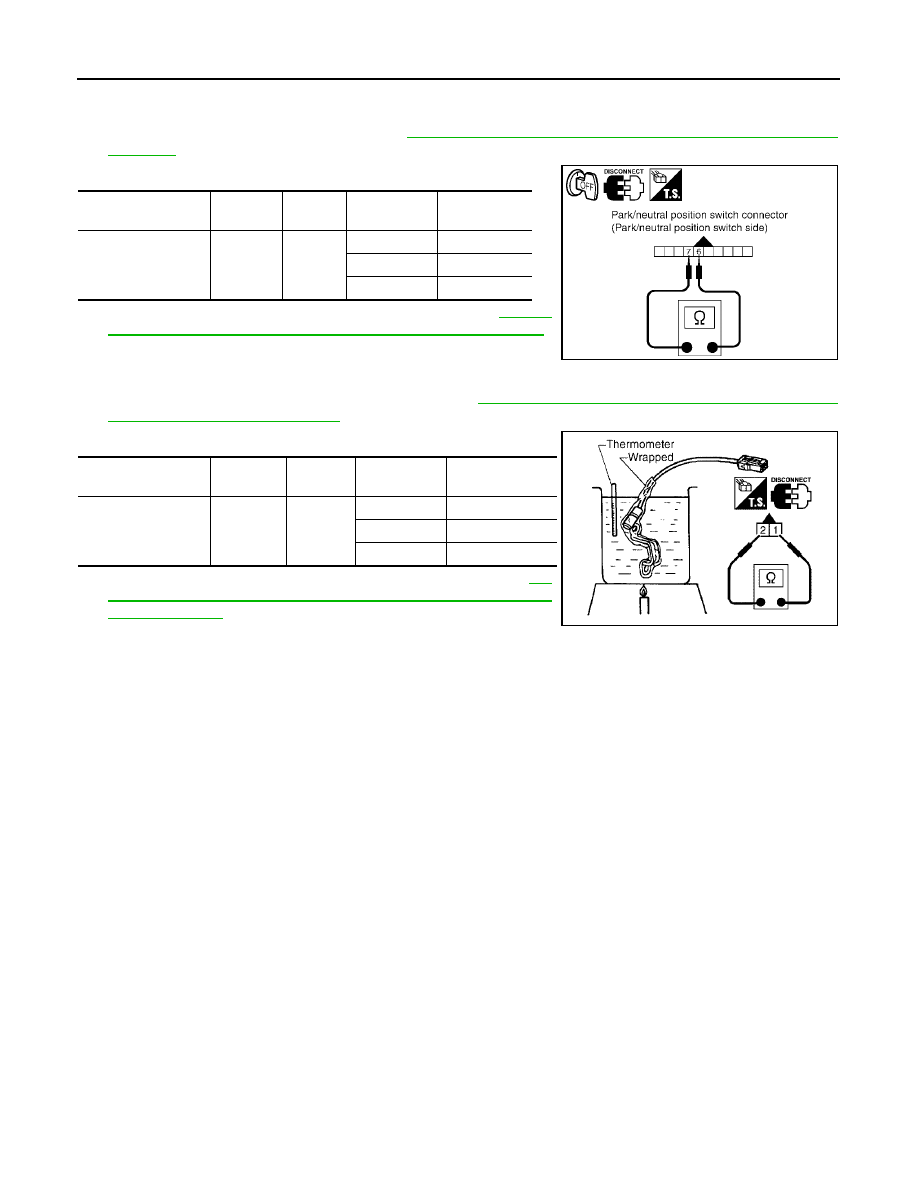

Component Inspection

UCS003Q4

A/T FLUID TEMPERATURE SENSOR 1

1.

Remove control valve with TCM. Refer to

AT-233, "Control Valve With TCM and A/T Fluid Temperature

Sensor 2"

.

2.

Check resistance between terminals.

3.

If NG, replace the control valve with TCM. Refer to

AT-233,

"Control Valve With TCM and A/T Fluid Temperature Sensor 2"

.

A/T FLUID TEMPERATURE SENSOR 2

1.

Remove A/T fluid temperature sensor 2. Refer to

AT-240, "A/T FLUID TEMPERATURE SENSOR 2

REMOVAL AND INSTALLATION"

.

2.

Check resistance between terminals.

3.

If NG, replace the A/T fluid temperature sensor 2. Refer to

AT-

240, "A/T FLUID TEMPERATURE SENSOR 2 REMOVAL AND
INSTALLATION"

.

Name

Connector

Terminal

Temperature

°

C (

°

F)

Resistance

(Approx.)

A/T fluid temperature
sensor 1

F505

6 - 7

0 (32)

15 k

20 (68)

6.5 k

80 (176)

0.9 k

SCIA5463E

Name

Connector

Terminal

Temperature

°

C (

°

F)

Resistance

(Approx.)

A/T fluid temperature
sensor 2

F507

1 - 2

0 (32)

10 k

20 (68)

4 k

80 (176)

0.5 k

SCIA5271E

DTC P1716 TURBINE REVOLUTION SENSOR

AT-135

D

E

F

G

H

I

J

K

L

M

A

B

AT

2005 Pathfinder

DTC P1716 TURBINE REVOLUTION SENSOR

PFP:31935

Description

UCS0034C

The turbine revolution sensor detects input shaft rpm (revolutions per minute). It is located on the input side of
the automatic transmission. Monitors revolution of sensor 1 and sensor 2 for non-standard conditions.

CONSULT-II Reference Value

UCS0034D

On Board Diagnosis Logic

UCS0034E

This is an OBD-II self-diagnostic item.

Diagnostic trouble code “P1716 TURBINE REV S/CIRC” with CONSULT-II or 11th judgement flicker with-
out CONSULT-II is detected under the following conditions.

When TCM does not receive the proper voltage signal from the sensor.

When TCM detects an irregularity only at position of 4th gear for turbine revolution sensor 2.

Possible Cause

UCS0034F

Harness or connectors
(The sensor circuit is open or shorted.)

Turbine revolution sensor 1, 2

DTC Confirmation Procedure

UCS0034G

CAUTION:

Always drive vehicle at a safe speed.

NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.

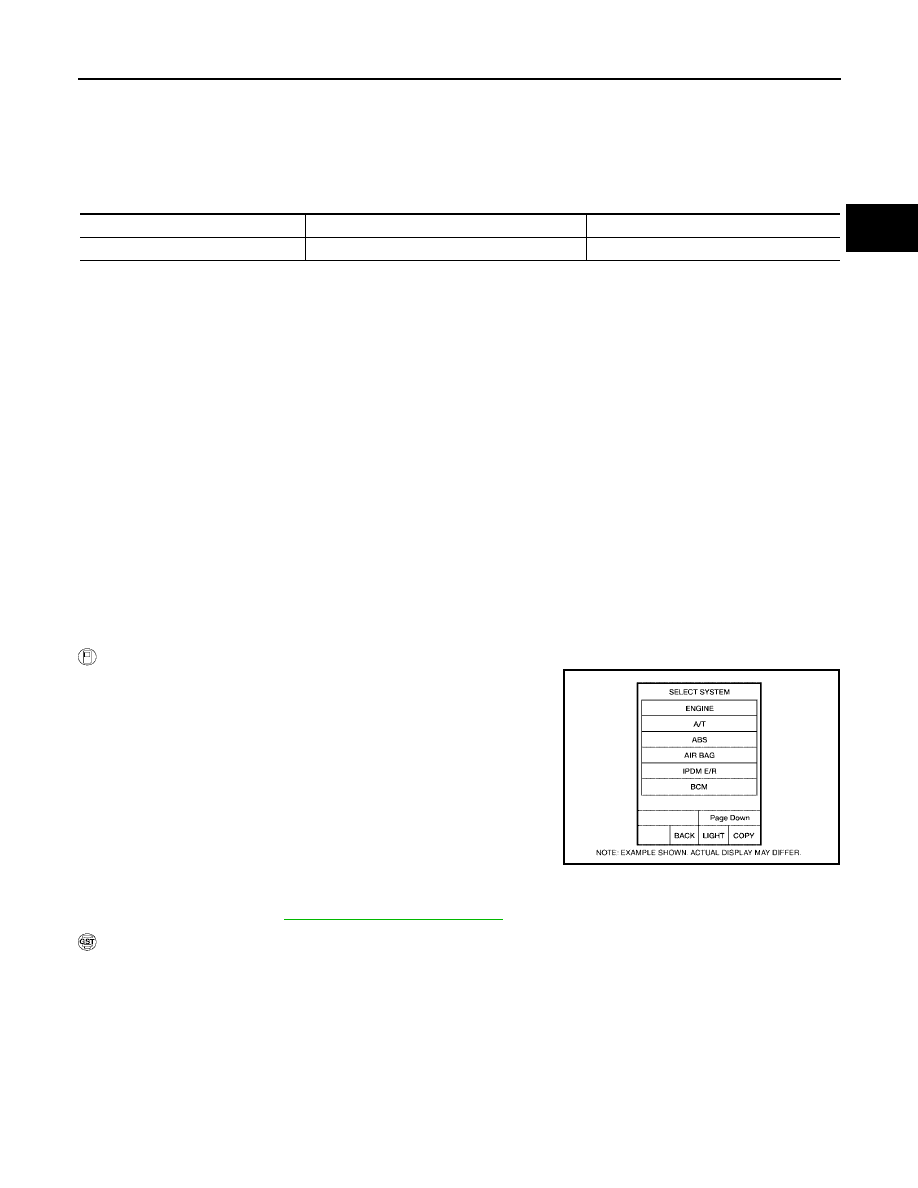

WITH CONSULT-II

1.

Turn ignition switch “ON”. (Do not start engine.)

2.

Select “DATA MONITOR” mode for “A/T” with CONSULT-II.

3.

Start engine and maintain the following conditions for at least 5
consecutive seconds.
VHCL SPEED SE: 40 km/h (25 MPH) or more
ENGINE SPEED: 1,500 rpm or more
ACCELE POS: 0.5/8 or more
Selector lever: “D” position
Gear position (Turbine revolution sensor 1): 4th or 5th posi-
tion
Gear position (Turbine revolution sensor 2): All position
Driving location: Driving the vehicle uphill (increased
engine load) will help maintain the driving conditions required for this test.

4.

If DTC is detected, go to

AT-136, "Diagnostic Procedure"

.

WITH GST

Follow the procedure “WITH CONSULT-II”.

Item name

Condition

Display value (rpm)

TURBINE REV

During driving (lock-up ON)

Approximately matches the engine speed.

BCIA0030E

AT-136

DTC P1716 TURBINE REVOLUTION SENSOR

2005 Pathfinder

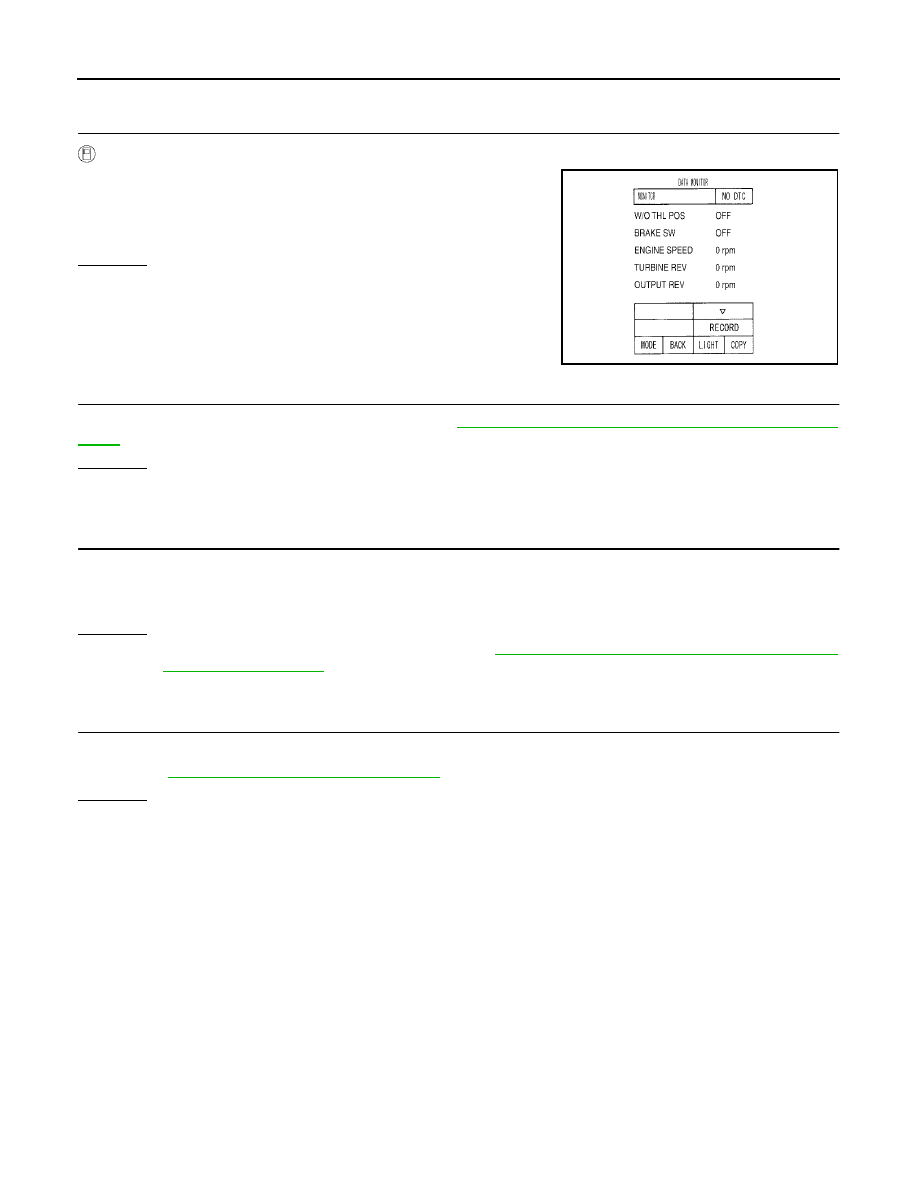

Diagnostic Procedure

UCS003Q5

1.

CHECK INPUT SIGNAL

With CONSULT-II

1.

Start engine.

2.

Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.

3.

Vehicle start and read out the value of “TURBINE REV”.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 2.

2.

CHECK TCM POWER SUPPLY AND GROUND CIRCUIT

Check TCM power supply and ground circuit. Refer to

AT-172, "MAIN POWER SUPPLY AND GROUND CIR-

CUIT"

.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace damaged parts.

3.

DETECT MALFUNCTIONING ITEM

Check the following.

The A/T assembly harness connector pin terminals for damage or loose connection with harness connec-
tor.

OK or NG

OK

>> Replace the control valve with TCM. Refer to

AT-233, "Control Valve With TCM and A/T Fluid

Temperature Sensor 2"

.

NG

>> Repair or replace damaged parts.

4.

CHECK DTC

Perform “DTC Confirmation Procedure”.

Refer to

AT-135, "DTC Confirmation Procedure"

.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 2.

PCIA0041E

DTC P1721 VEHICLE SPEED SENSOR MTR

AT-137

D

E

F

G

H

I

J

K

L

M

A

B

AT

2005 Pathfinder

DTC P1721 VEHICLE SPEED SENSOR MTR

PFP:24814

Description

UCS0034I

The vehicle speed sensor·MTR signal is transmitted from combination meter to TCM by CAN communication
line. The signal functions as an auxiliary device to the revolution sensor when it is malfunctioning. The TCM
will then use the vehicle speed sensor·MTR signal.

CONSULT-II Reference Value

UCS0034J

On Board Diagnosis Logic

UCS0034K

This is not an OBD-II self-diagnostic item.

Diagnostic trouble code “P1721 VHE SPD SE·MTR” with CONSULT-II is detected when TCM does not
receive the proper vehicle speed sensor MTR signal (input by CAN communication) from combination
meter.

Possible Cause

UCS0034L

Harness or connectors
(The sensor circuit is open or shorted.)

DTC Confirmation Procedure

UCS0034M

CAUTION:

Always drive vehicle at a safe speed.

NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.

WITH CONSULT-II

1.

Turn ignition switch “ON”. (Do not start engine.)

2.

Select “DATA MONITOR” mode for “A/T” with CONSULT-II.

3.

Start engine and maintain the following conditions for at least 5
consecutive seconds.
ACCELE POS: 1/8 or less
VHCL SPEED SE: 30 km/h (17 MPH) or more

4.

If DTC is detected, go to

AT-138, "Diagnostic Procedure"

.

Item name

Condition

Display value (km/h)

VHCL/S SE·MTR

During driving

Approximately matches the speedometer reading.

BCIA0030E

AT-138

DTC P1721 VEHICLE SPEED SENSOR MTR

2005 Pathfinder

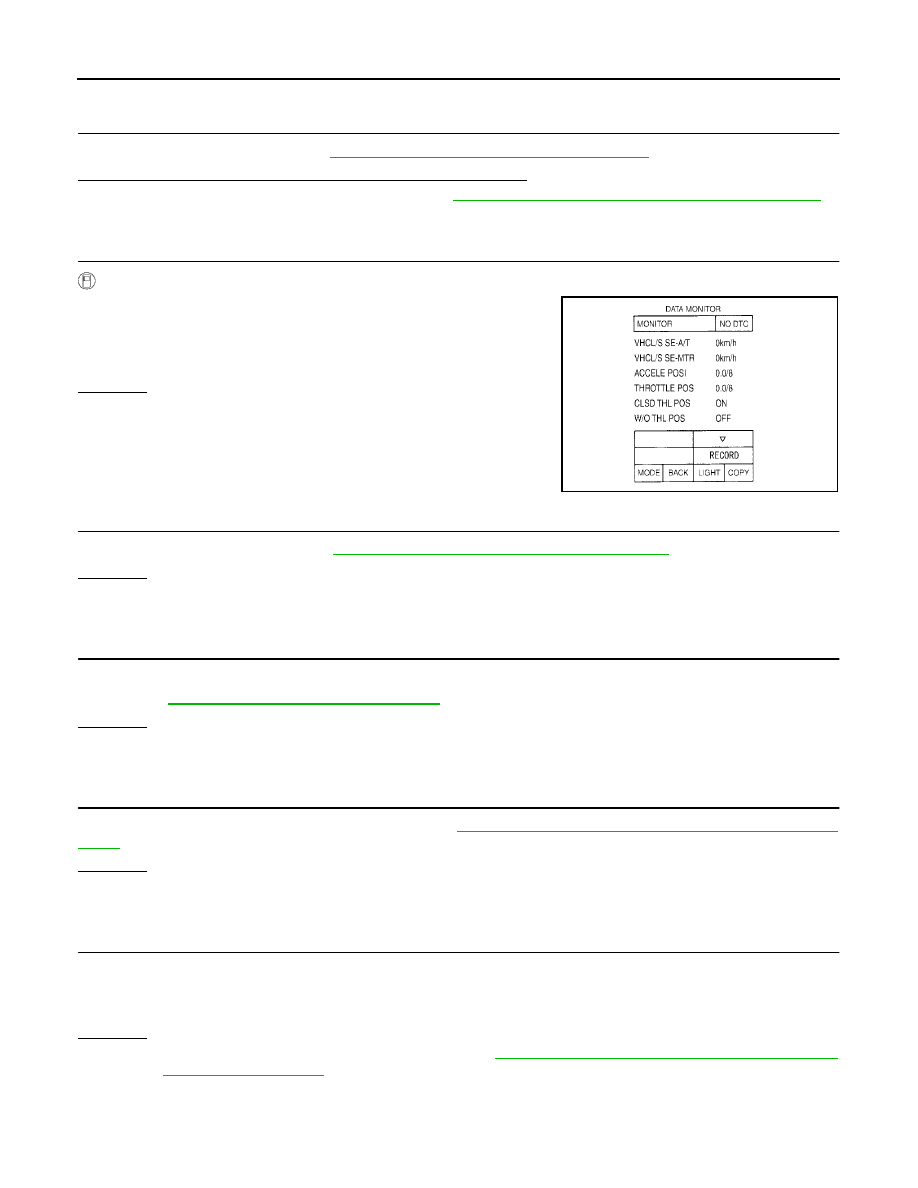

Diagnostic Procedure

UCS003Q6

1.

CHECK CAN COMMUNICATION LINE

Perform the self-diagnosis. Refer to

AT-87, "SELF-DIAGNOSTIC RESULT MODE"

.

Is malfunction in the CAN communication indicated in the result?

YES

>> Check CAN communication line. Refer to

AT-100, "DTC U1000 CAN COMMUNICATION LINE"

.

NO

>> GO TO 2.

2.

CHECK INPUT SIGNAL

With CONSULT-II

1.

Start engine.

2.

Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.

3.

Drive vehicle and read out the value of “VHCL/S SE·MTR”.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 3.

3.

CHECK COMBINATION METERS

Check combination meters. Refer to

DI-19, "How to Proceed With Trouble Diagnosis"

.

OK or NG

OK

>> GO TO 4.

NG

>> Repair or replace damaged parts.

4.

CHECK DTC

Perform “DTC Confirmation Procedure”.

Refer to

AT-137, "DTC Confirmation Procedure"

.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 5.

5.

CHECK TCM POWER SUPPLY AND GROUND CIRCUIT

Check TCM power supply and ground circuit. Refer to

AT-172, "MAIN POWER SUPPLY AND GROUND CIR-

CUIT"

.

OK or NG

OK

>> GO TO 6.

NG

>> Repair or replace damaged parts.

6.

DETECT MALFUNCTIONING ITEM

Check the following.

The A/T assembly harness connector pin terminals for damage or loose connection with harness connec-
tor.

OK or NG

OK

>> Replace the control valve with TCM. Refer to

AT-233, "Control Valve With TCM and A/T Fluid

Temperature Sensor 2"

.

NG

>> Repair or replace damaged parts.

SCIA2148E















Content      ..     18      19      20      21     ..
