Nissan Pathfinder (2005 year). Manual - part 18





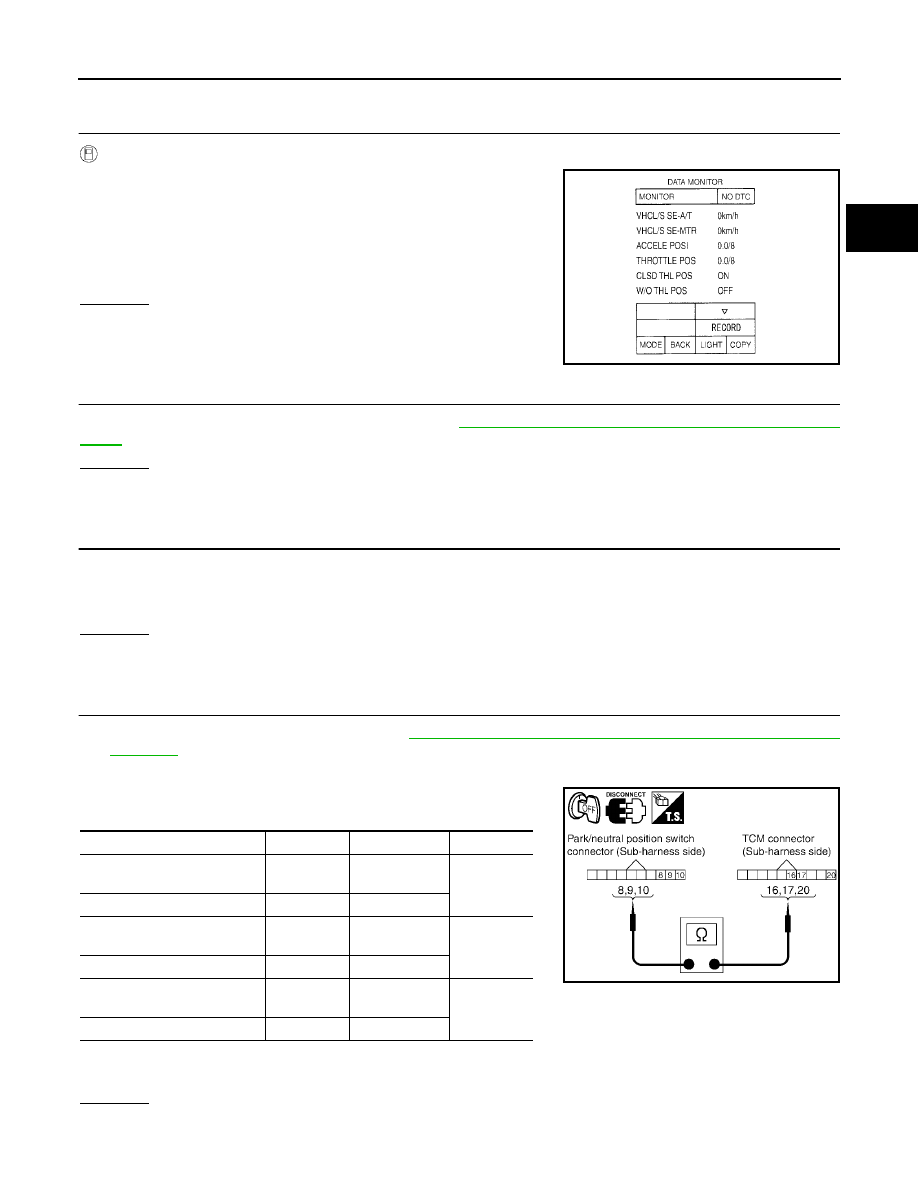

DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)

AT-115

D

E

F

G

H

I

J

K

L

M

A

B

AT

2005 Pathfinder

Diagnostic Procedure

UCS003PW

1.

CHECK INPUT SIGNAL

With CONSULT-II

1.

Turn ignition switch ON.

2.

Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.

3.

Start the engine.

4.

Read out the value of “VHCL/S SE·A/T” while driving.
Check the value changes according to driving speed.

OK or NG

OK

>> GO TO 6.

NG

>> GO TO 2.

2.

CHECK TCM POWER SUPPLY AND GROUND CIRCUIT

Check TCM power supply and ground circuit. Refer to

AT-172, "MAIN POWER SUPPLY AND GROUND CIR-

CUIT"

.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace damaged parts.

3.

DETECT MALFUNCTIONING ITEM

Check the following.

The A/T assembly harness connector pin terminals for damage or loose connection with harness connec-
tor.

OK or NG

OK

>> GO TO 4.

NG

>> Repair or replace damaged parts.

4.

CHECK SUB-HARNESS

1.

Remove control valve with TCM. Refer to

AT-233, "Control Valve With TCM and A/T Fluid Temperature

Sensor 2"

.

2.

Disconnect park/neutral position switch connector and TCM connector.

3.

Check continuity between park/neutral position switch connector
terminals and TCM connector terminals.

4.

If OK, check harness for short to ground and short to power.

5.

Reinstall any part removed.

OK or NG

OK

>> GO TO 5.

NG

>> Replace open circuit or short to ground and short to power in harness or connectors.

SCIA2148E

Item

Connector

Terminal

Continuity

Park/neutral position switch
connector

F505

8

Yes

TCM connector

F503

20

Park/neutral position switch
connector

F505

9

Yes

TCM connector

F503

17

Park/neutral position switch
connector

F505

10

Yes

TCM connector

F503

16

SCIA5458E

AT-116

DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)

2005 Pathfinder

5.

REPLACE THE REVOLUTION SENSOR AND CHECK DTC

1.

Replace the revolution sensor. Refer to

AT-264, "DISASSEMBLY"

.

2.

Perform “DTC Confirmation Procedure”. Refer to

AT-112, "DTC Confirmation Procedure"

.

OK or NG

OK

>> INSPECTION END

NG

>> Replace the control valve with TCM. Refer to

AT-233, "Control Valve With TCM and A/T Fluid

Temperature Sensor 2"

.

6.

CHECK DTC

Perform “DTC Confirmation Procedure”.

Refer to

AT-112, "DTC Confirmation Procedure"

.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 2.

DTC P0725 ENGINE SPEED SIGNAL

AT-117

D

E

F

G

H

I

J

K

L

M

A

B

AT

2005 Pathfinder

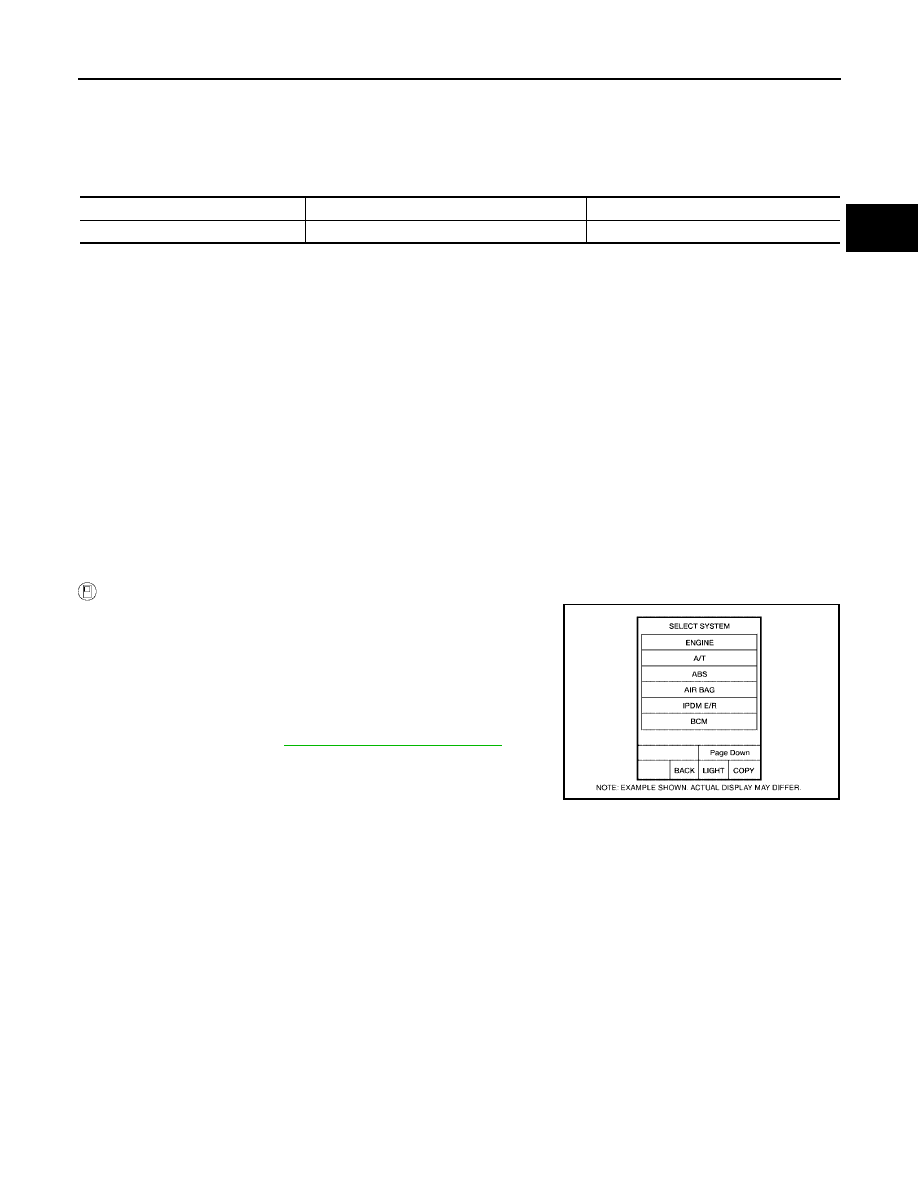

DTC P0725 ENGINE SPEED SIGNAL

PFP:24825

Description

UCS00331

The engine speed signal is sent from the ECM to the TCM.

CONSULT-II Reference Value

UCS00332

On Board Diagnosis Logic

UCS00333

This is not an OBD-II self-diagnostic item.

Diagnostic trouble code “P0725 ENGINE SPEED SIG” with CONSULT-II or 16th judgement flicker without
CONSULT-II is detected when TCM does not receive the ignition signal from ECM during engine cranking
or running.

Possible Cause

UCS00334

Harness or connectors
(The ECM to the TCM circuit is open or shorted.)

DTC Confirmation Procedure

UCS00335

CAUTION:

Always drive vehicle at a safe speed.

NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.

WITH CONSULT-II

1.

Turn ignition switch “ON” and select “DATA MONITOR” mode for
“A/T” with CONSULT-II.

2.

Start engine and maintain the following conditions for at least 10
consecutive seconds.
VHCL SPEED SE: 10 km/h (6 MPH) or more
ACCELE POSI: More than 1/8
Selector lever: “D” position

3.

If DTC is detected, go to

AT-118, "Diagnostic Procedure"

.

Item name

Condition

Display value (rpm)

ENGINE SPEED

Engine running

Closely matches the tachometer reading.

BCIA0030E

AT-118

DTC P0725 ENGINE SPEED SIGNAL

2005 Pathfinder

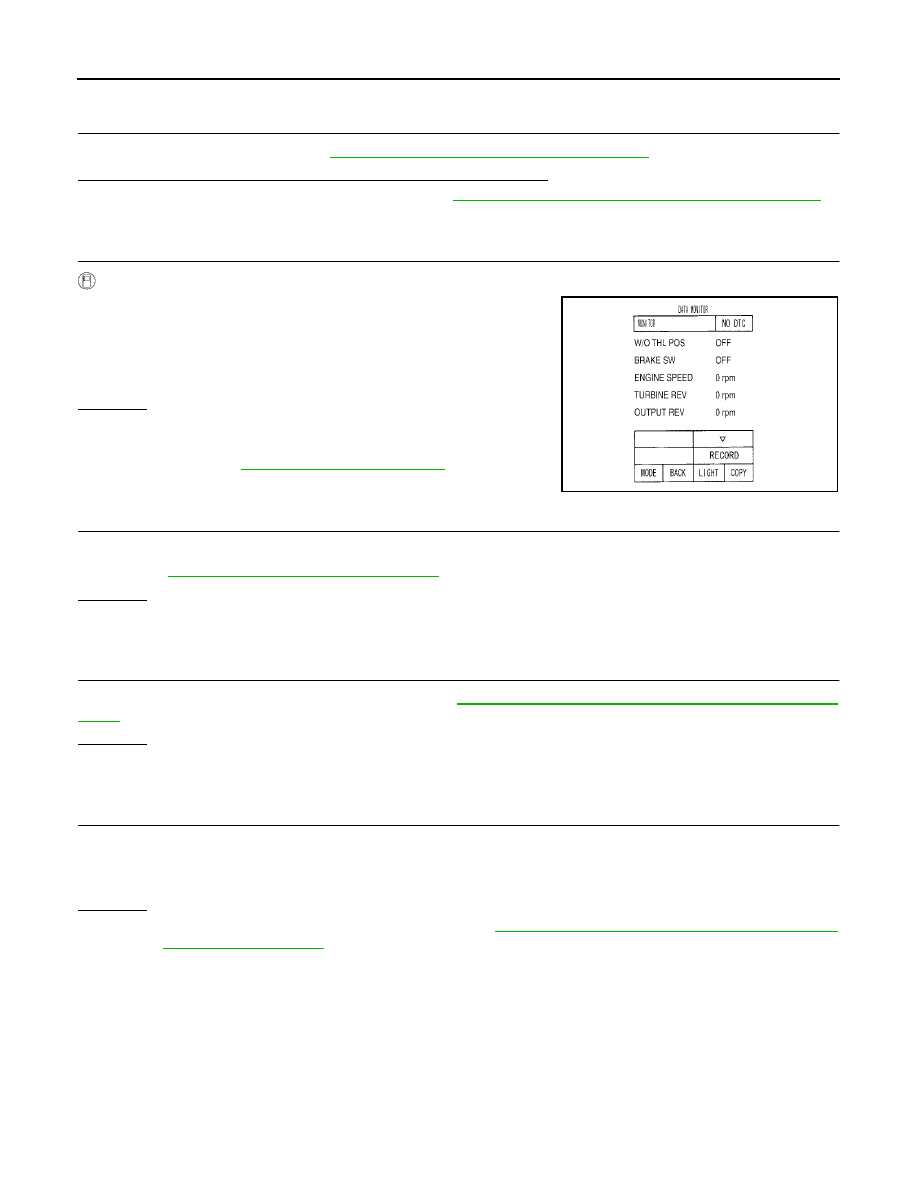

Diagnostic Procedure

UCS003PX

1.

CHECK CAN COMMUNICATION LINE

Perform the self-diagnosis. Refer to

AT-87, "SELF-DIAGNOSTIC RESULT MODE"

.

Is a malfunction in the CAN communication indicated in the results?

YES

>> Check CAN communication line. Refer to

AT-100, "DTC U1000 CAN COMMUNICATION LINE"

.

NO

>> GO TO 2.

2.

CHECK DTC WITH TCM

With CONSULT-II

1.

Start engine.

2.

Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.

3.

While monitoring engine speed, check for engine speed change
corresponding to wide-open throttle position signal.

OK or NG

OK

>> GO TO 3.

NG

>> Check the ignition signal circuit.

Refer to

EC-657, "IGNITION SIGNAL"

.

3.

CHECK DTC

Perform “DTC Confirmation Procedure”.

Refer to

AT-117, "DTC Confirmation Procedure"

.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 4.

4.

CHECK TCM POWER SUPPLY AND GROUND CIRCUIT

Check TCM power supply and ground circuit. Refer to

AT-172, "MAIN POWER SUPPLY AND GROUND CIR-

CUIT"

.

OK or NG

OK

>> GO TO 5.

NG

>> Repair or replace damaged parts.

5.

DETECT MALFUNCTIONING ITEM

Check the following.

The A/T assembly harness connector pin terminals for damage or loose connection with harness connec-
tor.

OK or NG

OK

>> Replace the control valve with TCM. Refer to

AT-233, "Control Valve With TCM and A/T Fluid

Temperature Sensor 2"

.

NG

>> Repair or replace damaged parts.

PCIA0041E

DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE

AT-119

D

E

F

G

H

I

J

K

L

M

A

B

AT

2005 Pathfinder

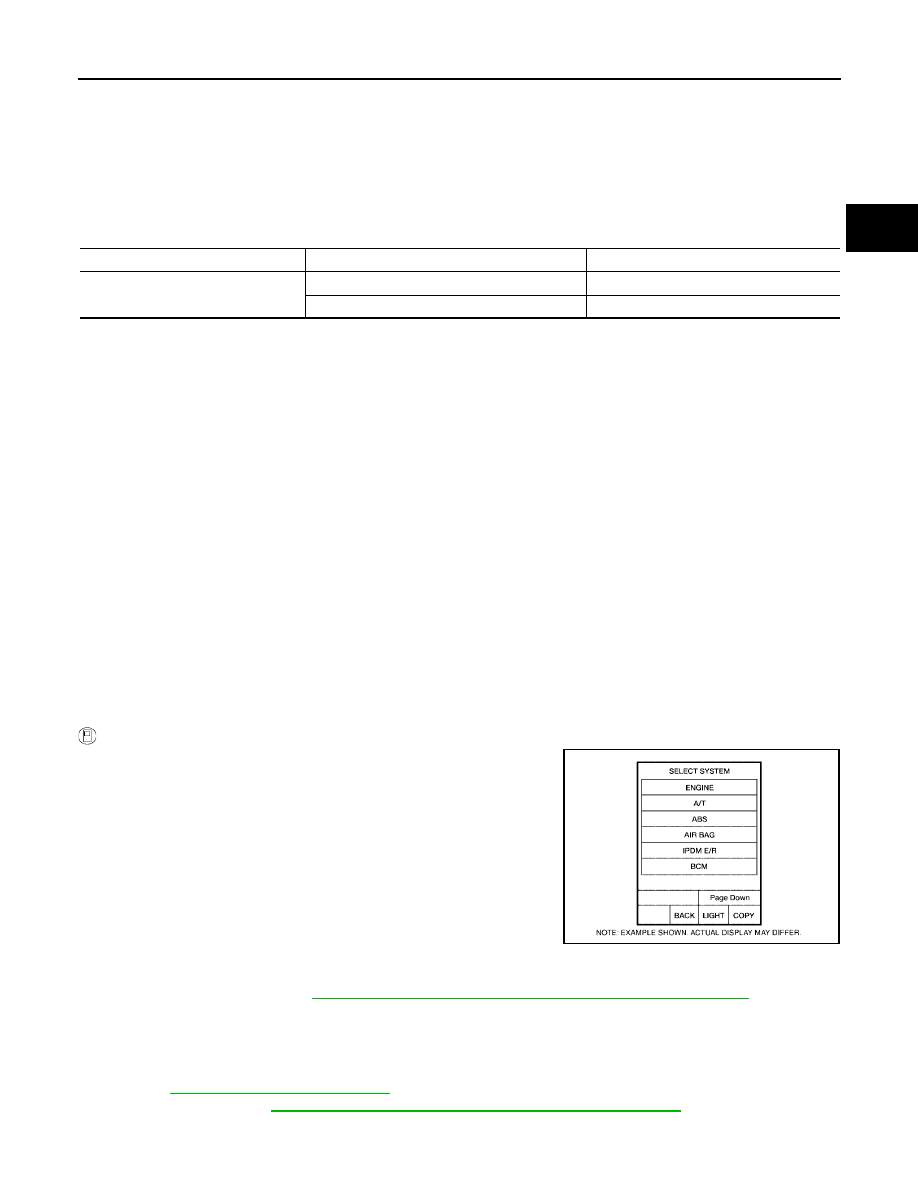

DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE

PFP:31940

Description

UCS00337

The torque converter clutch solenoid valve is activated, with the gear in D

4

, D

5

by the TCM in response

to signals sent from the vehicle speed sensor and accelerator pedal position sensor (throttle position sen-
sor). Torque converter clutch piston operation will then be controlled.

Lock-up operation, however, is prohibited when A/T fluid temperature is too low.

When the accelerator pedal is depressed (less than 1/8) in lock-up condition, the engine speed should not
change abruptly. If there is a big jump in engine speed, there is no lock-up.

CONSULT-II Reference Value

UCS00338

On Board Diagnosis Logic

UCS00339

This is an OBD-II self-diagnostic item.

Diagnostic trouble code “P0740 TCC SOLENOID/CIRC” with CONSULT-II or 3rd judgement flicker with-
out CONSULT-II is detected under the following conditions.

When TCM detects an improper voltage drop when it tries to operate the solenoid valve.

When TCM detects as irregular by comparing target value with monitor value.

Possible Cause

UCS0033A

Torque converter clutch solenoid valve

Harness or connectors
(The solenoid circuit is open or shorted.)

DTC Confirmation Procedure

UCS0033B

CAUTION:

Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.

WITH CONSULT-II

1.

Turn ignition switch “ON”. (Do not start engine.)

2.

Select “DATA MONITOR” mode for “ENGINE” with CONSULT-II.

3.

Start engine and maintain the following conditions for at least 5
consecutive seconds.
VHCL SPEED SE: 80 km/h (50 MPH) or more

ACCELE POS: 0.5/8 - 1.0/8

SELECTOR LEVER: “D” position
Driving location: Driving the vehicle uphill (increased
engine load) will help maintain the driving conditions
required for this test.

4.

If DTC is detected go to

AT-120, "Diagnostic Procedure"

.

WITH GST

Follow the procedure “WITH CONSULT-II”.

Item name

Condition

Display value (Approx.)

TCC SOLENOID

When performing slip lock-up

0.2 - 0.4 A

When performing lock-up

0.4 - 0.6 A

BCIA0030E

AT-120

DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE

2005 Pathfinder

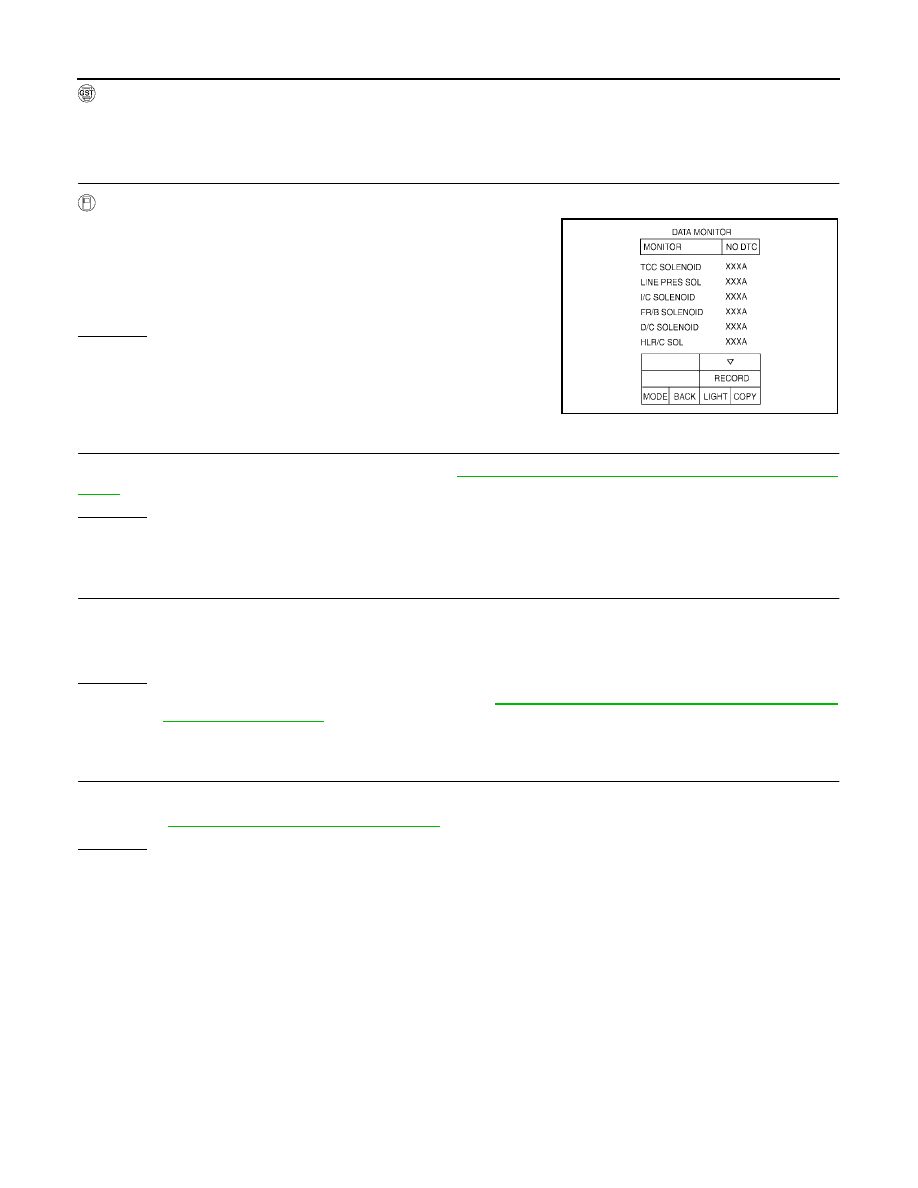

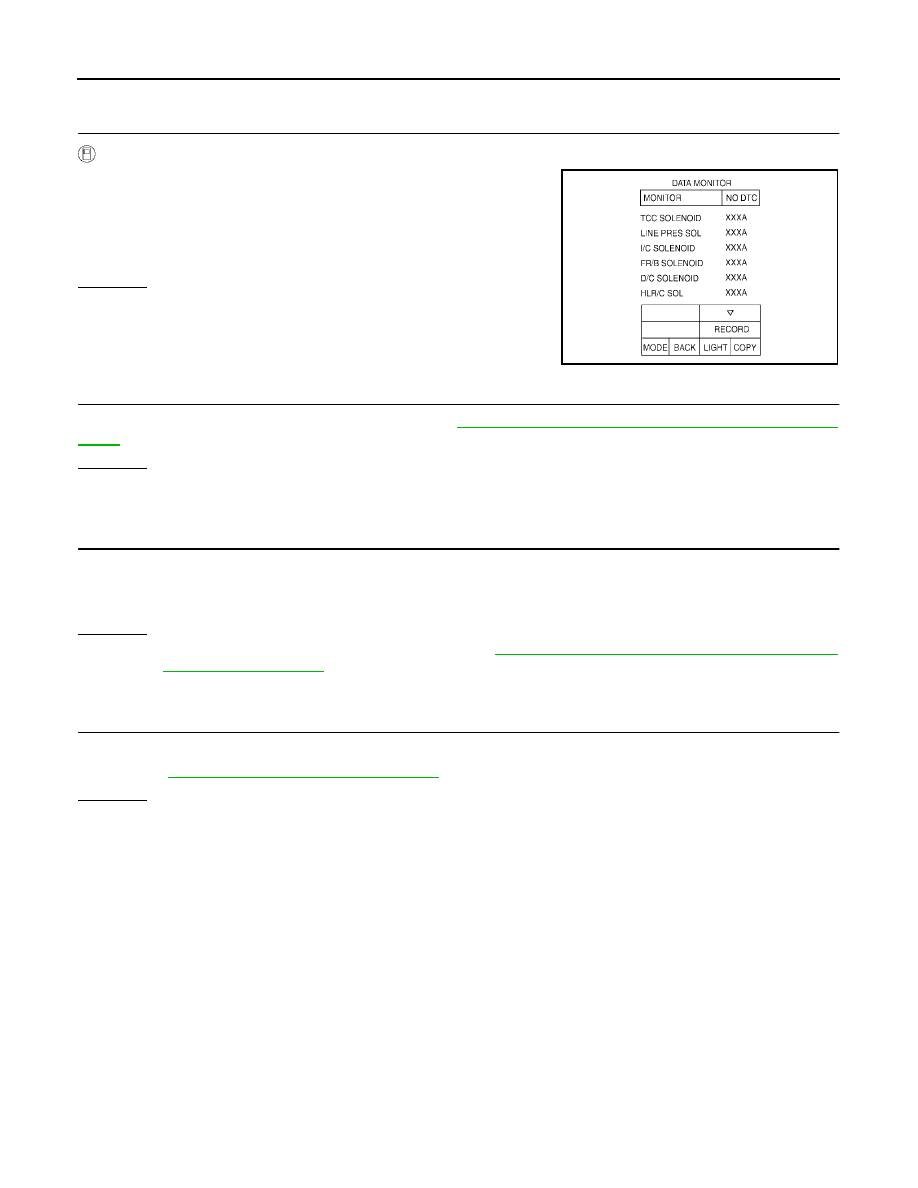

Diagnostic Procedure

UCS003PY

1.

CHECK INPUT SIGNAL

With CONSULT-II

1.

Turn ignition switch ON.

2.

Select “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T”
with CONSULT-II.

3.

Start engine.

4.

Read out the value of “TCC SOLENOID” while driving.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 2.

2.

CHECK TCM POWER SUPPLY AND GROUND CIRCUIT

Check TCM power supply and ground circuit. Refer to

AT-172, "MAIN POWER SUPPLY AND GROUND CIR-

CUIT"

.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace damaged parts.

3.

DETECT MALFUNCTIONING ITEM

Check the following.

The A/T assembly harness connector pin terminals for damage or loose connection with harness connec-
tor.

OK or NG

OK

>> Replace the control valve with TCM. Refer to

AT-233, "Control Valve With TCM and A/T Fluid

Temperature Sensor 2"

.

NG

>> Repair or replace damaged parts.

4.

CHECK DTC

Perform “DTC Confirmation Procedure”.

Refer to

AT-119, "DTC Confirmation Procedure"

.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 2.

SCIA4793E

DTC P0744 A/T TCC S/V FUNCTION (LOCK-UP)

AT-121

D

E

F

G

H

I

J

K

L

M

A

B

AT

2005 Pathfinder

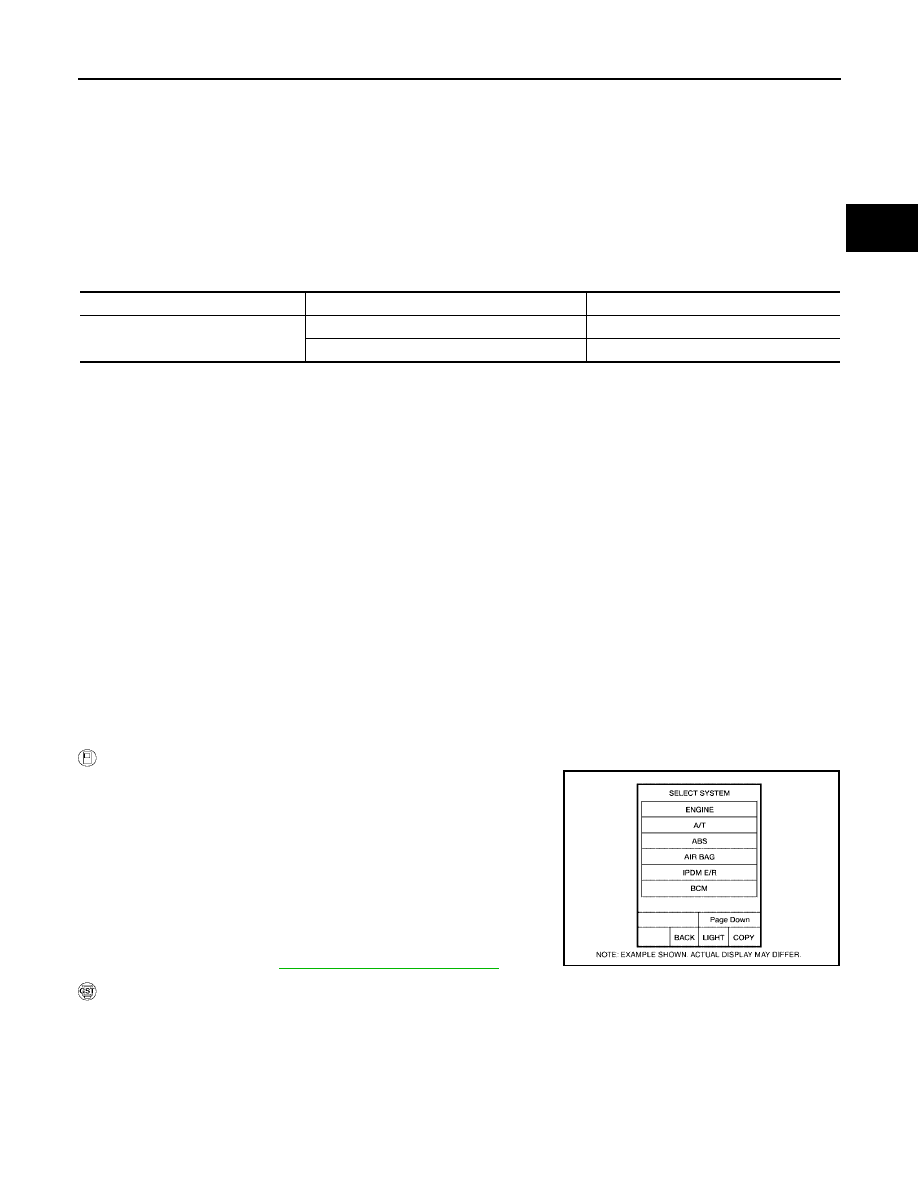

DTC P0744 A/T TCC S/V FUNCTION (LOCK-UP)

PFP:31940

Description

UCS0033D

This malfunction is detected when the A/T does not shift into 5th gear position or the torque converter clutch
does not lock-up as instructed by the TCM. This is not only caused by electrical malfunction (circuits open or
shorted) but also by mechanical malfunction such as control valve sticking, improper solenoid valve operation,
etc.

CONSULT-II Reference Value

UCS0033E

On Board Diagnosis Logic

UCS0033F

This is an OBD-II self-diagnostic item.

Diagnostic trouble code “P0744 A/T TCC S/V FNCTN” with CONSULT-II is detected under the following
conditions.

When A/T cannot perform lock-up even if electrical circuit is good.

When TCM detects as irregular by comparing difference value with slip rotation.

Possible Cause

UCS0033G

Harness or connectors
(The solenoid circuit is open or shorted.)

Torque converter clutch solenoid valve

Hydraulic control circuit

DTC Confirmation Procedure

UCS0033H

CAUTION:

Always drive vehicle at a safe speed.

NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.

WITH CONSULT-II

1.

Start engine and Select “TCC S/V FNCTN CHECK” of “DTC
WORK SUPPORT” mode for “A/T” with CONSULT-II and touch
“START”.

2.

Accelerate vehicle to more than 80 km/h (50 MPH) and maintain
the following condition continuously until “TESTING” has turned
to “COMPLETE”. (It will take approximately 30 seconds after
“TESTING” shows.)
ACCELE POSI: More than 1.0/8 (at all times during step 4)
TCC SOLENOID: 0.4 - 0.6 A
Selector lever: “D” position
[Reference speed: Constant speed of more than 80 km/h (50
MPH)]

Make sure “GEAR” shows “5”.

For shift schedule, refer to

AT-60, "Vehicle Speed at Which Lock-up Occurs/Releases"

.

If “TESTING” does not appear on CONSULT-II for a long time, select “SELF-DIAG RESULTS”. In
case a 1st trip DTC other than P0744 is shown, refer to applicable “TROUBLE DIAGNOSIS FOR
DTC”.

3.

Make sure that “OK” is displayed. (If “NG” is displayed, refer to “DIAGNOSTIC PROCEDURE”.)
Refer to

AT-122, "Diagnostic Procedure"

.

Refer to shift schedule

AT-60, "Vehicle Speed at Which Lock-up Occurs/Releases"

.

Item name

Condition

Display value (Approx.)

TCC SOLENOID

When performing slip lock-up

0.2 - 0.4 A

When performing lock-up

0.4 - 0.6 A

BCIA0030E

AT-122

DTC P0744 A/T TCC S/V FUNCTION (LOCK-UP)

2005 Pathfinder

WITH GST

Follow the procedure “WITH CONSULT-II”.

Diagnostic Procedure

UCS003PZ

1.

CHECK INPUT SIGNAL

With CONSULT-II

1.

Turn ignition switch ON.

2.

Select “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T”
with CONSULT-II.

3.

Start the engine.

4.

Read out the value of “TCC SOLENOID” while driving.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 2.

2.

CHECK TCM POWER SUPPLY AND GROUND CIRCUIT

Check TCM power supply and ground circuit. Refer to

AT-172, "MAIN POWER SUPPLY AND GROUND CIR-

CUIT"

.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace damaged parts.

3.

DETECT MALFUNCTIONING ITEM

Check the following.

The A/T assembly harness connector pin terminals for damage or loose connection with harness connec-
tor.

OK or NG

OK

>> Replace the control valve with TCM. Refer to

AT-233, "Control Valve With TCM and A/T Fluid

Temperature Sensor 2"

.

NG

>> Repair or replace damaged parts.

4.

CHECK DTC

Perform “DTC Confirmation Procedure”.

Refer to

AT-121, "DTC Confirmation Procedure"

.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 2.

SCIA4793E















Content      ..     16      17      18      19     ..
