VENTILATION SEAT CONTROL UNIT
SE-53
< ECU DIAGNOSIS >
[WITH VENTILATION SEAT]
C
D
E
F
G
H
I
K
L
M
A
B
SE
N
O
P

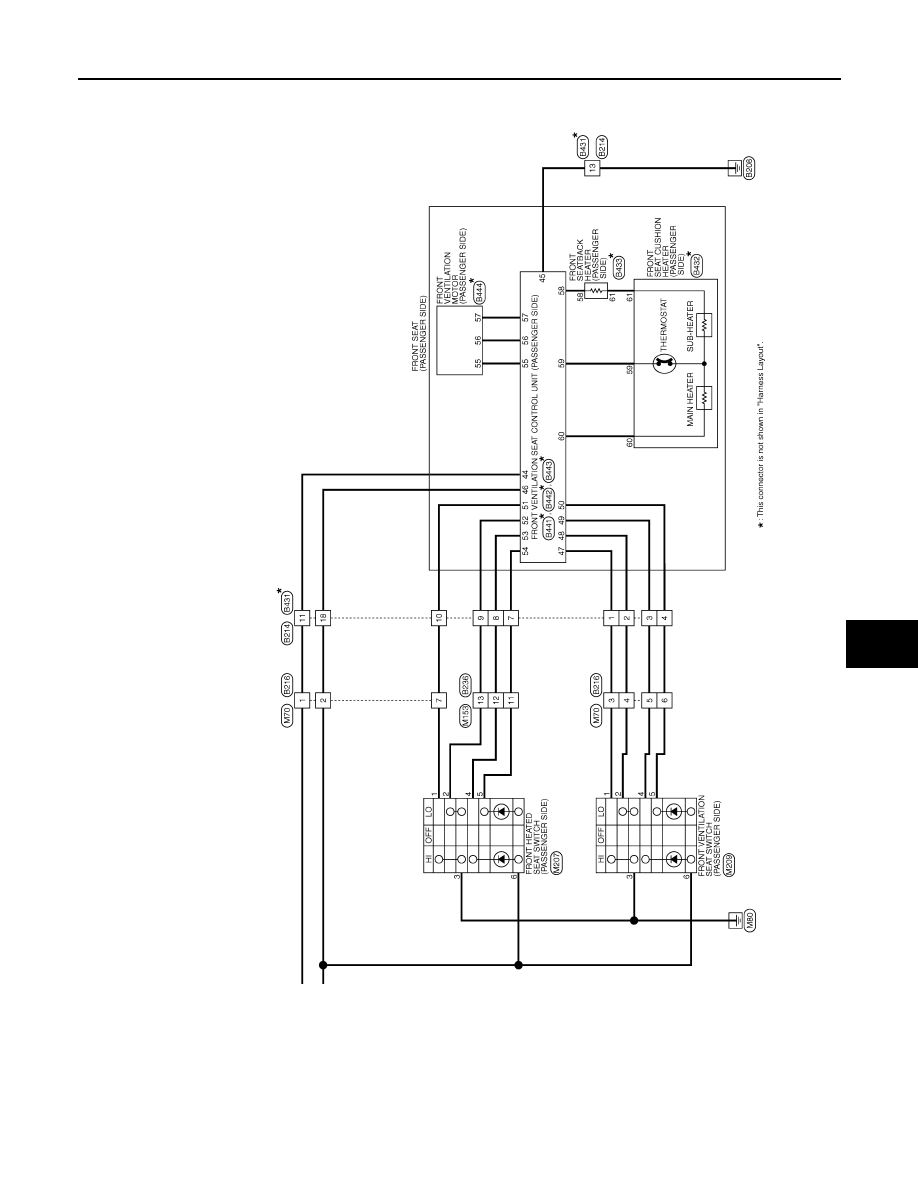

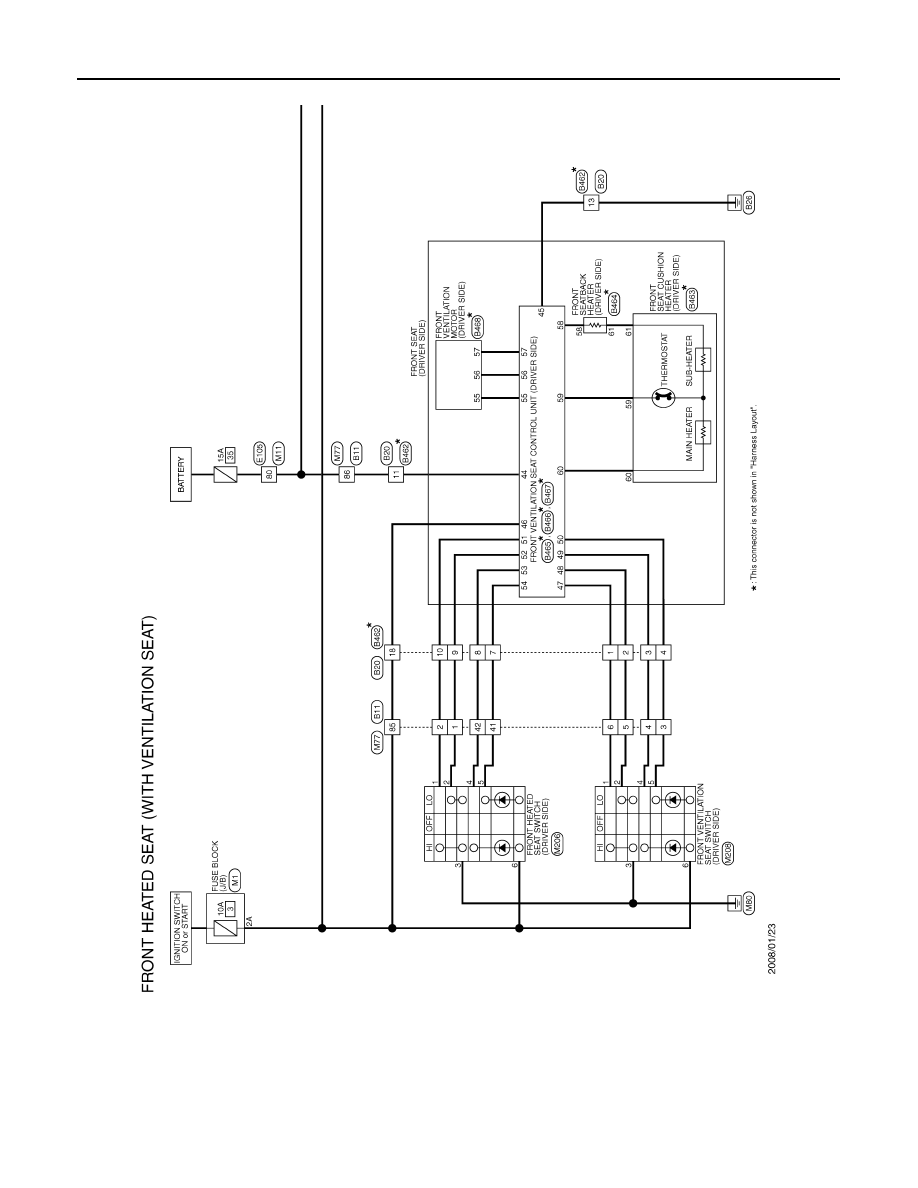

FRONT SEAT : Wiring Diagram - FRONT HEATED SEAT AND VENTILATION SEAT
54
(O/B)
Ground
Heated seat LO indictor signal
Output
Heated seat LO indicator
Illuminate
3 V
Other than
above
Battery voltage
55
(V/R)
Ground
Ventilation motor ground
—
Ignition switch ON
0 V
56
(GR/L)
Ground
Ventilation motor speed control
signal
Output
Ventilation seat
LO mode
8 V
HI mode
10.5 V
57
(Y)
Ground
Ventilation motor power supply
Output
Ventilation seat
LO mode
Battery voltage
HI mode
Battery voltage
Other than
above
0 V
58
(B/R)
Ground
Heated seat power supply
Output
Heated seat
LO mode
Battery voltage
HI mode
Battery voltage
Other than
above
0 V
59
(W/R)
Ground
Ground
(Heated seat HI mode)
—
Heated seat
LO mode
6.5 V
HI mode
0 V
Other than
above
0 V
60
(R/B)
Ground
Heated seat HI mode power
supply
Output
Heated seat
LO mode
0 V
Heated seat LO mode ground
—
HI mode
Battery voltage
Other than
above
0 V
Terminal No.
(Wire color)
Description
Condition
Value
(Approx.)
(+)
(–)
Signal name
Input/
Output
