POWER SEAT

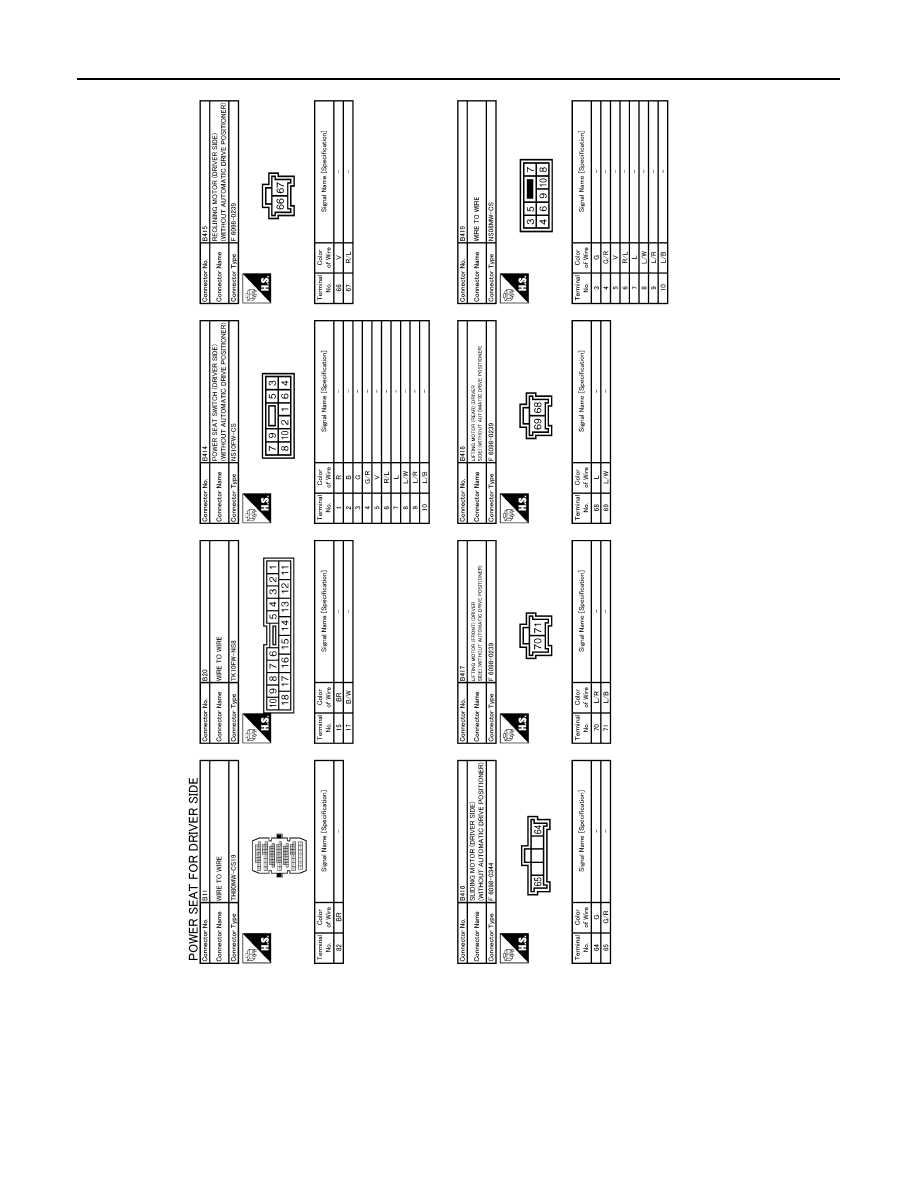

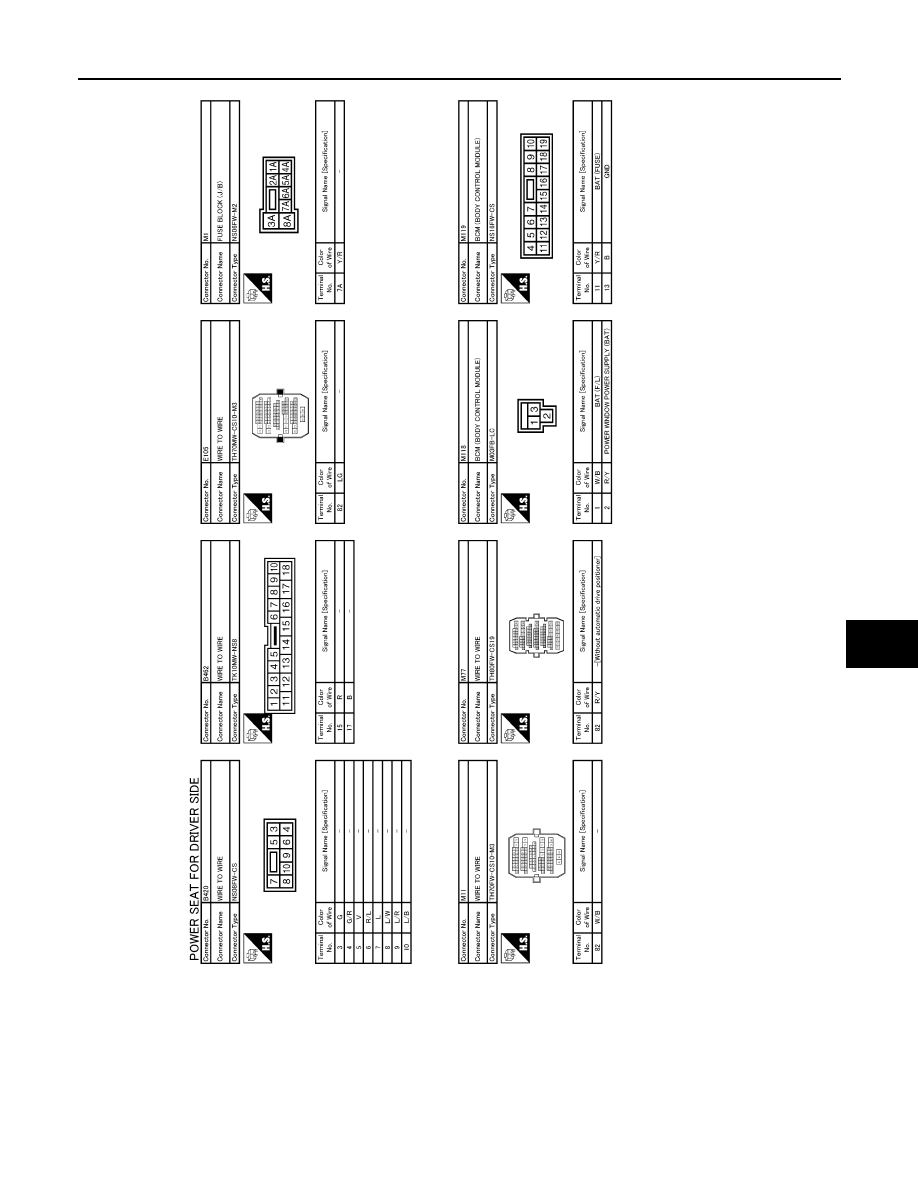

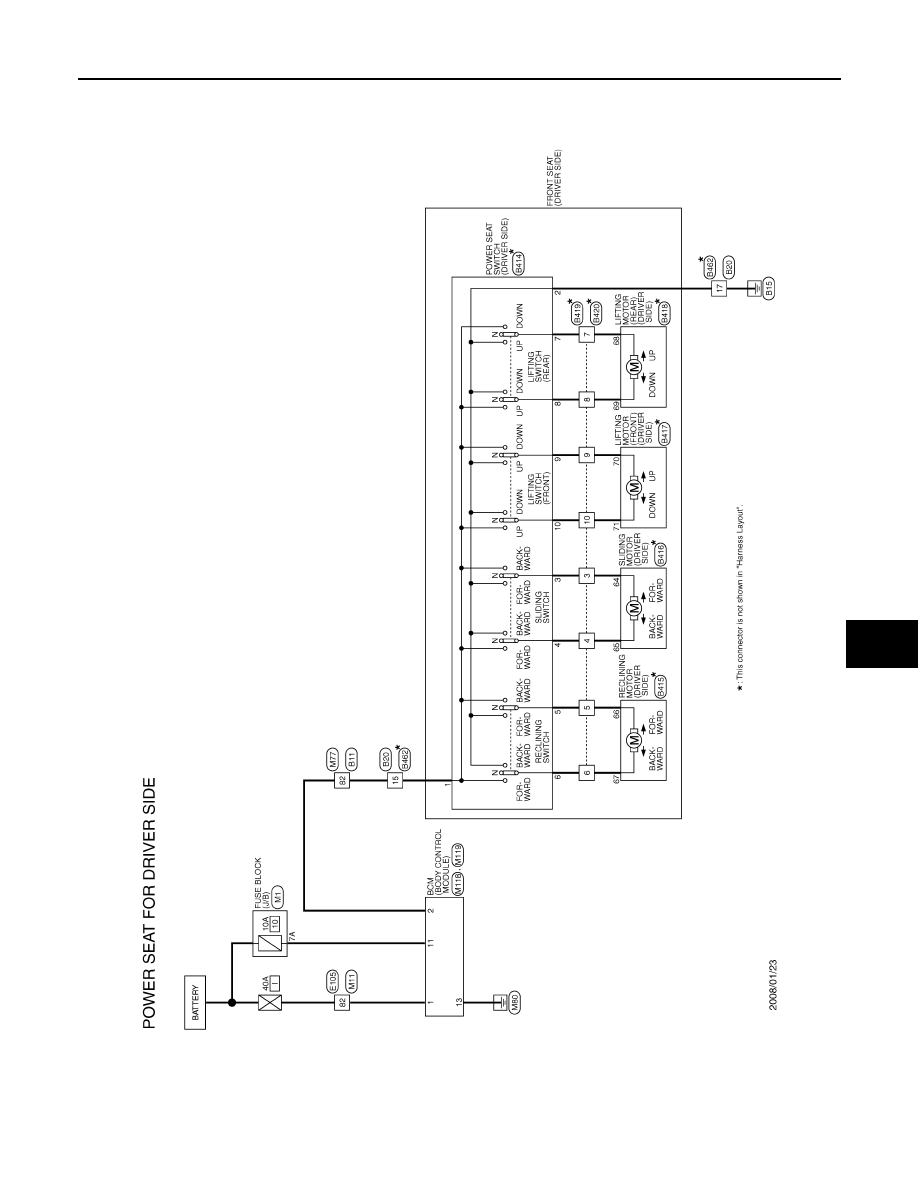

Wiring Diagram - POWER SEAT FOR DRIVER SIDE -

INFOID:0000000003809257

JCJWM0281GB

SE-46

< COMPONENT DIAGNOSIS >

[WITH VENTILATION SEAT]

POWER SEAT

JCJWM0282GB

POWER SEAT

SE-47

< COMPONENT DIAGNOSIS >

[WITH VENTILATION SEAT]

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

JCJWM0283GB

SE-48

< COMPONENT DIAGNOSIS >

[WITH VENTILATION SEAT]

POWER SEAT

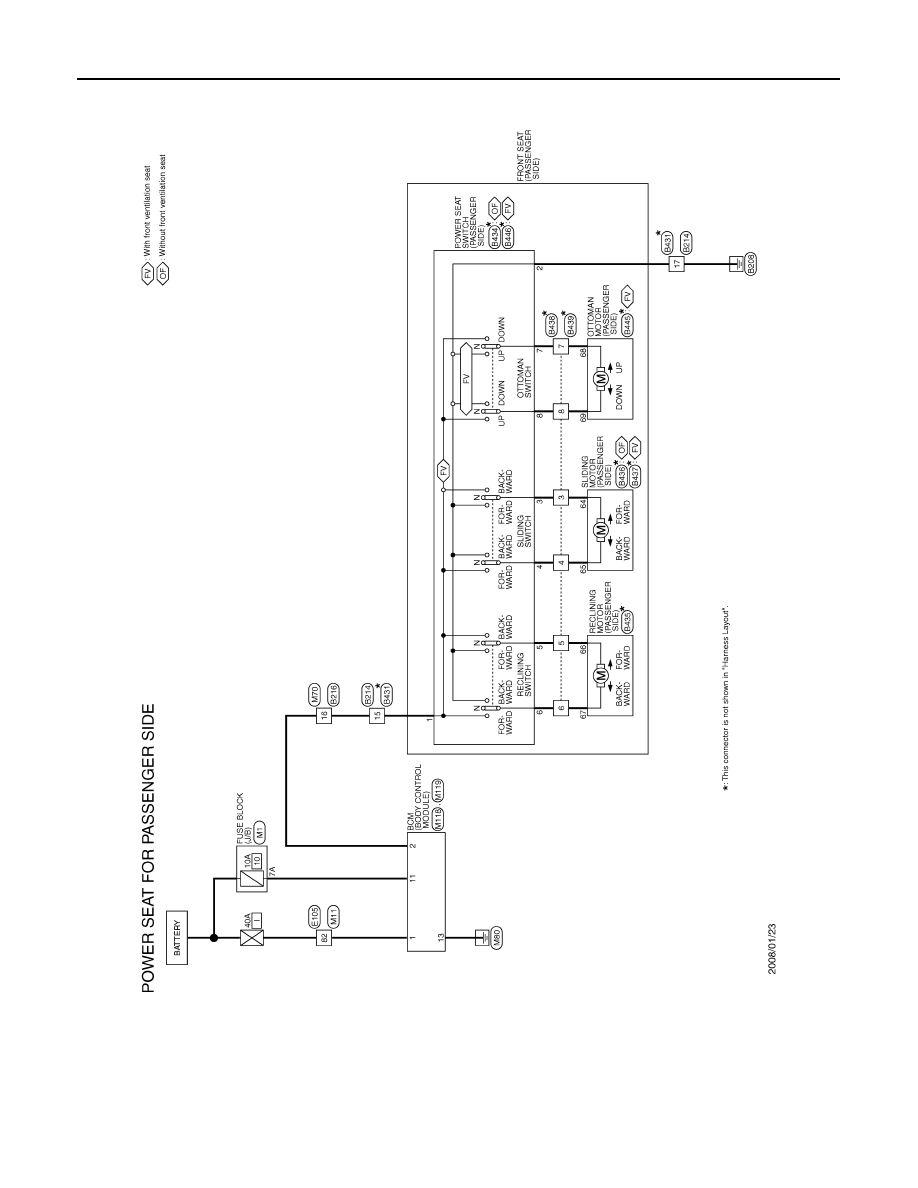

Wiring Diagram - POWER SEAT FOR PASSENGER SIDE -

INFOID:0000000003809258

JCJWM0284GB
