Nissan Teana J32. Manual - part 968





DIAGNOSIS AND REPAIR WORK FLOW

SE-5

< BASIC INSPECTION >

[WITH VENTILATION SEAT]

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000003809297

DETAILED FLOW

1.

OBTAIN INFORMATION ABOUT SYMPTOM

Interview the customer to obtain as much information as possible about the malfunction (conditions and envi-
ronment when the malfunction occurred) when the customer brings the vehicle in.

>> GO TO 2.

2.

REPRODUCE THE MALFUNCTION INFORMATION

Check the malfunction on the vehicle that the customer describes.
Inspect the relation of the symptoms and the condition when the symptoms occur.

>> GO TO 3.

3.

IDENTIFY THE MALFUNCTIONING SYSTEM WITH “SYMPTOM DIAGNOSIS”

Use “Symptom diagnosis” from the symptom inspection result in step 2 and then identify where to start per-
forming the diagnosis based on possible causes and symptoms.

>> GO TO 4.

4.

IDENTIFY THE MALFUNCTIONING PARTS WITH “COMPONENT DIAGNOSIS”

Perform the diagnosis with “Component diagnosis” of the applicable system.

>> GO TO 5.

5.

REPAIR OR REPLACE THE MALFUNCTIONING PARTS

Repair or replace the specified malfunctioning parts.

>> GO TO 6.

6.

FINAL CHECK

Check that malfunctions are not reproduced when obtaining the malfunction information from the customer,
referring to the symptom inspection result in step 2.

Are the malfunctions corrected?

YES

>> INSPECTION END

NO

>> GO TO 3.

SE-6

< FUNCTION DIAGNOSIS >

[WITH VENTILATION SEAT]

POWER SEAT

FUNCTION DIAGNOSIS

POWER SEAT

System Description

INFOID:0000000003809302

BCM can operate regardless of the ignition switch position, because battery power is supplied at all times to
power seat switch.

SLIDING OPERATION

While operating the sliding switch located in power seat switch, sliding motor operates and adjusts the front
and back position of the seat.

RECLINING OPERATION

While operating the reclining switch located in power seat switch, reclining motor operates and adjusts the for-
ward and backward position of the seatback.

LIFTING OPERATION

While operating the lifting switch located in power seat switch (driver side), lifting motor operates and adjusts
the up and down position of the seat cushion.

OTTOMAN OPERATION

While operating the ottoman switch located in power seat switch (passenger side), ottoman motor operates
and adjusts the up and down position of the ottoman.

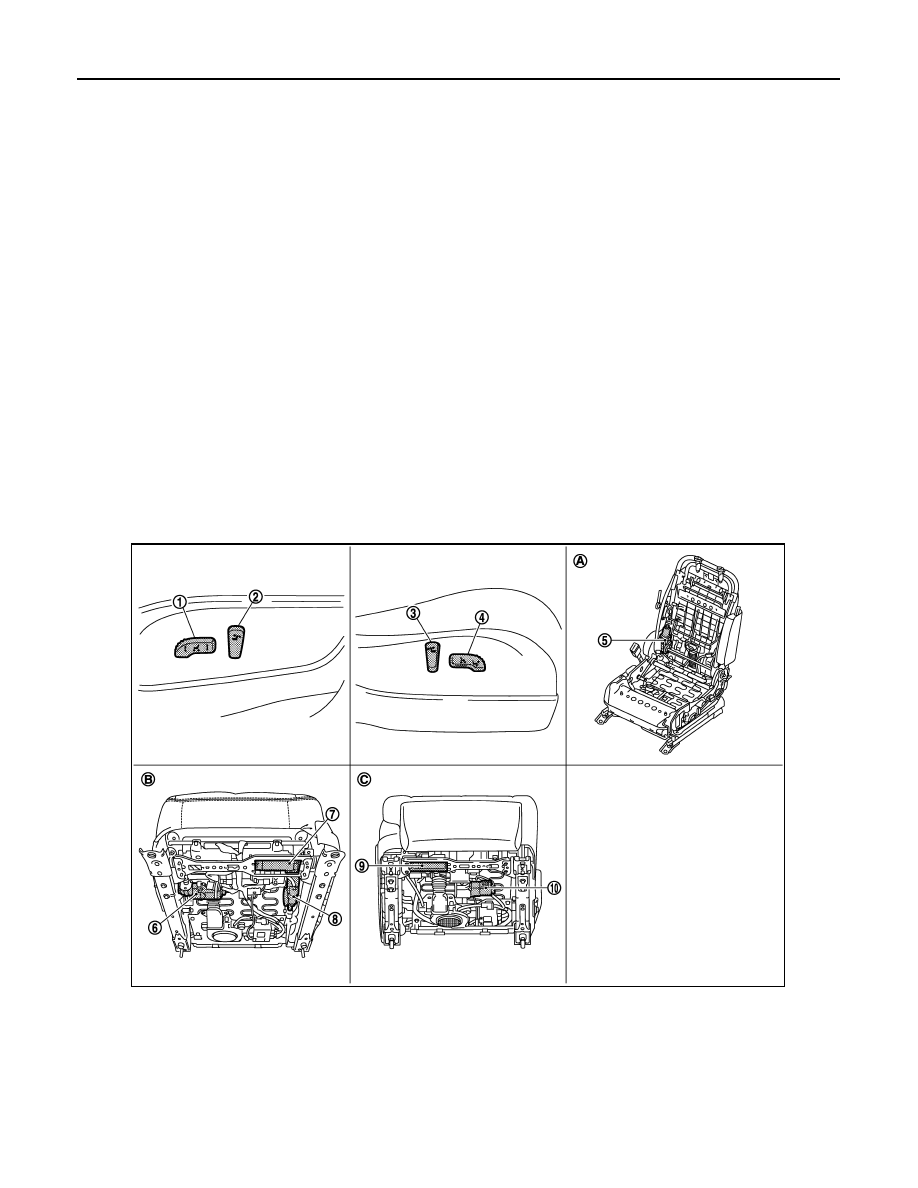

Component Parts Location

INFOID:0000000003809303

1.

Sliding switch and lifting switch (driv-
er side) B414

2.

Reclining switch (driver side) B414

3.

Reclining switch (passenger side)
B446

4.

Sliding switch and ottoman switch
B446

5.

Reclining motor (driver side) B415

6.

Lifting motor (front) (driver side) B417

7.

Sliding motor (driver side) B416

8.

Lifting motor (rear) (driver side) B418 9.

Sliding motor (passenger side) B437

JMJIA1838ZZ

POWER SEAT

SE-7

< FUNCTION DIAGNOSIS >

[WITH VENTILATION SEAT]

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

Component Description

INFOID:0000000003809304

10. Ottoman motor B445

A.

View with seat cushion pad and seat-
back pad removed.

B.

Backside of seat cushion
(driver side)

C.

Backside of seat cushion
(passenger side)

Item

Function

BCM

Supplies at all times the power received from battery to power seat switch

Power seat switch
(driver side)

Built-in reclining switch, sliding switch and lifting switch, controls the power supplied to each motor

Power seat switch
(passenger side)

Built-in reclining switch, sliding switch and ottoman switch, controls the power supplied to each mo-
tor

Reclining motor

With the power supplied from power seat switch, operates forward and backward movement of
seatback

Sliding motor

With the power supplied from power seat switch, operates forward and backward slide of seat

Lifting motor (front/rear)

With the power supplied from power seat switch, operates up and down movement of seat cushion

Ottoman motor

With the power supplied from power seat switch, operates up and down movement of ottoman

SE-8

< FUNCTION DIAGNOSIS >

[WITH VENTILATION SEAT]

HEATED SEAT

HEATED SEAT

System Diagram

INFOID:0000000003820817

System Description

INFOID:0000000003820814

• The heated seat system is controlled by the ventilation seat control unit.
• The heated seat system consists of the heated seat switch, the heater unit and the ventilation seat control

unit.

• The function of the heated seat system is to warm the seat surface.
• The heated seat system has a LO and HI mode that can be switched back and forth. The LO mode warms

the seat surface slowly and the HI mode warms it quickly.
The indicator on the heated seat switch indicates the operating status of each mode.
NOTE:
• The memory function is adopted for the front seat. When the ignition switch turns ON again after turning

OFF, while the heated seat is being operated, the heated seat system restarts at the same warmness as
the previous operation.

• For the rear seat, when the ignition switch turns ON again after turning OFF, while the heated seat is being

operated, the heated seat system does not restart and stays in the OFF position.

• While the heated seat system is being operated, the ventilation seat system becomes invalid.

LO MODE OPERATION

• When the LO button of the heated seat switch is pressed, while the ignition switch is ON, the ventilation seat

control unit supplies the seat heater with the LO mode power supply and simultaneously illuminates the LO
mode indicator in the heated seat switch.

• The seat heater warms the seat cushion and seatback to a low temperature by the LO mode power supply.
• When the LO button is pressed again, while the heated seat switch is in the LO mode position, the indicator

and the heated seat switch turn OFF.

HI MODE OPERATION

• When the HI button of the heated seat switch is pressed, while the ignition switch is ON, the Ventilation and

Heated seat control unit supplies the seat heater with the HI mode power supply and simultaneously illumi-
nates the HI mode indicator in the heated seat switch.

• The seat heater warms the seat cushion and seatback to a high temperature by the HI mode power supply.
• When the HI button is pressed again, while the heated seat switch is in the HI mode position, the indicator

and the heated seat switch turn OFF.

FAIL-SAFE

The fail-safe function is adopted for the ventilation seat control unit. Refer to

SE-59, "FRONT SEAT : Fail-

safe"

.

JMJIA1932GB
