REAR SEAT BELT

SB-9

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

Grasp the shoulder webbing and pull forward quickly. The retractor should lock and prevent the belt from
extending further.

ALR Function Stationary Check

1.

Pull out the entire length of seat belt from retractor until a click is heard.

2.

Retract the webbing partially. A clicking noise should be heard as the webbing retracts indicating that the
retractor is in the Automatic Locking Retractors (ALR) mode.

3.

Grasp the seat belt and try to pull out the retractor. The webbing must lock and not extend any further. If
NG, replace the retractor assembly.

4.

Allow the entire length of the webbing to retract to cancel the automatic locking mode.

ELR Function Moving Check

WARNING:

Perform the following test in a safe, open area clear of other vehicles and obstructions (for example, a
large, empty parking lot). Road surface must be paved and dry. NEVER perform the following test on
wet or gravel roads or on public streets and highways. This could result in an accident and serious
personal injury. The driver and passenger must be prepared to brace themselves in the event that the
retractor does not lock.

1.

Fasten driver seat belt. Buckle a passenger into the seat for the belt that is to be tested.

2.

Proceed to the designated safe area.

3.

Drive the vehicle at approximately 16 km/h (10 MPH). Notify any passengers of a pending sudden stop
and the driver and passenger must be prepared to brace themselves in the event that the retractor does
not lock, apply brakes firmly and make a very hard stop.

During stopping, seat belts should lock and not be extended. If the seat belt retractor assembly does not lock,
perform the retractor off-vehicle check.

SEAT BELT RETRACTOR OFF-VEHICLE CHECK

1.

Remove the seat belt retractor.
Remove the rear seat belt assembly, refer to

SB-10, "SEAT BELT RETRACTOR : Removal and Installa-

tion"

.

2.

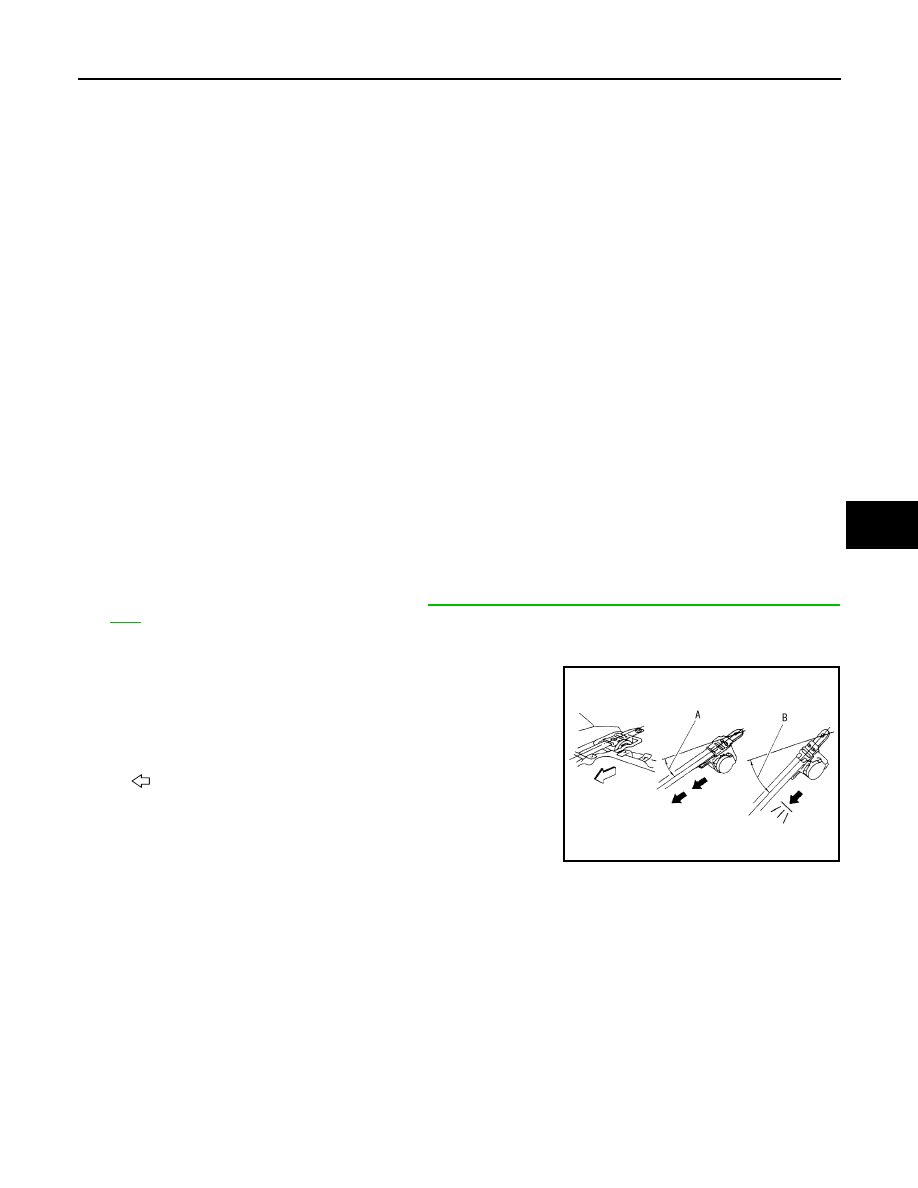

Slowly pull out webbing while tilting the retractor assembly forward from the mounted position without
twisting the retractor assembly as shown in the illustration.
• The webbing can be pulled out when the angle (A) is 15

degrees or more.

• The webbing cannot be pulled out when the angle (B) is 27

degrees or more.

3.

If the seat belt assembly dose not operate normally, replace the seat belt assembly.

A and B

: Tilting angles

: Vehicle front

PHIA0962J

SB-10

< ON-VEHICLE REPAIR >

REAR SEAT BELT

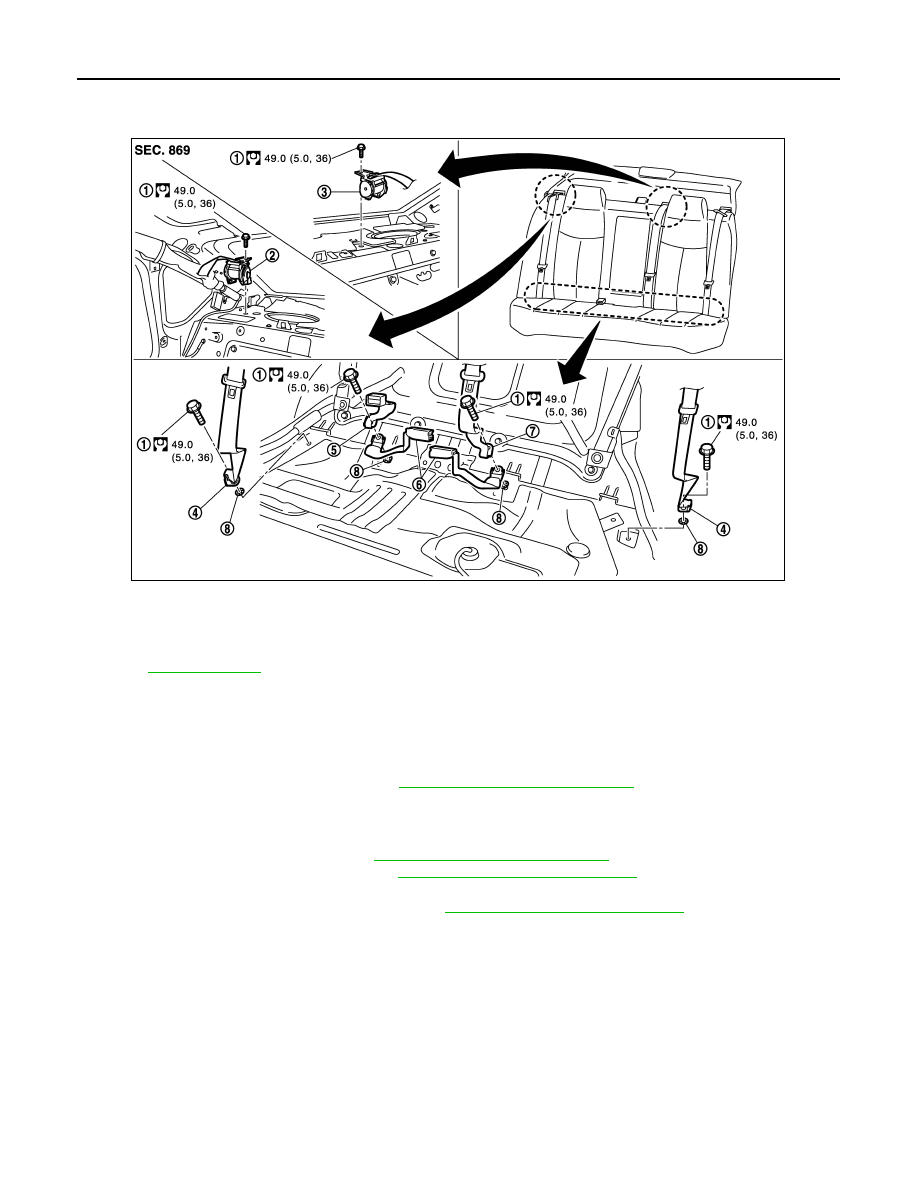

SEAT BELT RETRACTOR : Exploded View

INFOID:0000000003848859

SEAT BELT RETRACTOR : Removal and Installation

INFOID:0000000003848860

REMOVAL

1.

Remove the outer and inner anchors.
• Remove the rear seat cushion. Refer to

SE-99, "Removal and Installation"

.

• Remove the outer anchor fixing anchor bolt and the anchor bolt tightening the inner anchor together with

the seat belt buckle.

2.

Remove the seat belt assembly.
• Remove the rear seatback. Refer to

SE-99, "Removal and Installation"

.

• Remove the rear pillar finisher. Refer to

INT-39, "Removal and Installation"

.

• Remove the seat belt finisher from the rear parcel shelf finisher.
• Remove the rear parcel shelf finisher. Refer to

INT-43, "Removal and Installation"

.

• Remove the fixing anchor bolt of the seat belt retractor.

INSTALLATION

Install in the reverse order of removal.

SEAT BELT BUCKLE

SEAT BELT BUCKLE : Inspection

INFOID:0000000003848861

AFTER A COLLISION

WARNING:

Inspect all seat belt assemblies including retractors and attached hardware after any collision.

1.

Anchor bolt

2.

Outer seat belt retractor

3.

Center seat belt retractor

4.

Outer anchor

5.

Inner seat belt buckle

6.

Outer seat belt buckle

7.

Inner anchor

8.

Retaining washer

Refer to

GI-4, "Components"

 for symbols in the figure.

JMHIA0647GB

REAR SEAT BELT

SB-11

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

NISSAN/INFINITI recommends that all seat belt assemblies in use during a collision be replaced
unless the collision was minor and the belts show no damage and continue to operate properly. Not
doing so could result in serious personal injury in an accident. Seat belt assemblies not in use during
a collision should also be replaced if either damage or improper operation is noted. Seat belt pre-ten-
sioners should be replaced even if the seat belts are not in use during a frontal collision in which the
air bags are deployed.
Replace any seat belt assembly (including anchor bolts) if:
• The seat belt is in use at the time of a collision (except for minor collisions and the belts, retractors and buck-

les show no damage and continue to operate properly).

• The seat belt is damaged in an accident. (i.e. torn webbing, bent retractor or guide, etc.)
• The seat belt attaching point is damaged in an accident. Inspect the seat belt attaching area for damage or

distortion and repair if necessary before installing a new seat belt assembly.

• Anchor bolts are deformed or worn out.
• The seat belt pre-tensioner must be replaced even if the seat belts are not in use during the collision in which

the air bags are deployed.

PRELIMINARY CHECKS

1.

Check that the seat belt retractor, seat belt anchor and buckle bolts are securely attached.

2.

Repeat step above as necessary to check the other seat belts.

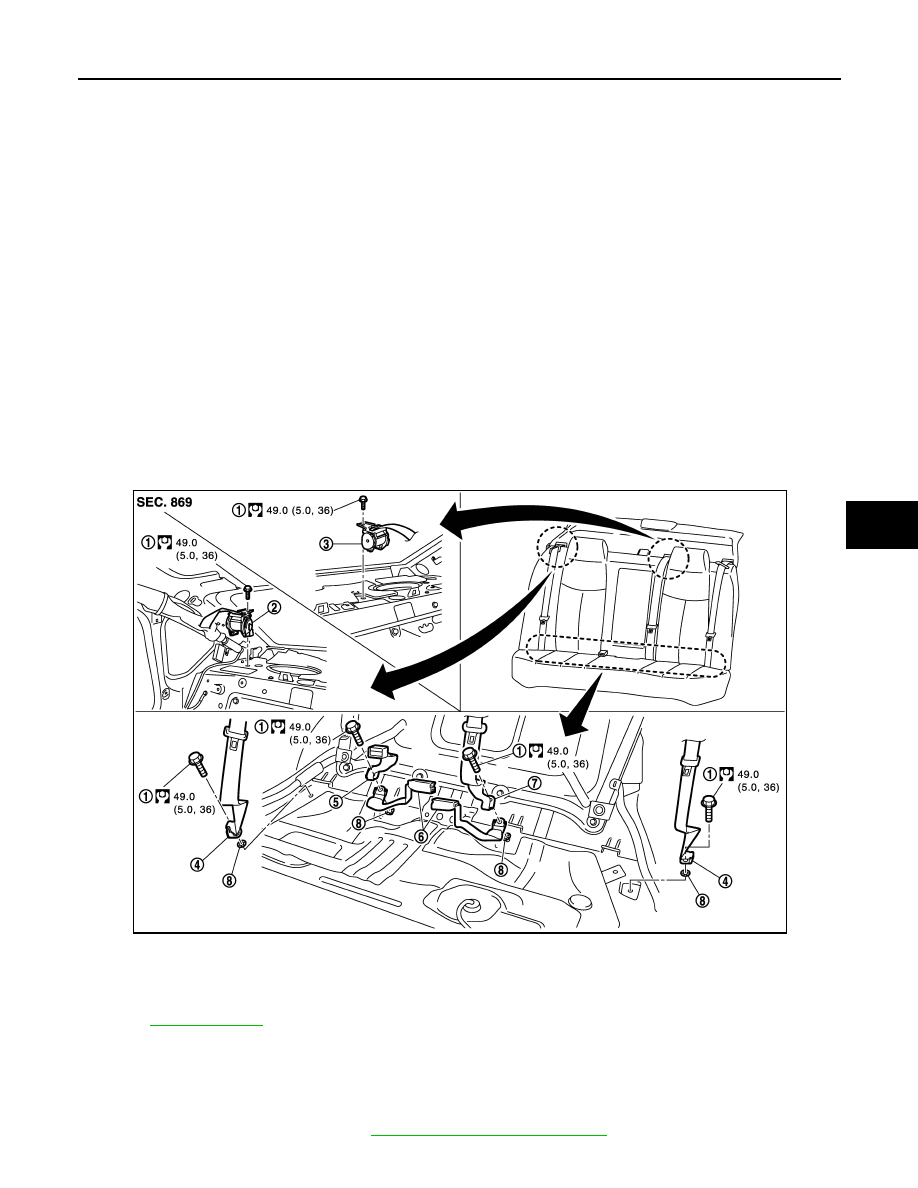

SEAT BELT BUCKLE : Exploded View

INFOID:0000000003860685

SEAT BELT BUCKLE : Removal and Installation

INFOID:0000000003848863

REMOVAL

Remove the seat belt buckle.
• Remove the rear seat cushion. Refer to

SE-99, "Removal and Installation"

.

1.

Anchor bolt

2.

Outer seat belt retractor

3.

Center seat belt retractor

4.

Outer anchor

5.

Inner seat belt buckle

6.

Outer seat belt buckle

7.

Inner anchor

8.

Retaining washer

Refer to

GI-4, "Components"

 for symbols in the figure.

JMHIA0647GB

SB-12

< ON-VEHICLE REPAIR >

REAR SEAT BELT

• Remove the fixing anchor bolt of the inner seat belt buckle and outer seat belt buckle.

INSTALLATION

Install in the reverse order of removal.
