ON-VEHICLE MAINTENANCE

REAR SUSPENSION ASSEMBLY

Inspection

INFOID:0000000003811139

MOUNTING INSPECTION

Make sure the mounting conditions (looseness, backlash) of each component and component conditions
(wear, damage) are normal.

SHOCK ABSORBER

Check for oil leakage and damage. Replace if necessary.

RSU-6

< ON-VEHICLE MAINTENANCE >

WHEEL ALIGNMENT

WHEEL ALIGNMENT

Inspection

INFOID:0000000003813442

DESCRIPTION

Measure wheel alignment under unladen conditions.
NOTE:
“Unladen conditions” means that fuel, engine coolant, and lubricant are full. Spare tire, jack, hand tools and
mats are in designated positions.

PRELIMINARY CHECK

Check the following:
• Tires for improper air pressure and wear
• Road wheels for runout: refer to

WT-2, "Inspection"

.

• Wheel bearing axial end play: refer to

RAX-3, "Inspection"

.

• Shock absorber operation
• Each mounting point of axle and suspension for looseness and deformation
• Each of lower link, upper link, rear suspension member, suspension arm and shock absorber for cracks,

deformation, and other damage

• Vehicle height (posture)

CAMBER

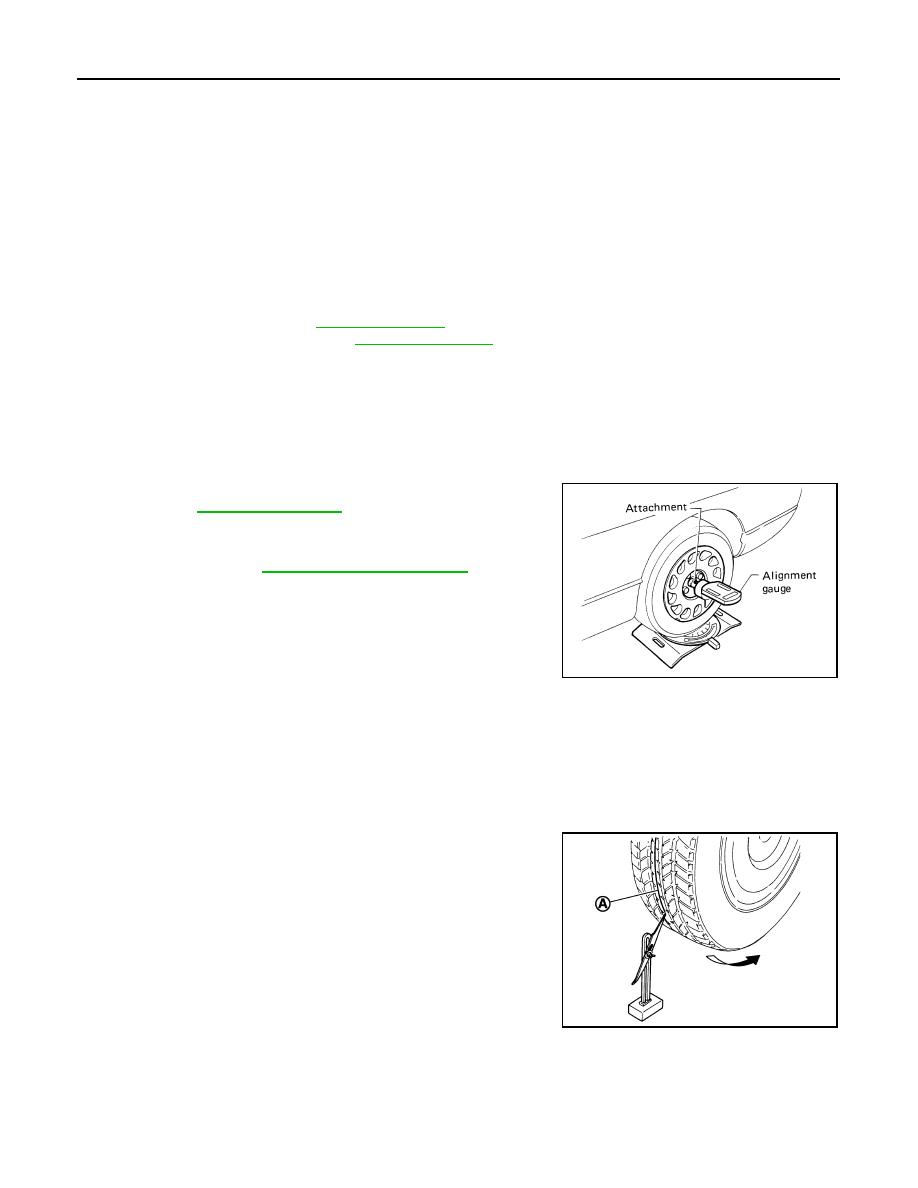

• Measure camber of both right and left wheels with a suitable alignment gauge.
• If camber is outside specified range, adjust with adjusting bolt in

lower. Refer to

RSU-7, "Adjustment"

.

TOE-IN

Measure toe-in by the following procedure.

WARNING:

• Always perform the following procedure on a flat surface.
• Make sure that no person is in front of vehicle before pushing it.
1.

Bounce the front of vehicle up and down to stabilize the vehicle height (posture).

2.

Push vehicle straight ahead about 5 m (16 ft).

3.

Put matching mark (A) on base line of the tread (rear side) of
both tires at the same height of hub center. These are measur-
ing points.

Standard

Camber: Refer to

RSU-20, "Wheel Alignment"

.

SRA096A

JPEIA0014ZZ

WHEEL ALIGNMENT

RSU-7

< ON-VEHICLE MAINTENANCE >

C

D

F

G

H

I

J

K

L

M

A

B

RSU

N

O

P

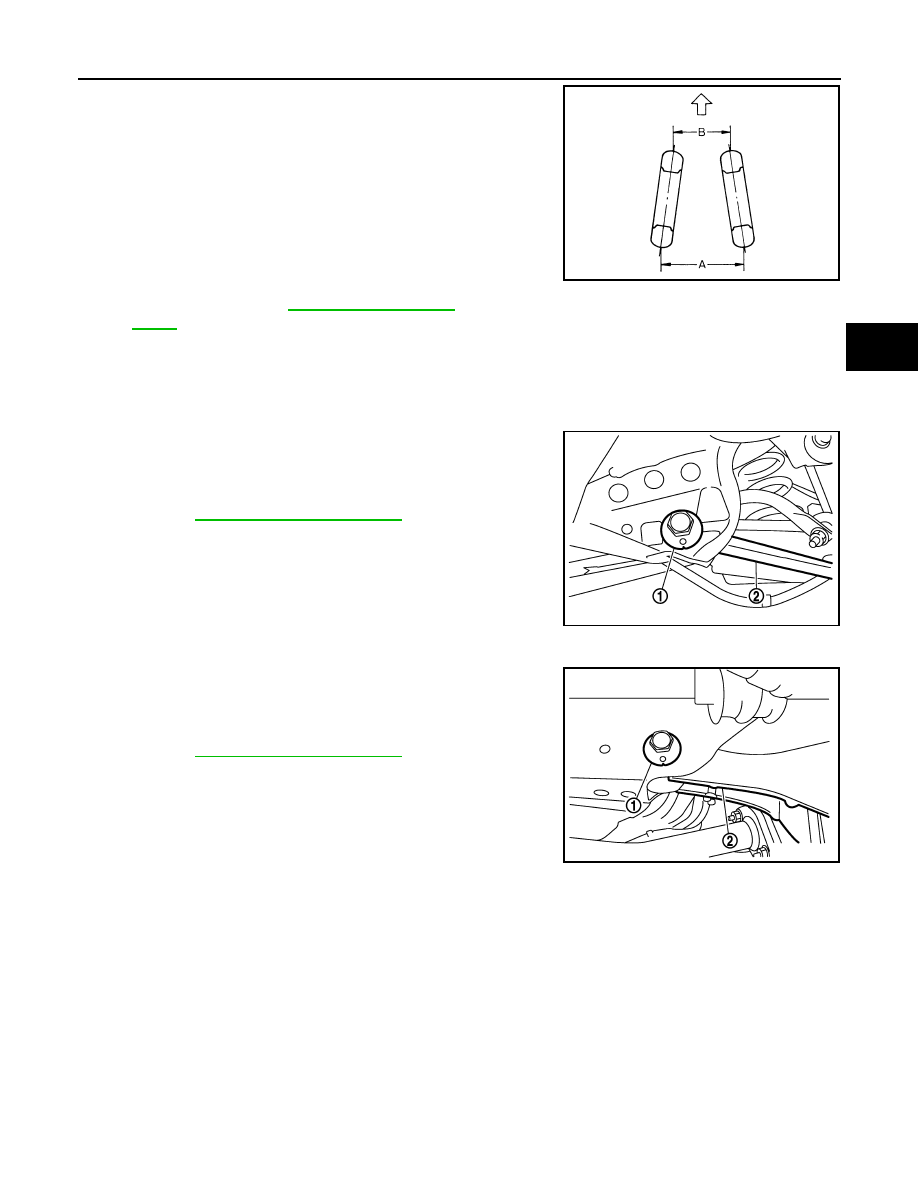

4.

Measure distance (A) (rear side).

5.

Push vehicle slowly ahead to rotate wheels 180 degrees (1/2
turn).
NOTE:
If the wheels rotates more than 180 degrees (1/2 turn), start this
procedure again from the beginning. Do not push the vehicle
backward.

6.

Measure distance (B) (front side).

• If toe-in is outside specified range, adjust with adjusting bolt in suspension arm.

Adjustment

INFOID:0000000003813443

CAMBER

If camber is outside of specified range, adjust with adjusting bolt (1)
in front lower link (2).

CAUTION:

• When tightening the nut firmly and checking the torque, use a

wrench to prevent the turning of bolt.

• After adjusting camber, be sure to check toe-in.
• If camber exceeds the standard value, inspect and replace any

damaged or worn suspension parts.

TOE-IN

If toe-in is outside of specified range, adjust with adjusting bolt (1) in
rear lower link (2).

CAUTION:

• Be sure to adjust equally on right and left side with adjusting

bolt.

• When tightening the nut firmly and checking the torque, use a

wrench to prevent the turning of bolt.

• If toe-in is outside of specified range, inspect and replace any dam-

aged or worn suspension parts.

Standard

Total toe-in = A

−

 B

Total toe-in: Refer to

RSU-20, "Wheel Align-

ment"

.

JPEIA0015ZZ

Standard

Refer to

RSU-20, "Wheel Alignment"

.

JPEIB0109ZZ

Standard

Refer to

RSU-20, "Wheel Alignment"

.

JPEIB0110ZZ

RSU-8

< ON-VEHICLE REPAIR >

REAR LOWER LINK & COIL SPRING

ON-VEHICLE REPAIR

REAR LOWER LINK & COIL SPRING

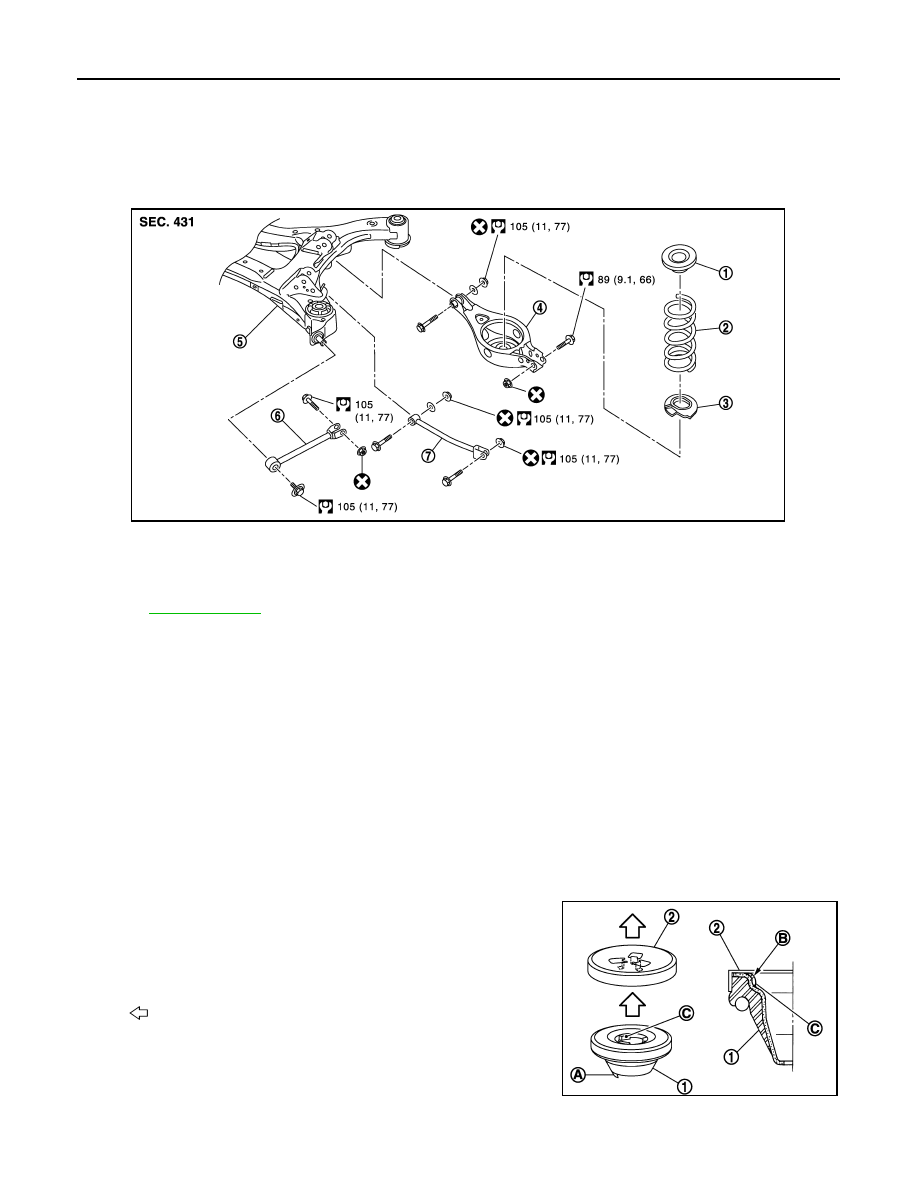

Exploded View

INFOID:0000000003811142

Removal and Installation

INFOID:0000000003811143

REMOVAL

1.

Remove tires.

2.

Set jack under rear lower link.

3.

Loosen rear lower link mounting bolt and nut (rear suspension member side), and then remove rear lower
link mounting bolt and nut (axle housing side).

4.

Slowly lower jack, then remove upper seat, coil spring and rubber seat from rear lower link.

5.

Remove rear lower link mounting bolt and nut (rear suspension member side), and remove rear lower link.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Make sure that upper seat is attached as shown in the figure.

CAUTION:

• Make sure keep the upper seat (1) to place protrusion for

projection (A) on outside of vehicle (lateral direction of vehi-
cle).

• Make sure that the projection (C) on upper seat inside is

securely fitted on the bracket (2) tabs (B).

• Match up rubber seat indentions and rear lower link grooves and

attach.

1.

Upper seat

2.

Coil spring

3.

Rubber seat

4.

Rear lower link

5.

Rear suspension member

6.

Radius rod

7.

Front lower link

Refer to

GI-4, "Components"

 for symbols in the figure.

JPEIB0108GB

: Body

JPEIB0082ZZ
