REAR LOWER LINK & COIL SPRING

RSU-9

< ON-VEHICLE REPAIR >

C

D

F

G

H

I

J

K

L

M

A

B

RSU

N

O

P

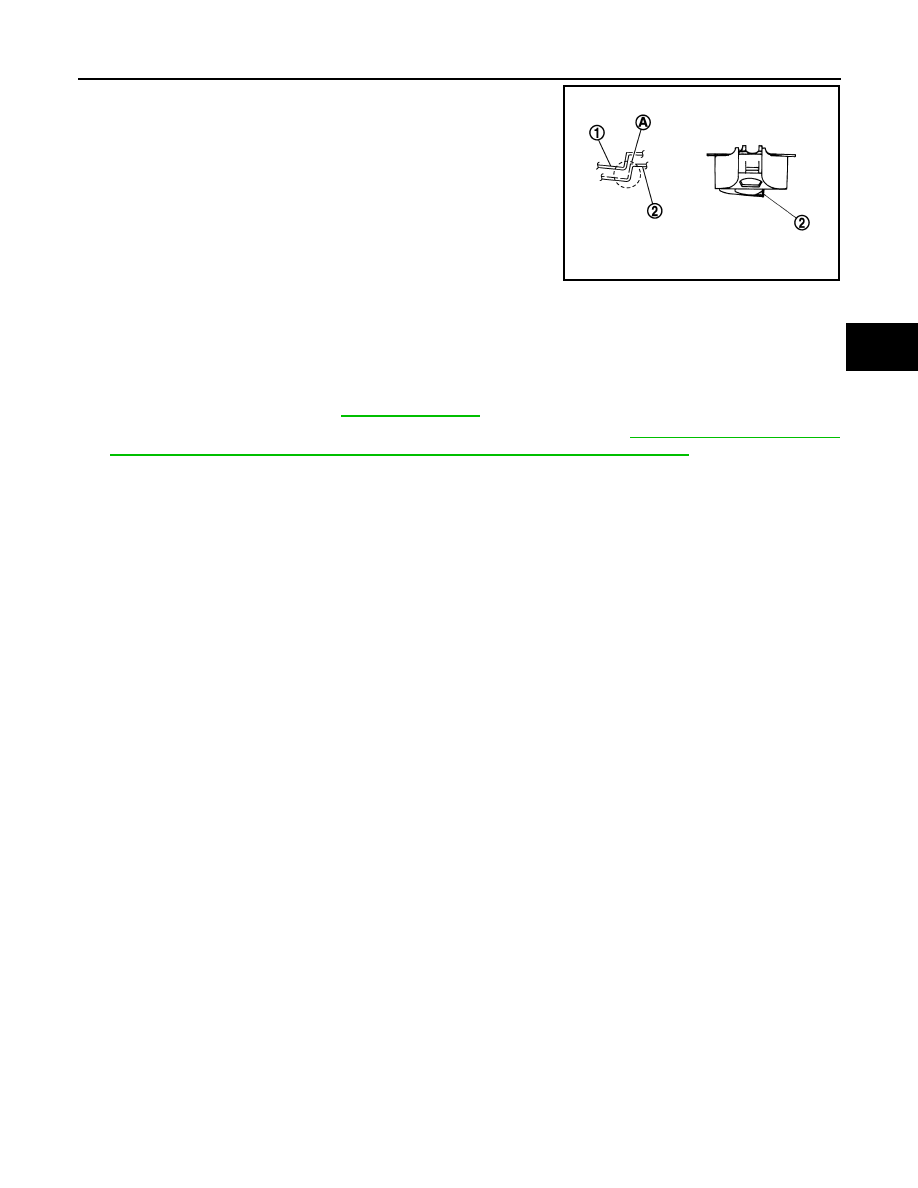

• Install coil spring by aligning lower end of the coil spring to step (A)

between rubber seat (1) and rear lower link (2).

CAUTION:

Set coil spring so that its paint marks are aligned with the
positions of 3.0 turns (2 places) and 4.0 turns (1 place) or 4.0
turns (2 places) and 5.0 turns (1 place) from the bottom end of
the coil spring.

• Perform the final tightening of rear suspension member and axle

installation position (rubber bushing) under unladen condition with
tires on level ground.

Inspection

INFOID:0000000003811144

INSPECTION AFTER REMOVAL

Check lower link, bushing and coil spring for deformation, crack, and damage. Replace if necessary.

INSPECTION AFTER INSTALLATION

1.

Check wheel alignment. Refer to

RSU-6, "Inspection"

.

2.

Adjust neutral position of steering angle sensor (with VDC). Refer to

BRC-66, "ADJUSTMENT OF

STEERING ANGLE SENSOR NEUTRAL POSITION : Special Repair Requirement"

.

JPEIB0122ZZ

RSU-10

< ON-VEHICLE REPAIR >

REAR SHOCK ABSORBER

REAR SHOCK ABSORBER

Exploded View

INFOID:0000000003811145

Removal and Installation

INFOID:0000000003811146

REMOVAL

1.

Remove tires.

2.

Remove wheel sensor and sensor harness. Refer to

BRC-58, "REAR WHEEL SENSOR : Exploded View"

(without VDC),

BRC-152, "REAR WHEEL SENSOR : Exploded View"

 (with VDC).

3.

Separate stabilizer connecting rod (lower side). Refer to

RSU-15, "Exploded View"

.

4.

Set suitable jack under axle housing to relieve the coil spring tension.

5.

Remove shock absorber mounting bolt (lower side).

6.

Gradually lower the jack to remove it from rear axle.

7.

Remove shock absorber mounting nuts (upper side) (

), and

remove shock absorber assembly.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Perform final tightening of bolts and nuts at the shock absorber lower side (rubber bushing), under unladen

conditions with tires on level ground.

Inspection

INFOID:0000000003811147

INSPECTION AFTER REMOVAL

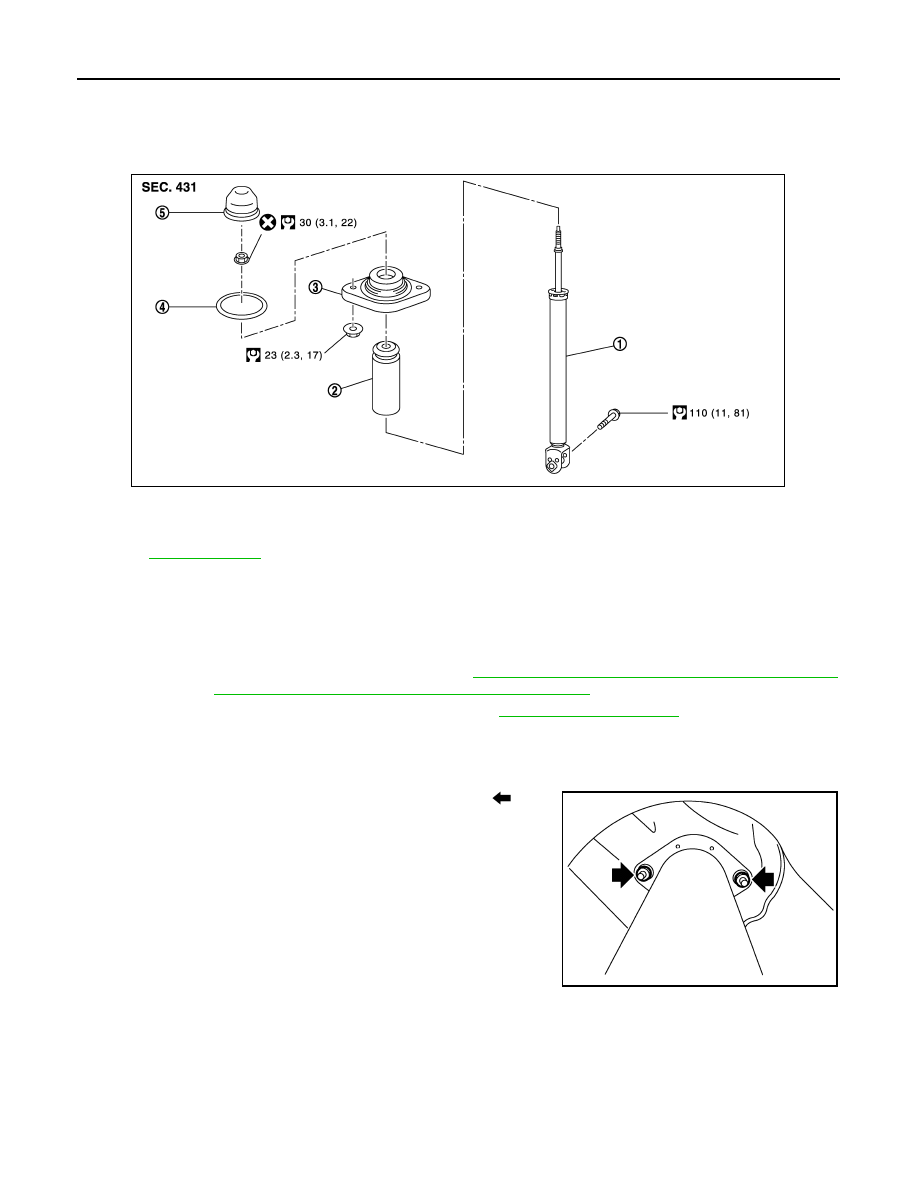

1.

Shock absorber

2.

Bound bumper

3.

Shock absorber mounting bracket

4.

Mounting seal

5.

Cap

Refer to

GI-4, "Components"

 for symbols in the figure.

JPEIB0123GB

JPEIB0111ZZ

REAR SHOCK ABSORBER

RSU-11

< ON-VEHICLE REPAIR >

C

D

F

G

H

I

J

K

L

M

A

B

RSU

N

O

P

Check the following items, and replace the if necessary.
• Shock absorber for deformation, cracks, damage.
• Welded and sealed areas for oil leakage.
• Piston rod for damage, uneven wear or distortion.
• Seal of shock absorber mounting bracket for cracks, damage and come off.

INSPECTION AFTER INSTALLATION

Check wheel sensor harness for proper connection. Refer to

BRC-58, "REAR WHEEL SENSOR : Exploded

View"

 (without VDC),

BRC-152, "REAR WHEEL SENSOR : Exploded View"

 (with VDC).

RSU-12

< ON-VEHICLE REPAIR >

RADIUS ROD

RADIUS ROD

Exploded View

INFOID:0000000003811148

Removal and Installation

INFOID:0000000003811149

REMOVAL

1.

Remove tire.

2.

Remove wheel sensor and sensor harness. Refer to

BRC-58, "REAR WHEEL SENSOR : Exploded View"

(without VDC),

BRC-152, "REAR WHEEL SENSOR : Exploded View"

 (with VDC).

3.

Remove rear lower link and coil spring. Refer to

RSU-8, "Exploded View"

.

4.

Remove shock absorber mounting bolt (lower side). Refer to

RSU-10, "Exploded View"

.

5.

Remove front lower link mounting bolt and nut (axle housing side). Refer to

RSU-14, "Exploded View"

.

6.

Loosen front lower link mounting bolt and nut (suspension member side). Refer to

RSU-14, "Exploded

View"

.

7.

Remove radius rod mounting bolts and nuts (axle housing side).

8.

Remove radius rod mounting bolt (rear suspension member side), and then remove radius rod.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Perform final tightening of rear suspension member and axle installation position (rubber bushing), under

unladen conditions with tires on level ground.

Inspection

INFOID:0000000003811150

INSPECTION AFTER REMOVAL

Check radius rod and bushing for any deformation, cracks, or damage. Replace if necessary.

INSPECTION AFTER INSTALLATION

1.

Check wheel sensor harness for proper connection. Refer to

BRC-58, "REAR WHEEL SENSOR :

Exploded View"

 (without VDC),

BRC-152, "REAR WHEEL SENSOR : Exploded View"

 (with VDC).

2.

Check wheel alignment. Refer to

RSU-6, "Inspection"

.

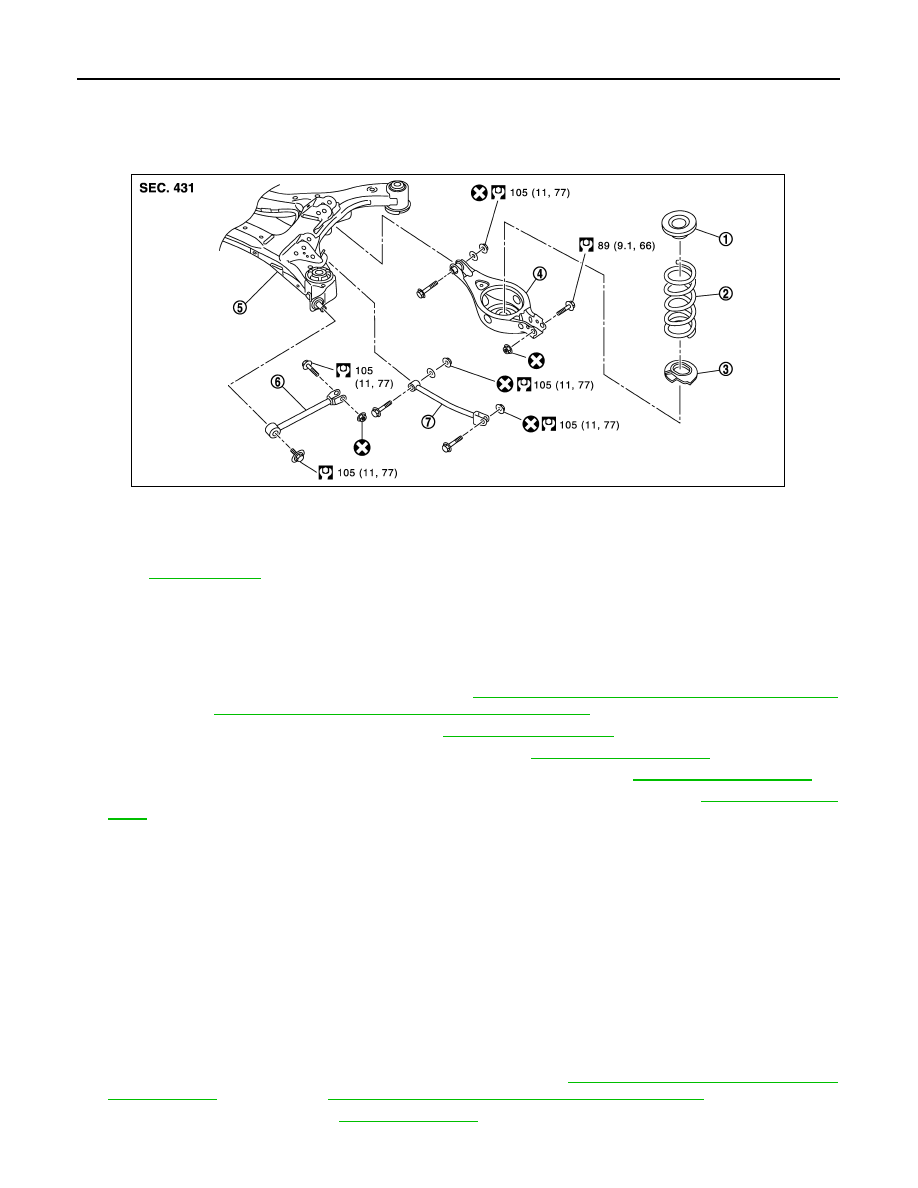

1.

Upper seat

2.

Coil spring

3.

Rubber seat

4.

Rear lower link

5.

Rear suspension member

6.

Radius rod

7.

Front lower link

Refer to

GI-4, "Components"

 for symbols in the figure.

JPEIB0108GB
