PWO-4

< COMPONENT DIAGNOSIS >

POWER SOCKET

POWER SOCKET

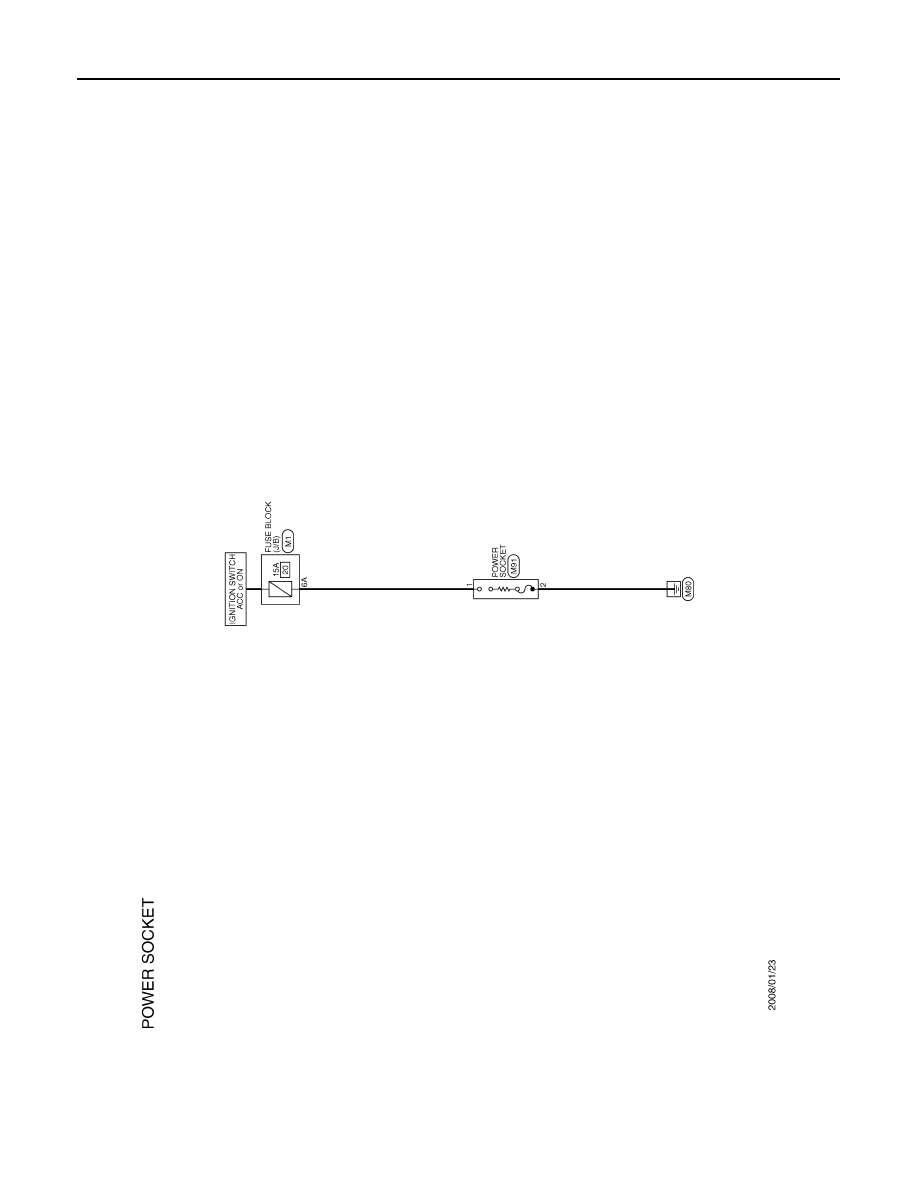

Wiring Diagram - POWER SOCKET -

INFOID:0000000003792629

JCMWM1669GB

PWO

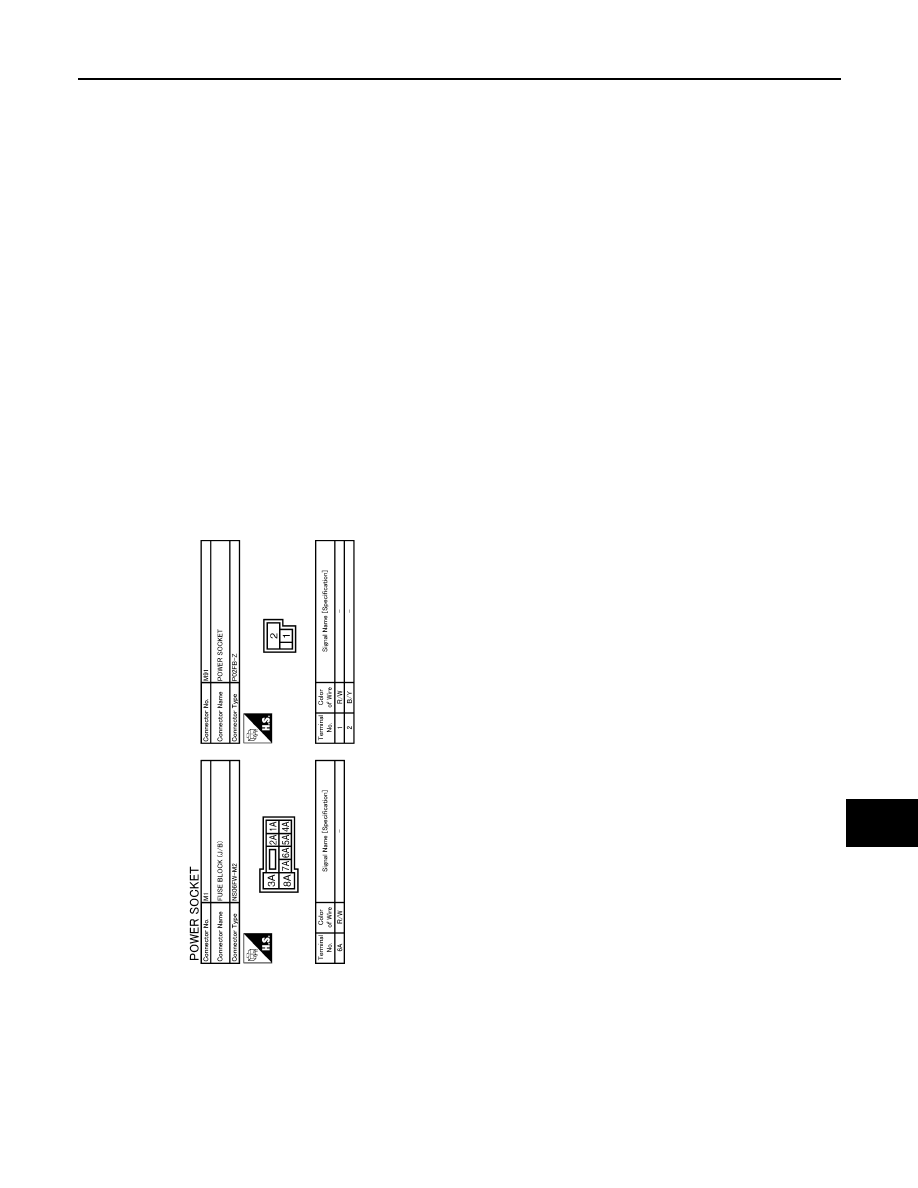

POWER SOCKET

PWO-5

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JCMWM1670GB

PWO-6

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000003844336

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIRBAG” and
“SEAT BELT” of this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SRS AIRBAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PWO

CIGARETTE LIGHTER

PWO-7

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

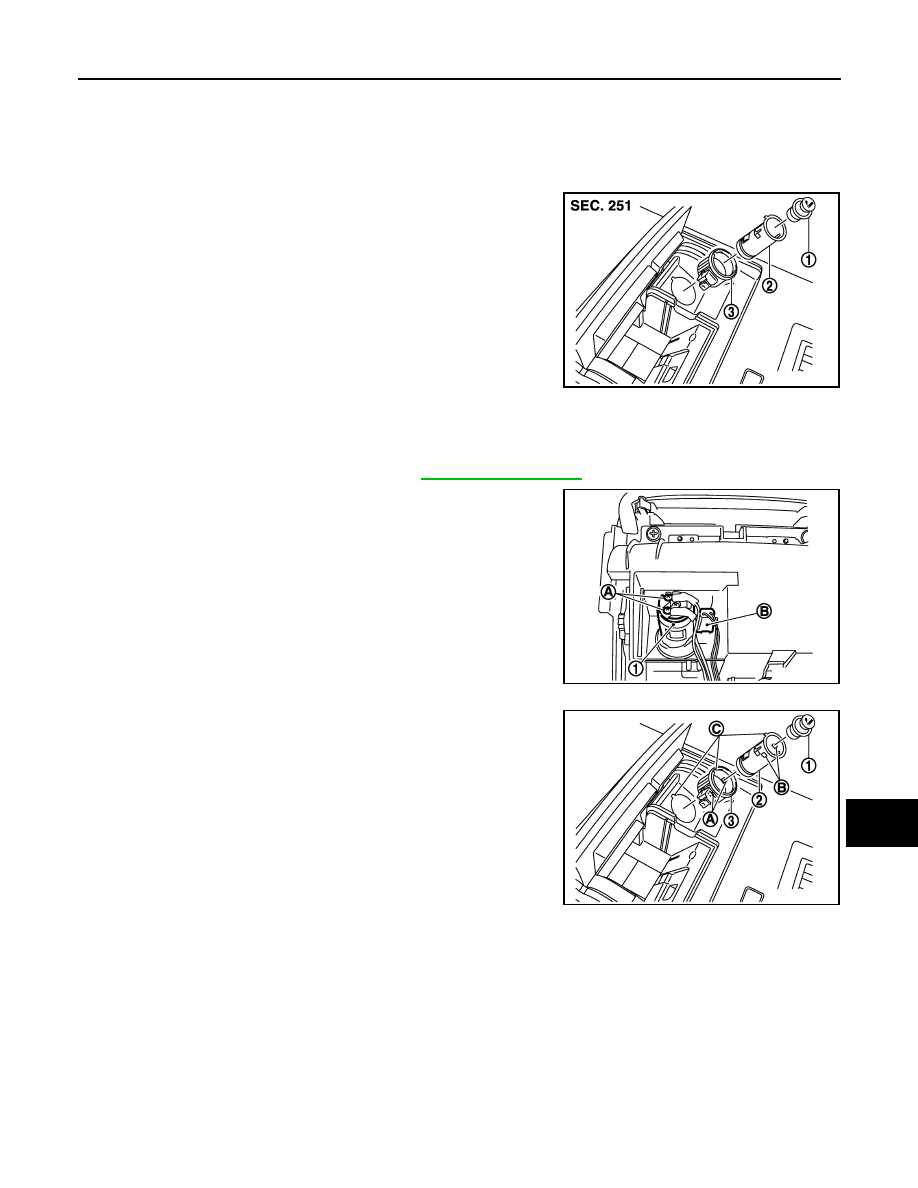

ON-VEHICLE REPAIR

CIGARETTE LIGHTER

Exploded View

INFOID:0000000003792643

Removal and Installation

INFOID:0000000003792644

REMOVAL

1.

Remove console ashtray assembly. Refer to

IP-22, "Exploded View"

.

2.

Remove the screws (A) from reverse side cigarette lighter
socket (1).

3.

Disconnect illumination connector (B) (Models with illumination
connector).

4.

Pull out cigarette lighter (1).

5.

Pull out cigarette lighter socket (2) by pushing the cigarette
lighter ring pawl (A) from the cigarette lighter socket hole
(square) (B).

6.

Remove cigarette lighter ring (3) from console ashtray assembly
while pressing pawls.

INSTALLATION

Install in the reverse order of removal.
NOTE:
Align cigarette lighter socket, cigarette lighter ring and console ashtray assembly cut out.

1

: Cigarette lighter

2

: Cigarette lighter socket

3

: Cigarette lighter ring

JPMIA1024ZZ

JPMIA1028ZZ

C

: Cut out

JPMIA1025ZZ
