POWER WINDOW SWITCH DOES NOT ILLUMINATE

Diagnosis Procedure

INFOID:0000000003826049

1.

REPLACE POWER WINDOW MAIN SWITCH

Replace power window main switch.

>> Refer to

PWC-85, "Removal and Installation"

.

PWC-84

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000003826050

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIRBAG” and “SEAT BELT” of this
Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SRS AIRBAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

Precaution Necessary for Steering Wheel Rotation after Battery Disconnect

INFOID:0000000003826051

NOTE:
• Before removing and installing any control units, first turn the push-button ignition switch to the LOCK posi-

tion, then disconnect both battery cables.

• After finishing work, confirm that all control unit connectors are connected properly, then re-connect both

battery cables.

• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.

If a DTC is detected, perform trouble diagnosis according to self-diagnosis results.

This vehicle is equipped with a push-button ignition switch and a steering lock unit.
If the battery is disconnected or discharged, the steering wheel will lock and cannot be turned.
If turning the steering wheel is required with the battery disconnected or discharged, follow the procedure
below before starting the repair operation.

OPERATION PROCEDURE

1.

Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.

2.

Turn the push-button ignition switch to ACC position.
(At this time, the steering lock will be released.)

3.

Disconnect both battery cables. The steering lock will remain released with both battery cables discon-
nected and the steering wheel can be turned.

4.

Perform the necessary repair operation.

5.

When the repair work is completed, re-connect both battery cables. With the brake pedal released, turn
the push-button ignition switch from ACC position to ON position, then to LOCK position. (The steering
wheel will lock when the push-button ignition switch is turned to LOCK position.)

6.

Perform self-diagnosis check of all control units using CONSULT-III.

POWER WINDOW MAIN SWITCH

PWC-85

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

ON-VEHICLE REPAIR

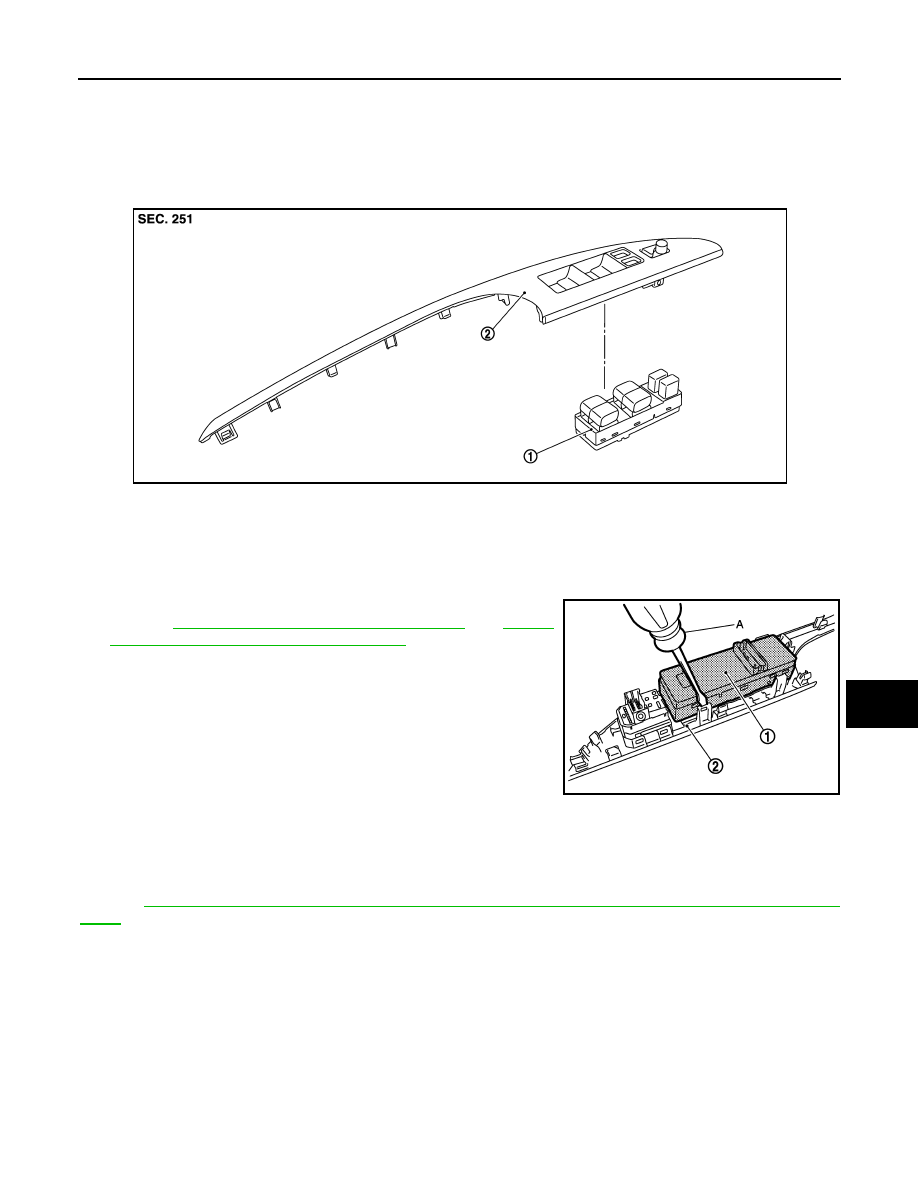

POWER WINDOW MAIN SWITCH

Exploded View

INFOID:0000000003826052

Removal and Installation

INFOID:0000000003826053

REMOVAL

1.

Remove the power window main switch finisher (2).
Refer to

INT-30, "DRIVER SIDE : Exploded View"

 and

INT-30,

"DRIVER SIDE : Removal and Installation"

.

2.

Power window main switch (1) is removed from power window
main switch finisher (2) using flat-bladed screw driver (A) etc.

CAUTION:

Never fold the pawl of power window main switch finisher.

INSTALLATION

Install in the reverse order of removal.
NOTE:
If power window main switch is exchanged or is detached, it is necessary to perform the initialization proce-
dure.
Refer to

PWC-6, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Require-

ment"

.

1.

Power window main switch

2.

Power window main switch finisher

JMKIA2558ZZ

JMKIA2559ZZ

PWC-86

< ON-VEHICLE REPAIR >

FRONT POWER WINDOW SWITCH (PASSENGER SIDE)

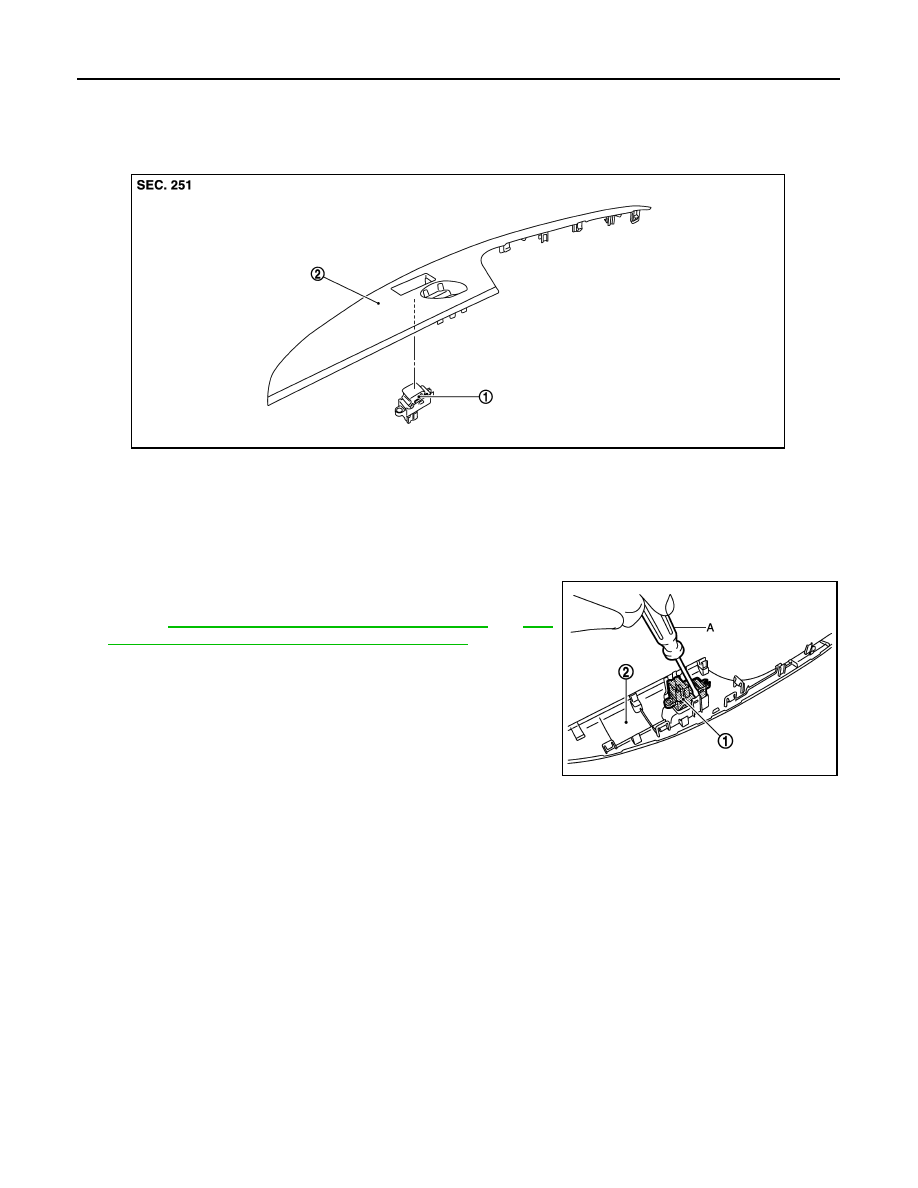

FRONT POWER WINDOW SWITCH (PASSENGER SIDE)

Exploded View

INFOID:0000000003857778

Removal and Installation

INFOID:0000000003857779

REMOVAL

1.

Remove the front power window switch finisher (passenger
side) (2).
Refer to

INT-33, "PASSENGER SIDE : Exploded View"

 and

INT-

33, "PASSENGER SIDE : Removal and Installation"

.

2.

Front power window switch (passenger side) (1) is removed
from front power window switch finisher (passenger side) (2)
using flat-bladed screw driver (A) etc.

CAUTION:

Never fold pawl of front power window switch finisher (passen-
ger side).

INSTALLATION

Install in the reverse order of removal.

1.

Front power window switch
(passenger side)

2.

Front power window switch finisher
(passenger side)

JMKIA2560ZZ

JMKIA2561ZZ
