Nissan Teana J32. Manual - part 908

PG

BATTERY TERMINAL WITH FUSIBLE LINK

PG-111

< ON-VEHICLE REPAIR >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

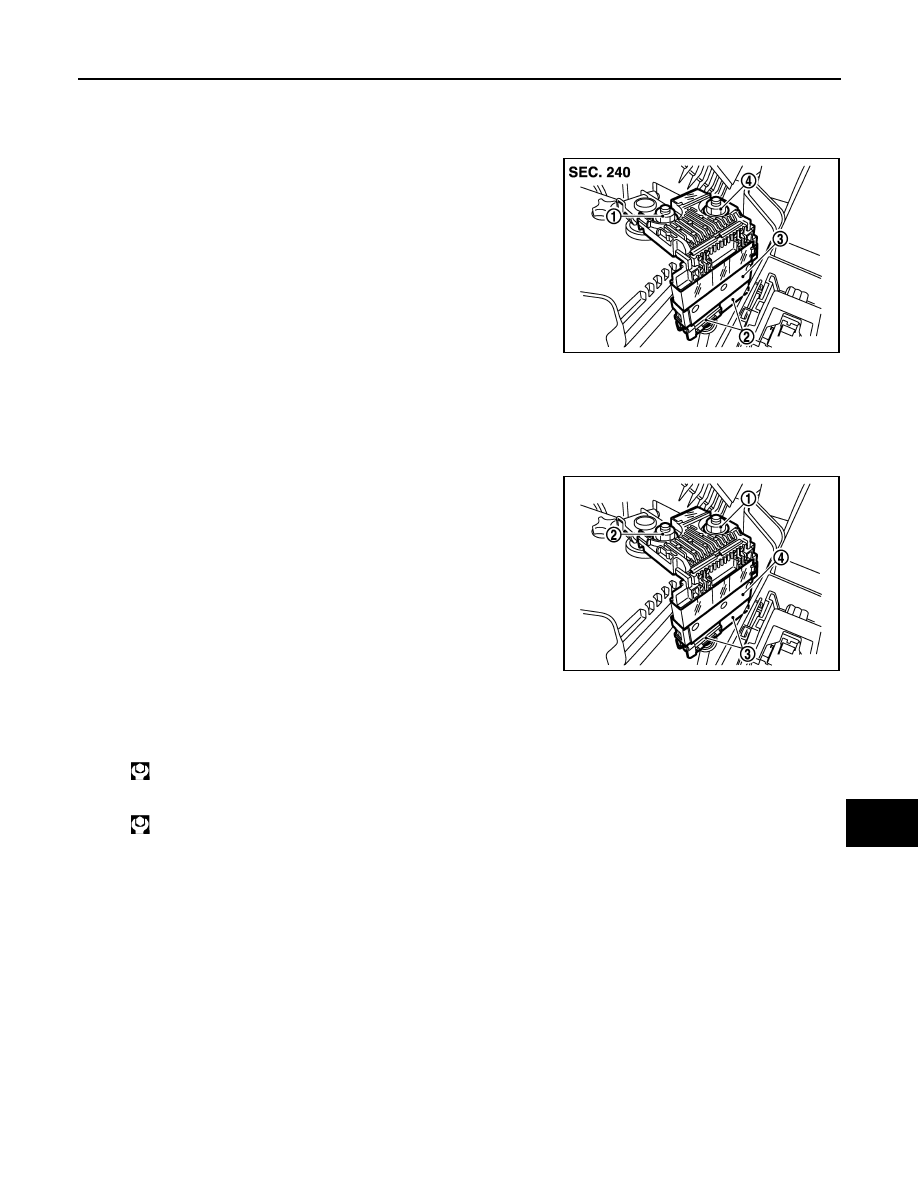

BATTERY TERMINAL WITH FUSIBLE LINK

Exploded View

INFOID:0000000003792692

Removal and Installation

INFOID:0000000003792693

REMOVAL

1.

Disconnect the battery cable from the negative terminal.

2.

Remove cover of battery positive terminal.

3.

Remove harness mounting nut (1) and fusible link holder mount-
ing nut (2).

4.

Disconnect harness connector (3) and remove battery terminal
with fusible link (4).

INSTALLATION

Install in the reverse order of removal.

1

: Fusible link holder mounting nut

2

: Harness connector

3

: Battery terminal with fusible link

4

: Harness mounting nut

JPMIA1022ZZ

JPMIA1023ZZ

Harness mounting nut

: 13.5 N·m (1.4 kg-m, 10 ft-lb)

Fusible link holder mounting nut

: 13.5 N·m (1.4 kg-m, 10 ft-lb)

PG-112

< SERVICE DATA AND SPECIFICATIONS (SDS)

[POWER SUPPLY&GROUND CIRCUIT]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Battery

INFOID:0000000003792694

Type

110D26L

20 hour rate capacity

[V - Ah]

12 - 75

Cold cranking current (For reference value)

[A]

720

PWC-1

BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

C

D

E

F

G

H

I

J

L

M

SECTION

PWC

A

B

PWC

N

O

P

CONTENTS

POWER WINDOW CONTROL SYSTEM

BASIC INSPECTION  ....................................

4

DIAGNOSIS AND REPAIR WORKFLOW  ..........

4

WorkFlow ..................................................................

4

INSPECTION AND ADJUSTMENT .....................

5

ADDITIONAL SERVICE WHEN REMOVING BAT-
TERY NEGATIVE TERMINAL .....................................

5

ADDITIONAL SERVICE WHEN REMOVING
BATTERY NEGATIVE TERMINAL : Description ......

5

ADDITIONAL SERVICE WHEN REMOVING
BATTERY NEGATIVE TERMINAL : Special Re-
pair Requirement .......................................................

5

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT  ..........................................................

5

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT : Description  ..................................

5

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT : Special Repair Requirement  .......

6

FUNCTION DIAGNOSIS ...............................

7

POWER WINDOW SYSTEM ...............................

7

System Diagram .......................................................

7

System Description  ...................................................

7

Component Parts Location ......................................

8

Component Description .............................................

8

DIAGNOSIS SYSTEM (BCM)  ............................

10

COMMON ITEM  .........................................................

10

COMMON ITEM : CONSULT-III Function (BCM -
COMMON ITEM) .....................................................

10

RETAINED PWR  .......................................................

11

RETAINED PWR : CONSULT-III Function (BCM -
RETAINED PWR)  ...................................................

11

COMPONENT DIAGNOSIS  .........................

12

POWER SUPPLY AND GROUND CIRCUIT ......

12

BCM ...........................................................................

12

BCM : Diagnosis Procedure  ....................................

12

POWER WINDOW MAIN SWITCH ............................

12

POWER WINDOW MAIN SWITCH : Diagnosis
Procedure ................................................................

12

FRONT POWER WINDOW SWITCH (PASSEN-
GER SIDE)  .................................................................

13

FRONT POWER WINDOW SWITCH (PASSEN-
GER SIDE) : Diagnosis Procedure ..........................

13

REAR POWER WINDOW SWITCH  ...........................

14

REAR POWER WINDOW SWITCH : Diagnosis
Procedure ................................................................

14

FRONT POWER WINDOW SWITCH (PAS-
SENGER SIDE)  .................................................

16

Description ...............................................................

16

Component Function Check  ....................................

16

Diagnosis Procedure  ...............................................

16

Component Inspection .............................................

17

REAR POWER WINDOW SWITCH  ..................

18

Description ...............................................................

18

Component Function Check  ....................................

18

Diagnosis Procedure  ...............................................

18

Component Inspection .............................................

19

POWER WINDOW MOTOR  ..............................

20

DRIVER SIDE .............................................................

20

DRIVER SIDE : Description .....................................

20

DRIVER SIDE : Component Function Check  ..........

20

DRIVER SIDE : Diagnosis Procedure  .....................

20

DRIVER SIDE : Component Inspection ...................

21

PASSENGER SIDE ....................................................

21

PASSENGER SIDE : Description ............................

21

PASSENGER SIDE : Component Function Check

....

21

PASSENGER SIDE : Diagnosis Procedure  ............

21

PASSENGER SIDE : Component Inspection ..........

22

PWC-2

REAR LH ...................................................................

23

REAR LH : Description  ...........................................

23

REAR LH : Component Function Check  ................

23

REAR LH : Diagnosis Procedure ............................

23

REAR LH : Component Inspection  .........................

24

REAR RH  ..................................................................

24

REAR RH : Description  ..........................................

24

REAR RH : Component Function Check  ................

24

REAR RH : Diagnosis Procedure  ...........................

25

REAR RH : Component Inspection  ........................

26

DOOR SWITCH  .................................................

27

Description ..............................................................

27

Component Function Check .................................

27

Diagnosis Procedure  ..............................................

27

Component Inspection ............................................

28

ENCODER CIRCUIT ..........................................

29

Description ..............................................................

29

Component Function Check  ...................................

29

Diagnosis Procedure  ..............................................

29

ECU DIAGNOSIS  ........................................

32

BCM (BODY CONTROL MODULE)  ..................

32

Reference Value  .....................................................

32

Wiring Diagram - BCM -  .........................................

55

Fail-safe ..................................................................

61

DTC Inspection Priority Chart ..............................

63

DTC Index ..............................................................

64

POWER WINDOW MAIN SWITCH ....................

66

Reference Value  .....................................................

66

Wiring Diagram - POWER WINDOW SYSTEM - ...

68

Fail-safe ..................................................................

72

SYMPTOM DIAGNOSIS  .............................

74

POWER WINDOWS DO NOT OPERATE
WITH ANY POWER WINDOW SWITCHES  ......

74

Diagnosis Procedure  ..............................................

74

DRIVER SIDE POWER WINDOW DOES NOT
OPERATE ..........................................................

75

Diagnosis Procedure  ..............................................

75

FRONT PASSENGER SIDE POWER WIN-
DOW DOES NOT OPERATE  ............................

76

WITH BOTH POWER WINDOW MAIN SWITCH
AND FRONT PASSENGER SIDE POWER WIN-
DOW SWITCH ...........................................................

76

WITH BOTH POWER WINDOW MAIN SWITCH
AND FRONT PASSENGER SIDE POWER WIN-
DOW SWITCH : Diagnosis Procedure  ...................

76

POWER WINDOW MAIN SWITCH IS OPERATED ...

76

POWER WINDOW MAIN SWITCH IS OPERAT-
ED : Diagnosis Procedure  ......................................

76

REAR LH SIDE POWER WINDOW DOES
NOT OPERATE  .................................................

77

WITH BOTH POWER WINDOW MAIN SWITCH
AND REAR POWER WINDOW SWITCH LH ............

77

WITH BOTH POWER WINDOW MAIN SWITCH
AND REAR POWER WINDOW SWITCH LH : Di-
agnosis Procedure  ..................................................

77

WITH REAR POWER WINDOW SWITCH LH
ONLY .........................................................................

77

WITH REAR POWER WINDOW SWITCH LH
ONLY : Diagnosis Procedure ..................................

77

REAR RH SIDE POWER WINDOW DOES
NOT OPERATE  .................................................

78

WITH BOTH POWER WINDOW MAIN SWITCH
AND REAR POWER WINDOW SWITCH RH  ...........

78

WITH BOTH POWER WINDOW MAIN SWITCH
AND REAR POWER WINDOW SWITCH RH : Di-
agnosis Procedure  ..................................................

78

WITH REAR POWER WINDOW SWITCH RH
ONLY .........................................................................

78

WITH REAR POWER WINDOW SWITCH RH
ONLY : Diagnosis Procedure ..................................

78

ANTI-PINCH SYSTEM DOES NOT OPERATE
NORMALLY (DRIVER SIDE)  ............................

79

Diagnosis Procedure ...............................................

79

POWER WINDOW RETAINED POWER OP-
ERATION DOES NOT OPERATE PROPERLY

...

80

Diagnosis Procedure ...............................................

80

AUTO OPERATION DOES NOT OPERATE
BUT MANUAL OPERATE NORMALLY
(DRIVER SIDE)  ..................................................

81

Diagnosis Procedure ...............................................

81

POWER WINDOW LOCK SWITCH DOES
NOT FUNCTION  ................................................

82

Diagnosis Procedure ...............................................

82

POWER WINDOW SWITCH DOES NOT IL-
LUMINATE .........................................................

83

Diagnosis Procedure ...............................................

83

PRECAUTION ............................................

84

PRECAUTIONS  .................................................

84

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

84

Precaution Necessary for Steering Wheel Rota-
tion after Battery Disconnect ...................................

84

ON-VEHICLE REPAIR  ...............................

85

POWER WINDOW MAIN SWITCH  ...................

85
