IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE
ROOM)

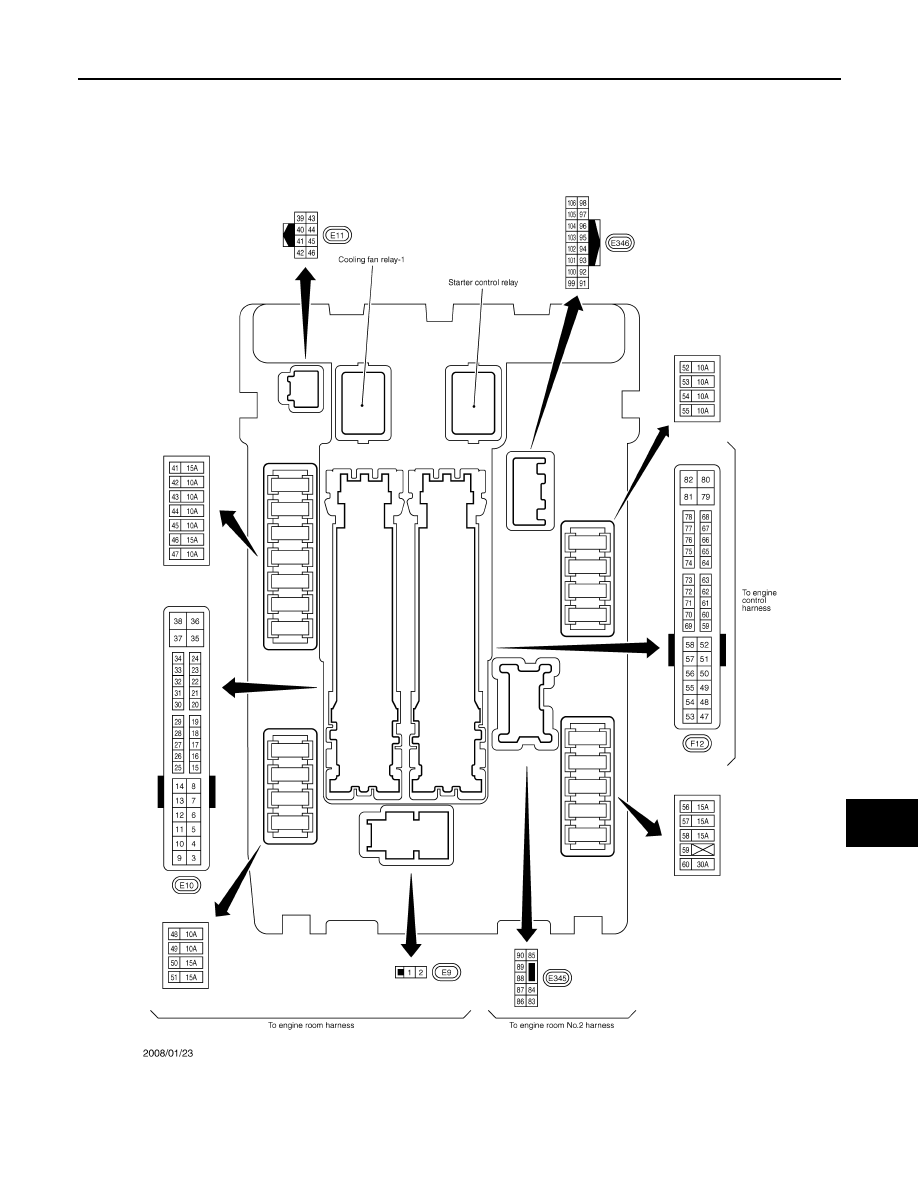

Fuse, Connector and Terminal Arrangement

INFOID:0000000003792686

JCMWM1768GB

PG-104

< PRECAUTION >

[POWER SUPPLY&GROUND CIRCUIT]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000003844339

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIRBAG” and
“SEAT BELT” of this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SRS AIRBAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PG

BATTERY CHARGING CHART

PG-105

< ON-VEHICLE MAINTENANCE >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ON-VEHICLE MAINTENANCE

BATTERY CHARGING CHART

Slow Charge

INFOID:0000000003809462

1.

DETERMINE INITIAL CHARGING CURRENT

1.

Determine initial charging current from specific gravity.

2.

Check battery type and determine the specified current using the table.

NOTE:
After starting charging, adjustment of charging current is not necessary.

Initial Charging Current Setting (Slow Charge)

>> GO TO 2.

2.

CHARGE BATTERY

1.

Charge battery.

2.

Check charge voltage 30 minutes after starting the battery charge.

Is the voltage between 12 V and 15 V?

YES

>> GO TO 3.

NO

>> Replace battery.

3.

CHARGE BATTERY

Continue to charge for 12 hours.



>> GO TO 4.

4.

CHECKING SPECIFIC GRAVITY

Check specific gravity. Refer to

PG-3, "How to Handle Battery"

.

Is the specific gravity 1.240 or more?

YES

>> Complete slow charge. Perform “CAPACITY TEST”. Refer to

PG-5, "Work Flow"

.

NO

>> GO TO 5.

5.

CONDUCT ADDITIONAL CHARGE

Add charging time depending on specific gravity.

Additional Charge (Slow Charge)



>> Complete slow charge. Perform “CAPACITY TEST”. Refer to

PG-5, "Work Flow"

.

CAUTION:

CONVERTED

SPECIFIC

GRAVITY

BATTERY TYPE

28

B19

R

(L)

34

B19

R

(L)

46

B24

R

(L)

55

B24

R

(L)

50

D23

R

(L)

55

D23

R

(L)

025 [YUASA type code]

027 [YUASA type code]

80

D23

R

(L)

65

D26

R

(L)

80

D26

R

(L)

067 [YUASA type code]

096 [YUASA type code]

75

D31

R

(L)

95

D31

R

(L)

1

1

5

D

31

R(L)

1

1

0

D

26

R(L)

95

E41

R

(L)

13

0E

41

R(L

)

Below 1.100

4.0 (A)

5.0 (A)

7.0 (A)

8.0 (A)

8.5
(A)

9.0
(A)

10.0 (A)

14.0

(A)

SPECIFIC GRAVITY

CHARGING TIME (h)

Below 1.150

5

1.150 - 1.200

4

1.200 - 1.240

2

PG-106

< ON-VEHICLE MAINTENANCE >

[POWER SUPPLY&GROUND CIRCUIT]

BATTERY CHARGING CHART

• Set charging current to value specified in “Initial Charging Current Setting (Slow Charge)”. If charger

is not capable of producing specified current value, set its charging current as close to that value as
possible.

• Keep battery away from open flame while it is being charged.
• When connecting charger, connect leads first, then turn on charger. Never turn on charger first, as

this may cause a spark.

• If battery temperature rises above 55

°

C (131

°

F), stop charging. Always charge battery when its tem-

perature is below 55

°

C (131

°

F).

Standard Charge

INFOID:0000000003809463

1.

DETERMINE INITIAL CHARGING CURRENT

1.

Determine initial charging current from specific gravity.

2.

Check battery type and determine the specified current using the table.

NOTE:
After starting charging, adjustment of charging current is not necessary.

Initial Charging Current Setting (Standard Charge)

>> GO TO 2.

2.

CHARGE BATTERY

Charge battery for 8 hours.

>> GO TO 3.

3.

CHECKING SPECIFIC GRAVITY

Check specific gravity. Refer to

PG-3, "How to Handle Battery"

.

Is the specific gravity 1.240 or more?

YES

>> Complete standard charge. Perform “CAPACITY TEST”. Refer to

PG-5, "Work Flow"

.

NO

>> GO TO 4.

4.

CONDUCT ADDITIONAL CHARGE

Add charging time depending on specific gravity.

Additional Charge (Standard Charge)

CONVERTED SPECIFIC

GRAVITY

BATTERY TYPE

28

B19

R

(L)

34

B19

R

(L)

46

B24

R

(L)

55

B24

R

(L)

50

D23

R

(L)

55

D23

R

(L)

025 [YUASA type code]

027 [YUASA type code]

80

D23

R

(L)

65

D26

R

(L)

80

D26

R

(L)

067 [YUASA type code]

096 [YUASA type code]

75

D31

R

(L)

95

D31

R

(L)

1

1

5

D

31

R(L)

1

1

0

D

26

R(L)

95

E41

R

(L)

13

0E

41

R(L

)

1.100 - 1.130

4.0 (A)

5.0 (A)

6.0 (A)

7.0 (A)

8.0
(A)

9.0 (A)

13.0

(A)

1.130 - 1.160

3.0 (A)

4.0 (A)

5.0 (A)

6.0 (A)

7.0
(A)

8.0 (A)

11.0

(A)

1.160 - 1.190

2.0 (A)

3.0 (A)

4.0 (A)

5.0 (A)

6.0
(A)

7.0 (A)

9.0
(A)

1.190 - 1.220

2.0 (A)

2.0 (A)

3.0 (A)

4.0 (A)

5.0
(A)

5.0 (A)

7.0
(A)

SPECIFIC GRAVITY

CHARGING TIME (h)

Below 1.150

3.5

1.150 - 1.200

2.5

1.200 - 1.240

1.5
