Nissan Teana J32. Manual - part 907





PG

BATTERY CHARGING CHART

PG-107

< ON-VEHICLE MAINTENANCE >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N



>> Complete standard charge. Perform “CAPACITY TEST”. Refer to

PG-5, "Work Flow"

.

CAUTION:

• Never use standard charge method on a battery whose specific gravity is less than 1.100.
• Set charging current to value specified in “Initial Charging Current Setting (Standard Charge)”. If

charger is not capable of producing specified current value, set its charging current as close to that
value as possible.

• Keep battery away from open flame while it is being charged.
• When connecting charger, connect leads first, then turn on charger. Never turn on charger first, as

this may cause a spark.

• If battery temperature rises above 55

°

C (131

°

F), stop charging. Always charge battery when its tem-

perature is below 55

°

C (131

°

F).

Quick Charge

INFOID:0000000003809464

1.

DETERMINE INITIAL CHARGING CURRENT

1.

Determine initial charging current setting and charging time from specific gravity.

2.

Check battery type and determine the specified current using the table.

NOTE:
After starting charging, adjustment of charging current is not necessary.

Initial Charging Current Setting and Charging Time (Quick Charge)

CAUTION:

• Never use quick charge method on a battery whose specific gravity is less than 1.100.
• Set initial charging current to value specified in “Initial Charging Current Setting and Charging Time

(Quick Charge)”. If charger is not capable of producing specified current value, set its charging cur-
rent as close to that value as possible.

• Keep battery away from open flame while it is being charged.
• When connecting charger, connect leads first, then turn on charger. Never turn on charger first, as

this may cause a spark.

• Be careful of a rise in battery temperature because a large current flow is required during quick-

charge operation.
If battery temperature rises above 55

°

C (131

°

F), stop charging. Always charge battery when its tem-

perature is below 55

°

C (131

°

F).

• Never exceed the charging time specified in “Initial Charging Current Setting and Charging Time

(Quick Charge)”, because charging battery over the charging time can cause deterioration of the
battery.

BATTERY TYPE

28B

19

R(L

)

34B

19

R(L

)

46B

24

R(L

)

55B

24

R(L

)

50

D23R(L

)

55

D23R(L

)

80

D23R(L

)

65

D26R(L

)

80

D26R(L

)

0

2

5

 [YUAS

A

 type

 code

]

0

2

7

 [YUAS

A

 type

 code

]

0

6

7

 [YUAS

A

 type

 code

]

0

9

6

 [YUAS

A

 type

 code

]

75

D31R(L

)

95

D31R(L

)

1

1

5

D

31R(L

)

1

1

0

D

26R(L

)

95E

41

R(L

)

13

0E4

1

R(L

)

CURRENT [A]

10

15

20

25

30

40

C

O

NVER

TED S

PECIFIC

GRA

V

IT

Y

1.100 -

1.130

2.5 hours

1.130 -

1.160

2.0 hours

1.160 -

1.190

1.5 hours

1.190 -

1.220

1.0 hour

Above

1.220

0.75 hour (45 min.)

PG-108

< ON-VEHICLE MAINTENANCE >

[POWER SUPPLY&GROUND CIRCUIT]

BATTERY CHARGING CHART

>> GO TO 2.

2.

CHARGE BATTERY

Charge battery.

>> Complete quick charge. Perform “CAPACITY TEST”. Refer to

PG-5, "Work Flow"

.

PG

BATTERY

PG-109

< ON-VEHICLE REPAIR >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

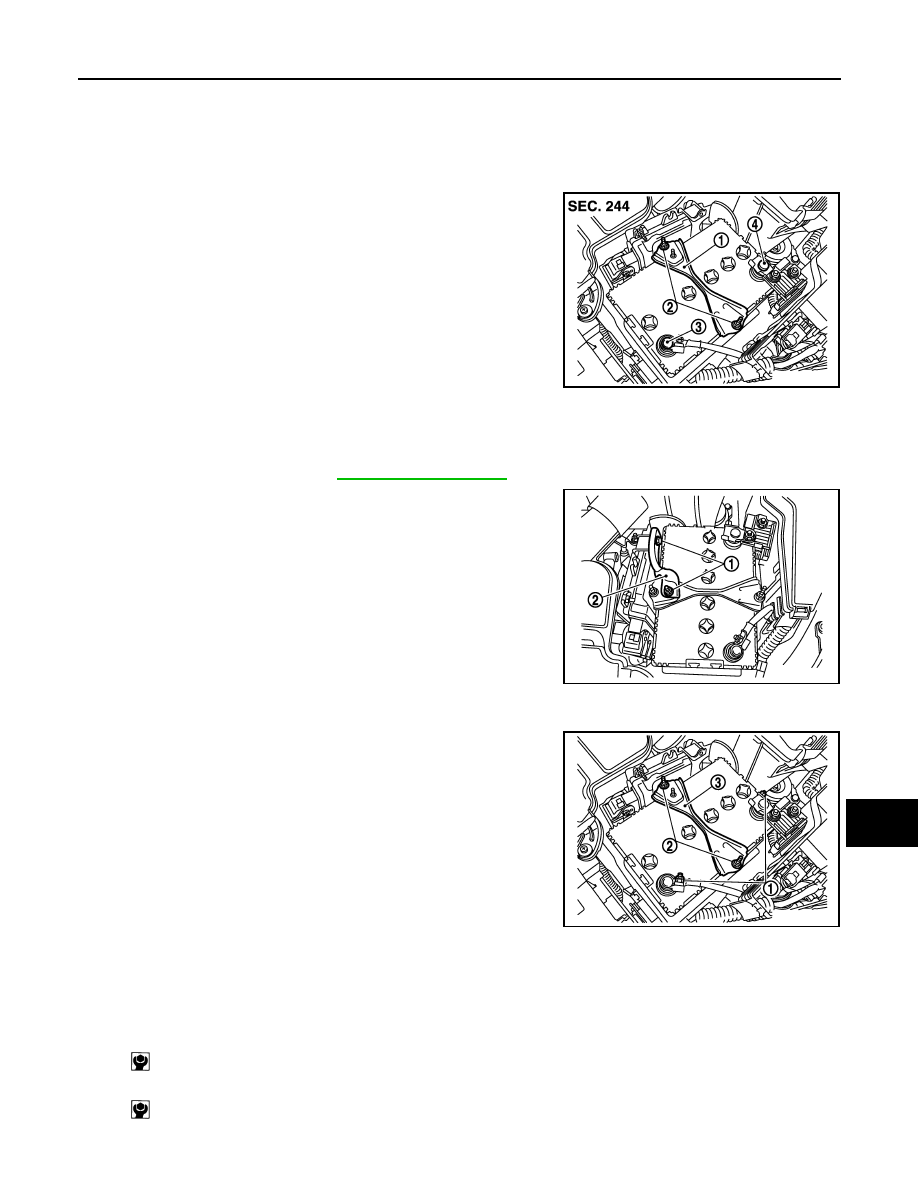

ON-VEHICLE REPAIR

BATTERY

Exploded View

INFOID:0000000003792690

Removal and Installation

INFOID:0000000003792691

REMOVAL

1.

Remove air duct (inlet). Refer to

EM-26, "Exploded View"

.

2.

Remove the nut and bolt (1) and remove the bracket (2) from the
battery fix frame.

3.

Remove cover of battery positive terminal.

4.

Loosen battery terminal nuts (1), and disconnect both battery
cables from battery terminals.

CAUTION:

When disconnecting, disconnect the battery cable from the
negative terminal first.

5.

Remove battery fix frame mounting nuts (2) and battery fix
frame (3).

6.

Remove battery.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

When connecting, connect the battery cable to the positive terminal first.

1

: Battery fix frame

2

: Battery fix frame mounting nuts

3

: Battery terminal (-)

4

: Battery terminal (+)

JPMIA1019ZZ

JPMIA1020ZZ

JPMIA1021ZZ

Battery fix frame mounting nut

: 3.92 N·m (0.40 kg-m, 35 in-lb)

Battery terminal nut

: 5.4 N·m (0.55 kg-m, 48 in-lb)

PG-110

< ON-VEHICLE REPAIR >

[POWER SUPPLY&GROUND CIRCUIT]

BATTERY

Reset electronic systems as necessary. Refer to

GI-48, "ADDITIONAL SERVICE WHEN REMOVING BAT-

TERY NEGATIVE TERMINAL : Required Procedure After Battery Disconnection"

.
