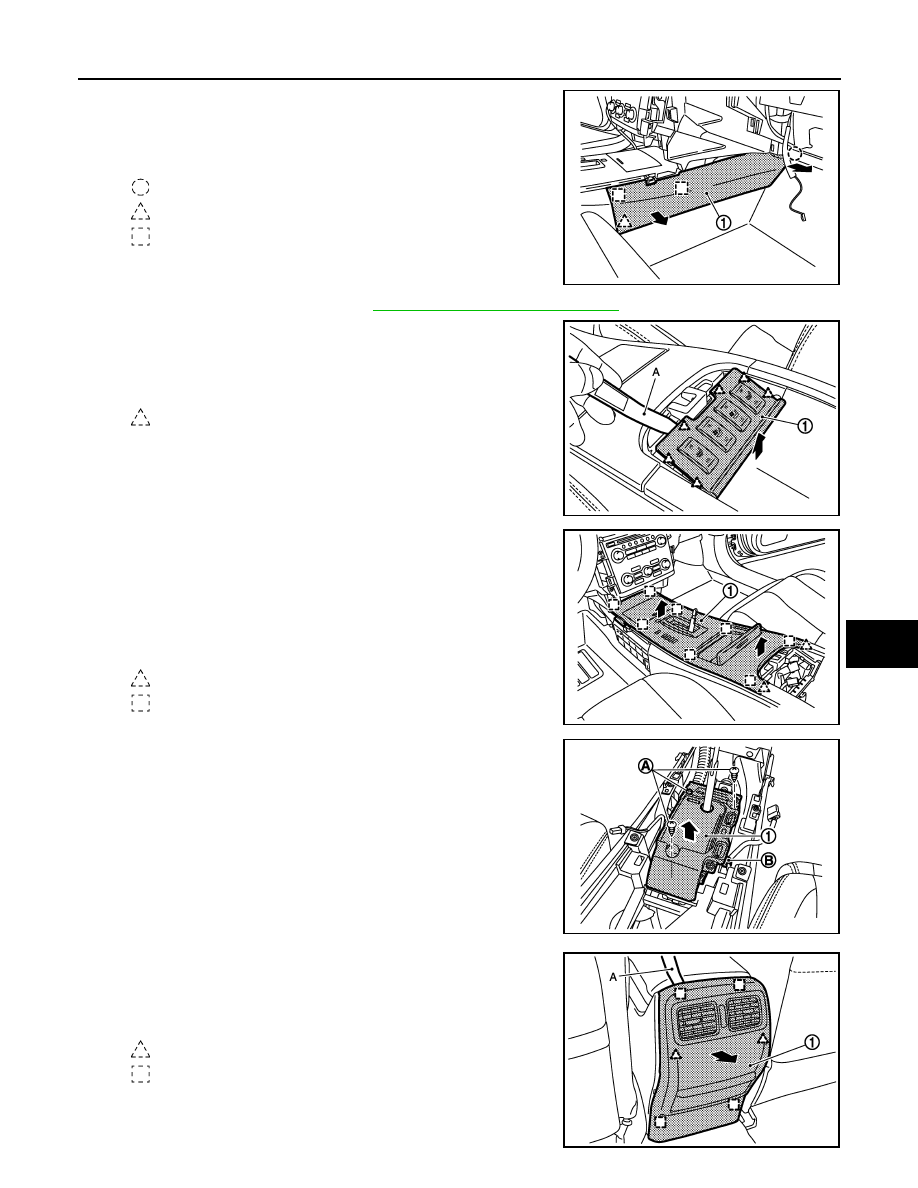

12. Remove instrument lower cover RH.

• Disengage instrument lower cover LH (1) fixing clip, pawl and

metal clips.

• Pull the instrument lower cover RH crosswise.

13. Remove selector lever knob. Refer to

TM-155, "Removal and Installation"

.

14. Remove console switch panel.

• Disengage pawls of console switch panel (1) with remover tool

(A).

• Pull up console switch panel.

15. Remove console finisher assembly.

• Put selector lever in the [N] position.
• Remove console finisher assembly (1) fixing metal clips and

pawls sequentially from the front side with remover tool.

• Pull console finisher assembly, upward to disengage from cen-

ter console.

• Disconnect harness connectors.

16. Remove control device upper case.

• Put selector lever in the [P] position.
• Remove control device upper case (1) mounting screws (A).
• Pull control device upper case, upward to disengage from con-

trol device assembly.

• Disconnect harness clip (B).

17. Remove console rear finisher.

• Pull back console rear finisher (1) by using a remover tool (A),

then disengage pawls and metal clips.

• Disconnect inside key antenna connector.

: Clip

: Pawl

: Metal clip

JMJIA1903ZZ

: Pawl

JMJIA1904ZZ

: Pawl

: Metal clip

JMJIA1905ZZ

JMJIA1906ZZ

: Pawl

: Metal clip

JMJIA1907ZZ

IP-26

< ON-VEHICLE REPAIR >

CENTER CONSOLE ASSEMBLY

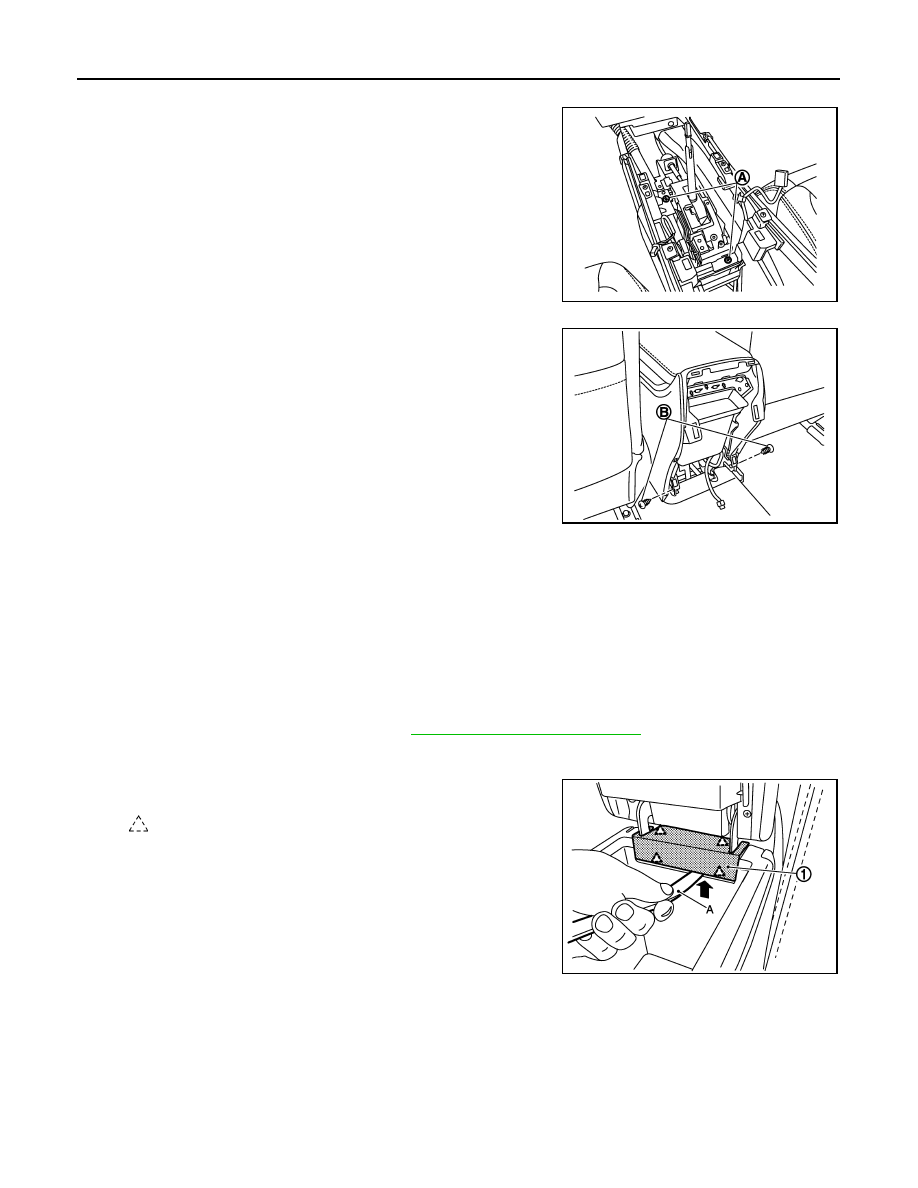

18. Remove center console assembly.

• Remove center console fixing screws (A).

• Put front seat to the front most position.
• Remove center console fixing screws (B).

• Put front seat to the rear most position.
• Lift up center console assembly back side.
• Disconnect harness connectors.

INSTALLATION

Install in the reverse order of removal.

Disassembly and Assembly

INFOID:0000000003816781

DISASSEMBLY

1.

Remove center console assembly. Refer to

IP-22, "Removal and Installation"

.

2.

Remove console lid assembly.
• Open the console lid.
• Remove console mask (1) fixing pawls with remover tool (A).

JMJIA1908ZZ

JMJIA1909ZZ

: Pawl

JMJIA1925ZZ

CENTER CONSOLE ASSEMBLY

IP-27

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

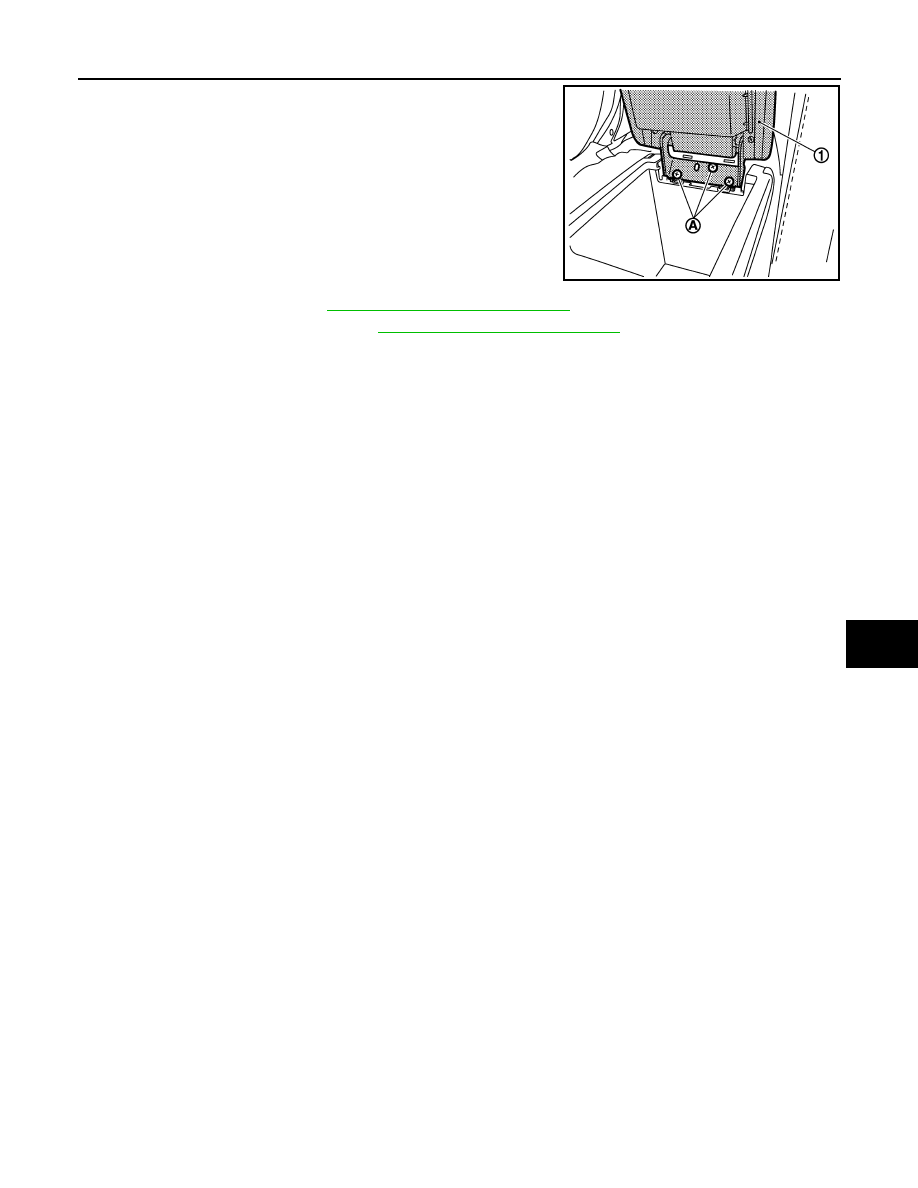

• Remove console lid assembly (1) fixing screws (A) and then

remove console lid assembly.

3.

Remove power outlet. Refer to

PWO-8, "Removal and Installation"

.

4.

Remove auxiliary input jacks. Refer to

AV-663, "Removal and Installation"

.

ASSEMBLY

Assemble in the reverse order of disassembly.

JMJIA1926ZZ
