INSTRUMENT PANEL ASSEMBLY

IP-21

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

• Put selector lever in the [D] position.

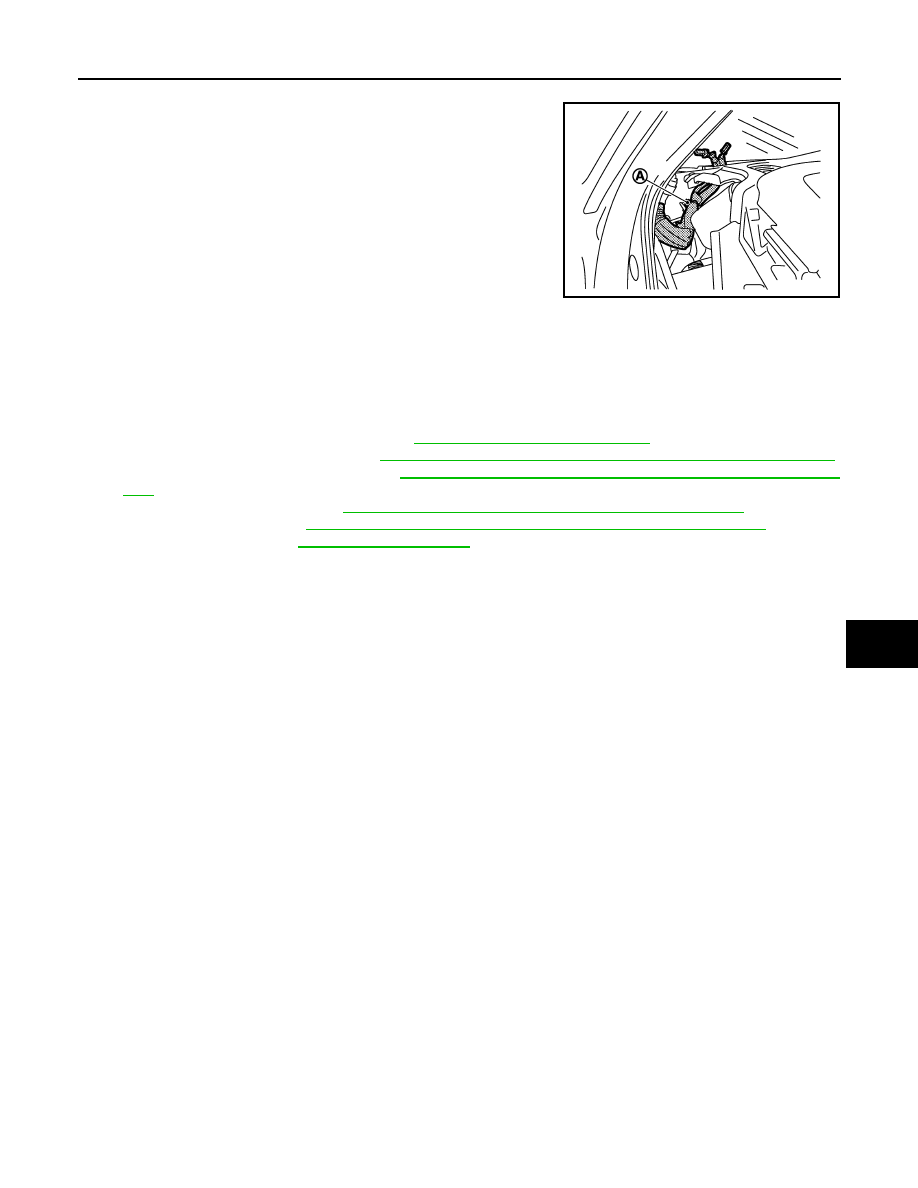

• Pull back instrument panel assembly, and then remove front

squawker LH harness clip (A).

• Remove instrument panel from passenger door opening portion.

CAUTION:

• Cover center console upper surface with a shop cloth to prevent it from being damaged.
• When removing instrument panel assembly, 2 workers are required so as to prevent it from drop-

ping.

48. Remove the following parts after removing instrument panel assembly.

• Front passenger air bag module. Refer to

SR-12, "Removal and Installation"

.

• Side ventilator grille LH/RH. Refer to

VTL-46, "SIDE VENTILATOR GRILLE : Removal and Installation"

.

• Side defroster nozzle LH/RH. Refer to

VTL-47, "SIDE DEFROSTER GRILLE : Removal and Installa-

tion"

.

• Ventilator duct LH/RH. Refer to

VTL-48, "VENTILATOR DUCT : Removal and Installation"

.

• Defroster nozzle. Refer to

VTL-49, "SIDE DEFROSTER NOZZLE : Removal and Installation"

.

• Antenna feeder. Refer to

AV-44, "Harness Layout"

.

INSTALLATION

Install in the reverse order of removal.

JMJIA1923ZZ

IP-22

< ON-VEHICLE REPAIR >

CENTER CONSOLE ASSEMBLY

CENTER CONSOLE ASSEMBLY

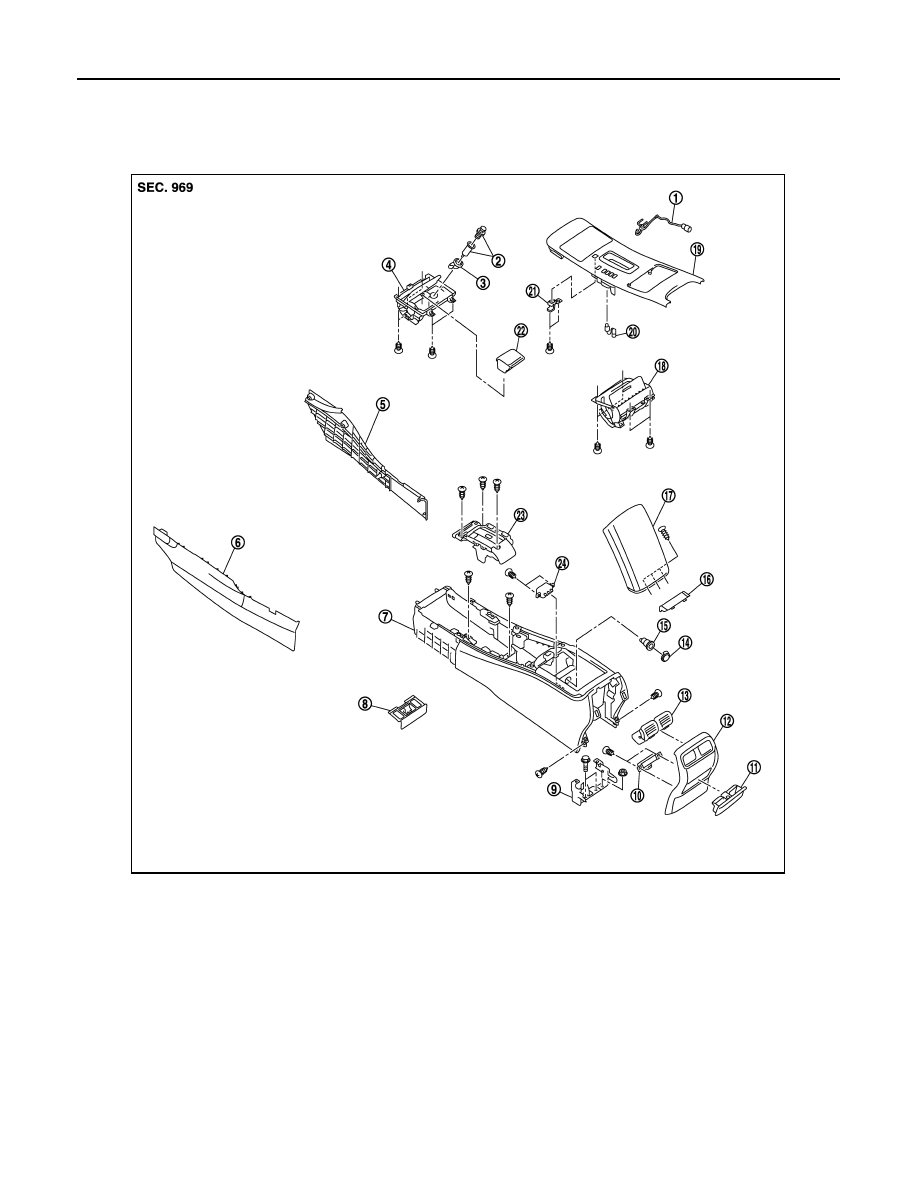

Exploded View

INFOID:0000000003816779

Removal and Installation

INFOID:0000000003819349

REMOVAL

1.

Ashtray lamp harness

2.

Cigarette lighter complete

3.

Cigarette lighter ring

4.

Console ashtray assembly

5.

Instrument lower cover RH

6.

Instrument lower cover LH

7.

Center console assembly

8.

Console switch panel

9.

Console bracket

10. Inside key antenna

11.

Console rear ashtray

12. Console rear finisher

13. Rear ventilator grille

14. Power socket cap

15. Power socket inner case

16. Console mask

17. Console lid assembly

18. Cup holder assembly

19. Console finisher assembly

20. Indicator lamp harness

21. Shift lock switch

22. Inner ashtray

23. Control device upper case

24. Auxiliary input jacks

JMJIA1924ZZ

CENTER CONSOLE ASSEMBLY

IP-23

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

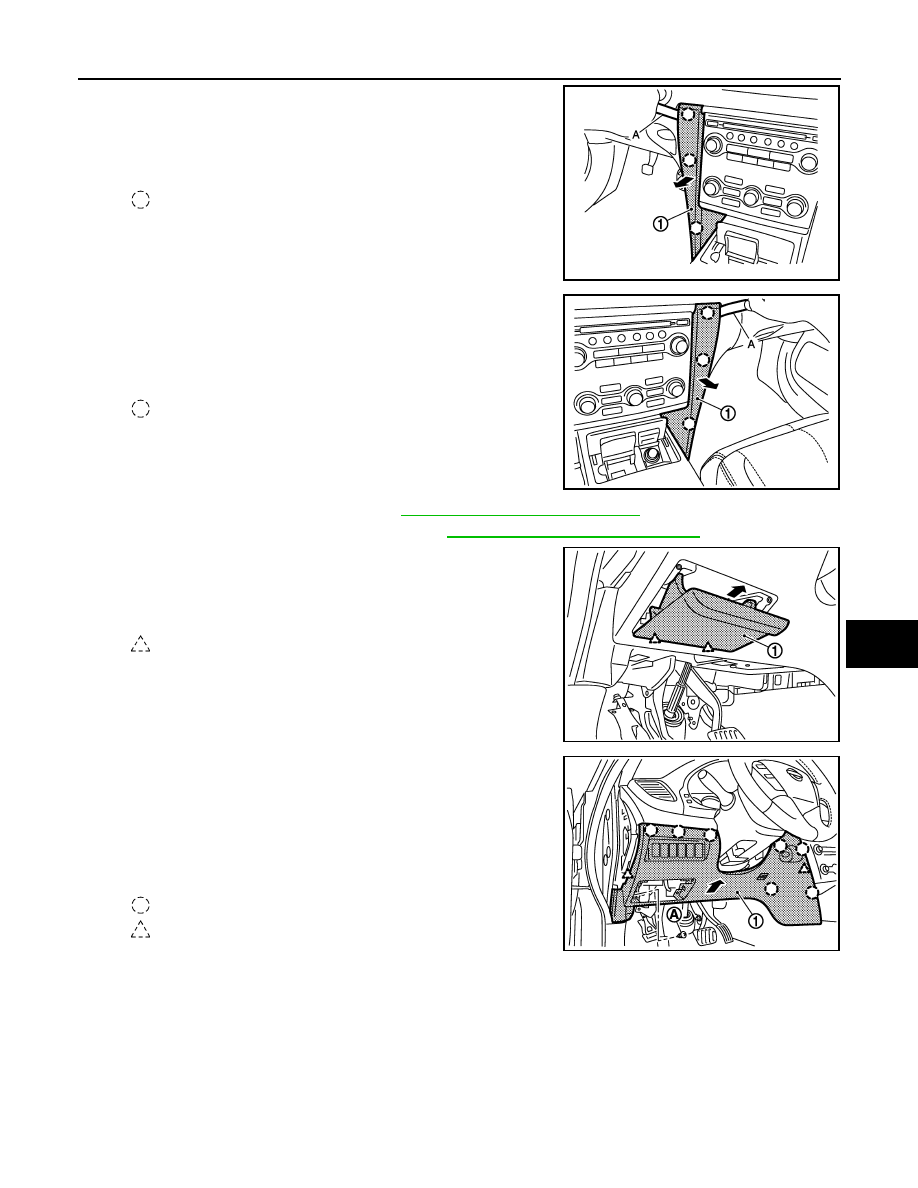

1.

Remove instrument finisher D.
• Remove instrument finisher D (1) fixing clips with remover tool

(A).

• Pull back instrument finisher D, and then remove instrument

finisher D.

2.

Remove instrument finisher E.
• Remove instrument finisher E (1) fixing clips with remover tool

(A).

• Pull back instrument finisher E, and then remove instrument

finisher E.

3.

Remove front body side welt LH. Refer to

INT-39, "Removal and Installation"

.

4.

Remove hood opener lever fixing bolts. Refer to

DLK-220, "Removal and Installation"

.

5.

Remove fuse block lid.
• Open the fuse block lid (1).
• Pull fuse block lid, backward to disengage from instrument

lower panel LH.

6.

Remove instrument lower panel LH.
• Remove instrument lower panel LH (1) fixing screw (A).
• Pull instrument lower panel LH, backward to disengage from

instrument panel assembly.

• Release data link connector (pawl) then remove it from instru-

ment lower panel LH.

• Disconnect harness connectors and aspirator duct.

: Clip

JMJIA1892ZZ

: Clip

JMJIA1893ZZ

: Pawl

JMJIA1896ZZ

: Clip

: Pawl

JMJIA1897ZZ

IP-24

< ON-VEHICLE REPAIR >

CENTER CONSOLE ASSEMBLY

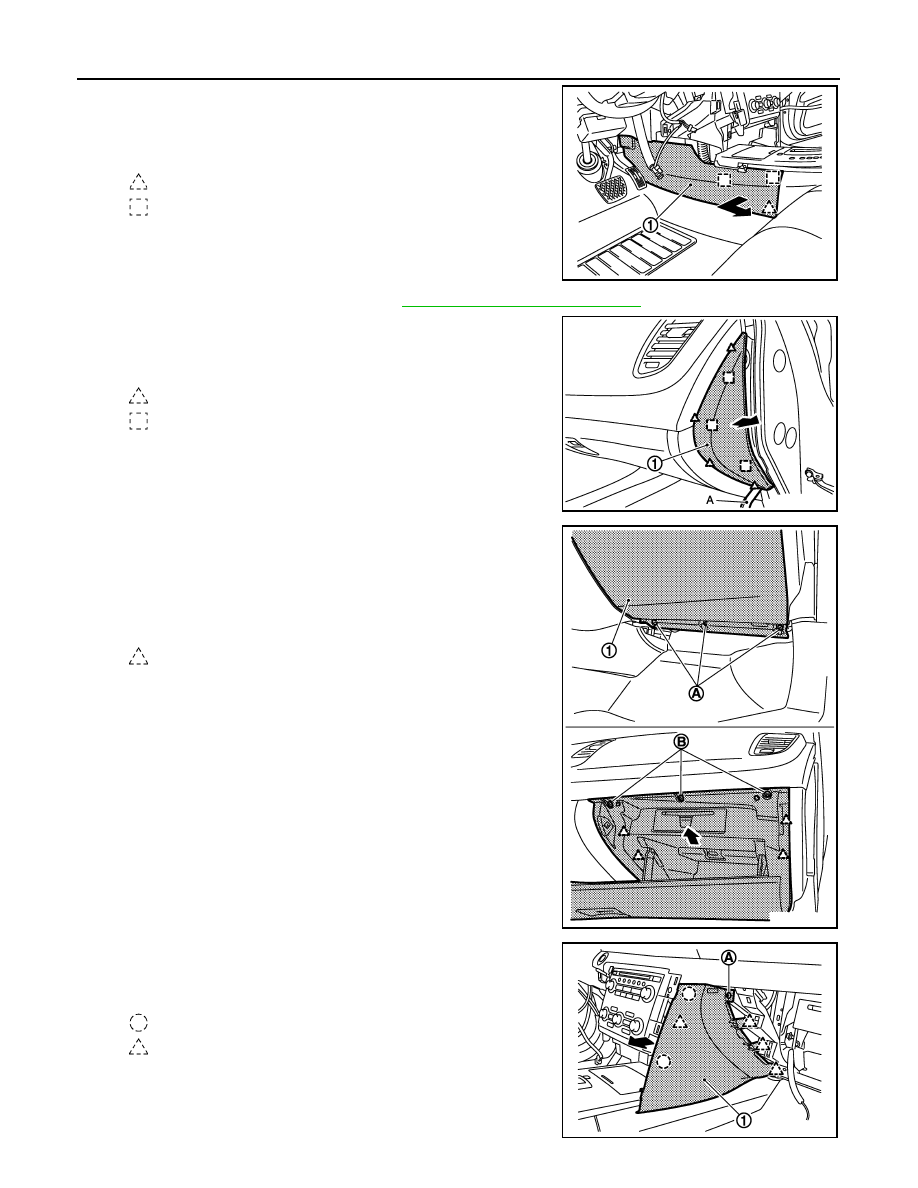

7.

Remove instrument lower cover LH.
• Disengage instrument lower cover LH (1) fixing pawl and

metal clips.

• Pull back instrument lower cover LH.

8.

Remove front body side welt RH. Refer to

INT-39, "Removal and Installation"

.

9.

Remove instrument side finisher RH.
• Insert a remover tool (A) into lower space.
• Pull the instrument side finisher RH (1) crosswise.

10. Remove glove box assembly.

• Remove glove box assembly (1) fixing screws (A).
• Open the glove box lid.
• Remove glove box assembly fixing screws (B).
• Pull back glove box assembly.
• Disconnect harness connector.

11. Remove instrument side panel RH.

• Remove instrument side panel RH (1) fixing screw (A).
• Pull toward the direction the arrow is pointing.

: Pawl

: Metal clip

JMJIA1898ZZ

: Pawl

: Metal clip

JMJIA1900ZZ

: Pawl

JMJIA1901ZZ

: Clip

: Pawl

JMJIA1902ZZ
