INSTRUMENT PANEL ASSEMBLY

IP-17

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

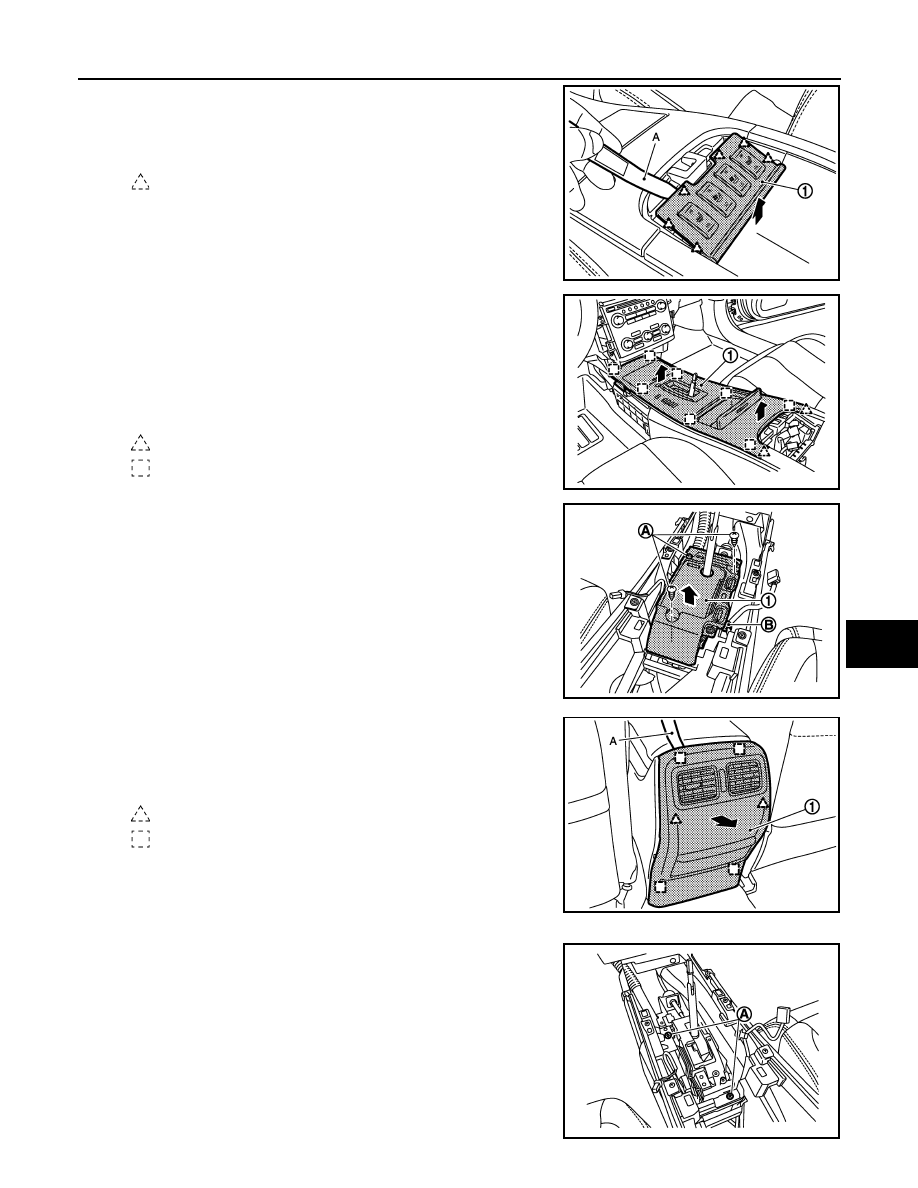

24. Remove console switch panel.

• Disengage pawls of console switch panel (1) with remover tool

(A).

• Pull up console switch panel.

25. Remove console finisher assembly.

• Put selector lever in the [N] position.
• Remove console finisher assembly (1) fixing metal clips and

pawls sequentially from the front side with remover tool.

• Pull console finisher assembly, upward to disengage from cen-

ter console.

• Disconnect harness connectors.

26. Remove control device upper case.

• Put selector lever in the [P] position.
• Remove control device upper case (1) mounting screws (A).
• Pull control device upper case, upward to disengage from con-

trol device assembly.

• Disconnect harness clip (B).

27. Remove console rear finisher.

• Pull back console rear finisher (1) by using a remover tool (A),

then disengage pawls and metal clips.

• Disconnect inside key antenna connector.

28. Remove center console assembly.

• Remove center console fixing screws (A).

: Pawl

JMJIA1904ZZ

: Pawl

: Metal clip

JMJIA1905ZZ

JMJIA1906ZZ

: Pawl

: Metal clip

JMJIA1907ZZ

JMJIA1908ZZ

IP-18

< ON-VEHICLE REPAIR >

INSTRUMENT PANEL ASSEMBLY

• Put front seat to the front most position.
• Remove center console fixing screws (B).

• Put front seat to the rear most position.
• Lift up center console assembly back side.
• Disconnect harness connectors.

29. Remove steering wheel assembly. Refer to

ST-12, "Removal and Installation"

.

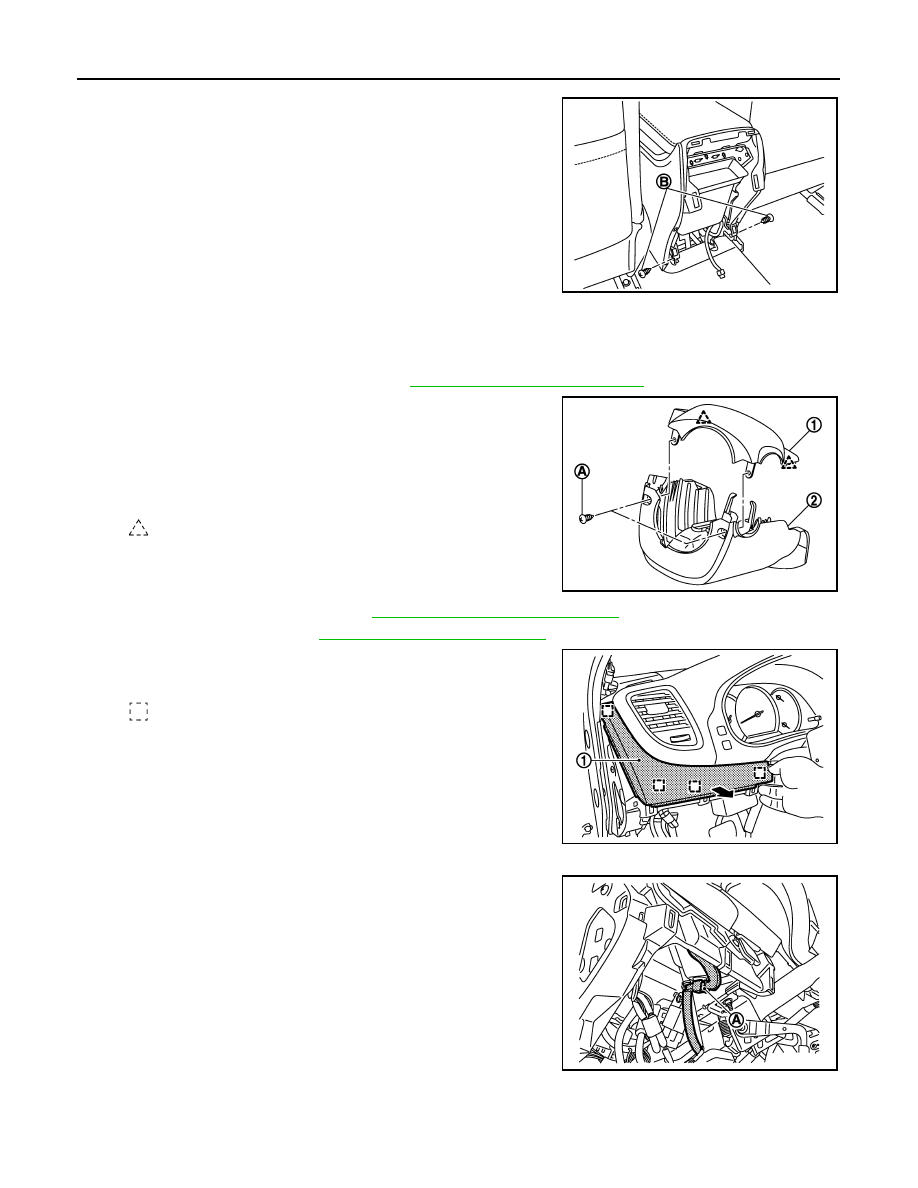

30. Remove steering column covers.

• Remove steering column cover fixing screws (A).
• Pull up steering column upper cover (1), and then remove

steering column upper cover.

• Pull down steering column lower cover (2), and then remove

steering column lower cover.

31. Remove combination switch. Refer to

BCS-79, "Removal and Installation"

.

32. Remove spiral cable. Refer to

SR-9, "Removal and Installation"

.

33. Remove instrument finisher A.

Pull back instrument finisher A (1), and disengage metal clips.

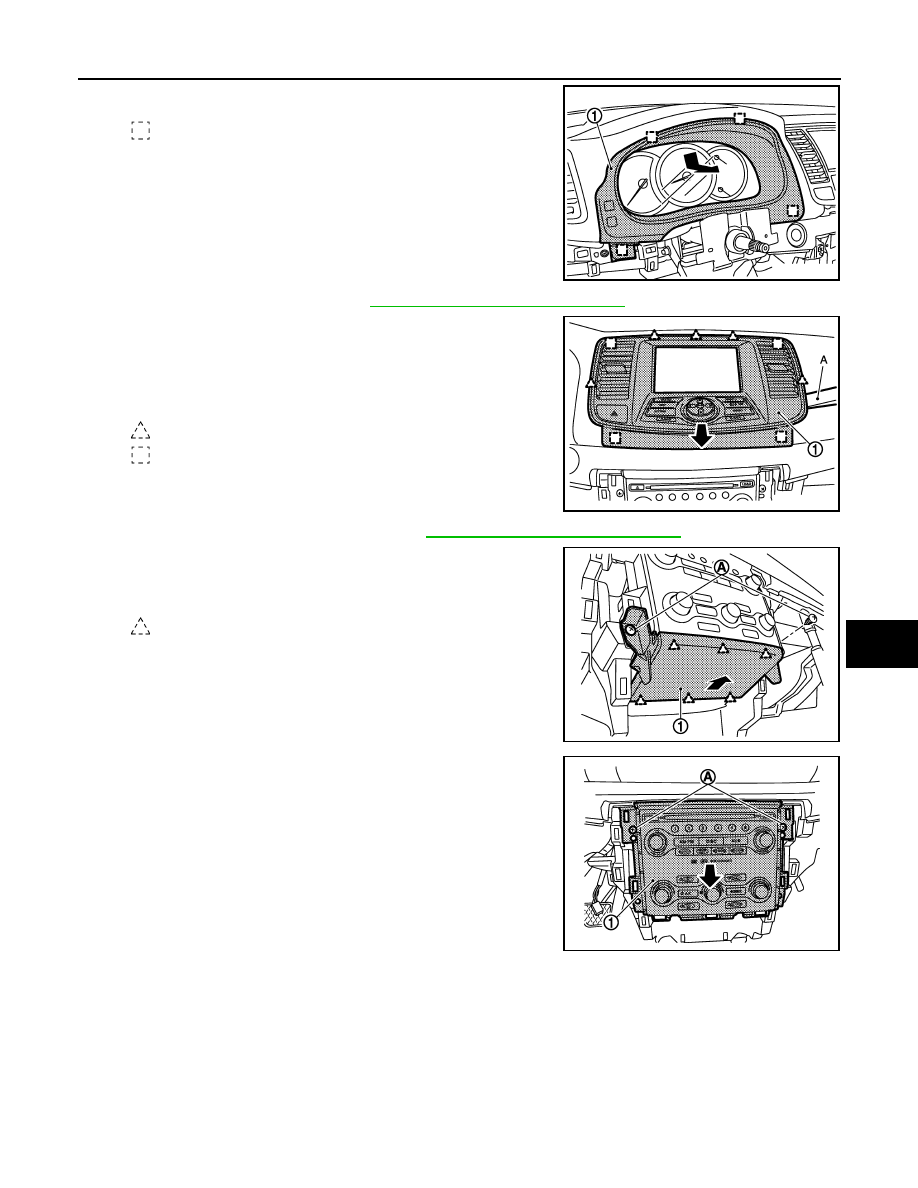

34. Remove cluster lid A.

• Disconnect meter control switch harness connector (A).

JMJIA1909ZZ

: Pawl

JMJIA1910ZZ

: Metal clip

JMJIA1911ZZ

JMJIA1912ZZ

INSTRUMENT PANEL ASSEMBLY

IP-19

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

• Pull back cluster lid A (1), and disengage metal clips.

35. Remove combination meter. Refer to

MWI-126, "Removal and Installation"

.

36. Remove cluster lid D.

• Remove cluster lid D (1) fixing pawls and metal clip with

remover tool (A).

• Pull back cluster lid D.
• Disconnect harness connectors.

37. Remove push button ignition switch. Refer to

SEC-205, "Removal and Installation"

.

38. Remove cluster lid lower finisher.

• Remove cluster lid lower finisher (1) fixing screws (A).
• Pull back cluster lid lower finisher.

39. Remove cluster lid C.

• Remove cluster lid C (1) fixing screws (A).
• Pull back cluster lid C.
• Disconnect harness connector.

: Metal clip

JMJIA1913ZZ

: Pawl

: Metal clip

JMJIA1915ZZ

: Pawl

JMJIA1916ZZ

JMJIA1917ZZ

IP-20

< ON-VEHICLE REPAIR >

INSTRUMENT PANEL ASSEMBLY

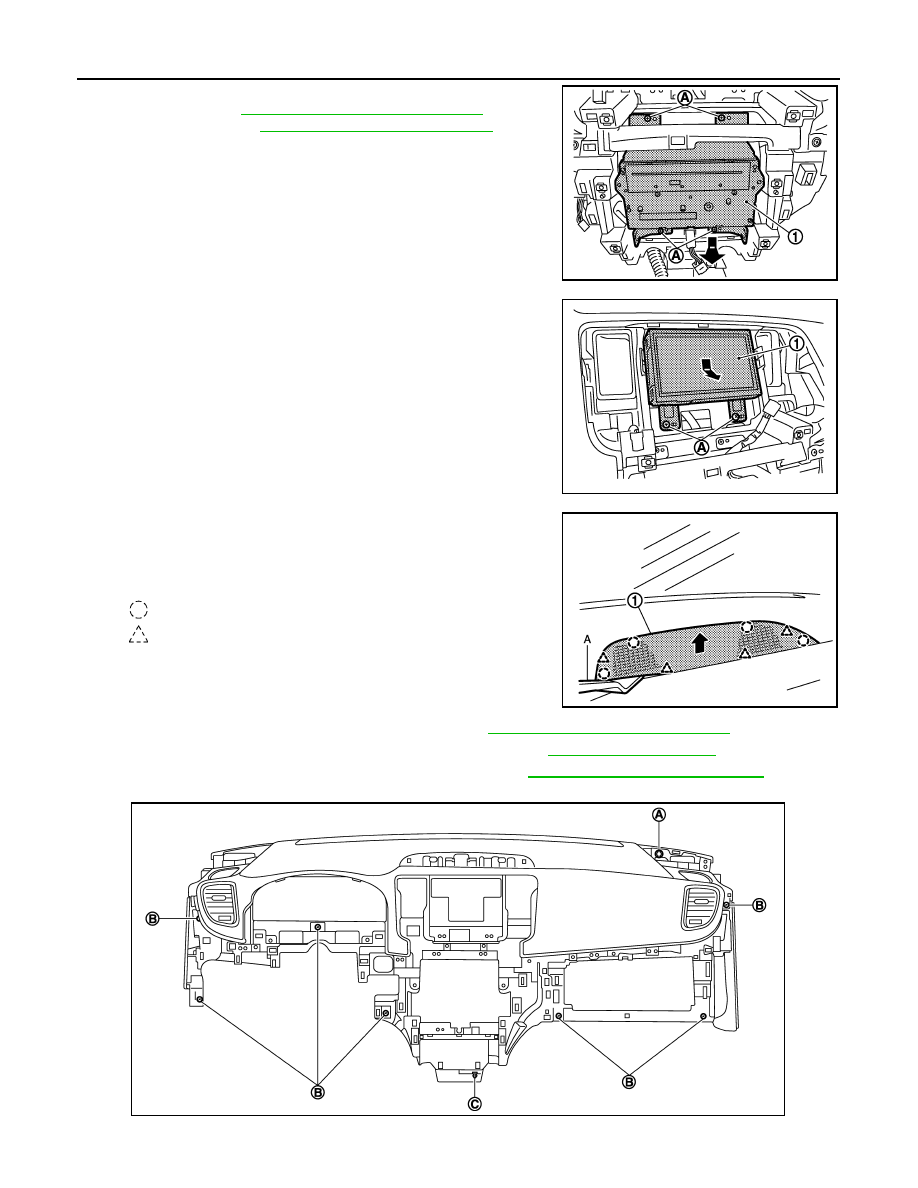

40. Remove AV C/U (or Audio unit).

• AV C/U: Refer to

AV-648, "Removal and Installation"

.

• Audio unit: Refer to

AV-37, "Removal and Installation"

.

• Remove AV C/U (or Audio unit) (1) fixing screws (A).
• Pull back AV C/U (or Audio unit).
• Disconnect harness connectors.

41. Remove display unit.

• Remove display unit (1) fixing screws (A).
• Pull toward the arrow direction.
• Disconnect harness connector.

42. Remove center speaker grille.

• Disengage center speaker grille (1) fixing clips and pawls with

remover tool (A).

• Pull up center speaker grille.

43. Remove center speaker (with BOSE AUDIO). Refer to

AV-384, "Removal and Installation"

.

44. Disconnect front passenger air bag module connector. Refer to

SR-12, "Exploded View"

.

45. Remove front passenger air bag module fixing bolt. Refer to

SR-12, "Removal and Installation"

.

46. Remove instrument panel assembly mounting bolt (A), screws (B) and clips (C).

47. Remove instrument panel assembly.

JMJIA1918ZZ

JMJIA1919ZZ

: Clip

: Pawl

JMJIA1920ZZ

JMJIA1921ZZ
