PRECAUTIONS

IP-9

< PRECAUTION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

• Keep removed parts protected with a shop cloth.
• If a clip is deformed or damaged, replace it.
• If an unreusable part is removed, replace it with a new one.
• Tighten bolts and nuts firmly to the specified torque.
• After reassembly has been completed, make sure each part functions correctly.
• Remove stains in the following way.
Water-soluble stains:
Dip a soft cloth in warm water, and then squeeze it tightly. After wiping the stain, wipe with a soft dry cloth.
Oil stain:
Dissolve a synthetic detergent in warm water (density of 2 to 3%), dip the cloth, then clean off the stain with
the cloth. Next, dip the cloth in fresh water and squeeze it tightly. Then clean off the detergent completely.
Then wipe the area with a soft dry cloth.
• Never use any organic solvent, such as thinner or benzine.

IP-10

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

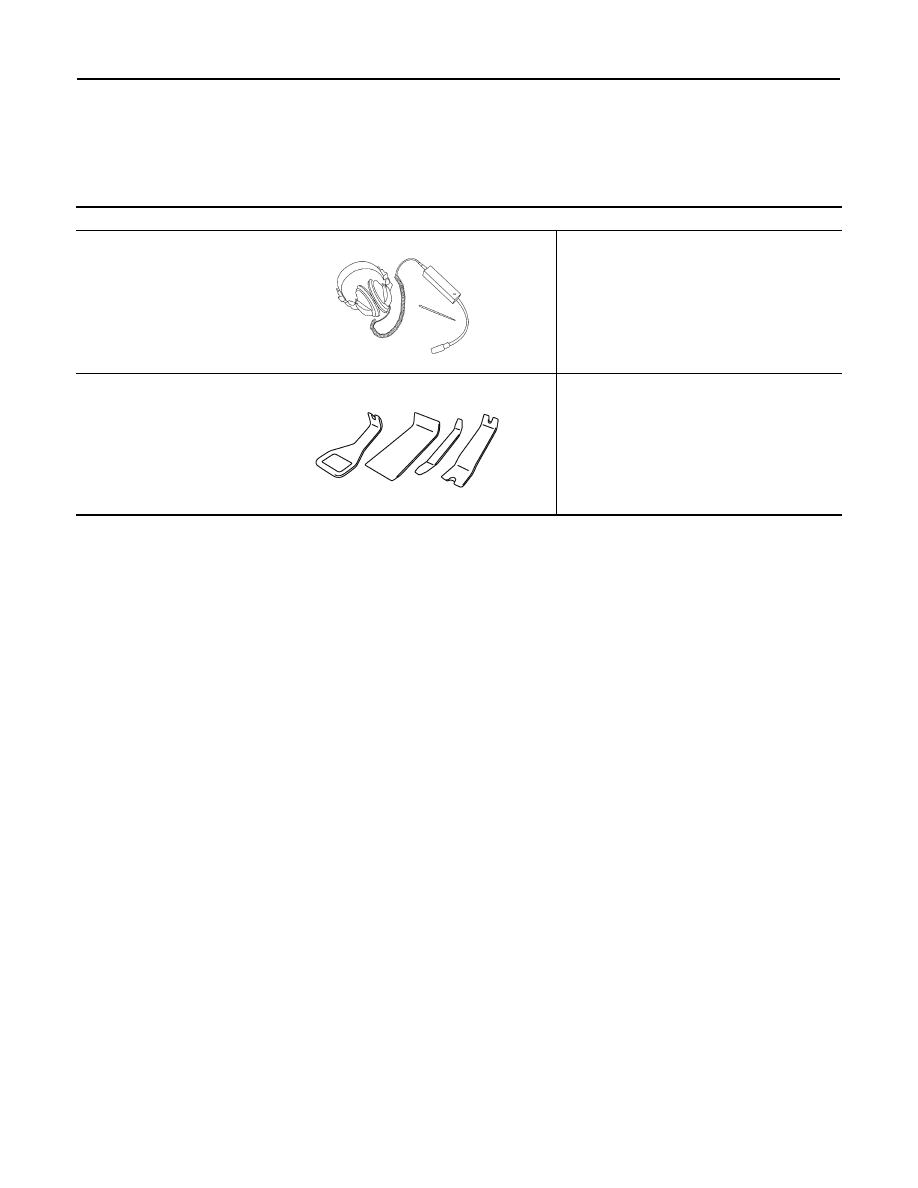

Commercial Service Tools

INFOID:0000000003751417

Tool name

Description

Engine ear

Locates the noise

Remover tool

Removes clips, pawls and metal clips

SIIA0995E

PIIB7923J

INSTRUMENT PANEL ASSEMBLY

IP-11

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

ON-VEHICLE REPAIR

INSTRUMENT PANEL ASSEMBLY

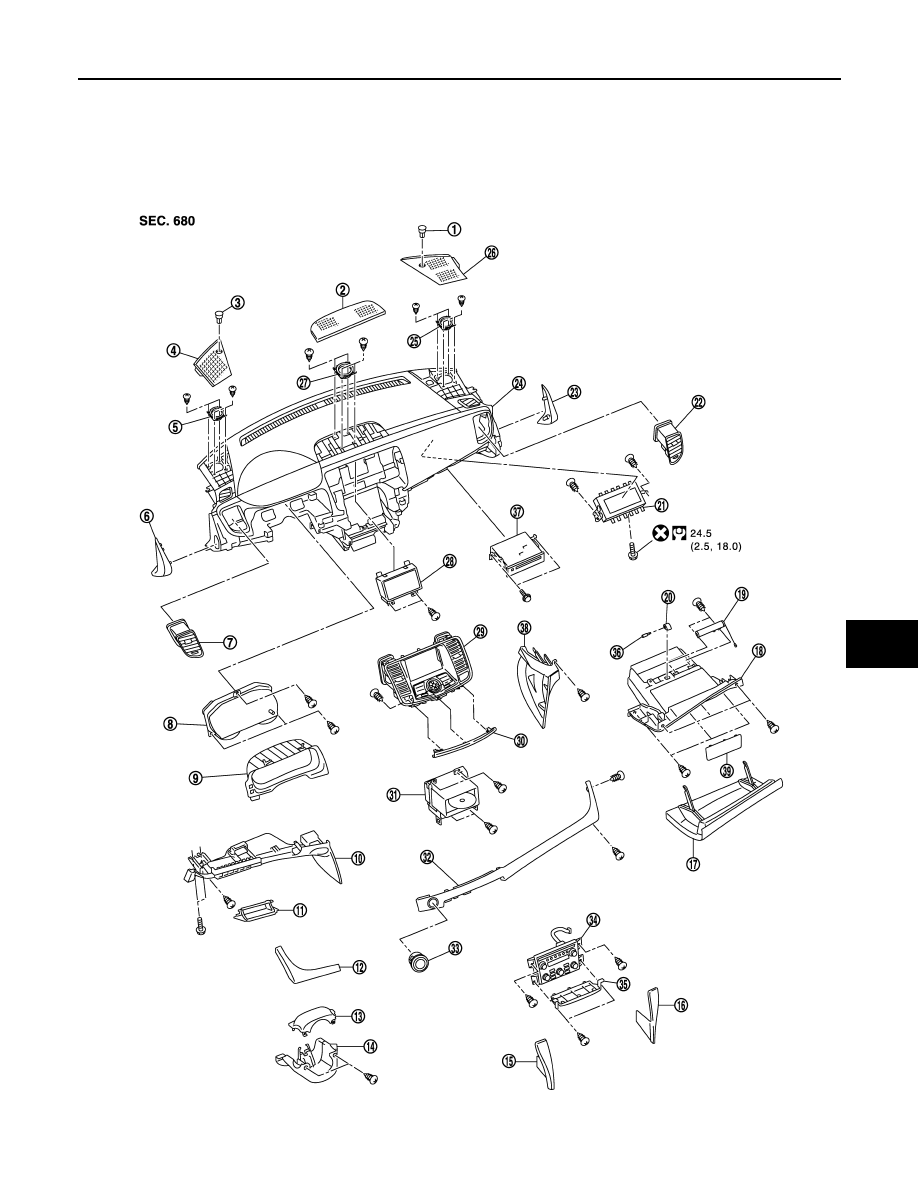

Exploded View

INFOID:0000000003816777

JMJIA1891GB

IP-12

< ON-VEHICLE REPAIR >

INSTRUMENT PANEL ASSEMBLY

Removal and Installation

INFOID:0000000003816778

WORK STEP

When removing instrument panel assembly, combination meter, instrument finisher A, instrument finisher B,
AV C/U (audio unit) or center console assembly take steps in the order shown by the number below.

1.

Optical sensor

2.

Center speaker grille

3.

Sunload sensor

4.

Speaker grille LH

5.

Front squawker LH

6.

Instrument side finisher LH

7.

Side ventilator grille LH

8.

Combination meter

9.

Cluster lid A

10. Instrument lower panel LH

11.

Fuse block lid

12. Instrument finisher A

13. Steering column upper cover

14. Steering column lower cover

15. Instrument finisher D

16. Instrument finisher E

17. Glove box lid

18. Glove box assembly

19. Glove box damper

20. Illumination lamp

21. Front passenger air bag module

22. Side ventilator grille RH

23. Instrument side finisher RH

24. Instrument panel assembly

25. Front squawker RH

26. Speaker grille RH

27. Center speaker

28. Display unit

29. Cluster lid D

30. Cluster lid upper finisher

31. AV C/U (audio unit)

32. Instrument finisher B

33. Push button ignition switch

34. Cluster lid C

35. Cluster lid lower finisher

36. Socket and bulb

37. DVD player

38. Instrument side panel RH

39. Glove box mask

Refer to

GI-4, "Components"

 for symbols in the figure.

PARTS

INSTRUMENT

PANEL

ASSEMBLY

COMBINATION

METER

INSTRUMENT

FINISHER A

INSTRUMENT

FINISHER B

AV C/U

(audio unit)

CENTER

CONSOLE

ASSEMBLY

Instrument finisher D

[1]

[1]

[1]

[1]

Instrument finisher E

[2]

[2]

[2]

Front body side welt LH

[3]

[2]

[1]

[1]

[3]

Front pillar garnish LH

[4]

Speaker grille LH

[5]

Front squawker LH

[6]

Instrument side finisher LH

[7]

[3]

[2]

[2]

[4]

Fuse block lid

[8]

[4]

[3]

[3]

[5]

Instrument lower panel LH

[9]

[5]

[4]

[4]

[6]

Instrument lower cover LH

[10]

[7]

Front body side welt RH

[11]

[5]

[8]

Front pillar garnish RH

[12]

Speaker grille RH

[13]

Front squawker RH

[14]

Instrument side finisher RH

[15]

[6]

[9]

Glove box assembly

[16]

[7]

[10]

DVD player

[17]

Instrument side panel RH

[18]

[8]

[11]

Instrument lower cover RH

[19]

[12]

Selector lever knob

[20]

[13]

Console switch panel

[21]

[14]

Console finisher assembly

[22]

[15]

Position indicator plate

[23]

[16]

Console rear finisher

[24]

[17]

Center console assembly

[25]

[18]
