GW-22

< ON-VEHICLE REPAIR >

FRONT REGULATOR

2.

Place a wooden piece (wooden hammer handle, etc.) at near fully closed position.

3.

Perform fully closing operation with auto up switch.

• Check that the glass reverses without pinching the wooden piece, is lowered approximately 150 mm (5.906

in) or for more than 2 seconds and then stops.

• The glass should not be raised with power window main switch operated while it is reversing or lowering.

CAUTION:

• Be careful not to be pinched.
• When performing the inspection after the system initialization, check that the auto up function is

normal. Then, start the inspection.

FITTING INSPECTION

• Check that the glass is fit securely into the sash groove.
• Lower the glass slightly [approximately 10 to 20 mm (0.394 to 0.787 in)], and check that the clearance to the

sash is parallel. Loosen the regulator mounting bolts, guide rail mounting bolts, and glass and guide rail
mounting bolts to correct the glass position if the clearance between the glass and sash is not parallel.

REAR DOOR GLASS

GW-23

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

REAR DOOR GLASS

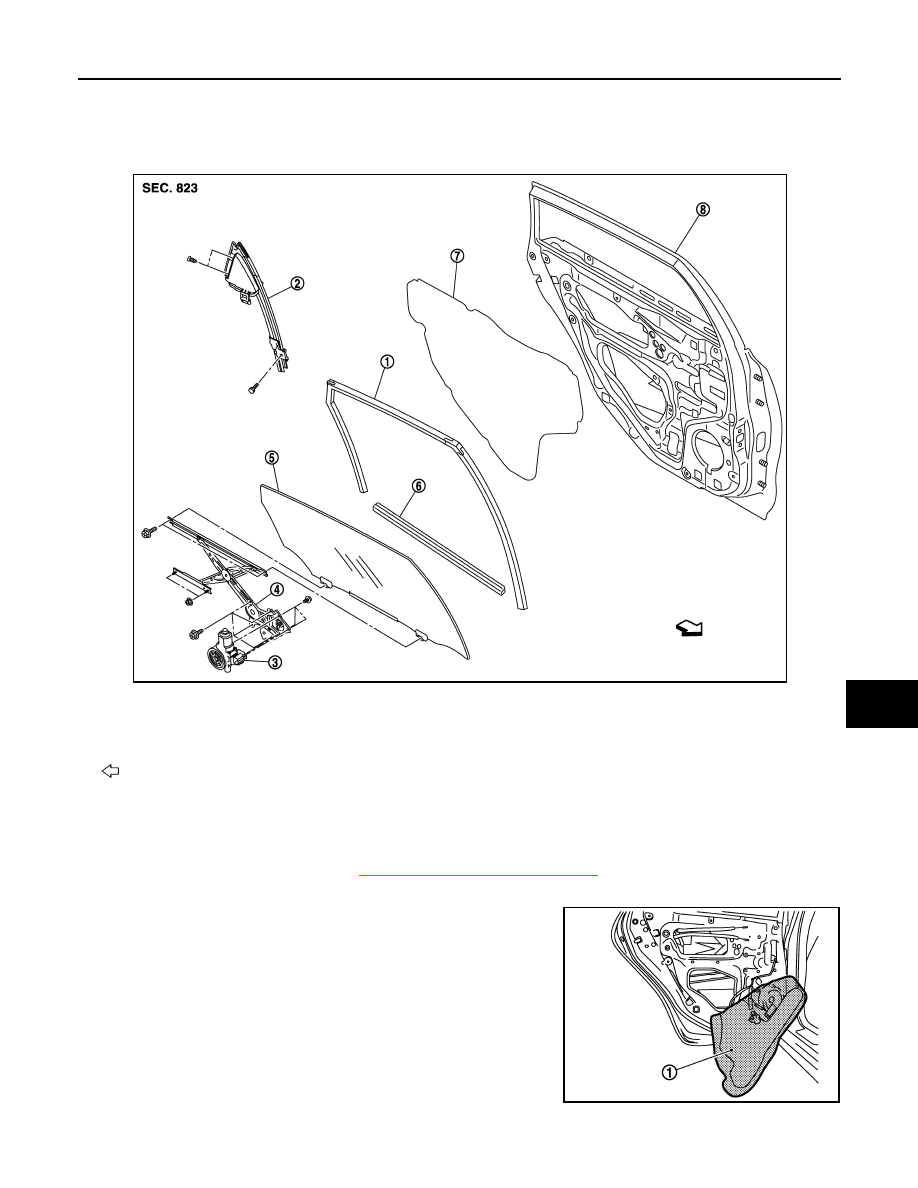

Exploded View

INFOID:0000000003825386

Removal and Installation

INFOID:0000000003825387

REMOVAL

1.

Remove rear door finisher. Refer to

INT-36, "Removal and Installation"

.

2.

Remove rear door inside seal.

3.

Remove partially the sealing screen (1) with a cutter knife.
NOTE:
Cut the butyl-tape so that no parts of the butyl-tape remain on
the sealing screen, if the sealing screen is reused.

1.

Rear door glass run

2.

Corner piece assembly

3.

Power window motor

4.

Regulator assembly

5.

Rear door glass

6.

Rear door inside seal

7.

Sealing screen

8.

Rear door panel

: Vehicle front

JMKIA2315ZZ

JMKIA2316ZZ

GW-24

< ON-VEHICLE REPAIR >

REAR DOOR GLASS

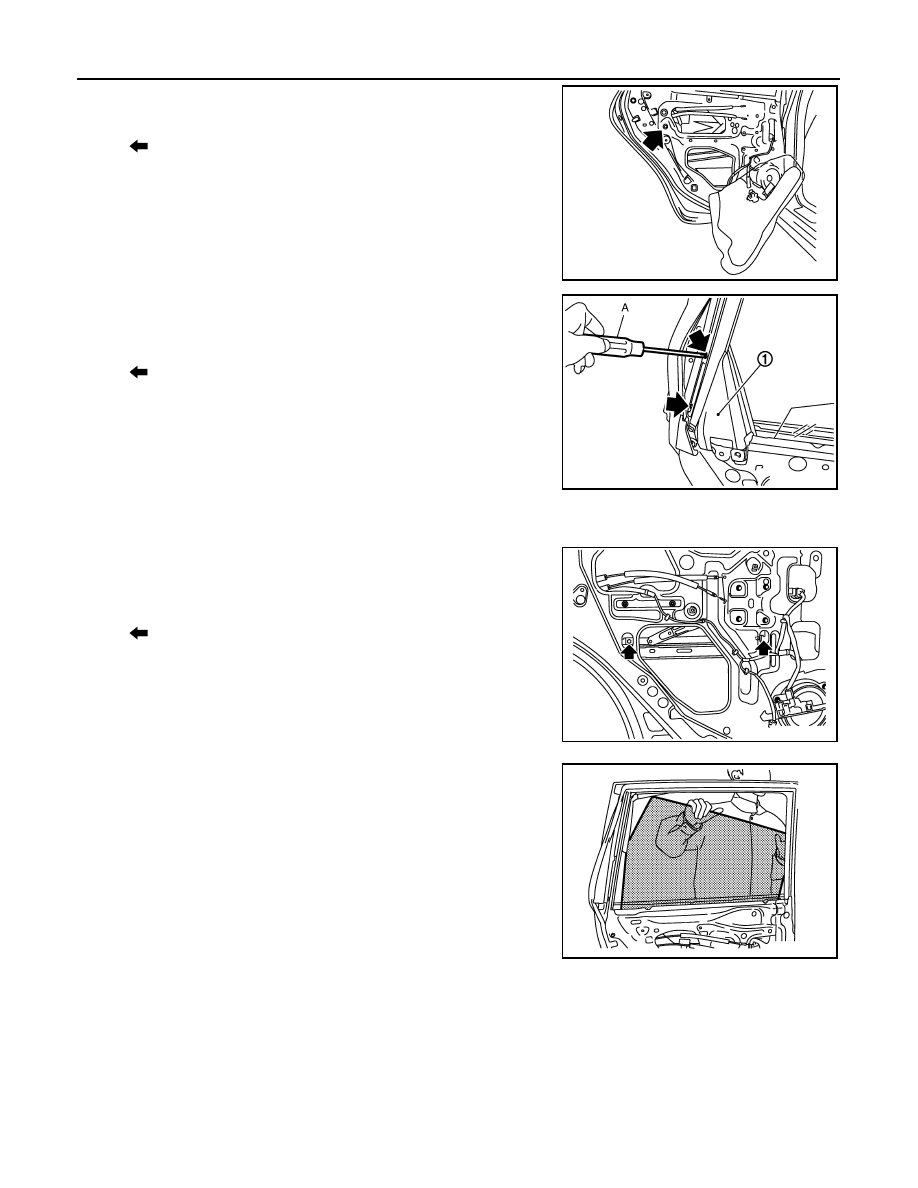

4.

Remove the bolt fixing the corner piece assembly lower side to
the door panel as shown in the figure.

5.

Remove partially the door side weather strip, then remove both
screws fixing the corner piece assembly (1) upper side to the
door panel as shown in the figure with a screwdriver (A).

6.

Remove the corner piece assembly from the glass upper side.

7.

Reconnect the rear door power window switch.

8.

Operate the power window switch to raise or lower the door win-
dow until the glass mounting bolts can be seen.

9.

Remove the rear door glass mounting bolts.

10. Remove the rear door glass from inside or outside of door panel.

INSTALLATION

Install in the reverse order of removal.

Inspection and Adjustment

INFOID:0000000003825388

FITTING INSPECTION

• Check that the glass is fit securely into the sash groove.
• Lower the glass slightly [approximately 10 to 20 mm (0.394 to 0.787 in)], and check that the clearance to the

sash is parallel. Loosen the regulator mounting bolts, guide rail mounting bolts, and glass and carrier plate
mounting bolts to correct the glass position if the clearance between the glass and sash is not parallel.

: Bolt

JMKIA2317ZZ

: Screw

JMKIA1952ZZ

: Bolt

JMKIA1789ZZ

JMKIA0640ZZ

REAR REGULATOR

GW-25

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

REAR REGULATOR

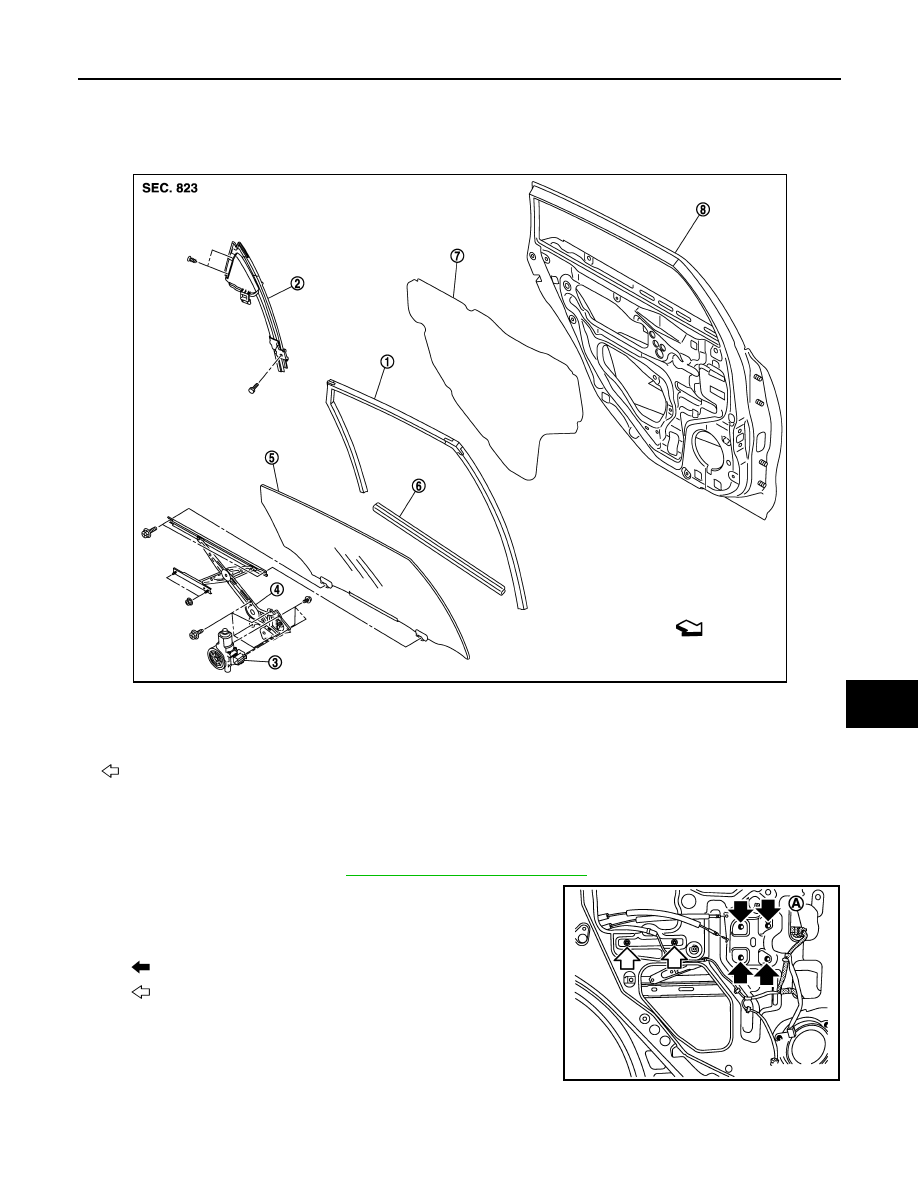

Exploded View

INFOID:0000000003825947

Removal and Installation

INFOID:0000000003825390

REMOVAL

1.

Remove rear door glass. Refer to

GW-23, "Removal and Installation"

.

2.

Remove the regulator mounting bolts, disconnect the power win-
dow motor harness connector (A) and then remove the regulator
from the door panel.

3.

Remove the rear door glass run.

INSTALLATION

1.

Rear door glass run

2.

Corner piece assembly

3.

Power window motor

4.

Regulator assembly

5.

Rear door glass

6.

Rear door inside seal

7.

Sealing screen

8.

Rear door panel

: Vehicle front

JMKIA2315ZZ

: Bolt

: Nut

JMKIA2664ZZ
