EXT-26

< ON-VEHICLE REPAIR >

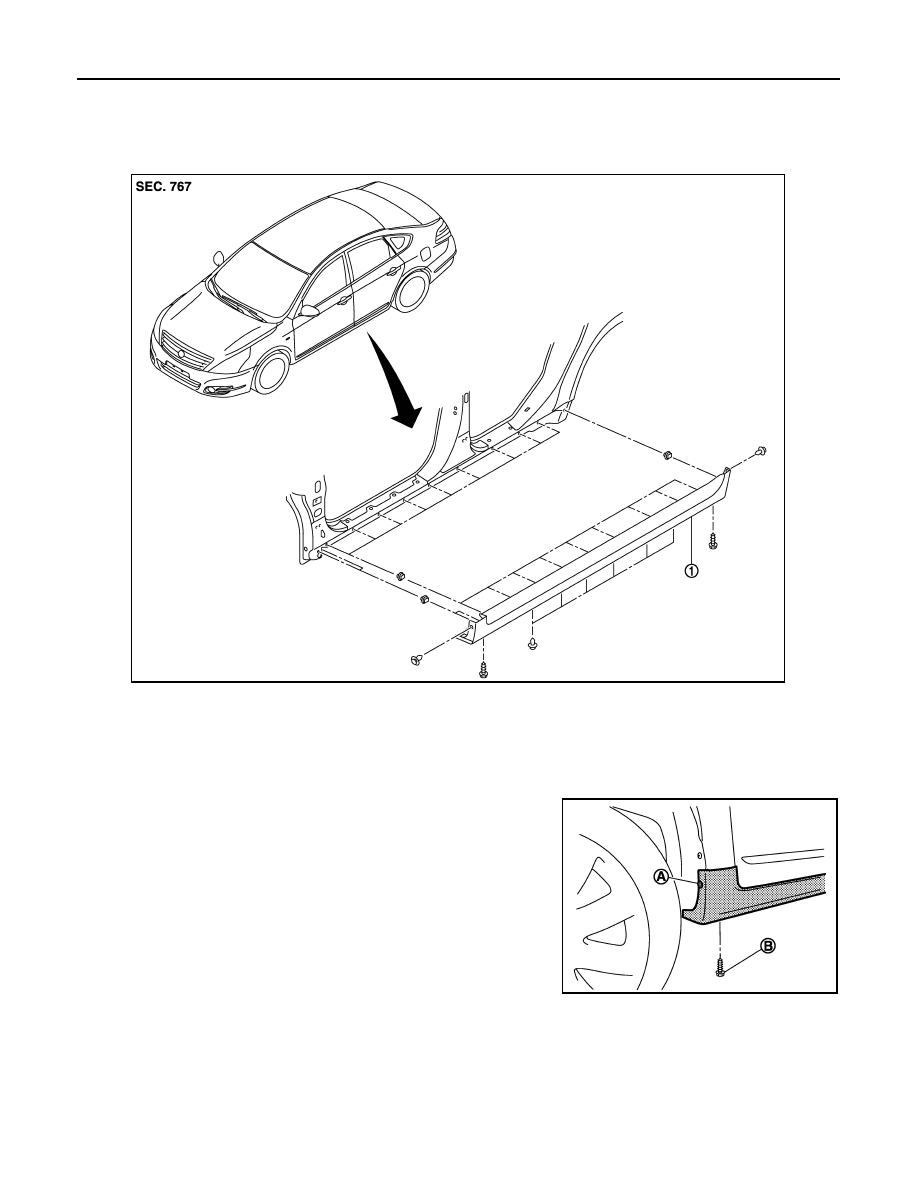

CENTER MUD GUARD

CENTER MUD GUARD

Exploded View

INFOID:0000000003819541

Removal and Installation

INFOID:0000000003819542

REMOVAL

1.

Remove center mud guard front end fixing clip (A) and screw
(B).

1.

Center mud guard

JMKIA2544ZZ

JMKIA2545ZZ

CENTER MUD GUARD

EXT-27

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

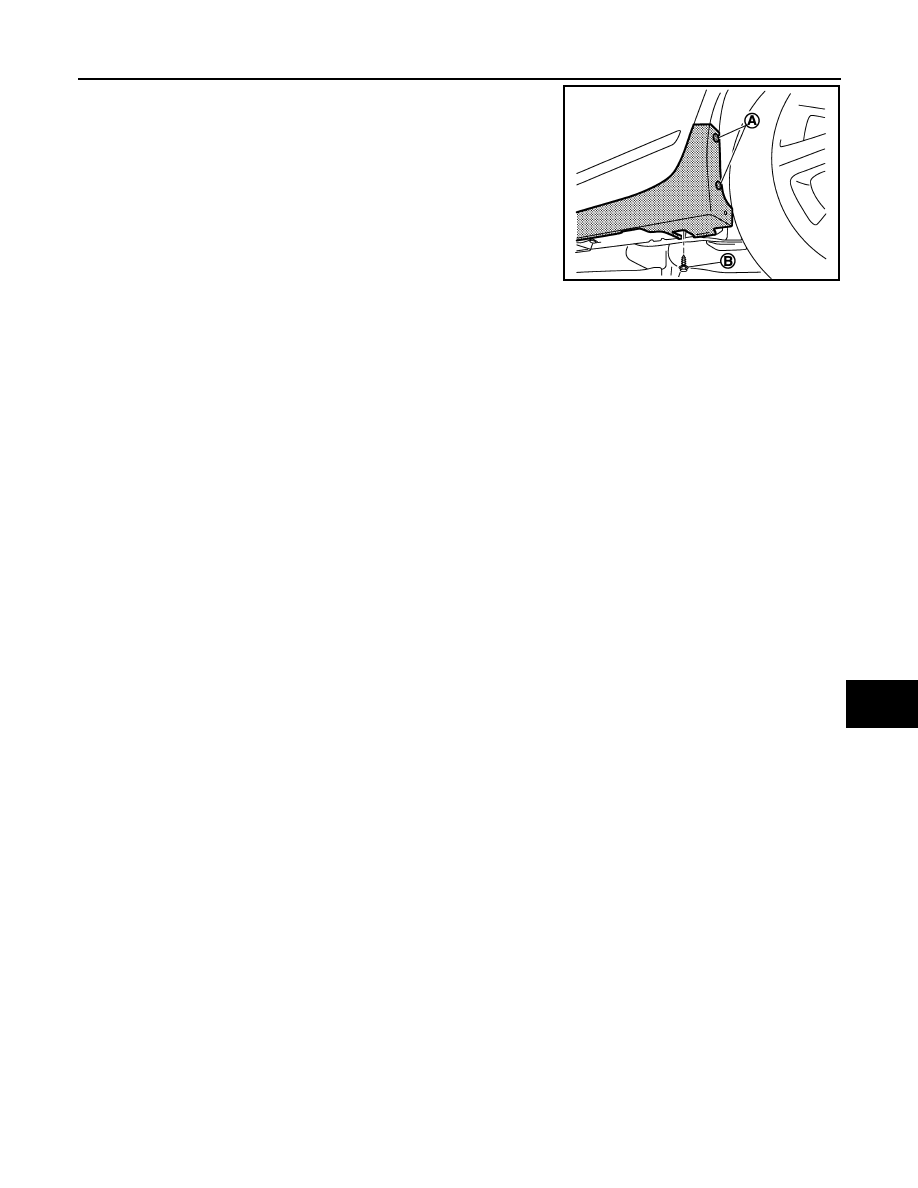

2.

Remove center mud guard rear end fixing clips (A) and screw
(B).

3.

Remove center mud guard underside fixing clips and screws.

4.

Fully open front door and rear door.

5.

Remove center mud guard fixing clips from back side using remover tool.

6.

Remove center mud guard from body side.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• When installing, visually check the center mud guard and the clips, then replace them with new parts

if they are damaged.

• When installing center mud guard, check that clips are securely fitted in panel holes on body, and

then press them in.

JMKIA2546ZZ

EXT-28

< ON-VEHICLE REPAIR >

FLOOR SIDE FAIRING

FLOOR SIDE FAIRING

Exploded View

INFOID:0000000003819543

Removal and Installation

INFOID:0000000003819544

REMOVAL

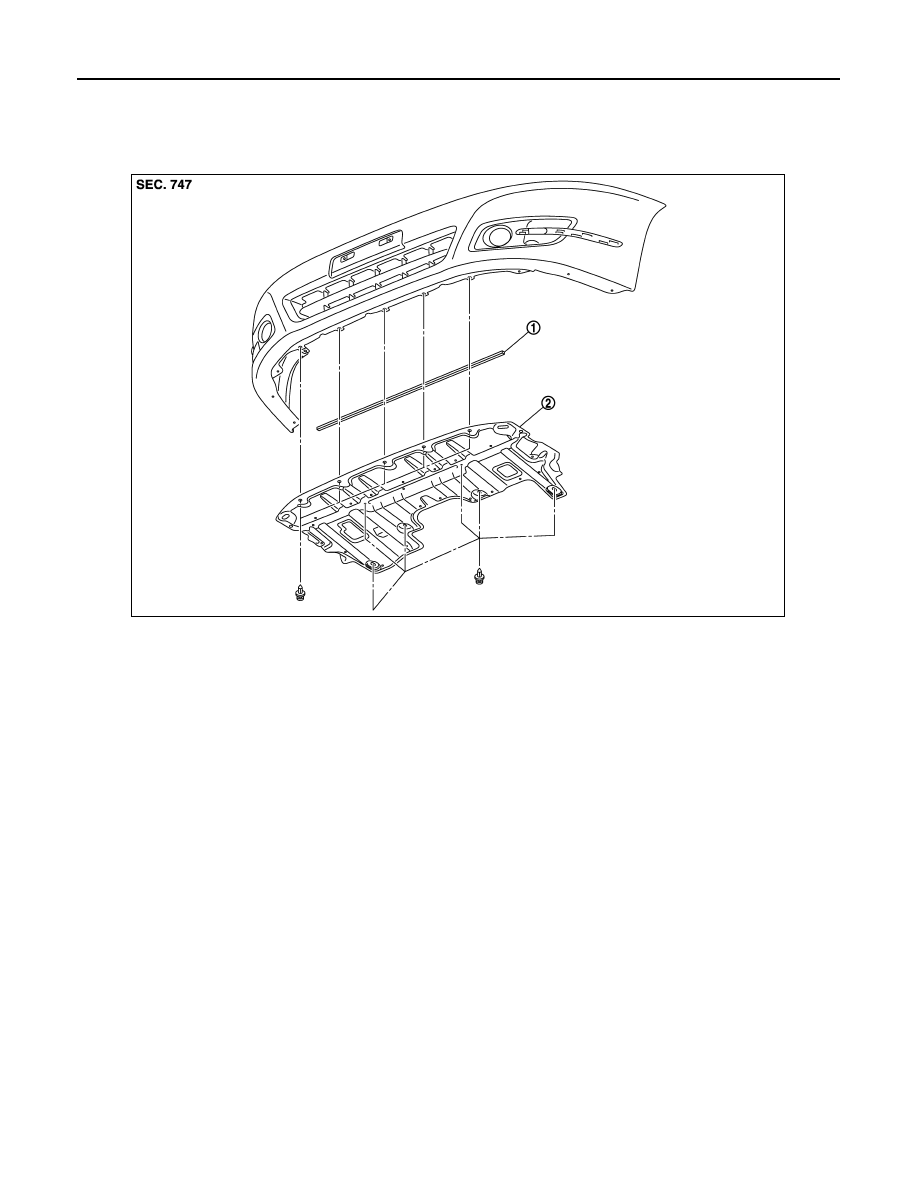

ENGINE UNDER COVER

1.

Remove engine under cover fixing clips.

2.

Remove engine under cover.

INSTALLATION

Install in the reverse order of removal.

1.

Engine under cover seal

2.

Engine under cover

JMKIA2630ZZ

ROOF SIDE MOLDING

EXT-29

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

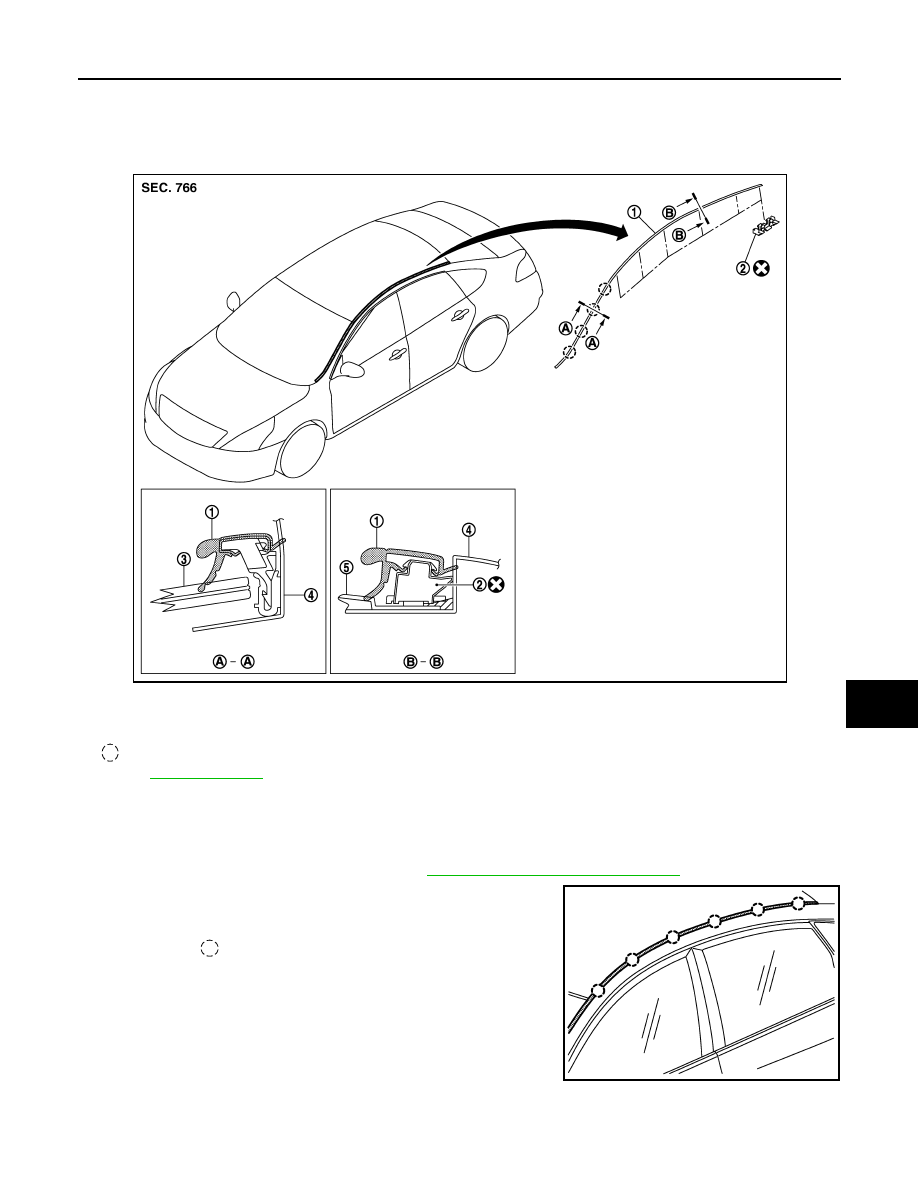

ROOF SIDE MOLDING

Exploded View

INFOID:0000000003819545

Removal and Installation

INFOID:0000000003819546

REMOVAL

1.

Remove front fender cover (LH/RH). Refer to

DLK-199, "Removal and Installation"

.

2.

Disengage clips while pinching molding from roof rear end to
front end.

1.

Roof side molding

2.

Roof side molding clip

3.

Front windshield

4.

Body side panel

5.

Roof panel

: Clip

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA2614GB

: Clip

JMKIA2615ZZ
