FRONT GRILLE

FRONT GRILLE

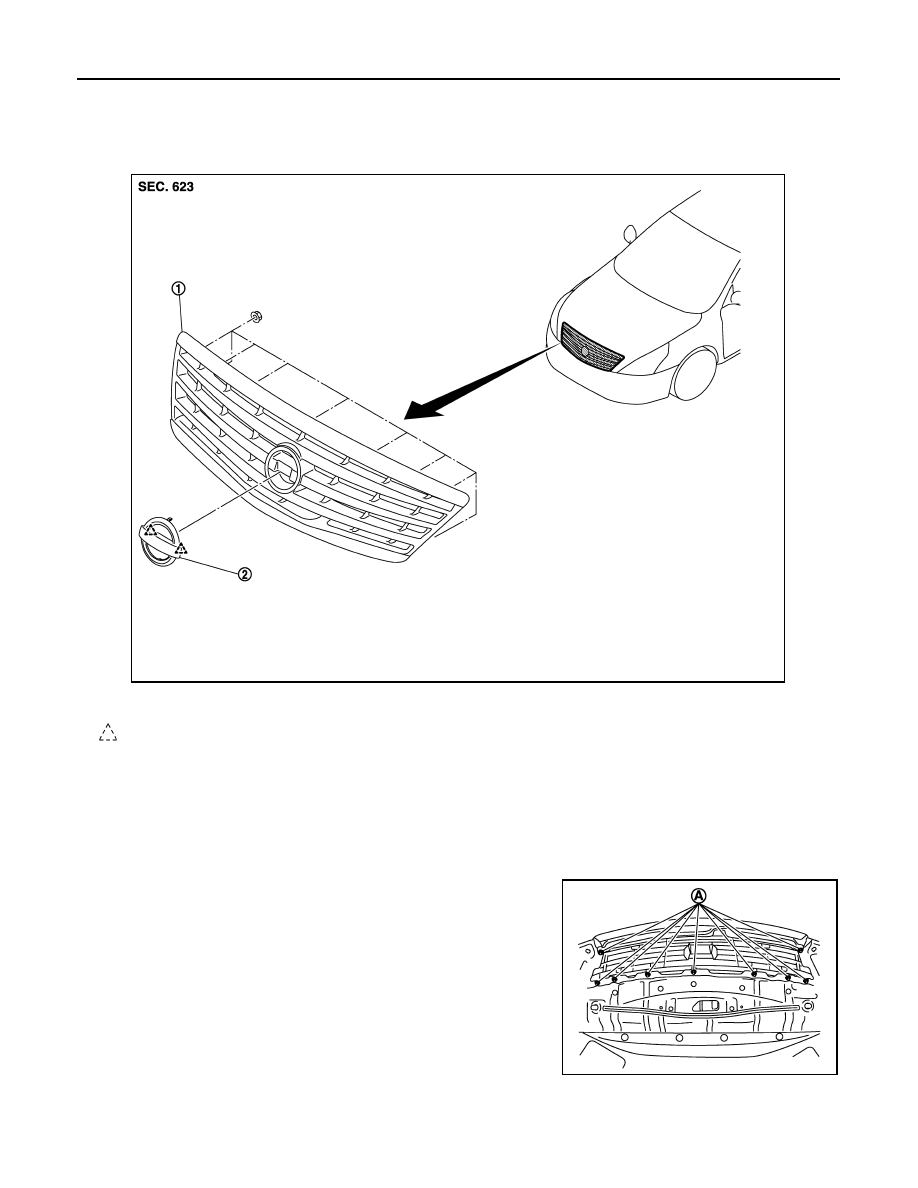

Exploded View

INFOID:0000000003819533

Removal and Installation

INFOID:0000000003819534

REMOVAL

CAUTION:

Apply protection tape around outer circumference of front grille (bumper fascia side).
1.

Fully open hood assembly.

2.

Remove front grille mounting nuts (A).

3.

Pull front grille out toward vehicle front.

4.

Remove the following parts after removing front grille.
Front emblem

1.

Front grille

2.

Front emblem

: Pawl

JMKIA2528ZZ

JMKIA2529ZZ

FRONT GRILLE

EXT-19

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

INSTALLATION

Install in the reverse order of removal.

EXT-20

< ON-VEHICLE REPAIR >

COWL TOP

COWL TOP

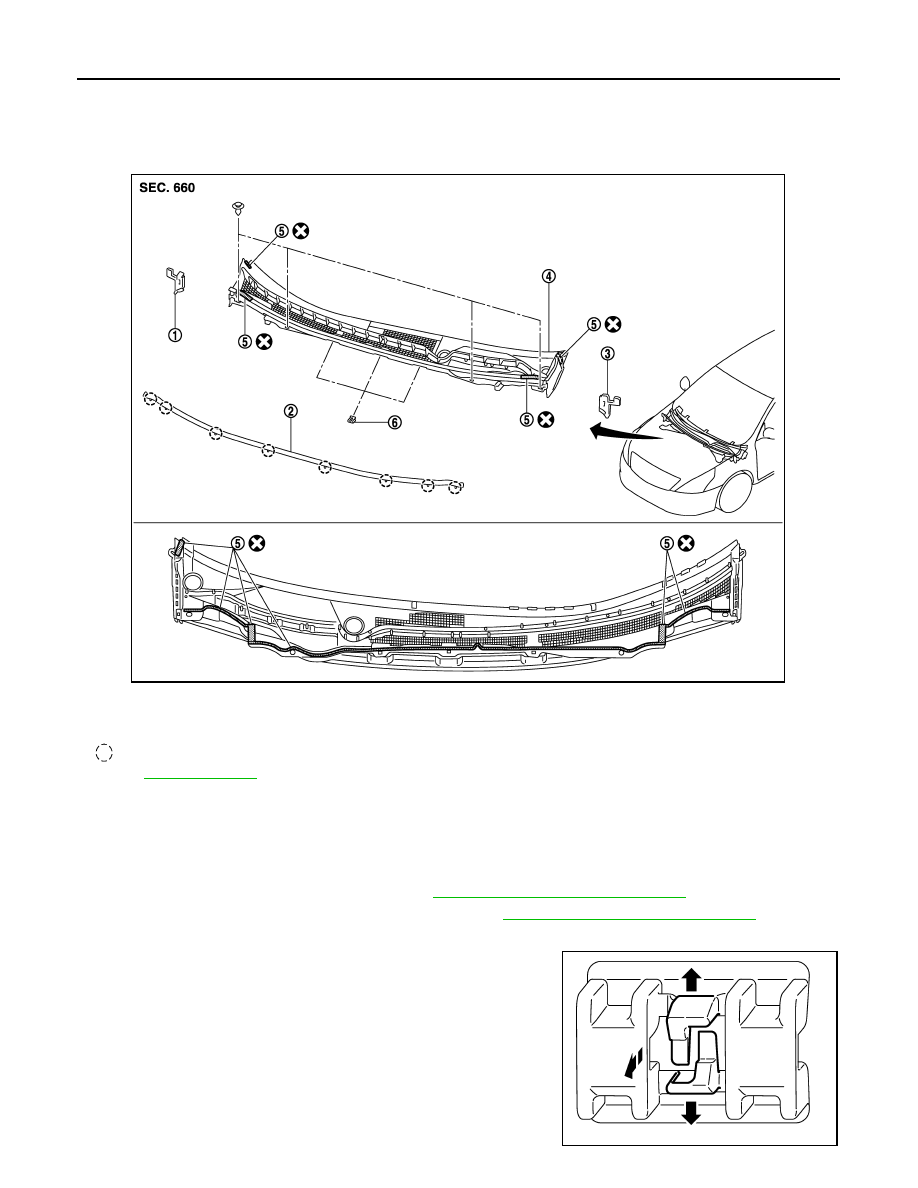

Exploded View

INFOID:0000000003819535

Removal and Installation

INFOID:0000000003819536

REMOVAL

1.

Fully open hood assembly.

2.

Remove front fender covers (LH/RH). Refer to

DLK-199, "Removal and Installation"

3.

Remove front wiper arms (LH/RH) from vehicle. Refer to

WW-105, "Removal and Installation"

.

4.

Remove cowl top cover seal.

5.

Remove cowl top cover clips on cowl top cover front side.

1.

Cowl top end rubber RH

2.

Cowl top cover seal

3.

Cowl top end rubber LH

4.

Cowl top cover

5.

EPT sealer

6.

Cowl top cover clip

: Clip

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA2655ZZ

PIIB2815J

COWL TOP

EXT-21

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

6.

Remove cowl top cover fixing clips on cowl top cover top side.

7.

Remove cowl top end rubbers (LH/RH) from cowl top cover.

CAUTION:

• Replace double-faced adhesive tape on cowl top end rubber with a new tape if cowl top end rub-

ber is reused.

• To secure contact, never wash vehicle within 24 hours after installation.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• After installing, perform adjustment of wiper arm. Refer to

WW-105, "Adjustment"

.

• Always replace cowl top cover EPT sealer on rear of vehicle with a new one when installing old cowl

top cover.
