EXT-14

< ON-VEHICLE REPAIR >

FRONT BUMPER

Front bumper – Headlamp

C – C 0.5 – 2.5 mm (0.020 – 0.098 in)

—

Front bumper – Front fender D – D 0.0 – 0.7 mm (0.000 – 0.028 in)

−

0.3 – 1.7 mm (

−

0.012 – 0.067 in)

Portion

Clearance

Flush

REAR BUMPER

EXT-15

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

REAR BUMPER

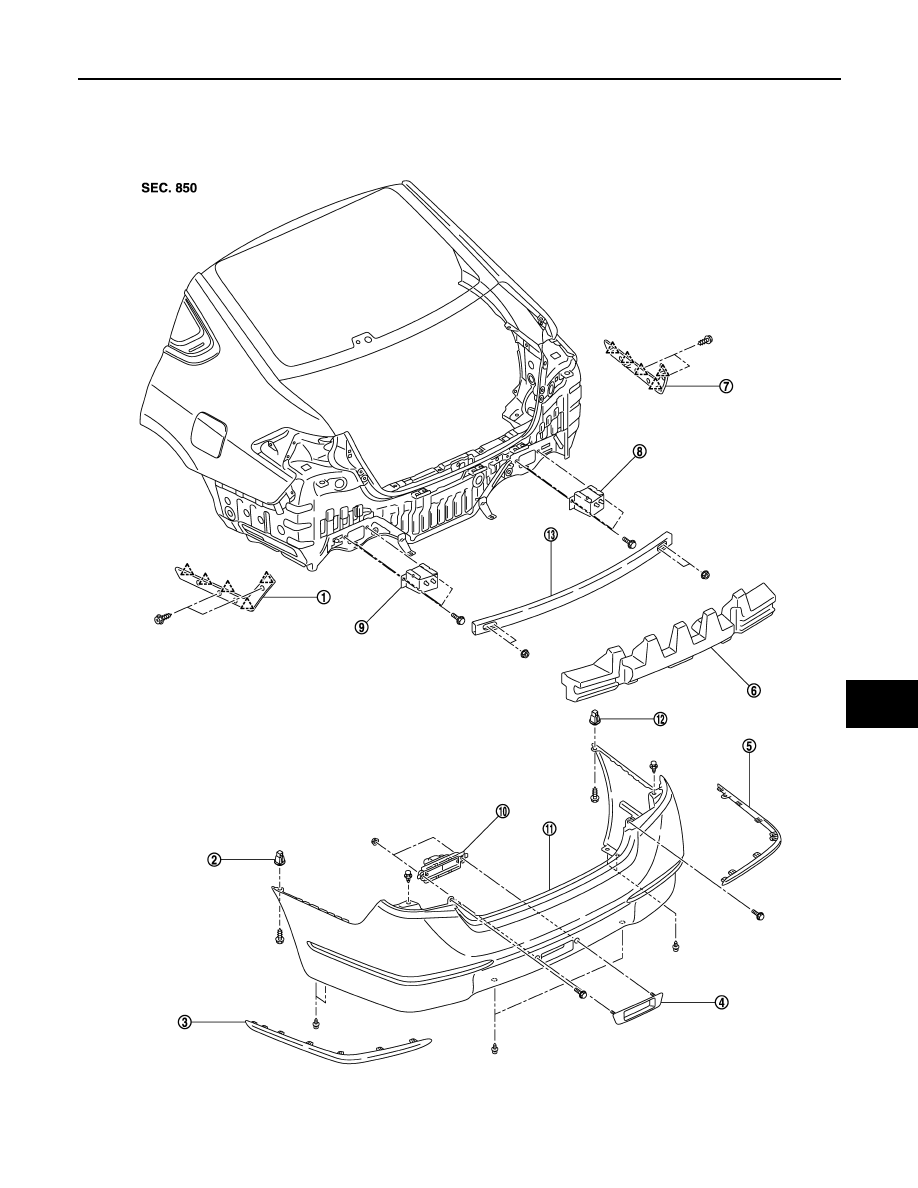

Exploded View

INFOID:0000000003819531

1.

Bumper side bracket LH

2.

Grommet LH

3.

Bumper molding LH

4.

Rear fog lamp rim

5.

Bumper molding RH

6.

Bumper energy absorber

7.

Bumper side bracket RH

8.

Bumper stay RH

9.

Bumper stay LH

JMKIA2522ZZ

EXT-16

< ON-VEHICLE REPAIR >

REAR BUMPER

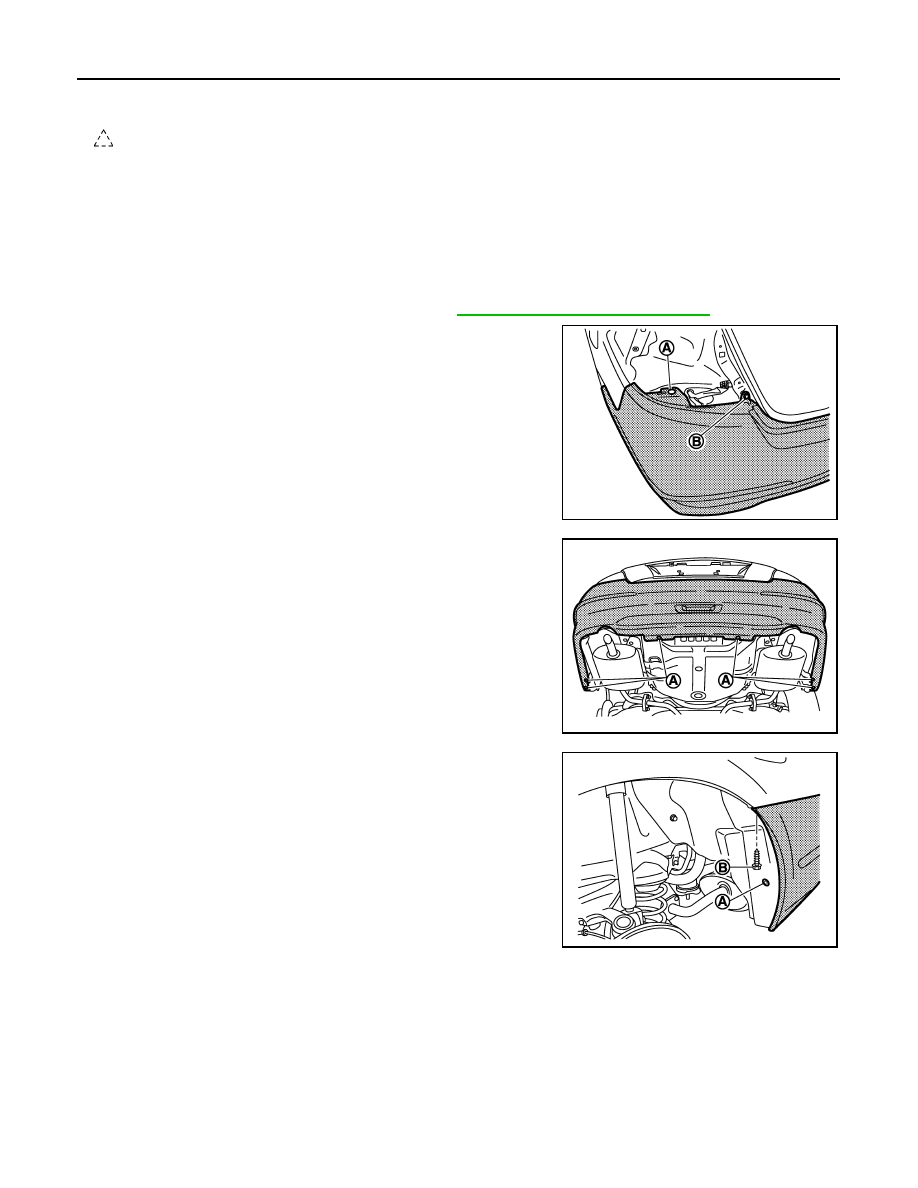

Removal and Installation

INFOID:0000000003819532

REMOVAL

CAUTION:

Bumper fascia is made of resin. Never apply strong force to it, and be careful to prevent contact with
oil.

1.

Fully open trunk lid assembly.

2.

Remove rear combination lamp (LH/RH). Refer to

EXL-191, "Removal and Installation"

.

3.

Remove clips (A) and screws (B) located under rear combina-
tion lamp (LH/RH).

4.

Remove screws (A) of bumper fascia underside.

5.

Remove rear wheel house protector fixing clips (A) (LH/RH) and
remove rear bumper fascia fixing screws (B) (LH/RH).

10. Rear fog lamp

11.

Rear bumper fascia assembly

12. Grommet RH

13. Bumper reinforcement

: Pawl

JMKIA2523ZZ

JMKIA2524ZZ

JMKIA2525ZZ

REAR BUMPER

EXT-17

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

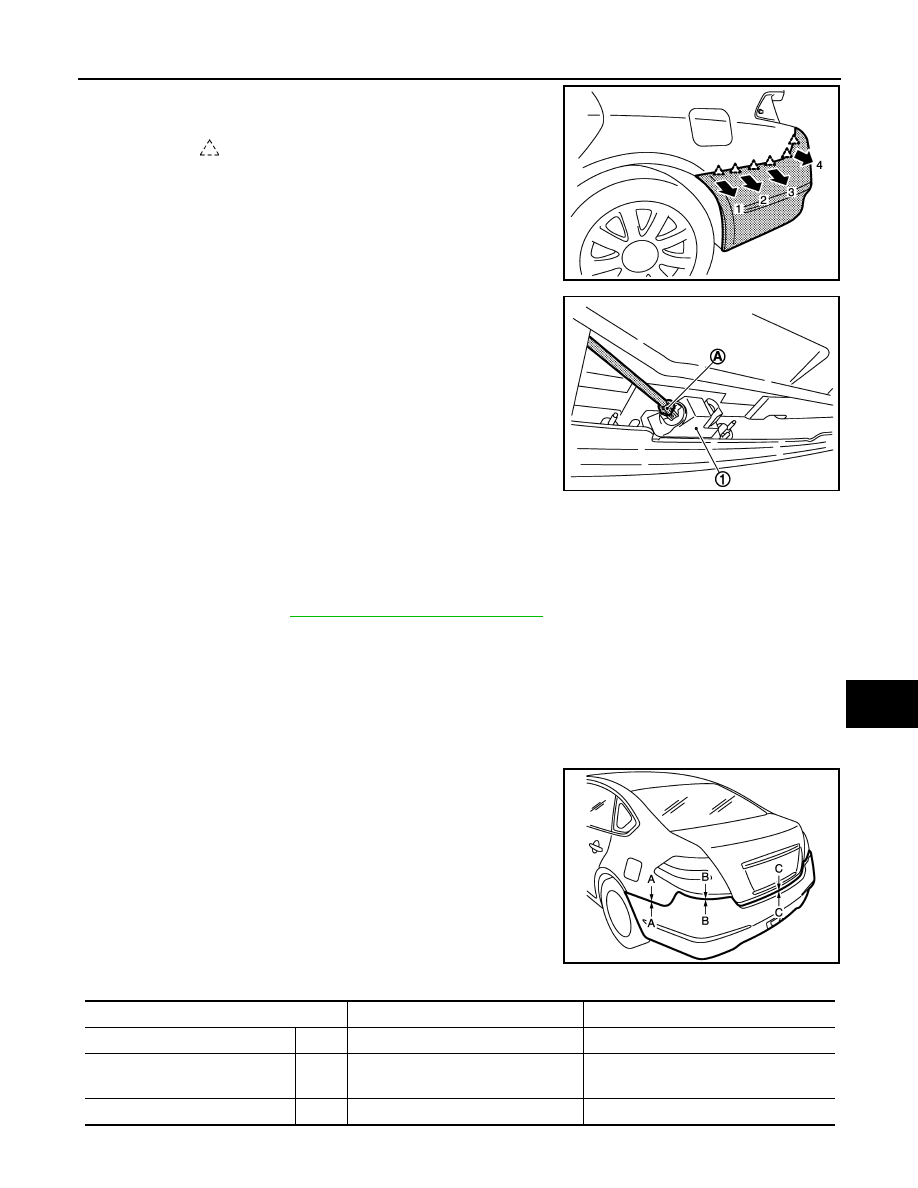

6.

Pull rear bumper fascia side toward the vehicle side to disen-
gage the rear bumper fascia from bumper side bracket (LH/RH).

7.

Disconnect rear fog lamp (1) harness connector (A).

8.

Pull out bumper fascia toward rear of vehicle.

9.

Remove bumper fascia assembly.

CAUTION:

When removing bumper fascia, 2 workers are required so as to prevent it from dropping.

10. Remove the following parts after removing bumper fascia.

• Rear fog lamp. Refer to

EXL-194, "Removal and Installation"

.

• Rear bumper molding (LH/RH).

11. Remove bumper energy absorber.

12. Remove bumper reinforcement mounting nuts, and then remove bumper reinforcement with power tool.

13. Remove rear bumper stay (LH/RH) mounting bolts, and then remove rear bumper stay (LH/RH).

INSTALLATION

Install in the reverse order of removal.
NOTE:
After installing, perform fitting adjustment.

: Pawl

JMKIA2526ZZ

JMKIA2527ZZ

JMKIA2551ZZ

Portion

Clearance

Flush

Rear bumper – Rear fender A – A 0.0 – 0.8 mm (0.000 – 0.031 in)

−

0.2 – 1.8 mm (

−

0.008 – 0.071 in)

Rear bumper – Rear com-
bination lamp

B – B 0.5 – 3.5 mm (0.020 – 0.138 in)

—

Rear bumper – Trunk lid

C – C 5.0 – 9.0 mm (0.197 – 0.354 in)

—
