EXT-10

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

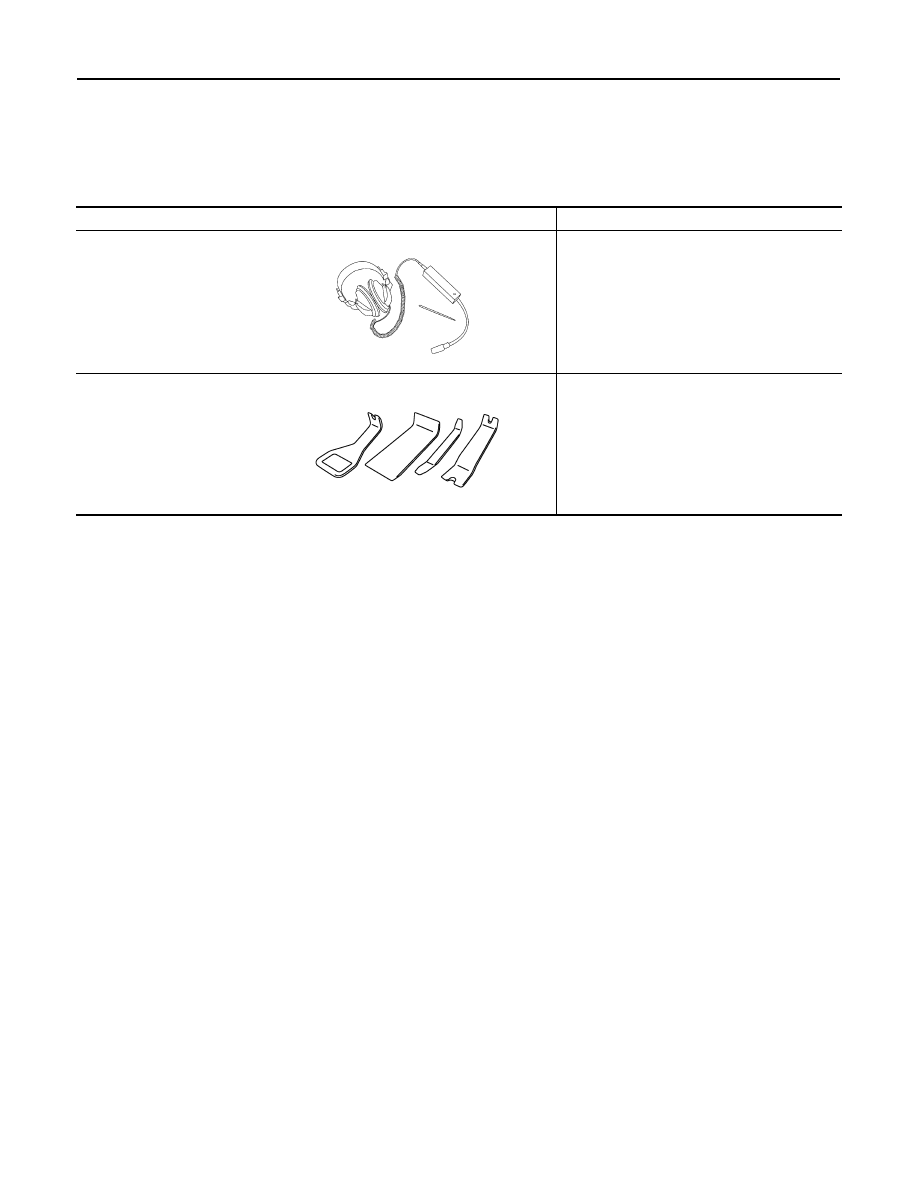

Commercial Service Tools

INFOID:0000000003733752

Tool name

Description

Engine ear

Locates the noise

Remover tool

Removes clips, pawls and metal clips

SIIA0995E

PIIB7923J

FRONT BUMPER

EXT-11

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

ON-VEHICLE REPAIR

FRONT BUMPER

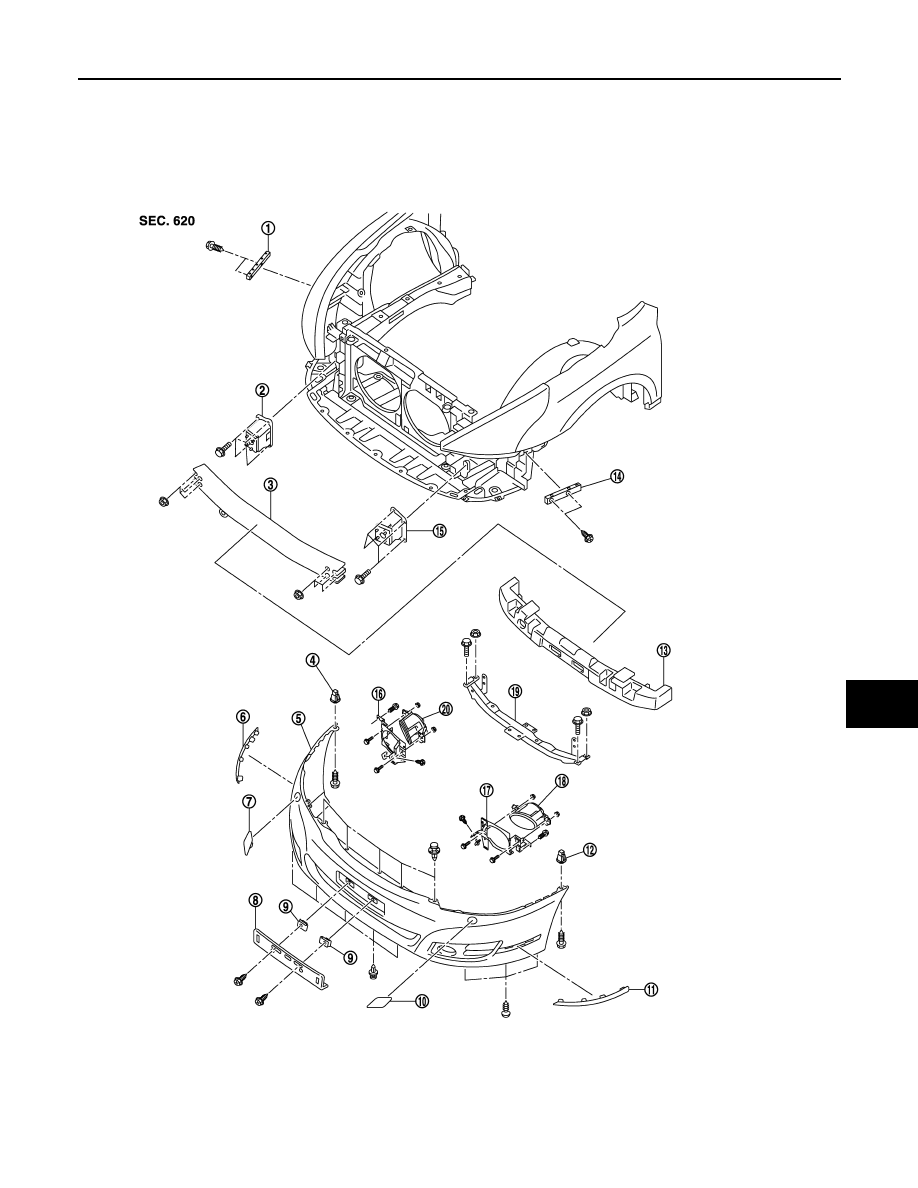

Exploded View

INFOID:0000000003819529

1.

Bumper side bracket RH

2.

Bumper stay RH

3.

Bumper reinforcement

4.

Grommet RH

5.

Bumper fascia assembly

6.

Bumper molding RH

7.

Headlamp washer nozzle cover RH

8.

Licence plate bracket

9.

Spring nut

10. Headlamp washer nozzle cover LH

11.

Bumper molding LH

12. Grommet LH

13. Bumper energy absorber

14.

Bumper side bracket LH

15. Bumper stay LH

JMKIA2516ZZ

EXT-12

< ON-VEHICLE REPAIR >

FRONT BUMPER

Removal and Installation

INFOID:0000000003819530

REMOVAL

CAUTION:

Bumper fascia is made of resin. Never apply strong force to it, and be careful to prevent contact with
oil.

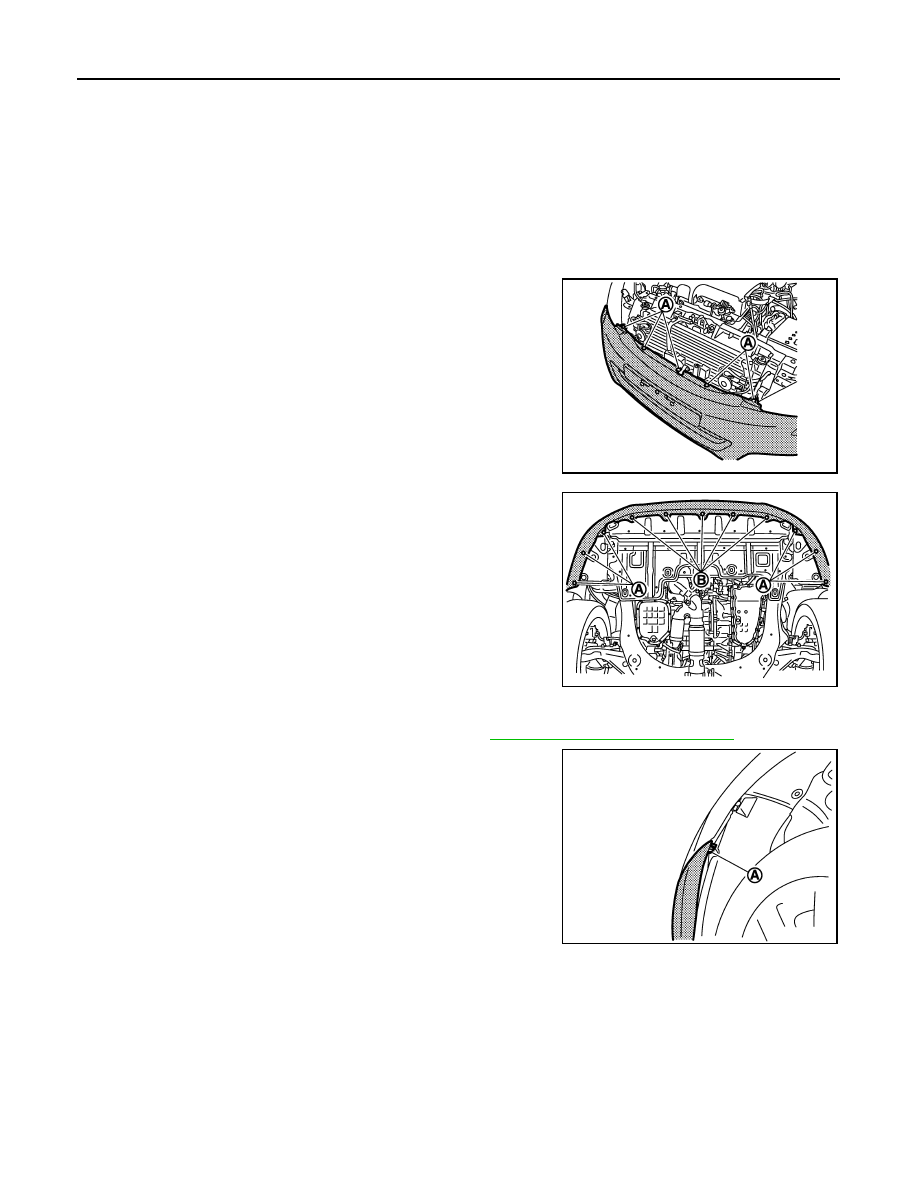

1.

Fully open hood assembly.

2.

Remove clips (A) of front bumper fascia upper side.

3.

Remove front bumper fascia fixing screws (A) and clips (B) from
front bumper fascia lower side.

4.

Disconnect front fog lamp harness connectors (LH/RH).

5.

Disconnect headlamp washer tube connector. Refer to

WW-97, "Removal and Installation"

.

6.

Remove fender protector fixing clips to access front bumper fas-
cia fixing screw (A), and then remove front bumper fascia fixing
screws (LH/RH).

16. Front fog lamp bracket RH

17.

Front fog lamp bracket LH

18. Front fog lamp LH

19. Bumper upper retainer

20.

Front fog lamp RH

JMKIA2517ZZ

JMKIA2518ZZ

JMKIA2519ZZ

FRONT BUMPER

EXT-13

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

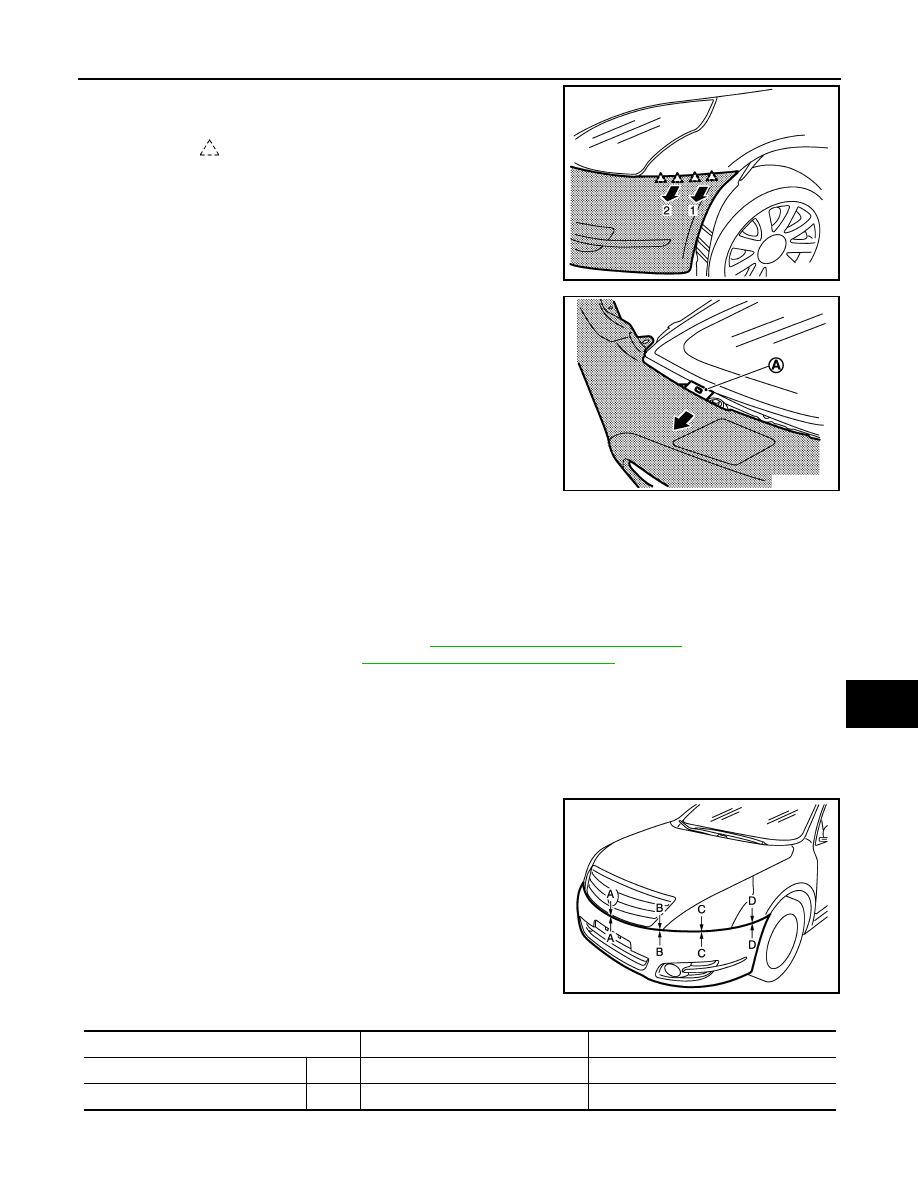

7.

Pull bumper fascia side toward the vehicle side to disengage the
bumper fascia from bumper side brackets (LH/RH).

8.

Disengage front bumper fascia from bumper brackets (A) (LH/
RH).

9.

Remove bumper fascia assembly.

CAUTION:

When removing bumper fascia, 2 workers are required so as to prevent it from dropping.

10. Remove the following parts after removing bumper fascia.

• License plate bracket
• Front bumper retainer
• Front bumper molding (LH/RH)
• Headlamp washer nozzle (LH/RH). Refer to

WW-102, "Removal and Installation"

.

• Front fog lamps (LH/RH). Refer to

EXL-183, "Removal and Installation"

.

11. Remove bumper energy absorber.
12. Remove bumper reinforcement mounting nuts, and then remove bumper reinforcement with power tool.

13. Remove bumper stay (LH/RH) mounting bolts, and then remove bumper stay (LH/RH).

INSTALLATION

Install in the reverse order of removal.
NOTE:
After installing, perform fitting adjustment.

: Pawl

JMKIA2520ZZ

JMKIA2521ZZ

JMKIA2550ZZ

Portion

Clearance

Flush

Front bumper – Front grille

A – A 3.5 – 8.5 mm (0.138 – 0.335 in)

—

Front bumper – Hood

B – B 3.7 – 8.3 mm (0.146 – 0.327 in)

—
