EXL-238

< COMPONENT DIAGNOSIS >

[HALOGEN TYPE]

OPTICAL SENSOR

OPTICAL SENSOR

Description

INFOID:0000000003894326

Optical sensor converts the outside brightness (lux) to voltage and transmits the optical sensor signal to BCM.

Component Function Check

INFOID:0000000003894327

1.

CHECK OPTICAL SENSOR SIGNAL BY CONSULT-III

CONSULT-III DATA MONITOR

1.

Turn the ignition switch ON.

2.

Select "OPTICAL SENSOR" of BCM (HEADLAMP) data monitor item.

3.

Turn the lighting switch AUTO.

4.

With the optical sensor illuminating, check the monitor status.

*: Illuminates the optical sensor. The value may be less than the standard value if brightness is weak.

Is the item status normal?

YES

>> Optical sensor is normal.

NO

>> Refer to

EXL-238, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000003894328

1.

CHECK OPTICAL SENSOR POWER SUPPLY INPUT

1.

Turn the ignition switch ON.

2.

Turn the lighting switch AUTO.

3.

Check the voltage between the optical sensor harness connector and the ground.

Is the measurement value normal?

YES

>> GO TO 2.

NO

>> GO TO 4.

2.

CHECK OPTICAL SENSOR GROUND INPUT

Check the voltage between the optical sensor harness connector and the ground.

Is the measurement value normal?

YES

>> GO TO 3.

NO

>> GO TO 6.

3.

CHECK OPTICAL SENSOR SIGNAL OUTPUT

Monitor item

Condition

Voltage (Approx.)

OPTICAL SENSOR

Optical sensor

When illuminating

3.1 V or more *

When shutting off light

0.6 V or less

Terminals

Voltage

(Approx.)

(+)

(

)

Optical sensor

Ground

Connector

Terminal

M17

1

5 V

Terminals

Voltage

(Approx.)

(+)

(

)

Optical sensor

Ground

Connector

Terminal

M17

3

0 V

OPTICAL SENSOR

EXL-239

< COMPONENT DIAGNOSIS >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

 With illuminating the optical sensor, check the voltage between the optical sensor harness connector and the
ground.

*: Illuminate the optical sensor. The value may be less than the standard if brightness is weak.

Is the measurement value normal?

YES

>> GO TO 7.

NO

>> Replace the optical sensor.

4.

CHECK OPTICAL SENSOR OPEN CIRCUIT

1.

Turn the ignition switch OFF.

2.

Disconnect the optical sensor connector and BCM connector.

3.

Check continuity between the optical sensor harness connector and the BCM harness connector.

Does continuity exist?

YES

>> GO TO 5.

NO

>> Repair the harnesses or connectors.

5.

CHECK OPTICAL SENSOR SHORT CIRCUIT

Check the continuity between the optical sensor harness connector and the ground.

Does continuity exist?

YES

>> Repair the harnesses or connectors.

NO

>> Replace BCM.

6.

CHECK OPTICAL SENSOR GROUND OPEN CIRCUIT

1.

Turn the ignition switch OFF.

2.

Disconnect the optical sensor connector and BCM connector.

3.

Check continuity between the optical sensor harness connector and the BCM harness connector.

Does continuity exist?

YES

>> Replace BCM.

NO

>> Repair the harnesses or connectors.

7.

CHECK OPTICAL SENSOR SIGNAL OPEN CIRCUIT

1.

Turn the ignition switch OFF.

2.

Disconnect the optical sensor connector and BCM connector.

Terminals

Condition

Voltage

(Approx.)

(+)

(

)

Optical sensor

Ground

Optical sen-

sor

Connector

Terminal

M17

2

When illumi-
nating

3.1 V or
more *

When shut-
ting off light

0.6 V or less

Optical sensor

BCM

Continuity

Connector

Terminal

Connector

Terminal

M17

1

M123

138

Existed

Optical sensor

Ground

Continuity

Connector

Terminal

M17

1

Not existed

Optical sensor

BCM

Continuity

Connector

Terminal

Connector

Terminal

M17

3

M123

137

Existed

EXL-240

< COMPONENT DIAGNOSIS >

[HALOGEN TYPE]

OPTICAL SENSOR

3.

Check continuity between the optical sensor harness connector and the BCM harness connector.

Does continuity exist?

YES

>> GO TO 8.

NO

>> Repair the harnesses or connectors.

8.

CHECK OPTICAL SENSOR SHORT CIRCUIT

Check the continuity between the optical sensor harness connector and the ground.

Does continuity exist?

YES

>> Repair the harnesses or connectors.

NO

>> Replace BCM.

Optical sensor

BCM

Continuity

Connector

Terminal

Connector

Terminal

M17

2

M123

113

Existed

Optical sensor

Ground

Continuity

Connector

Terminal

M17

2

Not existed

HAZARD SWITCH

EXL-241

< COMPONENT DIAGNOSIS >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

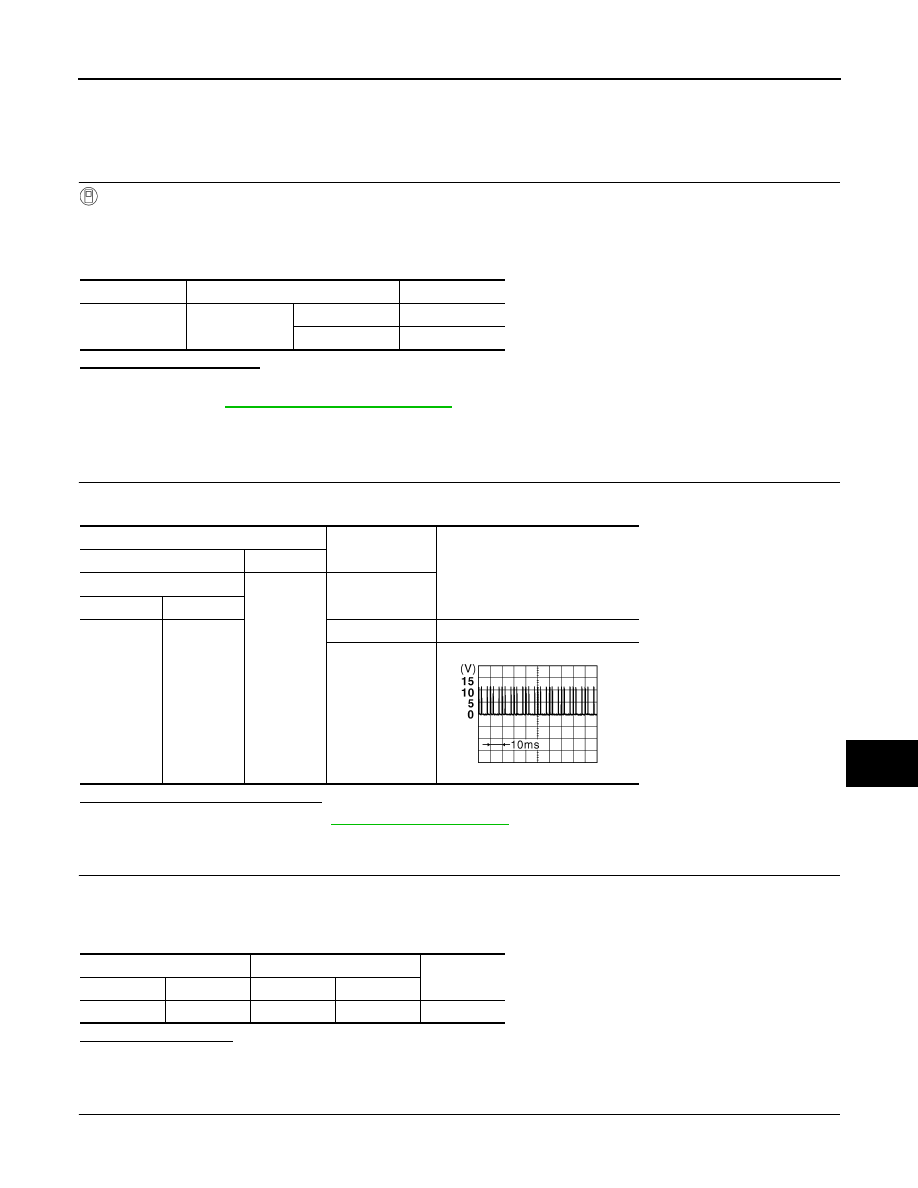

HAZARD SWITCH

Component Function Check

INFOID:0000000003894329

1.

CHECK HAZARD SWITCH SIGNAL BY CONSULT-III

CONSULT-III DATA MONITOR

1.

Turn the ignition switch ON.

2.

Select “HAZARD SW” of BCM (FLASHER) data monitor item.

3.

With operating the hazard switch, check the monitor status.

Is the item status normal?

YES

>> Hazard switch circuit is normal.

NO

>> Refer to

EXL-241, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000003894330

1.

CHECK HAZARD SWITCH SIGNAL INPUT

With operating the hazard switch, check the voltage between the BCM harness connector and the ground.

Is the measurement value normal?

YES

>> Replace BCM. Refer to

BCS-78, "Exploded View"

.

NO

>> GO TO 2.

2.

CHECK HAZARD SWITCH SIGNAL OPEN CIRCUIT

1.

Turn the ignition switch OFF.

2.

Disconnect the hazard switch connector and BCM connector.

3.

Check continuity between the hazard switch harness connector and the BCM harness connector.

Does continuity exist?

YES

>> GO TO 3.

NO

>> Repair the harnesses or connectors.

3.

CHECK HAZARD SWITCH SIGNAL SHORT CIRCUIT

Check continuity between the hazard switch harness connector and the ground.

Monitor item

Condition

Monitor status

HAZARD SW

Hazard switch

ON

On

OFF

Off

Terminals

Condition

Voltage (Approx.)

(+)

(

)

BCM

Ground

Hazard switch

Connector

Terminal

M122

110

ON

0 V

OFF

JPMIA0154GB

Hazard switch

BCM

Continuity

Connector

Terminal

Connector

Terminal

M45

2

M122

110

Existed
