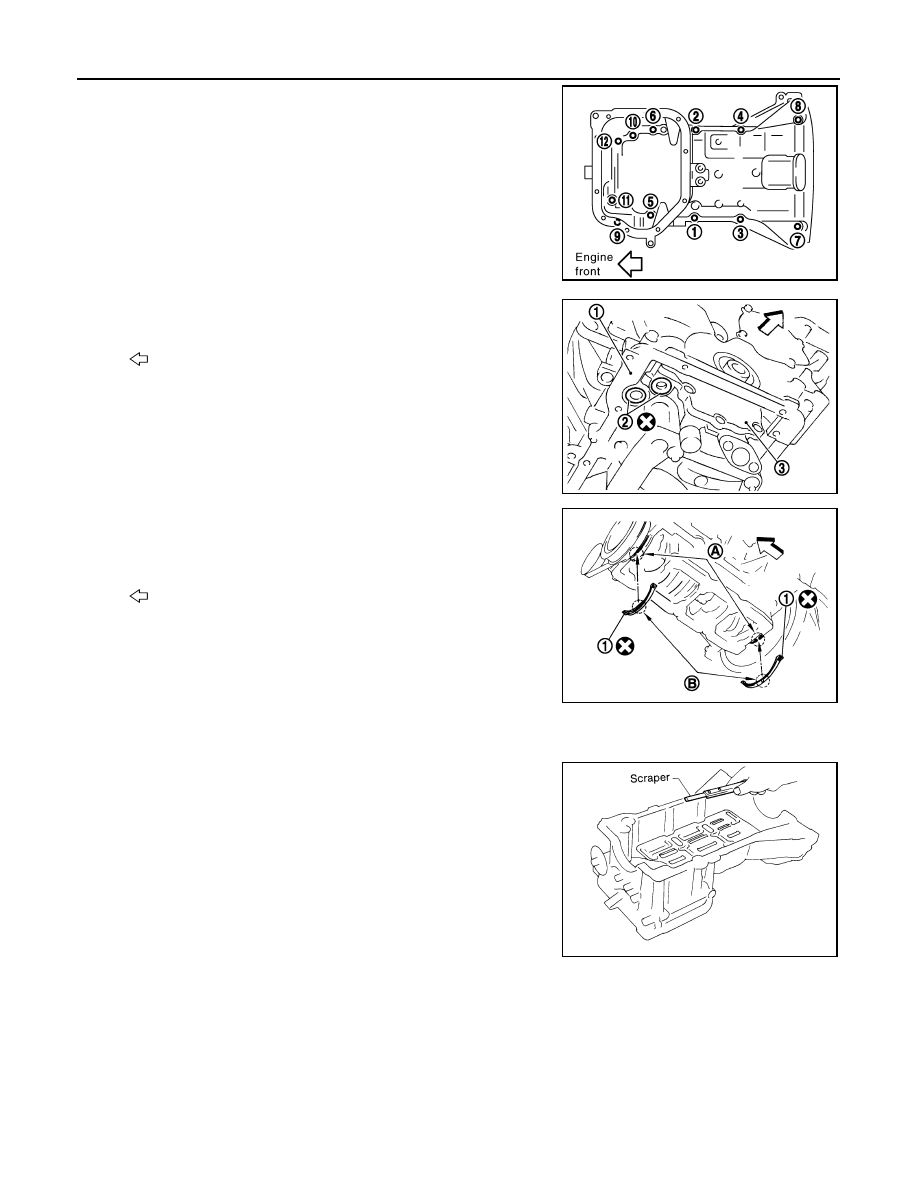

EM-40

< ON-VEHICLE REPAIR >

OIL PAN AND OIL STRAINER

20. Loosen mounting bolts in the reverse order as shown in the fig-

ure to remove.
• Insert the seal cutter [SST: KV10111100 (J37228)] between oil

pan (upper) and cylinder block. Slide seal cutter by tapping on
the side of tool with a hammer. Remove oil pan (upper).

CAUTION:

• Be careful not to damage the mating surfaces.
• Never insert a screwdriver, this will damage the mating

surfaces.

21. Remove O-rings (2) from bottom of cylinder block (1) and oil

pump (3).

22. Remove oil pan gaskets (1).

INSTALLATION

1.

Install oil pan (upper) as follows:

a.

Use a scraper to remove old liquid gasket from mating surfaces.

CAUTION:

Never scratch or damage the mating surfaces when clean-
ing off old liquid gasket.
• Also remove old liquid gasket from mating surface of cylinder

block.

• Remove old liquid gasket from the bolt holes and threads.

b.

Install new oil pan gaskets.

PBIC1636E

: Engine front

JPBIA1379ZZ

A

: Notch

B

: Protrusion

: Engine front

JPBIA0433ZZ

MEM108A

OIL PAN AND OIL STRAINER

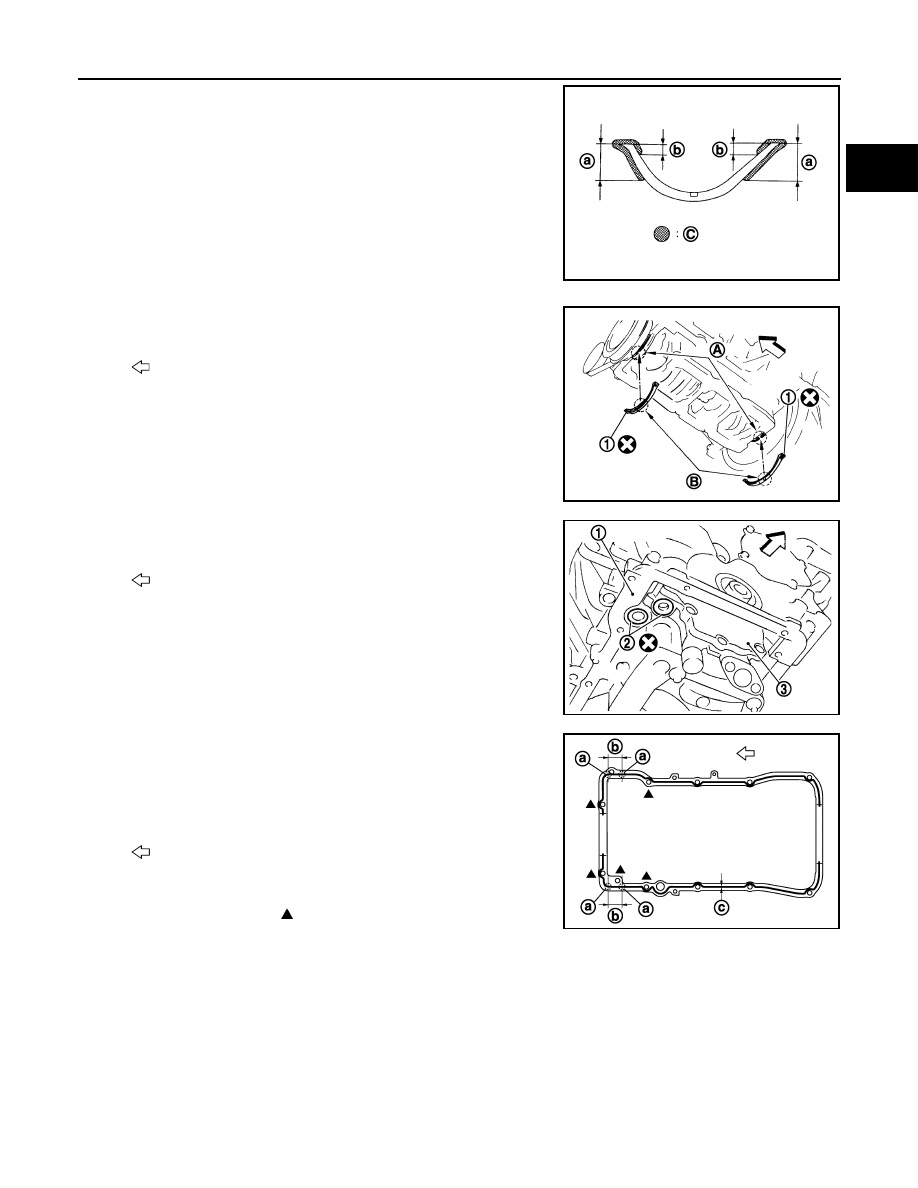

EM-41

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

• Apply liquid gasket to new oil pan gaskets as shown in the fig-

ure.

Use Genuine Liquid Gasket or equivalent.

• To install, align protrusion (B) of oil pan gasket with notches

(A) of front timing chain case and rear oil seal retainer.

• Install oil pan gasket (1) with smaller arc to front timing chain

case side.

c.

Install new O-rings (2) on the bottom of cylinder block (1) and oil
pump (3).

d.

Apply a continuous bead of liquid gasket with the tube presser
(commercial service tool) to the cylinder block mating surface of
oil pan (upper) to a limited portion as shown in the figure.

Use Genuine Liquid Gasket or equivalent.

CAUTION:

• For bolt holes with   marks (5 locations), apply liquid

gasket outside the holes.

• Apply a bead of 4.5 to 5.5 mm (0.177 to 0.217 in) diameter to area (a).
• Attaching should be done within 5 minutes after coating.

e.

Install oil pan (upper).

CAUTION:

Install avoiding misalignment of both O-rings.

C

: Sealing point

a

: 15 mm (0.59 in)

b

: 5 mm (0.20 in)

JPBIA0432ZZ

: Engine front

JPBIA0433ZZ

: Engine front

JPBIA1379ZZ

b

: 35 mm (1.38 in)

c

:

φ

3.5 - 4.5 mm (0.138 - 0.177 in)

: Engine front

JPBIA0434ZZ

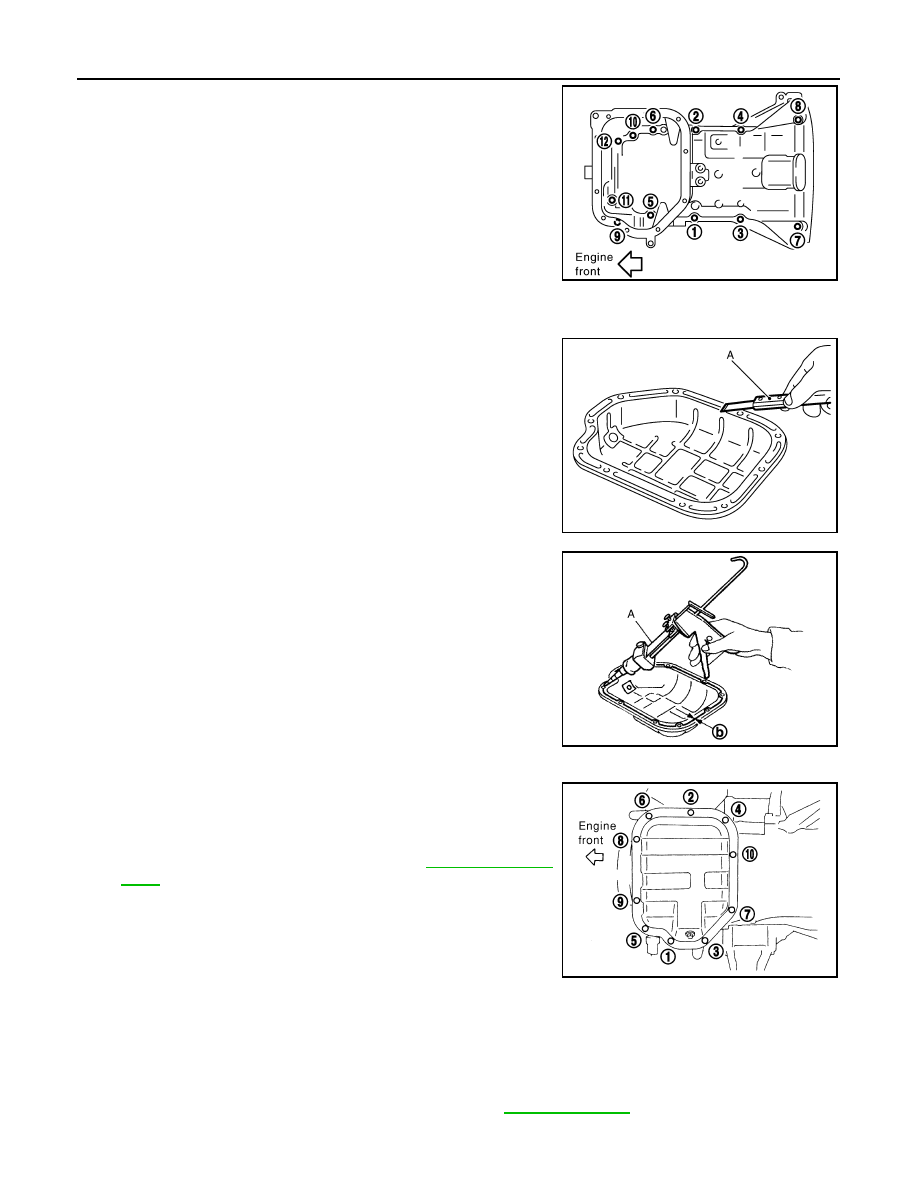

EM-42

< ON-VEHICLE REPAIR >

OIL PAN AND OIL STRAINER

• Tighten mounting bolts in numerical order as shown in the fig-

ure.

• There are two types of mounting bolts. Refer to the following

for locating bolts.

2.

Install oil strainer to oil pump.

3.

Install oil pan (lower) as follows:

a.

Use scraper (A) to remove old liquid gasket from mating sur-
faces.
• Remove old liquid gasket from the bolt holes and thread.

CAUTION:

Never scratch or damage the mating surfaces when clean-
ing off old liquid gasket.

b.

Apply a continuous bead of liquid gasket with the tube presser
(commercial service tool) (A) to the oil pan (lower) as shown in
the figure.

Use Genuine Liquid Gasket or equivalent.

CAUTION:

Attaching should be done within 5 minutes after coating.

c.

Install oil pan (lower).
• Tighten mounting bolts in numerical order as shown in the fig-

ure.

4.

Install oil pan drain plug.
• Refer to the figure of components of former page for installa-

tion direction of drain plug washer. Refer to

EM-38, "Exploded

View"

.

5.

Install in the reverse order of removal after this step.
NOTE:
At least 30 minutes after oil pan is installed, pour engine oil.

Inspection

INFOID:0000000003802263

INSPECTION AFTER REMOVAL

Clean oil strainer if any object attached.

INSPECTION AFTER INSTALLATION

1.

Check the engine oil level and adjust engine oil. Refer to

LU-7, "Inspection"

.

2.

Start engine, and check there is no leakage of engine oil.

M8

×

 135 mm (5.31 in)

: 11

M8

×

 92 mm (3.62 in)

: 5, 7, 8

M8

×

 25 mm (0.98 in)

: Except the above

PBIC1636E

JPBIA0025ZZ

b

:

φ

4.0 - 5.0 mm (0.157 - 0.197 in)

JPBIA0026ZZ

PBIC0782E

OIL PAN AND OIL STRAINER

EM-43

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

3.

Stop engine and wait for 10 minutes.

4.

Check the engine oil level again. Refer to

LU-7, "Inspection"

.
