EVAPORATIVE EMISSION SYSTEM

1.

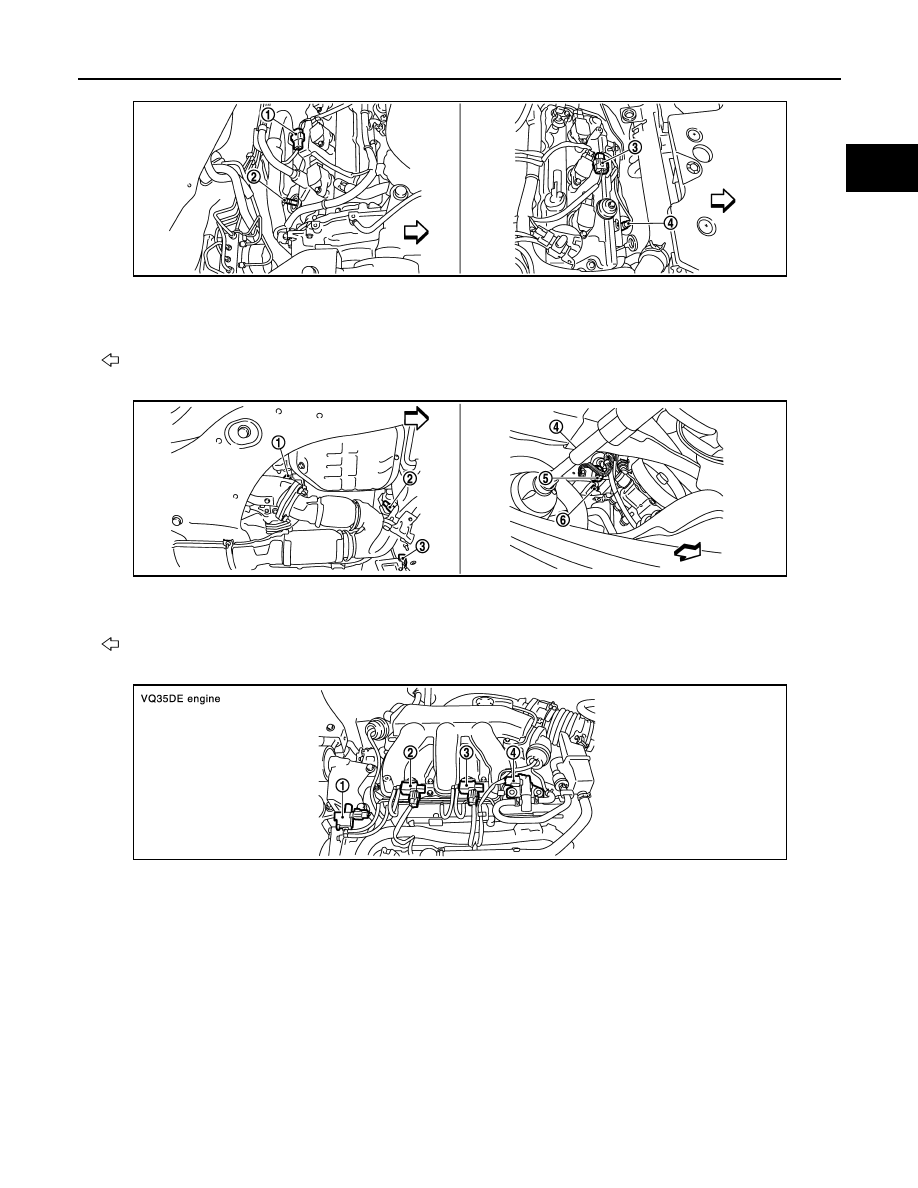

Crankshaft position sensor (POS)

2.

Camshaft position sensor (PHASE)
(bank 2)

3.

Camshaft position sensor (PHASE)
(bank 1)

: Vehicle front

1.

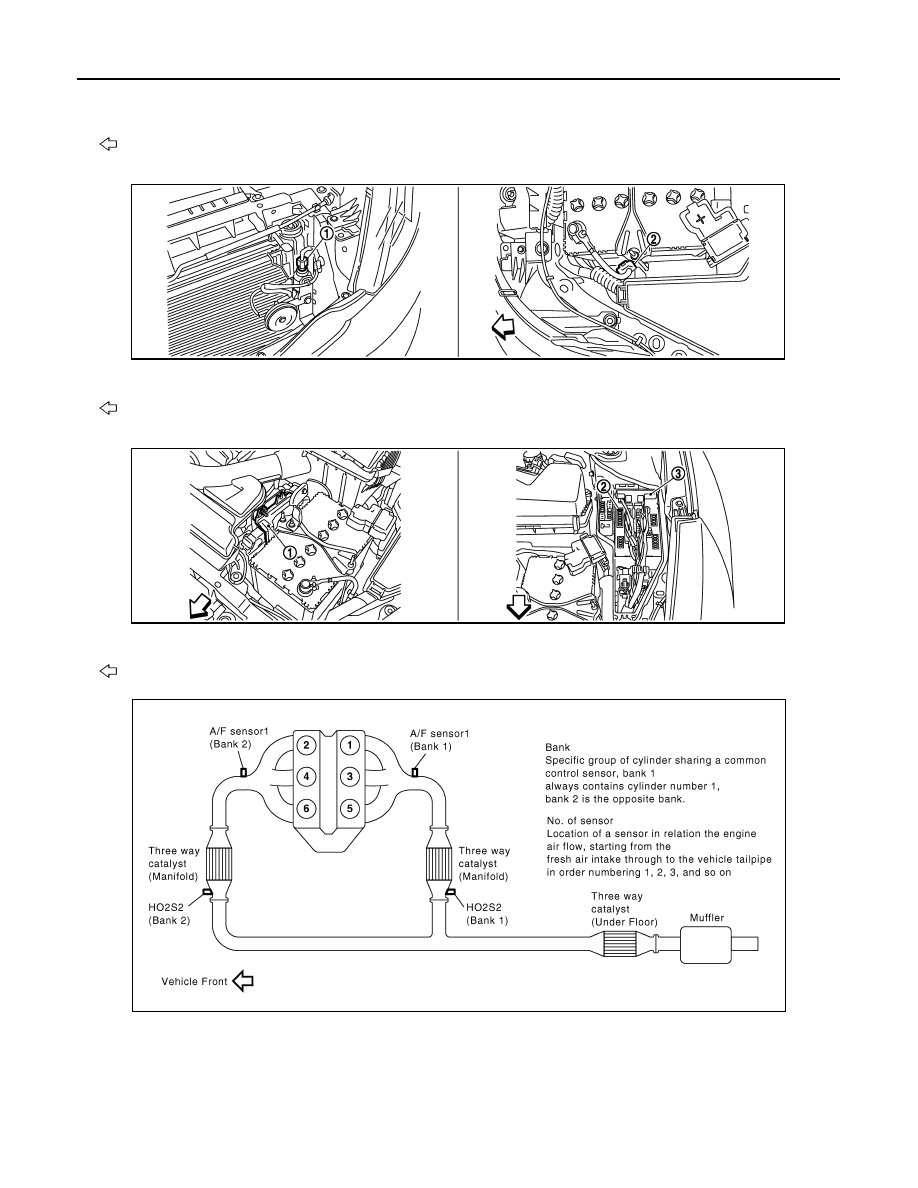

Refrigerant pressure sensor

2.

Battery current sensor

: Vehicle front

1.

ECM

2.

Fuel pump fuse

3.

IPDM E/R

: Vehicle front

JMBIA1378ZZ

JMBIA1379ZZ

PBIB1686E

EVAPORATIVE EMISSION SYSTEM

EC-83

< FUNCTION DIAGNOSIS >

[VQ25DE, VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

1.

A/F sensor 1 (bank 1) harness con-
nector

2.

A/F sensor 1 (bank 1)

3.

A/F sensor 1 (bank 2) harness con-
nector

4.

A/F sensor 1 (bank 2)

: Vehicle front

1.

HO2S2 (bank 1)

2.

HO2S2 (bank 2)

3.

HO2S2 (bank 2) harness connector

4.

Tie-rod (RH)

5.

Power steering pressure sensor

6.

HO2S2 (bank 1) harness connector

: Vehicle front

1.

Electronic controlled engine mount
control solenoid valve

2.

VIAS control solenoid valve 1

3.

VIAS control solenoid valve 2

4.

EVAP canister purge volume control
solenoid valve

JMBIA1116ZZ

JMBIA1380ZZ

JMBIA1381GB

EC-84

< FUNCTION DIAGNOSIS >

[VQ25DE, VQ35DE]

EVAPORATIVE EMISSION SYSTEM

1.

Electronic controlled engine mount
control solenoid valve

2.

VIAS control solenoid valve

3.

EVAP canister purge volume control
solenoid valve

1.

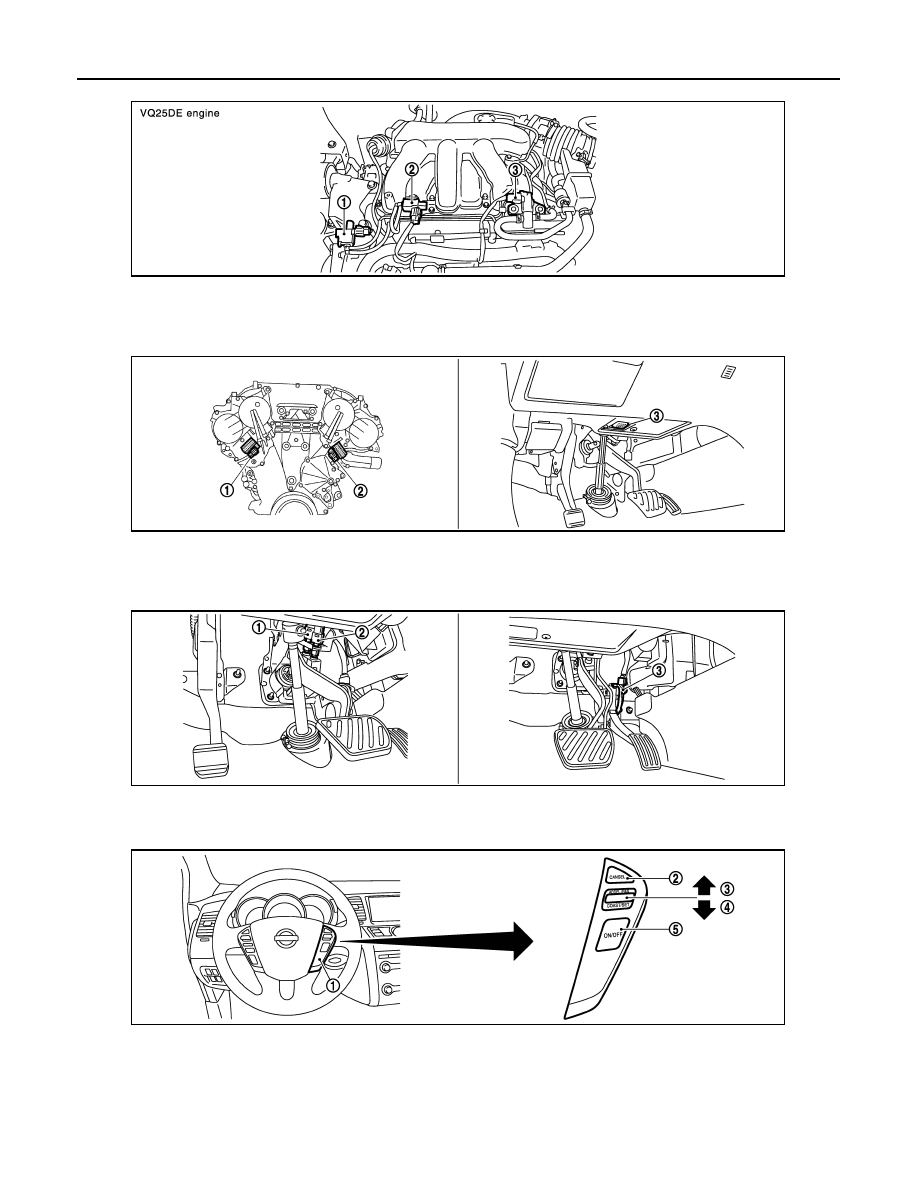

Intake valve timing control solenoid
valve (bank 1)

2.

Intake valve timing control solenoid
valve (bank 2)

3.

Data link connector

1.

Stop lamp switch

2.

ASCD brake switch

3.

Accelerator pedal position sensor

1.

ASCD steering switch

2.

CANCEL switch

3.

RESUME/ACCELERATE switch

4.

SET/COAST switch

5.

MAIN switch

JMBIA1382GB

JMBIA1383ZZ

JMBIA1384ZZ

JMBIA1120ZZ

EVAPORATIVE EMISSION SYSTEM

EC-85

< FUNCTION DIAGNOSIS >

[VQ25DE, VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Component Description

INFOID:0000000003856493

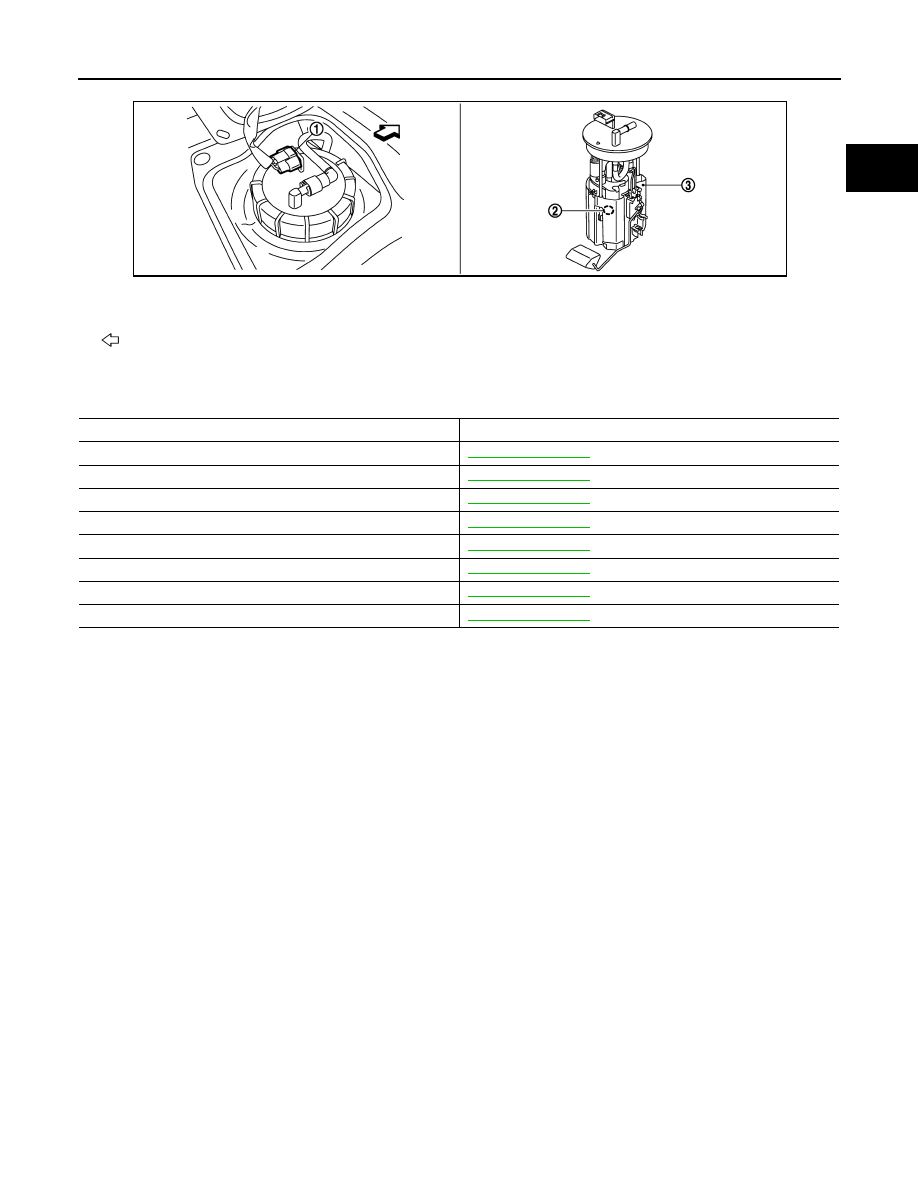

1.

Fuel level sensor unit and fuel pump
harness connector

2.

Fuel pressure regulator

3.

Fuel level sensor unit and fuel pump

: Vehicle front

JMBIA1385ZZ

Component

Reference

A/F sensor 1

EC-163, "Description"

Accelerator pedal position sensor

EC-304, "Description"

Camshaft position sensor (PHASE)

EC-222, "Description"

Crankshaft position sensor (POS)

EC-218, "Description"

Engine coolant temperature sensor

EC-157, "Description"

EVAP canister purge volume control solenoid valve

EC-231, "Description"

Mass air flow sensor

EC-149, "Description"

Throttle position sensor

EC-160, "Description"
