TRUNK LID OPENER SWITCH

DLK-243

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

TRUNK LID OPENER SWITCH

Exploded View

INFOID:0000000003846687

Refer to

EXT-38, "Exploded View"

.

Removal and Installation

INFOID:0000000003846688

REMOVAL

1.

Remove the instrument lower panel. Refer to

IP-12, "Removal and Installation"

.

2.

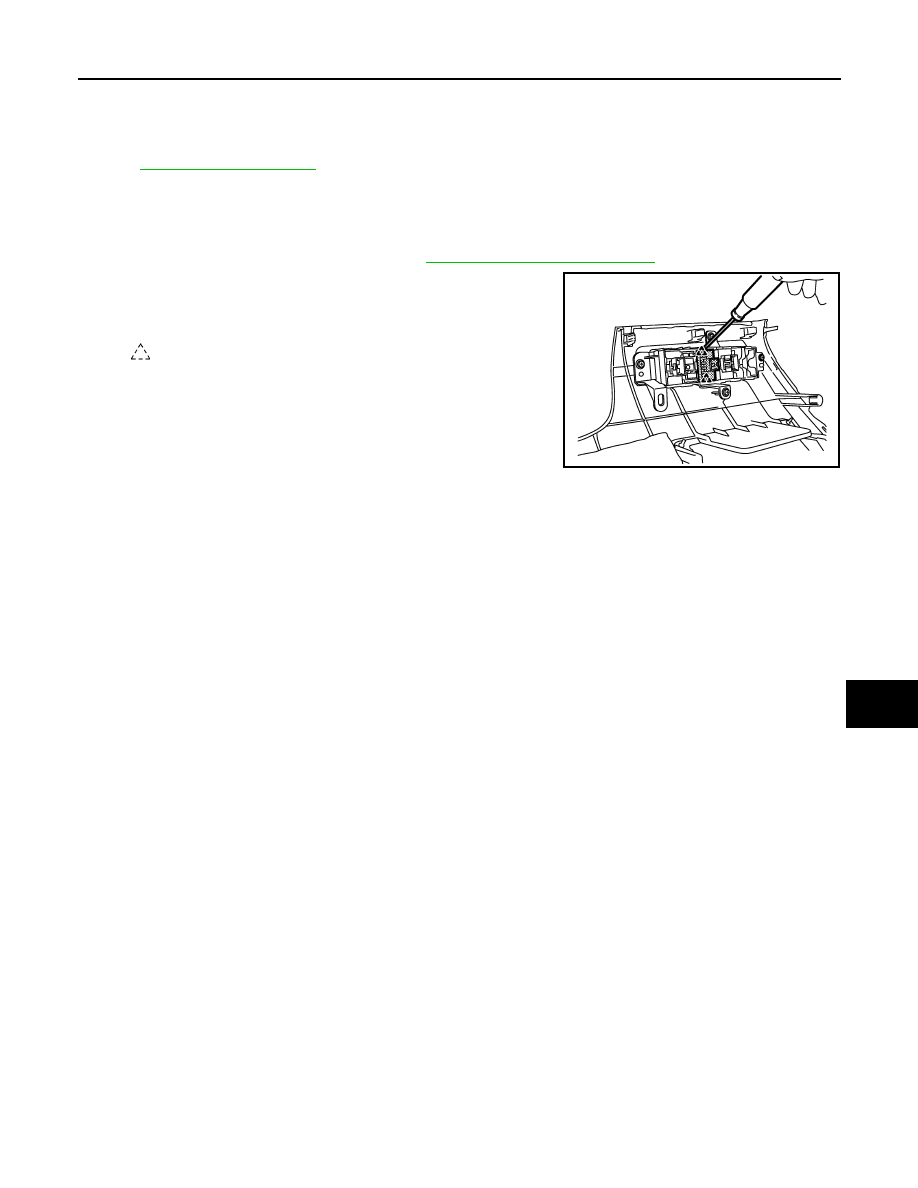

Remove the trunk lid opener switch from instrument driver lower
panel, and then remove pawl. Press trunk lid opener switch front
side to disengage from instrument driver lower panel.

INSTALLATION

Install in the reverse order of removal.

:

Pawl

JMKIA2443ZZ

DLK-244

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

REMOTE KEYLESS ENTRY RECEIVER

REMOTE KEYLESS ENTRY RECEIVER

Exploded View

INFOID:0000000003795146

Removal and Installation

INFOID:0000000003795147

REMOVAL

1.

Remove the instrument lower panel RH. Refer to

IP-12, "Removal and Installation"

.

2.

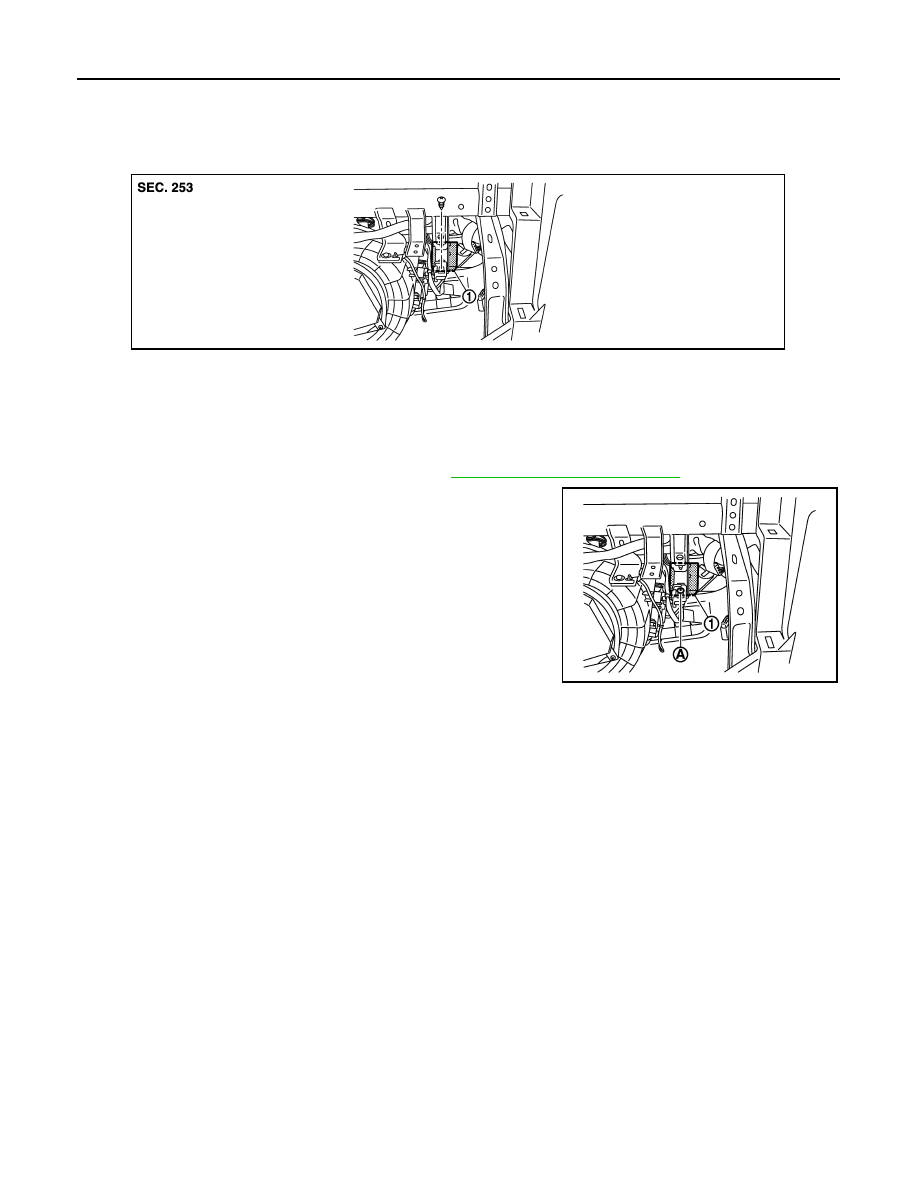

Remove the remote keyless entry receiver mounting screws (A),
and then remove remote keyless entry receiver (1).

INSTALLATION

Install in the reverse order of removal.

1.

Remote keyless entry receiver

JMKIA2178ZZ

JMKIA2171ZZ

INTELLIGENT KEY BATTERY

DLK-245

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

INTELLIGENT KEY BATTERY

Removal and Installation

INFOID:0000000003795148

1.

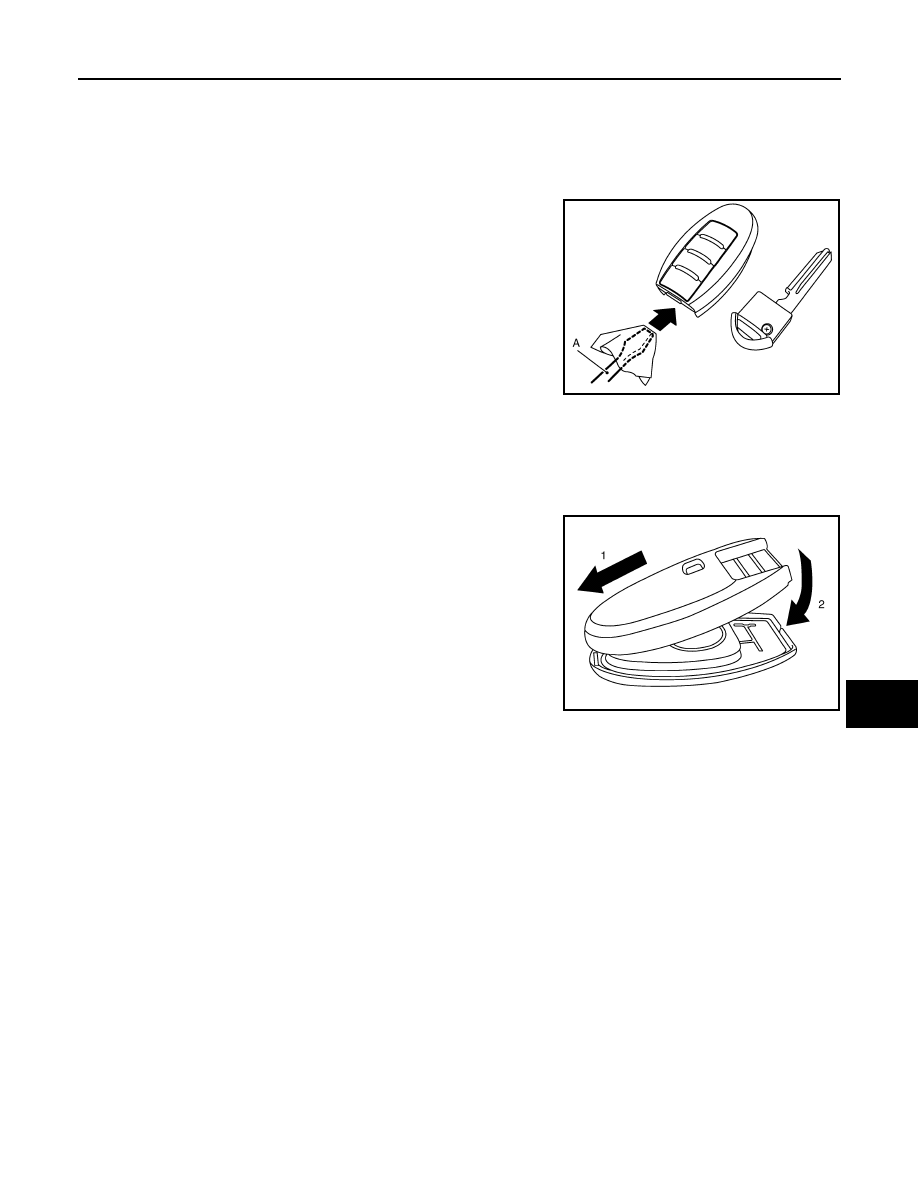

Release the lock knob at the back of the Intelligent Key and remove the mechanical key.

2.

Insert a flat-bladed screwdriver (A) wrapped with a cloth into the
slit of the corner and twist it to separate the upper part from the
lower part.

CAUTION:

• Never touch the circuit board or battery terminal.
• The key fob is water-resistant. However, if it does get wet,

immediately wipe it dry.

3.

Replace the battery with new one.

4.

Align the tips of the upper and lower parts, and then push them
together until it is securely closed.

CAUTION:

• When replacing battery, keep dirt, grease, and other for-

eign matter off the electrode contact area.

• After replacing the battery, check that all Intelligent Key

functions work normally.

PIIB6221E

Battery replacement

:Coin-type lithium battery
(CR2025)

PIIB6222E
