INSIDE KEY ANTENNA

INSTRUMENT CENTER

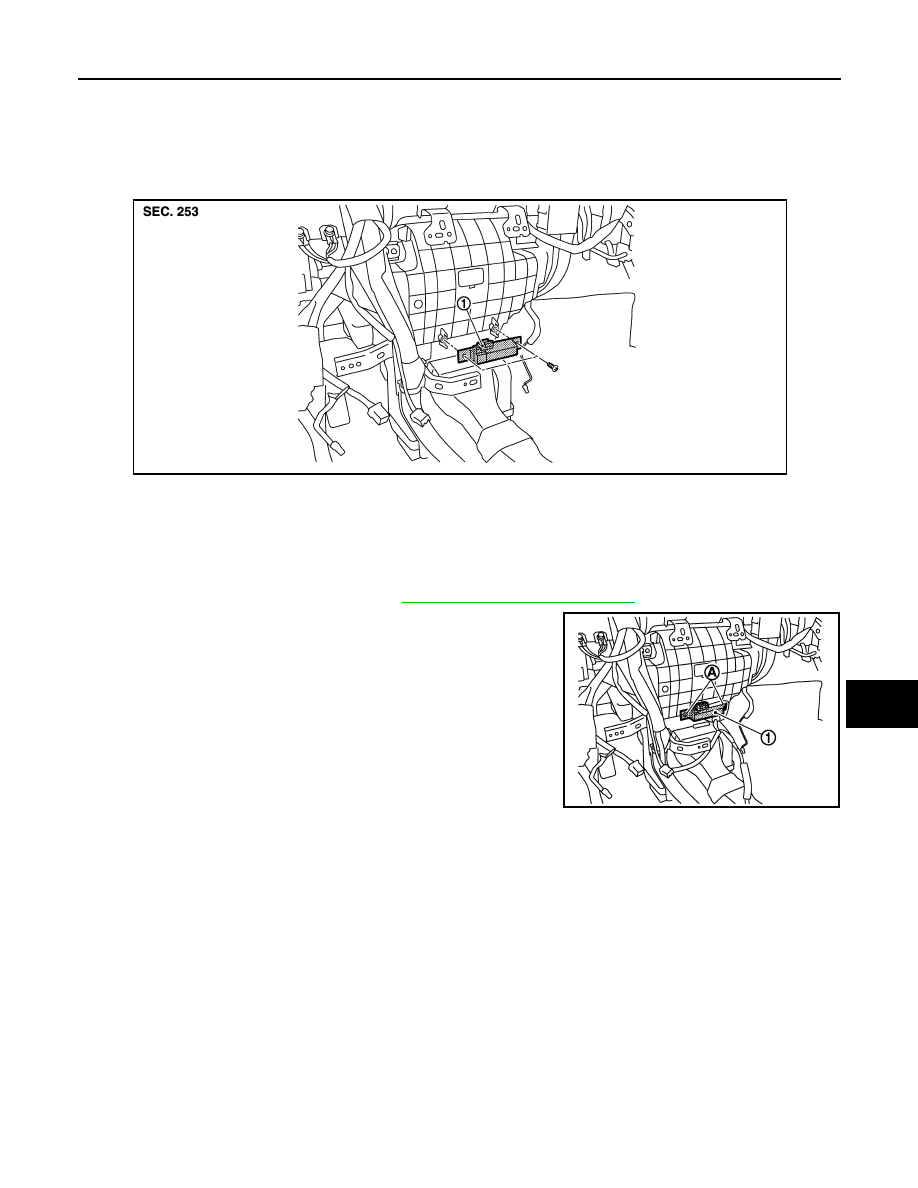

INSTRUMENT CENTER : Exploded View

INFOID:0000000003795128

INSTRUMENT CENTER : Removal and Installation

INFOID:0000000003795129

REMOVAL

1.

Remove the AV C/U (audio unit). Refer to

AV-37, "Removal and Installation"

.

2.

Remove the key antenna (instrument center) mounting screws
(A), and then remove inside key antenna (instrument center) (1).

INSTALLATION

Install in the reverse order of removal.

CONSOLE

1.

Inside key antenna (instrument center)

JMKIA2438ZZ

JMKIA2441ZZ

DLK-236

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

INSIDE KEY ANTENNA

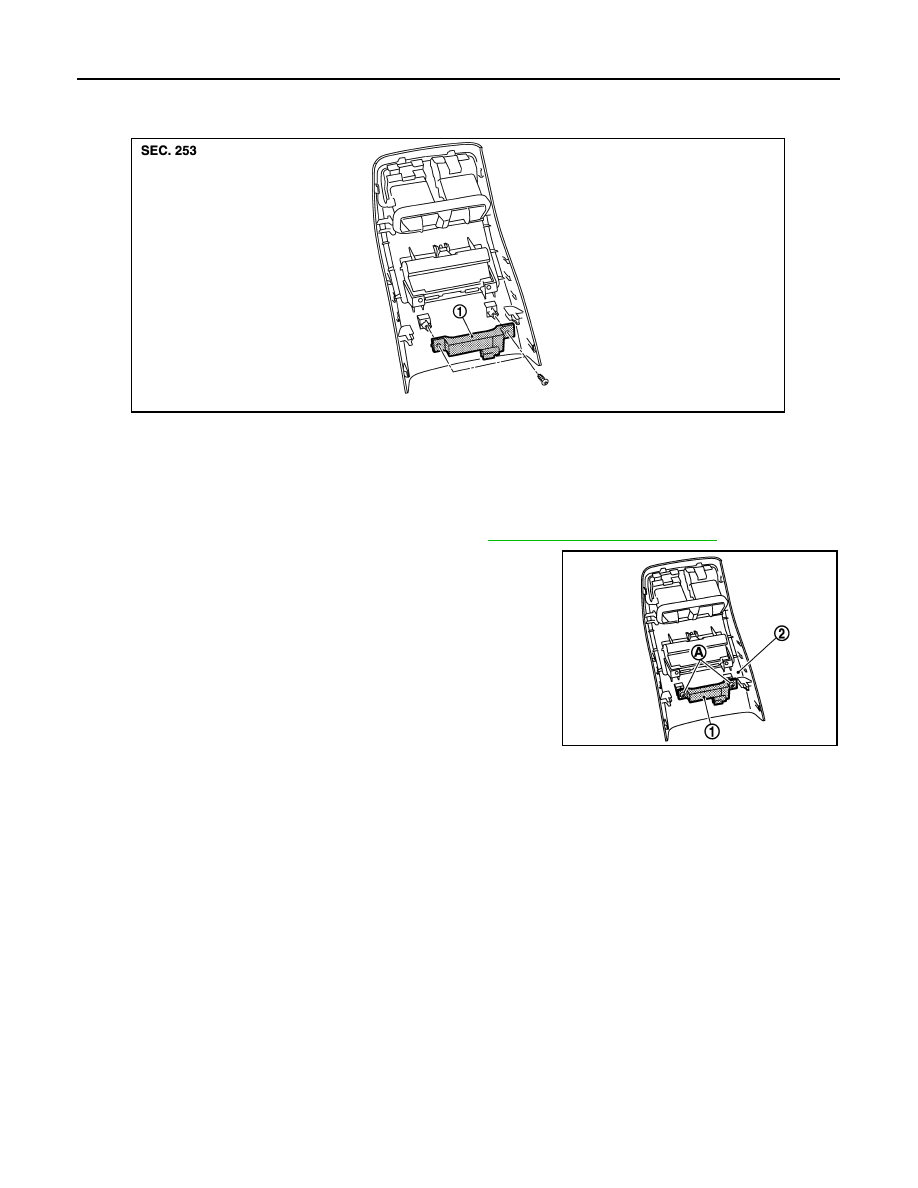

CONSOLE : Exploded View

INFOID:0000000003795130

CONSOLE : Removal and Installation

INFOID:0000000003795131

REMOVAL

1.

Remove the console pocket and rear finisher. Refer to

IP-22, "Removal and Installation"

.

2.

Remove the inside key antenna (console) mounting screws (A),
and then remove inside key antenna (console) (1) from console
rear finisher (2).

INSTALLATION

Install in the reverse order of removal.

TRUNK ROOM

1.

Inside key antenna (console)

JMKIA2437ZZ

JMKIA2442ZZ

INSIDE KEY ANTENNA

DLK-237

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

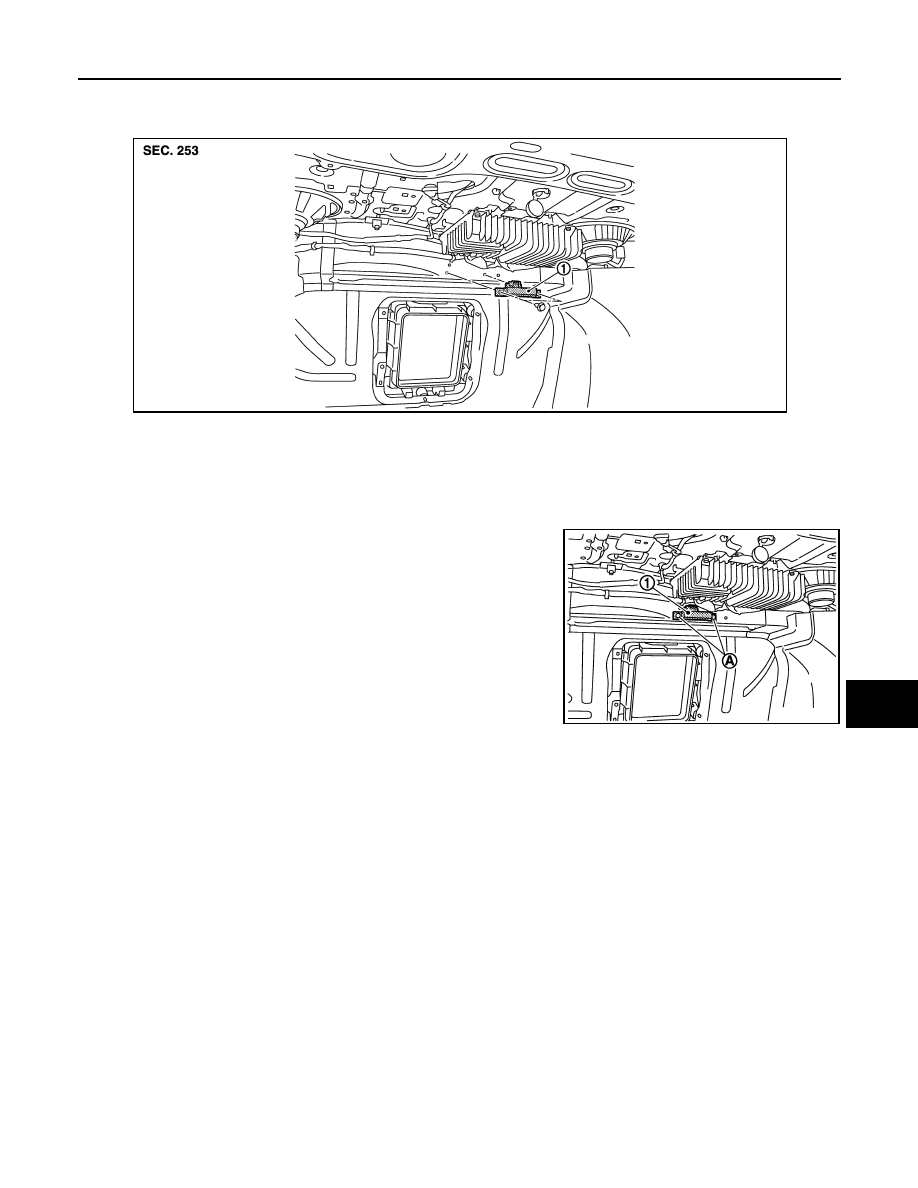

TRUNK ROOM : Exploded View

INFOID:0000000003795132

TRUNK ROOM : Removal and Installation

INFOID:0000000003795133

REMOVAL

1.

Remove the inside key antenna (trunk room) mounting clips (A),
and then remove inside key antenna (trunk room) (1).

INSTALLATION

Install in the reverse order of removal.

1.

Inside key antenna (trunk room)

JMKIA2439ZZ

JMKIA2440ZZ

DLK-238

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

OUTSIDE KEY ANTENNA

OUTSIDE KEY ANTENNA

DRIVER SIDE

DRIVER SIDE : Exploded View

INFOID:0000000003795134

Refer to

DLK-224, "OUTSIDE HANDLE : Exploded View"

.

DRIVER SIDE : Removal and Installation

INFOID:0000000003795135

REMOVAL

Remove the front outside handle LH. Refer to

DLK-224, "OUTSIDE HANDLE : Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

PASSENGER SIDE

PASSENGER SIDE : Exploded View

INFOID:0000000003795136

Refer to

DLK-224, "OUTSIDE HANDLE : Exploded View"

.

PASSENGER SIDE : Removal and Installation

INFOID:0000000003795137

REMOVAL

Remove the front outside handle RH. Refer to

DLK-224, "OUTSIDE HANDLE : Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

REAR BUMPER

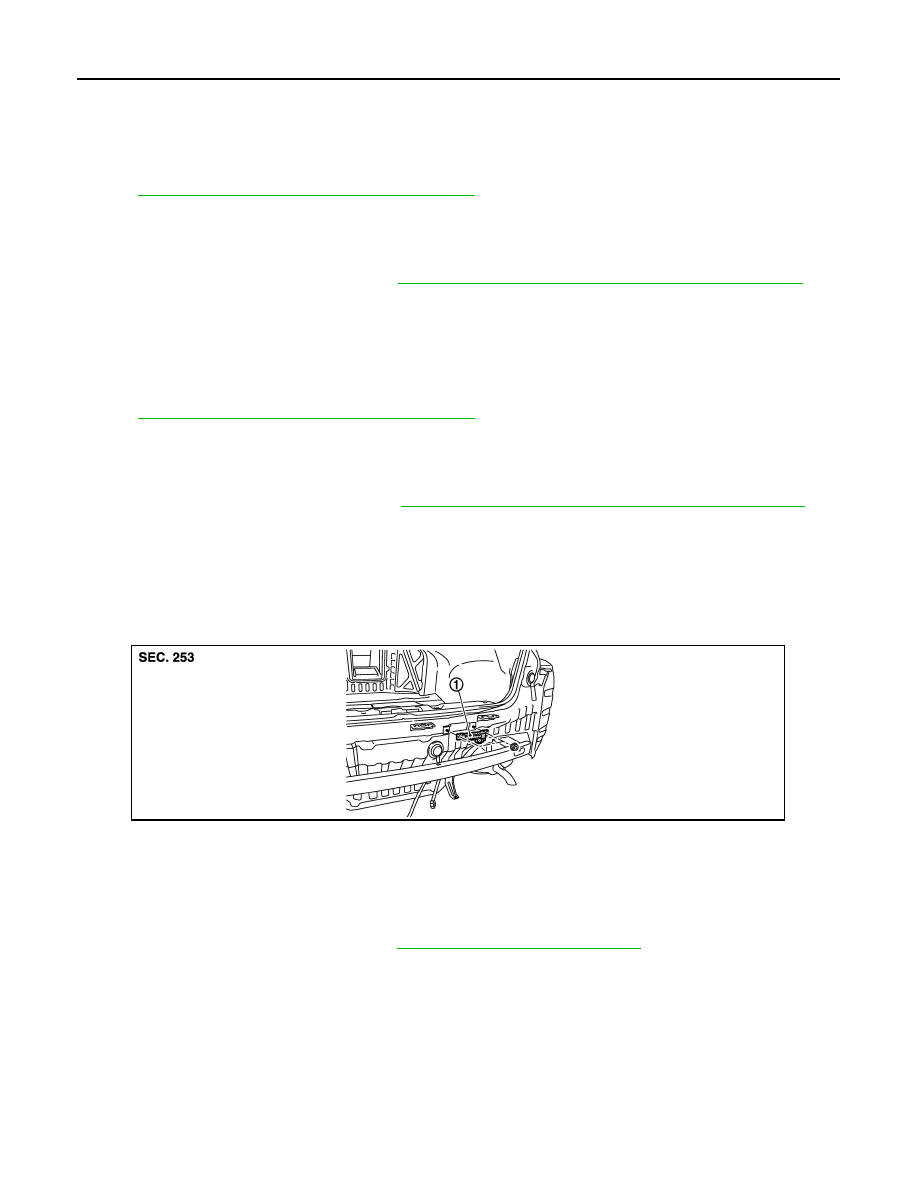

REAR BUMPER : Exploded View

INFOID:0000000003795138

REAR BUMPER : Removal and Installation

INFOID:0000000003795139

REMOVAL

1.

Remove the rear bumper fascia. Refer to

EXT-16, "Removal and Installation"

.

1.

Outside key antenna (rear bumper)

JMKIA2436ZZ
