WARNING FUNCTION

WARNING FUNCTION : System Description

INFOID:0000000003794756

OPERATION DESCRIPTION

The warning function are as per the following and are given to the user as warning information and warnings
using combinations of Intelligent Key warning buzzer, KEY warning lamp, key slot illumination and information
display in combination meter.
• Intelligent Key system malfunction
• OFF position warning
• P position warning
• ACC warning
• Take away warning
• Door lock operation warning
• Key warning
• Intelligent Key insert information
• Engine start information
• Steering lock information
• Intelligent key low battery warning
• Key ID warning

OPERATION CONDITION

Once one of the following conditions below is established, alert or warning will be executed.

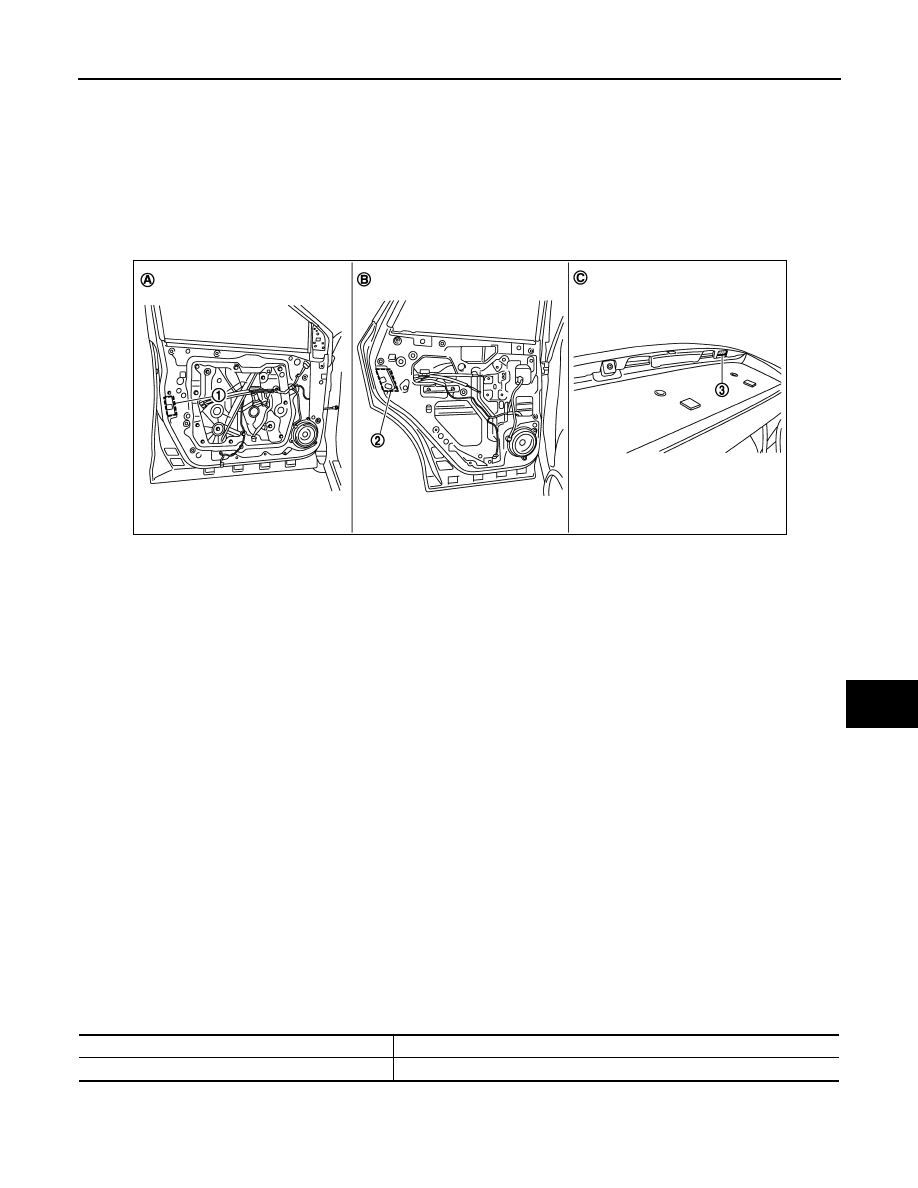

10. Inside key antenna (instrument cen-

ter) M105

11.

Inside key antenna (trunk room) B86 12. Outside key antenna (rear bumper)

D85

13. Front outside handle LH (request

switch) D11

14. Front outside handle LH

(outside key antenna) D12

15. Trunk lid lock assembly

(trunk lid opener actuator) T5

16. Front door switch (driver side) B34

A.

Behind the combination meter

B.

Engine room (LH)

C.

Behind the instrument lower panel
RH

D.

Behind the center console

E.

Behind the audio unit

F.

View with rear bumper removed

1.

Front door lock assembly (driver
side) D9

2.

Rear door lock assembly LH D85

3.

Trunk lid opener request switch T6

A.

View with front door finisher removed B.

View with rear door finisher removed C.

View with trunk lid

JMKIA2376ZZ

Warning/Information functions

Operation procedure

Intelligent Key system malfunction

When a malfunction is detected in BCM, “KEY” warning lamp will illuminate.

DLK-32

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY SYSTEM

WARNING METHOD

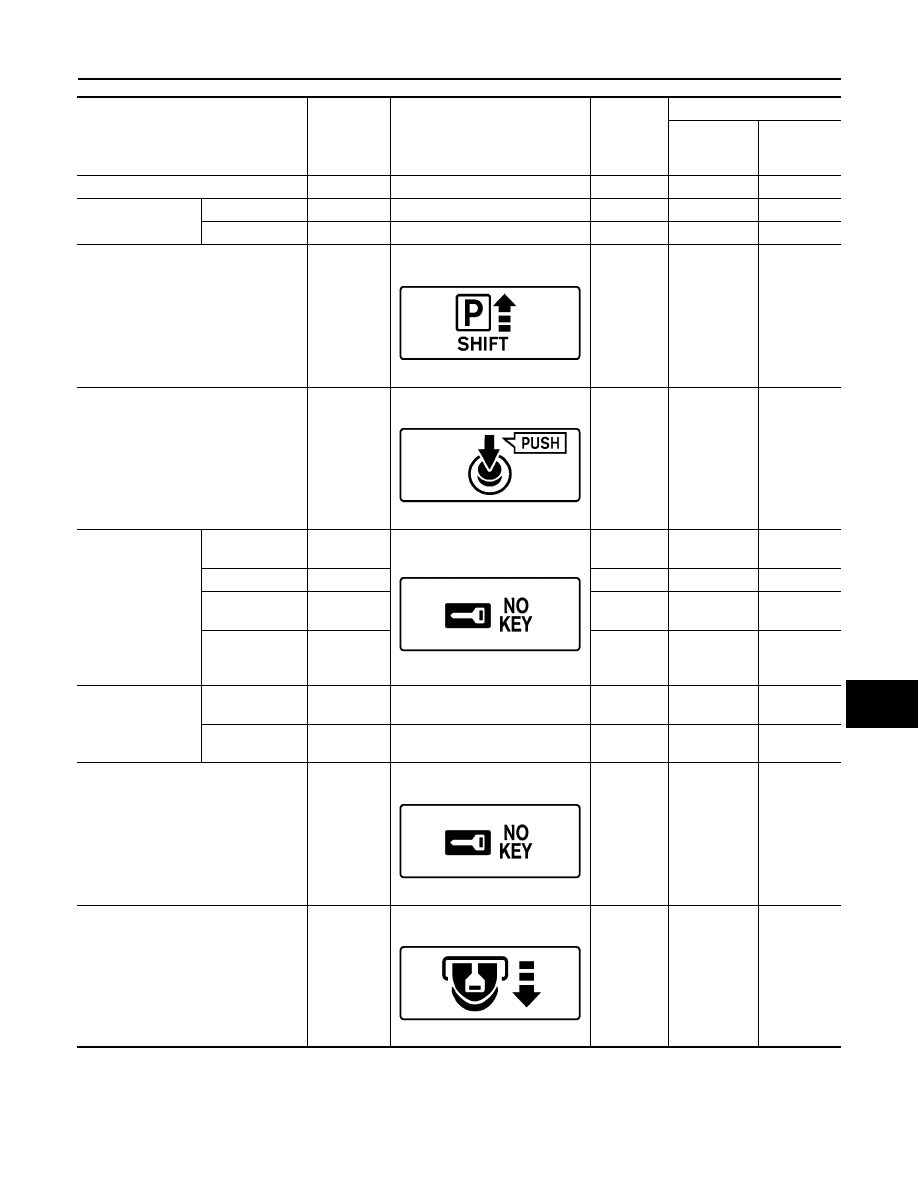

The following table shows the alarm or warning methods with chime.
Information display (combination meter), “KEY” indicator or key slot illumination when the warning conditions
are met.

OFF position warning

For internal

• Ignition switch: ACC position.
• Door switch (driver side): ON (Door is open).

For external

OFF position warning (for internal) is in active mode, driver side door is closed.
NOTE:
OFF position (for external) active only when each of the sequence has oc-
curred as per the following: P position warning

→

 ACC warning

→

 OFF posi-

tion warning (for internal)

→

 OFF position warning (for internal)

P position warning

• Shift position: Any position except the P position.
• Engine is running to stopped (ignition switch is ON to OFF).

ACC warning

• When P position warning is in active mode, shift position changes from the

P position.

• Ignition switch: ACC position.

Take away warning

Door is open to close

• Ignition switch: Any position except the LOCK position.
• Door switch: ON to OFF (door is open to close).
• Intelligent Key can not be detected inside the vehicle.

Door is open

• Door switch: ON (door is open).
• Key ID verification every 5 seconds when registered Intelligent Key can not

be detected inside the vehicle.

Push button-ignition
switch operation

• Ignition switch: Any position except the LOCK position.
• Press push-button ignition switch.
• Intelligent Key can not be detected inside the vehicle.

Intelligent Key is removed
from key slot

When Intelligent Key is removed from key slot, Intelligent Key can not be de-
tected inside the vehicle.

Door lock operation warn-
ing

Request switch operation

When request switch is pushed (lock operation) under the following conditions.
• All doors are closed.
• All doors are unlocked.
• Intelligent Key is inside vehicle.

Intelligent Key button op-
eration

When Intelligent Key button is pushed (lock operation) under the following con-
ditions.
• Door switch: ON (any door is open).
• For 3 seconds after Intelligent Key is removed from key slot.

Key warning

• Ignition switch is in the OFF position.
• Driver side door switch: ON (driver side door is open).
• Intelligent Key is inserted in key slot.

Intelligent Key insert information

• Door switch: ON to OFF (door is open to close).
• Ignition switch: OFF to ON position.
• Intelligent Key is out of key slot.
• Intelligent Key can not be detected inside the vehicle.

Engine start information

Ignition switch is in the
ON position

• Ignition switch: ON position.
• Shift position: P position.
• Engine is stopped.

Ignition switch is in any
position except the ON
position

• Ignition switch: Any position except the ON position.
• Shift position: P position.
• Intelligent Key is inserted in key slot or Intelligent Key can be detected inside

the vehicle.

Steering lock information

When steering lock can not be released after ignition switch is turned ON.

Intelligent Key low battery warning

When Intelligent Key is battery low, BCM is detected after ignition switch is
turned ON.

Key ID warning

When registered Intelligent Key can not be detected inside the vehicle after ig-
nition switch is turned ON.

Warning/Information functions

Operation procedure

INTELLIGENT KEY SYSTEM

DLK-33

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

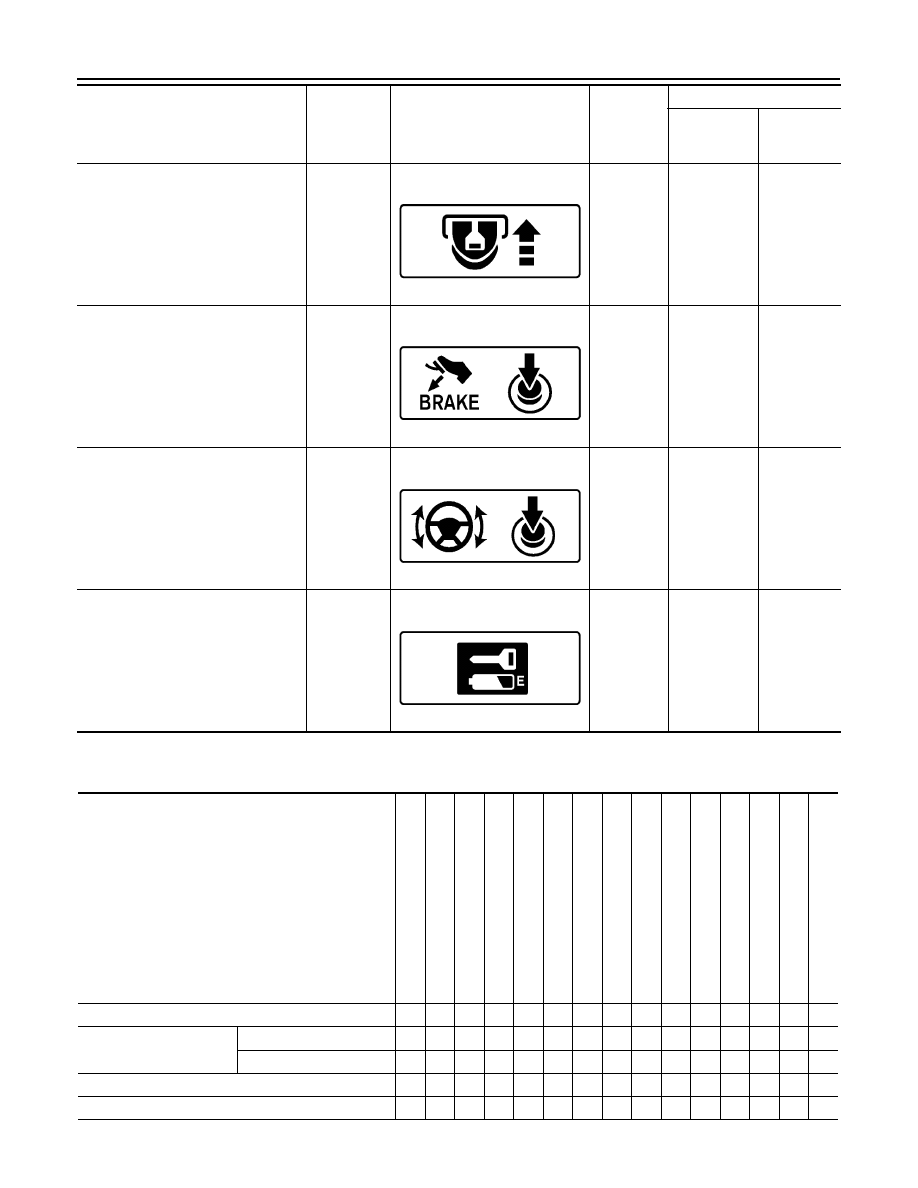

Warning/Information functions

“KEY” warn-

ing lamp

Information display

(combination meter)

Key slot il-
lumination

Warning chime

Combination

meter buzzer

Intelligent

Key warning

buzzer

Intelligent Key system malfunction

Illuminate

—

—

—

—

OFF position warn-
ing

For internal

—

—

—

Activate

—

For external

—

—

—

—

Activate

P position warning

—

—

Activate

—

ACC warning

—

—

—

—

Take away warning

Door is open to
close

—

Blink

Activate

Activate

Door is open

—

Flash

—

—

Push-ignition
switch operation

—

Flash

Activate

—

Intelligent Key is
removed from
key slot

—

Flash

—

—

Door lock operation
warning

Request switch
operation

—

—

—

—

Activate

Intelligent Key
operation

—

—

—

—

Activate

Key ID warning

—

—

—

—

Key warning

—

Flash

Activate

—

JMKIA0037GB

JMKIA0047GB

JMKIA0036GB

JMKIA0036GB

JMKIA0035GB

DLK-34

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY SYSTEM

LIST OF OPERATION RELATED PARTS

Parts marked with

×

 are the parts related to operation.

Intelligent Key insert information

—

Flash

—

—

Engine start information

—

—

—

—

Steering lock information

—

—

—

—

Intelligent Key low battery warning

—

—

—

—

Warning/Information functions

“KEY” warn-

ing lamp

Information display

(combination meter)

Key slot il-
lumination

Warning chime

Combination

meter buzzer

Intelligent

Key warning

buzzer

JMKIA0034GB

JMKIA0032GB

JMKIA0033GB

JMKIA0048GB

Warning function

In

te

lli

ge

nt Key

Ke

y sl

ot

Ig

ni

tio

n

 swit

ch

Doo

r swi

tch

Do

or re

qu

es

t s

w

itc

h

Insi

d

e

 ke

y a

n

ten

n

a

Out

s

id

e k

e

y a

n

te

nn

a

In

te

lli

ge

nt

Key

 warn

in

g b

u

z

z

e

r

Com

b

in

at

io

n

 m

e

te

r wa

rni

n

g bu

zz

er

CAN c

o

m

m

u

n

ica

ti

on

 sy

st

em

BCM

Co

mb

ina

ti

on me

te

r

di

sp

lay

Ke

y sl

ot ill

um

ina

tio

n

Park

 p

o

s

iti

on

 swi

tch

“KE

Y

” warning lamp

Intelligent Key system malfunction

×

×

×

OFF position warning

For internal

×

×

×

×

For external

×

×

×

P position warning

×

×

×

×

×

×

ACC warning

×

×

×

×

×

×
