REMOTE KEYLESS ENTRY FUNCTION : Component Parts Location

INFOID:0000000003841722

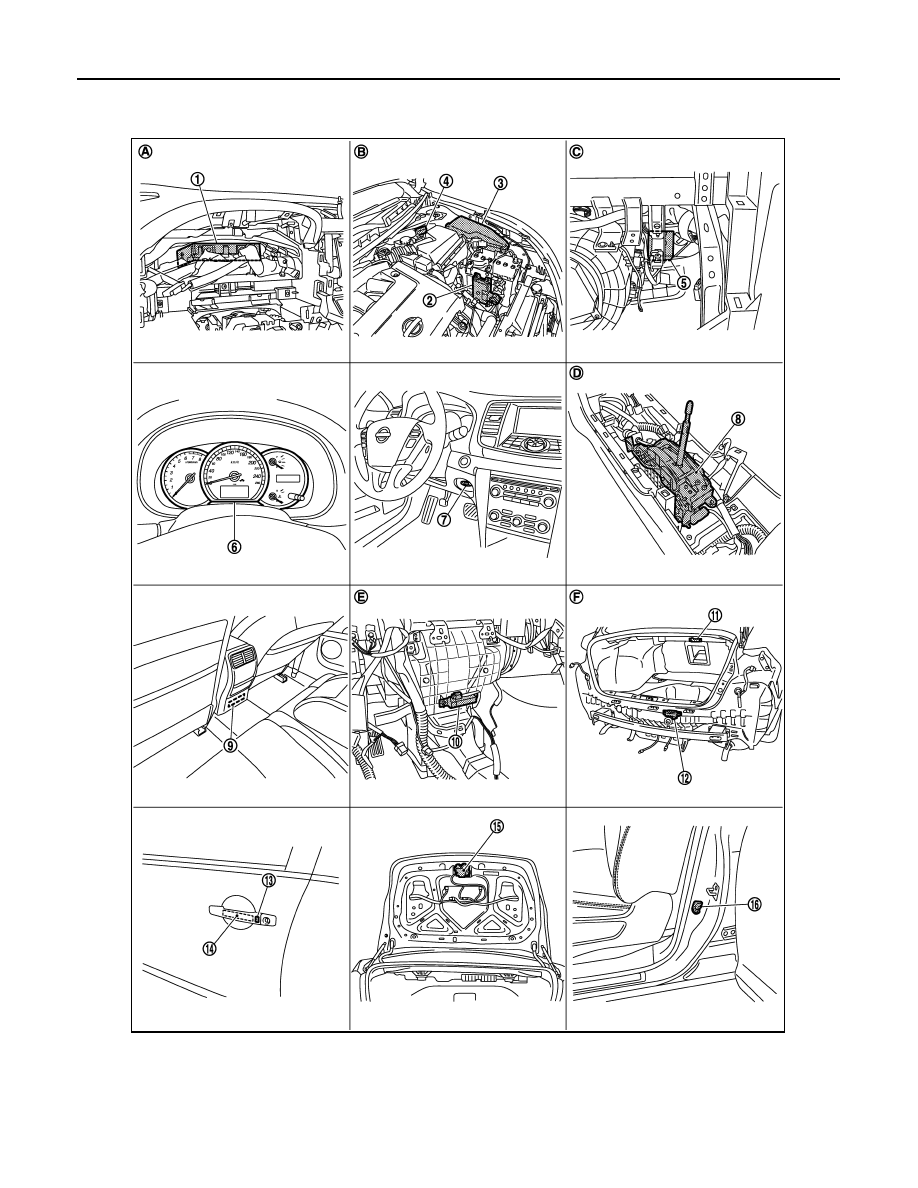

1.

BCM M118, M119, M120, M121,
M122, M123

2.

TCM F23

3.

IPDM E/R E10, E11

4.

Intelligent Key warning buzzer E25

5.

Remote keyless entry receiver M78

6.

Combination meter M34

7.

Key slot M99

8.

Control device (detention switch)
M57

9.

Inside key antenna (console) M262

JMKIA2375ZZ

DLK-28

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY SYSTEM

REMOTE KEYLESS ENTRY FUNCTION : Component Description

INFOID:0000000003794753

KEY REMINDER FUNCTION

KEY REMINDER FUNCTION : System Description

INFOID:0000000003794754

Key reminder is the function that prevents the key from being left in the vehicle.

10. Inside key antenna (instrument cen-

ter) M105

11.

Inside key antenna (trunk room) B86 12. Outside key antenna (rear bumper)

D85

13. Front outside handle LH (request

switch) D11

14. Front outside handle LH

(outside key antenna) D12

15. Trunk lid lock assembly

(trunk lid opener actuator) T5

16. Front door switch (driver side) B34

A.

Behind the combination meter

B.

Engine room (LH)

C.

Behind the instrument lower panel
RH

D.

Behind the center console

E.

Behind the audio unit

F.

View with rear bumper removed

1.

Front door lock assembly (driver
side) D9

2.

Rear door lock assembly LH D85

3.

Trunk lid opener request switch T6

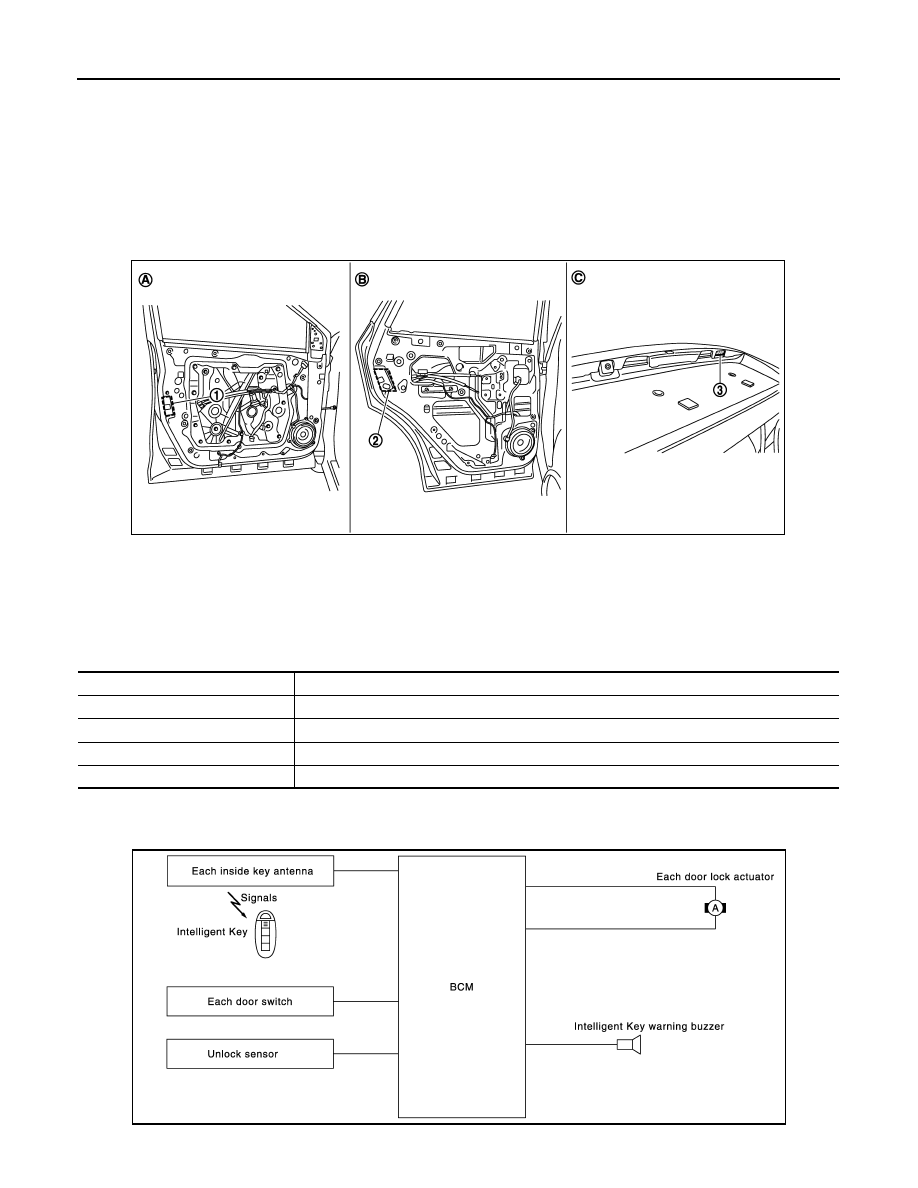

A.

View with front door finisher removed B.

View with rear door finisher removed C.

View with trunk lid

JMKIA2376ZZ

Item

Function

BCM

Controls the door lock function and room lamp function.

Door lock actuator

Outputs lock/unlock signal from BCM and locks/unlocks each door.

Remote keyless entry receiver

Receives lock/unlock signal from the Intelligent Key, and then transmits to BCM.

Intelligent Key

Transmits button operation to remote keyless entry receiver.

JMKIA1996GB

INTELLIGENT KEY SYSTEM

DLK-29

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Key reminder has the following 3 functions.

*:If the door closing impact shocks the door lock knob or makes contact with baggage comma the door lock knob might activate the door
locks accidentally comma but unlock operation will be perform in these cases.

CAUTION:

• The above function operates when the Intelligent Key is inside the vehicle. However, there may be

times when the Intelligent Key cannot be detected, and this function will not operate when the Intelli-
gent Key is on the instrument panel, or in the glove box. Also, this system sometimes does not oper-
ate if the Intelligent Key is in the door pocket of an open door.

• Key reminder function is operated when the trunk lid is open/closed and the buzzers sound. If the

following operations are performed, the key reminder function is cleared and buzzer sounds are
stopped.

- Remote controller door lock button operation of Intelligent Key
- Remote controller door unlock button operation of Intelligent Key
- When the trunk lid is closed, the Intelligent Key is not inside the vehicle
- When any door is open

Key remainder function

Operation condition

Operation

Driver door closed*

Right after driver side door is closed under the following conditions
• Door lock operation is performed
• Driver side door is opened
• Driver side door is in lock state

All doors unlock

Door is open or closed

Right after all doors are closed under the following conditions
• Intelligent Key is inside the vehicle
• Any door is opened
• All doors are locked by door lock and unlock switch or door lock knob

• All doors unlock
• Sound Intelligent Key warn-

ing buzzer

Trunk lid is closed

Right after trunk lid is closed under the following conditions
• Intelligent Key is inside vehicle
• All doors are closed
• All doors are locked

• All doors unlock
• Trunk lid can open with trunk

lid opener switch

• Sound Intelligent Key warn-

ing buzzer

DLK-30

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY SYSTEM

KEY REMINDER FUNCTION : Component Parts Location

INFOID:0000000003841723

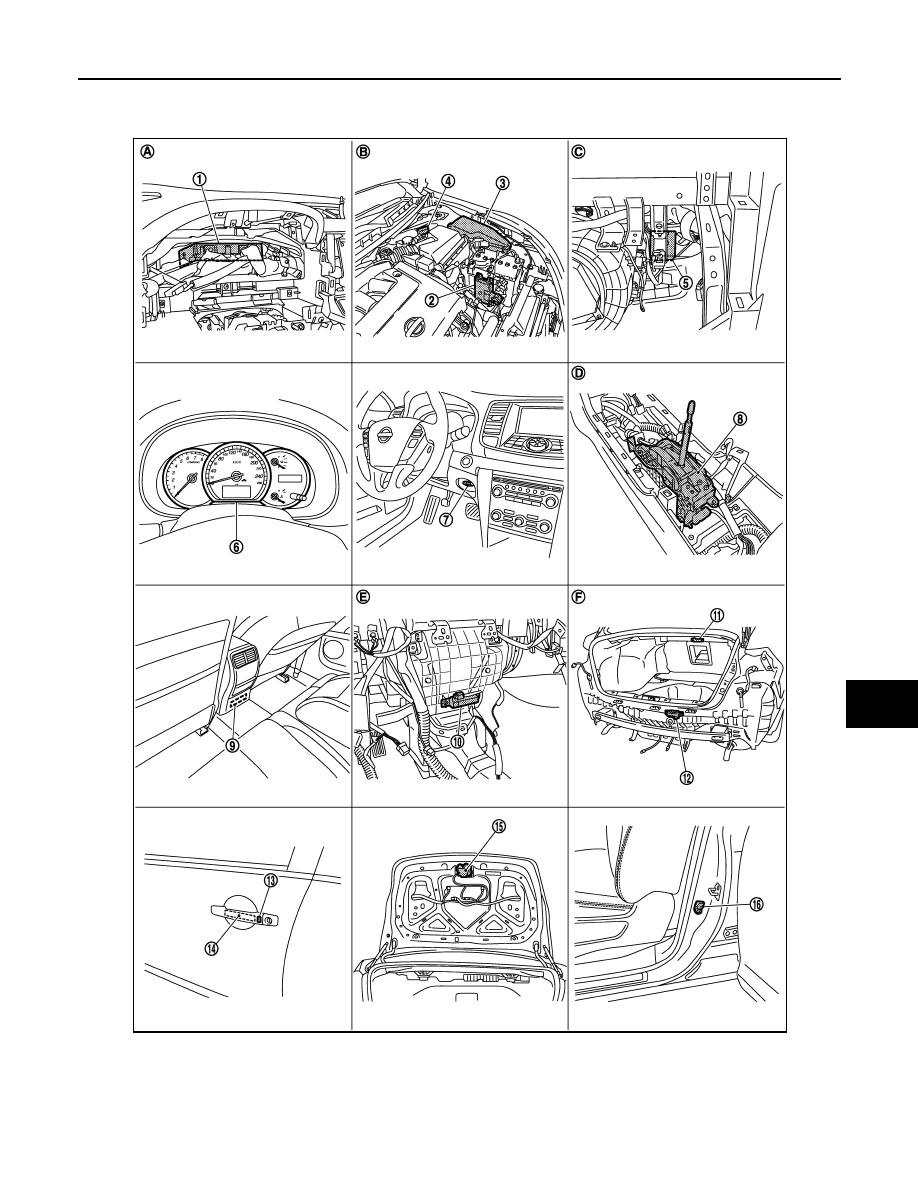

1.

BCM M118, M119, M120, M121,
M122, M123

2.

TCM F23

3.

IPDM E/R E10, E11

4.

Intelligent Key warning buzzer E25

5.

Remote keyless entry receiver M78

6.

Combination meter M34

7.

Key slot M99

8.

Control device (detention switch)
M57

9.

Inside key antenna (console) M262

JMKIA2375ZZ
