INTELLIGENT KEY SYSTEM

DLK-23

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

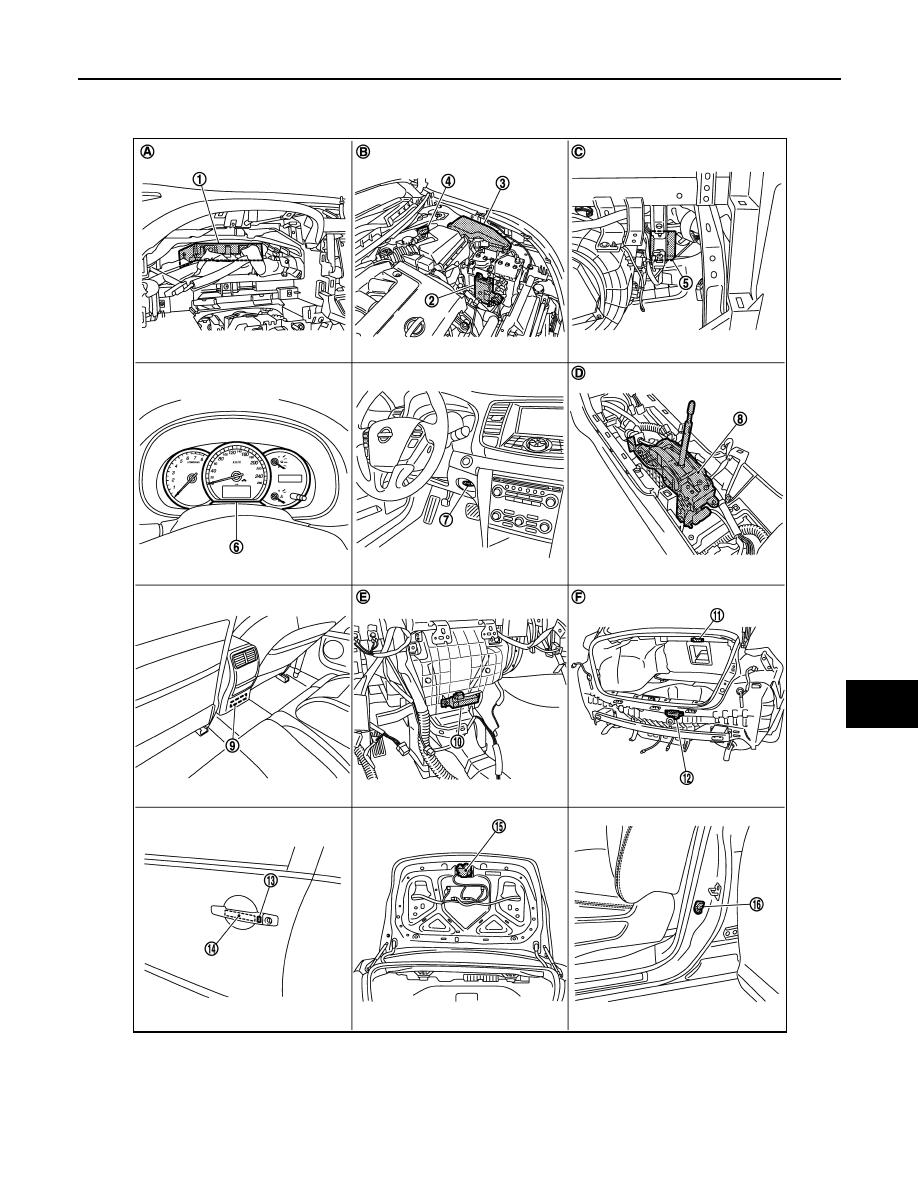

TRUNK OPEN FUNCTION : Component Parts Location

INFOID:0000000003841721

1.

BCM M118, M119, M120, M121,
M122, M123

2.

TCM F23

3.

IPDM E/R E10, E11

4.

Intelligent Key warning buzzer E25

5.

Remote keyless entry receiver M78

6.

Combination meter M34

7.

Key slot M99

8.

Control device (detention switch)
M57

9.

Inside key antenna (console) M262

JMKIA2375ZZ

DLK-24

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY SYSTEM

TRUNK OPEN FUNCTION : Component Description

INFOID:0000000003794749

REMOTE KEYLESS ENTRY FUNCTION

10. Inside key antenna (instrument cen-

ter) M105

11.

Inside key antenna (trunk room) B86 12. Outside key antenna (rear bumper)

D85

13. Front outside handle LH (request

switch) D11

14. Front outside handle LH

(outside key antenna) D12

15. Trunk lid lock assembly

(trunk lid opener actuator) T5

16. Front door switch (driver side) B34

A.

Behind the combination meter

B.

Engine room (LH)

C.

Behind the instrument lower panel
RH

D.

Behind the center console

E.

Behind the audio unit

F.

View with rear bumper removed

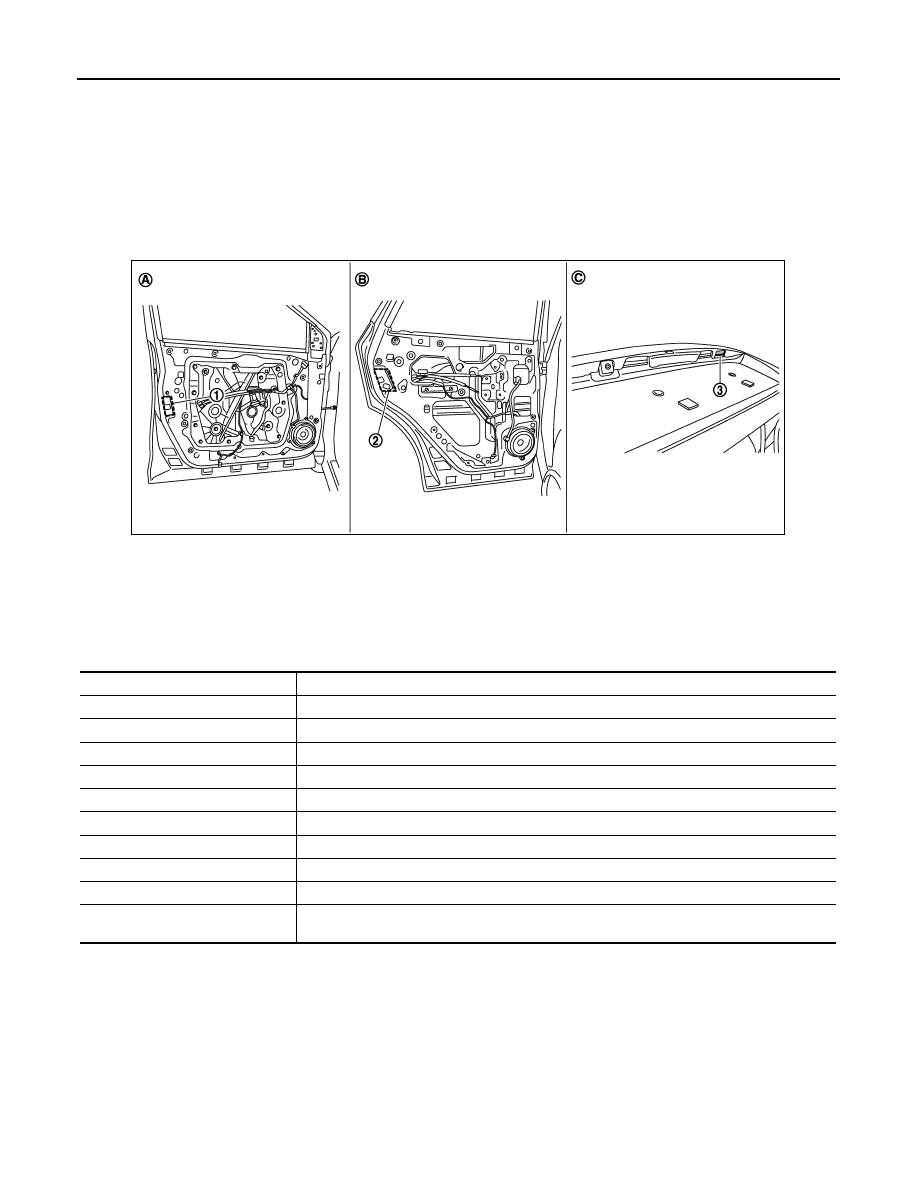

1.

Front door lock assembly (driver
side) D9

2.

Rear door lock assembly LH D85

3.

Trunk lid opener request switch T6

A.

View with front door finisher removed B.

View with rear door finisher removed C.

View with trunk lid

JMKIA2376ZZ

Item

Function

BCM

Controls the trunk lid opener function and room lamp function.

Trunk lid opener switch

Inputs press/degrees signal to BCM.

Door lock actuator

Receives lock/unlock signal from BCM and locks/unlocks each door.

Door switch

Inputs door open/close condition to BCM.

Remote keyless entry receiver

Receives lock/unlock signal from the Intelligent Key, and then transmits to BCM.

Trunk lid opener request switch

Inputs lock/unlock operation to BCM.

Intelligent Key

Transmits button operation to remote keyless entry receiver.

Outside key antenna (rear bumper)

Detects if Intelligent Key is outside the vehicle.

Inside key antenna

Detects if Intelligent Key is inside the vehicle.

Intelligent Key warning buzzer

Warns the user of the trunk lid opener/close condition and inappropriate operations with the
buzzer sound.

INTELLIGENT KEY SYSTEM

DLK-25

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

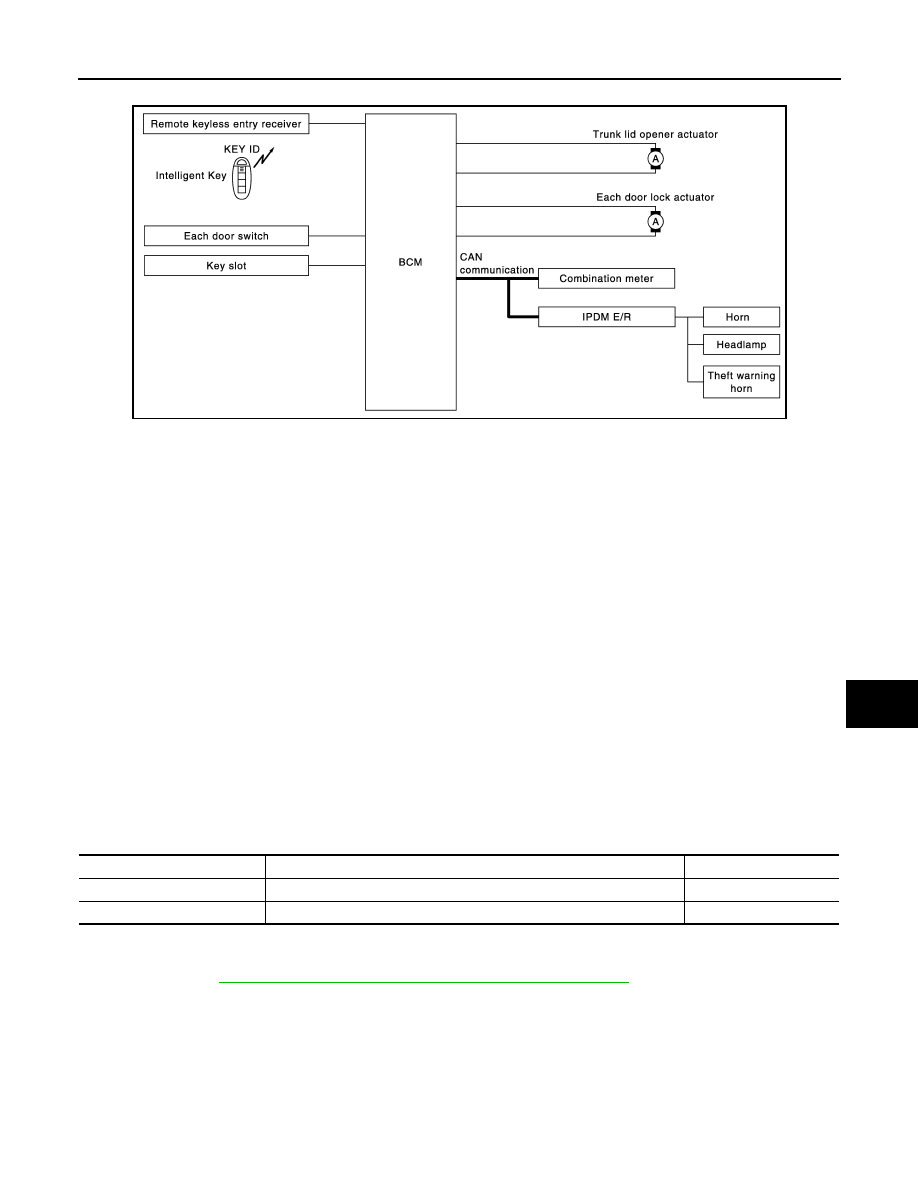

REMOTE KEYLESS ENTRY FUNCTION : System Diagram

INFOID:0000000003794750

REMOTE KEYLESS ENTRY FUNCTION : System Description

INFOID:0000000003794751

The Intelligent Key has the same functions as the remote control entry system. Therefore, it can be used in the
same manner as the remote controller by operating the door lock/unlock button.

OPERATION

Remote keyless entry system controls operation of the following items
• Door lock/unlock
• Trunk lid open
• Hazard and horn reminder
• Auto door lock

OPERATION AREA

To ensure the Intelligent Key works effectively, use within 1 m (3 ft) range of each door, however the operable
range may differ according to surroundings.

DOOR LOCK/UNLOCK FUNCTION

• When door lock/unlock button of the Intelligent Key is pressed, lock signal or unlock signal is transmitted

from Intelligent Key to BCM via remote keyless entry receiver.

• When BCM receives the door lock/unlock signal, it operates door lock actuator, blinks the hazard lamp (lock:

2 time, unlock: 1 times) and inputs horn chirp signal to IPDM E/R at the same time as a reminder.

• IPDM E/R honks horn (lock: 2 time) as a reminder

OPERATION CONDITION

TRUNK LID OPENER FUNCTION

When trunk lid button of Intelligent Key is pressed for more than 1 second, trunk lid open. For a detailed
description, refer to

DLK-21, "TRUNK OPEN FUNCTION : System Description"

.

HAZARD AND HORN REMINDER FUNCTION

When doors are locked or unlocked by Intelligent Key, BCM blinks hazard warning lamps as a reminder.
The hazard and horn reminder has a horn chirp mode (C mode) and a non-horn chirp mode (S mode).

Operating Function of Hazard and Horn Reminder

JMKIA2480GB

Remote controller operation

Operation condition

Operation

Lock

All doors closed

All doors lock

Unlock

Intelligent Key is out of key slot

All doors unlock

DLK-26

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY SYSTEM

Hazard and horn reminder does not operate if any door switch is ON (any door is OPEN).

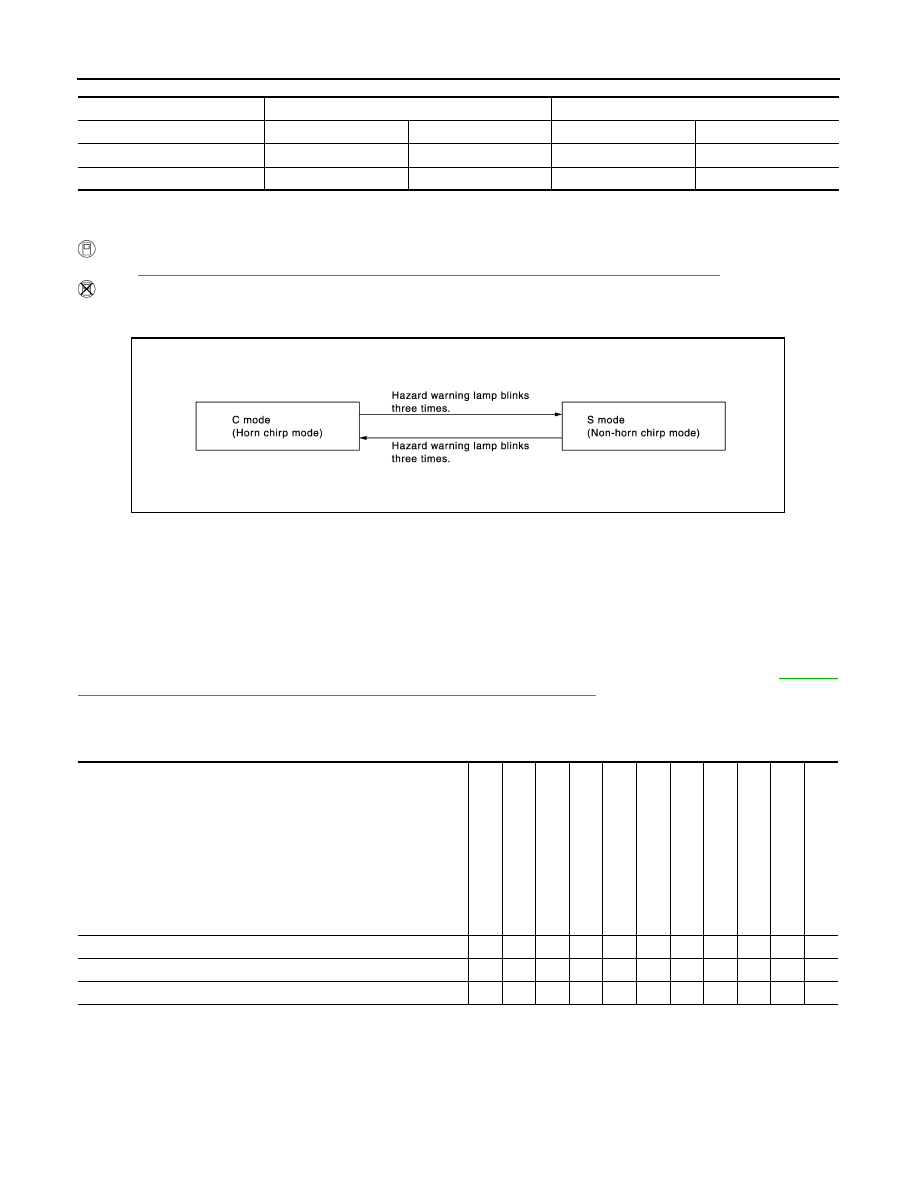

How to Change Hazard and Horn Reminder Mode

With CONSULT-III

Refer to

SEC-22, "INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY)"

.

Without CONSULT-III

When LOCK and UNLOCK signals are sent from the Intelligent Key for more than 2 seconds at the same time,
the hazard and horn reminder mode is changed and hazard warning lamp blinks and horn sounds as follows:

AUTO DOOR LOCK FUNCTION

When all doors are locked, ignition switch is OFF (ignition switch is not pressed) and key switch is OFF (Intel-
ligent Key is not inserted in key slot), doors are unlocked with Intelligent Key button. When BCM does not
receive the following signals within 30 seconds, all doors are locked.
• Door switch is ON (door is opened)
• Door is locked
• Ignition switch is ON
• Key switch is ON (Intelligent Key is inserted in key slot)
Auto door lock mode can be changed by “AUTO LOCK SET” mode in “WORK SUPPORT”. Refer to

SEC-22,

"INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY)"

.

LIST OF OPERATION RELATED PARTS

The operation related parts are marked with

×

.

C mode

S mode

Intelligent Key operation

Lock

Unlock

Lock

Unlock

Hazard warning lamp flash

Twice

Once

Twice

—

Horn sound

Once

—

—

—

JMKIA2755GB

Remote keyless entry functions

Int

e

llig

en

t Ke

y

Ke

y sl

ot

Do

or re

qu

es

t s

w

it

c

h

Doo

r swi

tch

Doo

r lo

ck

 ac

tu

at

or

CAN communication system

BCM

Com

b

in

at

ion

 m

e

te

r

Hazard warning lamp

Horn

IPDM

 E/R

Door lock/unlock function by remote control button

×

×

×

×

×

×

Hazard and horn reminder function

×

×

×

×

×

×

×

Auto door lock function

×

×

×

×
