CONTENTS

CHARGING SYSTEM

BASIC INSPECTION  ....................................

2

DIAGNOSIS AND REPAIR WORKFLOW  ..........

2

Work Flow  .................................................................

2

FUNCTION DIAGNOSIS ...............................

5

CHARGING SYSTEM ..........................................

5

System Diagram ........................................................

5

System Description  ...................................................

5

Component Parts Location ........................................

5

Component Description ............................................

5

POWER GENERATION VOLTAGE VARI-
ABLE CONTROL SYSTEM .................................

7

System Diagram ........................................................

7

System Description  ...................................................

7

Component Parts Location ........................................

7

Component Description .............................................

8

COMPONENT DIAGNOSIS  ..........................

9

B TERMINAL CIRCUIT  .......................................

9

Description ................................................................

9

Diagnosis Procedure .................................................

9

L TERMINAL CIRCUIT (OPEN)  .........................

10

Description ..............................................................

10

Diagnosis Procedure ...............................................

10

L TERMINAL CIRCUIT (SHORT) .......................

12

Description ..............................................................

12

Diagnosis Procedure ...............................................

12

S TERMINAL CIRCUIT  ......................................

13

Description ..............................................................

13

Diagnosis Procedure ...............................................

13

CHARGING SYSTEM .........................................

14

Wiring Diagram - CHARGING SYSTEM -  ...............

14

SYMPTOM DIAGNOSIS  ..............................

17

CHARGING SYSTEM  .......................................

17

Symptom Table  .......................................................

17

PRECAUTION ..............................................

18

PRECAUTIONS .................................................

18

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

18

PREPARATION ...........................................

19

PREPARATION .................................................

19

Special Service Tools  ..............................................

19

ON-VEHICLE MAINTENANCE ....................

20

CHARGING SYSTEM PRELIMINARY IN-
SPECTION ........................................................

20

Inspection Procedure ...............................................

20

ON-VEHICLE REPAIR .................................

21

ALTERNATOR ..................................................

21

Exploded View .........................................................

21

Removal and Installation  .........................................

22

Disassembly and Assembly .....................................

23

Inspection ................................................................

24

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

25

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

25

Alternator .................................................................

25

CHG-2

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000003860762

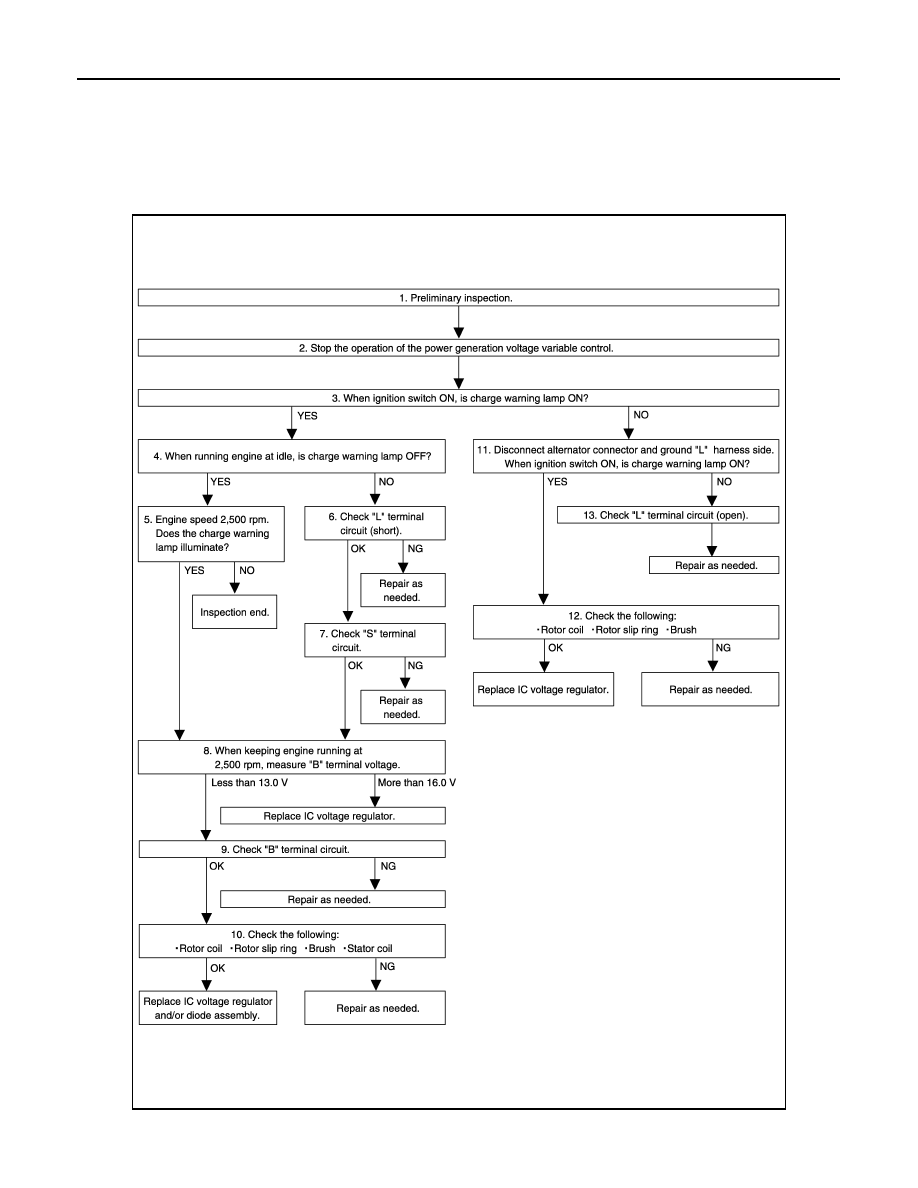

OVERALL SEQUENCE

DETAILED FLOW

JPMIA1008GB

CHG

DIAGNOSIS AND REPAIR WORKFLOW

CHG-3

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

1.

PRELIMINARY INSPECTION

Perform the preliminary inspection. Refer to

CHG-20, "Inspection Procedure"

.

>> GO TO 2.

2.

STOP POWER GENERATION VOLTAGE VARIABLE CONTROL SYSTEM

Stop the operation of the power generation voltage variable control in either of the following procedures.
• After selecting “ENGINE” of “SELECT SYSTEM” using CONSULT-III, set the DUTY value of “ALTERNATOR

DUTY” to 0 % by selecting “ALTERNATOR DUTY” of “Active Test”. Continue “Active Test” until the end of
inspection. (When the DUTY value is 0 or 100 %, the normal power generation is performed according to the
characteristic of the IC regulator of the alternator.)

• Turn the ignition switch OFF, and disconnect the battery current sensor connector. [However, DTC (P1550 -

P1554) of the engine might remain. After finishing the inspection, connect the battery current sensor connec-
tor and erase the self-diagnostic results history of the engine using CONSULT-III.]

>> GO TO 3.

3.

INSPECTION WITH CHARGE WARNING LAMP (IGNITION SWITCH IS ON)

Turn the ignition switch ON.
Does the charge warning lamp illuminate?

YES

>> GO TO 4.

NO

>> GO TO 11.

4.

INSPECTION WITH CHARGE WARNING LAMP (IDLING)

Start the engine and run it at idle.

Does the charge warning lamp turn OFF?

YES

>> GO TO 5.

NO

>> GO TO 6.

5.

INSPECTION WITH CHARGE WARNING LAMP (ENGINE AT 2,500 RPM)

Increase and maintain the engine speed at 2,500 rpm.

Does the charge warning lamp illuminate?

YES

>> GO TO 8.

NO

>> INSPECTION END

6.

“L” TERMINAL CIRCUIT (SHORT) INSPECTION

Check “L” terminal circuit (short). Refer to

CHG-12, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Repair as needed.

7.

“S” TERMINAL CIRCUIT INSPECTION

Check “S” terminal circuit. Refer to

CHG-13, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Repair as needed.

8.

MEASURE “B” TERMINAL VOLTAGE

Engine start. When keeping engine running at 2,500 rpm, measure “B” terminal voltage.

What voltage does the measurement result show?

Less than 13.0 V>>GO TO 9.
More than 16.0 V>>Replace IC regulator.

9.

“B” TERMINAL CIRCUIT INSPECTION

Check “B” terminal circuit. Refer to

CHG-9, "Diagnosis Procedure"

.

Is the inspection result normal?

CHG-4

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

YES

>> GO TO 10.

NO

>> Repair as needed.

10.

DISASSEMBLE AND CHECK ALTERNATOR

Check the following conditions. Refer to

CHG-24, "Inspection"

.

• Rotor coil
• Rotor slip ring
• Brush
• Stator  coil
Are these normal?

YES

>> Replace IC regulator and/or diode assembly.

NO

>> Repair as needed.

11.

INSPECTION WITH CHARGE WARNING LAMP (IGNITION SWITCH IS ON)

1.

Disconnect alternator connector and ground “L” harness side.

2.

Turn the ignition switch ON.

Does the charge warning lamp illuminate?

YES

>> GO TO 12.

NO

>> GO TO 13.

12.

DISASSEMBLE AND CHECK ALTERNATOR

Check the following conditions. Refer to

CHG-24, "Inspection"

.

• Rotor coil
• Rotor slip ring
• Brush

Are these normal?

YES

>> Replace IC regulator.

NO

>> Repair as needed.

13.

CHECK “L” TERMINAL CIRCUIT (OPEN)

Check “L” terminal circuit (open). Refer to

CHG-10, "Diagnosis Procedure"

.

>> Repair as needed.
