Nissan Teana J32. Manual - part 273





BRC-150

< PRECAUTION >

[VDC/TCS/ABS]

PRECAUTIONS

Precaution for Brake Control

INFOID:0000000003767032

• When starting engine or when starting vehicle just after starting engine, brake pedal may vibrate or motor

operating noise may be heard from engine compartment. This is normal condition.

• When an error is indicated by ABS or another warning lamp, collect all necessary information from customer

(what symptoms are present under what conditions) and check for estimate causes before starting diagnos-
tic servicing. Besides electrical system inspection, check brake booster operation, brake fluid level, and oil
leaks.

• If tire size and type are used in an improper combination, or brake pads are not Genuine NISSAN parts,

stopping distance or steering stability may deteriorate.

• ABS might be out of order or malfunctions by putting a radio (wiring inclusive), an antenna and a lead-in wire

near the control unit.

• If aftermarket parts (car stereo, CD player, etc.) have been installed, check for incidents such as harness

pinches, open circuits, and improper wiring.

• VDC system may not operate normally or a VDC OFF indicator lamp or SLIP indicator lamp may light.
- When replacing the following parts with parts other than genuine parts or making modifications: Suspension

related parts (shock absorber, spring, bushing, etc.), tires, wheels (other than specified sizes), brake-related
parts (pad, rotor, caliper, etc.), engine-related parts (muffler, ECM, etc.) and body reinforcement-related parts
(roll bar, tower bar, etc.).

- When driving with worn or deteriorated suspension, tires and brake-related parts.

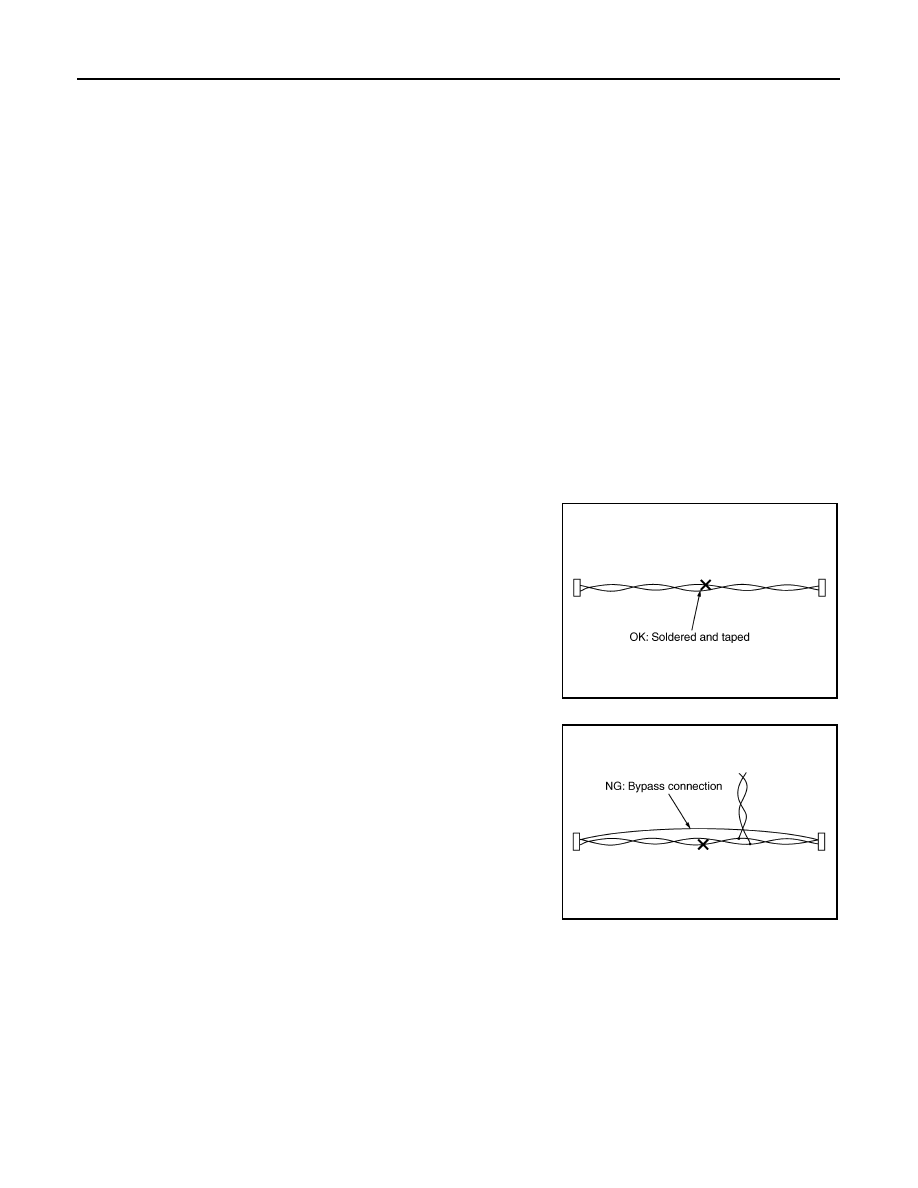

Precautions for Harness Repair

INFOID:0000000003843440

COMMUNICATION LINE

• Solder the repaired area and wrap tape around the soldered area.

NOTE:
A fray of twisted lines must be within 110 mm (4.33 in).

• Bypass connection is never allowed at the repaired area.

NOTE:
Bypass connection may cause communication error as spliced
wires that are separate from the main line or twisted lines lose
noise immunity.

• Replace the applicable harness as an assembly if error is detected

on the shield lines of communication line.

SKIB8766E

SKIB8767E

WHEEL SENSOR

BRC-151

< ON-VEHICLE REPAIR >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

ON-VEHICLE REPAIR

WHEEL SENSOR

FRONT WHEEL SENSOR

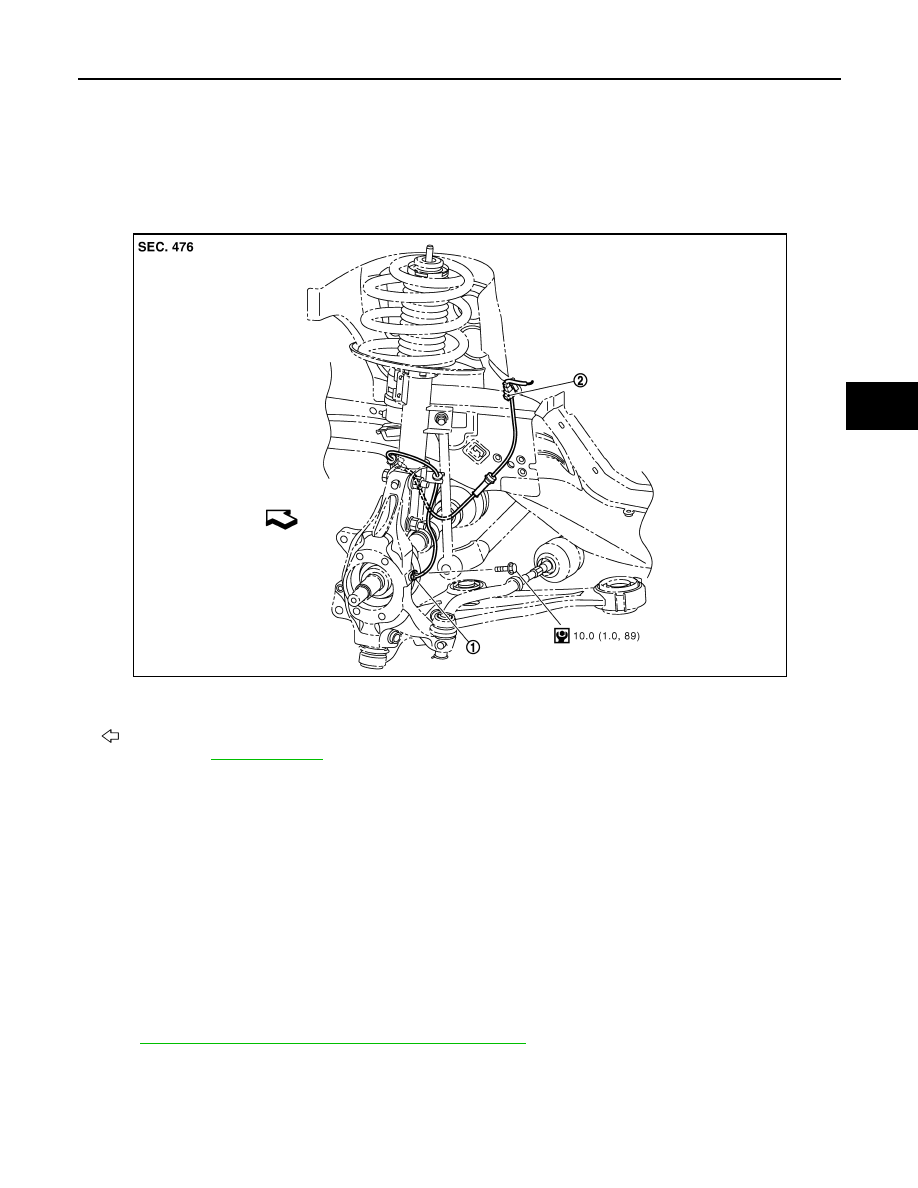

FRONT WHEEL SENSOR : Exploded View

INFOID:0000000003767300

NOTE:
The above figure shows left side. Right side is the mirror image.

FRONT WHEEL SENSOR : Removal and Installation

INFOID:0000000003767301

REMOVAL

Be careful with the following when removing sensor.

CAUTION:

• Do not twist sensor harness as much as possible, when removing it. Pull sensors out without pulling

sensor harness.

• Be careful to avoid damaging sensor edges or rotor teeth. Remove wheel sensor first before remov-

ing front or rear wheel hub. This is to avoid damage to sensor wiring and loss of sensor function.

INSTALLATION

Be careful with the following when installing wheel sensor. Tighten installation bolts to the specified torques.
Refer to

BRC-151, "FRONT WHEEL SENSOR : Exploded View"

.

CAUTION:

• When installing, make sure there is no foreign material such as iron chips on and in the mounting

hole of the wheel sensor. Make sure no foreign material has been caught in the sensor rotor. Remove
any foreign material and clean the mount.

1.

Front LH wheel sensor

2.

Front LH wheel sensor connector

: Vehicle front

Refer to GI section

GI-4, "Components"

 for symbol marks in the figure.

JSFIA0221GB

BRC-152

< ON-VEHICLE REPAIR >

[VDC/TCS/ABS]

WHEEL SENSOR

• Completely push in rubber grommets of strut bracket and body bracket until they lock when install-

ing wheel sensor so that the wheel sensor harness will not be twisted. Install grommet groove onto
bracket with orange line on the harness facing bracket opening (mounting hole). There should be no
twists in the harness when installed.

REAR WHEEL SENSOR

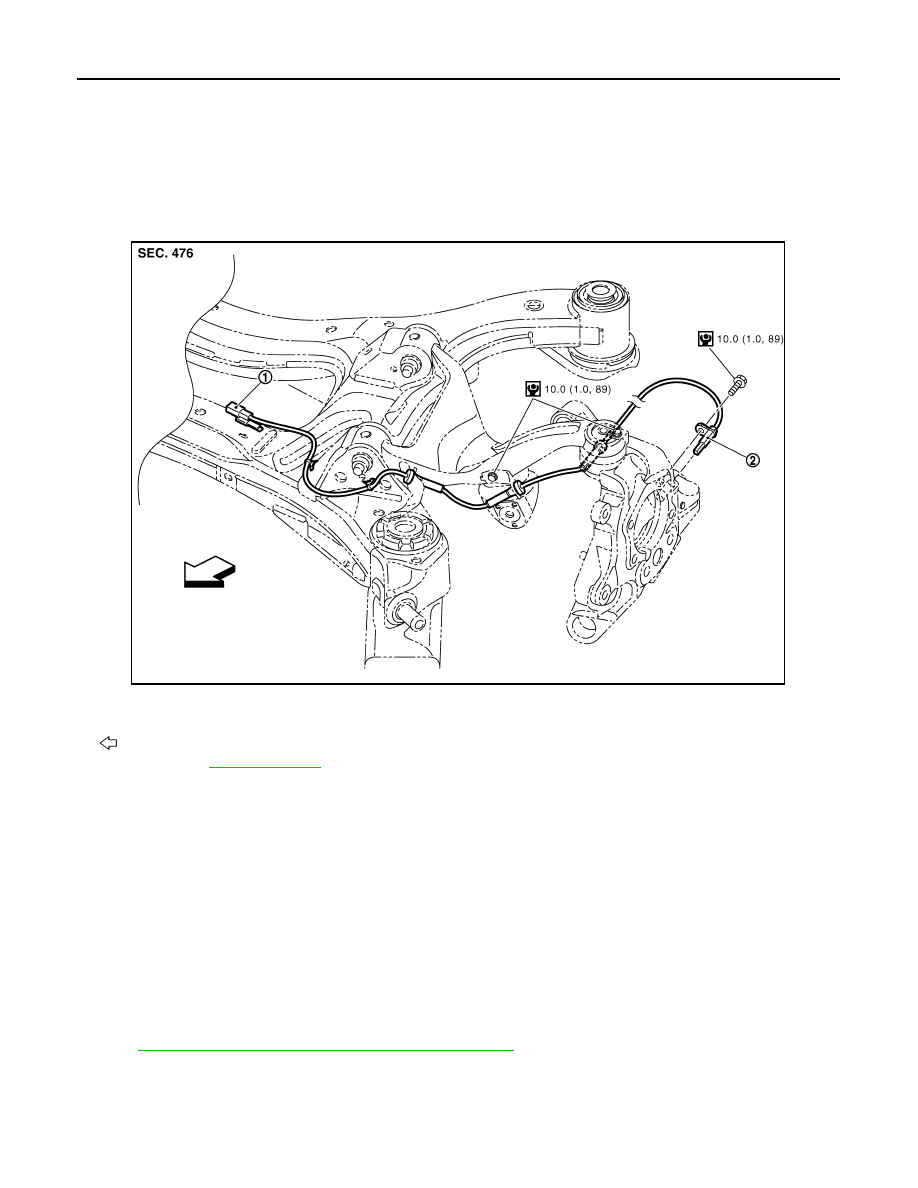

REAR WHEEL SENSOR : Exploded View

INFOID:0000000003767302

NOTE:
The above figure shows left side. Right side is the mirror image.

REAR WHEEL SENSOR : Removal and Installation

INFOID:0000000003767303

REMOVAL

Be careful with the following when removing sensor.

CAUTION:

• Do not twist sensor harness as much as possible, when removing it. Pull sensors out without pulling

sensor harness.

• Be careful to avoid damaging sensor edges or rotor teeth. Remove wheel sensor first before remov-

ing front or rear wheel hub. This is to avoid damage to sensor wiring and loss of sensor function.

INSTALLATION

Be careful with the following when installing wheel sensor. Tighten installation bolts to the specified torques.
Refer to

BRC-152, "REAR WHEEL SENSOR : Exploded View"

.

CAUTION:

When installing, make sure there is no foreign material such as iron chips on and in the mounting hole
of the wheel sensor. Make sure no foreign material has been caught in the sensor rotor. Remove any
foreign material and clean the mount.

1.

Rear LH wheel sensor connector

2.

Rear LH wheel sensor

: Vehicle front

Refer to GI section

GI-4, "Components"

 for symbol marks in the figure.

JSFIA0222GB

SENSOR ROTOR

BRC-153

< ON-VEHICLE REPAIR >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

SENSOR ROTOR

FRONT SENSOR ROTOR

FRONT SENSOR ROTOR : Exploded View

INFOID:0000000003767304

Refer to

FAX-8, "Exploded View"

.

FRONT SENSOR ROTOR : Removal and Installation

INFOID:0000000003767305

REMOVAL

Sensor rotor cannot be disassembled. Remove the sensor rotor together with hub bearing assembly. Refer to

FAX-8, "Exploded View"

.

INSTALLATION

Sensor rotor cannot be disassembled. Install the sensor rotor together with hub bearing assembly. Refer to

FAX-8, "Exploded View"

.

REAR SENSOR ROTOR

REAR SENSOR ROTOR : Exploded View

INFOID:0000000003767306

Refer to

RAX-4, "Exploded View"

.

REAR SENSOR ROTOR : Removal and Installation

INFOID:0000000003767307

REMOVAL

Sensor rotor cannot be disassembled. Remove the sensor rotor together with hub bearing assembly. Refer to

RAX-4, "Exploded View"

.

INSTALLATION

Sensor rotor cannot be disassembled. Install the sensor rotor together with hub bearing assembly. Refer to

RAX-4, "Exploded View"

.
