Nissan Teana J32. Manual - part 201

AV

MULTIFUNCTION SWITCH

AV-659

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

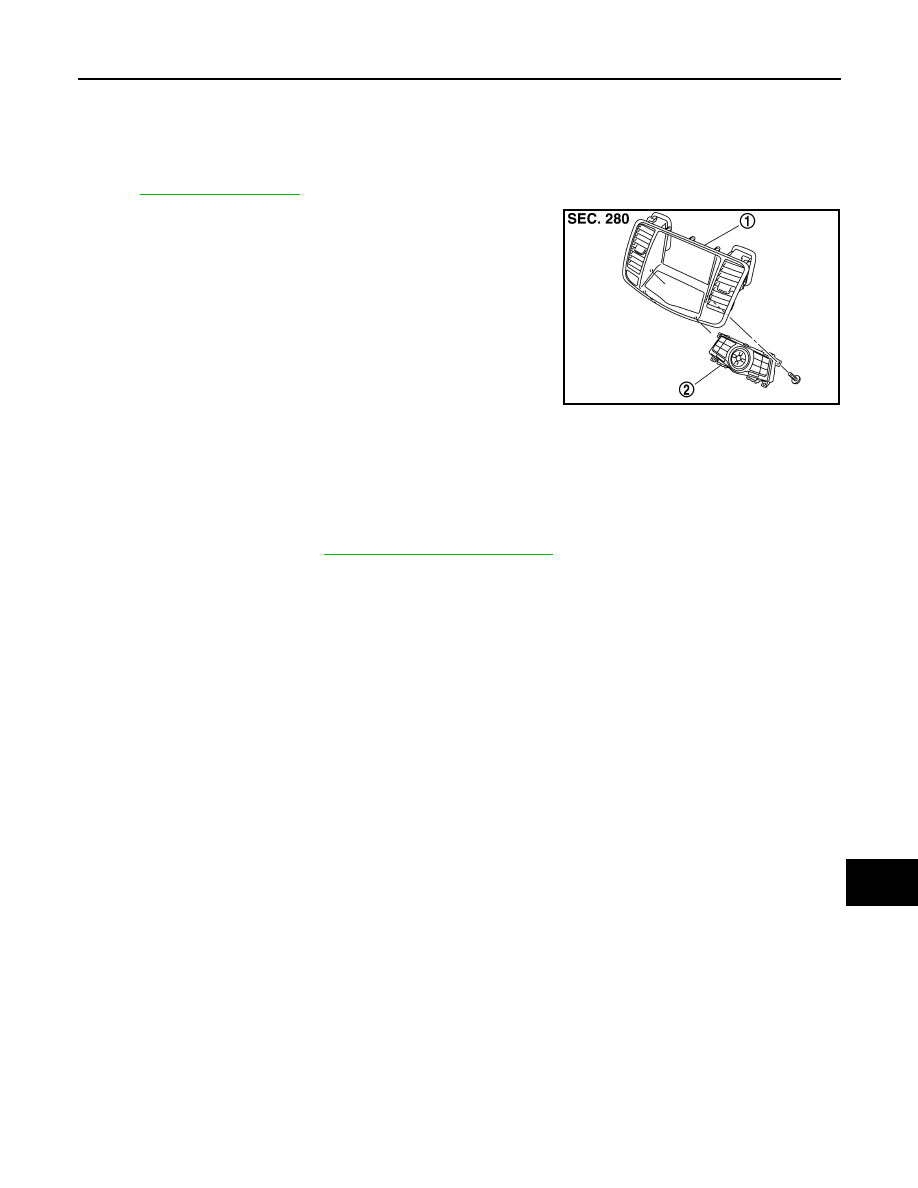

MULTIFUNCTION SWITCH

Exploded View

INFOID:0000000003766003

REMOVAL

Refer to

IP-11, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000003766004

REMOVAL

1.

Remove cluster lid D. Refer to

IP-12, "Removal and Installation"

.

2.

Remove multifunction switch mounting screws.

3.

Remove multifunction switch.

INSTALLATION

Installation is the reverse order of removal.

JPNIA1052ZZ

1.

Cluster lid D

2.

Multifunction switch

AV-660

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

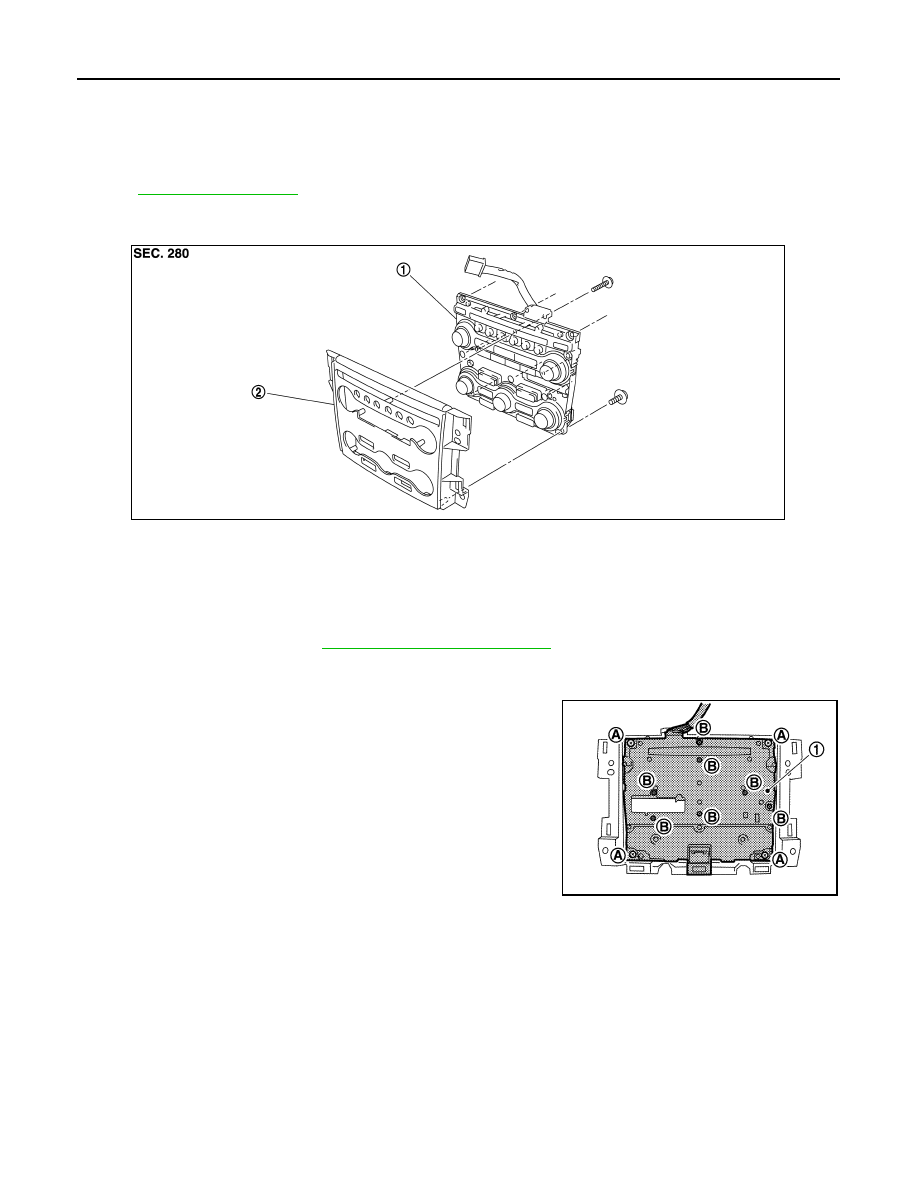

PRESET SWITCH

PRESET SWITCH

Exploded View

INFOID:0000000003766005

REMOVAL

Refer to

IP-11, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000003766006

REMOVAL

1.

Remove cluster lid C. Refer to

IP-12, "Removal and Installation"

.

2.

Remove preset switch mounting screws.

3.

Remove preset switch.

INSTALLATION

Installation is the reverse order of removal.
NOTE:
When installing preset switch, do not allow the print wire that connects preset switch and multifunction switch
to get caught in between AV control unit and preset switch.

1.

Preset switch

2.

Cluster lid C

JPNIA1044ZZ

1.

Preset switch

A.

Screw

B.

Screw

JPNIA1045ZZ

AV

REAR CONTROL SWITCH

AV-661

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

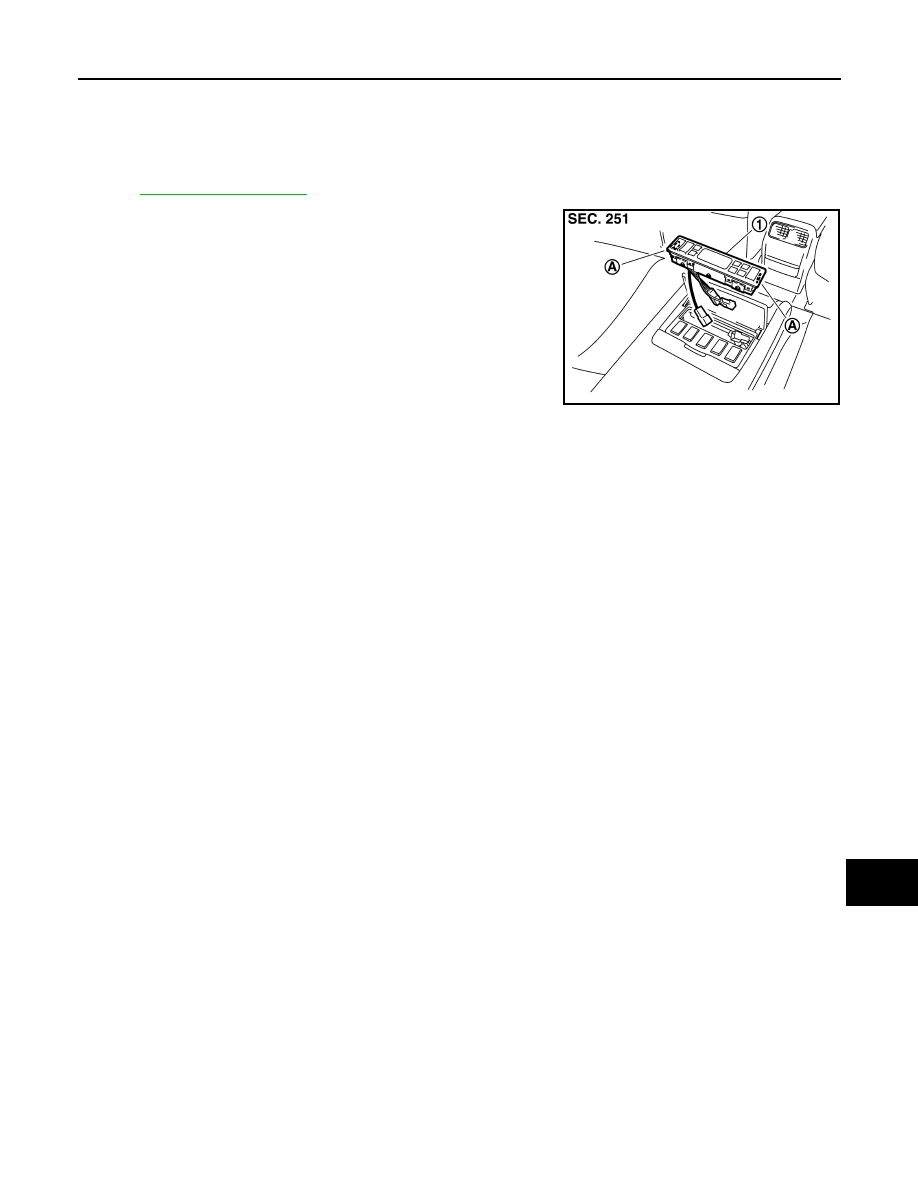

REAR CONTROL SWITCH

Exploded View

INFOID:0000000003824769

REMOVAL

Refer to

SE-98, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000003824770

REMOVAL

1.

Remove rear control switch, stretching pawls of armrest assembly.

2.

Disconnect rear control switch connector.

3.

Remove rear control switch.

INSTALLATION

Installation is the reverse order of removal.

JPNIA1046ZZ

1.

Rear control switch

A.

Clip

AV-662

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

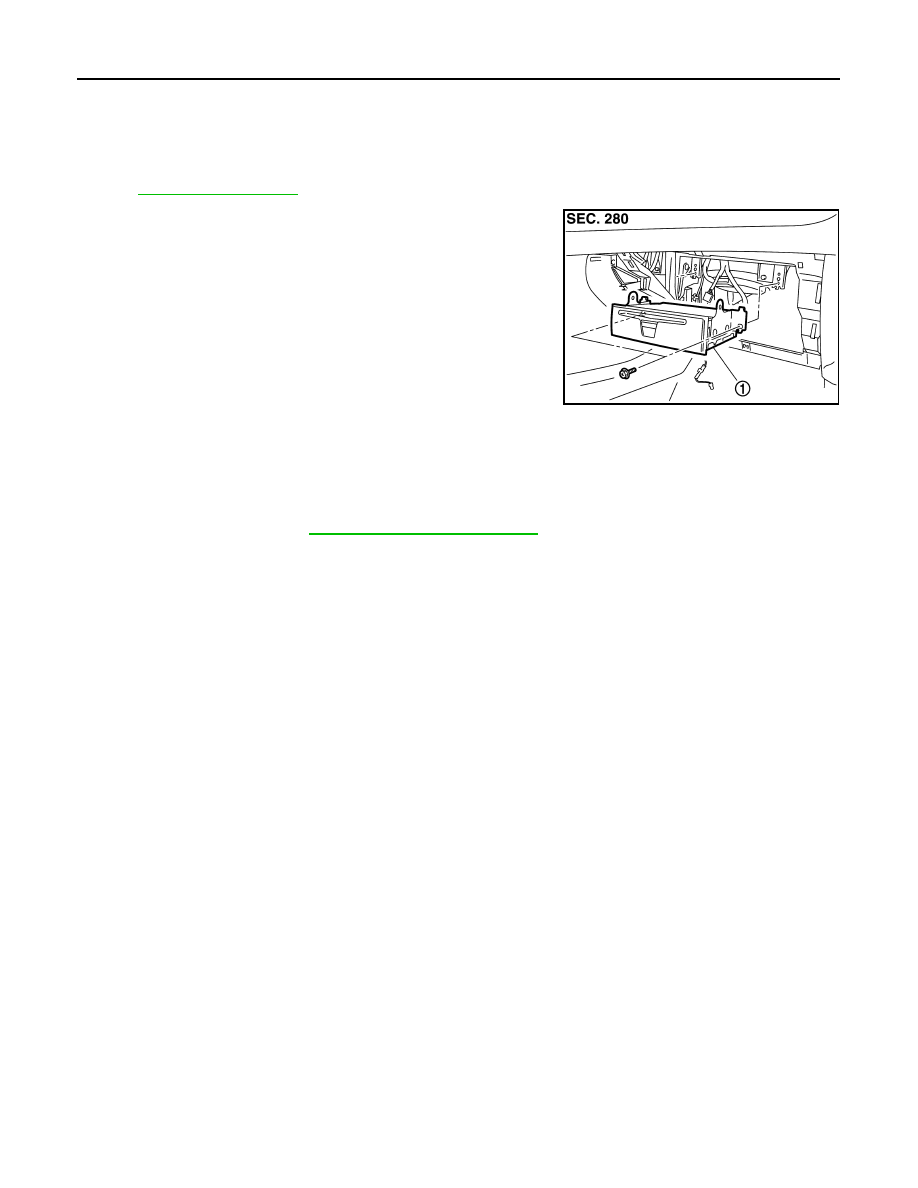

DVD PLAYER

DVD PLAYER

Exploded View

INFOID:0000000003824765

REMOVAL

Refer to

IP-11, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000003824766

REMOVAL

1.

Remove grove box. Refer to

IP-12, "Removal and Installation"

2.

Remove DVD player mounting screw, disconnect the DVD player connector.

3.

Remove DVD player.

INSTALLATION

Installation is the reverse order of removal.

JPNIA1047ZZ

1.

DVD player
